三星7系列CHRONOS770Z5E的的S01DE笔记本测评
For the original German review, see here.
We have already tested the larger 17-inch 770Z7E-S01DE model of the Samsung Series 7 Chronos brand at length. Now, it's the little brother's turn, a 15.6-inch multimedia laptop which is supposed to be in no way inferior to its larger sibling. Build quality is great, as the Samsung Series 7 Chronos 770Z5E-S01DE is wrapped into a slim metal case with a premium feel. It definitely stands out of the crowd when compared to other multimedia laptops, but with a recommended retail price (RRP) of $1700 it is no cheap buy.
One of its most important features is the matte 15.6-inch display with a Full HD 1080p resolution of 1920x1080 pixels. Samsung promises 300 nits of brightness for the screen. The 770Z7E's inner specs are every bit as impressive. The laptop is driven by an Intel Core i7-3635QM quad-core processor with a base clock speed of 2.4 GHz. It comes equipped with a dedicated GPU with 2 GB of GDDR5 memory - the AMD Radeon HD 8870M - 8 GB of DDR3 memory and a 2.5-inch HDD capable of storing 1 TB of data. So far, Samsung doesn't offer an SSD variant. Windows 8 (64-bit) was pre-installed on our test device whereas the model 770Z5E-S02DE comes with Windows 8 Professional.
No other variants of Samsung's newest 15.6-inch Series 7 Chronos are available. It would have been nice to see some more variety - like Samsung chose to do with the 17-inch model (more about that later). Still, the 770Z5E-S01DE is a very interesting notebook which will have to prove itself in the following review.
对于的德国原装审查，在这里看到。
我们已经测试了更大的17英寸的770Z7E S01DE模型三星Series7 Chronos的品牌长。现在，它的小弟弟反过来，15.6英寸多媒体笔记本电脑，应该是其较大的兄弟丝毫不逊色。建设质量是伟大的，因为三星Series7 Chronos的770Z5E S01DE纤薄金属外壳包裹成溢价的感觉。它肯定脱颖而出的人群相比其他多媒体笔记本电脑，但约1700美元的建议零售价（RRP），它是没有便宜的买。
其最重要的特点之一是磨砂具有全高清1080p分辨率为1920×1080像素的15.6英寸显示屏。三星承诺300尼特的亮度屏幕。本770Z7E的内部规格的每一点令人印象深刻。这种笔记本电脑是由英特尔酷睿i7-3635QM四核处理器，时钟速度为2.4 GHz基地带动。它配备配备了一个专用的GPU与2 GB的GDDR5显存 - 的AMD Radeon HD8870M - 8 GB的DDR3内存和一个2.5英寸硬盘，能够存储1 TB的数据。到目前为止，三星不提供一个SSD变种。 Windows 8中（64位）被预装在我们的测试设备，而的模型770Z5E S02DE自带的Windows8专业版。
三星最新的15.6英寸7系列Chronos的无其他变种。这本来是很高兴看到一些更多的品种 - 如三星的17英寸机型（稍后详细说明）选择了做。尽管如此，770Z5E S01DE是一个非常有趣的笔记本电脑将不得不证明自己在下面的审查。

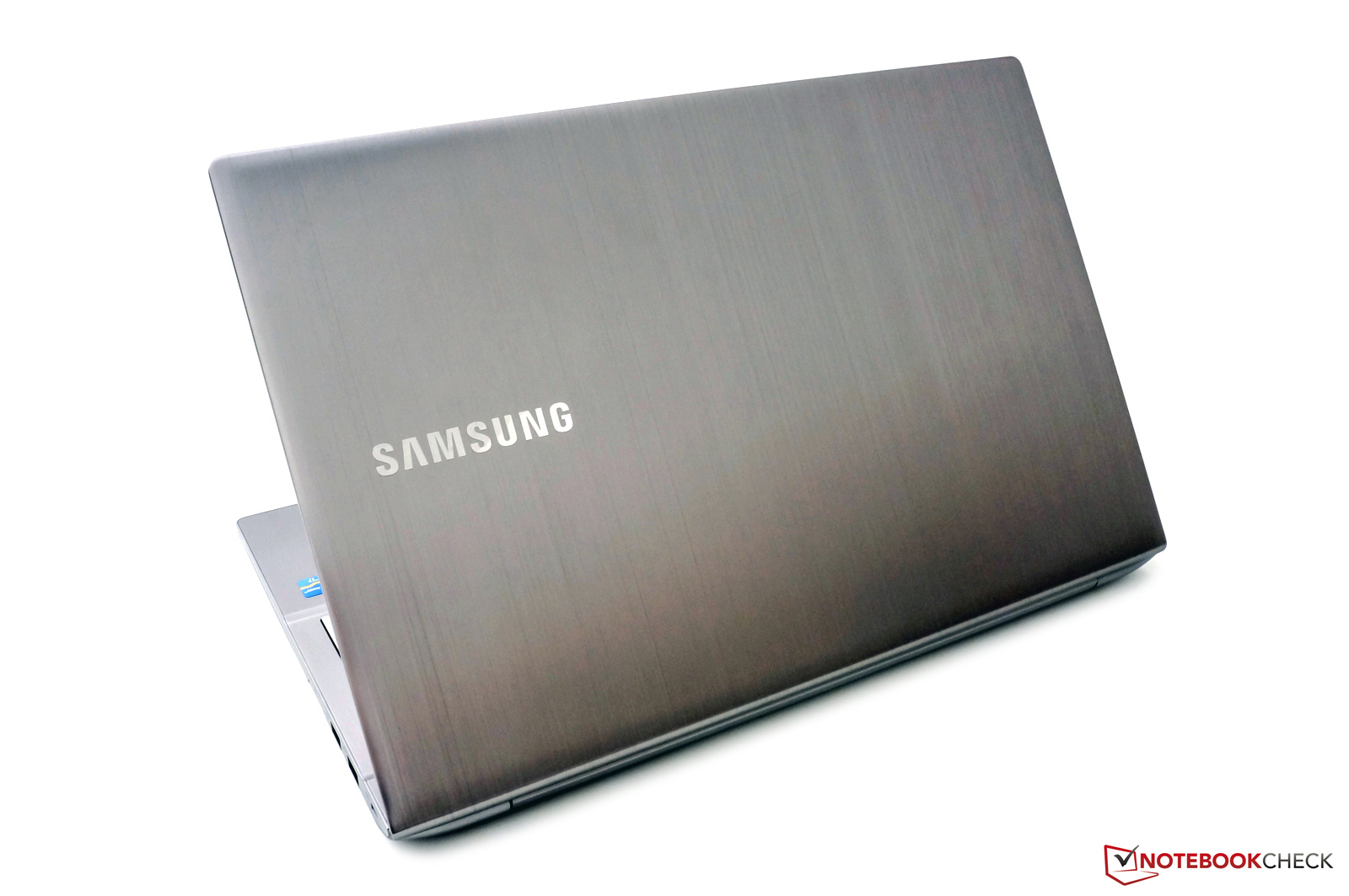

Case

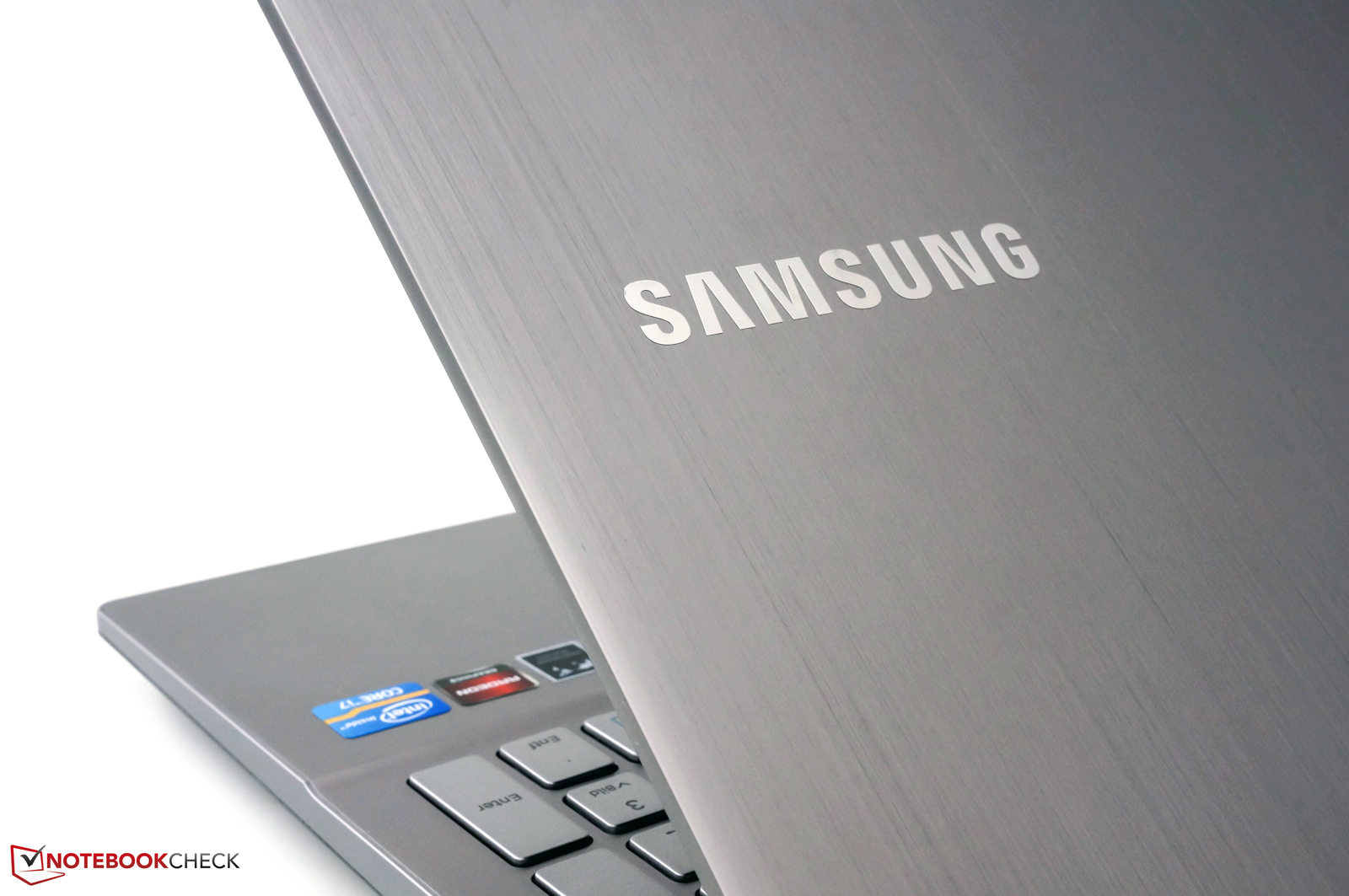

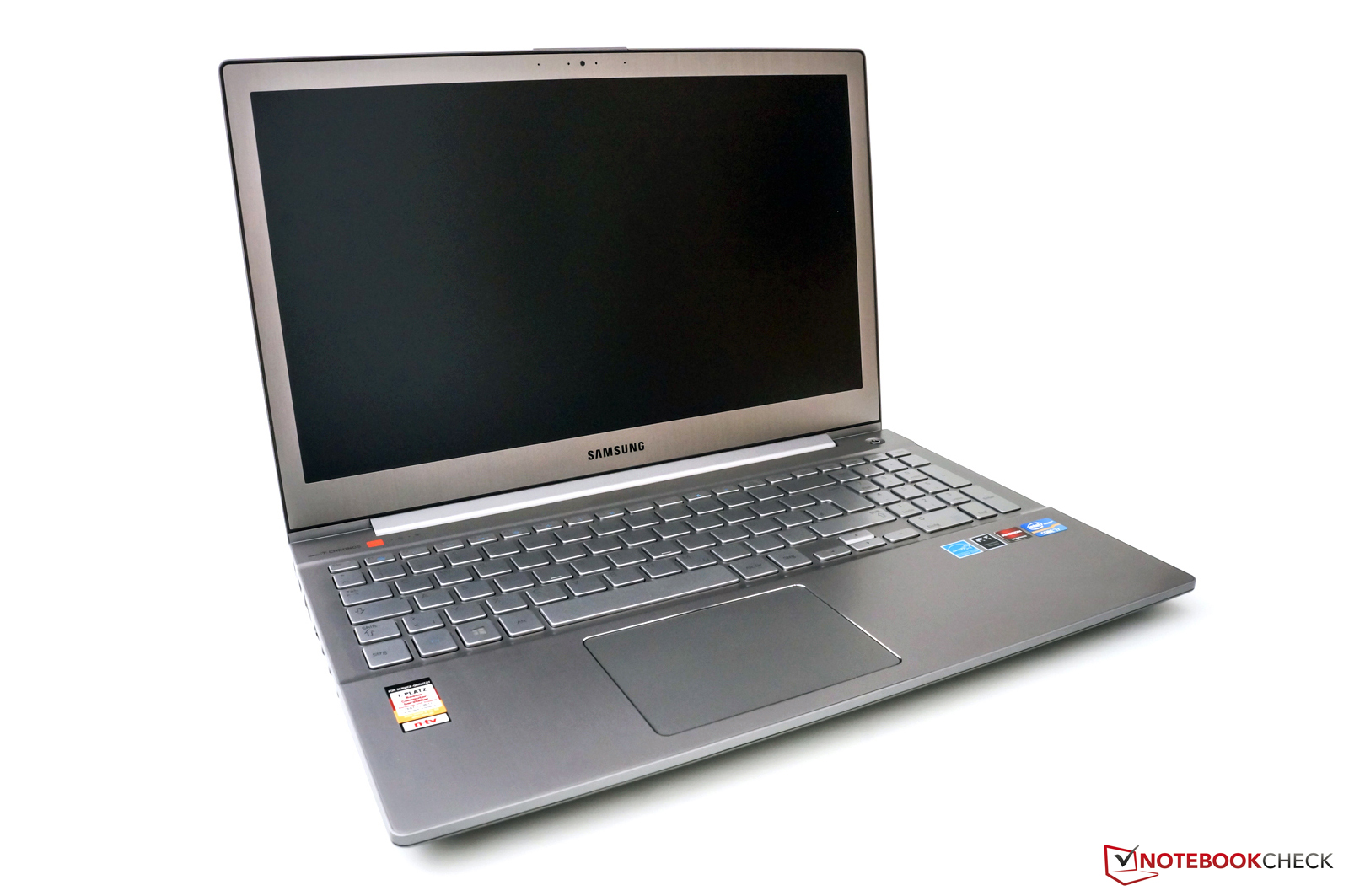

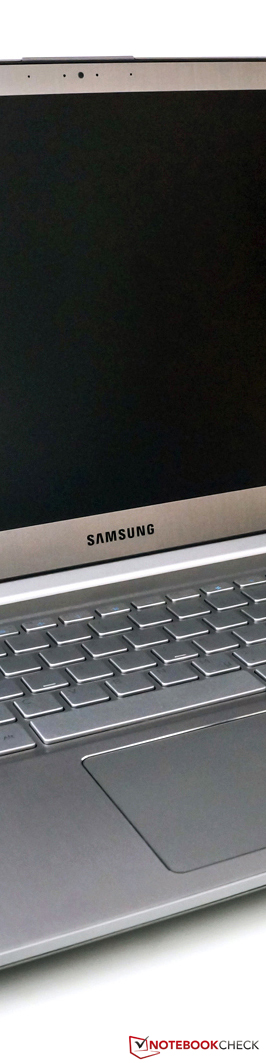

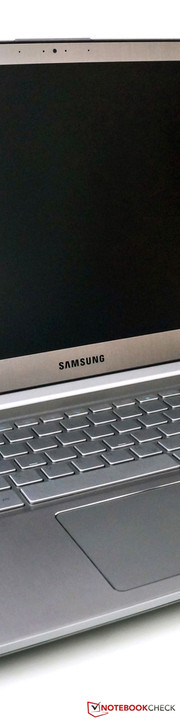

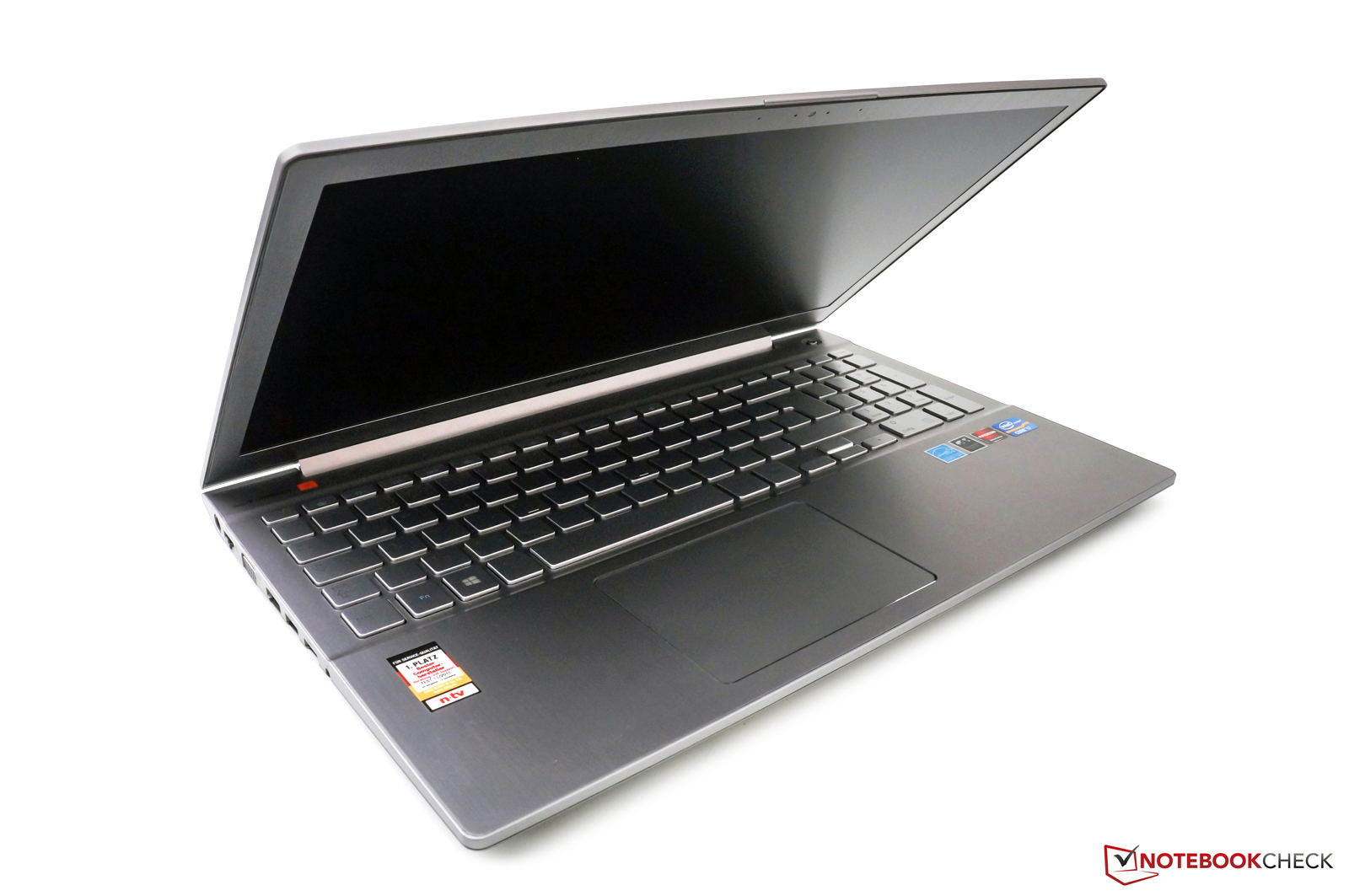

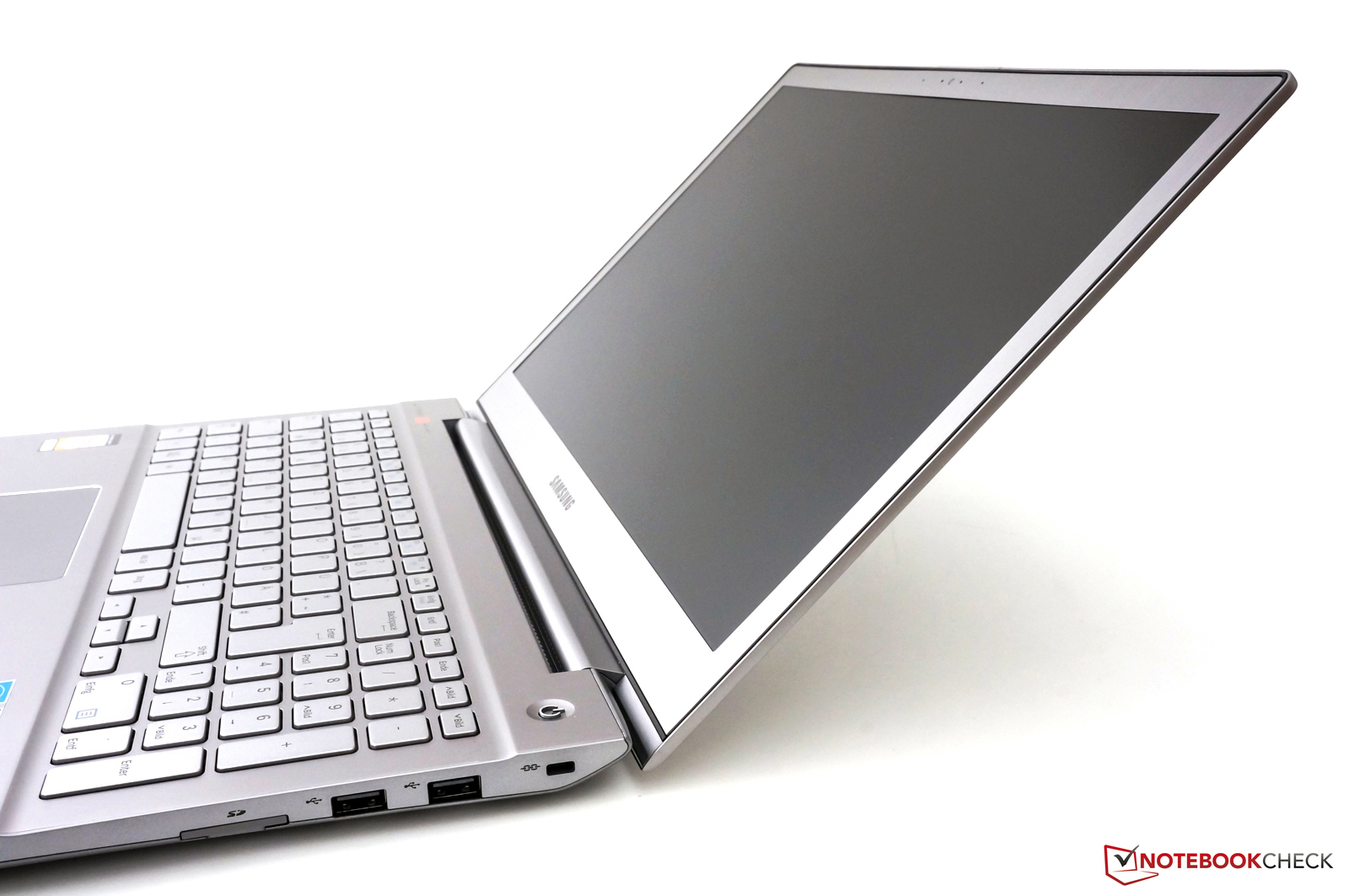

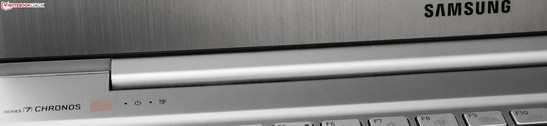

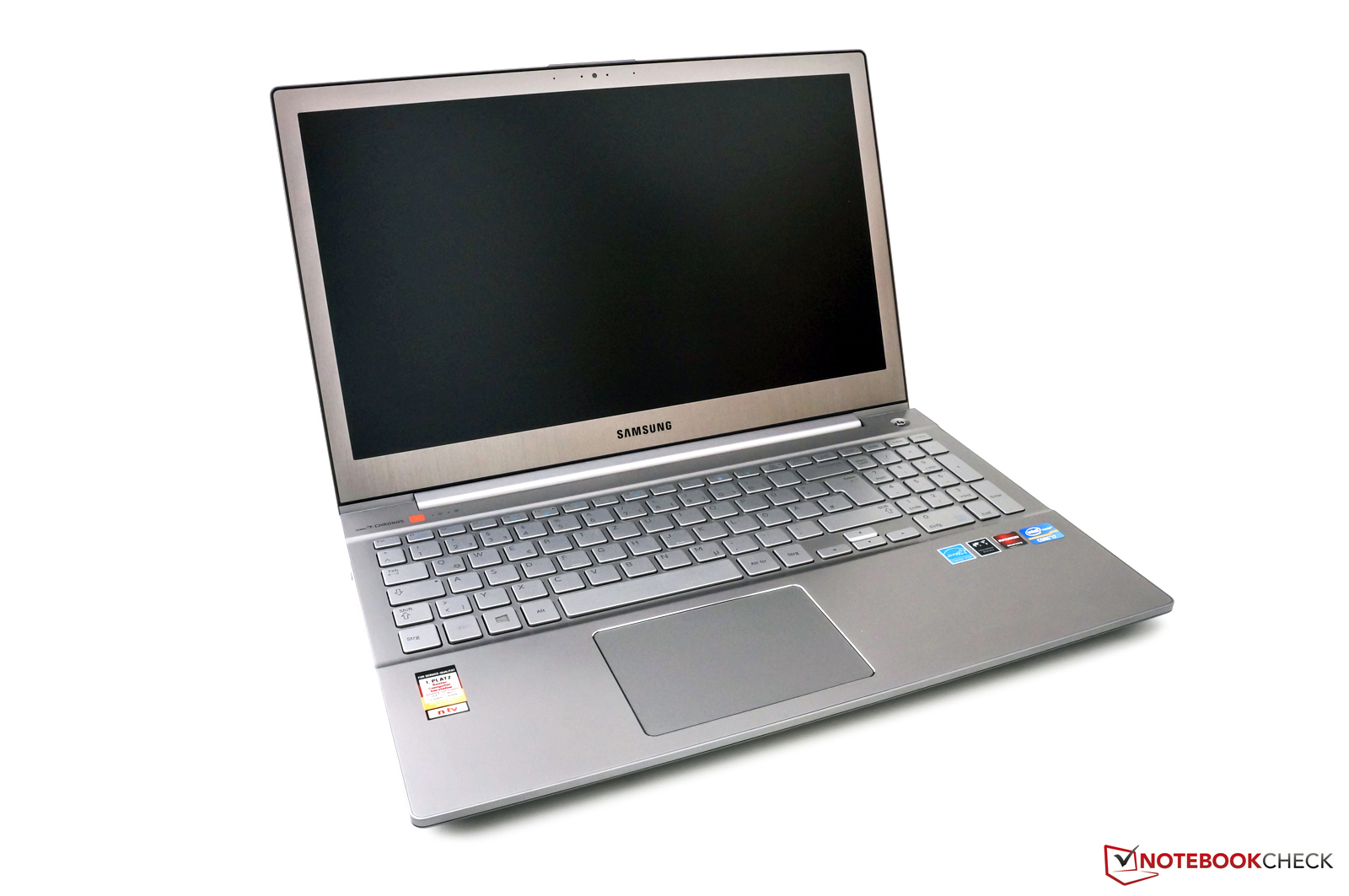

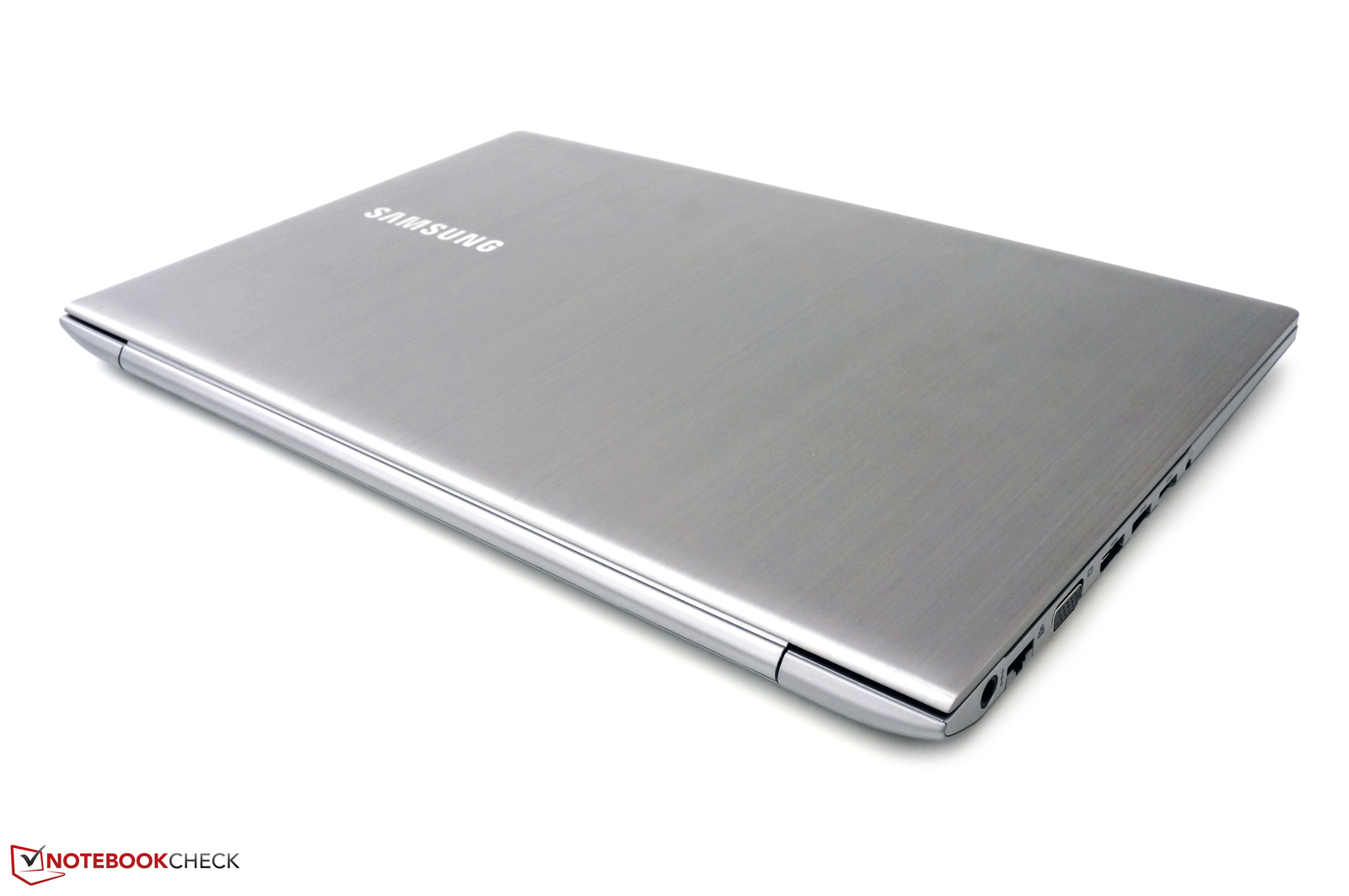

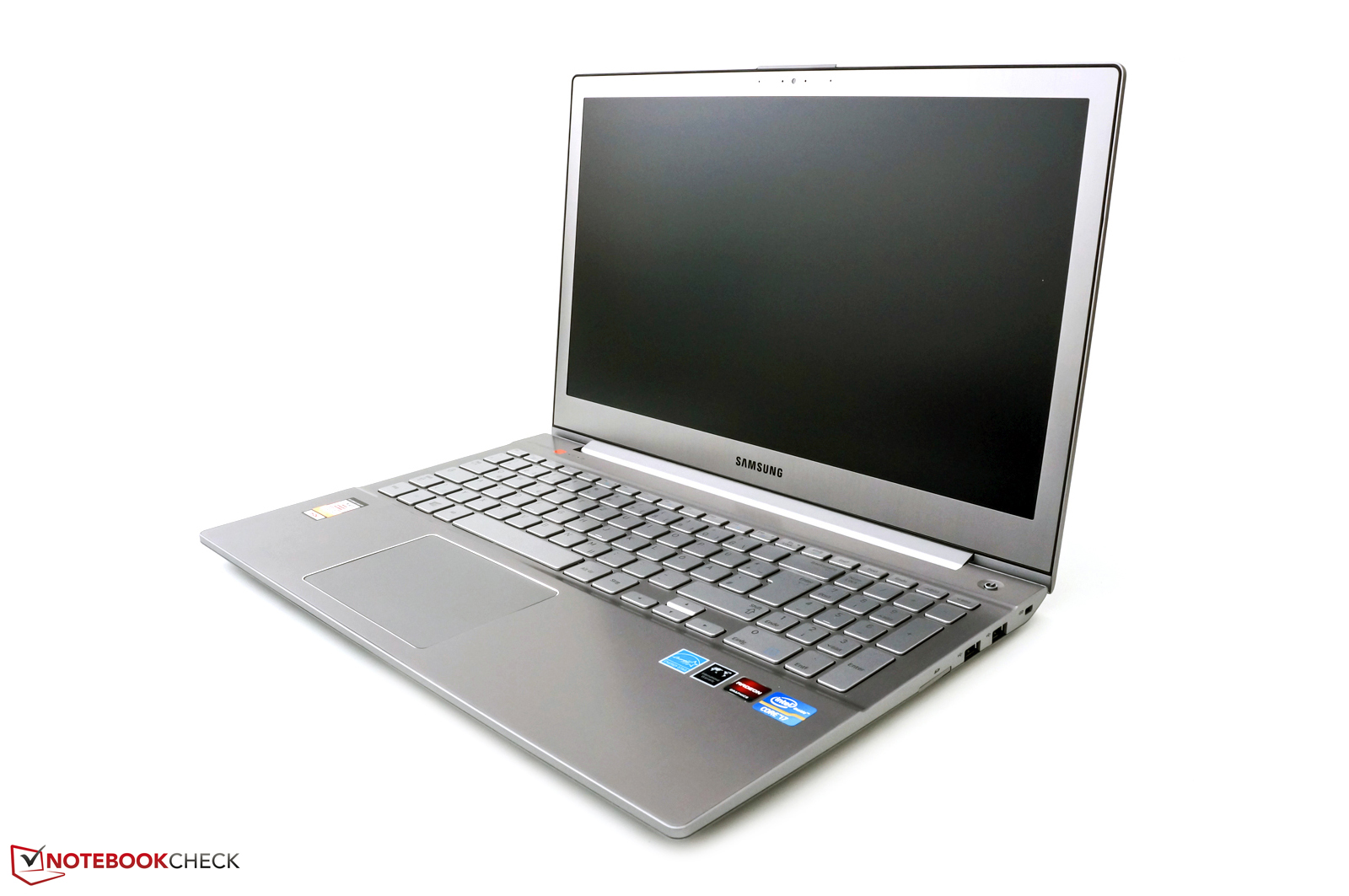

During unpacking, we are immediately greeted by a well-designed laptop. Samsung has put some effort into a more modern look when compared to the 700Z5C. The display lid, the frame around the screen and the inner surfaces next to its keyboard are made from brushed aluminum. Our first impression is quite favorable, both optically as well as haptically. Then again, the underside consists of mere plastic, but at least it is fingerprint-proof due to its matte surfaces. Dust and dirt are also rather unobtrusive because of its silverish color. Generally speaking, there is no room for criticism concerning its build quality when compared to its larger sibling. Everything has been processed with care and the gaps between the different components are very even.
Stability is decent. The base units sags only when considerable pressure is applied, something which doesn't happen during real life usage. The display lid can be skewed despite its aluminum layer and some cracking can be heard as soon as too much force is exerted. Still, no distortions occur on the screen itself. The centered display hinge holds the display lid firmly in place, but it can still be opened with just one hand. The maximum opening angle of 135 degrees should be enough for most users. One disadvantage lies with a visible bobbing of the display due to its sheer weight.
Due to its high-quality build and the materials used, the Samsung 770Z5E is able to secure a place in the upper third of all multimedia notebooks. However, it does not reach the near-perfection levels of an Apple MacBook Pro 15 Retina. The Samsung laptop weighs 2.37 kilograms while measuring 376 x 250 x 21 millimeters (W x D x H), thus being noticeably heavier and thicker than its 2.03-kilogram competitor from Apple. Cheaper devices like the Asus VivoBook S550CM-CJ038H tend to be heavier at 2.63 kilograms and even the newer Asus N56VB-S4050H weighs 2.68 kilograms. When compared to its bigger brother, the 17-inch Samsung Series 7 Chronos 770Z7E-S01DE (3 kilograms including its battery), the 770Z5E remains 600 grams lighter.
拆包过程中，我们会立即映入眼帘的是一个精心设计的笔记本电脑。三星已经把一些努力成为一个更加现代的外观相比700Z5C。的显示盖，在屏幕周围的帧和它的键盘旁边的内表面是由拉丝铝。我们的第一印象是相当有利的，同时从光学和触觉。话又说回来，底部由单纯的塑料，但至少它是由于其磨砂表面防指纹。灰尘和污垢也相当不显眼的，因为其银白色的颜色。一般来说，没有足够的空间相比，其较大的兄弟姐妹时，其建设质量的批评。一切都已经照顾和处理的不同组件之间的差距是非常均匀的。
稳定是体面的。该基地单位骤降，只有当施加相当大的压力，这不会发生在现实生活中使用的东西。显示屏盖可以尽管其铝层倾斜，只要用力过猛被施加，可以听到一些开裂。然而，出现在屏幕上本身没有扭曲。中心的显示屏铰链保持显示盖牢牢的地方，但它仍然可以只用一只手打开。最大开启角度为135度，对于大多数用户来说应该是足够的。一个缺点在于一个可见的颠颠的显示，由于其庞大的重量。
由于其高品质的构建和使用的材料，三星770Z5E的是能够确保所有的多媒体笔记本电脑的上三分之一的地方。然而，它没有达到接近完美的苹果MacBook Pro 15视网膜水平。三星笔记本电脑重量为2.37公斤，同时测量376×250×21毫米（宽x深x高），从而明显加重，厚度比其2.03公斤的从苹果的竞争对手。像华硕VivoBook的S550CM的CJ038H更便宜的设备往往是在2.63公斤重，甚至新的华硕N56VB S4050H重达2.68公斤。当大哥哥相比，17英寸的三星Series 7 Chronos的770Z7E S01DE（3公斤，包括它的电池），的770Z5E保持600克更轻。

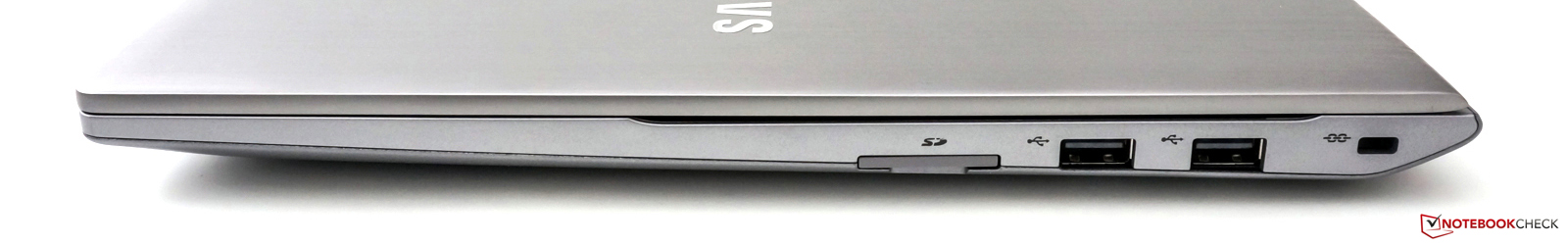

Connectivity
A lot has changed back and forth during the various design phases, especially around the sides of the case. This becomes clear in comparison with the 700Z5C and the 700Z5A from 2011. For example, no optical drive remains. Instead, a full-sized VGA port and four USB ports (2x USB 3.0 & 2x USB 2.0) are on board. These are complemented by an RJ-45 Ethernet port, a card reader, the HDMI output and a Kensington lock which has moved to the right hand side of the laptop (together with the 4-in-1 card reader). All in all, this is quite a variety considering the laptop's size and slimness.

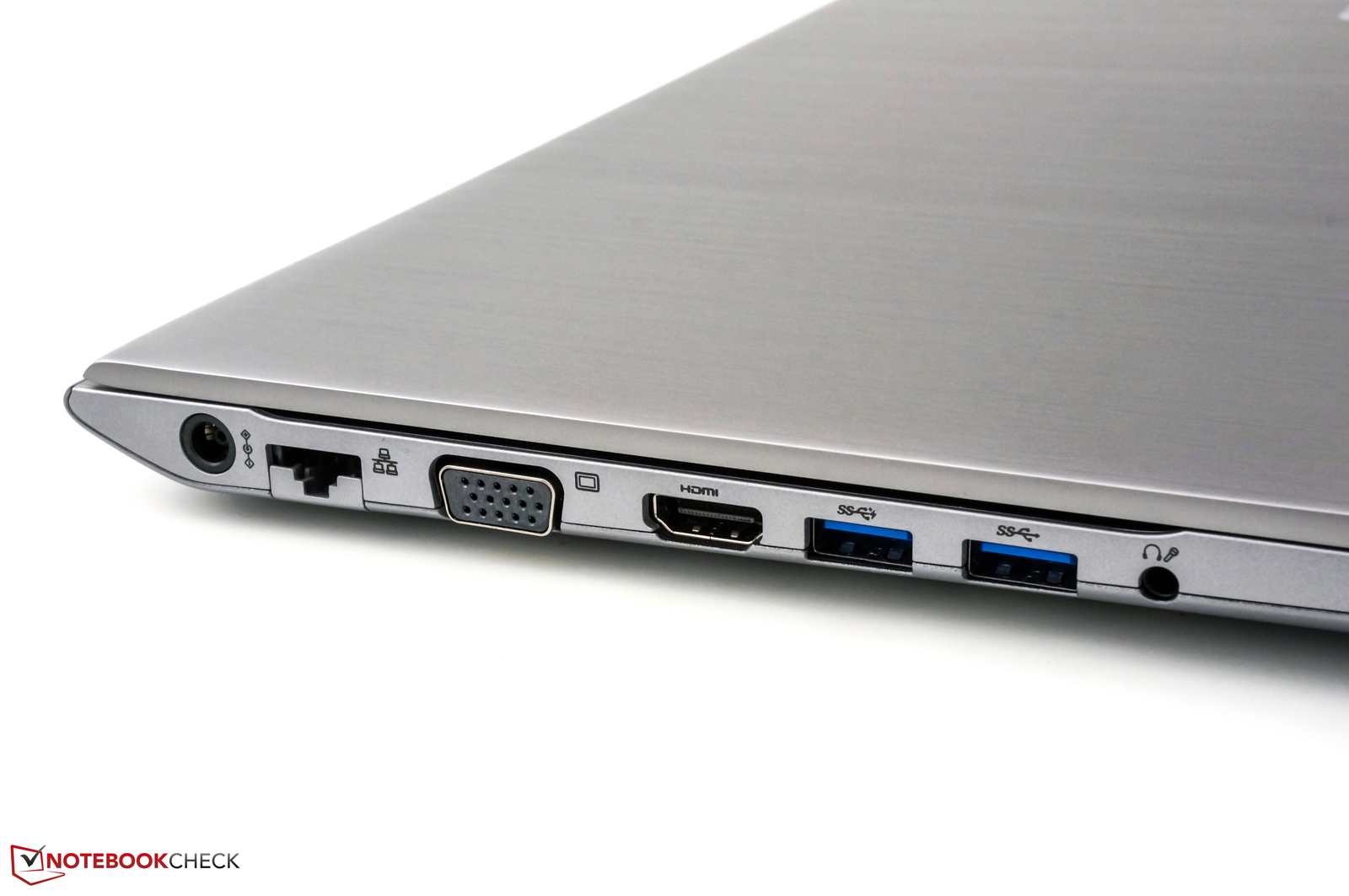

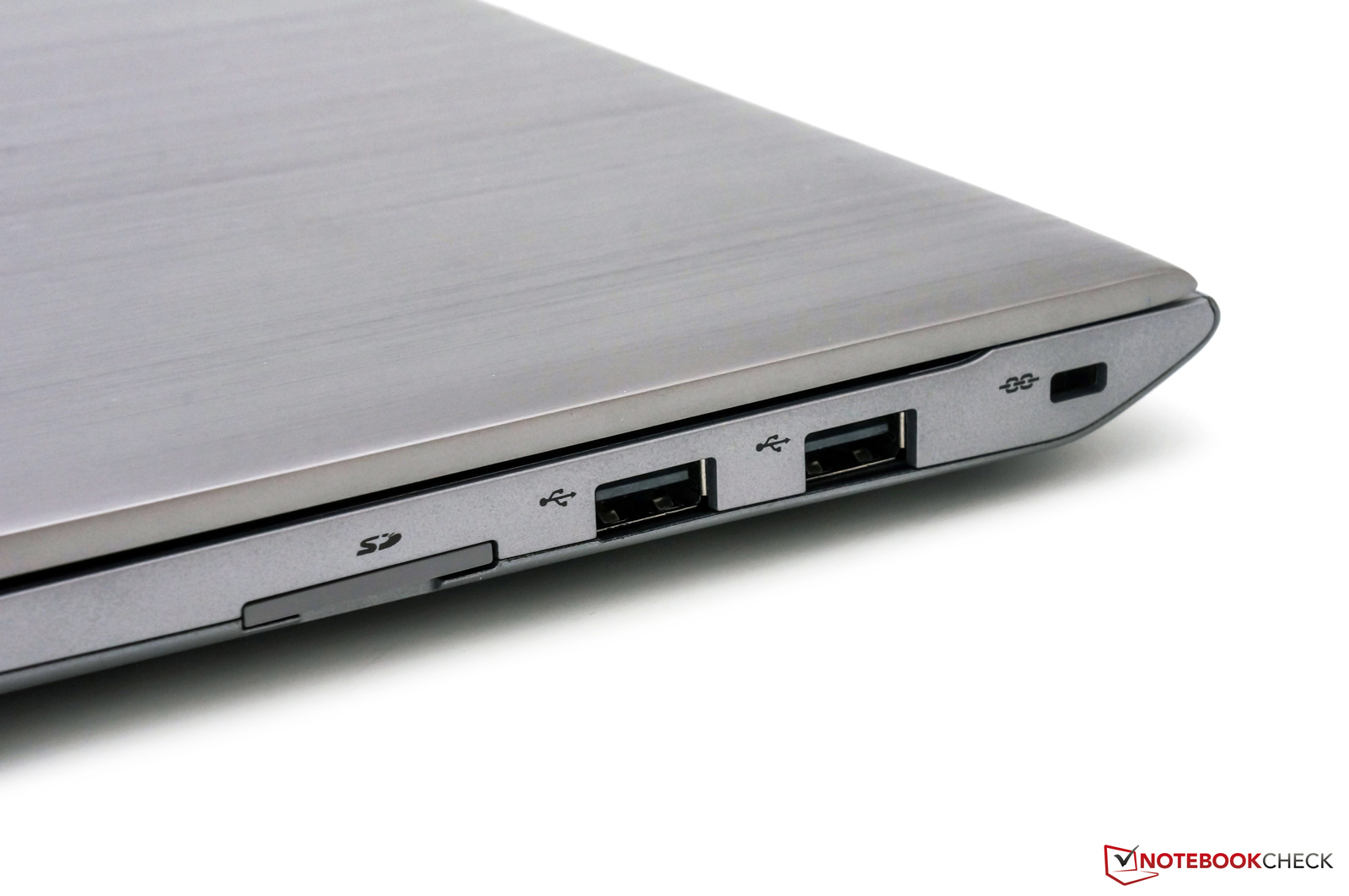

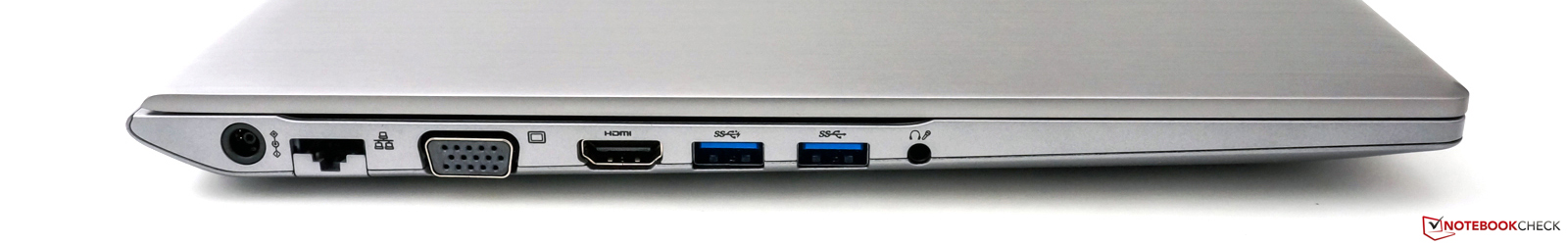

Port positions as well as their distribution are thought-out. The front third on both sides remains unused, which is a favorable design choice from an ergonomics standpoint (e.g. when an external mouse is connected). Also, the most-used ports are located on the left side which is nice for right-handers (and not so nice for left-handers).
已经改变了很多，来回在不同的设计阶段，尤其是左右两侧的情况。这700Z5C比较700Z5A从2011年变得清晰。例如，没有光驱依然存在。相反，一个全尺寸的VGA接口和四个USB接口（2个USB3.0和2个USB 2.0）都在船上。这些辅之以一个RJ-45以太网端口，读卡器，HDMI输出接口以及Kensington锁已经转移到右手边的笔记本电脑（连同4合1读卡器）。所有的一切，这是一个相当多种考虑笔记本电脑的大小和身材苗条。
口位置以及它们的分布是深思熟虑的。两侧的前三分之一处于闲置状态，从人体工程学的角度来看（例如，当连接了外接鼠标），这是一个良好的设计选择。此外，最常用的端口都位于左侧，右弯（和不那么漂亮的左撇子），这是很好的。
Communication
Nothing is missing here. The Realtek PCIe GBE Family Controller supports data transfer rates of up to 1 Gbit/s. Bluetooth as well as Wi-Fi is handled by an Intel module, the Intel Centrino Advanced-N 6235, which supports Bluetooth 4.0 and Wi-Fi 802.11a/b/g/n (2.4 and 5 GHz with up to 300 Mbit/s). Only the new 802.11ac standard with a maximal bandwidth of 1.3 Gbit/s at 5 GHz is not supported. The 770Z5E is capable of driving remote displays via WiDi (Wireless Display).
The modem shows an average performance. Full Wi-Fi signal strength can be upheld within the apartment and within a radius of around 10 meters. One floor below as well as 30 meters away, only 50% is possible, while the signal continues to get weaker if the distance is increased any further.
Accessories

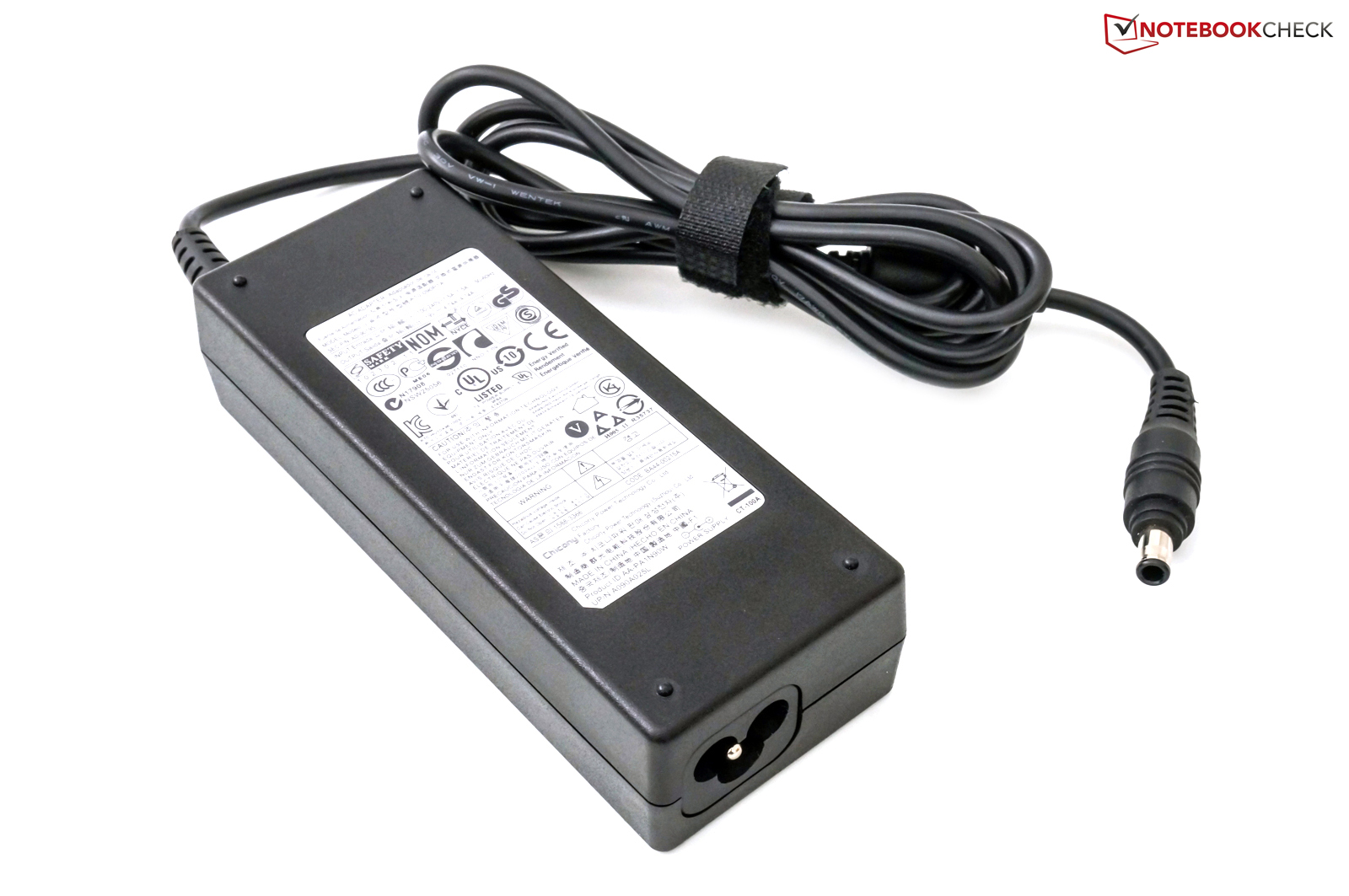

No surprises here - apart from the laptop itself, only the 90 watt power adapter (125 x 50 x 30 millimeters) plus a number of printed manuals can be found within the package. There is no driver or recovery DVD. Any system recovery is done via a dedicated program, which comes preinstalled and which can be used to create a corresponding image.
Maintenance

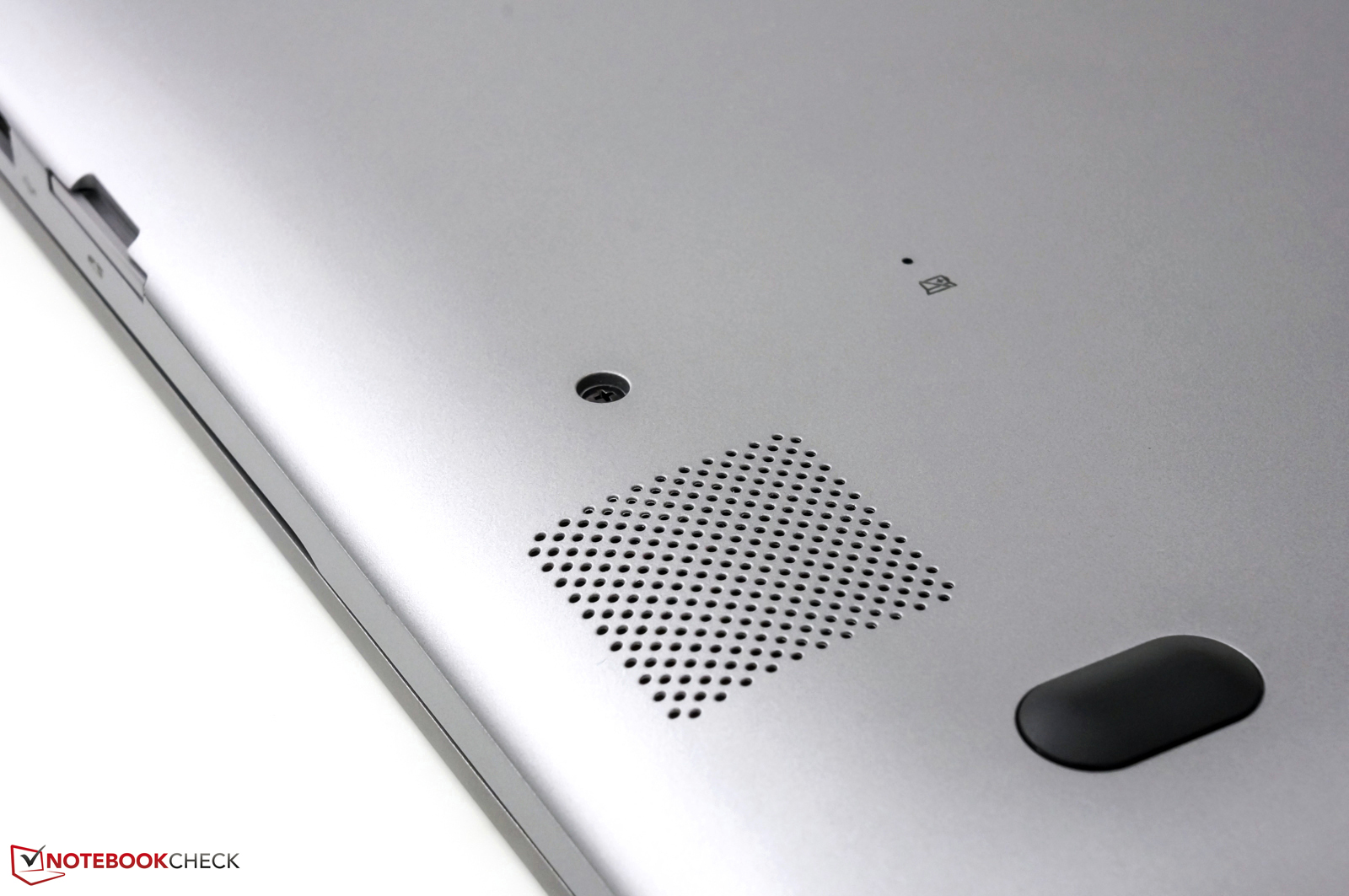

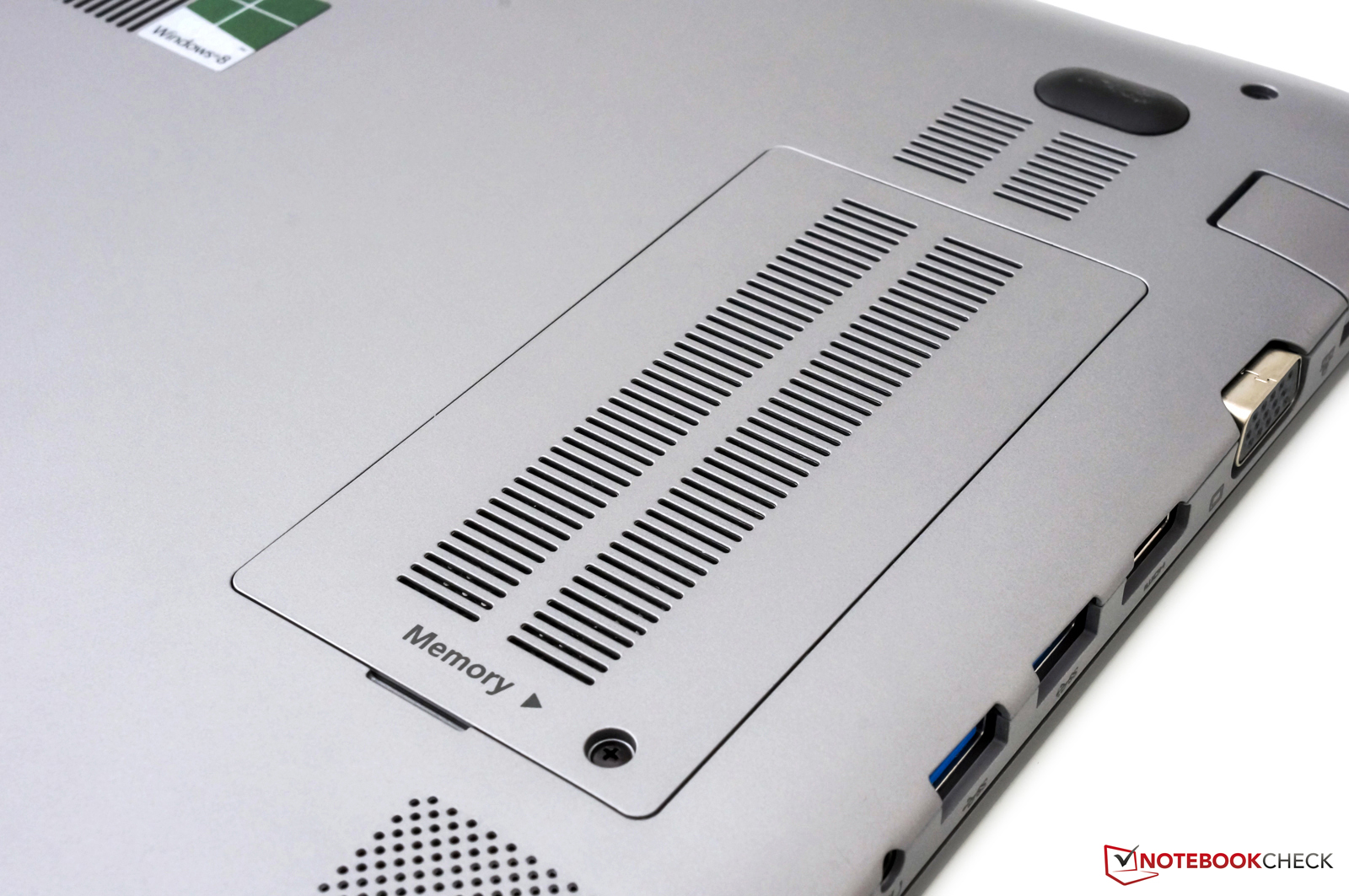

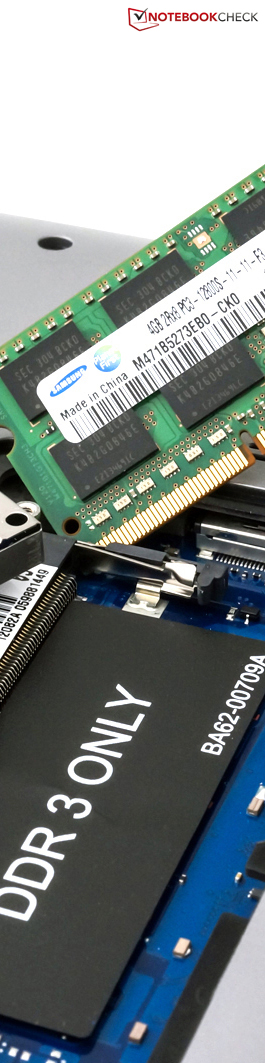

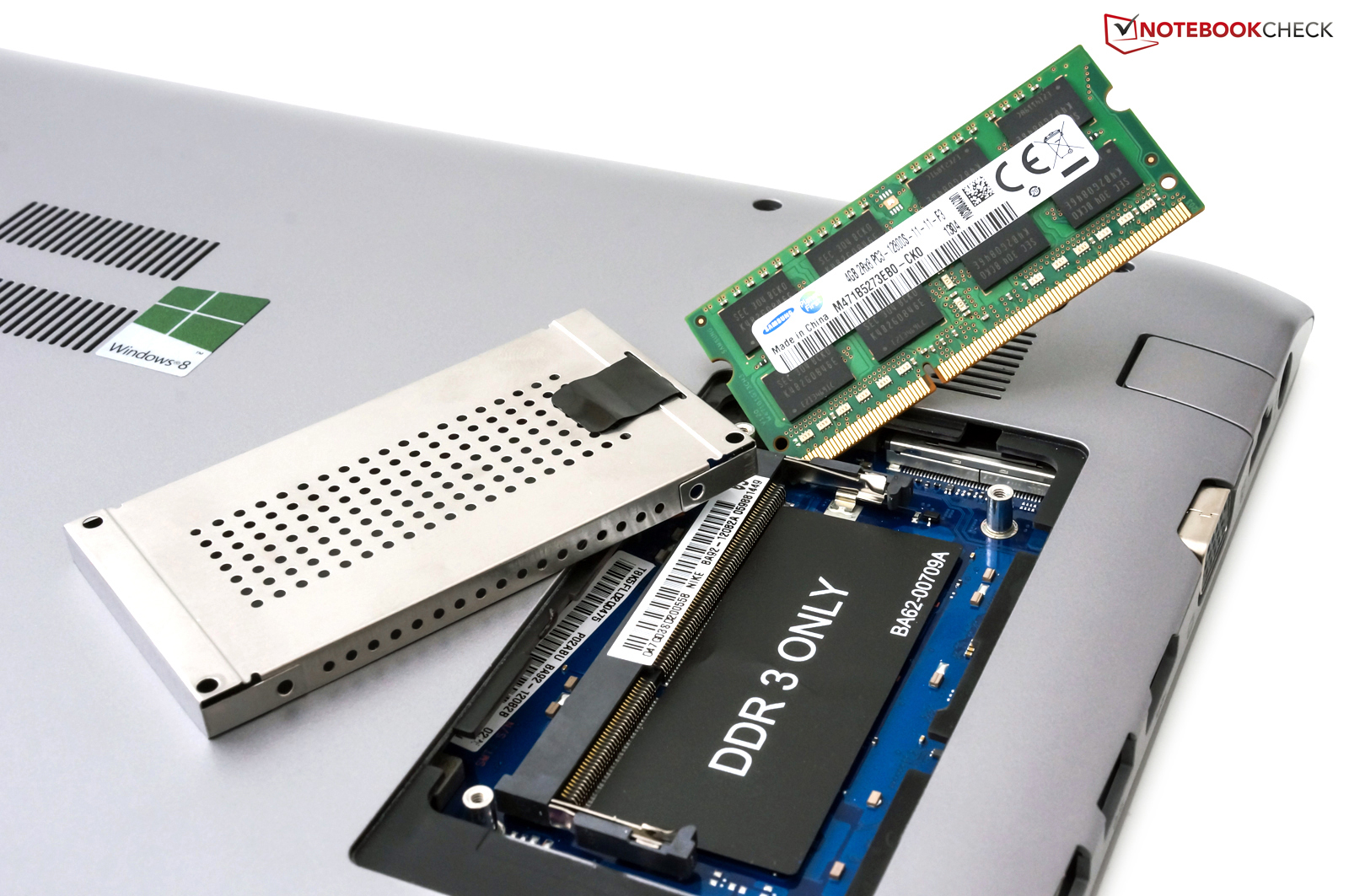

Both maintenance and upgrades are not made easy by Samsung. There is only a small maintenance hatch to be found on the underside. A single DDR3 memory bank sits beneath, which comes equipped with a 4 GB module while the other 4 GB is soldered onto the motherboard. More than 12 GB RAM is thus impossible. All other components can only be accessed if one chooses to disassemble the base unit. This is not to be taken lightly due to the inherent danger of damaging the laptop, since it is not sufficient to untighten a few screws. Everything is firmly attached using delicate plastic hooks (as is the case with many other ultrabooks). Accordingly, we cannot be made responsible for any damage caused by attempting to disassemble the base unit.
Warranty
Samsung offers 24 months of warranty. In addition, it is possible to activate a warranty extension (up to 36 or 48 months) within the first 90 days after the purchase. This includes an on-site pickup service.
沟通
没有在这里失踪。瑞昱的PCIe GBE的家庭控制器支持数据传输速率高达1 Gbit / s的。蓝牙以及Wi-Fi已处理由英特尔模块，英特尔®迅驰®高级-N 6235，支持蓝牙4.0和Wi-Fi 802.11a/b/g/n无线（2.4和5 GHz高达300 Mbit / s的）。只有新的802.11ac标准在5 GHz与1.3 Gbit / s的最大带宽不被支持。的770Z5E是能够通过的WiDi（无线显示技术）驱动远程显示器。
的调制解调器显示表现平平。全可以坚持在公寓内，周围10米半径范围内的Wi-Fi信号强度。下面一层，以及30米外，只有50％是可能的，而信号继续得到弱的，如果该距离的任何进一步增加。
饰品
这里没有惊喜 - 从笔记本电脑本身外，只有90瓦电源适配器（125×50×30毫米）加上一个数字印刷手册，可以发现包内的。有没有驱动程序或恢复DVD。任何系统恢复的方法是通过一个专用的程序，预装的，它可以用来创建一个相应的图像。
保养
维护和升级都被三星不容易。只有一次小保养的底部被发现的孵化。一个单一的坐在下方，配备4 GB的模块是焊接在主板上，而其他4 GB DDR3内存银行。因此不可能超过12 GB的RAM。只能访问所有其他组件，如果一个人选择拆卸的基本单元。这不是要掉以轻心由于损坏的笔记本电脑的固有的危险性，因为它是不够的，拧松几个螺丝。一切都牢固地附着使用微妙的塑料挂钩（与许多其他ultrabooks的情况）。因此，我们不能试图拆解基地单元造成的任何损坏负责。
保
三星提供24个月保修。此外，它可以激活延长保修购买后的前90天（36个月或48个月）内。这包括上门取件服务。
Input Devices

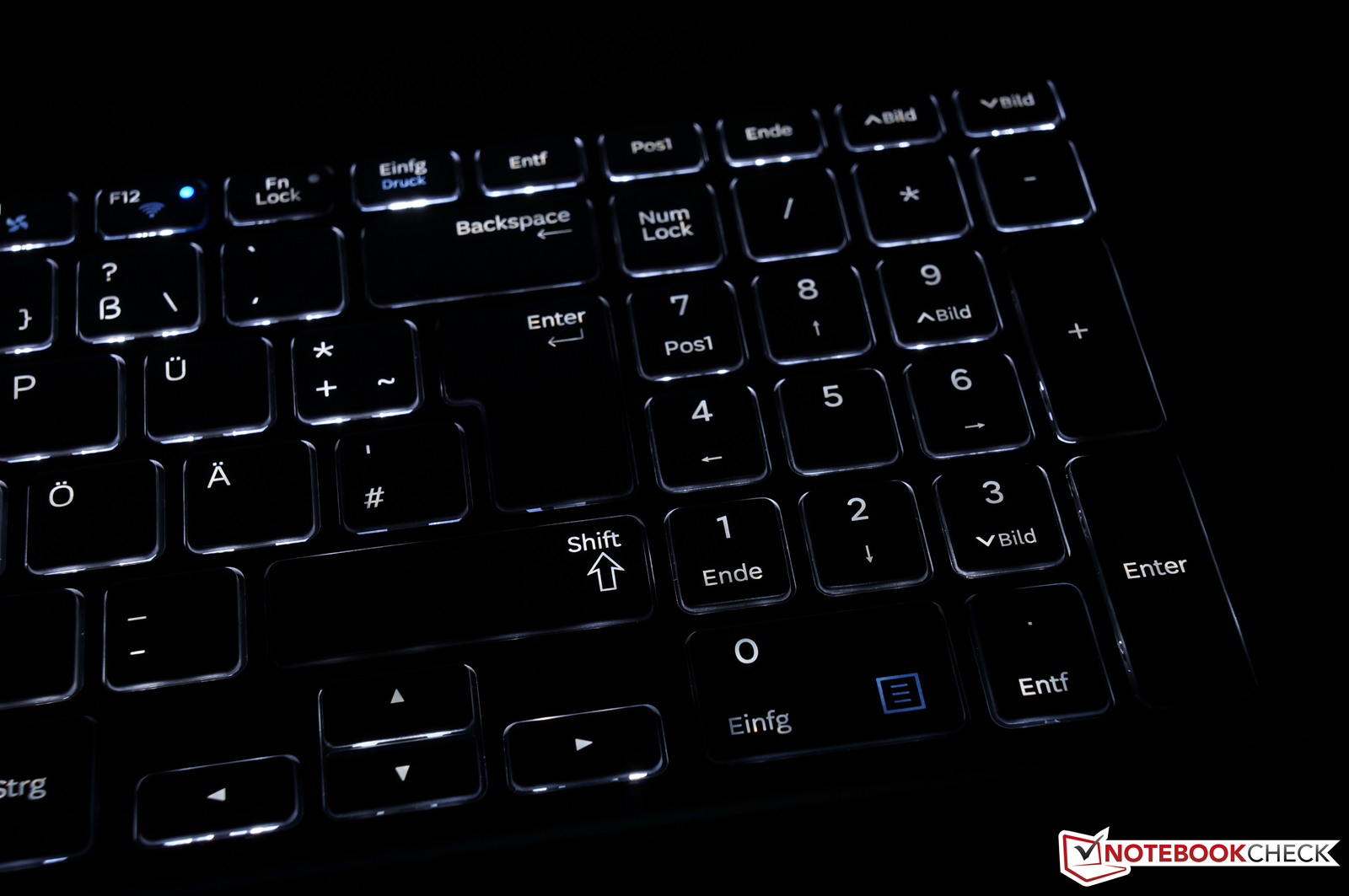

Keyboard

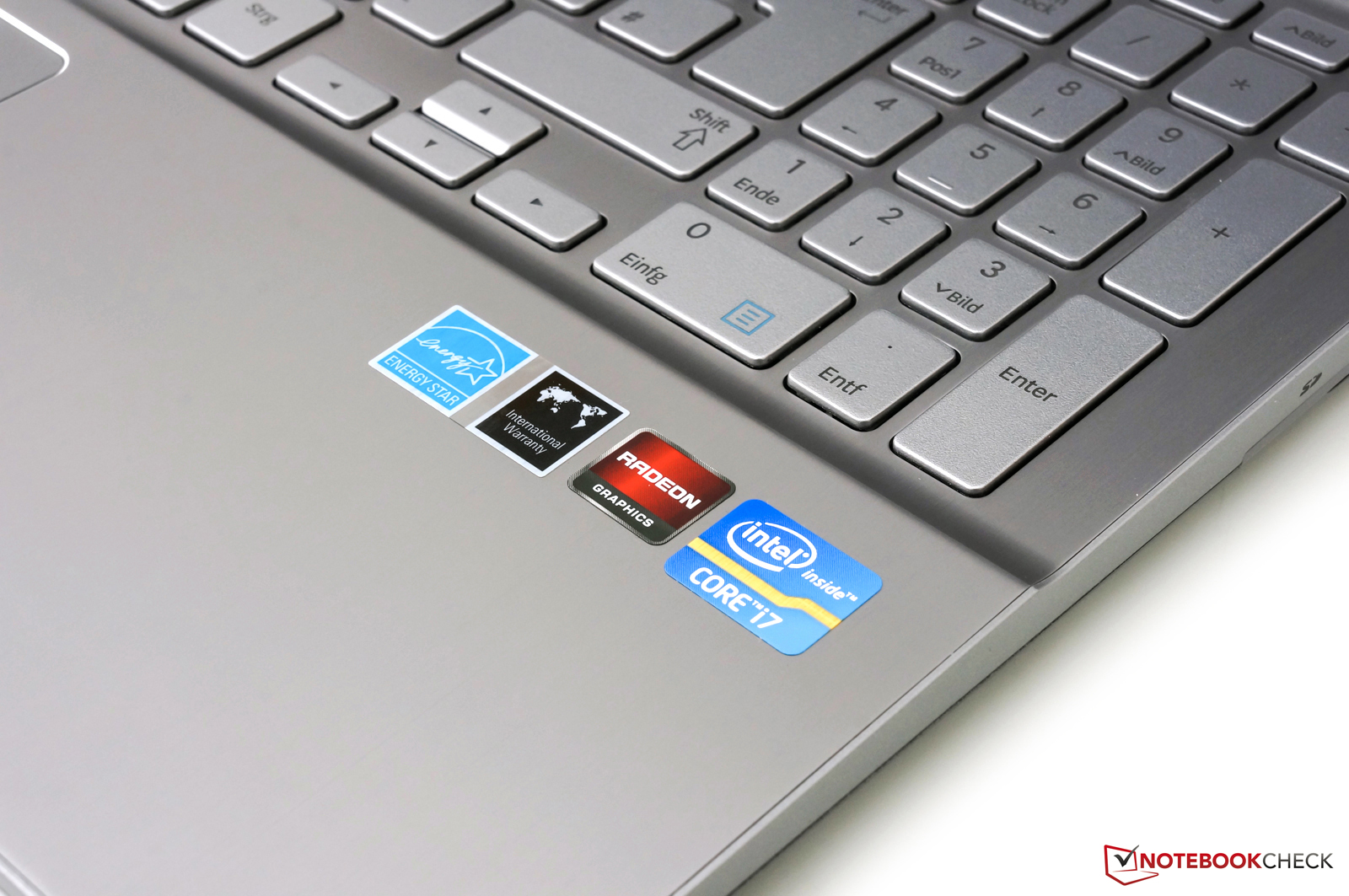

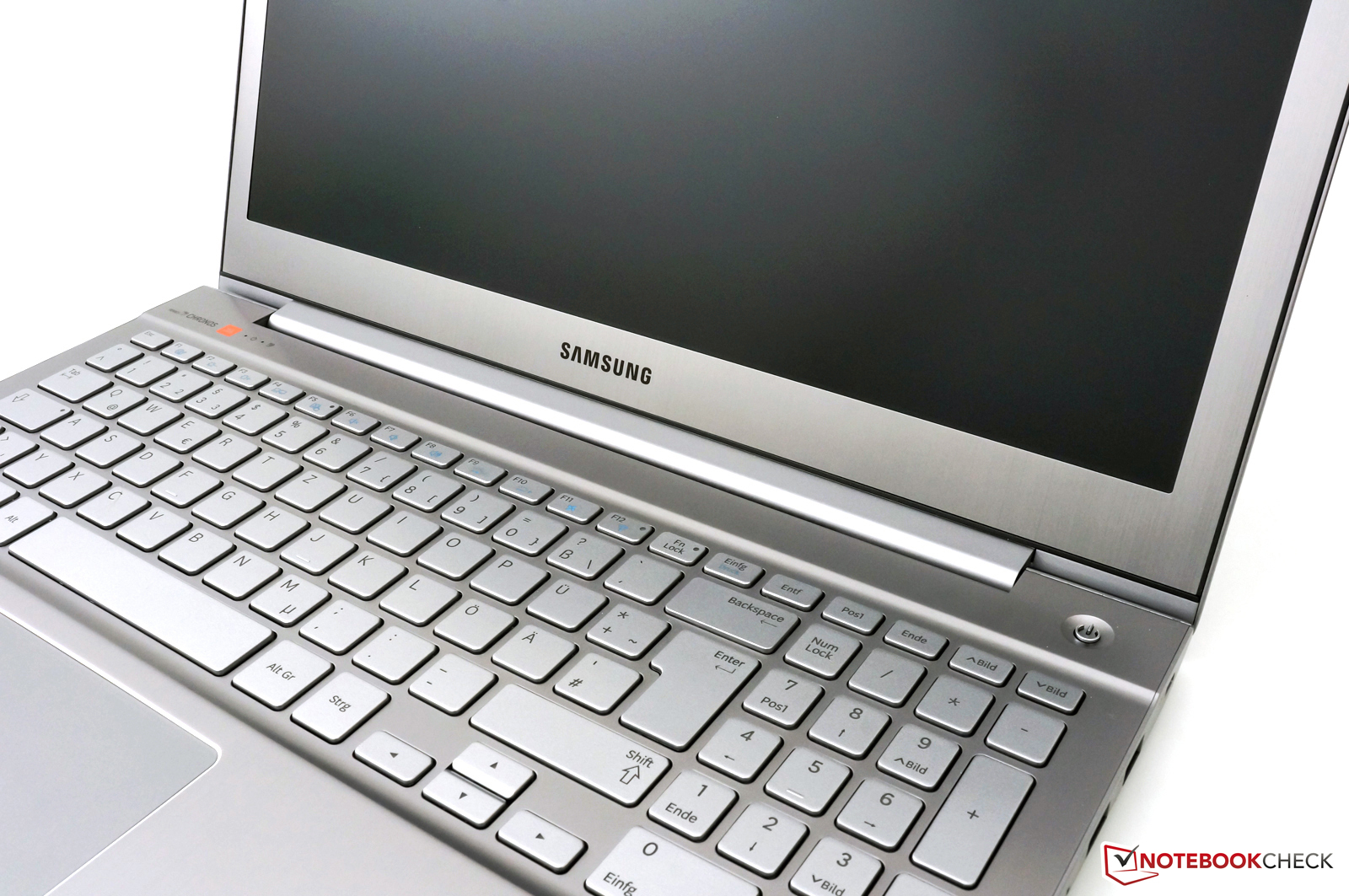

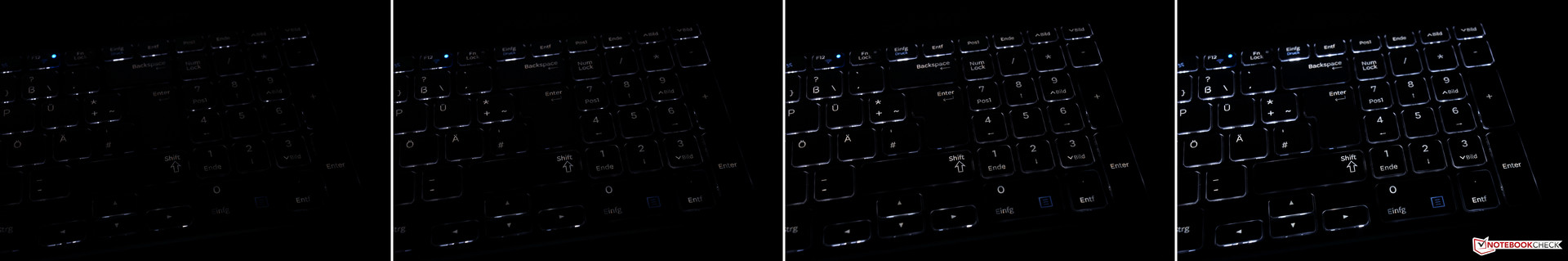

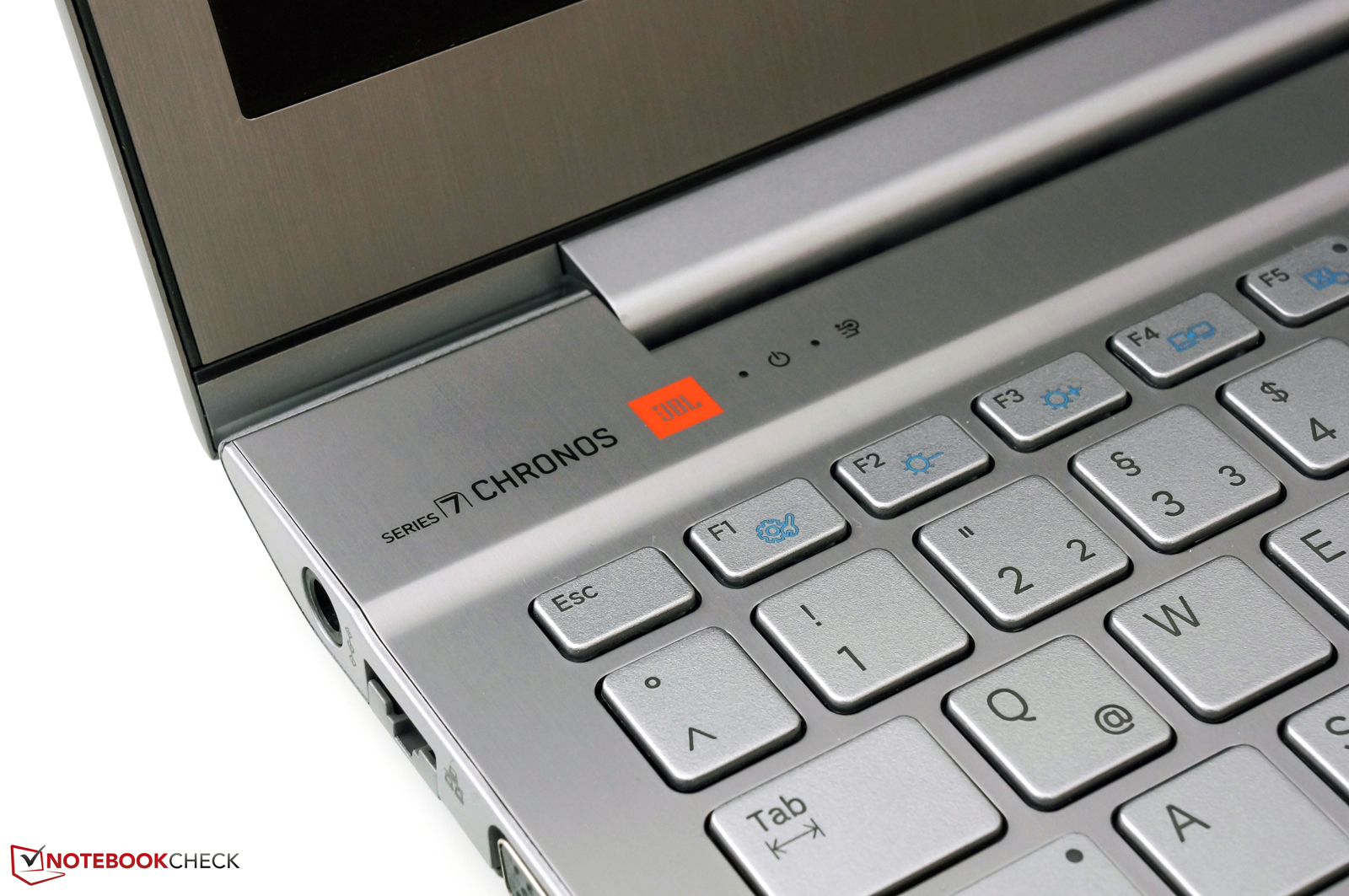

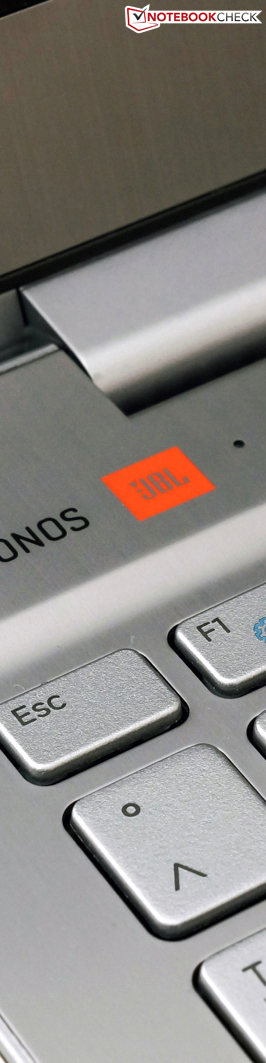

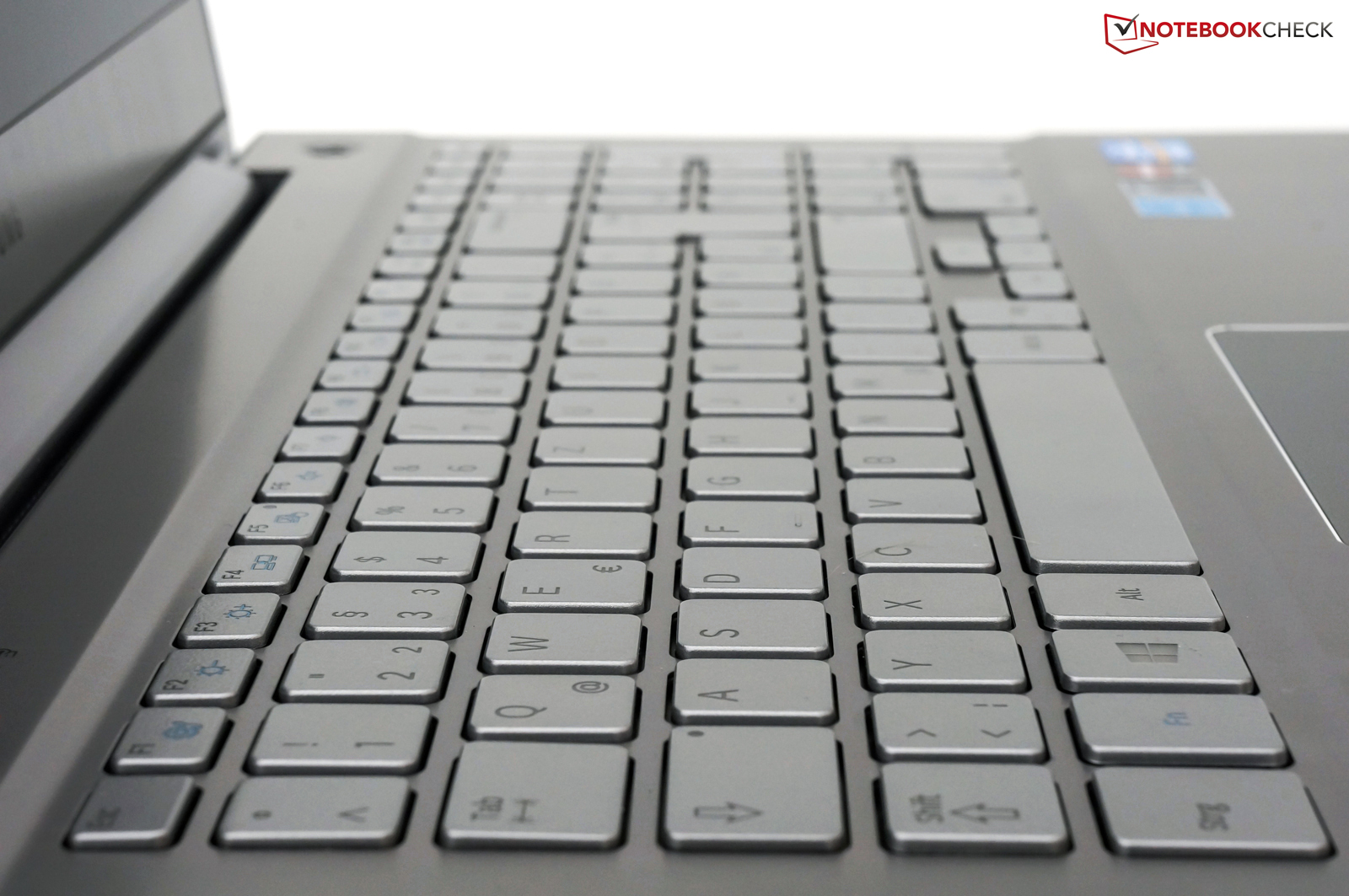

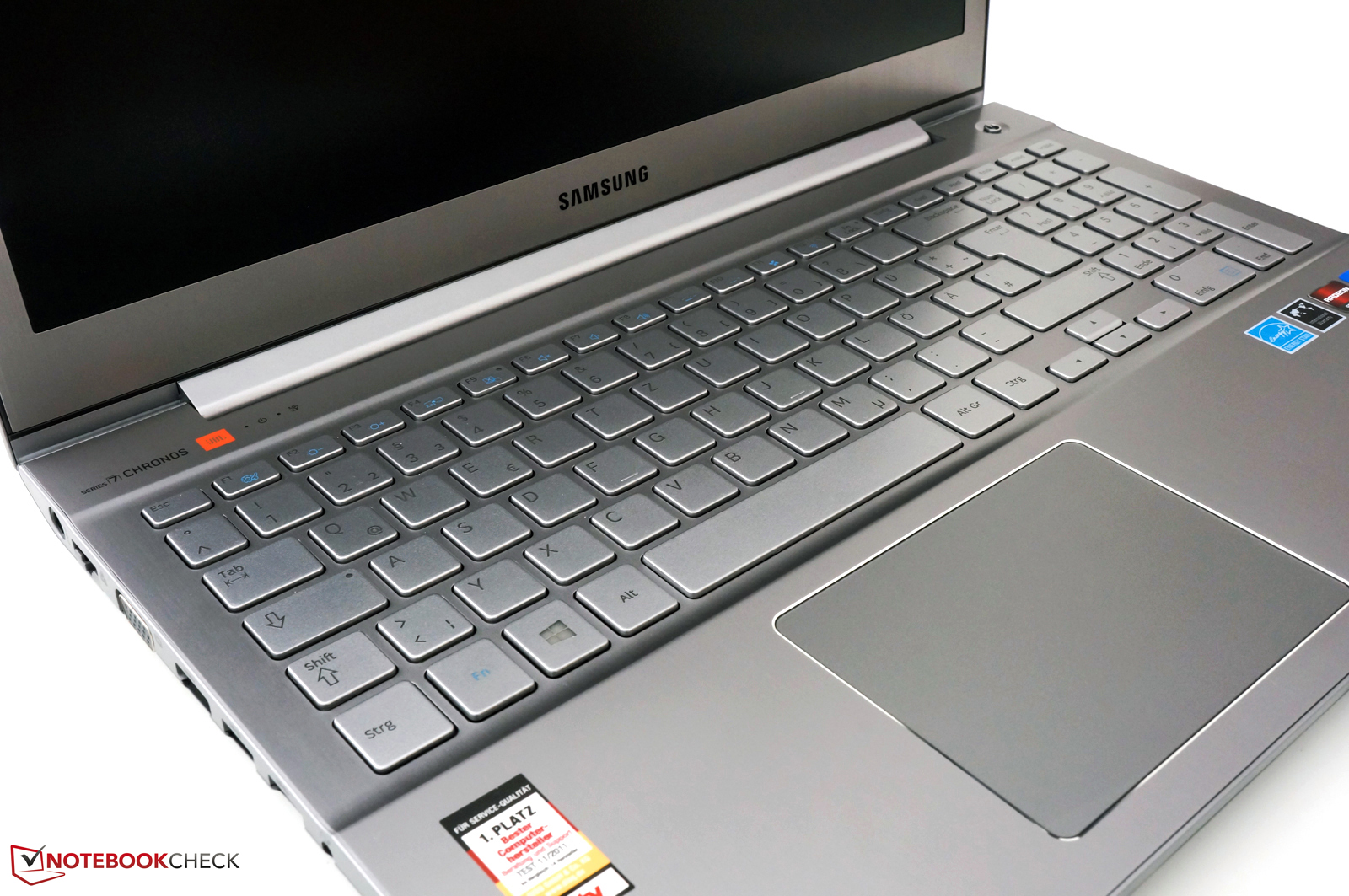

There is no difference between the keyboard used in the 770Z5E and that in its larger sibling, the 770Z7E apart from a nice silver finish to the keys which is absent in the 17-inch 770Z7E-S01DE and which helps to make the 770Z5E's optical impression more well-rounded. We are still impressed by the generous palm rest, the well-defined pressure point and the feeling of our keystrokes. Thanks to its quietness and a separate numpad on the right side, the keyboard should be suitable for heavy users. In addition, the keyboard is backlit. The white light can be controlled via the Fn keys, allowing the user to choose between four different steps (as can be seen in the picture below). During the day, an ambient light sensor prevents the keyboard illumination from turning on.
键盘
有在770Z5E和，使用的键盘没有区别其较大的兄弟姐妹，在770Z7E除了从一个漂亮的银色面漆的17英寸770Z7E-S01DE和从而使770Z5E的光学印象更是缺席键健全。我们仍然留下深刻印象由慷慨掌托，明确定义的压力点和击键的感觉。由于它的安静和一个单独的小键盘上的右侧，键盘应该适用于重度用户。此外，键盘背光。白色光可以通过Fn键控制，让用户可以选择四个不同的步骤（在下面的图片中可以看出）之间。白天，一个环境光传感器可以防止键盘照明打开。
Touchpad

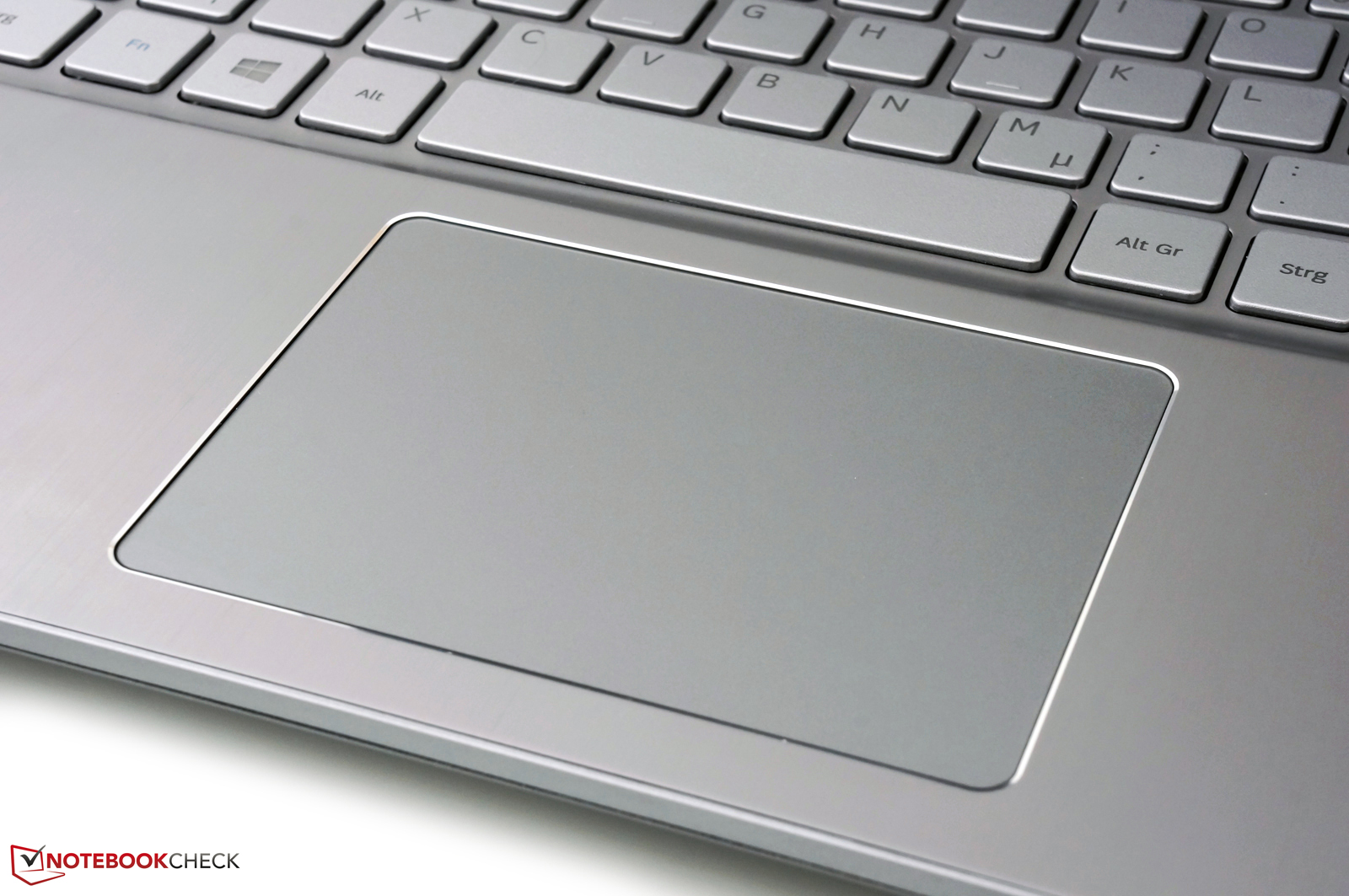

The touchpad is another old friend with new livery. The Elan Smart-Pad has been sunk a little bit into the case and now sports a glossy frame. It offers a lot of space (107 x 77 millimeters), well-implemented multitouch gestures and a mature software solution. A slightly coarse surface layer guarantees favorable gliding characteristics. The mouse buttons are integrated into the touchpad. While the entire surface can be used for a left-click, right-clicking is only possible in the lower right-hand corner or via a gesture. The detailed software with its video explanations is worth a closer look.
触摸板
触摸板是另一个老朋友与新的号衣。义隆智能垫已被击沉一点点的情况下，现在体育光泽框架。它提供了大量的空间（107×77毫米），实现多点触控手势和成熟的软件解决方案。稍微粗糙的表面层保证良好的滑动特性。鼠标的按键被整合到触摸板。虽然整个表面可以用于左一下，右一下是唯一可能在较低的右上角或通过手势。视频说明详细的软件是值得仔细看看。
Display

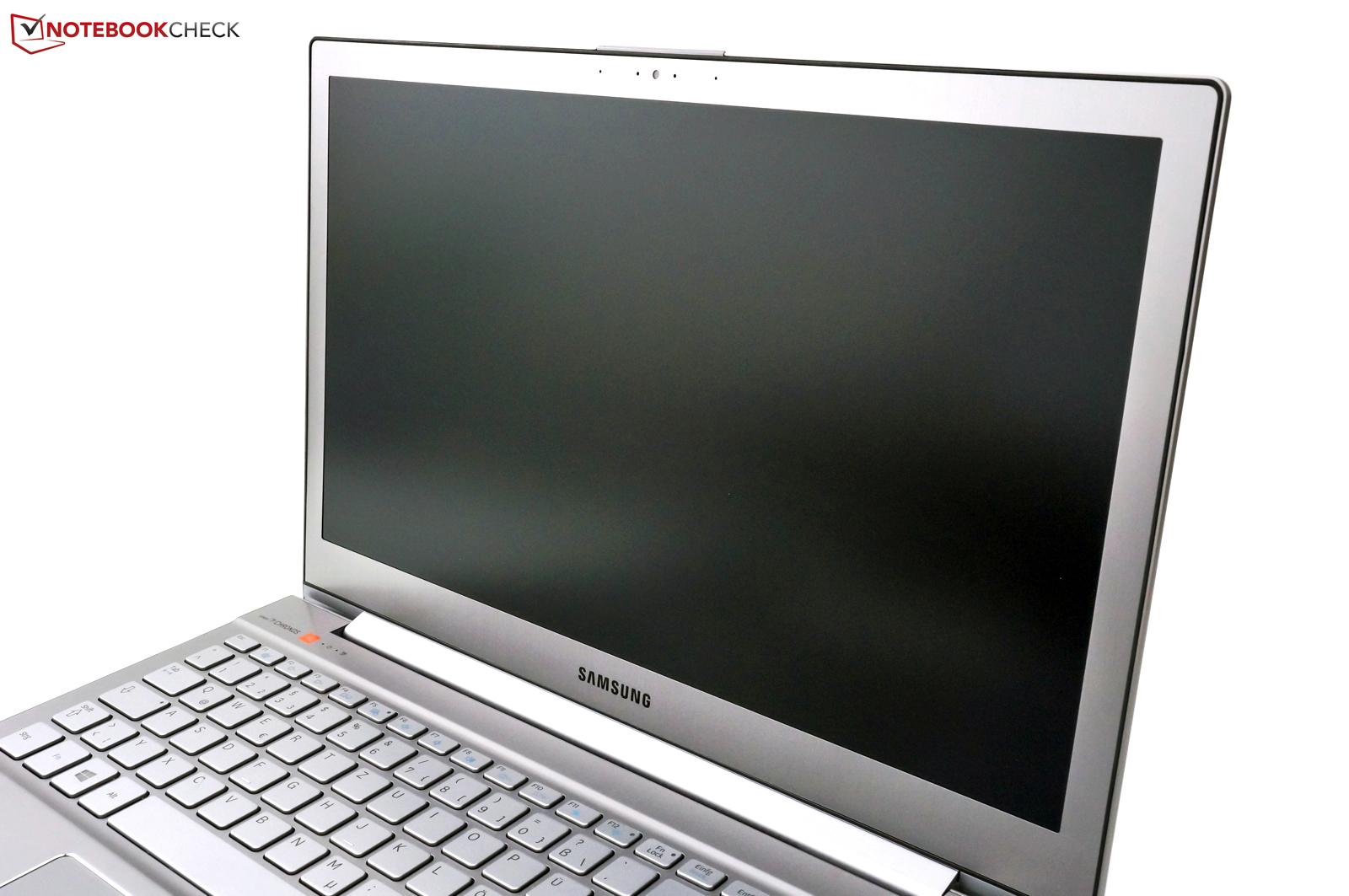

How could laptops with a premium claim such as the Series 7 Chronos devices fail to deliver an appropriate display? That's why Samsung chooses to include a matte 15.6-inch Full HD display with 1920x1080 pixels. This is not only a great resolution for gamers, but also for video playback and desktop use due to the increased screen real estate. As can be found out easily via a number of tools, Samsung uses a TN-panel of the type AU9003, thus refraining from a home-made solution. No alternatives - neither RGB displays nor IPS panels - are offered, but of course, external displays can be connected via HDMI, VGA or even Wireless Display.
Starting with a screen brightness measurement using the i1Pro 2 tool by X-Rite, the AUO panel achieves an average of 274 cd/m², which is more than both the 17-inch 770Z7E-S01DE and its predecessor, the 700Z5C, offer, yet slightly less than Samsung's statement of 300 nits (a deviation of less than 10% is still within our tolerances). Illumination homogeneity is on par with most other screens, yielding a decent value of 85%. The Apple MacBook Pro 15 with Retina-Display fares approximately the same in this regard.
怎么能溢价要求的笔记本电脑7系列Chronos的设备如未能提供适当的显示？这就是为什么三星选择包括磨砂的15.6英寸全高清显示屏具有1920×1080像素。这不仅是一个伟大的分辨率对于游戏玩家来说，也为视频播放和桌面使用由于增加屏幕房地产。可以通过大量的工具容易地发现，三星使用的TN面板不同AU9003，从而避免一个自制的解决方案。没有替代品 - 既不是RGB显示器也不是IPS面板 - 提供，但当然，可以连接外部显示器通过HDMI，VGA甚至无线显示。
开始与屏幕亮度测量的i1Pro2工具由X-Rite，友达面板平均达到274坎德拉/平方米，这是超过17英寸的770Z7E S01DE和其前身700Z5C，报价，但稍低于三星300尼特（小于10％的偏差仍然是我们的公差范围内）的声明。照明同质化看齐，与大多数其它屏幕，得到一个体面的价值的85％。苹果MacBook Pro15视网膜显示票价在这方面大致相同。
| |||||||||||||||||||||||||
Brightness Distribution: 85 %
Center on Battery: 300 cd/m²

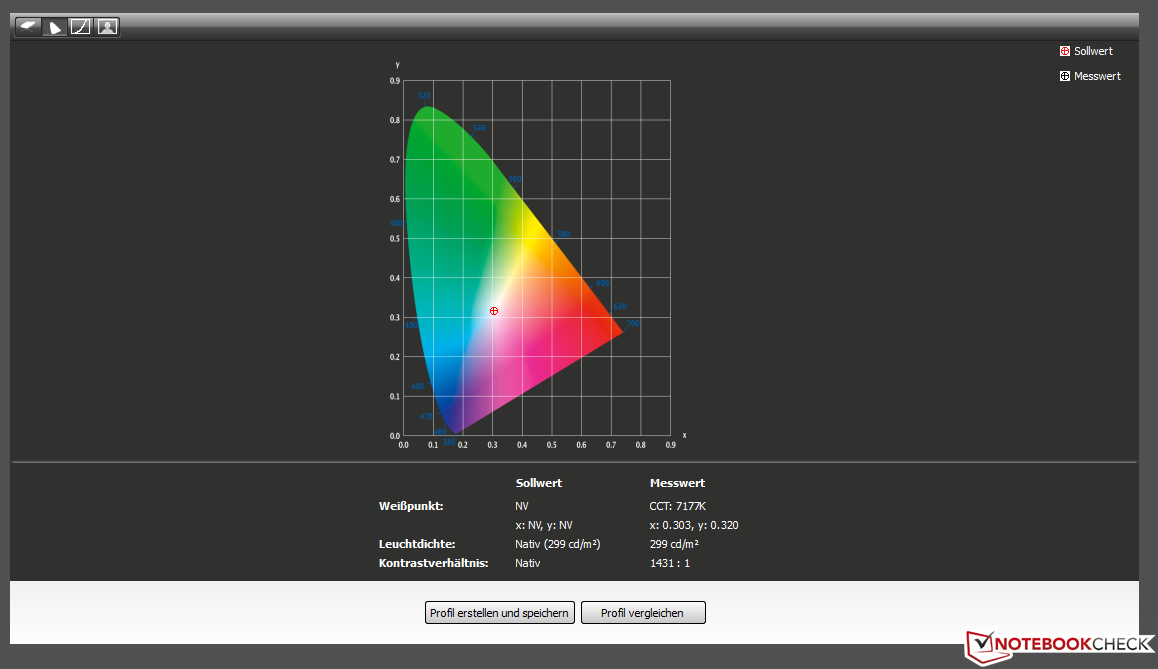

Contrast: 1435:1 (Black: 0.2 cd/m²)66.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
90.9% sRGB (Argyll 2.2.0 3D)
65.7% Display P3 (Argyll 2.2.0 3D)
All other tests end quite satisfying. Blacks are indeed black, with levels of 0.2 cd/m², yielding a great contrast ratio in combination with the 770Z5E's maximal brightness levels. This actually beats the MacBook Pro 15 with Retina Display, although the latter sports superior display technology. It is also much better than the 700Z5C, which had a black level value of 1.81 cd/m².

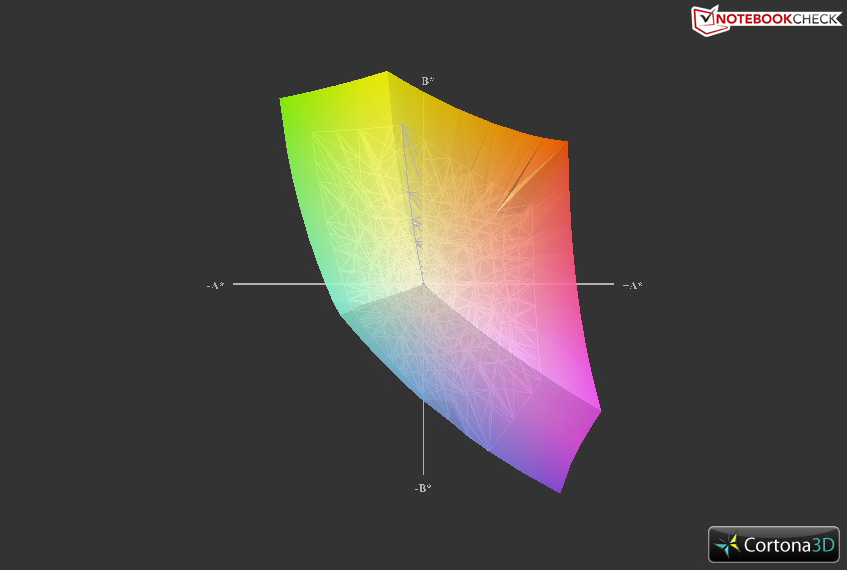

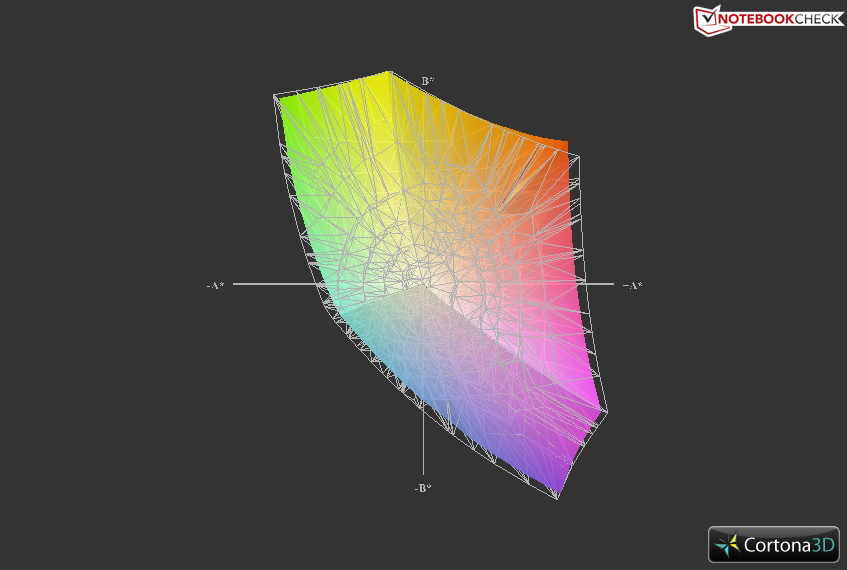

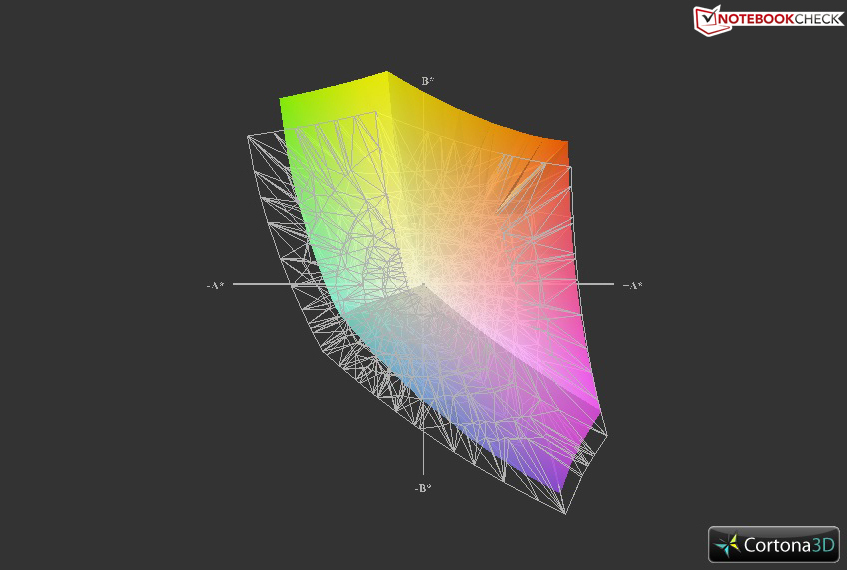

Professional users beware: Color space reproduction is a very important aspect especially for photographers. While the SEC0006 panel used in the 700Z5C was not much more than a consumer product, its successor plays in the same league as the MacBook Pro 15 with Retina Display, which performs ever so slightly better. Still, the reference sRGB and AdobeRGB color spaces cannot be depicted fully.
所有其他的测试结束相当令人满意的。黑人是黑色，0.2坎德拉/平方米的水平，产生了巨大的反差组合比与770Z5E的最大亮度水平。这实际上打破了Retina显示屏的MacBook Pro15，虽然后者的运动卓越的显示技术。它也远优于700Z5C，其中有一个黑色电平值1.81坎德拉/平方米。
专业用户请注意：色彩空间再现是一个非常重要的方面，尤其是摄影师。虽然SEC0006面板700Z5C远远超过消费产品，其继任者扮演在同一联赛的MacBook Pro15 Retina显示屏，它执行越来越稍好。尽管如此，参考sRGB和AdobeRGB色彩空间不能充分描述。

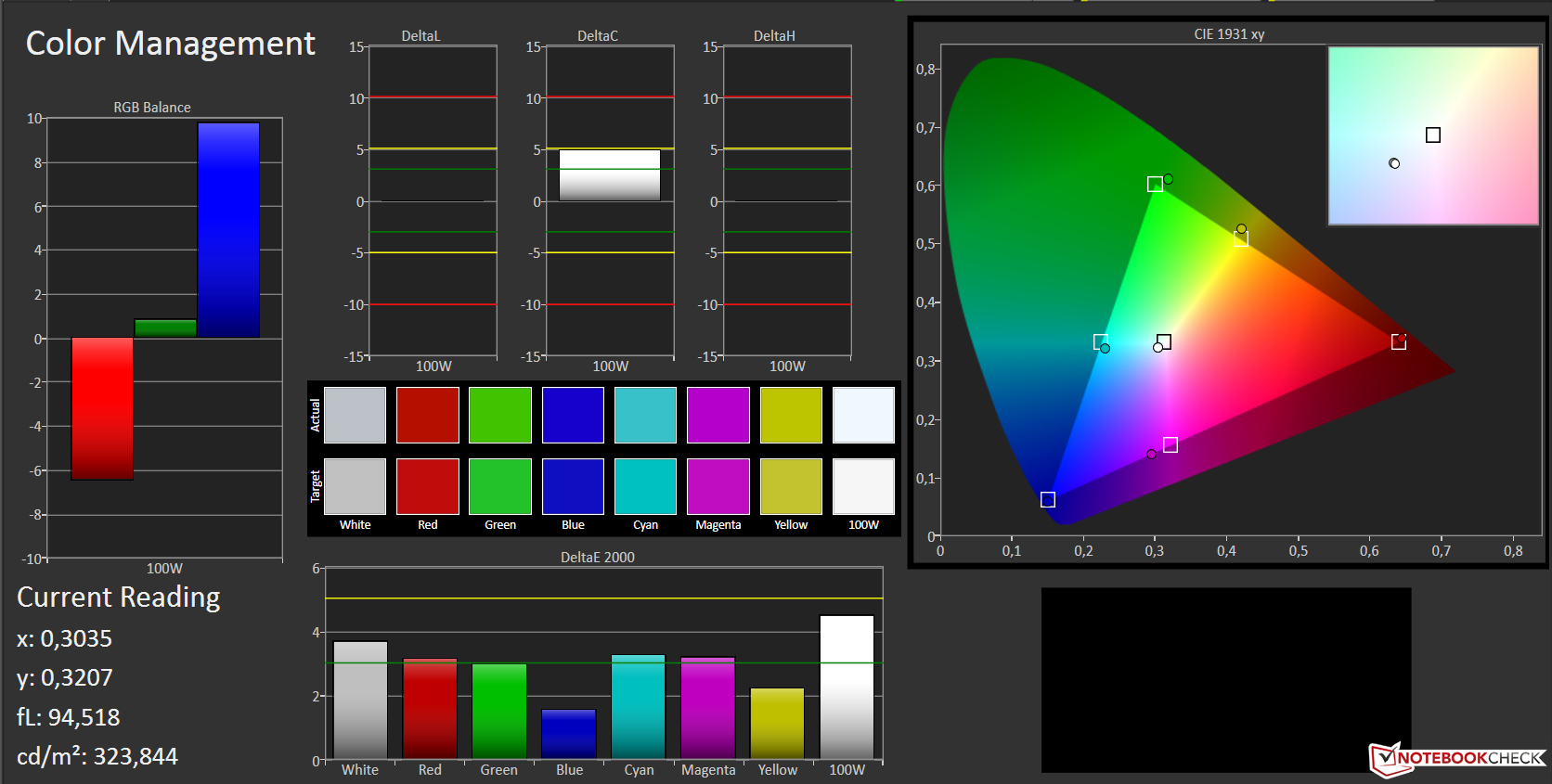

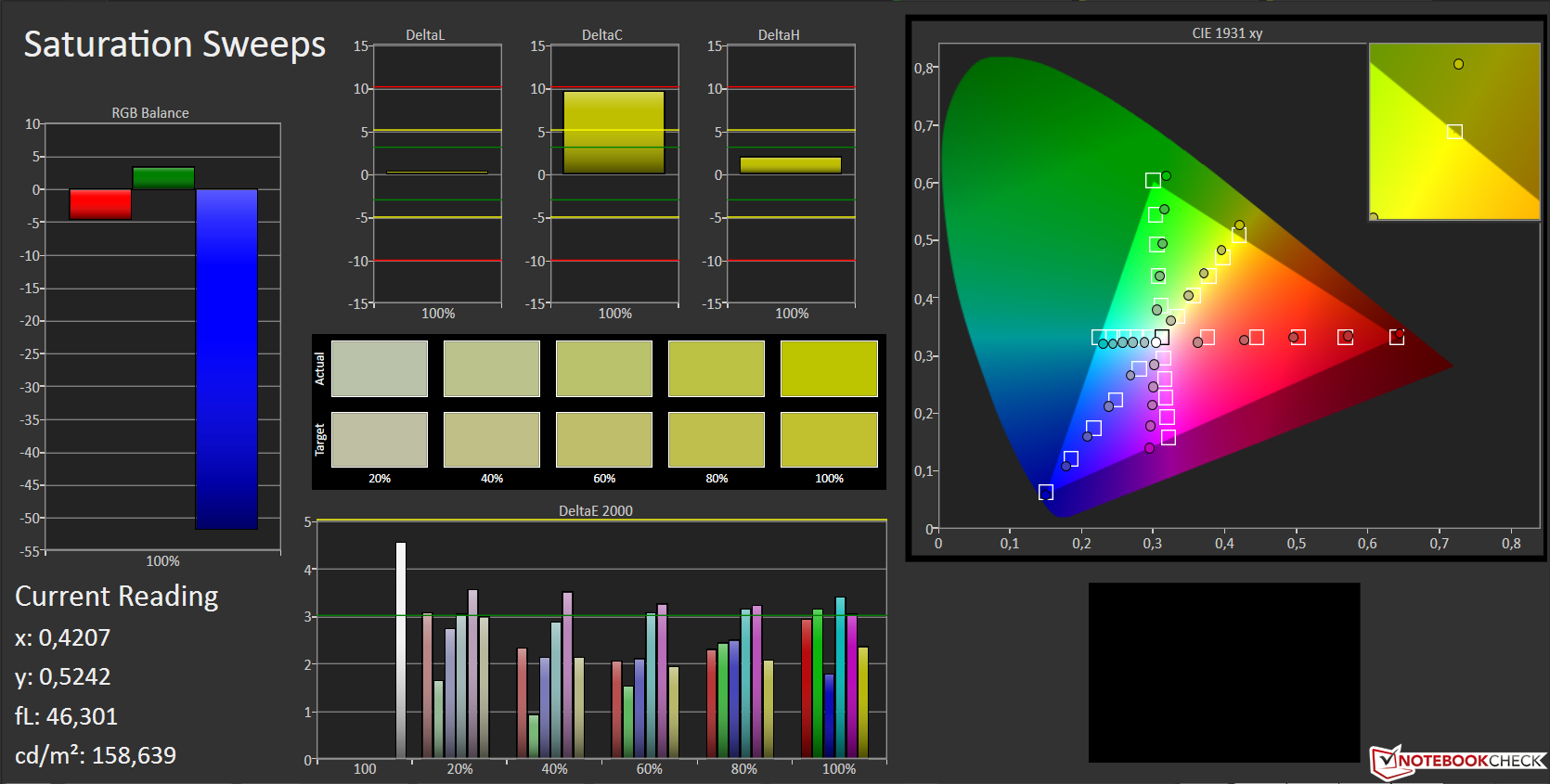

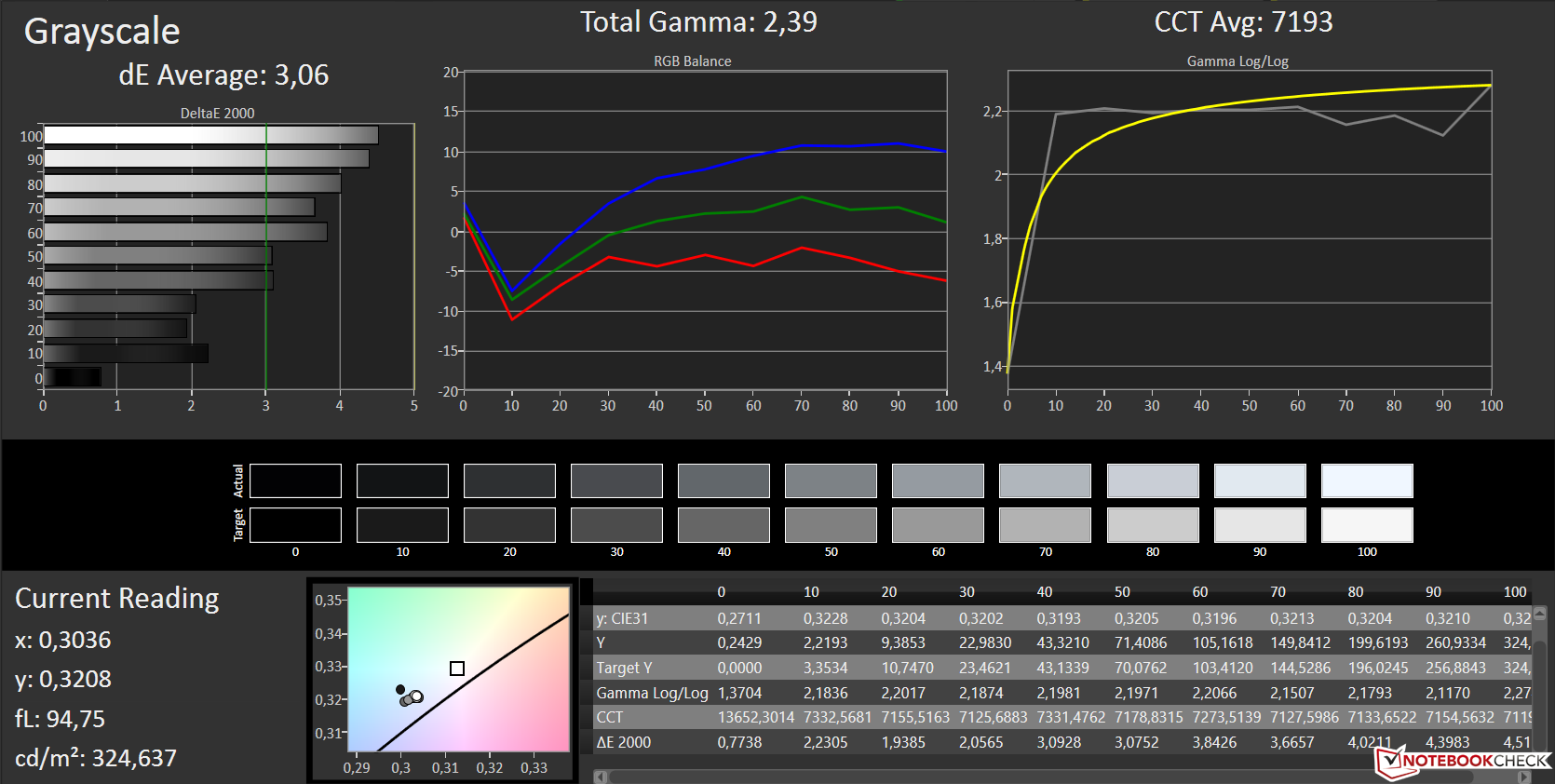

CalMAN software measurements reveal some slight color miscalibration which should barely be visible with the naked eye. Blues are a bit overemphasized within the RGB balance, yielding a slightly cool impression. This is not meant as a point of criticism, since it is just a tiny difference. Subjectively, color rendition and image sharpness are very persuasive.
卡尔曼软件测量揭示了一些轻微的颜色未校准，应该用肉眼勉强可见。蓝调是有点过分强调内的RGB余额，产生稍微凉快的印象。这是不是意味着作为一个点的批评，因为它仅仅是一个微小的差别。主观上，色彩还原和图像的清晰度是非常有说服力的。

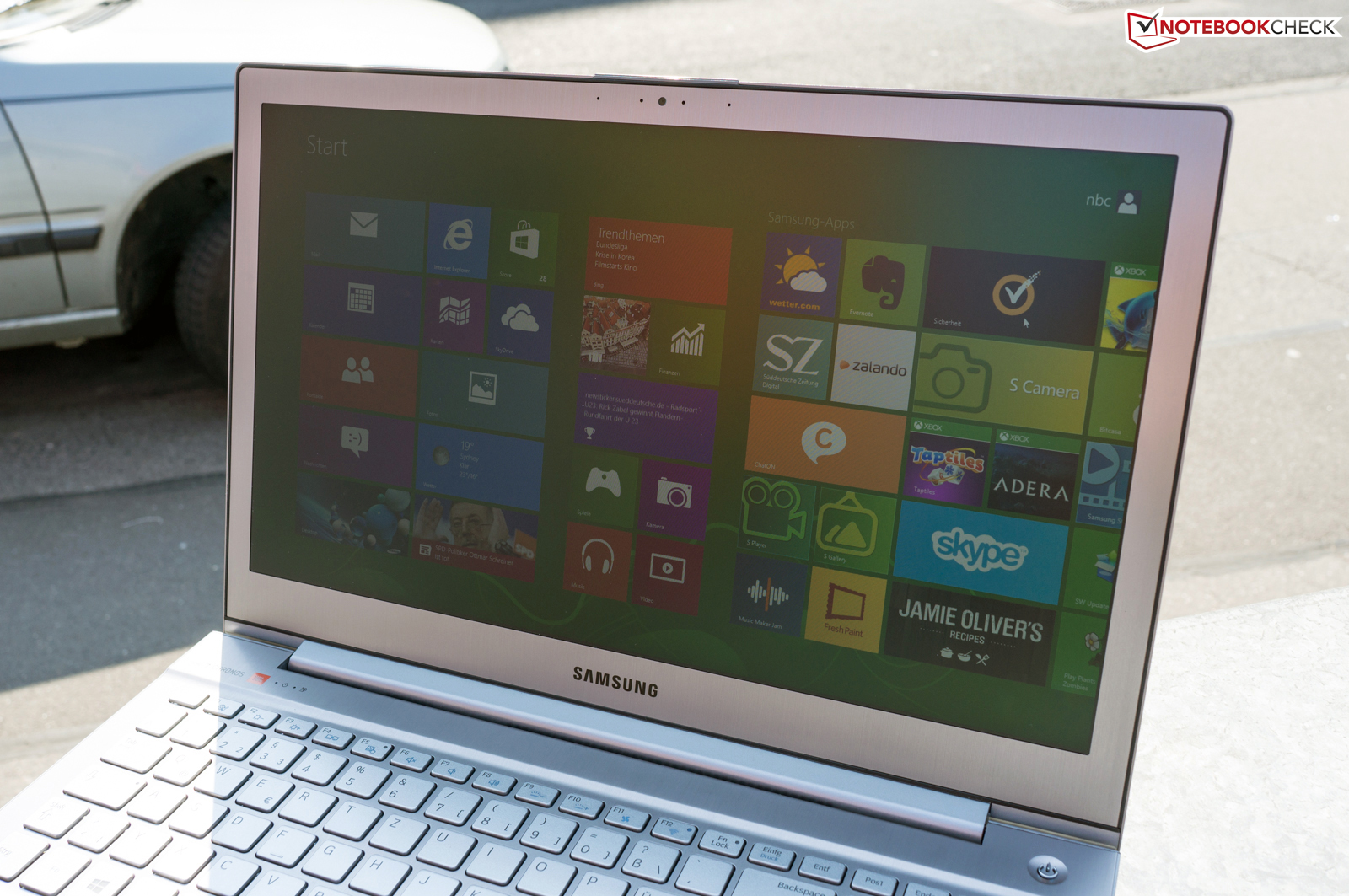

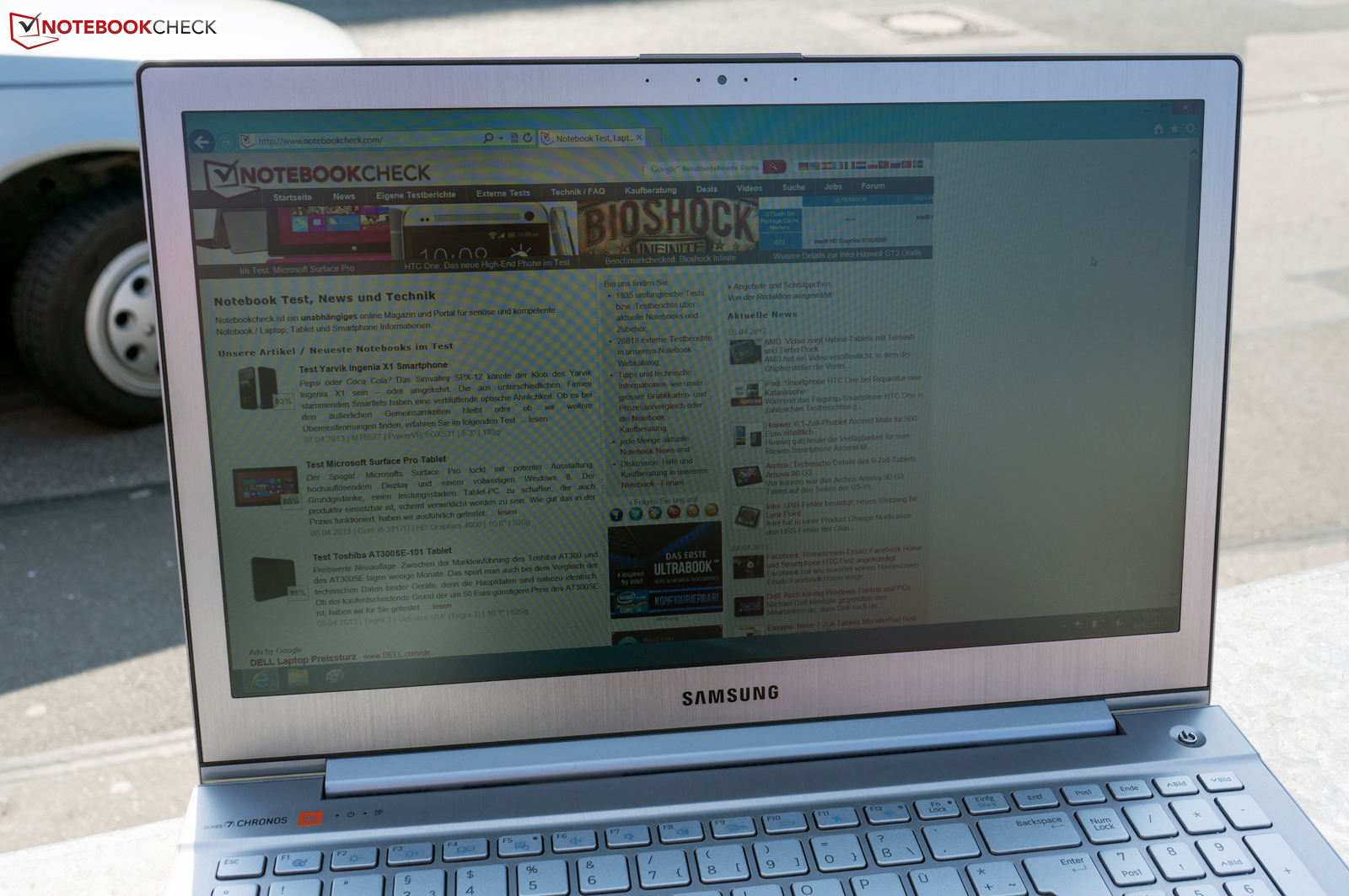

A matte display in combination with good test results offers a very good chance of it being usable outdoors. While the ambient light sensor is illuminated, the center point of the display reaches up to 300 cd/m². Even under a clear sky and strong sunlight, the screen contents remain visible (although brightness adaptation should be deactivated in the settings). This is an impressive feat. Only with the sun shining from behind or another strong light source does the screen reach its limits, forcing us to move around a bit.
良好的测试结果结合了磨砂显示屏提供了一个非常好的机会，它是户外使用。虽然是亮的环境光传感器，显示器的中心点达到300坎德拉/平方米。即使晴朗的天空下，强烈的阳光下，屏幕内容依然可见（虽然亮度适应在设置中应停用）。这是一个令人印象深刻的壮举。只有阳光照耀从后面或其他强光源，并在屏幕上达到其极限，迫使我们将围绕一个位。

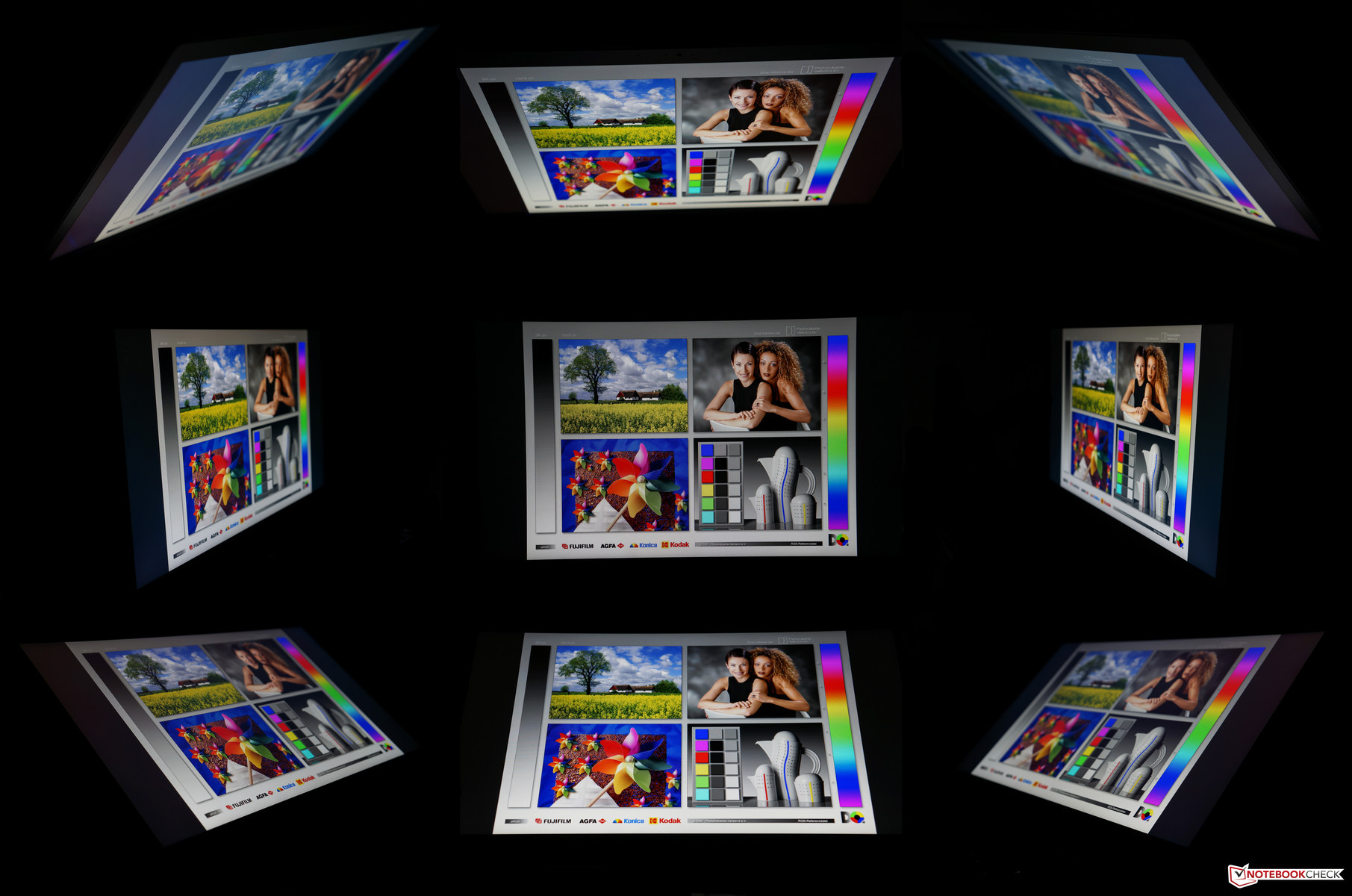

Last but not least, viewing angle stability is another important factor. We are quite surprised by the AUO TN panel - both horizontally and vertically, the results are quite satisfying. The colors are never truly inverted which means that the 770Z5E-S01DE does not have to hide from its theoretically superior IPS competitors.
最后但并非最不重要的是，视角稳定的另一个重要因素。我们都相当惊讶友达TN面板 - 水平和垂直方向，结果是相当令人满意的。颜色是从来没有真正的反转，这意味着，S01DE770Z5E没有隐藏从理论上优于IPS竞争对手的。
Performance

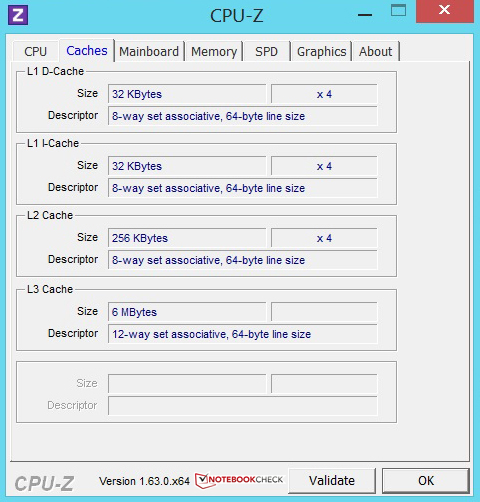

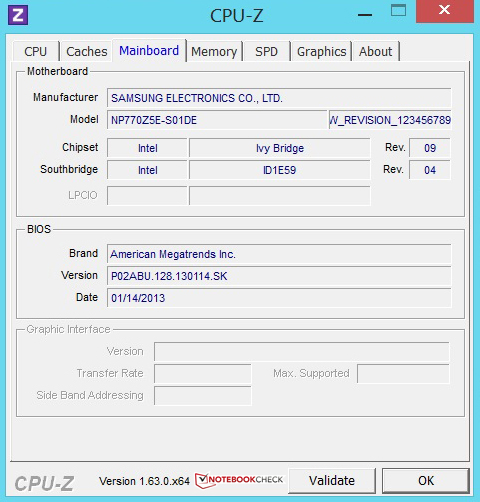

We are glad that Samsung chose to use the same hardware in the 770Z5E as in the 770Z7E-S01DE, refraining from a down-scaling. The laptop is driven by an Intel Core i7-3635QM quad-core processor with a base clock speed of 2.4 GHz, an Ivy Bridge chip with 3D transistors which are manufactured using a 22 nanometer process. It also sports 6 MB L3 cache and a turbo boost of up to 3.4 GHz when only one core is used. When compared to the i7-3630QM, the Intel GMA HD 4000 used in the i7-3635QM clocks at 1200 MHz instead of 1150 MHz. In addition, the new visualization technique VT-d is supported.

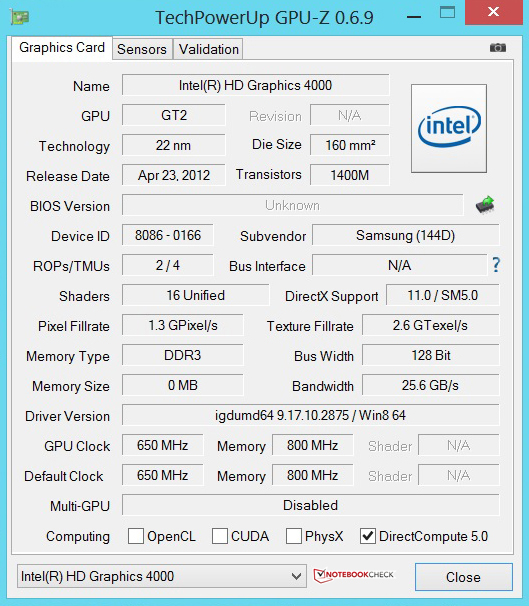

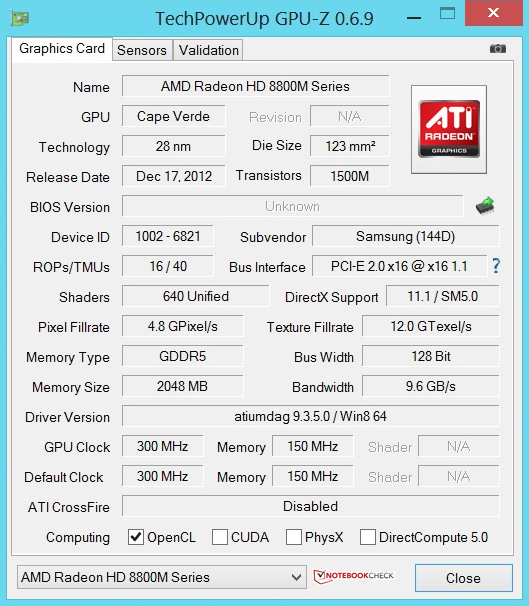

Next to the integrated graphics core, the laptop also ships with a dedicated GPU, an AMD Radeon HD 8870M with a clock speed of up to 775 MHz which is manufactured using a 28 nanometer process while offering 2 GB of GDDR5 memory clocked at 1125 MHz. More precise details concerning this GPU can be found within our detailed review of the 770Z7E-S01DE. Switching between both devices is handled automatically via a technique called Enduro, which is comparable to Nvidia's Optimus.

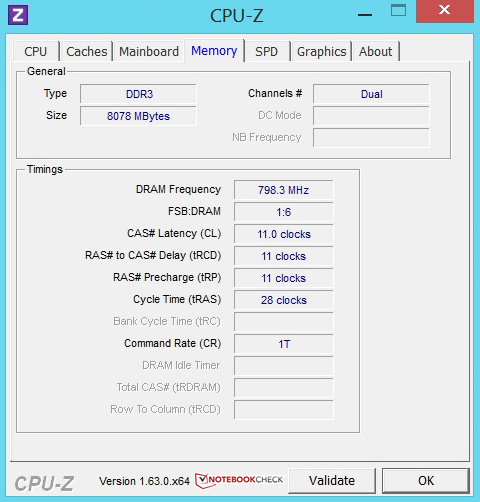

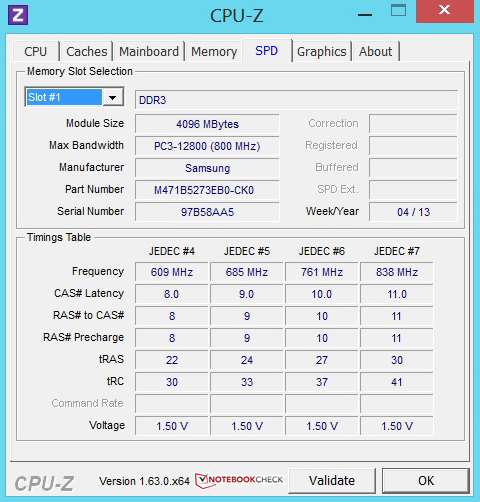

The laptop is also equipped with 8 GB RAM (DDR3, clocking at 1600 MHz) and a 1 TB 2.5-inch hard drive, which is very difficult to remove from the laptop without damaging its case. Memory modules, however, can be replaced within a few minutes. Up to 12 GB RAM is possible.
我们很高兴三星选择使用相同的硬件在770Z5E作为在770Z7E S01DE，避免从一个向下扩展。这种笔记本电脑是由英特尔酷睿i7-3635QM四核处理器，时钟速度为2.4GHz，使用22纳米工艺制造的3D晶体管的Ivy Bridge芯片基地带动。此外，它还6 MB三级高速缓存和一个涡轮增压达到3.4 GHz，当只有一个核心。当相比，酷睿i7-3630QM，英特尔GMA HD4000中使用的酷睿i7-3635QM时钟，而不是1150兆赫1200兆赫。此外，新的可视化技术VT-d的支持。
笔记本电脑的集成图形核心，还附带一个专用GPU的AMD Radeon HD8870M，时钟速度高达775兆赫，采用了28纳米工艺制造，同时提供2 GB的GDDR5显存，主频为1125 MHz的。更多精确的细节，可以发现关于这款GPU的770Z7E S01DE在我们详细审查。两个设备之间的切换是自动处理通过一个称为耐力赛，这是媲美NVIDIA的Optimus技术。
这款笔记本电脑还配备了8 GB内存（DDR3，定时在1600兆赫）和1 TB的2.5英寸硬盘驱动器，这是非常困难的，从笔记本电脑中删除，而不会损坏情况。然而，记忆体模组，可以在几分钟之内取代。高达12 GB内存是可能的。
Throttling

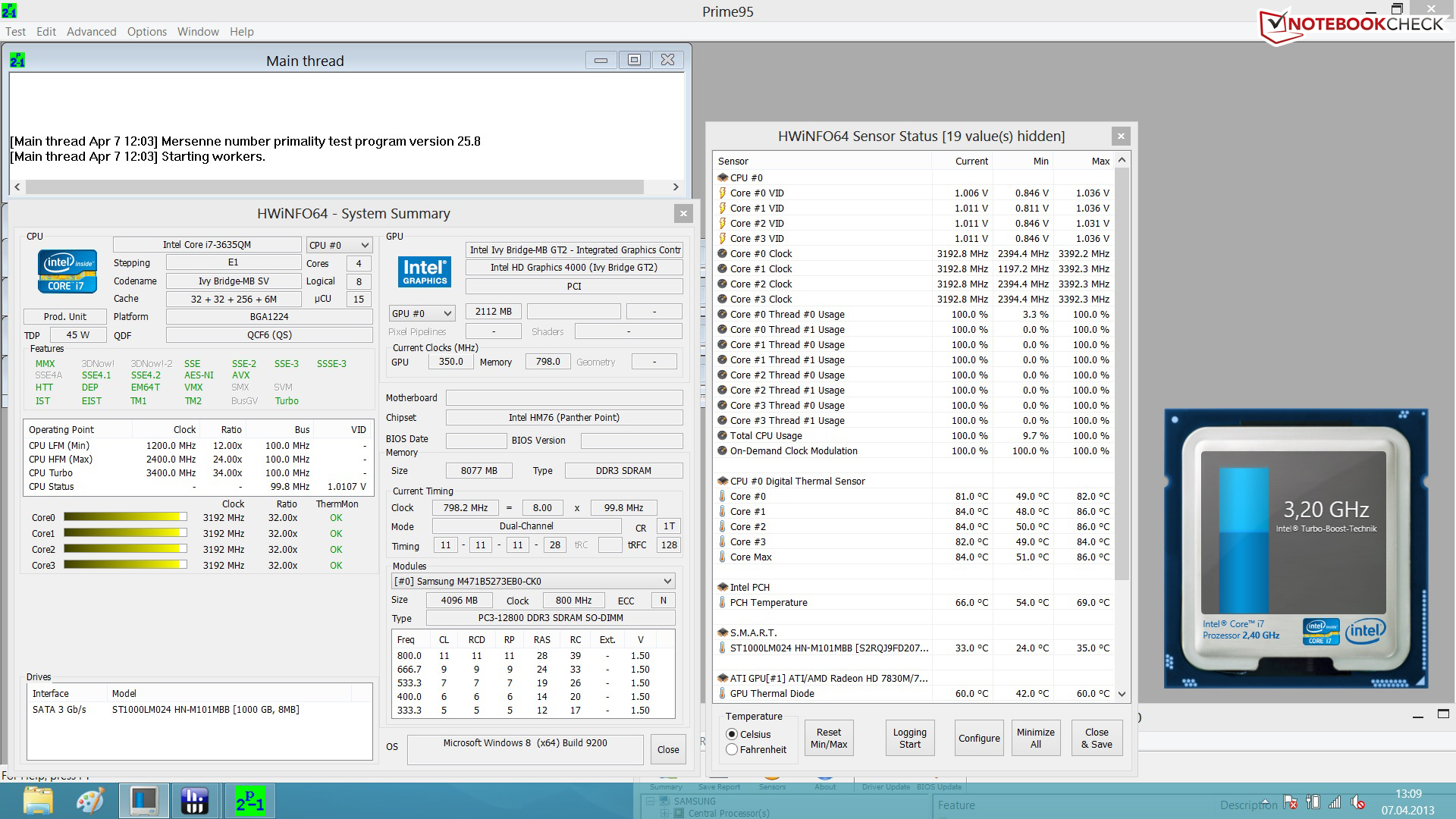

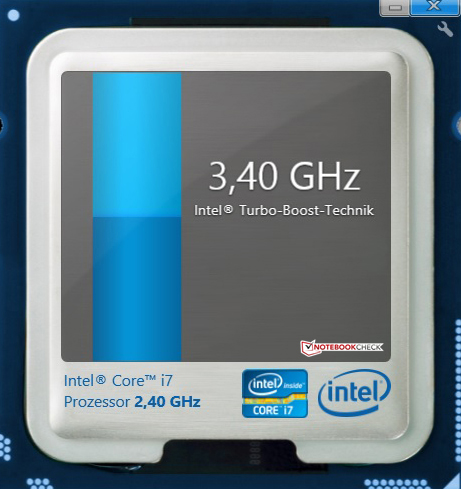

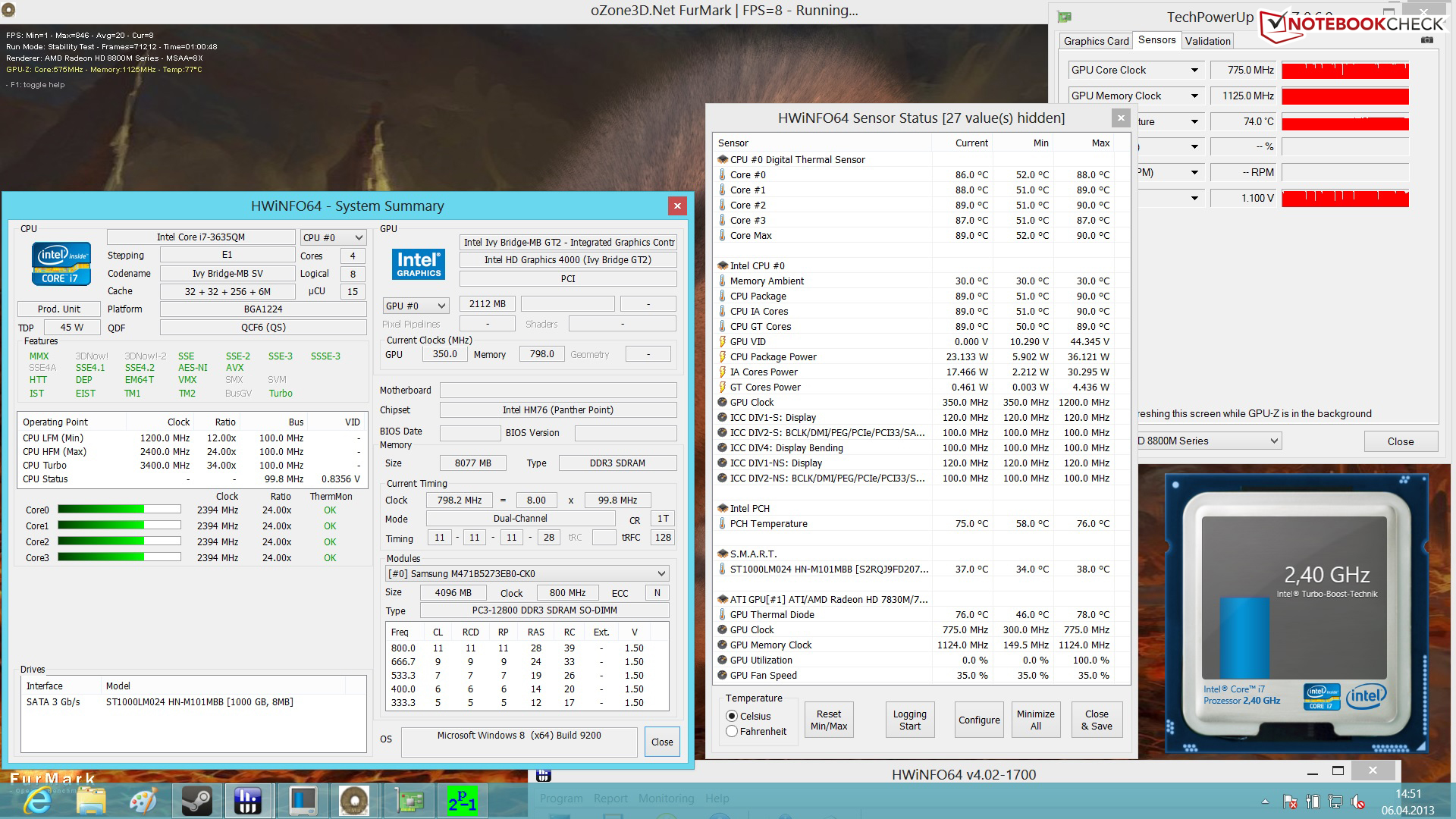

Our first tests were concerned with the behavior of both the CPU and the GPU under full load. No problems occurred when only the processor was strained using the Prime95 benchmark - the system is constantly working in turbo boost mode with all four cores reaching 3.2 GHz. Similar results can be found when just the AMD Radeon HD 8870M is active. Furmark runs smoothly with the GPU working at 725 to 775 MHz (with a stable memory clock speed of 1125 MHz), exhibiting none of the problems which often arise a few minutes into the stress test.

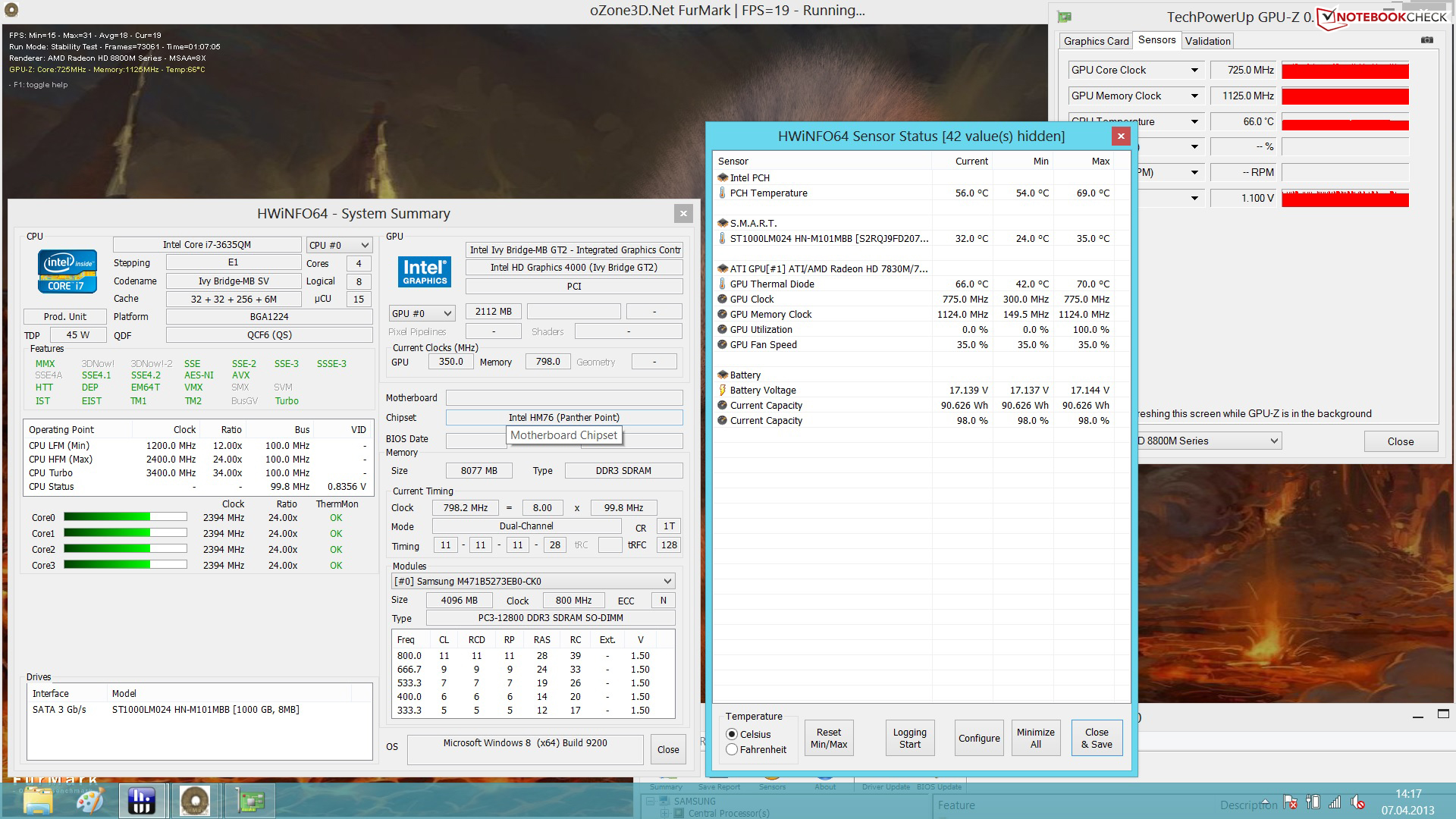

The full stress test - using both the Prime95 benchmark as well as Furmark - is more interesting. The larger 770Z7E-S01DE had problems keeping up to the full CPU clock speed. Not so the Samsung Series 7 Chronos 770Z5E-S01DE. Only the turbo boost gets deactivated once the laptop runs too hot. Still, clock speeds never fall below their 2.4 GHz base value so that throttling is no issue for the 770Z5E.
Right after our stress test, we started 3DMark 06. The Samsung laptop manages to cool down quickly, thus yielding the same results as after a cold start. Even an elaborate 3D game was not enough to limit its turbo boost. We are therefore very confident that performance issues due to throttling are highly unlikely during daily usage.
我们的第一个测试中，CPU和GPU的满负荷情况下的行为与关注。没有发生问题时，只有处理器紧张使用Prime95的基准， - 系统始终致力于涡轮增压模式下达到了3.2 GHz的所有四个核心。了AMD Radeon HD8870M是活跃时，可以发现类似的结果。 Furmark对与GPU在725至775兆赫（与稳定的内存时钟速度为1125 MHz）工作顺利运行，经常出现几分钟到压力测试的问题没有参展。
满应力测试 - 同时使用Prime95的基准测试以及Furmark对 - 更有趣。较大的770Z7E S01DE问题保持了完整的CPU时钟速度。事实并非如此三星Series7 Chronos的770Z5E S01DE。只有涡轮增压一旦被激活，笔记本电脑运行太热。不过，时钟速度不会低于2.4 GHz的基值，所以，节流是没有为770Z5E问题。
我们的压力测试后，我们开始了3DMark 06的。三星笔记本电脑管理迅速降温，从而产生冷启动后，相同的结果。即使是一个精心制作的3D游戏是不够的，以限制其涡轮增压。因此，我们非常有信心，在每天使用时，因节流的性能问题的可能性很小。
Processor

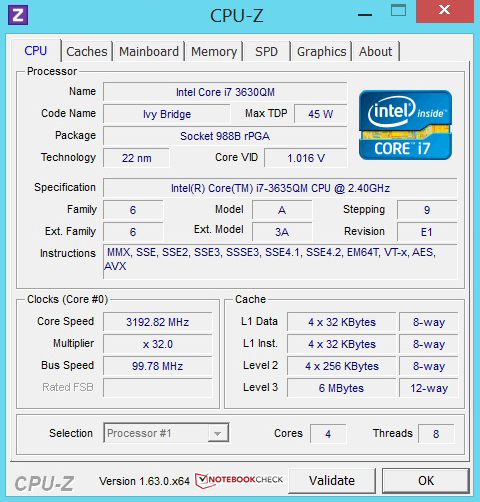

The Cinebench R11.5 results of the Intel Core i7-3635QM boil down to 6.38 points during the multi-thread calculation (64-bit), placing it slightly above the Intel Core i7-3630QM with a base clock speed of 2.3 GHz (e.g. the HP Envy dv6-7202eg with 6.26 points). Devices with an Intel Core i7-3720QM quad-core processor offer a better performance, like the Schenker XMG P702 Pro with 6.6 points, a difference of just 3%. Thus, the Intel Core i7-3635QM takes a place in the upper third of all processors we have tested so far.
The same holds true for the single-core calculations using the same tool. 1.39 points is 2% higher than the result of the i7-3610QM and 5% below that of the i7-3720QM (which clocks at 200 MHz more).
英特尔酷睿i7-3635QM归结至6.38分（64位）在多线程计算，把它略高于英特尔酷睿i7-3630QM与基本时钟速度为2.3 GHz（例如的Cinebench R11.5结果惠普Envy有DV67202eg6.26点）。与英特尔酷睿i7-3720QM四核处理器的设备提供更好的性能，如辛克XMG P702 Pro与6.6分，两者相差仅3％。因此，到目前为止，我们已经测试的所有处理器的上三分之一的英特尔酷睿i7-3635QM占有一席之地。
为单核计算使用相同的工具也同样如此。 1.39点，比的i7-3610QM的结果高出2％和5％以下的酷睿i7-3720QM（时钟频率为200 MHz以上）。
| Cinebench R11.5 - CPU Multi 64Bit (sort by value) | |
| Samsung 770Z5E-S01DE | |
| HP Envy dv6-7202eg | |
| Schenker XMG P702 PRO | |
System Performance

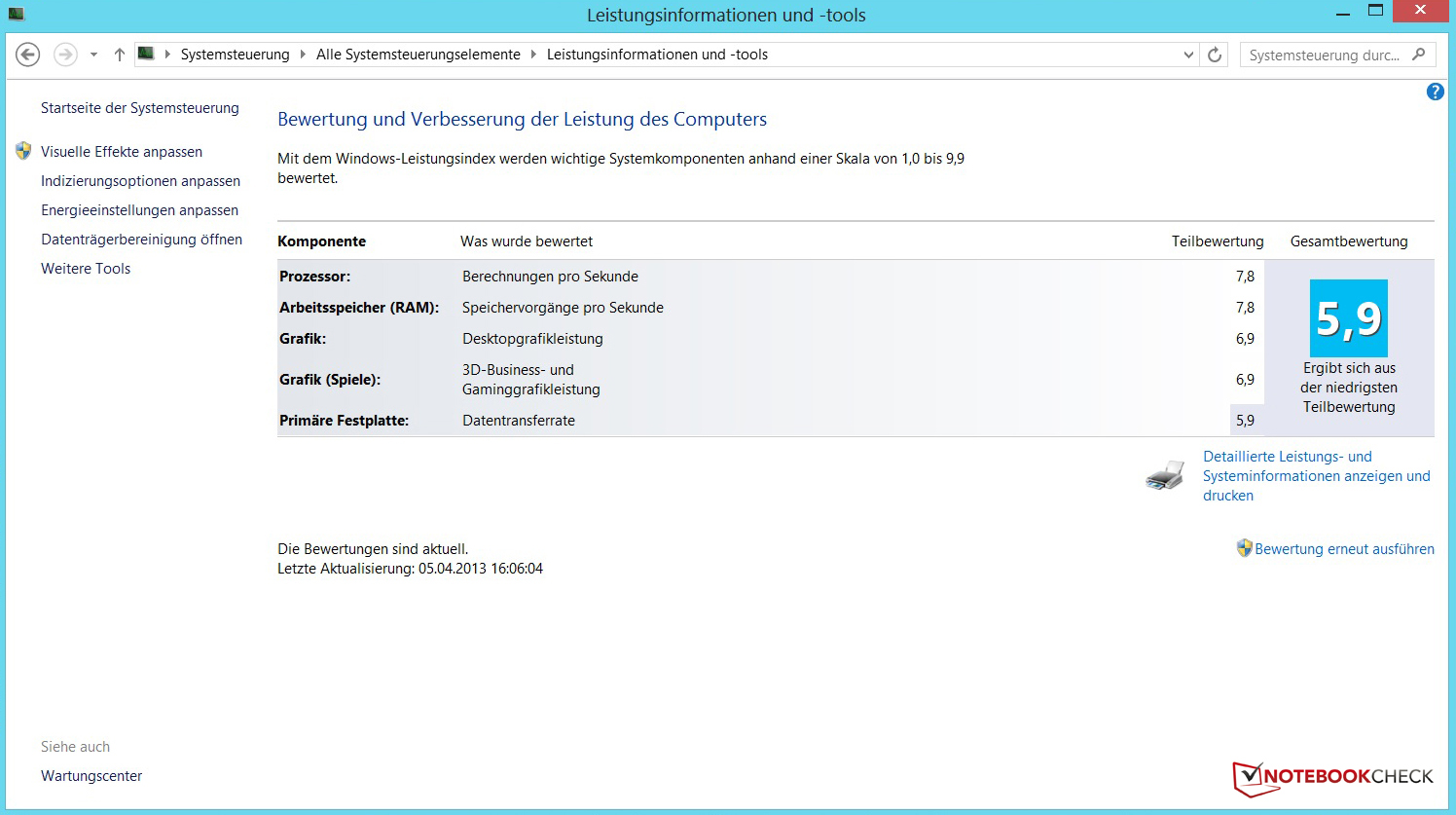

We measured the performance of our test system via Futuremark's PCMark 7, yielding 3970 points, which is an above average result. An even better rating for the 770Z5E-S01DE near the top of our list was prevented by the 2.5-inch Seagate HDD - in our experience, faster SSDs can have a significant influence on the PCMark results.
A good example would be the Asus Zenbook Prime UX31A with a ULV processor and a solid state drive. Its 5155 points is approximately 30% more than what the 770Z5E accomplishes. Still, in real life usage it's hard not to be content with the system performance of the 770Z5E-S01DE. Loading times are tolerable and work-related applications pose no problems due to the 770Z5E's potent hardware.
我们测量我们的测试系统的性能通过Futuremark公司的PCMark7中，得到3970分，这是高于平均水平的结果。我们列表的顶部附近的一个更好的评级770Z5E S01DE被阻止的2.5英寸希捷硬盘 - 在我们的经验，更快的固态硬盘可以有一个显着的影响了PCMark结果。
一个很好的例子是一款ULV处理器和固态硬盘的华硕Zenbook UX31A总理。 5155点是约30％以上，比什么770Z5E完成。不过，在现实生活中使用它很难不被内容与系统性能770Z5E S01DE。加载时间是可以容忍的，工作相关的应用带来由于到770Z5E的强有力的硬件没有问题。
| PCMark 7 Score | 3970 points | |
Help | ||
Storage Devices

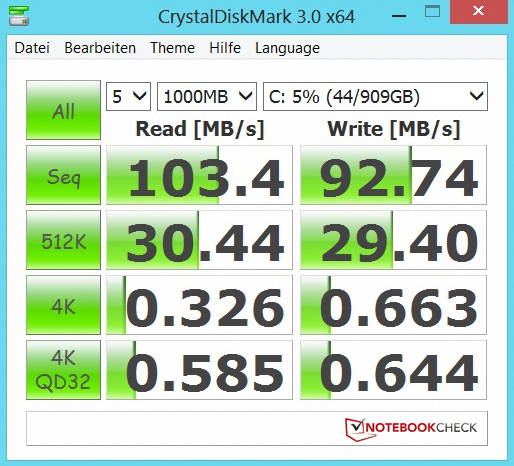

Samsung relies on a 2.5-inch hard drive storage solution made by Seagate, more specifically, a Momentus SpinPoint M8 ST1000LM024 HN-M101MBB (construction height: 9.5 millimeters) which spins at 5400 revolutions per minute. Its performance is alright, but nothing to write home about, with sequential data transfer rates of around 100 MB/s.
A solid state drive (SSD) would do much to boost the 770Z5E's performance by a noticeable factor. Hard drive access times averaging around 10 to 18 milliseconds are its bottleneck, while access times of an SSD hover around 0.2 milliseconds. Unfortunately, this is exactly where the 15.6-inch laptop differs from the larger 770Z7E: Samsung does not offer any SSD configurations. Additionally, a later upgrade is hampered by the bad accessibility of the 770Z5E's innards.
三星依赖于一个2.5英寸的硬盘驱动器的存储解决方案由希捷，更具体地说，一个希捷Momentus的SpinPoint M8，ST1000LM024，HN-M101MBB（建筑高度：9.5毫米），在每分钟5400转的速度旋转。它的表现是正常的，但没有写信回家，顺序约100 MB / s的数据传输速率。
一个固态驱动器（SSD）会做很多一个明显因素，提高770Z5E性能。硬盘的平均访问时间为10至18毫秒左右是它的瓶颈，而SSD悬停约0.2毫秒的存取时间。不幸的是，这是15.6英寸的笔记本电脑不同于较大770Z7E：三星不提供任何SSD配置的确切位置。此外，以后的升级是坏本770Z5E的内脏无障碍阻碍。
Graphics Card
Prior to our actual PC gaming tests, the AMD Radeon HD 8870M is forced to prove itself within Futuremark's synthetic gaming benchmarks. DirectX 11 performance as tested with 3DMark 11 is more than just decent, yielding 2996 points during the GPU benchmark (performance mode). This is more than the 2820 points of the MSI GT60-i789W7H, a representative of the Nvidia GeForce GTX 670M family which is based on the slightly older Fermi architecture. Newer graphic cards like the GeForce GT 650M or the GeForce GTX 660M also fare worse than the HD 8870M, being forced to admit defeat by approximately 20 to 30%.
These encouraging results are fostered by the Fire Strike GPU benchmarks within 3DMark (2013), with the AMD Radeon HD 8870M reaching a laudable result of 2168 points. The Nvidia GeForce GTX 660M used by Schenker's XMG P502 only manages to get 1751 points, 19% less, while the weaker GeForce GT 650M (with which the Asus N76VZ-V2G-T1011V ships) doesn't manage to exceed 1231 points, down by a stark 43%.
我们的实际PC游戏测试之前，AMD的Radeon HD8870M被迫证明自己在Futuremark的合成游戏基准。不仅仅是体面的DirectX 11性能与3DMark 11的测试，得到2996分，在GPU基准测试（性能模式）。这是2820点以上的，的微星GT60-i789W7H，有代表性的是基于Fermi架构的年龄稍大的Nvidia GeForce GTX670M系列。新的GeForce GT 650M或GeForce®（精视™）GTX660M的显卡，如票价比HD8870M更糟，，被迫认输约20至30％。
这些令人鼓舞的结果内培育的的火力打击GPU基准的3DMark（2013年），与AMD Radeon HD8870M的2168点达到一个值得称赞的结果。 Nvidia的GeForce GTX660M由辛克XMG P502只设法得到1751分，少了19％，而实力较弱的GeForce GT650M（华硕N76VZ-V2G-T1011V船舶）不超过1231点，下跌了形成了鲜明的43％。
| 3DMark 11 - 1280x720 Performance GPU (sort by value) | |
| Samsung 770Z5E-S01DE | |
| Samsung 770Z5E-S01DE | |
| MSI GT60-i789W7H | |
| SCHENKER XMG A522 | |
| Asus N76VZ-V2G-T1011V | |
| 3DMark 05 Standard | 18829 points | |
| 3DMark 06 Standard Score | 15785 points | |
| 3DMark Vantage P Result | 11840 points | |
| 3DMark 11 Performance | 3311 points | |
| 3DMark Ice Storm Standard Score | 50756 points | |
| 3DMark Cloud Gate Standard Score | 11402 points | |
| 3DMark Fire Strike Score | 2091 points | |
| 3DMark Fire Strike Extreme Score | 1036 points | |
Help | ||
Gaming Performance
Taking a glance at the actual gaming performance of the AMD Radeon HD 8870M, our positive impression is consolidated, albeit with a few exceptions due to excessive variations in our real-life results. One of the reasons lies with AMD's drivers which are not as capable as Nvidia's Optimus solution in gaining extra performance due to lower quality settings.
Most recent games can only be played with noticeable limitations if maximum graphics quality and a resolution of 1920x1080 pixels are chosen. A good example of this is BioShock Infinite, which offers an integrated benchmark. 19.3 fps on Full HD with the "ultra preset" stutters too much in order to remain playable. However, with high quality settings and a resolution of 1366x768 pixels, 51.4 fps is reached, making sure that the game runs smoothly at all times.
Thus, the 770Z5E seems like the perfect solution for casual gamers who are not always hell-bent on top-notch graphics quality. Even the most recent games can be played on lower resolutions and with reduced details while more modest titles such as FIFA 13, Diablo III or Counter Strike: Global Offensive actually run smoothly and without limitations even at the native resolution of 1920x1080 pixels.
以实际游戏性能的AMD Radeon HD8870M瞄了一眼，巩固我们的正面印象，尽管也有少数例外，由于过多的变化，在我们的现实生活中的结果。其中一个原因在于AMD的驱动程序，这是不能够获得额外的性能，因为低质量的设置作为NVIDIA的Optimus解决方案。
最新游戏只能发挥有明显的局限性，如果选择最高画质和分辨率为1920×1080像素。这是一个很好的例子生化奇兵无限，它提供了一个集成的基准。 19.3 fps的全高清“超预设”口吃太多，以保持可玩。然而，随着高品质的设置，分辨率为1366×768像素，达到了51.4帧，确保游戏在任何时候都顺利运行。
因此，的770Z5E似乎像是一个完美的解决方案，为休闲玩家并不总是一意孤行顶尖的图形质量。即使最新的游戏可以玩，在较低的分辨率和细节减少，而较为温和的职称，如国际足联13日，“暗黑破坏神III”反恐精英：全球攻势实际运行平稳，无局限性，即使在原生分辨率为1920×1080像素。
| low | med. | high | ultra | |
|---|---|---|---|---|
| World in Conflict - Benchmark (2007) | 134 | 58 | 48 | 32 |
| Mafia 2 (2010) | 80.4 | 72.4 | 65.1 | 43.1 |
| Battlefield 3 (2011) | 51.5 | 41.4 | 40.8 | 19.9 |
| Alan Wake (2012) | 70.9 | 48.6 | 23.1 | |
| Mass Effect 3 (2012) | 60 | 60 | 47.8 | |
| Dirt Showdown (2012) | 67.9 | 48.6 | 35.7 | 24.6 |
| Sleeping Dogs (2012) | 50 | 34.5 | 28.8 | 12.1 |
| Fifa 13 (2012) | 243.7 | 186.2 | 166 | 131.2 |
| Medal of Honor: Warfighter (2012) | 78.3 | 63.1 | 49.9 | 20.1 |
| Need for Speed: Most Wanted (2012) | 55.9 | 47.6 | 37.1 | 26.1 |
| Crysis 3 (2013) | 58.8 | 39.2 | 26.5 | 10.8 |
| Tomb Raider (2013) | 123.3 | 80.4 | 55.3 | 25.5 |
| SimCity (2013) | 83.3 | 47.8 | 37.5 | 20.3 |
| StarCraft II: Heart of the Swarm (2013) | 194 | 85.2 | 68.5 | 25.9 |
| BioShock Infinite (2013) | 70.3 | 55.7 | 51.4 | 19.3 |
Emissions
System Noise
In comparison with the 700Z5C, Samsung has managed to reduce noise emissions during office usage. With up to 30.6 dB(A) from a distance of 15 centimeters, the notebook stays very silent and rarely makes itself perceptible. During silent mode, the laptop remains (almost) noiseless since the fan is deactivated. Only a quiet whooshing of the hard drive can be heard, but even this is just background noise with levels of around 31.4 dB(A). However, if the notebook was fitted with an SSD, no noise at all would be produced.
Noise under full load doesn't exceed 39.2 dB(A). Even in this scenario, our test device remains quieter than its predecessor and thus ends up being on par with most devices which offer similar features for a similar price. Still, it is definitely audible and the noise it makes comes with an annoying high-pitched buzzing sound.
与700Z5C相比，三星已经在办公室使用，以减少噪音排放。凭借高达30.6分贝（A）从15厘米的距离，笔记本保持非常沉默，很少让自己察觉。在静音模式下，笔记本电脑仍然几乎无声的，因为风扇失效。只有一个安静的硬盘驱动器，可以听到呼啸，但即使这仅仅是背景噪声与周围31.4分贝（A）的水平。然而，如果笔记本电脑配备了一个固态盘，在所有无噪音产生。
在满载情况下噪音不超过39.2分贝（A）。即使在这种情况下，我们的测试设备仍比其前任更安静，从而结束了与大多数设备类似的价格提供了类似的功能看齐。尽管如此，它绝对是声音和噪音，配备了一个恼人的高音调的嗡嗡声。
Noise Level
| Idle |
| 30 / 30.6 / 30.6 dB(A) |
| HDD |
| 31.4 dB(A) |
| Load |
| 32.3 / 39.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Voltcraft SL-320 (15 cm distance) | ||
Temperature
The 770Z7E-S01DE's powerful hardware now has to get rid of its excess heat in the smaller frame of a 15.6-inch device. Like with its larger sibling, no universal conclusion can be drawn. While idle, all crucial surfaces remain fairly cool. After one hour of our stress test, however, the underside had heated up to around 42 °C, while the immediate vicinity of the keyboard fared even worse with 50 °C. During real-life usage, this effect is not quite as pronounced, with the laptop reaching only moderate temperatures of up to 33.6 °C. The cool aluminum surfaces help with keeping the subjective temperatures between cool and lukewarm.
Luckily, the keys protrude a little bit, keeping them a bit cooler than the base unit a few millimeters beneath. Actual usage rarely causes strains such as those of our stress test, with Furmark (GPU) and Prime95 (CPU) running at the same time. Details concerning throttling issues can be found a bit further up in this article where we analyzed the laptop's performance.
现在770Z7E-S01DE的强大的硬件摆脱多余的热量在较小的框架了15.6英寸的设备。其较大的兄弟姐妹一样，没有通用的可以得出结论。虽然闲置，所有关键的表面仍然相当冷静。然而，一小时后，我们的压力测试，底面加热至约42℃，同时在键盘的紧邻范围内表现更为逊色与50℃。在现实生活中的使用，这种效果是不太明显的，与笔记本电脑仅达到中等温度高达33.6℃，凉爽的铝表面有助于保持凉爽，不冷不热的主观之间的温度。
幸运的是，按键凸出一点点，让他们有点凉比基本单元下方几毫米。实际使用量很少引起我们的压力测试的菌株，如用的Furmark（GPU）和Prime95的（CPU）在同一时间运行。有关节流问题详情可以进一步搜了一下，在这篇文章中，我们分析了笔记本电脑的性能。
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 42 °C / 108 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-2.7 °C / -4.9 F).
Speakers
The laptop uses a 2.0 stereo system made by JBL to render audio. Both speakers have 4 watts at their disposal. Overall sound quality is very good, so that obviously the resonance chamber is large enough despite the 770Z5E's slim profile. Even positioning the speakers underneath the device didn't have any negative consequences, so that we definitely do not have to advise potential buyers to look for an external solution. For most purposes, the integrated speakers of the 770Z5E should be more than adequate.
Of course, it is still possible to plug in a headset, external speakers or an AV receiver via the 3.5 mm Line In/Out or the HDMI port. Transmission quality is great - the resulting sound experience only depends on the peripheral equipment.
该笔记本采用的是2.0立体声系统由JBL音频渲染。两个扬声器有4瓦，在他们的处置。整体音质非常好，这样明显的共振腔是足够大尽管770Z5E的超薄外形。即使定位装置下方的扬声器并没有产生任何负面影响，所以我们绝对不向潜在买家寻找外部解决方案。对于大多数用途，集成扬声器770Z5E应该是绰绰有余。
当然，它仍然是可能的，插上耳机，可外接音箱或AV接收器通过3.5毫米线路输入/输出的HDMI端口。传输质量是伟大的 - 只依赖于外围设备产生的声音体验。
Energy Management
Power Consumption
Thanks to its modern components, the Samsung laptop doesn't use too much power despite its more than decent performance. 8.6 to 14.9 watts can be expected during office tasks. This is just slightly above the power consumption levels of modern ultrabooks with a ULV processor and an integrated graphics unit.
Power consumption increases strongly under full load, with stress test (Furmark + Prime95) values of up to 88.5 watts, which is still below the threshold of what the power adapter can supply (the larger 770Z7E-S01DE crosses this threshold of 90 watts). In total, power consumption levels are still acceptable.
The 91 Wh battery is permanently installed, but at least well-dimensioned. It provides the basis for decent battery life values, which we will analyze in the following section.
得益于其现代化的组成部分，三星笔记本电脑不使用的权力太大尽管其超过不俗的表现。 8.6到14.9瓦，可以预期在办公室工作。这仅仅是略高于现代ultrabooks的一款ULV处理器和一个集成的图形单元的功耗水平。
电力消费增长强劲，在满载情况下，压力测试（的Furmark+ Prime95的）值高达88.5瓦，这仍然是什么样的电源适配器可以提供（较大的770Z7E S01DE跨过这道门槛的90瓦），低于阈值的。总体而言，功耗水平还是可以接受的。
91瓦时的电池是永久安装，但至少尺寸。它提供了体面的电池寿命值，这在下面的章节中，我们将分析的基础。
| Off / Standby | 0.2 / 0.7 Watt |
| Idle | 8.6 / 13.6 / 14.9 Watt |
| Load |
74.8 / 88.5 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC-940 | |
Battery Runtime
The Battery Eater Reader's Test simulates reading a text document on minimal screen brightness while being in airplane mode. Thanks to its large battery, the 770Z5E manages to stay alive for up to 15 hours and 45 minutes, while the larger 770Z7E-S01DE and the 700Z5C with its smaller battery barely scratch the 10-hour mark. Only the Apple MacBook Pro 15 with Retina Display fares better with almost 18 hours. A negative example would be the Asus N56VB-S4050H with just 5 hours of reading time.
The other extreme can be examined while under full load. We use the Battery Eater Classic Test, while activating all radio modems and turning the laptop's screen brightness way up. The 770Z5E manages to squeeze 1 hours and 53 minutes out of its battery, approximately the same as its predecessor, the 700Z5C. The Samsung Series 7 Chronos 770Z7E-S01DE (66 minutes), the Apple MacBook Pro 15 with Retina Display (88 minutes) and the Asus N56VB-S4050H (58 minutes) all perform worse.
A realistic estimate can be gained through our "surfing on Wi-Fi" measurement, where a script opens a new website every 40 seconds. Screen brightness is set to a standardized 150 cd/m² in order to create reproducible as well as comparable conditions. We measure 10 hours and 42 minutes for the 770Z5E. This is a very satisfying result, exceeding the runtimes of all other laptops mentioned above. Our overall impression of the 770Z5E's battery life is therefore quite favorable.
电池噬魂读者的测试模拟最小的屏幕亮度，同时在飞行模式下读取一个文本文件。由于大容量电池，其的770Z5E管理活路长达15小时45分钟，而较大的770Z7E的S01DE和其较小的电池700Z5C勉强划伤10小时大关。只有苹果的MacBook Pro15 Retina显示屏票价更好地与近18个小时。一个负面的例子将华硕的N56VB的S4050H仅5个小时的阅读时间。
另一个极端，而在满载情况下可以检查。我们使用电池噬魂经典测试的所有无线调制解调器，同时激活并打开笔记本电脑的屏幕亮度一路攀升。的770Z5E管理挤1小时53分钟的电池，其前身700Z5C大致相同。三星Series7 Chronos的770Z7E S01DE（66分钟），苹果MacBook Pro15 Retina显示屏（88分钟）和的华硕N56VB S4050H（58分钟），表现较差。
一个现实的估计可以通过我们的Wi-Fi“冲浪”的测量，脚本会打开一个新的网站，每40秒获得。屏幕的亮度被设置为一个标准化的150坎德拉/平方米，以创造重现性和可比的条件下。我们测量10个小时和42分钟的770Z5E。这是一个非常令人满意的结果，超过上面提到的所有其他笔记本电脑的运行时间。因此，我们的整体印象本770Z5E的电池寿命是相当有利的。
Verdict
The Samsung Series 7 Chronos 770Z5E-S01DE is not only a successful advancement over its predecessors, but also a recommendable laptop in its own right, despite its high price tag of around $1500. Its chassis looks and feels premium and its input devices are outstanding. Plus, it is equipped with all kinds of ports and radios. Then there is the matte 15.6-inch Full HD display which has made a good impression on us despite using a TN panel.
Our main concern lies with its barely reachable innards. The hard drive and the integrated battery cannot be accessed by the user - only its RAM can be upgraded through a small maintenance hatch. This issue makes it even more crucial to offer a wider range of different hardware configurations, especially variants with an SSD instead of a conventional hard drive, but none exist. However, both application and graphics performance were convincing. Even some casual gaming was possible thanks to the 770Z5E's combination of an Intel Core i7-3635QM and an AMD Radeon HD 8870M. Still, this is not a gamer's device.
The Samsung Series 7 Chronos 770Z5E was also capable of winning us over with its low emission levels. There is even a great 2.0 JBL sound system. We cannot complain about power consumption and battery life, either. The 770ZE5 manages to achieve a good balance between maximum performance and good battery life during less demanding tasks, e.g. office usage.
