AMD A9-9420e

AMD A9-9420e

高通Snapdragon 675（SD675）是一种基于ARM的快速中档SoC，主要用于Android平板电脑和智能手机。它具有8个称为内核（支持64位）的Kryo 460，分为两个集群。基于ARM Cortex-A76设计的两个内核（高达2 GHz）的快速集群。以及基于1.6 GHz的节电集群，它基于更小的ARM Cortex-A55内核。两个群集也可以一起使用。

除了8个CPU内核外，SoC还集成了一个较差的中端Adreno 612 GPU，一个X12 LTE调制解调器，该调制解调器具有高达600 Mbps的下载速度（Cat 12）和150 Mbps的上载速度（Cat 13），一个802.11ac（Wifi 5）波形2 WLAN调制解调器（最高867 Mbps），蓝牙5.0无线电，卫星定位（GPS，QZSS，GLONASS，SBAS，北斗和Galileo）和视频引擎（最高4k30编码，并支持H.265，H.264， VP8和VP9）。

性能：

得益于两个基于Cortex-A76的内核，SD675在某些基准测试中甚至可以胜过旧的高端Snapdragon 835 SoC。功能较弱的Snapdragon 670，例如仅在Geekbench 4.3（单核/多核测试）中达到了70％到77％的性能。但是，像Snapdragon 855这样的当前高端SoC仍然可以在675的性能之上超出50-70％。

Snapdragon 675采用三星新的11nm LPP（低功耗增强版）工艺生产，该工艺是14nm和10nm的组合。三星表示，与14nm LPP相比，11nm LPP工艺应该能够将性能提高15％，并将芯片尺寸减小10％。

SeriesAMD Bristol Ridge
CodenameStoney Ridge

Series: Bristol Ridge Stoney Ridge

AMD A9-94253.1 - 3.7 GHz2 / 2 cores
AMD A9-9420e « - 2.5 GHz2 / 2 cores
AMD A9-94203 - 3.6 GHz2 / 2 cores
AMD A9-94102.9 - 3.5 GHz2 / 2 cores
AMD A6-92252.6 - 3.1 GHz2 / 2 cores
AMD A6-92202.5 - 2.9 GHz2 / 2 cores
AMD A6-9220C1.8 - 2.7 GHz2 / 2 cores
AMD A6-92102.4 - 2.8 GHz2 / 2 cores
AMD A4-91202.2 - 2.5 GHz2 / 2 cores
AMD A4-9120C1.6 - 2.4 GHz2 / 2 cores
AMD E2-90102 - 2.2 GHz2 / 2 cores
AMD E2-90001.8 - 2.2 GHz2 / 2 cores
AMD A6-9220e1.6 - 2.4 GHz2 / 2 cores
Clock Rate <=2500? MHz
Level 2 Cache1 MB
Number of Cores / Threads2 / 2
Power Consumption (TDP = Thermal Design Power)15 Watt
Transistor Count1200 Million
Manufacturing Technology28 nm
Die Size124.5 mm2
Max. Temperature90 °C
SocketBGA
FeaturesSingle-Channel DDR4-2133?, Virtualization,
GPUAMD Radeon R5 (Stoney Ridge)
64 Bit64 Bit support
Architecturex86
Announcement Date06/01/2018

Benchmarks

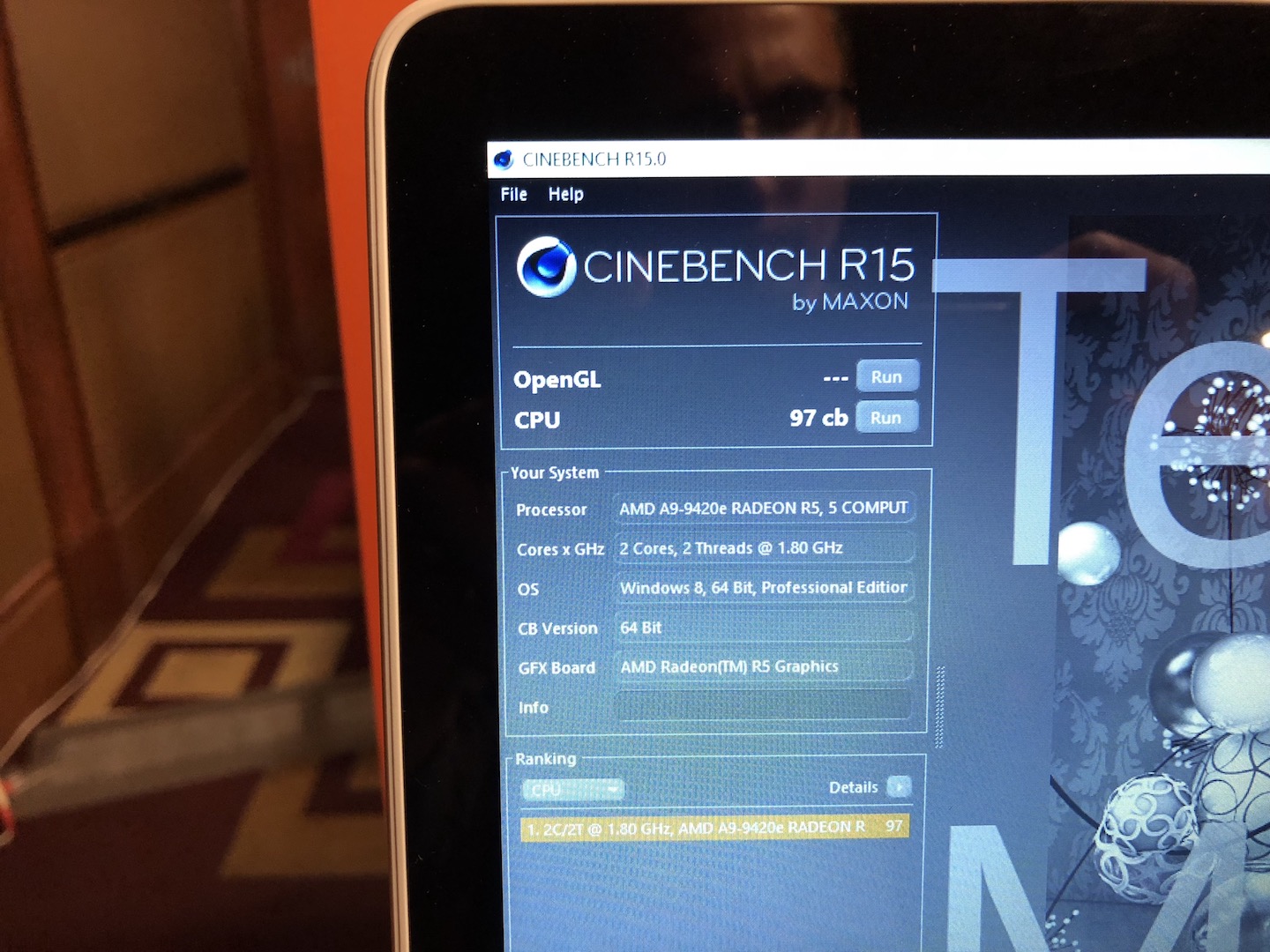

Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
97 Points (1%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD A4-1200
31 -68%
...
Intel Celeron N3350
85.4 -12%
AMD A6-9220e
86 -11%
Intel Celeron J3355
90 -7%
AMD E2-9010
91 -6%
AMD A4-4300M
93 -4%
Intel Atom x5-Z8300
93.5 -4%
Intel Atom x5-E8000
94 -3%
AMD A4 Micro-6400T
95 -2%
Intel Atom x5-Z8350
96.1 -1%
AMD A9-9420e
97
AMD A4-5150M
101 4%
AMD E2-3800
103 6%
Intel Atom x5-Z8500
103.3 6%
Intel Celeron 2957U
105 8%
AMD A6-9225
108.5 12%
Intel Celeron N2940
110.5 14%
AMD A6-9220
111.5 15%
AMD A4-5000
114 18%
Intel Atom x7-Z8700
116 20%
...
AMD Ryzen 9 7945HX3D
5600 5673%
max:
AMD Ryzen Threadripper PRO 7995WX
15842 16232%
0%
100%
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.28
log 18. 23:15:58

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Sat, 16 Nov 2024 05:31:01 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_2 needed +0.007s ... 0.008s

#5 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#6 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#7 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#8 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#9 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#10 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#11 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#12 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#13 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#14 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#15 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s

#16 composed specs +0s ... 0.009s

#17 did output specs +0s ... 0.009s

#18 getting avg benchmarks for device 10052 +0.003s ... 0.012s

#19 got single benchmarks 10052 +0.007s ... 0.019s

#20 got avg benchmarks for devices +0s ... 0.019s

#21 min, max, avg, median took s +0.021s ... 0.04s

#22 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.04s

#23 return log +0s ... 0.04s

Reviews for the AMD A9-9420e processor

Dell Inspiron 11 3195 2-in-1: AMD Radeon R5 (Stoney Ridge), 11.60", 1.2 kg
  External Review » Dell Inspiron 11 3195 2-in-1
