AMD Ryzen 9 7845HX

AMD R9 7845HX

AMD Ryzen 9 7845HX是龙腾系列中速度最快的高端笔记本电脑处理器。它基于支持超线程（24 线程）的Zen 4架构，提供 16 个内核中的 12 个。内核频率从 3（基本）到 5.2 GHz（单核提升）不等。7845HX 是目前推出的速度第二快的移动 Ryzen CPU，源自台式机的 Ryzen 9 7900X.

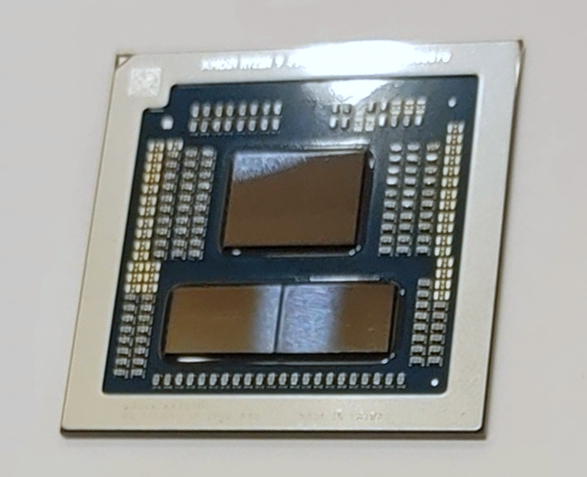

Dragon Range 系列仍然使用芯片组设计，采用 5nm 工艺制造的两个 CCD 簇（每个簇有 8 个可能的核心）和一个 IO-die（包括内存控制器和 Radeon 610M iGPU）采用 6 纳米制程。芯片集成了 4 个 USB 3.2 Gen2（10 Gbps）端口（无 USB4）、28 个 PCIe 5.0 通道（用于 GPU 和 SSD）和一个双通道 DDR5-5200 内存控制器。

性能

我们数据库中 7845HX 的平均性能与 酷睿 i9-13900HX就多线程基准测试成绩而言，7845HX 与酷睿 i9-13900HX 处于同一水平。截至 2023 年中期，这是一款速度超快的芯片；当然，您的笔记本电脑的散热解决方案有多好，CPU 功耗限制有多高，可能会影响您的使用体验。

R9 7845HX 的额定 TDP 为 55 瓦，配置范围为 45 至 75 瓦（cTDP）。

CodenameDragon Range-HX (Zen 4)
SeriesAMD Dragon Range (Zen 4, Ryzen 7045)

Series: Dragon Range (Zen 4, Ryzen 7045) Dragon Range-HX (Zen 4)

AMD Ryzen 9 7945HX3D2.3 - 5.4 GHz16 / 32 cores128 MB L3
AMD Ryzen 9 7945HX2.5 - 5.4 GHz16 / 32 cores64 MB L3
AMD Ryzen 9 7940HX2.4 - 5.2 GHz16 / 32 cores64 MB L3
AMD Ryzen 9 7845HX « 3 - 5.2 GHz12 / 24 cores64 MB L3
AMD Ryzen 9 7840HX2.9 - 5.1 GHz12 / 24 cores64 MB L3
Clock Rate3000 - 5200 MHz
Level 1 Cache768 KB
Level 2 Cache12 MB
Level 3 Cache64 MB
Number of Cores / Threads12 / 24
12 x 5.2 GHz AMD Zen 4
Power Consumption (TDP = Thermal Design Power)55 Watt
Transistor Count9900 Million
Manufacturing TechnologyCCD = 5 nm, I/O = 6 nm
Max. Temperature100 °C
SocketFL1
FeaturesDDR5-5200 RAM, PCIe 5, MMX, SSE, SSE2, SSE3, SSSE3, SSE4A, SSE4.1, SSE4.2, AVX, AVX2, AVX-512, BMI2, ABM, FMA, ADX, SMEP, SMAP, SMT, CPB, AES-NI, RDRAND, RDSEED, SHA, SME
GPUAMD Radeon 610M (400 - 2200 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date01/05/2023
Product Link (external)www.amd.com

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
44.2 pt (74%)
AMD E1-2100
2.31 -95%
...
AMD Ryzen 5 7645HX
41 -7%
Intel Core i7-13700HX
41.1 -7%
Intel Core i7-13800H
41.5 -6%
AMD Ryzen AI 9 365
41.8 -5%
Intel Core i9-12900HX
42 -5%
AMD Ryzen AI 9 HX 375
42.3 -4%
AMD Ryzen 7 7745HX
42.6 -4%
AMD Ryzen AI 9 HX 370
43.1 -2%
Intel Core i7-14650HX
43.2 -2%
AMD Ryzen 9 7845HX
44.2
Intel Core i7-14700HX
44.3 0%
Intel Core i9-13900HX
45 2%
Intel Core i9-13950HX
45.2 2%
Intel Core i9-13980HX
46.1 4%
Intel Core i9-14900HX
46.7 6%
AMD Ryzen 9 7945HX
47.1 7%
AMD Ryzen 9 7945HX3D
47.4 7%
max:
AMD Ryzen Threadripper PRO 7995WX
60.1 36%
0%
100%
Cinebench R23 - Cinebench R23 Multi Core
26876 Points (25%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
1852 Points (79%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R20 - Cinebench R20 CPU (Single Core)
719 Points (80%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R20 - Cinebench R20 CPU (Multi Core)
10492 Points (26%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
4320 Points (27%)
+ 1 benchmarks and specifications   - Hide comparison chart
0220440660880110013201540176019802200242026402860308033003520374039604180Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
295 Points (83%)
+ 1 benchmarks and specifications   - Hide comparison chart
7-Zip 18.03 - 7-Zip 18.03 Multi Thread 4 runs
106033 MIPS (61%)
+ 1 benchmarks and specifications   + Show comparison chart
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
7018 MIPS (83%)
+ 1 benchmarks and specifications   + Show comparison chart
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
29.7 fps (52%)
+ 1 benchmarks and specifications   + Show comparison chart
0510152025Tooltip
Blender - Blender 3.3 Classroom CPU *
185 Seconds (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 2.79 BMW27 CPU *
117 Seconds (1%)
+ 1 benchmarks and specifications   + Show comparison chart
R Benchmark 2.5 - R Benchmark 2.5 *
0.4 sec (9%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Physics
22073 Points (56%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Physics
36557 Points (65%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Time Spy CPU
11961 Points (50%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Single-Core
2729 points (69%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Multi-Core
12585 points (49%)
+ 1 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
2008 points (78%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
15068 points (27%)
+ 1 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
475 ms (1%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 4 - WebXPRT 4 Score
282 Points (79%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
357 Points (66%)
+ 1 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
1992 Points (76%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Prime95 Power Consumption - external Monitor *
190.6 Watt (33%)
+ 1 benchmarks and specifications   + Show comparison chart
0153045607590105120135150165180195Tooltip
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
207 Watt (38%)
+ 1 benchmarks and specifications   + Show comparison chart
0153045607590105120135150165180195Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
39.7 Watt (26%)
+ 1 benchmarks and specifications   + Show comparison chart
051015202530354045505560Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
41.9 Watt (46%)
+ 1 benchmarks and specifications   + Show comparison chart
05101520253035404550556065Tooltip
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
20.9 Points per Watt (16%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
