AMD E1-2500

AMD E1-2500

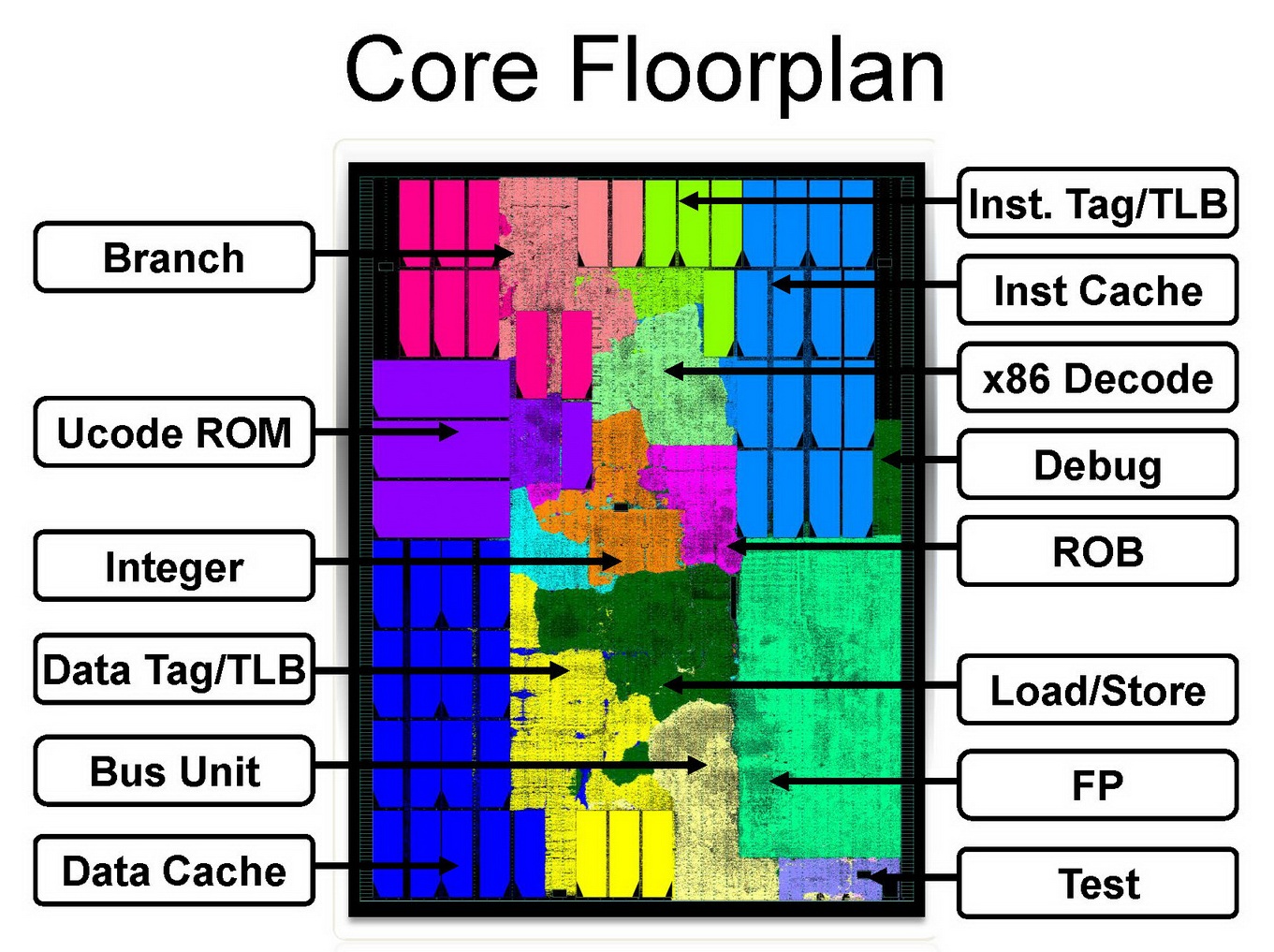

AMD E1-2500是一款与2013年中发布的为低端轻薄笔记本设计的双核移动整合芯片。除了两颗运行于1.4GHz的处理器核心，这块基于28纳米制程的芯片还集成了一颗Radeon HD 8240显示核心，一个单通道DDR3L-1333内存控制器，和输入输出接口的南桥控制器。 架构 Kabini（面向笔记本电脑）和Temash（面向平板和轻薄笔记本电脑）均基于AMD的新Jaguar架构，用于替代前代的Bobcat系列处理器（如E-350）。根据AMD提供的信息，它的单位时钟频率性能提升了约15%。另外，它新提供了对新指令集如SSE 4.2，AVX和AES的支持。来自TSMC的更先进的28纳米制程技术提供了更低的电压和相对Bobcat更高的时钟频率，同时处理器核心数也提高到了4个（Bobcat为两个）。 性能 由于近1.4GHz的较低频率，它的性能比较有限，仅比前代的E2-1800稍高。对于办公或多媒体应用，E1-2500可以提供充足的动力；不过，对于大型软件和游戏中，它则到达到性能的极限。 图形 这款整合芯片集成的Radeon HD 8240显卡提供了128个着色器，基于GCN架构。它的核心频率为400MHz（不支持加速）。它的性能接于Intel HD Graphics（Ivy Bridge）和HD Graphics 4000之间。不过，它在实际使用中会受到CPU性能的限制。大多的最新游戏（2013年）都无法运行。只有较旧或需求较低的游戏可以流畅运行。 功耗 这块整合芯片的功耗为15W。因此，E1-2500最适合于12寸或更大的笔记本电脑。

SeriesAMD E-Series
CodenameKabini

Series: E-Series Kabini

AMD E2-30001.65 GHz2 / 2 cores
AMD E1-2500 « 1.4 GHz2 / 2 cores
AMD E1-22001.05 GHz2 / 2 cores
AMD E1-21001 GHz2 / 2 cores
Clock Rate1400 MHz
Level 1 Cache128 KB
Level 2 Cache1 MB
Number of Cores / Threads2 / 2
Power Consumption (TDP = Thermal Design Power)15 Watt
Manufacturing Technology28 nm
FeaturesSSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, DDR3L-1333
64 Bit64 Bit support
Architecturex86
Announcement Date05/23/2013

Benchmarks

Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
44 Points (0%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD A4-1200
31 -30%
AMD A4-1250
32.5 -26%
AMD E1-2100
35.62 -19%
AMD E1-2500
44
AMD E1-6010
45.67 4%
Intel Celeron N2815
55.5 26%
Intel Celeron N2806
58 32%
Intel Celeron N2820
58 32%
Intel Celeron N2810
59 34%
Intel Celeron N3050
61.2 39%
Intel Celeron N2807
65 48%
Intel Celeron N2830
68.3 55%
Intel Celeron N3060
71.8 63%
...
AMD Ryzen 9 7945HX3D
5600 12627%
max:
AMD Ryzen Threadripper PRO 7995WX
15842 35905%
0%
100%
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
27 Points (8%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD A4-1200
19 -30%
AMD E1-2100
20.18 -25%
AMD A4-1250
20.5 -24%
Intel Celeron N2805
24 -11%
Intel Celeron N2806
26 -4%
AMD E1-6010
26 -4%
AMD E1-2500
27
Intel Atom x5-Z8300
27.8 3%
AMD E2-3800
28 4%
Intel Atom x5-Z8350
28.33 5%
Intel Celeron N2810
31 15%
AMD A6-9220e
31 15%
Intel Celeron N3150
32 19%
AMD A4-5000
32.29 20%
Intel Celeron N2920
32.5 20%
Intel Celeron N2815
32.5 20%
...
AMD Ryzen 9 7945HX3D
311 1052%
max:
Intel Core Ultra 9 285K
355.5 1217%
0%
100%
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 0.56     avg: 0.6     median: 0.6 (1%)     max: 0.66 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
min: 0.33     avg: 0.3     median: 0.3 (8%)     max: 0.35 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
1052 points (6%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
2016 points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 2101     avg: 2246     median: 2246 (1%)     max: 2391 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 1122     avg: 1194     median: 1194 (1%)     max: 1266 Points
+ 2 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 1024m *
2519 s (30%)
+ 1 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 32m *
79.6 s (16%)
+ 1 benchmarks and specifications   + Show comparison chart
WinRAR - WinRAR 4.0
604 points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
X264 HD Benchmark 4.0 - x264 Pass 2
4 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
X264 HD Benchmark 4.0 - x264 Pass 1
20.4 fps (5%)
+ 1 benchmarks and specifications   + Show comparison chart
TrueCrypt - TrueCrypt Serpent
0 GB/s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
TrueCrypt - TrueCrypt Twofish
0.1 GB/s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
TrueCrypt - TrueCrypt AES
0.4 GB/s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - CPU - 3DMark 06 - CPU
1021 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
46.5 s (10%)
+ 1 benchmarks and specifications   + Show comparison chart
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
104.5 s (4%)
+ 1 benchmarks and specifications   + Show comparison chart
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
2267 s (10%)
+ 1 benchmarks and specifications   + Show comparison chart
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
12450 MIPS (6%)
+ 1 benchmarks and specifications   + Show comparison chart
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
7620 MFLOPS (6%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 CPU
3.7 Points (47%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
2007 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Physics
min: 652     avg: 718     median: 717.5 (2%)     max: 783 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Physics
min: 7340     avg: 8269     median: 8269 (7%)     max: 9198 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Physics
686 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Physics
min: 688     avg: 798     median: 797.5 (1%)     max: 907 Points
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
1340 points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 3 - Geekbench 3 32 Bit Single-Core
785 points (15%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Stream
2187 Points (18%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Memory
1818 Points (16%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Floating Point
2165 Points (4%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Integer
1617 Points (3%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Total Score
1905 Points (5%)
+ 1 benchmarks and specifications   + Show comparison chart
Sunspider - Sunspider 1.0 Total Score *
835 ms (9%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.28
log 04. 03:43:29

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 01 Nov 2024 05:31:55 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_2 needed +0.005s ... 0.006s

#5 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s

#6 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.006s

#7 composed specs +0s ... 0.006s

#8 did output specs +0s ... 0.006s

#9 getting avg benchmarks for device 4150 +0.003s ... 0.009s

#10 got single benchmarks 4150 +0.011s ... 0.019s

#11 got avg benchmarks for devices +0s ... 0.019s

#12 min, max, avg, median took s +0.654s ... 0.674s

#13 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.674s

#14 return log +0s ... 0.674s

Reviews for the AMD E1-2500 processor

Acer Aspire ES1-520: AMD Radeon HD 8240, 15.60", 2.4 kg
  External Review » Acer Aspire ES1-520

Lenovo ThinkPad Edge E145: AMD Radeon HD 8240, 11.60", 1.5 kg
  External Review » Lenovo ThinkPad Edge E145

Packard Bell EasyNote LE69KB-12504G50MNSK: AMD Radeon HD 8240, 17.30", 2.8 kg
  External Review » Packard Bell EasyNote LE69KB-12504G50MNSK
