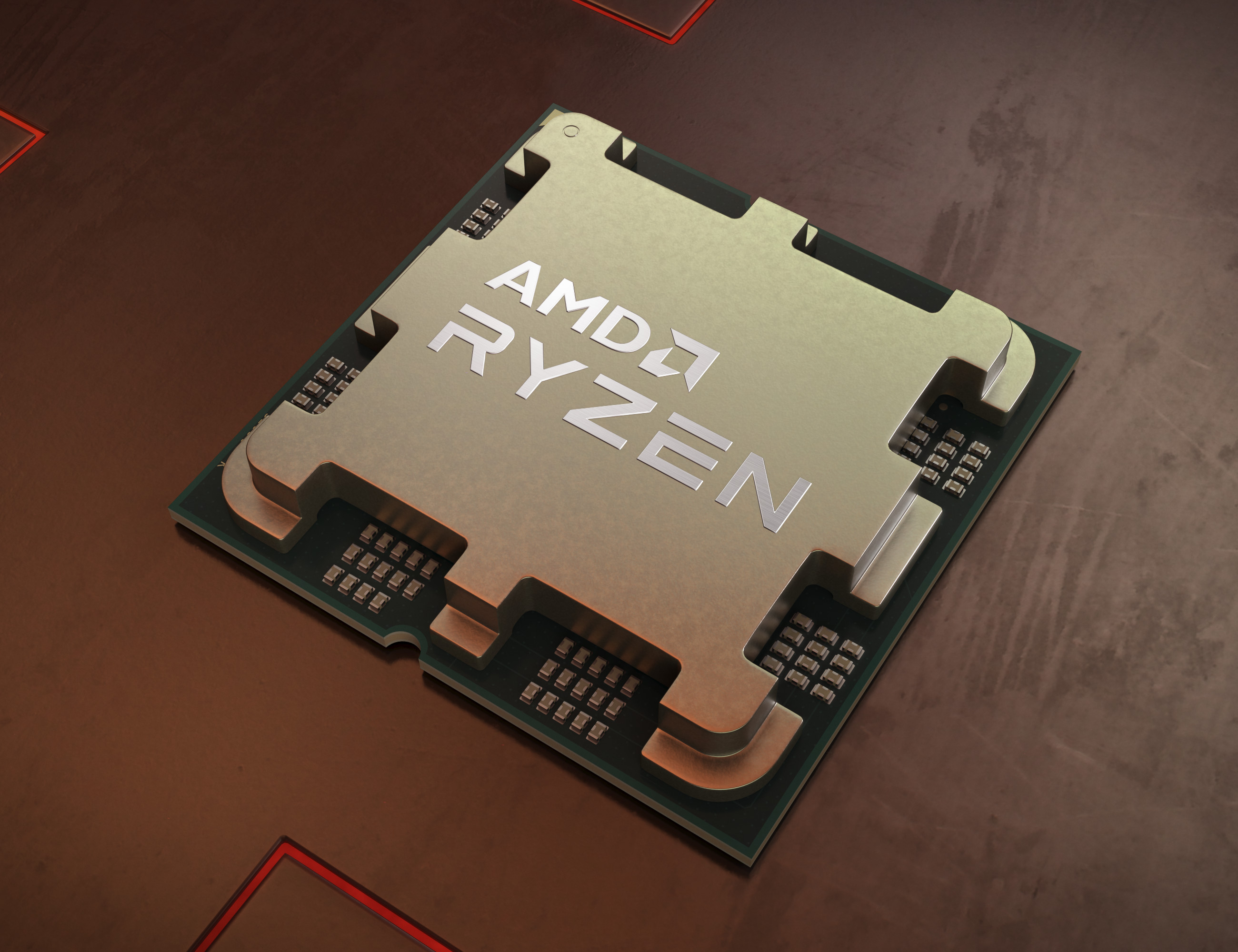

AMD Radeon Graphics (Ryzen 7000)

AMD Radeon Graphics (Ryzen 7000)

Ryzen 7000桌面CPU的AMD Radeon Graphics是一个基于RDNA 2架构的集成显卡（iGPU）。它只提供2个CU（128个着色器），与Radeon 610M类似。大多数CPU的时钟速度在400至2200MHz之间。由于着色器数量少，游戏性能非常低，只适合要求低的游戏。该GPU还集成了一个AMD视频编码引擎（VCE），用于H.264、H.265 10/8bpc编码和AV1、VP9、H.265和H.264 10/8bpc解码。

AMD Radeon 600M Series

Radeon 680M 768 @ 2.4 GHz
Radeon 660M 384 @ 1.9 GHz
Radeon Graphics (Ryzen 7000) 128 @ 2.2 GHz
Radeon 610M 128 @ 0.4 - 2.2 GHz
CodenameRaphael
ArchitectureRDNA 2
Pipelines128 - unified
TMUs8
ROPs4
Raytracing Cores1
Core Speed2200 (Boost) MHz
Shared Memoryyes
APIDirectX 12_2, OpenGL 4.6
Transistor Count3.4 Billion
Die Size 122 mm²
technology6 nm
Date of Announcement26.09.2022
CPU in Radeon Graphics (Ryzen 7000)GPU Base SpeedGPU Boost / Turbo
AMD Ryzen 9 7950X16 x 4500 MHz, 170 W400 MHz2200 MHz
AMD Ryzen 9 7950X3D16 x 4200 MHz, 120 W400 MHz2200 MHz
AMD Ryzen 9 7900X12 x 4700 MHz, 170 W? MHz? MHz
» show 6 more
min. - max.400 MHz2200 MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
1 pt (3%)
AMD Radeon HD 8180
0.06404 -94%
...
Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
0.96 -7%
NVIDIA Quadro K4000M
0.971 -6%
AMD Radeon R8 M445DX
0.976 -5%
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
0.992 -4%
NVIDIA GeForce GTX 760M
1.003 -3%
AMD Radeon RX Vega 10
1.003 -3%
Intel UHD Graphics Xe G4 48EUs
1.025 -1%
AMD FirePro M5100
1.028 0%
NVIDIA GeForce GTX 675M
1.03 0%
AMD Radeon Graphics (Ryzen 7000)
1.032
NVIDIA Quadro M520
1.034 0%
NVIDIA GeForce MX130
1.036 0%
NVIDIA GeForce 845M
1.043 1%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
1.052 2%
AMD Radeon R9 M370X
1.068 3%
NVIDIA Quadro M600M
1.073 4%
AMD Radeon RX Vega 5
1.077 4%
NVIDIA GeForce MX230
1.09 6%
NVIDIA GeForce GTX 765M
1.095 6%
...
NVIDIA GeForce RTX 4090
33.3 3127%
0%
100%
3DMark - 3DMark Time Spy Score
min: 817     avg: 831     median: 831 (2%)     max: 845 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Time Spy Graphics
min: 705     avg: 715     median: 715 (2%)     max: 725 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Qualcomm Adreno 618
112 -84%
...
Intel Iris Graphics 550
558 -22%
Intel Iris Plus Graphics 655
570 -20%
NVIDIA GeForce 940MX
577 -19%
NVIDIA Quadro M520
614 -14%
NVIDIA Quadro M600M
631 -12%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
639 -11%
NVIDIA GeForce MX130
650 -9%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
670 -6%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
673 -6%
AMD Radeon Graphics (Ryzen 7000)
715
AMD Radeon RX Vega 10
724 1%
AMD Radeon RX Vega 5
733 3%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
744 4%
Intel UHD Graphics 770
744 4%
NVIDIA GeForce MX230
758 6%
Intel UHD Graphics Xe G4 48EUs
763 7%
AMD Radeon RX 540
787 10%
AMD Radeon 540X
797 11%
Qualcomm Adreno 690
811 13%
...
NVIDIA GeForce RTX 4090
36259 4971%
0%
100%
3DMark - 3DMark Ice Storm Unlimited Graphics
159603 Points (16%)
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Extreme Graphics
min: 59739     avg: 64109     median: 66294 (8%)     max: 66294 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Score
min: 15883     avg: 16468     median: 16760 (16%)     max: 16760 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
min: 14990     avg: 15161     median: 15247 (4%)     max: 15247 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 2183     avg: 2211     median: 2211 (4%)     max: 2239 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
min: 2287     avg: 2338     median: 2337.5 (3%)     max: 2388 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
min: 90272     avg: 97292     median: 100802 (11%)     max: 100802 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Night Raid
10411 Points (10%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Night Raid Graphics Score
10021 Points (4%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
min: 3466     avg: 3636     median: 3466 (4%)     max: 3977 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 3026     avg: 3170     median: 3026 (3%)     max: 3458 Points
+ 3 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -95%
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
2965 -6%
AMD FirePro M5100
2967 -6%
NVIDIA GeForce 845M
2973 -6%
Intel Iris Plus Graphics 645
2985 -6%
NVIDIA Quadro P500
3022 -5%
AMD Radeon HD 7770
3098 -2%
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
3101 -2%
AMD FirePro W5130M
3106 -2%
NVIDIA GeForce GTX 580M
3131 -1%
AMD Radeon Graphics (Ryzen 7000)
3170
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
3180 0%
Intel Iris Pro Graphics 580
3220 2%
AMD Radeon HD 6990M
3238 2%
NVIDIA GeForce GTX 675M
3249 2%
AMD Radeon R9 M275
3261 3%
Intel UHD Graphics Xe G4 48EUs
3288 4%
NVIDIA GeForce 945M
3310 4%
NVIDIA GeForce GTX 460M SLI
3313 5%
AMD Radeon R9 M375
3314 5%
...
NVIDIA GeForce RTX 4090
104201 3187%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 11455     avg: 11703     median: 11703 (3%)     max: 11951 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 8837     avg: 9054     median: 9053.5 (5%)     max: 9270 Points
+ 2 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -99%
...
NVIDIA GeForce 9800M GTX SLI
8492 -6%
AMD Radeon HD 8850M
8538 -6%
NVIDIA GeForce GTS 450
8551 -6%
NVIDIA GeForce GTX 470M
8589 -5%
AMD Radeon R7 M275DX
8607 -5%
NVIDIA GeForce GT 750M
8624 -5%
NVIDIA GeForce GTX 260M SLI
8764 -3%
NVIDIA Quadro K2100M
8930 -1%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
8994 -1%
AMD Radeon Graphics (Ryzen 7000)
9054
AMD FirePro M6000
9070 0%
Intel Iris Graphics 550
9089 0%
AMD Radeon R9 M265X
9135 1%
NVIDIA Quadro 4000M
9184 1%
Intel UHD Graphics Xe G4 48EUs
9484 5%
NVIDIA GeForce GTX 660M
9666 7%
AMD Radeon HD 6950M
9694 7%
ATI Mobility Radeon HD 4870 X2
9844 9%
NVIDIA GeForce GTX 570M
9902 9%
...
AMD Radeon RX 7900 XTX
170928 1788%
0%
100%
3DMark 05 - 3DMark 05 - Standard
min: 36694     avg: 37469     median: 37468.5 (41%)     max: 38243 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -100%
...
NVIDIA GeForce RTX 2060 (Desktop)
34679 -7%
AMD Radeon RX Vega 56
34785 -7%
AMD Radeon RX Vega 64
35209 -6%
4x NVIDIA RTX A6000
35288 -6%
NVIDIA GeForce GTX 1650 (Desktop)
35596 -5%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
35662 -5%
Intel Iris Xe Graphics G7 96EUs
36523 -3%
AMD Radeon 610M
36628 -2%
AMD Radeon HD 7970M Crossfire
36878 -2%
AMD Radeon Graphics (Ryzen 7000)
37469
AMD Radeon RX 580 (Desktop)
37491 0%
NVIDIA GeForce GTX 1080 Mobile
37669 1%
AMD Radeon RX Vega 7
38073 2%
AMD Radeon Pro W6800
38177 2%
NVIDIA GeForce RTX 2080 (Desktop)
38535 3%
NVIDIA GeForce GTX 1070 SLI (Desktop)
38635 3%
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38999 4%
Intel Iris Xe Graphics G7 80EUs
39066 4%
NVIDIA GeForce RTX 2080 Super (Desktop)
43011 15%
...
NVIDIA GeForce RTX 4080 Super
87172 133%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 20707     avg: 21111     median: 21110.5 (28%)     max: 21514 Points
+ 2 benchmarks and specifications   + Show comparison chart
Unigine Valley 1.0 - Unigine Valley 1.0 DX
9.9 fps (3%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 6826     avg: 15239     median: 17737.5 (13%)     max: 18855 points
+ 12 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 198.52     avg: 203     median: 205 (67%)     max: 205.43 fps
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 97.22     avg: 158.8     median: 101.4 (6%)     max: 359.59 fps
+ 12 benchmarks and specifications   + Show comparison chart
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
min: 97.9     avg: 98.3     median: 97.9 (98%)     max: 99.6 %
+ 12 benchmarks and specifications   + Show comparison chart
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official Medium Offscreen 1080
1992 fps (13%)
+ 1 benchmarks and specifications   + Show comparison chart
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official High Offscreen 2160
176.8 fps (40%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 GPU OpenCL
6167 points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 GPU Vulkan
8032 points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
257 Samples/s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
583 Samples/s (1%)
+ 1 benchmarks and specifications   + Show comparison chart
ComputeMark v2.1 - ComputeMark v2.1 Result
1616 points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 2021

F1 2021

2021
low 1280x720
46.3  fps    + Compare
med. 1920x1080
18.3  fps    + Compare
high 1920x1080
15  fps    + Compare
ultra 1920x1080
5.7  fps    + Compare
» With all tested laptops playable in detail settings low.
F1 2020

F1 2020

2020
low 1280x720
49.7  fps    + Compare
med. 1920x1080
18.7  fps    + Compare
high 1920x1080
13.7  fps    + Compare
ultra 1920x1080
8.7  fps    + Compare
» With all tested laptops playable in detail settings low.
Strange Brigade

Strange Brigade

2018
low 1280x720
54  fps    + Compare
med. 1920x1080
17.4  fps    + Compare
high 1920x1080
11.4  fps    + Compare
ultra 1920x1080
9  fps    + Compare
» With all tested laptops playable in detail settings low.
X-Plane 11.11

X-Plane 11.11

2018
low 1280x720
35.9 49.8 ~ 43 fps    + Compare
med. 1920x1080
23 29.2 ~ 26 fps    + Compare
high 1920x1080
20.5 25.9 ~ 23 fps    + Compare
» With all tested laptops playable in detail settings low.
Final Fantasy XV Benchmark

Final Fantasy XV Benchmark

2018
low 1280x720
19.3 26.1 ~ 23 fps    + Compare
med. 1920x1080
12.2 19.3 ~ 16 fps    + Compare
high 1920x1080
5.7 8.9 ~ 7 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dota 2 Reborn

Dota 2 Reborn

2015
low 1280x720
157.8 219.5 ~ 189 fps    + Compare
med. 1366x768
61.8 89.9 ~ 76 fps    + Compare
high 1920x1080
25.7 38.8 ~ 32 fps    + Compare
ultra 1920x1080
23.6 35 ~ 29 fps    + Compare
» With all tested laptops playable in detail settings med..
lowmed.highultraQHD4K
F1 202146.318.3155.66
F1 202049.718.713.78.67
Strange Brigade5417.411.49
X-Plane 11.11432623
Final Fantasy XV Benchmark23167
Dota 2 Reborn189763229
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		1
4

1		5

1
5
1

4








For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 19. 07:08:46

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Tue, 19 Nov 2024 05:32:27 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.022s ... 0.023s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.023s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.023s

#7 composed specs +0s ... 0.023s

#8 did output specs +0s ... 0.023s

#9 start showIntegratedCPUs +0s ... 0.023s

#10 getting avg benchmarks for device 11422 +0.028s ... 0.051s

#11 got single benchmarks 11422 +0.017s ... 0.068s

#12 got avg benchmarks for devices +0s ... 0.068s

#13 min, max, avg, median took s +0.603s ... 0.671s

#14 before gaming benchmark output +0s ... 0.671s

#15 Got 32 rows for game benchmarks. +0.005s ... 0.676s

#16 composed SQL query for gamebenchmarks +0s ... 0.676s

#17 got data and put it in $dataArray +0.003s ... 0.679s

#18 benchmarks composed for output. +0.219s ... 0.898s

#19 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 0.9s

#20 return log +0s ... 0.9s

Notebook reviews with AMD Radeon Graphics (Ryzen 7000) graphics card

诺托亚NH-U9S、NH-D9L和NH-La9-AM5

Noctua NH-U9S、NH-D9L和NH-La9-AM5评论：用于经济型CPU的三款强大的空气冷却器

Noctua提供了广泛的高性能空气冷却器组合，多年来在空气冷却方面一直被认为是顶级品牌。在这篇简短的评论中，我们仔细研究了诺克托亚NH-U9S、NH-D9L和NH-La9-AM5，由于它们的尺寸，它们可以安装在许多机箱中。此外，我们还测试了这三个测试对象是否能够驯服AMD Ryzen 5 7600X。...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
诺托亚NH-U9S、NH-D9L和NH-La9-AM5

Noctua NH-U9S、NH-D9L和NH-La9-AM5评论：用于经济型CPU的三款强大的空气冷却器

Noctua提供了广泛的高性能空气冷却器组合，多年来在空气冷却方面一直被认为是顶级品牌。在这篇简短的评论中，我们仔细研究了诺克托亚NH-U9S、NH-D9L和NH-La9-AM5，由于它们的尺寸，它们可以安装在许多机箱中。此外，我们还测试了这三个测试对象是否能够驯服AMD Ryzen 5 7600X。...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
诺托亚NH-U9S、NH-D9L和NH-La9-AM5

Noctua NH-U9S、NH-D9L和NH-La9-AM5评论：用于经济型CPU的三款强大的空气冷却器

Noctua提供了广泛的高性能空气冷却器组合，多年来在空气冷却方面一直被认为是顶级品牌。在这篇简短的评论中，我们仔细研究了诺克托亚NH-U9S、NH-D9L和NH-La9-AM5，由于它们的尺寸，它们可以安装在许多机箱中。此外，我们还测试了这三个测试对象是否能够驯服AMD Ryzen 5 7600X。...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
诺托亚NH-D12L

Noctua NH-D12L回顾。强大的高级CPU散热器，适用于所有常见的插座

诺克托亚以其高质量的散热器而闻名，其产品系列涵盖了所有常见的平台。通过诺克托亚NH-D12L，我们对另一款散热器进行了审查，并检查了它对AMD Ryzen 9 7900X的应对情况。...
AMD Ryzen 9 7900X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
Noctua NH-D15和Noctua NH-U12A

Noctua NH-D15和NH-U12A评测。适用于所有常见CPU插座的两款强大的空气冷却器

诺克托亚提供了一系列强大的空气冷却器，能够保持当前的旗舰CPU的控制。在这篇简短的评论中，你会发现诺克托亚NH-D15和诺克托亚NH-U12A应对AMD Ryzen 9 7900X的效果如何。...
AMD Ryzen 9 7900X | AMD Radeon Graphics (Ryzen 7000) | 32.00"

AMD Ryzen 9 7900X (Wakü + MO-RA3 420 Pro): AMD Ryzen 9 7900X, 32.00"
  Review » Noctua NH-D15和NH-U12A评测。适用于所有常见CPU插座的两款强大的空气冷却器

  Review » Noctua NH-D15和NH-U12A评测。适用于所有常见CPU插座的两款强大的空气冷却器

  Review » Noctua NH-D15和NH-U12A评测。适用于所有常见CPU插座的两款强大的空气冷却器

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Desktop
Radeon RX 7900 XTX Desktop
NVIDIA GeForce RTX 4080 Super Desktop
NVIDIA GeForce RTX 4080 Desktop
NVIDIA GeForce RTX 3090 Ti Desktop
NVIDIA GeForce RTX 4070 Ti SUPER Desktop
Radeon RX 7900 XT Desktop
NVIDIA GeForce RTX 4070 Ti Desktop
Radeon RX 7900 GRE Desktop
Radeon RX 6950 XT Desktop
NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
NVIDIA GeForce RTX 3090 Desktop
NVIDIA GeForce RTX 3080 Ti Desktop
Radeon RX 7800 XT Desktop
NVIDIA GeForce RTX 4070 SUPER Desktop
NVIDIA RTX A6000 Desktop
Radeon RX 7900M
Radeon RX 6900 XT Desktop
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA GeForce RTX 3080 12 GB Desktop
RTX 6000 Ada Generation Desktop
NVIDIA GeForce RTX 3080 Desktop
NVIDIA GeForce RTX 4070 Desktop
NVIDIA RTX 3500 Ada Generation Laptop GPU
Radeon Pro W6800 Desktop
Radeon RX 6800 XT Desktop
Radeon RX 6800 Desktop
Radeon RX 7700 XT Desktop
NVIDIA Titan RTX Desktop
GeForce RTX 3070 Ti Desktop
NVIDIA GeForce RTX 4060 Ti 16G Desktop
NVIDIA GeForce RTX 4060 Ti 8G Desktop
GeForce RTX 3080 Ti Laptop GPU
M4 40-core GPU *
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
NVIDIA GeForce RTX 3070 Desktop
Radeon RX 6750 XT Desktop
GeForce RTX 2080 Ti (Desktop) Desktop
Radeon RX 6700 XT Desktop
GeForce RTX 3080 Laptop GPU
NVIDIA GeForce RTX 3060 Ti Desktop
Arc A770 Desktop
NVIDIA GeForce RTX 4060 Desktop
Radeon RX 7600 Desktop
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
GeForce RTX 2080 Super (Desktop) Desktop
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
Radeon RX 6650 XT Desktop
Radeon RX 6600 XT Desktop
GeForce RTX 2080 (Desktop) Desktop
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Arc A750 Desktop
NVIDIA GeForce RTX 3060 Desktop
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
GeForce GTX 1080 Ti Desktop
Titan X Pascal Desktop
GeForce RTX 2070 Super (Desktop) Desktop
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon VII Desktop
Radeon RX 5700 XT (Desktop) Desktop
GeForce RTX 2070 (Desktop) Desktop
Radeon RX 7600M *
M4 32-core GPU *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce GTX 1080 (Desktop) Desktop
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
Arc A580 Desktop
GeForce RTX 2060 Super (Desktop) Desktop
A770M *
Radeon RX 6600 Desktop
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 5700 (Desktop) Desktop
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
GeForce RTX 2060 (Desktop) Desktop
M4 20-core GPU Desktop
Radeon RX 5700M *
RX Vega 64 Desktop
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
GeForce GTX 1070 Ti (Desktop) Desktop
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
RX Vega 56 Desktop
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
NVIDIA GeForce RTX 3050 Desktop
GeForce GTX 1070 (Desktop) Desktop
Radeon RX 5600 XT (Desktop) Desktop
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
Pro Vega 56 Desktop
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
GeForce GTX 1660 Ti (Desktop) Desktop
GeForce GTX 1660 Super (Desktop) Desktop
RTX A2000 Desktop
Radeon RX 6500 XT Desktop
Radeon RX 5500 XT (Desktop) Desktop
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
M4 16-core GPU * Desktop
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 980 Ti Desktop
GeForce GTX 1660 (Desktop) Desktop
GeForce GTX 1070 Max-Q
A550M *
GeForce GTX 1650 Super (Desktop) Desktop
Quadro P5000 Max-Q *
Radeon 890M *
Radeon R9 Fury Desktop
Radeon R9 Nano Desktop
GeForce GTX 980 Desktop
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
Radeon RX 590 Desktop
Radeon RX 580 Desktop
GeForce GTX 980 (Laptop)
Quadro M5500
Radeon R9 390X Desktop
GeForce GTX 1060 (Desktop) Desktop
Radeon RX 570 Desktop
Quadro P4000
Quadro T2000 (Laptop) *
Radeon RX 480 Desktop
GeForce GTX 1060 Mobile
M4 10-Core GPU *
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
Arc 8-Core *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
GeForce GTX 1650 (Desktop) Desktop
Arc 130V *
GeForce GTX 1650 Mobile
Arc A380 Desktop
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 970 Desktop
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Quadro T1000 (Laptop) *
Radeon Pro WX 7100 *
Arc 7-Core *
Radeon RX 470 (Desktop) Desktop
Radeon RX 570X (Laptop) *

Class 3

M4 8-Core GPU *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1000 Desktop
T1200 Laptop GPU *
Quadro T1000 Max-Q *
A310 *
A350M *
T600 Laptop GPU *
T550 Laptop GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
M3 10-Core GPU *
Radeon R9 380 Desktop
GeForce GTX 960 Desktop
GeForce MX550
GeForce GTX 1050 Ti Mobile
GeForce GTX 1050 Ti (Desktop) Desktop
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 (Desktop) Desktop
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
Radeon R7 370 Desktop
GeForce GTX 1050 Max-Q *
M3 8-Core GPU *
M2 10-Core GPU *
GeForce GTX 950 Desktop
T600 Desktop
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon RX 460 (Desktop) Desktop
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
GeForce GT 1030 (Desktop) Desktop
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
GeForce GT 710 Desktop
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
A18 Pro GPU *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
Vega 11 * Desktop
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 770 Desktop
UHD Graphics 750
UHD Graphics Xe 750 32EUs * Desktop
Radeon 740M *
UHD Graphics 730
GeForce MX230
M2 8-Core GPU *
M1 8-Core GPU *
Vega 8 *
M1 7-Core GPU *
Vega 7
Radeon R7 M465
FirePro W4100 Desktop
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
A18 GPU *
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
A12Z Bionic GPU *
A12X Bionic GPU *
A17 Pro GPU *
Quadro M600M
FirePro W4190M
Adreno 750 *
Radeon R9 M375
Xclipse 940 *
Adreno 740 *
Immortalis-G720 MP12 *
Immortalis-G715 MP11 *
A16 GPU 5-Core *
Iris Plus Graphics 655
Radeon R7 M445
Adreno 735 *
A15 GPU 5-Core *
Adreno 732 *
Adreno 730 *
Mali-G715 MP7 *
Mali-G615 MP6 *
Adreno 725 *
Adreno 720 *
Mali-G710 MP10 *
Quadro M500M
A15 GPU 4-Core *
A14 Bionic GPU *
Xclipse 920 *
Adreno 660 *
Mali-G78 MP24 *
Mali-G710 MP7 *
Mali-G78 MP22 *
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
A13 Bionic GPU *
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
A12 Bionic GPU *
Adreno 650 *
Mali-G78 MP20 *
Mali-G78 MP14 *
A11 Bionic GPU *
A10X Fusion GPU *
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
A9X / PowerVR GT7xxx
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics 630 Desktop
UHD Graphics P630 Desktop
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 630 Desktop
HD Graphics P630 Desktop
HD Graphics 530
Tegra X1 Maxwell GPU
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
FirePro W2100 Desktop
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
A10 Fusion GPU
HD Graphics 6000
Mali-G77 MP11 *
Xclipse 530
Mali-G77 MP9 *
Mali-G76 MP16 *
Mali-G610 MP6 *
Mali-G610 MP4 *
Adreno 644 *
Adreno 643 *
Adreno 642 *
Mali-G610 MP3 *
Mali-G615 MP2 *
Adreno 642L *
Adreno 710 *
Adreno 640 *
Maleoon 910 *
Adreno 630 *
Mali-G76 MP12 *
Mali-G76 MP10 *
Mali-G68 MP5 *
Mali-G57 MP6 *
Mali-G57 MP5 *
Adreno 540 *
Mali-G72 MP18 *
Mali-G71 MP20 *
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics (Elkhart Lake 32 EU) Desktop
Mali-G72 MP12 *
Mali-G71 MP8
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
PowerVR GM9446
Adreno 530
PowerVR GXA6850
GeForce ULP K1 (Tegra K1 Kepler GPU)
A9 / PowerVR GT7600
Mali-T880 MP12
Mali-G76 MP4 *
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Elkhart Lake 16 EU) Desktop
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Mali-T760 MP8
Mali-G71 MP2 *
Radeon R4 (Stoney Ridge)
Adreno 430
Radeon R2 (Stoney Ridge)
Mali-G72 MP3 *
VideoCore VII *
Mali-G68 MP4 *
Mali-T880 MP4
Mali-G52 MP6 *
Mali-G68 MP2 *
Mali-G52 MP2 *
Mali-G52 MP1 *
UHD Graphics 600
HD Graphics 500
Mali-T760 MP6
Mali-T880 MP2
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)
PowerVR GX6450
Adreno 420
Adreno 620 *
IMG BXM-8-256
Mali-G57 MP4 *
Mali-G57 MP3 *

Class 5

Adreno 418
Adreno 619 *
Adreno 619L *
Adreno 618 *
Mali-G57 MP2 *
Mali-G57 MP1 *
Adreno 616 *
Mali-G51 MP4 *
HD Graphics (Cherry Trail)
Adreno 613 *
Adreno 612 *
Adreno 610 *
Adreno 512 *
Adreno 510 *
Adreno 330
PowerVR G6430
PowerVR GX6250
PowerVR G6400
Mali-T628 MP6
Mali-T760 MP4
SGX554MP4
Mali-T628 MP4
Adreno 509 *
Adreno 508 *
Adreno 506 *
GE8322 / IMG8322 *
Adreno 505 *
Adreno 504 *
Mali-T860 MP2
Mali-T830 MP3
Mali-T604 MP4
PowerVR G6200
Adreno 405 *
Mali-T830 MP2

Class 6

SGX543MP4 *
Mali-T624
Adreno 320 *
Mali-T760 MP2
PowerVR GE8320 *
PowerVR GE8300 *
PowerVR GE8100 *
Mali-T720 MP4
Mali-450 MP4
Mali-T830 MP1
SGX543MP3 *
SGX543MP2 *
SGX545
SGX544MP2 *
Mali-T720 MP2
SGX544 *
Adreno 308
Adreno 306
Adreno 305
Adreno 304
Mali-T720
GC7000UL
Adreno 302
Adreno 225 *
GC4000 *
Mali-400 MP4 *
VideoCore-IV *
Adreno 220 *
Vivante GC1000+ Dual-Core
Mali-400 MP2 *
Mali-400 MP *
SGX540 *
Adreno 205 *
Adreno 203 *
GC800 *
SGX535
SGX531
SGX530
Adreno 200 *
Mali-200 *

* Approximate position of the graphics adapter

> Notebookcheck中文版（NBC中国） > FAQ / 小提示/ 技术参数 > 移动显示芯片——基准测试成绩列表 > AMD Radeon Graphics (Ryzen 7000)
Klaus Hinum (Update: 2022-12-29)
