AMD Radeon HD 6870M

AMD Radeon HD 6870M

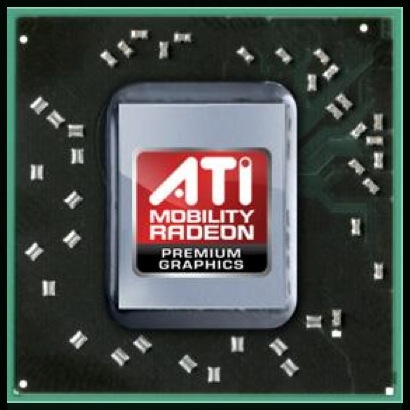

AMD Radeon HD 6870M的ATI Mobility Radeon HD 6870是一个高端的DirectX 11的图形卡的笔记本电脑的AMD。它本质上是一个稍微慢的核心时钟速率的ATI Mobility Radeon HD 5870。因此,性能和功能(如UVD2和Eyefinity [宽域)是类似的老卡。是由两个64位宽的控制器,一个128位内存总线,可访问多达1024 MB或512 MB GDDR5和GDDR3记忆体的,分别存储器接口的流动性6870。 (G)DDR3使用的笔记本电脑供应商的6870M的性能受到明显。 HD 6870M提供800的MADD核心(流处理器)都集中在160 5维。的核心支持DirectX 11的硬件功能(Tessellation(曲面细分),OIT,后处理,阴影,HDR纹理压缩)。此外,16个ROPs,40TMUs,和40 TAUS都可以在芯片上被发现。约1040万个晶体管的GPU提供了理论计算能力高达1.08 TFLOPS(相比1.12 TFLOPS的5870M)。对于一般的计算,可以访问使用的图形核心ATI流的OpenCL或DirectCompute的11。的GPU的游戏性能应该是相似的HD 5870,因此足以满足目前所有的游戏(2010)高分辨率和高细节的设置(除地铁2033和孤岛危机)。详细的游戏测试可以发现上HD 5870页。的Mobility Radeon HD 6800M系列包括旧的视频处理器,UVD2高清视频解码的显卡。它仅支持VC-1,H.264,MPEG-2,DivX和其他的变体,如支持新的UVD3的6900M系列。开始用Flash 10.1,6800M系列也已经能够加快闪存高清视频(如YouTube),这最终需要的工作量的CPU。 5870,6870M是能够传输高清音频格式(如杜比True HD和DTS HD Master音频),最多8个频道和192 kHz / 24位HDMI 1.3a的。 6870M仍然只支持原来的Eyefinity技术(而不是改进的Eyefinity +)连接最多6台显示器的图形芯片。当然,同时连接6台显示器的能力将取决于笔记本电脑的供应商和供应DisplayPorts。由于高功耗的Mobility Radeon HD 6870M,它通​​常只适合大笔记本电脑(也可能是响亮的)具有良好的冷却解决方案。台式机显卡相比,应该执行的Mobility Radeon HD 6870M之间的某个地方了Radeon HD 5750和5770,至少有根据的规格。

Radeon HD 6800M Series

Radeon HD 6870M 800 @ 0.68 GHz128 Bit @ 1000 MHz
Radeon HD 6830M 800 @ 0.58 GHz128 Bit @ 900 MHz
CodenameGranville-PRO
ArchitectureTerascale 2
Pipelines800 - unified
Core Speed675 MHz
Memory Speed1000 MHz
Memory Bus Width128 Bit
Memory TypeDDR3, GDDR3, GDDR5
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 11, Shader 5.0
Power Consumption50 Watt
Transistor Count1 Billion
technology40 nm
FeaturesEyefinity (up to 6 displays with DisplayPorts), HD Audio (Dolby True HD, DTS HD), HDMI 1.3a, Avivo HD (UVD2.2)
Notebook Sizelarge
Date of Announcement07.01.2011
Information1.12 TFLOPS

Benchmarks

3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
14396 Points (19%)
SIS Mirage 3 671MX
68 -100%
...
13600 -6%
AMD FirePro W4170M
13622 -5%
13719 -5%
13931 -3%
AMD Radeon R9 M385X
14024 -3%
14111 -2%
Intel Iris Plus Graphics 640
14118 -2%
14221 -1%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
14361 0%
AMD Radeon HD 6870M
14396
NVIDIA GeForce 9800M GT SLI
14400 0%
ATI Mobility Radeon HD 4870 X2
14496 1%
AMD Radeon RX Vega 10
14522 1%
14612 2%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
14725 2%
NVIDIA GeForce GTX 280M SLI
15019 4%
15020 4%
NVIDIA Maxwell GPU Surface Book
15111 5%
15141 5%
...
64183 346%
max:
74741 419%
0%
100%
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
