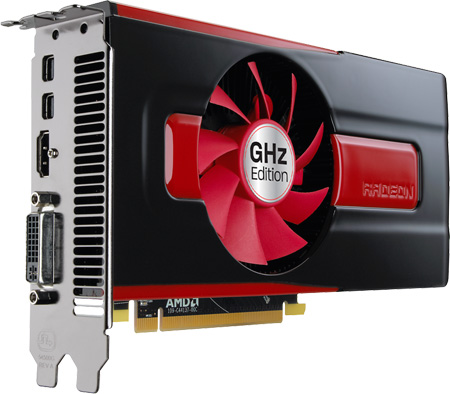

AMD Radeon HD 7770

AMD Radeon HD 7770

AMD的Radeon HD7770是一个DirectX11.1功能的中端显卡的台式电脑,导致在28-nm工艺,并根据佛得角芯片。高效节能架构GCN(图形核心下一页)奠定了基础。设施包括1.5亿个晶体管,640个统一着色器(1D)和40个纹理单元。虽然核心主频为1000兆赫,1024 MB大和尾128位GDDR5显存的运行频率为2250 MHz。从以下的笔记本型号分别的Radeon HD6990M的GeForce GTX 580M/675M的HD7770性能上居一点点。几乎所有的现代游戏是全高清1920×1080分辨率和高图形设置享受。感谢Eyefinity技术,理论上可以操作最多六台显示器。在零核心是一种新型的节能技术,它代表停用降低功耗显示。的PowerTune动态调整对比度,时钟速率。 HD3D,AMD的3D显示技术,NVIDIA的3D Vision是大大变差。两个专用的图形卡可以像往常一样在并行交火。 HD音频控制器不能错过。据AMD,包括格式,AC-3,AAC,杜比TrueHD和DTS Master Audio的支持。 HDMI输出7.1环绕音效,可以把它传递给外部设备。集成视频解码器(UVD)占主导地位的格式包括H.264,VC-1,MPEG-2(SD和HD),MVC(蓝光3D),MPEG-4的第2部分(DIVX/ XVID),的Adobe Flash, WMV HD和DXVA1.0/2.0。

CodenameCape Verde
ArchitectureGCN
Pipelines640 - unified
Core Speed1000 MHz
Memory Speed4500 MHz
Memory Bus Width128 Bit
Memory TypeGDDR5
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 11.1, Shader 5.1, OpenGL 4.2
Power Consumption80 Watt
Transistor Count1.5 Billion
technology28 nm
FeaturesEyefinity, HD3D, CrossFire
Date of Announcement15.02.2012
Link to Manufacturer Pagewww.amd.com

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
1.2 pt (4%)
AMD Radeon HD 8180
0.06404 -95%
...
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
1.102 -12%
1.173 -6%
AMD Radeon Pro WX 3100
1.18 -5%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
1.212 -3%
NVIDIA GeForce GTX 470
1.218 -2%
AMD Radeon RX Vega 9
1.232 -1%
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
1.234 -1%
NVIDIA Quadro K3100M
1.235 -1%
1.236 -1%
AMD Radeon HD 7770
1.248
1.25 0%
NVIDIA GeForce 945M
1.259 1%
AMD FirePro W5170M
1.285 3%
Qualcomm Adreno 690
1.295 4%
1.363 9%
1.382 11%
AMD Radeon HD 6870
1.387 11%
AMD Radeon Pro WX 3200
1.394 12%
NVIDIA GeForce GTX 950M
1.413 13%
...
33.3 2568%
0%
100%
3DMark - 3DMark Cloud Gate Score
10707 Points (10%)
3DMark - 3DMark Cloud Gate Graphics
18782 Points (5%)
3DMark - 3DMark Fire Strike Standard Score
2600 Points (4%)
3DMark - 3DMark Fire Strike Standard Graphics
2825 Points (3%)
3DMark - 3DMark Ice Storm Graphics
148929 Points (16%)
3DMark 11 - 3DM11 Performance Score
3356 Points (4%)
3DMark 11 - 3DM11 Performance GPU
3098 Points (3%)
171.8 -94%
...
AMD Radeon HD 6790
2887 -7%
NVIDIA Quadro M600M
2911 -6%
Qualcomm Adreno 690
2930 -5%
2941 -5%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
2965 -4%
AMD FirePro M5100
2967 -4%
NVIDIA GeForce 845M
2973 -4%
2985 -4%
NVIDIA Quadro P500
3022 -2%
AMD Radeon HD 7770
3098
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
3101 0%
AMD FirePro W5130M
3106 0%
3131 1%
3170 2%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
3180 3%
Intel Iris Pro Graphics 580
3220 4%
3238 5%
3249 5%
3261 5%
...
104201 3263%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
14073 Points (4%)
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
13398 Points (7%)
ATI Radeon HD 3200
62 -100%
...
12606 -6%
AMD Radeon Pro 450
12634 -6%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
12715 -5%
12907 -4%
13008 -3%
13156 -2%
AMD Radeon RX 550X (Laptop)
13209 -1%
13296 -1%
13341 0%
AMD Radeon HD 7770
13398
NVIDIA GeForce GTX 765M
13403 0%
AMD Radeon R9 M385X
13518 1%
13716 2%
ATI Radeon HD 5850
14028 5%
NVIDIA Quadro K3100M
14047 5%
14050 5%
14096 5%
AMD Radeon Pro 455
14879 11%
14884 11%
...
170928 1176%
0%
100%
3DMark 03 - 3DMark 03 - Standard
59392 Points (31%)
3DMark 05 - 3DMark 05 - Standard
26689 Points (29%)
Intel Graphics Media Accelerator (GMA) 500
133.4 -100%
...
NVIDIA GeForce GTX 765M
24437 -8%
24574 -8%
24750 -7%
24769 -7%
24809 -7%
24984 -6%
NVIDIA GeForce GTX 770M
25031 -6%
25241 -5%
25371 -5%
AMD Radeon HD 7770
26689
AMD Radeon RX 550X (Laptop)
26820 0%
26943 1%
ATI Radeon HD 5770
26951 1%
27041 1%
27458 3%
27536 3%
AMD Radeon HD 6790
27695 4%
27877 4%
NVIDIA GeForce GTS 450
27984 5%
...
87172 227%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
19307 Points (25%)
Unigine Heaven 3.0 - Unigine Heaven 3.0 DX 11
36 fps (12%)
Unigine Heaven 2.1 - Heaven 2.1 high
46.7 fps (9%)
0.6 -99%
...
41.95 -10%
42.5 -9%
43.3 -7%
NVIDIA GeForce GTX 760M
43.95 -6%
AMD Radeon RX Vega 7
44.6 -4%
NVIDIA Quadro K3100M
45.1 -3%
45.2 -3%
NVIDIA GeForce GTX 460 768MB
45.9 -2%
AMD Radeon HD 6790
46.1 -1%
AMD Radeon HD 7770
46.7
47.2 1%
47.6 2%
AMD Radeon R9 M280X
47.7 2%
NVIDIA GeForce GTX 765M
48.15 3%
48.3 3%
48.5 4%
NVIDIA GeForce GTX 560 Ti
50.3 8%
AMD Radeon RX 550X (Laptop)
51.3 10%
53 13%
...
532 1039%
0%
100%
Windows 7 Experience Index - Win7 Gaming graphics
7.5 Points (95%)
Windows 7 Experience Index - Win7 Graphics
7.5 Points (95%)
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
67.4 fps (22%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 2013

F1 2013

2013
low 1024x768
172  fps    + Compare
med. 1366x768
132  fps    + Compare
high 1366x768
118  fps    + Compare
ultra 1920x1080
52  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Fifa 14

Fifa 14

2013
low 1024x768
627  fps    + Compare
med. 1366x768
421.2  fps    + Compare
high 1366x768
352.8  fps    + Compare
ultra 1920x1080
228.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
121.6  fps    + Compare
med. 1366x768
100.6  fps    + Compare
high 1366x768
72  fps    + Compare
ultra 1920x1080
25.3  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1280x720
92.4  fps    + Compare
med. 1366x768
76.2  fps    + Compare
high 1366x768
43.4  fps    + Compare
ultra 1920x1080
26.6  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
118.6  fps    + Compare
med. 1366x768
57.9  fps    + Compare
high 1366x768
24.6  fps    + Compare
ultra 1920x1080
14.9  fps    + Compare
» With all tested laptops playable in detail settings med..
low 1024x768
95.9  fps    + Compare
med. 1366x768
100.9  fps    + Compare
high 1366x768
39.2  fps    + Compare
ultra 1920x1080
19.2  fps    + Compare
» With all tested laptops playable in detail settings high.
Dota 2

Dota 2

2013
low 1024x768
113.7  fps    + Compare
med. 1366x768
104.4  fps    + Compare
ultra 1920x1080
67.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
57.1  fps    + Compare
med. 1366x768
50.8  fps    + Compare
high 1366x768
30.3  fps    + Compare
ultra 1920x1080
10.5  fps    + Compare
» With all tested laptops playable in detail settings med..
GRID 2

GRID 2

2013
low 1024x768
201.4  fps    + Compare
med. 1366x768
137.8  fps    + Compare
high 1366x768
106.1  fps    + Compare
ultra 1920x1080
36.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
94.1  fps    + Compare
med. 1366x768
71.2  fps    + Compare
high 1366x768
35.9  fps    + Compare
ultra 1920x1080
18.8  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1280x720
171.6  fps    + Compare
med. 1366x768
91.8  fps    + Compare
high 1366x768
76.7  fps    + Compare
ultra 1920x1080
24.7  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
289.8  fps    + Compare
med. 1366x768
119.7  fps    + Compare
high 1366x768
92.7  fps    + Compare
ultra 1920x1080
32.6  fps    + Compare
» With all tested laptops playable in detail settings high.
SimCity

SimCity

2013
low 1024x768
97.1  fps    + Compare
med. 1366x768
61.4  fps    + Compare
high 1366x768
47.3  fps    + Compare
ultra 1920x1080
25.6  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
188.8  fps    + Compare
med. 1366x768
95.6  fps    + Compare
high 1366x768
63.3  fps    + Compare
ultra 1920x1080
27.7  fps    + Compare
» With all tested laptops playable in detail settings high.
Crysis 3

Crysis 3

2013
low 1024x768
86.2  fps    + Compare
med. 1366x768
46.5  fps    + Compare
high 1366x768
30.4  fps    + Compare
ultra 1920x1080
12.6  fps    + Compare
» With all tested laptops playable in detail settings med..
low 1024x768
280.5  fps    + Compare
med. 1366x768
125.9  fps    + Compare
high 1366x768
99.3  fps    + Compare
ultra 1920x1080
60.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Far Cry 3

Far Cry 3

2012
low 1024x768
110.7  fps    + Compare
med. 1366x768
89.4  fps    + Compare
high 1366x768
44  fps    + Compare
ultra 1920x1080
14.3  fps    + Compare
» With all tested laptops playable in detail settings high.
med. 1366x768
55.3  fps    + Compare
high 1366x768
51.6  fps    + Compare
ultra 1920x1080
21.2  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
64.2  fps    + Compare
med. 1366x768
60.4  fps    + Compare
high 1366x768
38.6  fps    + Compare
ultra 1920x1080
14.7  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
153.3  fps    + Compare
med. 1366x768
127.6  fps    + Compare
high 1366x768
70.5  fps    + Compare
ultra 1920x1080
47.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
60  fps    + Compare
med. 1366x768
59.9  fps    + Compare
high 1366x768
53  fps    + Compare
ultra 1920x1080
28.9  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
130.8  fps    + Compare
med. 1366x768
88.2  fps    + Compare
high 1366x768
70.8  fps    + Compare
ultra 1920x1080
27.9  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
127.8  fps    + Compare
med. 1366x768
122.8  fps    + Compare
high 1366x768
112.9  fps    + Compare
ultra 1920x1080
66.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
115.9  fps    + Compare
med. 1366x768
73.5  fps    + Compare
high 1366x768
65.7  fps    + Compare
ultra 1920x1080
38.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Fifa 13

Fifa 13

2012
low 1024x768
438.3  fps    + Compare
med. 1366x768
348.8  fps    + Compare
high 1366x768
306.1  fps    + Compare
ultra 1920x1080
204.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2012

F1 2012

2012
low 1024x768
116  fps    + Compare
med. 1366x768
103  fps    + Compare
high 1366x768
95  fps    + Compare
ultra 1920x1080
45  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
115.6  fps    + Compare
med. 1366x768
96.3  fps    + Compare
high 1366x768
73.1  fps    + Compare
ultra 1920x1080
42.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Torchlight 2

Torchlight 2

2012
low 1024x768
94.5  fps    + Compare
med. 1366x768
78.5  fps    + Compare
ultra 1920x1080
77.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
66.8  fps    + Compare
high 1366x768
41.7  fps    + Compare
ultra 1920x1080
20.5  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
249.9  fps    + Compare
med. 1366x768
230.4  fps    + Compare
high 1366x768
199  fps    + Compare
ultra 1920x1080
128.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1366x768
127.9  fps    + Compare
ultra 1920x1080
76.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
97.6  fps    + Compare
med. 1366x768
70.6  fps    + Compare
high 1366x768
53.4  fps    + Compare
ultra 1920x1080
15.9  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
70.2  fps    + Compare
med. 1366x768
61.1  fps    + Compare
high 1366x768
48.7  fps    + Compare
ultra 1920x1080
19  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
62.3  fps    + Compare
med. 1366x768
41.9  fps    + Compare
ultra 1920x1080
23.2  fps    + Compare
» With all tested laptops playable in detail settings med..
low 1024x768
73.6  fps    + Compare
med. 1366x768
74.1  fps    + Compare
high 1366x768
39.2  fps    + Compare
ultra 1920x1080
28.8  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
94  fps    + Compare
med. 1366x768
71  fps    + Compare
high 1366x768
67.9  fps    + Compare
ultra 1920x1080
33.2  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
212.9  fps    + Compare
med. 1366x768
155.1  fps    + Compare
high 1366x768
129.6  fps    + Compare
ultra 1920x1080
86.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
97.1  fps    + Compare
med. 1366x768
69.8  fps    + Compare
high 1366x768
51.7  fps    + Compare
ultra 1920x1080
24.7  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1280x720
60  fps    + Compare
high 1366x768
59.5  fps    + Compare
ultra 1920x1080
42.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Alan Wake

Alan Wake

2012
low 1024x768
85.1  fps    + Compare
med. 1366x768
54.9  fps    + Compare
ultra 1920x1080
26.5  fps    + Compare
» With all tested laptops playable in detail settings med..
Anno 2070

Anno 2070

2011
low 1024x768
220.7  fps    + Compare
med. 1366x768
107  fps    + Compare
high 1366x768
64.3  fps    + Compare
ultra 1920x1080
32.7  fps    + Compare
» With all tested laptops playable in detail settings high.
med. 1366x768
88.2  fps    + Compare
high 1366x768
63.7  fps    + Compare
ultra 1920x1080
36.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
249.6  fps    + Compare
med. 1366x768
166.5  fps    + Compare
high 1366x768
108.7  fps    + Compare
ultra 1920x1080
62.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
93.3  fps    + Compare
med. 1366x768
64.6  fps    + Compare
high 1366x768
49.3  fps    + Compare
ultra 1920x1080
20.9  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
152  fps    + Compare
med. 1366x768
134  fps    + Compare
high 1366x768
82  fps    + Compare
ultra 1920x1080
38  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Fifa 12

Fifa 12

2011
low 800x600
489.8  fps    + Compare
med. 1024x768
279.5  fps    + Compare
high 1360x768
228.8  fps    + Compare
ultra 1920x1080
174.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2011

F1 2011

2011
low 800x600
150  fps    + Compare
med. 1024x768
97  fps    + Compare
high 1366x768
88  fps    + Compare
ultra 1920x1080
41  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
245.1  fps    + Compare
high 1366x768
108.5  fps    + Compare
ultra 1920x1080
49.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Crysis 2

Crysis 2

2011
low 800x600
101.3  fps    + Compare
med. 1024x768
100.8  fps    + Compare
high 1366x768
85.7  fps    + Compare
ultra 1920x1080
33  fps    + Compare
» With all tested laptops playable in detail settings high.
Additional Benchmarks
Ultra DX11 High Res Textures 1920x1080
24.3
low 1024x768
319.8  fps    + Compare
med. 1360x768
117.4  fps    + Compare
high 1360x768
91.9  fps    + Compare
ultra 1920x1080
55.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 800x600
130.5  fps    + Compare
med. 1360x768
80.7  fps    + Compare
high 1600x900
47.4  fps    + Compare
ultra 1920x1080
16.8  fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
F1 201317213211852
Fifa 14627421.2352.8228.9
Total War: Rome II121.6100.67225.3
Saints Row IV92.476.243.426.6
The Bureau: XCOM Declassified118.657.924.614.9
Splinter Cell: Blacklist95.9100.939.219.2
Dota 2113.7104.467.2
Company of Heroes 257.150.830.310.5
GRID 2201.4137.8106.136.9
Metro: Last Light94.171.235.918.8
BioShock Infinite171.691.876.724.7
StarCraft II: Heart of the Swarm289.8119.792.732.6
SimCity97.161.447.325.6
Tomb Raider188.895.663.327.7
Crysis 386.246.530.412.6
Dead Space 3280.5125.999.360.2
Far Cry 3110.789.44414.3
Assassin´s Creed III55.351.621.2
Hitman: Absolution64.260.438.614.7
Call of Duty: Black Ops 2153.3127.670.547.4
Need for Speed: Most Wanted6059.95328.9
Medal of Honor: Warfighter130.888.270.827.9
Dishonored127.8122.8112.966.9
World of Tanks v8115.973.565.738.2
Fifa 13438.3348.8306.1204.3
F1 20121161039545
Borderlands 2115.696.373.142.3
Torchlight 294.578.577.6
Guild Wars 266.841.720.5
Counter-Strike: GO249.9230.4199128.2
Darksiders II127.976.1
Sleeping Dogs97.670.653.415.9
The Secret World70.261.148.719
Ghost Recon: Future Soldier62.341.923.2
Max Payne 373.674.139.228.8
Dirt Showdown947167.933.2
Diablo III212.9155.1129.686.3
Risen 2: Dark Waters97.169.851.724.7
Mass Effect 36059.542.2
Alan Wake85.154.926.5
Anno 2070220.710764.332.7
The Elder Scrolls V: Skyrim88.263.736.1
CoD: Modern Warfare 3249.6166.5108.762.5
Battlefield 393.364.649.320.9
Batman: Arkham City1521348238
Fifa 12489.8279.5228.8174.6
F1 2011150978841
Deus Ex Human Revolution245.1108.549.8
Crysis 2101.3100.885.733
StarCraft 2319.8117.491.955.5
Metro 2033130.580.747.416.8
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

1
25
22

7
28
13
1
18
22
5
24
16
7
4






For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 10. 00:57:37

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 08 Nov 2024 19:43:11 +0100 +0.001s ... 0.001s

#4 composed specs +0.027s ... 0.028s

#5 did output specs +0s ... 0.028s

#6 start showIntegratedCPUs +0s ... 0.028s

#7 getting avg benchmarks for device 3265 +0.021s ... 0.049s

#8 got single benchmarks 3265 +0.006s ... 0.056s

#9 got avg benchmarks for devices +0s ... 0.056s

#10 min, max, avg, median took s +0.289s ... 0.345s

#11 before gaming benchmark output +0s ... 0.345s

#12 Got 193 rows for game benchmarks. +0.004s ... 0.349s

#13 composed SQL query for gamebenchmarks +0s ... 0.349s

#14 got data and put it in $dataArray +0.028s ... 0.377s

#15 benchmarks composed for output. +1.568s ... 1.944s

#16 no comparison url found in template nbc.compare_page_1 needed +0.004s ... 1.948s

#17 return log +0s ... 1.948s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA RTX A6000 Desktop
Radeon Pro W6800 Desktop
NVIDIA Titan RTX Desktop
GeForce RTX 3070 Ti Desktop
Radeon RX 6750 XT Desktop
Radeon RX 6700 XT Desktop
NVIDIA GeForce RTX 3060 Ti Desktop
Radeon RX 6650 XT Desktop
GeForce RTX 2080 (Desktop) Desktop

Class 2

NVIDIA GeForce RTX 3060 Desktop
Titan X Pascal Desktop
Radeon VII Desktop
Radeon RX 5700 XT (Desktop) Desktop
GeForce GTX 1080 (Desktop) Desktop
GeForce RTX 2060 Super (Desktop) Desktop
Radeon RX 5700 (Desktop) Desktop
GeForce RTX 2060 (Desktop) Desktop
RX Vega 64 Desktop
RX Vega 56 Desktop
Radeon RX 5600 XT (Desktop) Desktop
Pro Vega 56 Desktop
GeForce GTX 1660 Ti (Desktop) Desktop
GeForce GTX 1660 Super (Desktop) Desktop
RTX A2000 Desktop
GeForce GTX 1660 (Desktop) Desktop
GeForce GTX 1650 Super (Desktop) Desktop
Radeon R9 Fury Desktop
Radeon R9 Nano Desktop
Radeon RX 580 Desktop
GeForce GTX 1060 (Desktop) Desktop
Radeon RX 570 Desktop
Radeon RX 480 Desktop
Arc A380 Desktop
GeForce GTX 970 Desktop
T1000 Desktop

Class 3

GeForce GTX 960 Desktop
Radeon R7 370 Desktop
GeForce GTX 950 Desktop
T600 Desktop
UHD Graphics 32EUs
UHD Graphics 750
UHD Graphics 730
FirePro W4100 Desktop
FirePro W2100 Desktop

Class 4

VideoCore VII *

* Approximate position of the graphics adapter
