AMD Radeon HD 8470D

AMD Radeon HD 8470D

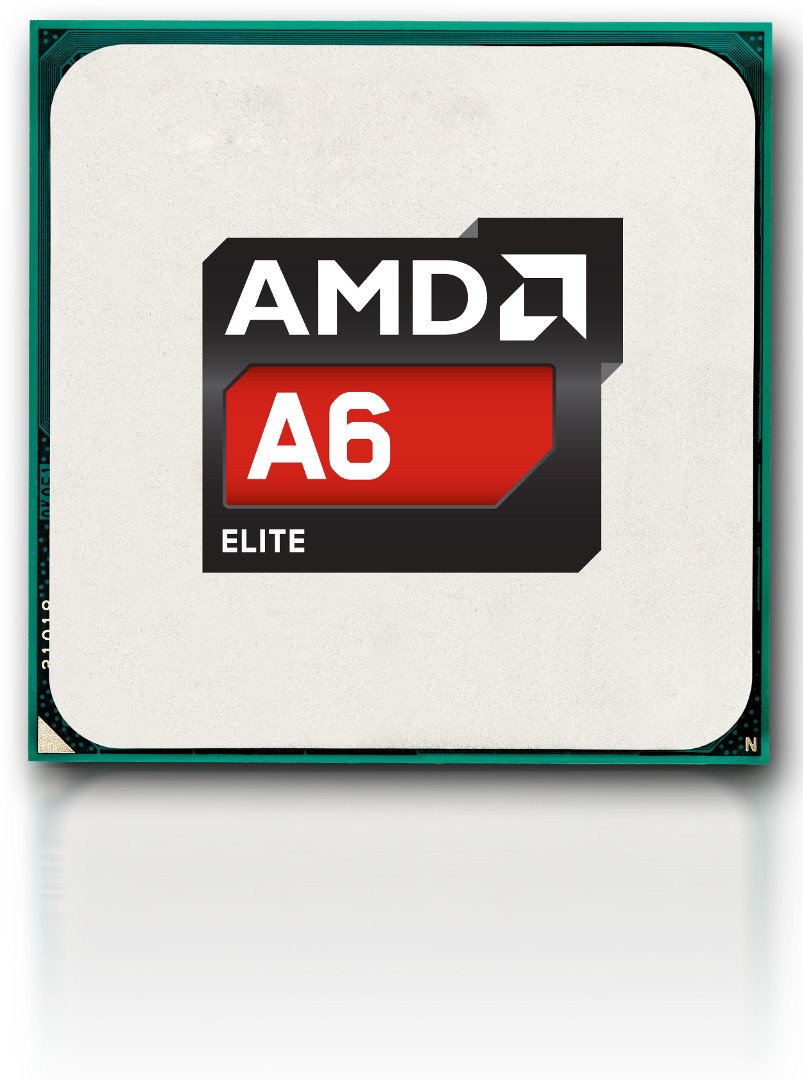

AMD Radeon HD 8470D是一款集成于AMD桌面版的Richland A6系列APU处理器中的图形处理器，它基于桌面版Radeon HD 6900系列的VLIW4架构。相比于更快的HD 8670D，8470仅配备了384个核心中的128个，运行于800MHz而非8670D的844MHz。这款显卡不提供独立的显存，因此它的表现取决于系统内存的速度和容量。 Radeon HD 7660D的性能表现根据使用的测试软件不同而有所区别。在基准测试如3DMark 11中，它的最终成绩略快于在实际游戏中的表现。在我们的测试中HD 8470D的性能接近于使用在A10-4600M中的Trinity Radeon HD 7660G，并与用于Intel Ivy Bridge处理器的HD Graphics 4000显卡的平均表现相当。因此大型游戏像是英雄连2无法流畅运行（请参见下面的详细测试成绩）。 集成的UVD3视频解码器（Avivo HD），提供对Multi-View编码(MVC)，MPEG-4 part 2(DivX, xVid)，MPEG-4 AVC/H.264，和Adobe Flash HD等高清视频的显卡硬解码。 这款显卡的着色器可以通过OpenCL和DirectCompute 11技术用于一般运算。

Radeon HD 8000D Series

Radeon HD 8670D 384 @ 0.84 GHz
Radeon HD 8570D 256 @ 0.84 GHz
Radeon HD 8470D 128 @ 0.8 GHz
CodenameRichland
ArchitectureTerascale 3
Pipelines128 - unified
Core Speed800 MHz
Shared Memoryyes
APIDirectX 11, Shader 5.0, OpenGL 4.2
technology32 nm
Date of Announcement05.06.2013
CPU in Radeon HD 8470DGPU Base SpeedGPU Boost / Turbo
AMD A6-6400K2 x 3900 MHz, 65 W800 MHz? MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
0.3 pt (1%)
AMD Radeon HD 8180
0.06404 -78%
...
AMD Radeon HD 7610M
0.2672 -10%
Intel HD Graphics 610
0.2683 -9%
Intel HD Graphics 510
0.2743 -7%
AMD Radeon HD 7640G + HD 7670M Dual Graphics
0.2752 -7%
Intel HD Graphics 4600
0.284 -4%
Intel UHD Graphics (Jasper Lake 16 EU)
0.2849 -4%
Intel HD Graphics 5500
0.2928 -1%
AMD Radeon HD 7640G + HD 7610M Dual Graphics
0.2928 -1%
Intel UHD Graphics 610
0.2931 -1%
AMD Radeon HD 8470D
0.2959
Intel HD Graphics 515
0.3054 3%
NVIDIA NVS 5200M
0.3109 5%
Intel HD Graphics 5000
0.316 7%
AMD Radeon HD 7620G
0.3162 7%
NVIDIA GeForce GT 630M
0.3176 7%
ATI Mobility Radeon HD 5650
0.3224 9%
NVIDIA GeForce GT 620M
0.3257 10%
NVIDIA Quadro K610M
0.3337 13%
NVIDIA GeForce 710M
0.3394 15%
...
NVIDIA GeForce RTX 4090
33.3 11154%
0%
100%
3DMark - 3DMark Ice Storm Extreme Graphics
32851 Points (4%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Score
2587 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
5583 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
598 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
670 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
50223 Points (6%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
937 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
854 Points (1%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -80%
...
NVIDIA GeForce GT 425M
756 -11%
AMD Radeon HD 7610M
757 -11%
AMD Radeon R5 (Beema/Carrizo-L)
777 -9%
Qualcomm Adreno 540
791 -7%
NVIDIA GeForce GT 435M
799 -6%
Intel UHD Graphics (Jasper Lake 16 EU)
819 -4%
AMD Radeon HD 7570M
825 -3%
AMD FirePro M2000
841 -2%
Intel HD Graphics 510
847 -1%
AMD Radeon HD 8470D
854
ATI Mobility Radeon HD 5650
856 0%
AMD Radeon R4 (Stoney Ridge)
861 1%
Intel HD Graphics 610
868 2%
AMD Radeon HD 6630M
887 4%
AMD Radeon HD 8610G
889 4%
NVIDIA GeForce GT 540M
892 4%
AMD Radeon R5 (Kaveri)
901 6%
NVIDIA GeForce GT 625M
921 8%
Intel UHD Graphics 610
923 8%
...
NVIDIA GeForce RTX 4090
104201 12102%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
3426 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
3085 Points (2%)
+ 1 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -98%
...
NVIDIA GeForce 9800M GS
2955 -4%
Intel UHD Graphics (Jasper Lake 16 EU)
2969 -4%
AMD Radeon HD 6520G + HD 7450M Dual Graphics
2974 -4%
Intel HD Graphics 4400
3005 -3%
AMD Radeon R5 (Stoney Ridge)
3044 -1%
AMD Radeon HD 7500G + HD 7550M Dual Graphics
3055 -1%
AMD Radeon HD 7610M
3061 -1%
ATI Radeon HD 5570
3064 -1%
AMD Radeon HD 7570M
3079 0%
AMD Radeon HD 8470D
3085
Intel HD Graphics 610
3103 1%
NVIDIA GeForce GT 435M
3112 1%
Intel HD Graphics 510
3125 1%
NVIDIA GeForce GTS 250M
3128 1%
AMD Radeon HD 6550M
3153 2%
ATI FirePro M5800
3164 3%
AMD Radeon HD 6630M
3194 4%
ATI Mobility Radeon HD 4830
3200 4%
ATI Mobility Radeon HD 5730
3224 5%
...
AMD Radeon RX 7900 XTX
170928 5441%
0%
100%
3DMark 05 - 3DMark 05 - Standard
11230 Points (12%)
+ 1 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
AMD Radeon HD 7480D
10626 -5%
NVIDIA GeForce GT 230M
10689 -5%
AMD Radeon R5 M335
10717 -5%
AMD Radeon HD 6450 GDDR5
10717 -5%
AMD Radeon HD 7570M
10786 -4%
AMD Radeon HD 6740G2
10949 -3%
NVIDIA GeForce GT 420M
11125 -1%
ATI Mobility Radeon HD 550v
11140 -1%
NVIDIA Quadro FX 770M
11161 -1%
AMD Radeon HD 8470D
11230
AMD Radeon 520
11294 1%
NVIDIA GeForce 9700M GT
11355 1%
Intel UHD Graphics (Jasper Lake 32 EU)
11395 1%
Intel HD Graphics 610
11469 2%
NVIDIA Quadro FX 1700M
11550 3%
Intel HD Graphics 520
11565 3%
AMD Radeon HD 8550G
11672 4%
NVIDIA GeForce 8800M GTS
11777 5%
NVIDIA GeForce GT 240M
11811 5%
...
NVIDIA GeForce RTX 4080 Super
87172 676%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
6367 Points (8%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
5141 points (4%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
24.9 fps (8%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
27.2 fps (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
98 % (98%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
75 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
63 Samples/s (0%)
+ 1 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
129 Samples/s (0%)
+ 1 benchmarks and specifications   + Show comparison chart
ComputeMark v2.1 - ComputeMark v2.1 Result
513 points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Thief

Thief

2014
low 1024x768
16.4  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Battlefield 4

Battlefield 4

2013
low 1024x768
35.2  fps    + Compare
med. 1366x768
24.6  fps    + Compare
high 1366x768
16.5  fps    + Compare
ultra 1920x1080
5.2  fps    + Compare
» With all tested laptops playable in detail settings low.
Batman: Arkham Origins

Batman: Arkham Origins

2013
low 1024x768
53  fps    + Compare
med. 1366x768
32  fps    + Compare
high 1366x768
17  fps    + Compare
ultra 1920x1080
7  fps    + Compare
» With all tested laptops playable in detail settings low.
Total War: Rome II

Total War: Rome II

2013
low 1024x768
36.6  fps    + Compare
med. 1366x768
29  fps    + Compare
high 1366x768
20.8  fps    + Compare
ultra 1920x1080
4.1  fps    + Compare
» With all tested laptops playable in detail settings low.
Saints Row IV

Saints Row IV

2013
low 1280x720
24.7  fps    + Compare
med. 1366x768
18.6  fps    + Compare
high 1366x768
12.5  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
The Bureau: XCOM Declassified

The Bureau: XCOM Declassified

2013
low 1024x768
31  fps    + Compare
med. 1366x768
20.5  fps    + Compare
high 1366x768
9  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dota 2

Dota 2

2013
low 1024x768
55  fps    + Compare
med. 1366x768
36.2  fps    + Compare
ultra 1920x1080
16.4  fps    + Compare
» With all tested laptops playable in detail settings med..
Company of Heroes 2

Company of Heroes 2

2013
low 1024x768
15.6  fps    + Compare
med. 1366x768
12.6  fps    + Compare
high 1366x768
6.7  fps    + Compare
ultra 1920x1080
3.4  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
GRID 2

GRID 2

2013
low 1024x768
62.6  fps    + Compare
med. 1366x768
37.7  fps    + Compare
high 1366x768
28.8  fps    + Compare
ultra 1920x1080
12.5  fps    + Compare
» With all tested laptops playable in detail settings med..
Metro: Last Light

Metro: Last Light

2013
low 1024x768
23  fps    + Compare
med. 1366x768
18.8  fps    + Compare
high 1366x768
9.2  fps    + Compare
ultra 1920x1080
4.7  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
BioShock Infinite

BioShock Infinite

2013
low 1280x720
55.1  fps    + Compare
med. 1366x768
25.8  fps    + Compare
high 1366x768
21.9  fps    + Compare
ultra 1920x1080
6.2  fps    + Compare
» With all tested laptops playable in detail settings low.
SimCity

SimCity

2013
low 1024x768
55  fps    + Compare
med. 1366x768
20.2  fps    + Compare
» With all tested laptops playable in detail settings low.
Tomb Raider

Tomb Raider

2013
low 1024x768
62.6  fps    + Compare
med. 1366x768
30  fps    + Compare
high 1366x768
19.1  fps    + Compare
ultra 1920x1080
7.6  fps    + Compare
» With all tested laptops playable in detail settings low.
Call of Duty: Black Ops 2

Call of Duty: Black Ops 2

2012
low 1024x768
73  fps    + Compare
med. 1366x768
41.3  fps    + Compare
high 1366x768
18.9  fps    + Compare
ultra 1920x1080
11.9  fps    + Compare
» With all tested laptops playable in detail settings med..
Fifa 13

Fifa 13

2012
high 1366x768
90  fps    + Compare
ultra 1920x1080
50  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Diablo III

Diablo III

2012
low 1024x768
79  fps    + Compare
med. 1366x768
50  fps    + Compare
high 1366x768
42  fps    + Compare
ultra 1920x1080
27  fps    + Compare
» With all tested laptops playable in detail settings high.
The Elder Scrolls V: Skyrim

The Elder Scrolls V: Skyrim

2011
low 1280x720
43  fps    + Compare
med. 1366x768
30.4  fps    + Compare
high 1366x768
21  fps    + Compare
ultra 1920x1080
10.7  fps    + Compare
» With all tested laptops playable in detail settings low.
Sims 3

Sims 3

2009
low 800x600
130  fps    + Compare
med. 1024x768
46  fps    + Compare
high 1280x1024
24  fps    + Compare
» With all tested laptops playable in detail settings med..
lowmed.highultraQHD4K
Thief16.4
Battlefield 435.224.616.55.2
Batman: Arkham Origins5332177
Total War: Rome II36.62920.84.1
Saints Row IV24.718.612.5
The Bureau: XCOM Declassified3120.59
Dota 25536.216.4
Company of Heroes 215.612.66.73.4
GRID 262.637.728.812.5
Metro: Last Light2318.89.24.7
BioShock Infinite55.125.7821.96.2
SimCity5520.2
Tomb Raider62.63019.17.6
Call of Duty: Black Ops 27341.318.911.9
Fifa 139050
Diablo III79504227
The Elder Scrolls V: Skyrim4330.42110.7
Sims 31304624
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		4
8
4
1		8
8

13
1
1
12
1







For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 22. 11:48:48

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Sun, 22 Dec 2024 05:32:24 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.021s ... 0.022s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.022s

#6 composed specs +0s ... 0.022s

#7 did output specs +0s ... 0.022s

#8 start showIntegratedCPUs +0s ... 0.022s

#9 getting avg benchmarks for device 4732 +0.024s ... 0.046s

#10 got single benchmarks 4732 +0.008s ... 0.054s

#11 got avg benchmarks for devices +0s ... 0.054s

#12 min, max, avg, median took s +0.402s ... 0.456s

#13 before gaming benchmark output +0s ... 0.456s

#14 Got 61 rows for game benchmarks. +0.002s ... 0.458s

#15 composed SQL query for gamebenchmarks +0s ... 0.458s

#16 got data and put it in $dataArray +0.01s ... 0.469s

#17 benchmarks composed for output. +0.56s ... 1.029s

#18 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 1.031s

#19 return log +0s ... 1.032s

No reviews found for this graphics card.

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 5090 * Desktop
NVIDIA GeForce RTX 5080 * Desktop
NVIDIA GeForce RTX 4090 Desktop
Radeon RX 7900 XTX Desktop
NVIDIA GeForce RTX 5070 Ti * Desktop
NVIDIA GeForce RTX 4080 Super Desktop
NVIDIA GeForce RTX 4080 Desktop
NVIDIA GeForce RTX 3090 Ti Desktop
NVIDIA GeForce RTX 5070 * Desktop
NVIDIA GeForce RTX 4070 Ti SUPER Desktop
Radeon RX 7900 XT Desktop
NVIDIA GeForce RTX 4070 Ti Desktop
Radeon RX 7900 GRE Desktop
Radeon RX 6950 XT Desktop
NVIDIA GeForce RTX 5060 Ti * Desktop
NVIDIA GeForce RTX 3090 Desktop
NVIDIA GeForce RTX 3080 Ti Desktop
Radeon RX 7800 XT Desktop
NVIDIA GeForce RTX 4070 SUPER Desktop
NVIDIA RTX A6000 Desktop
Radeon RX 6900 XT Desktop
NVIDIA GeForce RTX 5060 * Desktop
NVIDIA GeForce RTX 3080 12 GB Desktop
RTX 6000 Ada Generation Desktop
NVIDIA GeForce RTX 3080 Desktop
NVIDIA GeForce RTX 4070 Desktop
Radeon Pro W6800 Desktop
Radeon RX 6800 XT Desktop
Radeon RX 6800 Desktop
Radeon RX 7700 XT Desktop
NVIDIA Titan RTX Desktop
GeForce RTX 3070 Ti Desktop
NVIDIA GeForce RTX 4060 Ti 16G Desktop
NVIDIA GeForce RTX 4060 Ti 8G Desktop
NVIDIA GeForce RTX 3070 Desktop
Radeon RX 6750 XT Desktop
GeForce RTX 2080 Ti (Desktop) Desktop
Radeon RX 6700 XT Desktop
NVIDIA GeForce RTX 3060 Ti Desktop
Arc B580
Arc A770 Desktop
NVIDIA GeForce RTX 4060 Desktop
Radeon RX 7600 Desktop
GeForce RTX 2080 Super (Desktop) Desktop
Radeon RX 6650 XT Desktop
Radeon RX 6600 XT Desktop
GeForce RTX 2080 (Desktop) Desktop

Class 2

Arc A750 Desktop
NVIDIA GeForce RTX 3060 Desktop
GeForce GTX 1080 Ti Desktop
Titan X Pascal Desktop
GeForce RTX 2070 Super (Desktop) Desktop
Radeon VII Desktop
Radeon RX 5700 XT (Desktop) Desktop
GeForce RTX 2070 (Desktop) Desktop
GeForce GTX 1080 (Desktop) Desktop
Arc A580 Desktop
GeForce RTX 2060 Super (Desktop) Desktop
Radeon RX 6600 Desktop
Radeon RX 5700 (Desktop) Desktop
GeForce RTX 2060 (Desktop) Desktop
RX Vega 64 Desktop
GeForce GTX 1070 Ti (Desktop) Desktop
RX Vega 56 Desktop
NVIDIA GeForce RTX 3050 Desktop
GeForce GTX 1070 (Desktop) Desktop
Radeon RX 5600 XT (Desktop) Desktop
Pro Vega 56 Desktop
GeForce GTX 1660 Ti (Desktop) Desktop
GeForce GTX 1660 Super (Desktop) Desktop
RTX A2000 Desktop
Radeon RX 6500 XT Desktop
Radeon RX 5500 XT (Desktop) Desktop
GeForce GTX 980 Ti Desktop
GeForce GTX 1660 (Desktop) Desktop
GeForce GTX 1650 Super (Desktop) Desktop
Radeon R9 Fury Desktop
Radeon R9 Nano Desktop
GeForce GTX 980 Desktop
Radeon RX 590 Desktop
Radeon RX 580 Desktop
Radeon R9 390X Desktop
GeForce GTX 1060 (Desktop) Desktop
Radeon RX 570 Desktop
Radeon RX 480 Desktop
GeForce GTX 1650 (Desktop) Desktop
Arc A380 Desktop
GeForce GTX 970 Desktop
Radeon RX 470 (Desktop) Desktop

Class 3

T1000 Desktop
Radeon R9 380 Desktop
GeForce GTX 960 Desktop
GeForce GTX 1050 Ti (Desktop) Desktop
GeForce GTX 1050 (Desktop) Desktop
Radeon R7 370 Desktop
GeForce GTX 950 Desktop
T600 Desktop
Radeon RX 460 (Desktop) Desktop
GeForce GT 1030 (Desktop) Desktop
GeForce GT 710 Desktop
UHD Graphics 32EUs
UHD Graphics 750
UHD Graphics 730
FirePro W4100 Desktop
Radeon Graphics (Ryzen 7000)
FirePro W2100 Desktop

Class 4

Radeon HD 8470D Desktop
VideoCore VII *

* Approximate position of the graphics adapter
