AMD Radeon R6 (Mullins)

AMD Radeon R6 (Mullins)

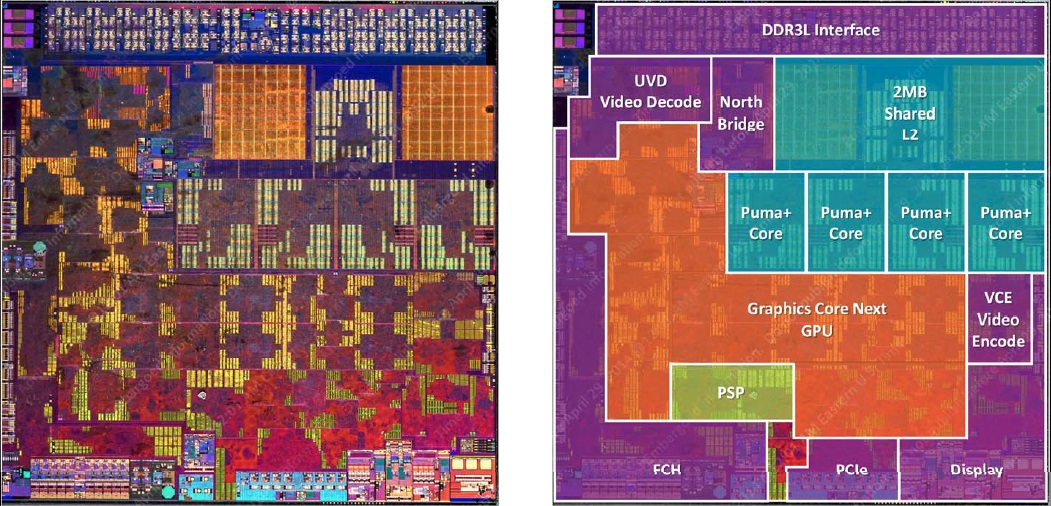

AMD Radeon R6是一款支持DirectX 11.2的集成显卡,使用于一部分AMD APU中(例如A10 Micro-6700T)。它提供了128个着色核心和两个运算单元,基于GCN架构。主频最高可达800MHz。这款显卡没有独立的显存,需要使用系统内存(单通道DDR3L-1333)。 借助它的UVD芯片,这款显卡可以支持最高4K分辨率的视频硬解码。另外,它还集成了一个特别的视频编码器,名叫VCE。视频信号可以通过VGA,DVI,HDMI 1.4a和DisplayPort 1.2最多输出到两个外接显示器上。 Radeon R6的性能接近于Radeon HD 8280,由于显卡加速因为很低的TDP而效果有限。通常情况下,只有较老或要求较低的游戏可以流畅运行。

Radeon R Series

Radeon R5 (Beema/Carrizo-L) 128 @ 0.85 GHz64 Bit
Radeon R4 (Beema) 128 @ 0.8 GHz64 Bit
Radeon R3 (Mullins/Beema) 128 @ 0.35 - 0.69 GHz64 Bit
Radeon R2 (Mullins/Beema/Carrizo-L) 128 @ 0.3 - 0.6 GHz64 Bit
Radeon R6 (Mullins) 128 @ 0.5 GHz64 Bit
CodenameMullins
ArchitectureGCN 1.1
Pipelines128 - unified
Core Speed500 MHz
Memory Bus Width64 Bit
Shared Memoryyes
APIDirectX 12 (FL 12_0), Shader 5.0
technology28 nm
Date of Announcement29.04.2014
CPU in Radeon R6 (Mullins)GPU Base SpeedGPU Boost / Turbo
AMD A10 Micro-6700T4 x 1200 MHz, 4.5 W? MHz500 MHz

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
20511 Points (2%)
3DMark - 3DMark Cloud Gate Score
1900 Points (2%)
3DMark - 3DMark Cloud Gate Graphics
2258 Points (1%)
3DMark - 3DMark Fire Strike Standard Score
302 Points (1%)
3DMark 11 - 3DM11 Performance Score
582 Points (1%)
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
11.3 fps (4%)
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
