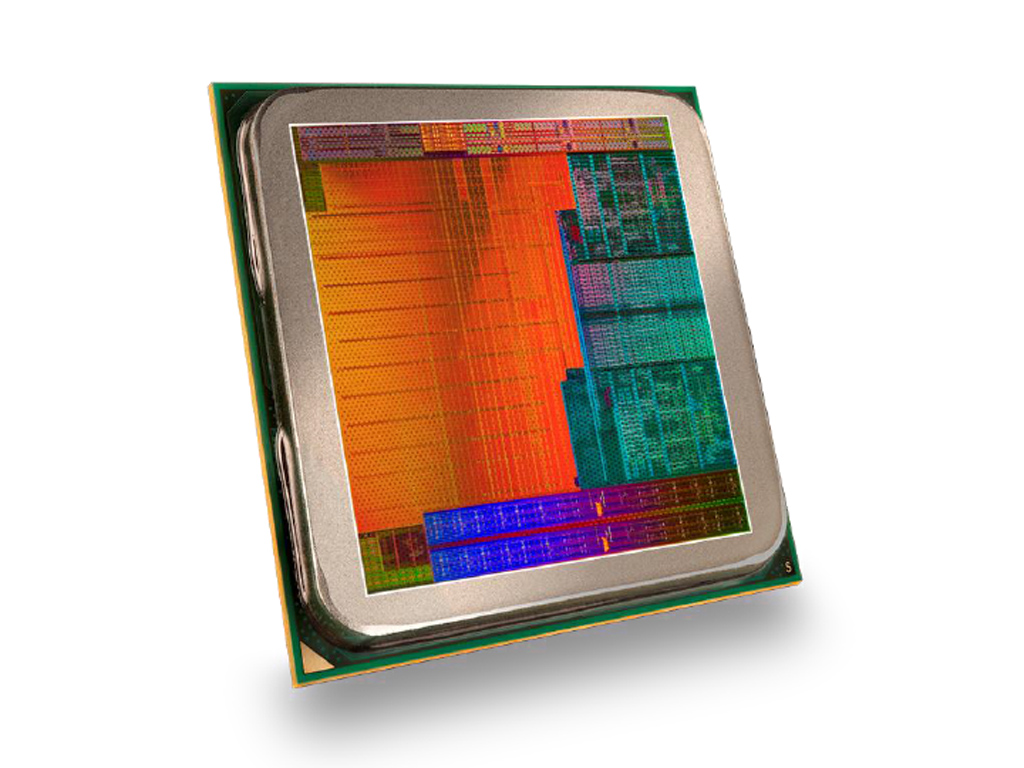

AMD Radeon R7 (Kaveri)

AMD Radeon R7 (Kaveri)

AMD Radeon R7(Kaveri)是一款支持DirectX 11.2的集成显卡，很多AMD Kaveri APU都采用了这款显卡。根据APU型号的不同，它提供最多512个GCN架构着色器和8个运算核心，例如FX-7600P处理器版本。或者，在其它的一些APU中，只提供了384个着色器和6个运算核心，例如FX-7500。另外，它的最大核心频率和内存频率取决于处理器的版本：在超低电压版处理器中仅支持DDR3-1600，而在普通电压版处理器中则支持最高DDR3-2133。 架构和功能 得力于新的GCN 1.1架构，Kaveri显卡相对于基于VLIW架构的前作Richland和Trinity有了更高的能效和更高的性能表现。这款显卡现在可以支持DirectX 11.2 T2与AMD Mantle API标准。它同样支持对很多应用程序例如Adobe Photoshop通过OpenCL提供硬件加速。 重新设计的Kaveri视频引擎包括了UVD(Unified Video Decoder)4.2和VCE(Video Codec Engine)2.0。对H.264编码的支持也在不同方面得到了改进。不过它对H.265编码并没有完全提供硬件支持。 性能 Radeon R7的不同处理器版本由于在着色器数量、核心频率、和内存支持上的巨大差异而有很大的性能差异。在FX-7600P中，它最快的版本可以与GeForce GT 740M性能相当，而最慢的版本（在FX-7500中）仅与GeForce GT 720M性能相当。因此，2014年的游戏可以在中低设定和1024x768或1366x768分辨率下流畅运行。 功耗 Kaveri APU处理器的整体功耗为低电压版的17W或普通电压版的35W。因此这款28纳米芯片适合于中小尺寸的笔记本电脑。

Radeon R (Kaveri) Series

Radeon R7 512 Cores (Kaveri Desktop) 512 @ 0.72 GHz
Radeon R7 384 Cores (Kaveri Desktop) 384 @ 0.72 GHz
Radeon R7 (Kaveri) 512 @ 0.55 - 0.69 GHz64/128 Bit
Radeon R6 (Kaveri) 384 @ 0.53 - 0.65 GHz64/128 Bit
Radeon R5 (Kaveri) 256 @ 0.51 - 0.63 GHz64/128 Bit
Radeon R4 (Kaveri) 192 @ 0.53 GHz64/128 Bit
CodenameKaveri
ArchitectureGCN 1.1
Pipelines512 - unified
Core Speed553 - 686 (Boost) MHz
Memory Bus Width64/128 Bit
Shared Memoryyes
APIDirectX 12 (FL 12_0), Shader 5.0
Transistor Count2.4 Billion
technology28 nm
FeaturesUVD 4.2, VCE 2.0
Notebook Sizemedium sized
Date of Announcement04.06.2014
CPU in Radeon R7 (Kaveri)GPU Base SpeedGPU Boost / Turbo
AMD FX-7600P4 x 2700 MHz, 35 W600 MHz686 MHz
AMD FX-75004 x 2100 MHz, 19 W496 MHz553 MHz
min. - max.496 - 600 MHz553 - 686 MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
0.4 pt (1%)
AMD Radeon HD 8180
0.06404 -83%
...
AMD Radeon HD 6620G + HD 7670M Dual Graphics
0.3432 -9%
AMD Radeon HD 8570M
0.3489 -7%
AMD Radeon HD 8550G
0.3498 -7%
Intel HD Graphics 520
0.3549 -6%
Intel UHD Graphics 615
0.3617 -4%
NVIDIA GeForce GT 720M
0.3631 -3%
AMD Radeon HD 7670M
0.3639 -3%
AMD Radeon HD 8670M
0.3661 -3%
AMD Radeon HD 8650G + HD 8670M Dual Graphics
0.3732 -1%
AMD Radeon R7 (Kaveri)
0.3759
Intel HD Graphics 615
0.3768 0%
AMD FirePro M4100
0.3785 1%
AMD Radeon HD 8650G + HD 8570M Dual Graphics
0.3803 1%
Intel Iris Graphics 6100
0.386 3%
AMD Radeon HD 7660G + HD 7670M Dual Graphics
0.3865 3%
Intel Iris Graphics 5100
0.388 3%
NVIDIA GeForce 820M
0.3962 5%
AMD Radeon HD 8650G
0.3997 6%
AMD Radeon R6 (Carrizo)
0.4015 7%
...
NVIDIA GeForce RTX 4090 Laptop GPU
20.4 5327%
max:
NVIDIA GeForce RTX 4090
33.3 8759%
0%
100%
3DMark - 3DMark Cloud Gate Score
min: 4014     avg: 4720     median: 4719.5 (4%)     max: 5425 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
6544 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 793     avg: 1039     median: 1039 (2%)     max: 1285 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
851 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
39785 Points (4%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
min: 1424     avg: 1789     median: 1794.5 (2%)     max: 2142 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 1342     avg: 1734     median: 1734 (1%)     max: 2126 Points
+ 2 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -90%
...
AMD Radeon R5 M330
1684 -3%
AMD Radeon R5 M430
1689 -3%
Intel HD Graphics 630
1696 -2%
NVIDIA GeForce GT 735M
1703 -2%
NVIDIA GeForce GT 640M
1708 -1%
AMD Radeon R5 (Bristol Ridge)
1708 -1%
NVIDIA GeForce 920M
1711 -1%
AMD Radeon R5 (Carrizo)
1711 -1%
AMD FirePro M4100
1728 0%
AMD Radeon R7 (Kaveri)
1734
NVIDIA GeForce GT 730M
1741 0%
Intel UHD Graphics 630
1742 0%
Intel UHD Graphics 620
1749 1%
AMD Radeon HD 8750M
1749 1%
NVIDIA GeForce 825M
1757 1%
AMD Radeon R5 M335
1784 3%
Intel UHD Graphics G7 (Lakefield GT2 64 EU)
1792 3%
AMD Radeon R7 (Carrizo)
1793 3%
NVIDIA Quadro K2000M
1807 4%
...
AMD Radeon RX 7900M
59943 3357%
max:
NVIDIA GeForce RTX 4090
104201 5909%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
4483 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
4212 Points (2%)
+ 1 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -99%
...
AMD Radeon HD 7520G + HD 7670M Dual Graphics
3968 -6%
NVIDIA GeForce 710M
3969 -6%
AMD Radeon R5 M430
3995 -5%
NVIDIA GeForce GT 630M
4005 -5%
AMD Radeon R5 M335
4032 -4%
NVIDIA GeForce 9800M GTX
4123 -2%
AMD Radeon HD 7660G
4133 -2%
NVIDIA GeForce 910M
4151 -1%
AMD Radeon HD 8650G
4169 -1%
AMD Radeon R7 (Kaveri)
4212
Intel HD Graphics 515
4218 0%
NVIDIA Quadro K1000M
4229 0%
AMD Radeon HD 7670M
4236 1%
ATI Mobility Radeon HD 5830
4243 1%
NVIDIA GeForce 820M
4277 2%
NVIDIA GeForce GTX 260M
4316 2%
AMD Radeon 520
4324 3%
NVIDIA Quadro FX 3700M
4326 3%
NVIDIA NVS 5400M
4407 5%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 3044%
max:
AMD Radeon RX 7900 XTX
170928 3958%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 6702     avg: 7922     median: 7921.5 (10%)     max: 9141 Points
+ 2 benchmarks and specifications   + Show comparison chart
Unigine Heaven 2.1 - Heaven 2.1 high
16.6 fps (3%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4499     avg: 4618     median: 4618 (3%)     max: 4737 points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 16.83     avg: 27.3     median: 32.4 (11%)     max: 32.76 fps
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 25.24     avg: 31.2     median: 31.2 (2%)     max: 37.12 fps
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
98 % (98%)
+ 2 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
min: 228     avg: 235.5     median: 235.5 (1%)     max: 243 Samples/s
+ 2 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
min: 454     avg: 460     median: 460 (1%)     max: 466 Samples/s
+ 2 benchmarks and specifications   + Show comparison chart
ComputeMark v2.1 - ComputeMark v2.1 Result
min: 843     avg: 1113     median: 1112.5 (1%)     max: 1382 points
+ 2 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Call of Duty Black Ops 4

Call of Duty Black Ops 4

2018
low 1280x720
0 (!)  fps    + Compare
F1 2018

F1 2018

2018
low 1280x720
24  fps    + Compare
med. 1920x1080
13.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
The Crew 2

The Crew 2

2018
low 1280x720
22.8  fps    + Compare
med. 1920x1080
10.5  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Final Fantasy XV Benchmark

Final Fantasy XV Benchmark

2018
low 1280x720
0 (!)  fps    + Compare
Playerunknown's Battlegrounds (PUBG)

Playerunknown's Battlegrounds (PUBG)

2017
low 1280x720
20.4  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Team Fortress 2

Team Fortress 2

2017
ultra 1920x1080
32.2  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dirt 4

Dirt 4

2017
low 1280x720
54  fps    + Compare
med. 1920x1080
21.1  fps    + Compare
» With all tested laptops playable in detail settings low.
Rocket League

Rocket League

2017
low 1280x720
50.4  fps    + Compare
med. 1920x1080
32  fps    + Compare
» With all tested laptops playable in detail settings low.
Mass Effect Andromeda

Mass Effect Andromeda

2017
low 1280x720
7.2  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
For Honor

For Honor

2017
low 1280x720
32  fps    + Compare
med. 1920x1080
11.7  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Resident Evil 7

Resident Evil 7

2017
low 1280x720
48.2  fps    + Compare
med. 1920x1080
20.9  fps    + Compare
» With all tested laptops playable in detail settings low.
Additional Benchmarks
Medium / Off FXAA 1366x768
36.5
Watch Dogs 2

Watch Dogs 2

2016
low 1280x720
17.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Battlefield 1

Battlefield 1

2016
low 1280x720
13.9  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
FIFA 17

FIFA 17

2016
low 1280x720
0 (!)  fps    + Compare
Deus Ex Mankind Divided

Deus Ex Mankind Divided

2016
low 1280x720
15.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Mirror's Edge Catalyst

Mirror's Edge Catalyst

2016
low 1280x720
24.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Overwatch

Overwatch

2016
low 1280x720
45.5  fps    + Compare
med. 1366x768
35.9  fps    + Compare
high 1920x1080
16.7  fps    + Compare
» With all tested laptops playable in detail settings med..
Doom

Doom

2016
low 1280x720
22.3  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Need for Speed 2016

Need for Speed 2016

2016
low 1280x720
18.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Hitman 2016

Hitman 2016

2016
low 1280x720
10.4 11.4 ~ 11 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Far Cry Primal

Far Cry Primal

2016
low 1280x720
10  fps    + Compare
med. 1920x1080
5  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
XCOM 2

XCOM 2

2016
low 1280x720
19.2  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Rise of the Tomb Raider

Rise of the Tomb Raider

2016
low 1024x768
25.8  fps    + Compare
med. 1366x768
16.6  fps    + Compare
high 1920x1080
8.1  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Rainbow Six Siege

Rainbow Six Siege

2015
low 1024x768
55  fps    + Compare
high 1920x1080
17.1  fps    + Compare
ultra 1920x1080
13.6  fps    + Compare
» With all tested laptops playable in detail settings low.
Just Cause 3

Just Cause 3

2015
low 1024x768
18.4  fps    + Compare
high 1920x1080
11.3  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Star Wars Battlefront

Star Wars Battlefront

2015
low 1024x768
29.5  fps    + Compare
med. 1366x768
18  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Assassin's Creed Syndicate

Assassin's Creed Syndicate

2015
low 1024x768
14.1  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Fallout 4

Fallout 4

2015
low 1280x720
23.6  fps    + Compare
med. 1366x768
16.4  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Call of Duty: Black Ops 3

Call of Duty: Black Ops 3

2015
low 1024x768
31.3  fps    + Compare
med. 1366x768
21.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Anno 2205

Anno 2205

2015
low 1024x768
32.1  fps    + Compare
med. 1366x768
16.6  fps    + Compare
high 1920x1080
8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
FIFA 16

FIFA 16

2015
low 1280x720
62 (!)  fps    + Compare
high 1366x768
45.2 (!)  fps    + Compare
ultra 1920x1080
23.3 (!)  fps    + Compare
» With all tested laptops playable in detail settings high.
World of Warships

World of Warships

2015
low 1366x768
59.1  fps    + Compare
med. 1366x768
44.5  fps    + Compare
high 1920x1080
23.2  fps    + Compare
ultra 1920x1080
17.7  fps    + Compare
4K 3840 x 2160
5.5  fps    + Compare
» With all tested laptops playable in detail settings med..
Metal Gear Solid V

Metal Gear Solid V

2015
low 1024x768
50.2  fps    + Compare
med. 1366x768
34.6  fps    + Compare
high 1920x1080
14.5  fps    + Compare
» With all tested laptops playable in detail settings low.
Mad Max

Mad Max

2015
med. 1366x768
27.3  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dota 2 Reborn

Dota 2 Reborn

2015
low 1280x720
39  fps    + Compare
med. 1366x768
28.6  fps    + Compare
» With all tested laptops playable in detail settings low.
Batman: Arkham Knight

Batman: Arkham Knight

2015
low 1280x720
12  fps    + Compare
med. 1366x768
9  fps    + Compare
high 1920x1080
6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
The Witcher 3

The Witcher 3

2015
low 1024x768
23.3  fps    + Compare
med. 1366x768
15.9  fps    + Compare
high 1920x1080
8.4  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dirt Rally

Dirt Rally

2015
low 1024x768
106  fps    + Compare
med. 1366x768
34  fps    + Compare
high 1920x1080
19.4  fps    + Compare
ultra 1920x1080
12.5  fps    + Compare
» With all tested laptops playable in detail settings low.
Battlefield Hardline

Battlefield Hardline

2015
low 1024x768
31.9  fps    + Compare
med. 1366x768
20.6  fps    + Compare
high 1920x1080
10.3  fps    + Compare
ultra 1920x1080
7  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Evolve

Evolve

2015
low 1024x768
26.7  fps    + Compare
med. 1366x768
20.4  fps    + Compare
high 1920x1080
10.6  fps    + Compare
ultra 1920x1080
8.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dragon Age: Inquisition

Dragon Age: Inquisition

2014
low 1024x768
25.2  fps    + Compare
med. 1366x768
21.2  fps    + Compare
high 1920x1080
9.3  fps    + Compare
ultra 1920x1080
6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Far Cry 4

Far Cry 4

2014
low 1024x768
23.7  fps    + Compare
med. 1366x768
16.9  fps    + Compare
high 1920x1080
9.6  fps    + Compare
ultra 1920x1080
6.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Call of Duty: Advanced Warfare

Call of Duty: Advanced Warfare

2014
low 1024x768
45.9  fps    + Compare
med. 1366x768
31.8  fps    + Compare
high 1920x1080
30.5  fps    + Compare
ultra 1920x1080
14.1  fps    + Compare
» With all tested laptops playable in detail settings low.
Civilization: Beyond Earth

Civilization: Beyond Earth

2014
low 1024x768
51.4  fps    + Compare
med. 1366x768
21.8  fps    + Compare
high 1920x1080
15.6  fps    + Compare
ultra 1920x1080
13.1  fps    + Compare
» With all tested laptops playable in detail settings low.
F1 2014

F1 2014

2014
low 1024x768
31 53 ~ 42 fps    + Compare
med. 1366x768
29 38 ~ 34 fps    + Compare
high 1920x1080
26 33 ~ 30 fps    + Compare
ultra 1920x1080
12 22 ~ 17 fps    + Compare
» With most tested laptops playable in detail settings low.
Ryse: Son of Rome

Ryse: Son of Rome

2014
low 1024x768
28  fps    + Compare
med. 1366x768
18.6  fps    + Compare
high 1920x1080
9  fps    + Compare
ultra 1920x1080
8.1  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Alien: Isolation

Alien: Isolation

2014
low 1024x768
34.2 48 ~ 41 fps    + Compare
med. 1366x768
22 33.8 ~ 28 fps    + Compare
high 1920x1080
15.7 18.8 ~ 17 fps    + Compare
ultra 1920x1080
14.7  fps    + Compare
» With most tested laptops playable in detail settings low.
Middle-earth: Shadow of Mordor

Middle-earth: Shadow of Mordor

2014
low 1280x720
28.3  fps    + Compare
med. 1344x756
20  fps    + Compare
high 1920x1080
11.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Fifa 15

Fifa 15

2014
low 1280x720
42.5 57 ~ 50 fps    + Compare
high 1366x768
37.9 44 ~ 41 fps    + Compare
ultra 1920x1080
21.5 23.3 ~ 22 fps    + Compare
» With all tested laptops playable in detail settings high.
Sims 4

Sims 4

2014
low 1024x768
94.3  fps    + Compare
med. 1366x768
40.1  fps    + Compare
high 1920x1080
23.1  fps    + Compare
» With all tested laptops playable in detail settings med..
Risen 3: Titan Lords

Risen 3: Titan Lords

2014
low 1024x768
27.1  fps    + Compare
med. 1366x768
17.1  fps    + Compare
high 1920x1080
8.2  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
GRID: Autosport

GRID: Autosport

2014
low 1024x768
71.2  fps    + Compare
med. 1366x768
32  fps    + Compare
high 1920x1080
18.8  fps    + Compare
» With all tested laptops playable in detail settings low.
Watch Dogs

Watch Dogs

2014
low 1024x768
19  fps    + Compare
med. 1366x768
15.2  fps    + Compare
high 1920x1080
4.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Thief

Thief

2014
low 1024x768
12.6 19 ~ 16 fps    + Compare
med. 1366x768
12.1 16.6 ~ 14 fps    + Compare
high 1366x768
10 11.6 ~ 11 fps    + Compare
ultra 1920x1080
6.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Battlefield 4

Battlefield 4

2013
low 1024x768
16.5 23.3 ~ 20 fps    + Compare
med. 1366x768
13.5 20.5 ~ 17 fps    + Compare
high 1366x768
6.2  fps    + Compare
ultra 1920x1080
4.9  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Total War: Rome II

Total War: Rome II

2013
low 1024x768
36.5  fps    + Compare
med. 1366x768
29.1  fps    + Compare
high 1366x768
25.7  fps    + Compare
» With all tested laptops playable in detail settings low.
Saints Row IV

Saints Row IV

2013
low 1280x720
22.9  fps    + Compare
med. 1366x768
17.9  fps    + Compare
high 1366x768
11.7  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dota 2

Dota 2

2013
low 1024x768
39  fps    + Compare
med. 1366x768
30.2  fps    + Compare
ultra 1920x1080
21.4  fps    + Compare
» With all tested laptops playable in detail settings low.
Company of Heroes 2

Company of Heroes 2

2013
low 1024x768
13.4  fps    + Compare
med. 1366x768
12  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
GRID 2

GRID 2

2013
low 1024x768
61.9  fps    + Compare
med. 1366x768
34.6  fps    + Compare
high 1366x768
28  fps    + Compare
ultra 1920x1080
12.5  fps    + Compare
» With all tested laptops playable in detail settings low.
Metro: Last Light

Metro: Last Light

2013
low 1024x768
29.7  fps    + Compare
med. 1366x768
25.1  fps    + Compare
high 1366x768
16.2  fps    + Compare
ultra 1920x1080
8.3  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
BioShock Infinite

BioShock Infinite

2013
low 1280x720
23.6 49.1 ~ 36 fps    + Compare
med. 1366x768
20.8 28.3 ~ 25 fps    + Compare
high 1366x768
24.1 29.5 ~ 27 fps    + Compare
ultra 1920x1080
10.5  fps    + Compare
» With most tested laptops playable in detail settings low.
StarCraft II: Heart of the Swarm

StarCraft II: Heart of the Swarm

2013
low 1024x768
94.8  fps    + Compare
med. 1366x768
39  fps    + Compare
high 1366x768
27.9  fps    + Compare
» With all tested laptops playable in detail settings med..
Tomb Raider

Tomb Raider

2013
low 1024x768
60.7 70 ~ 65 fps    + Compare
med. 1366x768
31.7 39 ~ 35 fps    + Compare
high 1366x768
21.8 26 ~ 24 fps    + Compare
ultra 1920x1080
14.2  fps    + Compare
» With all tested laptops playable in detail settings low.
Crysis 3

Crysis 3

2013
low 1024x768
29.2  fps    + Compare
med. 1366x768
17.4  fps    + Compare
high 1366x768
12.3  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dead Space 3

Dead Space 3

2013
low 1024x768
73.5  fps    + Compare
med. 1366x768
37.8  fps    + Compare
high 1366x768
30.2  fps    + Compare
» With all tested laptops playable in detail settings med..
Hitman: Absolution

Hitman: Absolution

2012
low 1024x768
19.8  fps    + Compare
med. 1366x768
17.5  fps    + Compare
high 1366x768
11.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dishonored

Dishonored

2012
low 1024x768
43.4  fps    + Compare
med. 1366x768
36.5  fps    + Compare
high 1366x768
33.6  fps    + Compare
ultra 1920x1080
19.5  fps    + Compare
» With all tested laptops playable in detail settings med..
Sleeping Dogs

Sleeping Dogs

2012
low 1024x768
55  fps    + Compare
med. 1366x768
42.3  fps    + Compare
high 1366x768
24.5  fps    + Compare
ultra 1920x1080
7.1  fps    + Compare
» With all tested laptops playable in detail settings med..
Diablo III

Diablo III

2012
low 1024x768
59.8  fps    + Compare
med. 1366x768
42.2  fps    + Compare
high 1366x768
36.6  fps    + Compare
» With all tested laptops playable in detail settings high.
Anno 2070

Anno 2070

2011
low 1024x768
69.1  fps    + Compare
med. 1366x768
35  fps    + Compare
high 1366x768
22.3  fps    + Compare
» With all tested laptops playable in detail settings low.
The Elder Scrolls V: Skyrim

The Elder Scrolls V: Skyrim

2011
low 1280x720
36  fps    + Compare
med. 1366x768
29.1  fps    + Compare
high 1366x768
21.4  fps    + Compare
» With all tested laptops playable in detail settings low.
Deus Ex Human Revolution

Deus Ex Human Revolution

2011
low 1024x768
69.1  fps    + Compare
high 1366x768
38.5  fps    + Compare
ultra 1920x1080
17  fps    + Compare
» With all tested laptops playable in detail settings high.
Dirt 3

Dirt 3

2011
low 800x600
75.7  fps    + Compare
med. 1024x768
43.9  fps    + Compare
high 1360x768
40  fps    + Compare
ultra 1920x1080
14.2  fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
Call of Duty Black Ops 4
F1 20182413.8
The Crew 222.810.5
Final Fantasy XV Benchmark
Playerunknown's Battlegrounds (PUBG)20.4
Team Fortress 232.2
Dirt 45421.1
Rocket League50.432
Mass Effect Andromeda7.2
For Honor3211.7
Resident Evil 748.220.9
Watch Dogs 217.8
Battlefield 113.9
FIFA 170
Deus Ex Mankind Divided15.6
Mirror's Edge Catalyst24.6
Overwatch45.535.916.7
Doom22.3
Need for Speed 201618.8
Hitman 201611
Far Cry Primal105
XCOM 219.2
Rise of the Tomb Raider25.816.68.1
Rainbow Six Siege5517.113.6
Just Cause 318.411.3
Star Wars Battlefront29.518
Assassin's Creed Syndicate14.1
Fallout 423.616.4
Call of Duty: Black Ops 331.321.8
Anno 220532.116.68
FIFA 166245.223.3
World of Warships59.144.523.217.75.5
Metal Gear Solid V50.234.614.5
Mad Max27.3
Dota 2 Reborn3928.6
Batman: Arkham Knight1296
The Witcher 323.315.98.4
Dirt Rally1063419.412.5
Battlefield Hardline31.920.610.37
Evolve26.720.410.68.8
Dragon Age: Inquisition25.221.29.36
Far Cry 423.716.99.66.6
Call of Duty: Advanced Warfare45.931.830.514.1
Civilization: Beyond Earth51.421.815.613.1
F1 201442343017
Ryse: Son of Rome2818.698.1
Alien: Isolation41281714.7
Middle-earth: Shadow of Mordor28.32011.6
Fifa 15504122
Sims 494.340.123.1
Risen 3: Titan Lords27.117.18.2
GRID: Autosport71.23218.8
Watch Dogs1915.24.6
Thief1614116.6
Battlefield 420176.24.9
Total War: Rome II36.529.125.7
Saints Row IV22.917.911.7
Dota 23930.221.4
Company of Heroes 213.412
GRID 261.934.62812.5
Metro: Last Light29.725.116.28.3
BioShock Infinite36252710.5
StarCraft II: Heart of the Swarm94.83927.9
Tomb Raider65352414.2
Crysis 329.217.412.3
Dead Space 373.537.830.2
Hitman: Absolution19.817.511.6
Dishonored43.436.533.619.5
Sleeping Dogs5542.324.57.1
Diablo III59.842.236.6
Anno 207069.13522.3
The Elder Scrolls V: Skyrim3629.121.4
Deus Ex Human Revolution69.138.517
Dirt 375.743.94014.2
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		34
24
11
35
19

36
9

25
1




1


For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 09. 00:02:59

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 08 Nov 2024 19:43:11 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.034s ... 0.035s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s

#9 composed specs +0s ... 0.035s

#10 did output specs +0s ... 0.035s

#11 start showIntegratedCPUs +0s ... 0.035s

#12 getting avg benchmarks for device 5538 +0.027s ... 0.062s

#13 got single benchmarks 5538 +0.011s ... 0.073s

#14 got avg benchmarks for devices +0s ... 0.073s

#15 min, max, avg, median took s +0.419s ... 0.492s

#16 before gaming benchmark output +0s ... 0.492s

#17 Got 220 rows for game benchmarks. +0.006s ... 0.497s

#18 composed SQL query for gamebenchmarks +0s ... 0.497s

#19 got data and put it in $dataArray +0.046s ... 0.543s

#20 benchmarks composed for output. +1.901s ... 2.444s

#21 no comparison url found in template nbc.compare_page_1 needed +0.004s ... 2.449s

#22 return log +0s ... 2.449s

Notebook reviews with AMD Radeon R7 (Kaveri) graphics card

Lenovo ThinkPad A275-20KD001CRT: unknown, 12.50", 1.4 kg
  External Review » Lenovo ThinkPad A275-20KD001CRT

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

M4 20-core GPU
Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

M4 8-Core GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 (Kaveri)
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

* Approximate position of the graphics adapter
