AMD Radeon RX 6550S

AMD Radeon RX 6550S

AMD Radeon RX 6550S 是一款移动入门级显卡,基于Navi 24 芯片(RDNA 2 架构),采用现代 6 纳米工艺制造。它拥有 1024 个内核(16 个 CU - 计算单元)和 4 GB 快速 GDDR6 显存,通过 64 位内存总线连接。芯片还包括 16 MB Infinity Cache。游戏时钟频率为 2170 MHz。低功耗版 Radeon RX 6550M,时钟速度更低(-15%),最大 TGP 值更低(-37%)。

性能应与平均 RX 6500M只要内存带宽的降低不会造成太大影响。

Navi 24 芯片由台积电(TSMC)采用现代 6 纳米工艺制造,能效应该不错。RX6550S 的 TDP 值为 35 - 50 瓦,因此非常适合轻薄型笔记本电脑。

Radeon RX 6000M Series

Radeon RX 6850M XT 2560 @ 2.46 GHz192 Bit @ 18000 MHz
Radeon RX 6800M 2560 @ 2.12 - 2.3 GHz192 Bit @ 16000 MHz
Radeon RX 6800S 2048 @ 1.8 - 1.98 GHz128 Bit @ 16000 MHz
Radeon RX 6700M 2304 @ 2.3 GHz160 Bit @ 16000 MHz
Radeon RX 6650M XT 2048 @ 2.16 GHz128 Bit @ 18000 MHz
Radeon RX 6650M 1792 @ 2.22 GHz128 Bit @ 18000 MHz
Radeon RX 6600M 1792 @ 2.07 - 2.18 GHz128 Bit @ 14000 MHz
Radeon RX 6700S 1792 @ 1.7 - 1.89 GHz128 Bit @ 14000 MHz
Radeon PRO W6600M 1792 128 Bit @ 14000 MHz
Radeon RX 6600S 1792 @ 1.88 GHz128 Bit @ 16000 MHz
Radeon RX 6550M 1024 @ 2 - 2.56 GHz64 Bit @ 18000 MHz
Radeon RX 6500M 1024 @ 2.19 GHz64 Bit @ 18000 MHz
Radeon RX 6550S 1024 @ 2.17 GHz64 Bit @ 16000 MHz
Radeon RX 6450M 768 @ 2 - 2.22 GHz64 Bit @ 18000 MHz
Radeon RX 6300M 768 @ 1.51 GHz128 Bit @ 18000 MHz

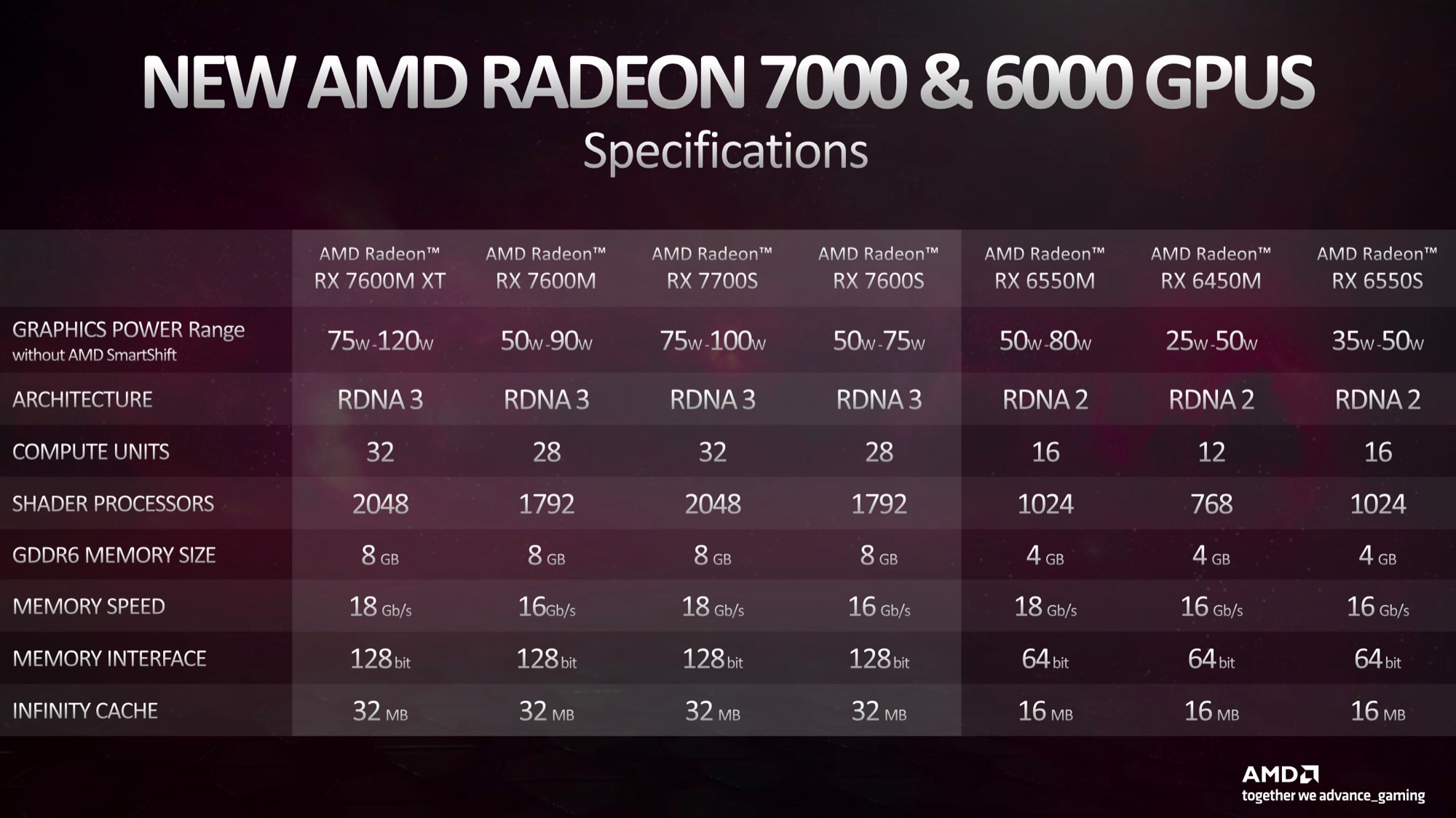

ArchitectureRDNA 2
Pipelines1024 - unified
Core Speed2170 (Boost) MHz
Theoretical Performance9.9 TFLOPS FP16, 4.9 TFLOPS FP32
CacheL2: 1 MB, L3: 16 MB
Memory Speed16000 MHz
Memory Bus Width64 Bit
Memory TypeGDDR6
Max. Amount of Memory4 GB
Shared Memoryno
APIDirectX 12_2, Shader 6.7, OpenGL 4.6, OpenCL 2.2, Vulkan 1.3
Power Consumption50 Watt (35 - 50 Watt TGP)
Transistor Count5.4 Billion
Die Size 107 mm²
technology6 nm
FeaturesRadeon Media Engine (H.264, H.265, AV1 en- and decode)
Notebook Sizemedium sized
Date of Announcement05.01.2023
Link to Manufacturer Pagewww.amd.com

Benchmarks

- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

For more games that might be playable and a list of all games and graphics cards visit our Gaming List
