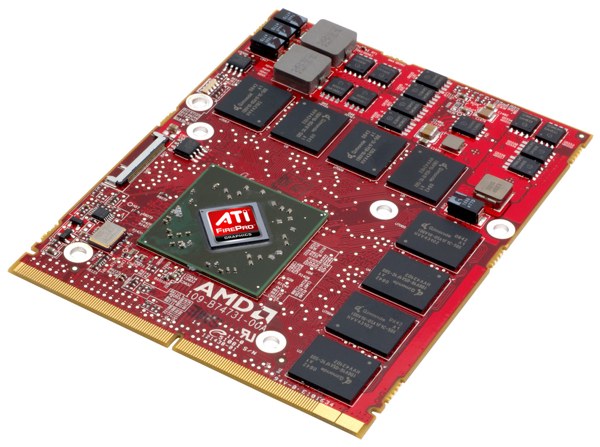

ATI FirePro M7740

ATI FirePro M7740

AMD的ATI FirePro M7740是一个高端的专业图形适配器的笔记本电脑。它suppports专业的CAD(计算机辅助设计),DCC(数字内容创建)应用程序的认证的驱动程序。此外,这些程序运行完美的保证,也进行了优化的驱动程序和BIOS的OpenGL性能,甚至使一些专业功能的GPU(如抗锯齿)。是基于对消费者的Mobility Radeon HD 4860的RV740架构下的核心的FirePro M7740。 GPU是TSMC在40nm工艺生产,并提供640(或128-D)统一着色器,支持DirectX 10.1和OpenGL 3.1。至于图形内存,该卡支持高达1 GB的GDDR5一个128位内存总线。从GDDR5的相对速度,相对较小的内存总线不应该是一个明显的瓶颈。引入的ATI FirePro / FireGL的M7740戴尔Precision M6400移动工作站作为一种替代已经上市的Nvidia Quadro FX 3700M。 AMD是能够比较两个图形卡的一个子集的OpenGL测试SPECviewperf的10。的FirePro M7740的Dell Precision M6400的NVIDIA Quadro FX 3700M在HP八七三〇瓦特的。据AMD介绍,M7740赢得了8个子集的基准(UGNX-01,-01 tcvis,SW-02,PROE-04,MAYA-02,ensight-03,3DSMAX-04)和综合得分(约75比63)。桌面工作站显卡相比,的M7740应该有更好的表现比的FirePro V7750,后者包括320个流处理器和GDDR3内存。的Mobility Radeon HD 4860的移动消防Pro M7740采用了UVD视频处理器,高清视频流的解码。 GPU应该是完全兼容的蓝光规格的可能性,同时解码两个流。

FirePro M7000 Series

FirePro M7820 800 @ 0.7 GHz128 Bit @ 1000 MHz
FirePro M7740 640 @ 0.65 GHz128 Bit @ 1000 MHz
CodenameRV740
ArchitectureTerascale 1
Pipelines640 - unified
Core Speed650 MHz
Memory Speed1000 MHz
Memory Bus Width128 Bit
Memory TypeGDDR5
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 10.1, Shader 4.1
Transistor Count826 Million
technology40 nm
FeaturesOpenGL 3.1
Notebook Sizelarge
Date of Announcement04.08.2009
Link to Manufacturer Pagewww.amd.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 6551     avg: 6626     median: 6626 (2%)     max: 6701 Points
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 5818     avg: 5896     median: 5896 (3%)     max: 5974 Points
ATI Radeon HD 3200
62 -99%
...
AMD Radeon HD 8650G + HD 8570M Dual Graphics
5573 -5%
5594 -5%
AMD Radeon HD 8550G + HD 8670M Dual Graphics
5595 -5%
NVIDIA GeForce GTX 285M
5631 -4%
5698 -3%
5717 -3%
NVIDIA GeForce GT 740M
5735 -3%
5833 -1%
5870 0%
ATI FirePro M7740
5896
5926 1%
5948 1%
5957 1%
AMD Radeon HD 8550G + HD 8750M Dual Graphics
5961 1%
5977 1%
5987 2%
NVIDIA GeForce 8800M GTX SLI
5995 2%
AMD Radeon R7 M445
6000 2%
AMD Radeon R7 M270
6027 2%
...
132443 2146%
max:
170928 2799%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
34814 Points (36%)
3DMark 03 - 3DMark 03 - Standard
40427 Points (21%)
3DMark 05 - 3DMark 05 - Standard
17192 Points (19%)
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
16766 -2%
Intel UHD Graphics 24EUs (Alder Lake-N)
16771 -2%
16882 -2%
16936 -1%
NVIDIA GeForce 8800M GTX SLI
16942 -1%
16944 -1%
16972 -1%
17043 -1%
NVIDIA GeForce GT 640M
17105 -1%
ATI FirePro M7740
17192
17271 0%
17513 2%
17545 2%
17784 3%
18044 5%
18136 5%
18199 6%
18199 6%
NVIDIA GeForce GTX 280M
18414 7%
...
68064 296%
max:
87172 407%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 11990     avg: 12110     median: 12109.5 (16%)     max: 12229 Points
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
48.2 points (100%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
37.9 points (80%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
46.7 points (99%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
186.6 points (100%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
45.1 points (88%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
10.6 points (16%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
33.7 points (87%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
48.9 points (100%)
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 6516     avg: 6664     median: 6663.5 (5%)     max: 6811 points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
