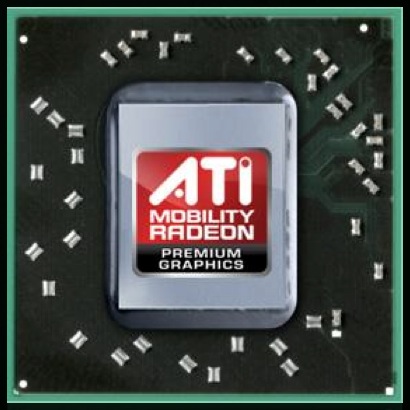

ATI Mobility Radeon HD 5830

ATI Mobility Radeon HD 5830

ATI Mobility Radeon HD 5830的性能级的DirectX 11的图形卡的笔记本电脑/笔记本电脑的AMD。从技术上讲,HD5830是一个较慢的时钟HD 5850不支持快速的GDDR5显存。因此,128位内存总线与DDR3内存可能会是一个性能瓶颈。作为所有卡的Mobility HD 5800系列,HD 5830是基于桌面HD 5770(RV840)芯片。是由两个64位宽的控制器,一个128位内存总线,可访问多达1024 MB DDR3存储器接口的流动性5830。因为小的总线宽度和缺乏的GDDR5显存,内存的性能应该是此卡的瓶颈。 5830提供800的MADD核心(流处理器)都集中在160 5维。的核心支持DirectX 11的硬件功能(Tessellation(曲面细分),OIT,后处理,阴影,HDR纹理压缩)。此外,16个ROPs,40TMUs,和40 TAUS可以发现在芯片上。在所有的芯片,可提供高达0.8 TFLOPS。据AMD的HD 5000系列还改进了通用计算(如HD4000系列优化)。因此ATI流的OpenCL和DirectCompute 11的应用程序的性能的应该是noticable更好。的Mobility HD 5830的3D性能应该是在GTS 250M - GTX 260M的性能等级和因此能够产生流利的帧速率,在目前所有的游戏(2009)。高端游戏,如“孤岛危机”不会运行在非常高的细节,但大多数游戏可玩的帧率运行。的Mobility Radeon HD 5000系列包括一个改进的视频处理器(UVD2)高清视频解码和图形卡。新版本能够解码两个高清视频流(例如,蓝光画中画),同时,如果图形卡提供足够的内存带宽( - 因此也许不是在HD5830 GDDR5版本)。由于Flash 10.1的测试版,5000系列还能够帮助加速的Flash高清视频(如YouTube)。 HD 5000系列的一个特点是它能够传输高清音频格式(如杜比True HD和DTS HD Master音频),最多8个频道和192 kHz / 24位HDMI 1.3a的。作为桌面HD 5000系列的Mobility HD 5830还支持Eyefinity技术,最多可以连接6台显示器的图形芯片。当然,这取决于有多少和什么样的显示器输出的笔记本电脑厂商的笔记本电脑(以及它们是如何有线)。这似乎是只支持DisplayPort输出Eyefinity技术,因此到现在为止只有一台笔记本电脑支持2个以上显示器(羡慕17)。功耗24瓦(AMD)是没有那么高。因此,也可以使用这个GPU在15-16“的笔记本电脑。

Mobility Radeon HD 5800 Series

Mobility Radeon HD 5870 Crossfire 1600 @ 0.7 GHz128 Bit @ 1000 MHz
Mobility Radeon HD 5870 800 @ 0.7 GHz128 Bit @ 1000 MHz
Mobility Radeon HD 5850 800 @ 0.63 GHz128 Bit @ 2000 MHz
Mobility Radeon HD 5830 800 @ 0.5 GHz128 Bit @ 800 MHz
CodenameBroadway
ArchitectureTerascale 2
Pipelines800 - unified
Core Speed500 MHz
Memory Speed800 MHz
Memory Bus Width128 Bit
Memory TypeDDR3, GDDR3
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 11, Shader 5.0
Power Consumption24 Watt
technology40 nm
FeaturesEyefinity (up to 6 displays), HD Audio (Dolby True HD, DTS HD), HDMI 1.3a, Avivo HD (UVD2.2)
Notebook Sizelarge
Date of Announcement07.01.2010
Information1.0 TFLOPS
Link to Manufacturer Pagewww.amd.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 4528     avg: 4785     median: 4785 (1%)     max: 5042 Points
ATI Radeon HD 3200
81.5 -98%
...
4566 -5%
NVIDIA GeForce GT 720M
4582 -4%
4641 -3%
Intel HD Graphics 515
4672 -2%
AMD Radeon HD 8650G
4689 -2%
4697 -2%
4726 -1%
NVIDIA GeForce 9800M GTX
4743 -1%
AMD Radeon R5 M335
4772 0%
ATI Mobility Radeon HD 5830
4785
4802 0%
AMD Radeon R6 (Carrizo)
4830 1%
4867 2%
4895 2%
AMD Radeon R7 (Carrizo)
4923 3%
NVIDIA GeForce GTX 260M
4953 4%
4970 4%
AMD Radeon HD 7640G + HD 7610M Dual Graphics
4981 4%
AMD Radeon R6 M255DX
5008 5%
...
113387 2270%
max:
NVIDIA T600
344838 7107%
0%
100%
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 3996     avg: 4243     median: 4242.5 (2%)     max: 4489 Points
ATI Radeon HD 3200
62 -99%
...
AMD Radeon R5 M335
4032 -5%
NVIDIA GeForce 9800M GTX
4123 -3%
4133 -3%
NVIDIA GeForce 910M
4151 -2%
AMD Radeon HD 8650G
4169 -2%
4212 -1%
Intel HD Graphics 515
4218 -1%
4229 0%
4236 0%
ATI Mobility Radeon HD 5830
4243
4277 1%
NVIDIA GeForce GTX 260M
4316 2%
4324 2%
NVIDIA Quadro FX 3700M
4326 2%
4407 4%
AMD Radeon R6 (Carrizo)
4415 4%
AMD Radeon R7 (Carrizo)
4420 4%
4441 5%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
4452 5%
...
132443 3021%
max:
170928 3928%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 7410     avg: 8011     median: 8050 (11%)     max: 8574 Points
SIS Mirage 3 671MX
68 -99%
...
7679 -4%
NVIDIA GeForce GT 720M
7750 -3%
NVIDIA GeForce 9700M GTS
7779 -3%
AMD Radeon HD 7640G + HD 7610M Dual Graphics
7882 -2%
7918 -1%
7922 -1%
7983 0%
7991 0%
7993 0%
ATI Mobility Radeon HD 5830
8011
8041 0%
8122 1%
NVIDIA Quadro FX 3600M
8136 2%
NVIDIA Quadro K610M
8157 2%
NVIDIA GeForce 8700M GT SLI
8211 2%
AMD Radeon R7 M360
8275 3%
NVIDIA GeForce 8800M GTS
8289 3%
8312 4%
8326 4%
...
64183 701%
max:
74741 833%
0%
100%
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
