Editor's Note (December 28, 2012): The following review has not yet been edited for grammatical errors. A final draft of the review will be released soon.
For the original German review, see here.

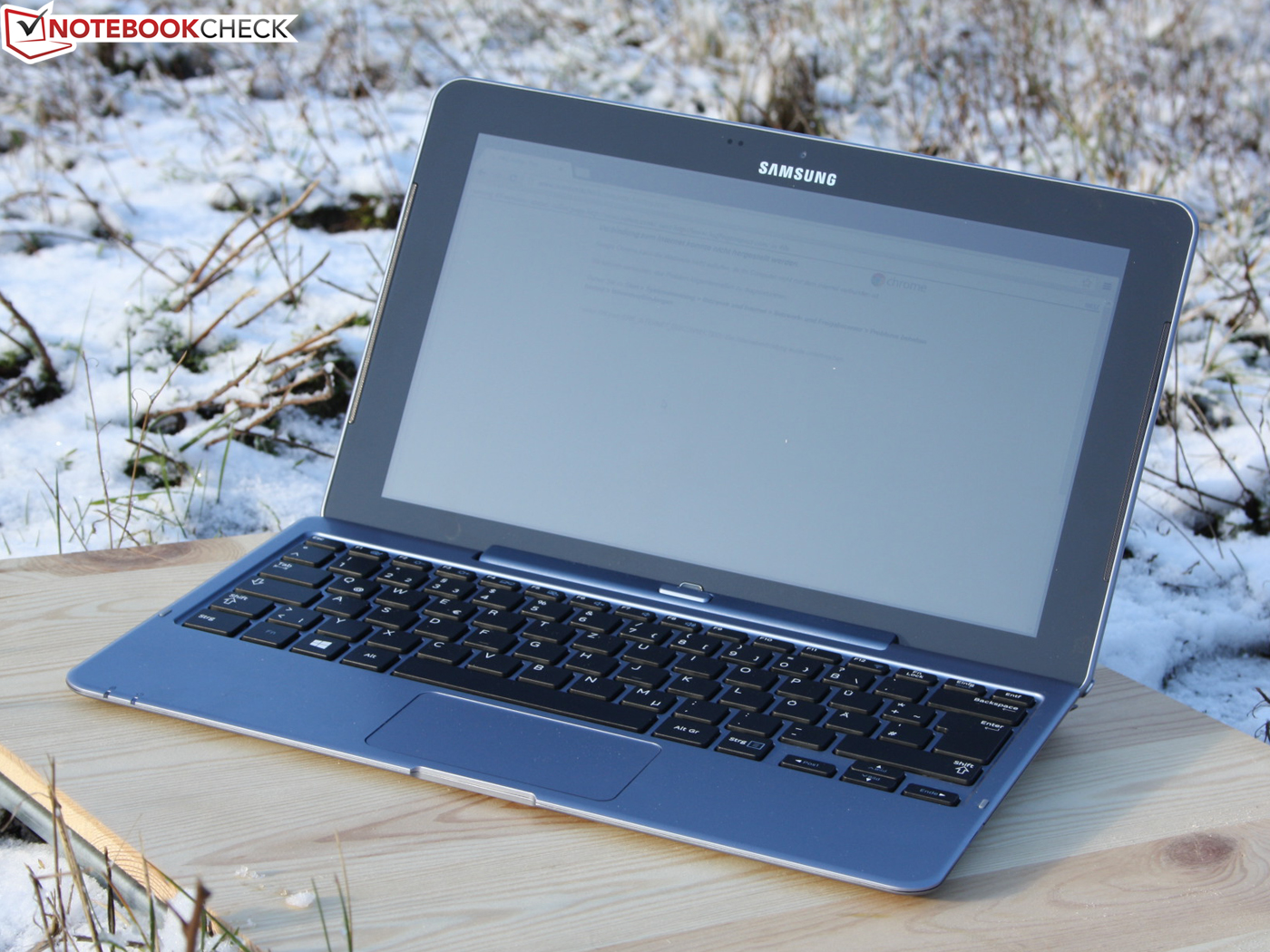

Tablet or Windows PC? Let's simply do both! Samsung faces up to the convergence of tablets and Windows-clamshell laptops with a new series. The brand name ATIV includes smartphones ("S", Windows Phone 8), tablets ("Tab", Windows RT), Atom convertibles like our test device (Smart PC, Windows 8) and Intel Core convertibles (Smart PC Pro, Windows 8).

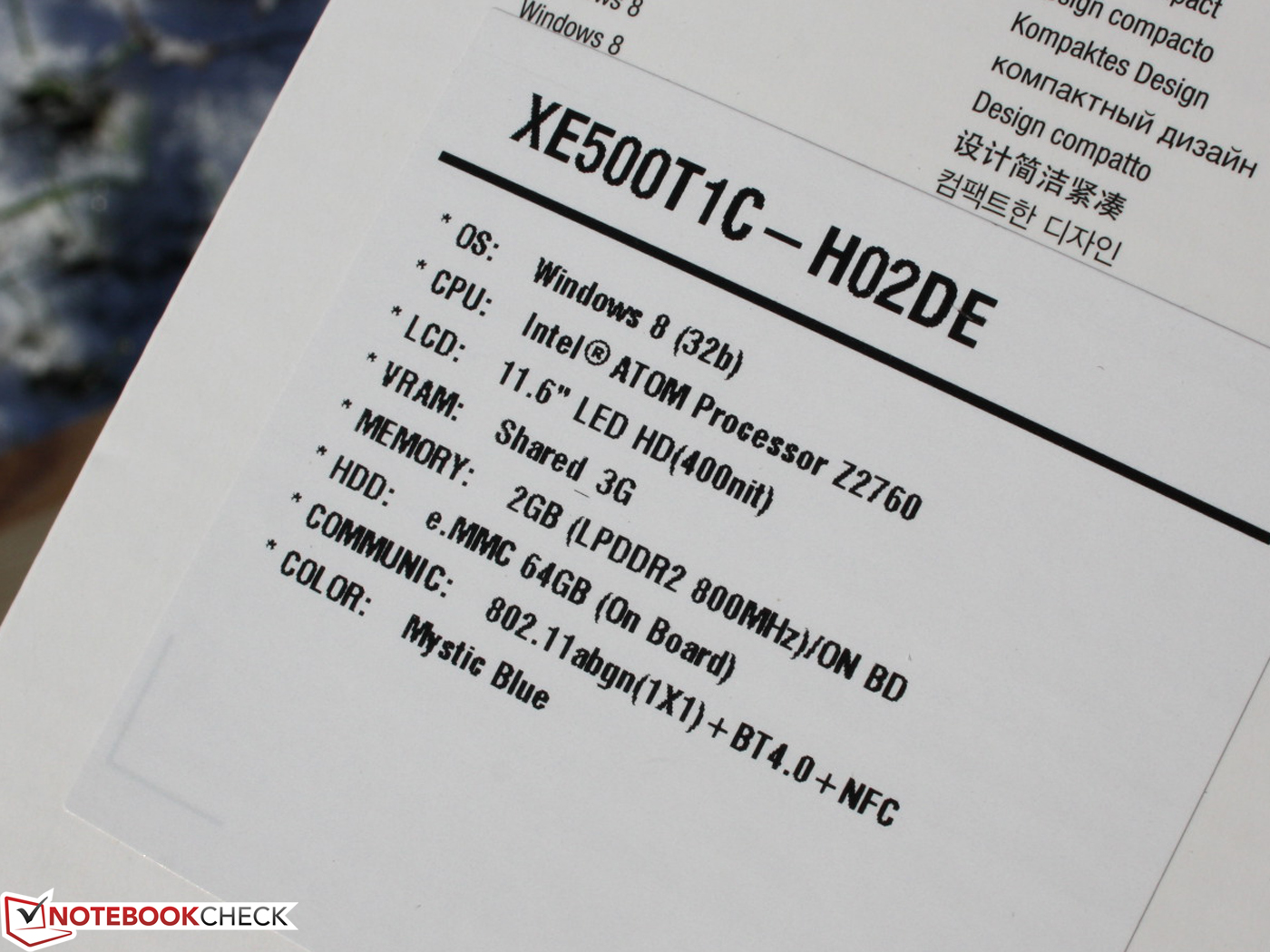

Our ATIV Smart PC XE500T1C-A02DE is technically a netbook although Intel's Atom Z2760 (Clover Trail) and the integrated PowerVR SGX545 consume much less power than the prior Pine Trail range. How will the SoC (system-on-a-chip), specially designed for tablets, fare with a normal version of Windows 8? Mind you, Windows RT is not the Smart PC's brain like in Microsoft's Surface tablet.
编者注（12月28日，2012）：下面的检讨尚未被编辑语法错误。最后草案的审查将很快被释放。
对于的德国原装审查，在这里看到。
平板电脑或Windows电脑吗？让我们简单地一举两得！三星面临的一个新系列平板电脑和Windows翻盖笔记本电脑的融合。品牌名称Ativ的智能手机（“S”的Windows Phone8），片剂（“选项卡的”Windows RT），原子敞篷车，例如我们的测试设备（智能电脑，Windows8）和Intel Core敞篷车（智能电脑专业版，Windows8 ）。
我们的Ativ的智能的PC XE500T1C-A02DE在技术上是一个上网本，虽然英特尔的Atom Z2760（四叶草径）和集成PowerVR SGX545消耗更少的功率比现有的Pine Trail范围。 8如何将一个正常的Windows版本的SoC（系统级芯片），特别设计的平板电脑，票价？你要知道，Windows是不是像微软的Surface平板电脑的RT智能电脑的大脑。
Case
Samsung prioritizes tablet use and opts for the docking concept. This is only one option for turning a tablet into a subnotebook. Other possibilities are flip-frames (Dell XPS 12), slider mechanisms (Sony Vaio Duo 11, Toshiba Satellite U920t) and a 360 degree lid (Lenovo IdeaPad Yoga). Asus takes the mechanically easiest solution and inserts a second lid into its 11.6 inch Taichi 21 subnotebook. HP and Acer, like Samsung, rely on dock screens (HP Envy X2, Acer Iconia W510P).
三星的优先级平板电脑的使用和选择的对接概念。这是只有一个选择，把平板电脑成亚笔记本。其他的可能性是翻转帧（戴尔XPS12），滑块机构（索尼双核11东芝Satellite U920t），和一个360度的盖子（联想IdeaPad瑜伽）华硕机械最简单的解决方案，并插入第二个盖子，其11.6英寸的亚笔记本太极21。三星，惠普和宏碁一样，依靠码头上的屏幕，宏碁Iconia W510P（惠普Envy X2）。
The advantage of the docking solution is that you don't have to carry around a bulky and heavy casing when you don't need the keyboard. The drawback is that the tablet has to accommodate the battery and computing power. However, even much thinner tablets accomplish that too. The Clover Trail Atom does not need active cooling and is more energy-efficient than a Tegra 3 (Android tablets) in some cases. Consequently, a big 60 watt hour laptop battery is not at all needed.

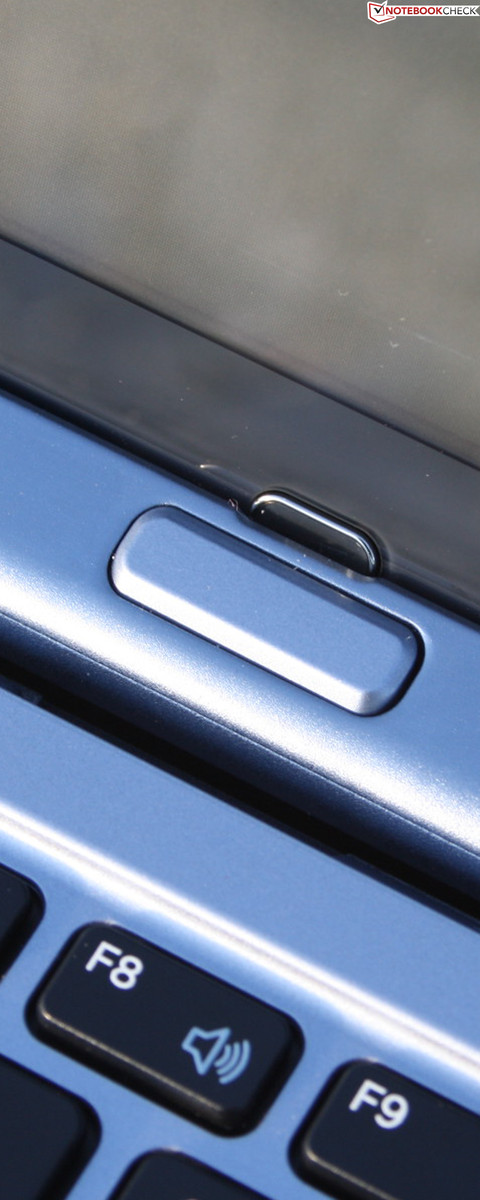

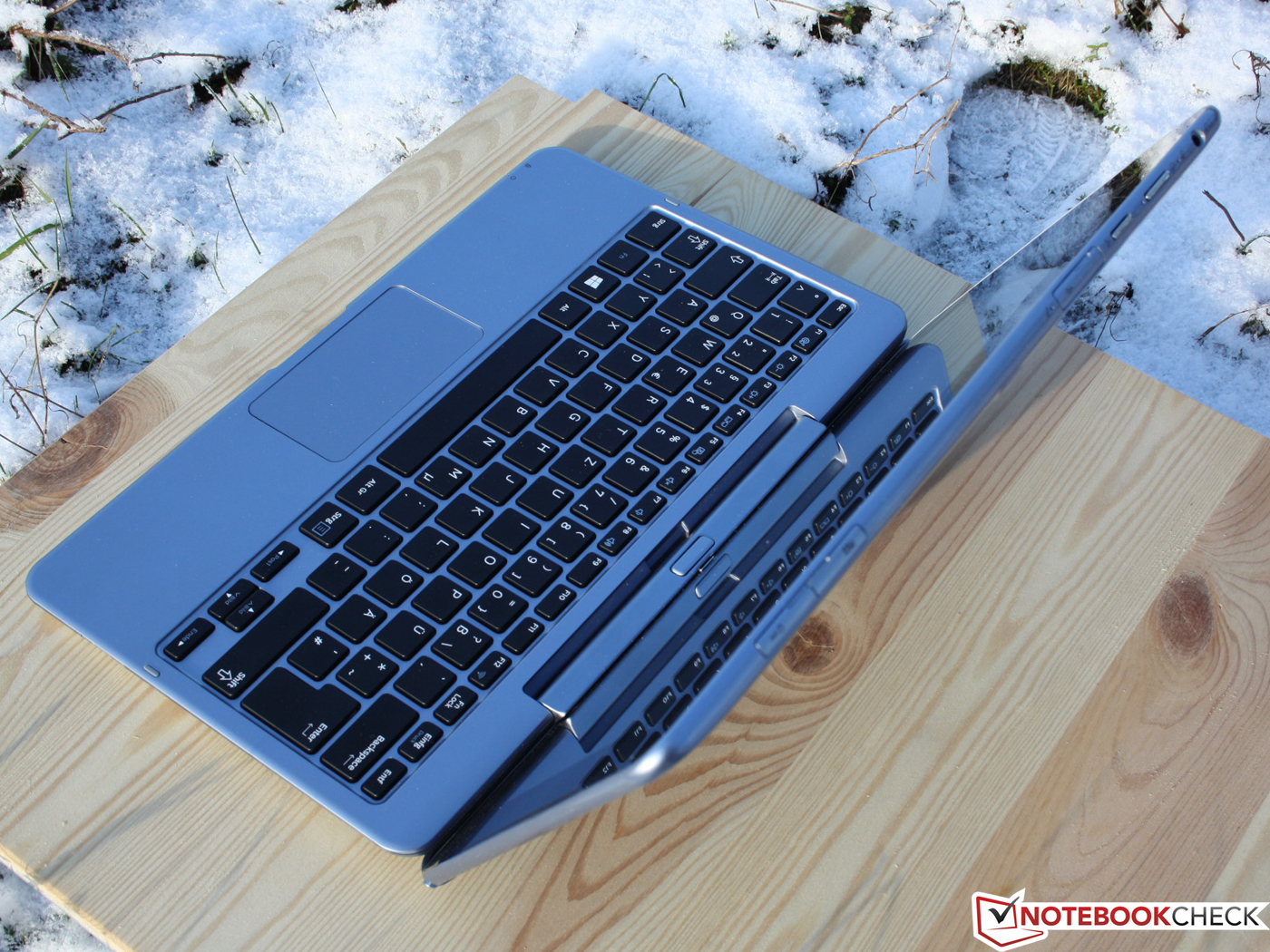

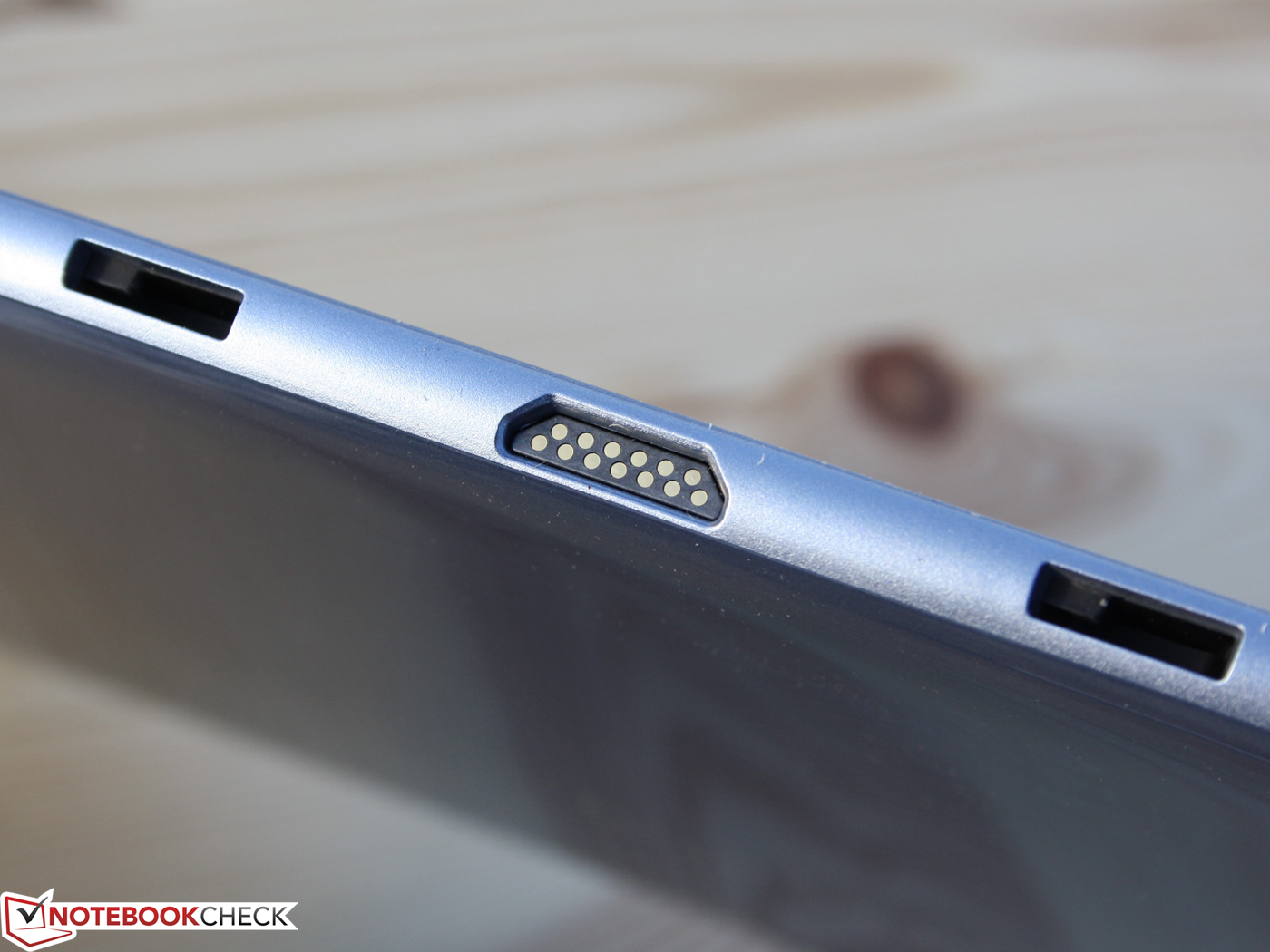

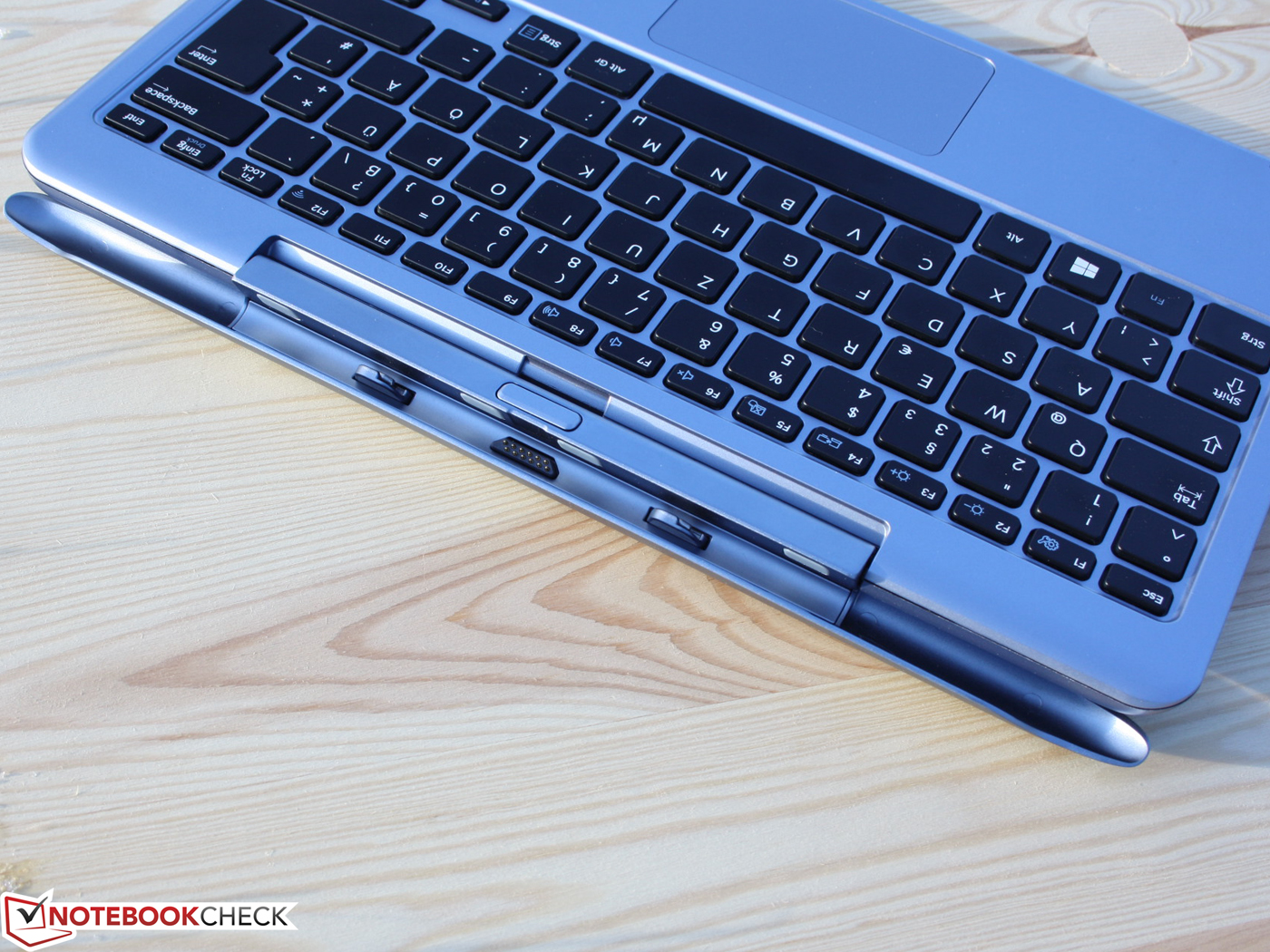

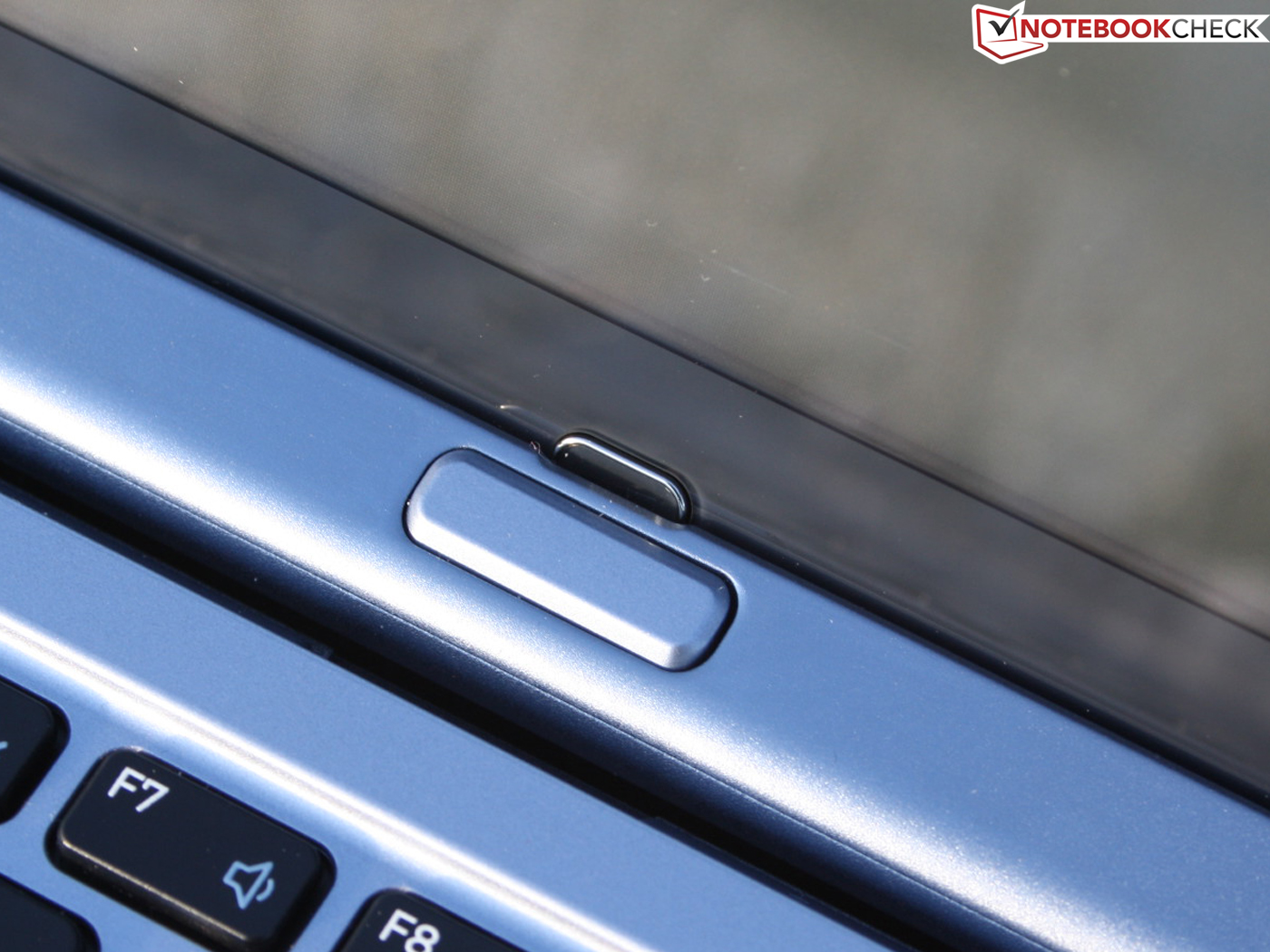

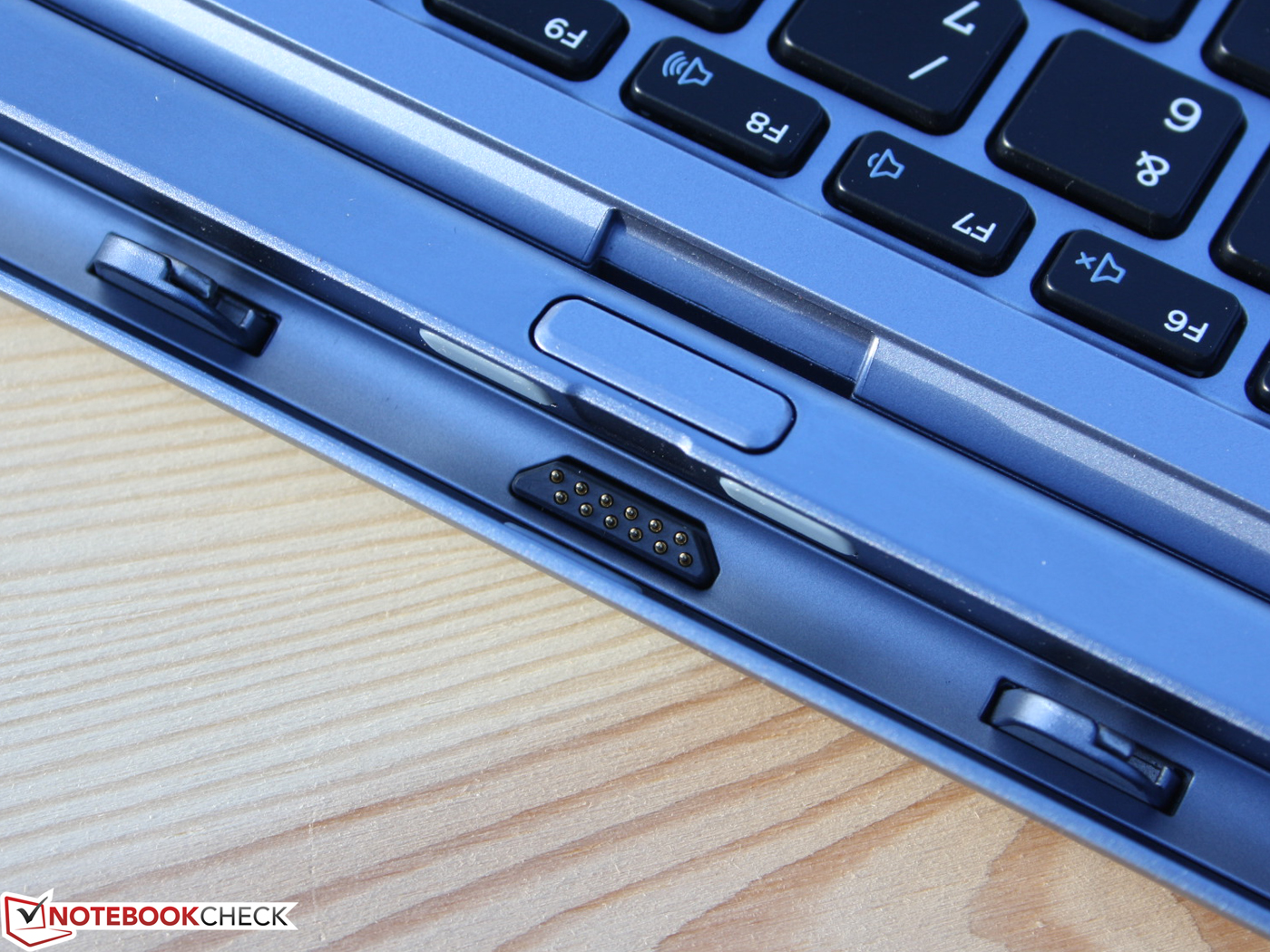

Now a closer look at the 11.6 incher's massive metal hinge. Two bolts secure the tablet firmly and the lock is released mechanically by pushing a big button in the center. The connection features a good mount and the tablet stops firmly in the widest opening angle. This is favorable because the device fits securely on the keyboard dock in laptop mode and touch inputs find a suitably fixed surface. However, the hinge cannot prevent the heavy "lid" from rocking.

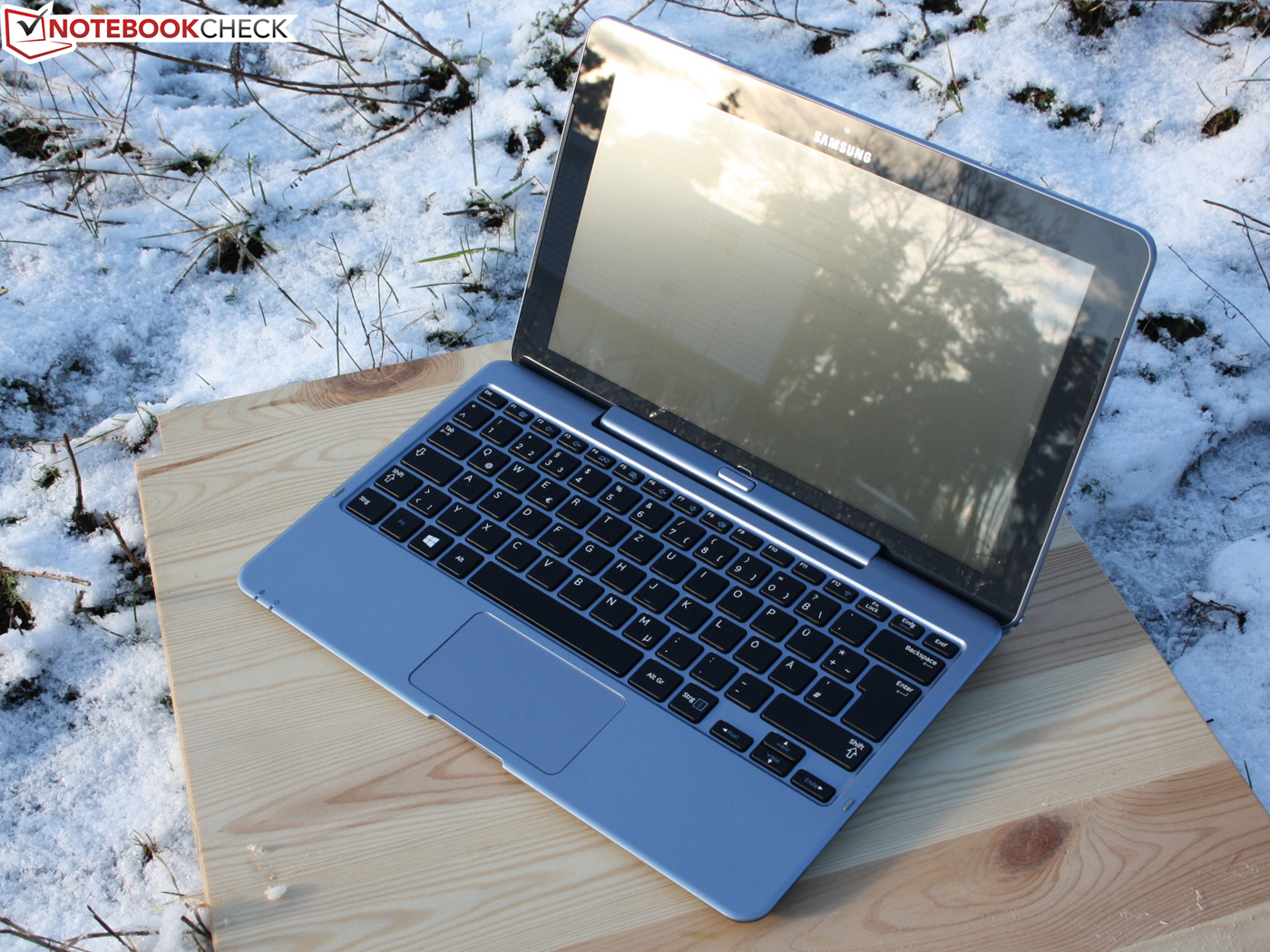

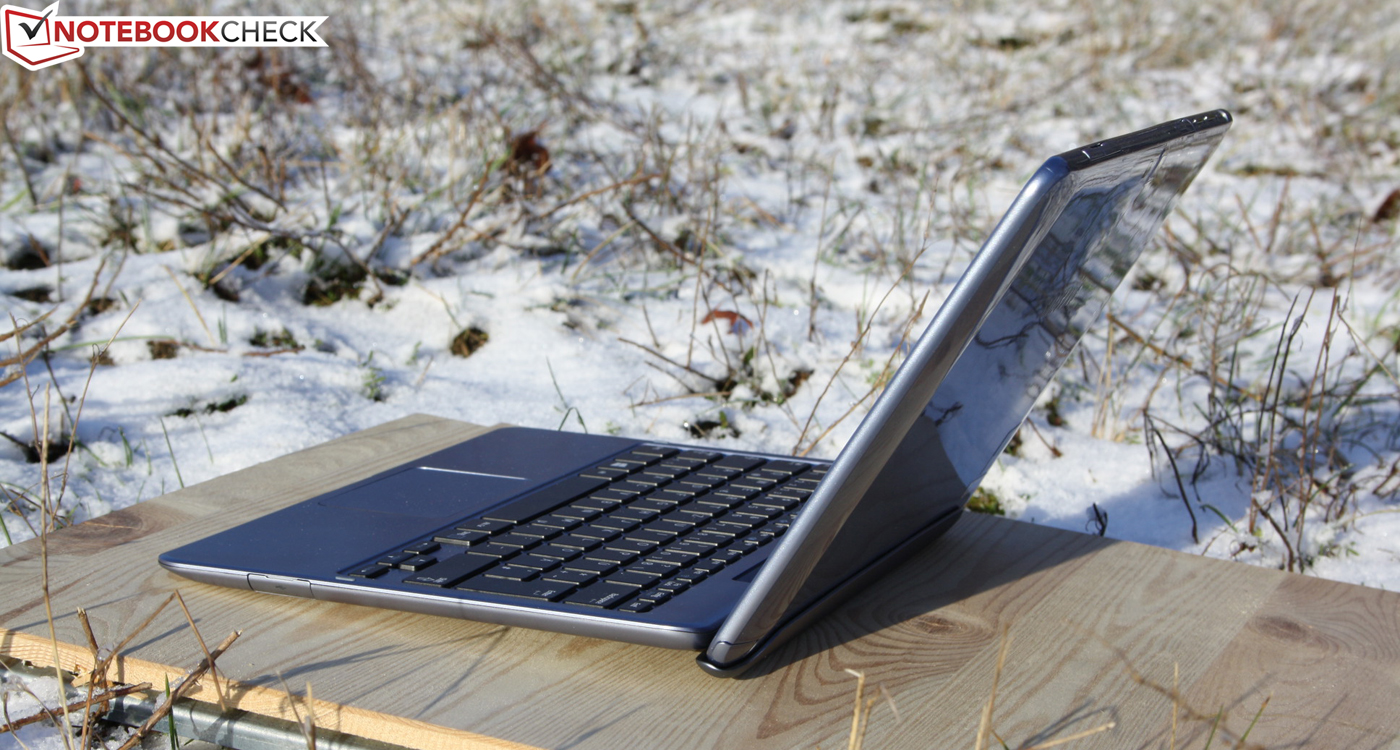

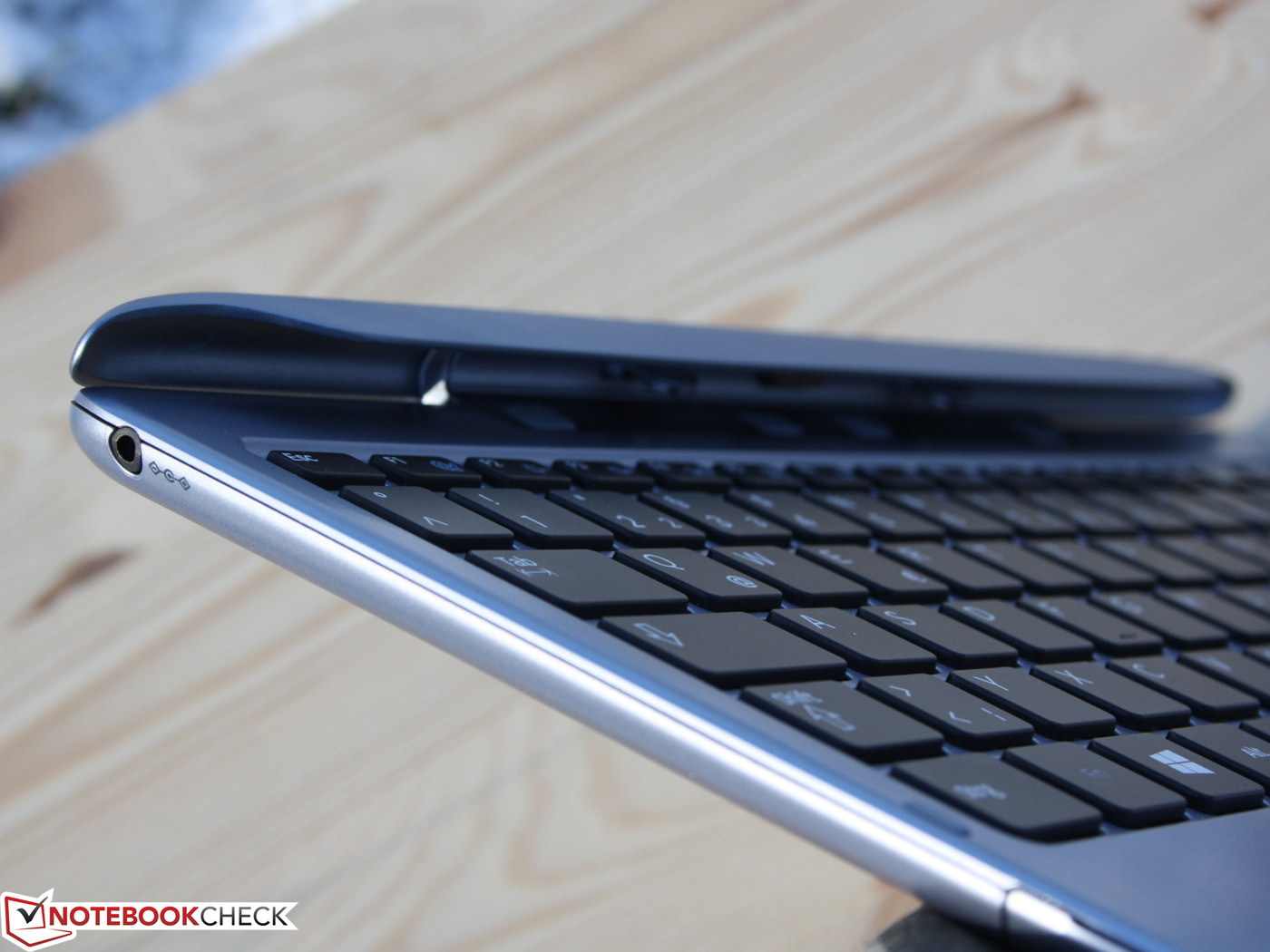

We did not like the narrow opening angle of merely 120 degrees in laptop mode. However, we suspect that it is so narrow because the heavy tablet would otherwise lift up the fairly light keyboard dock. But what's worse is that the "screen" falls back onto the keys by itself; except for the final stop, the hinge does not provide a hold point. This becomes aggravating when the ATIV is not only used on a table but is carried around in laptop mode. The "lid" constantly shuts itself and that is annoying. We cannot imagine what purpose this "loose" hinge might have. But it must be intentional because a slight resistance has to be overcome at approximately 5 degrees by using the second hand.

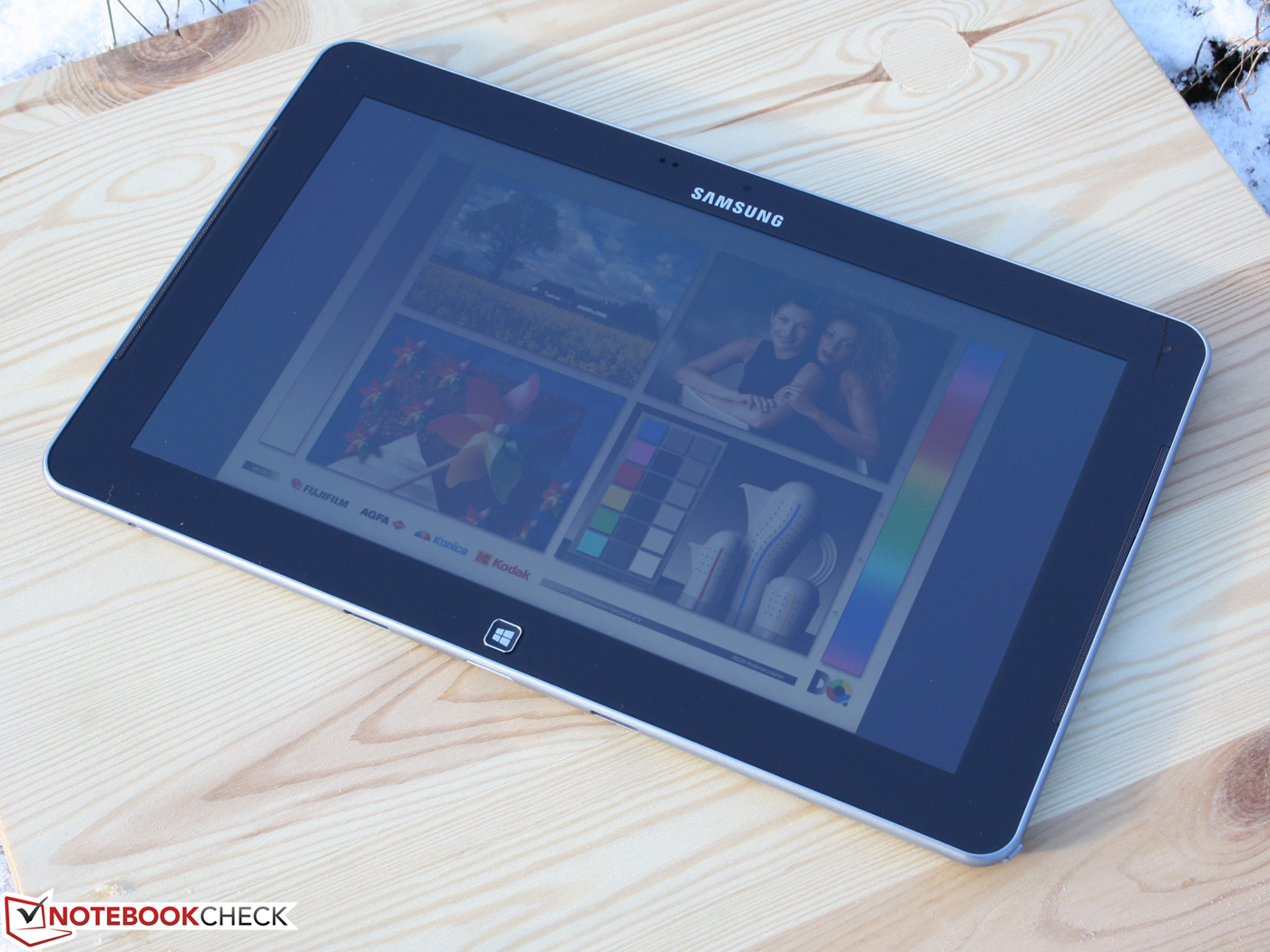

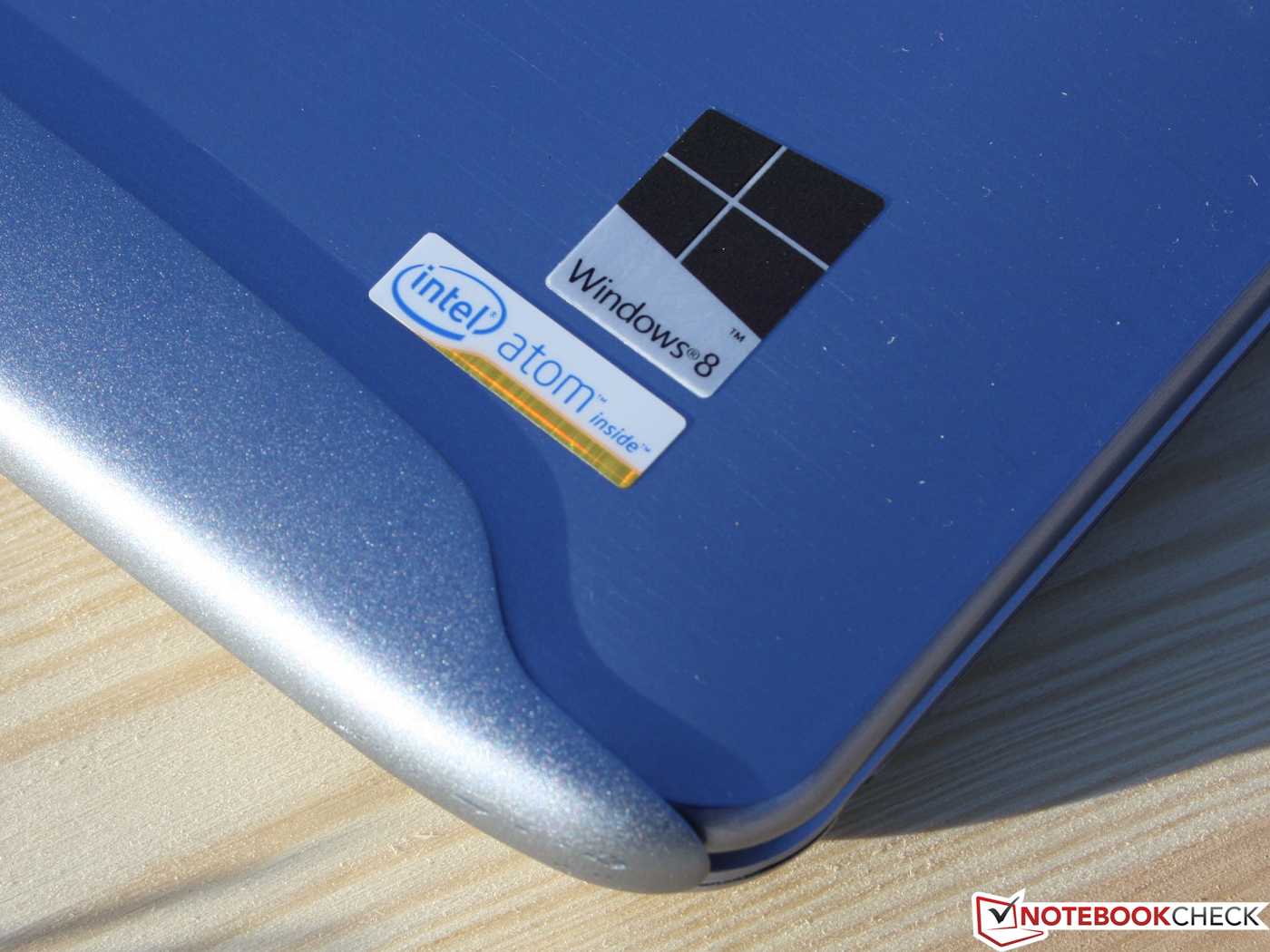

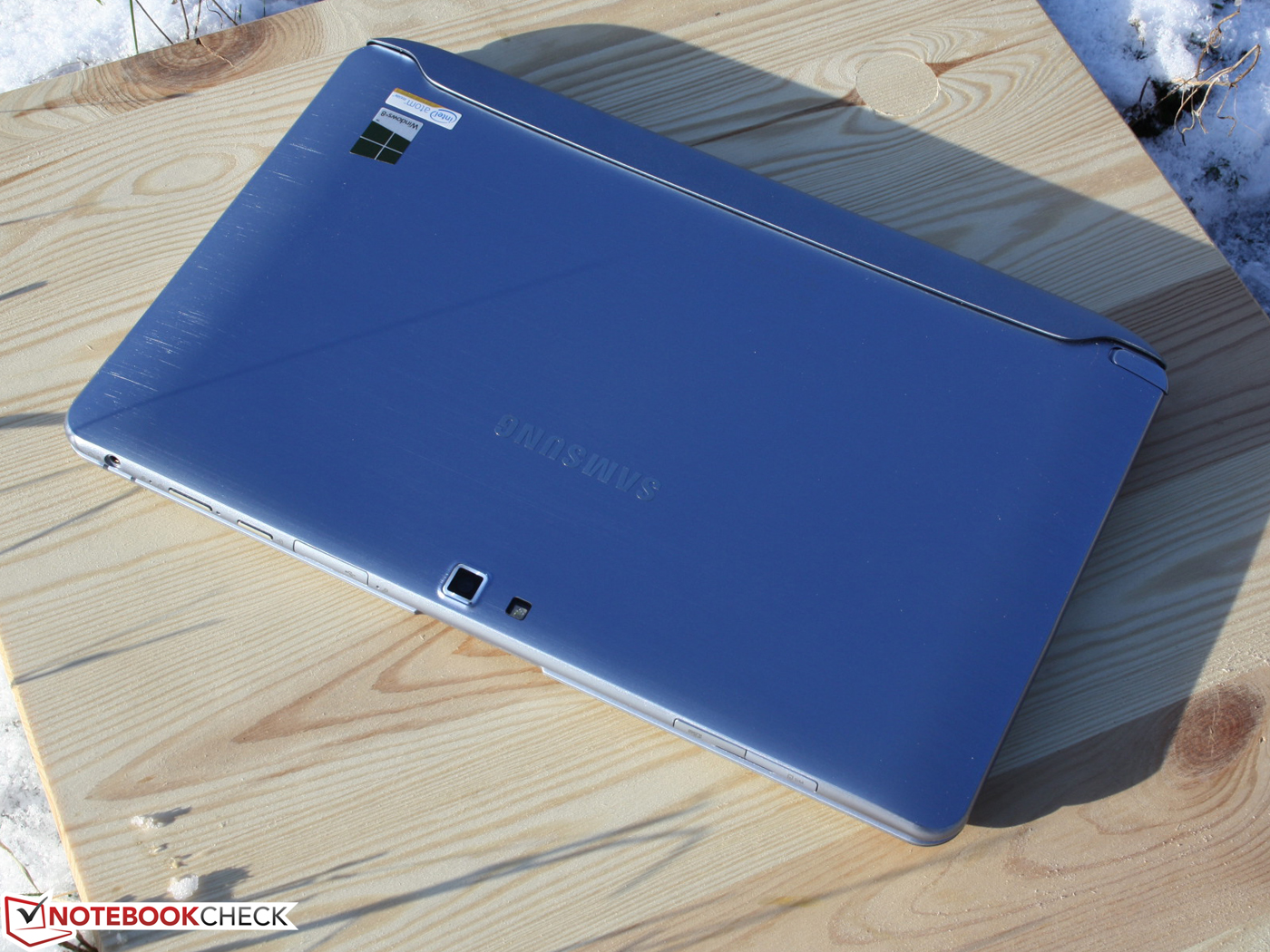

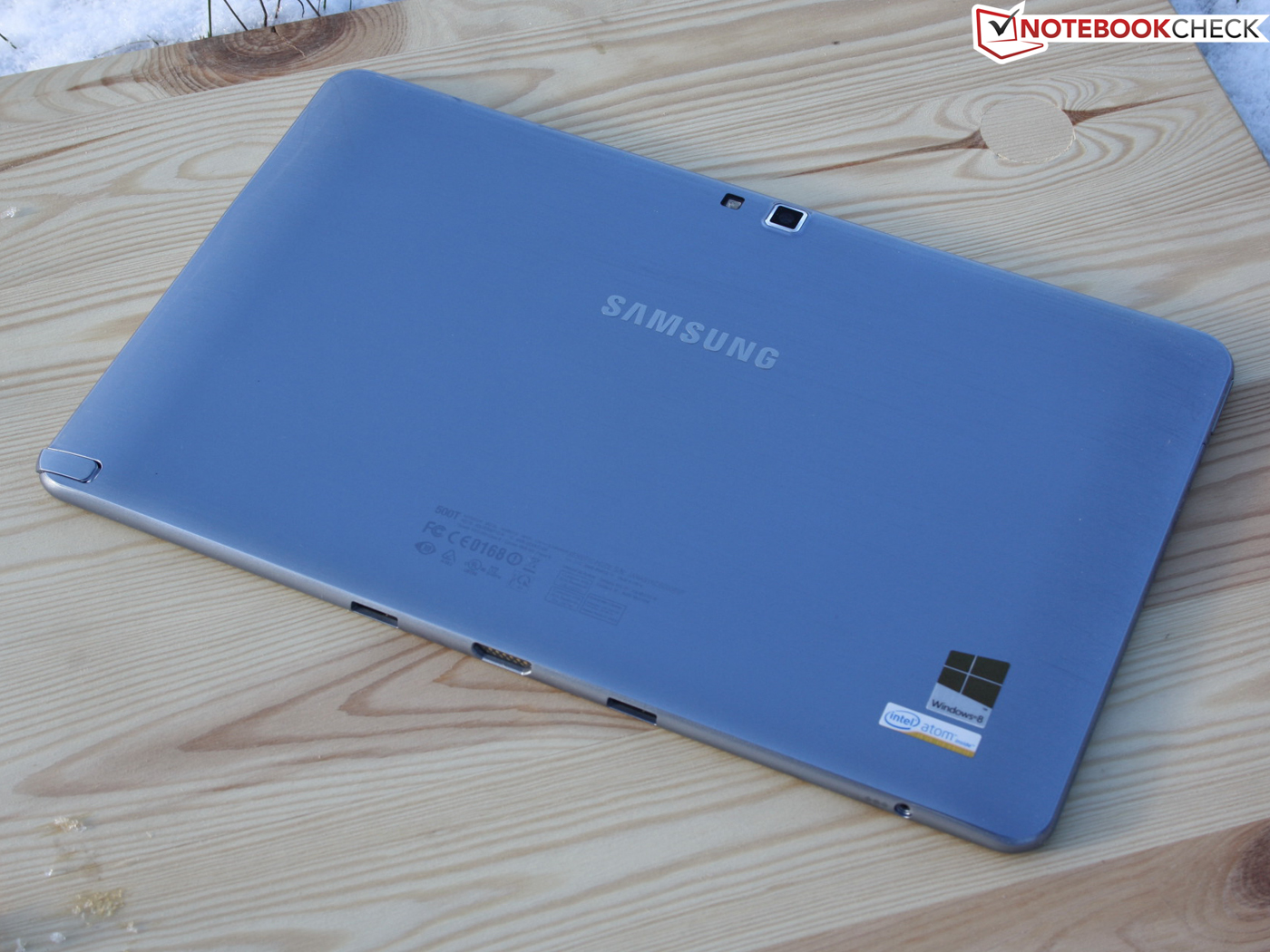

We really like the actual tablet's stability and workmanship. The screen features a very good pressure resistance like known from premium non-Windows tablets. The sleek, clear coating on the back has the same feel as the front and is as usual soon covered with fingerprints. We deem the back as unsuitable because it is so slick that the tablet might slip out of the hands.

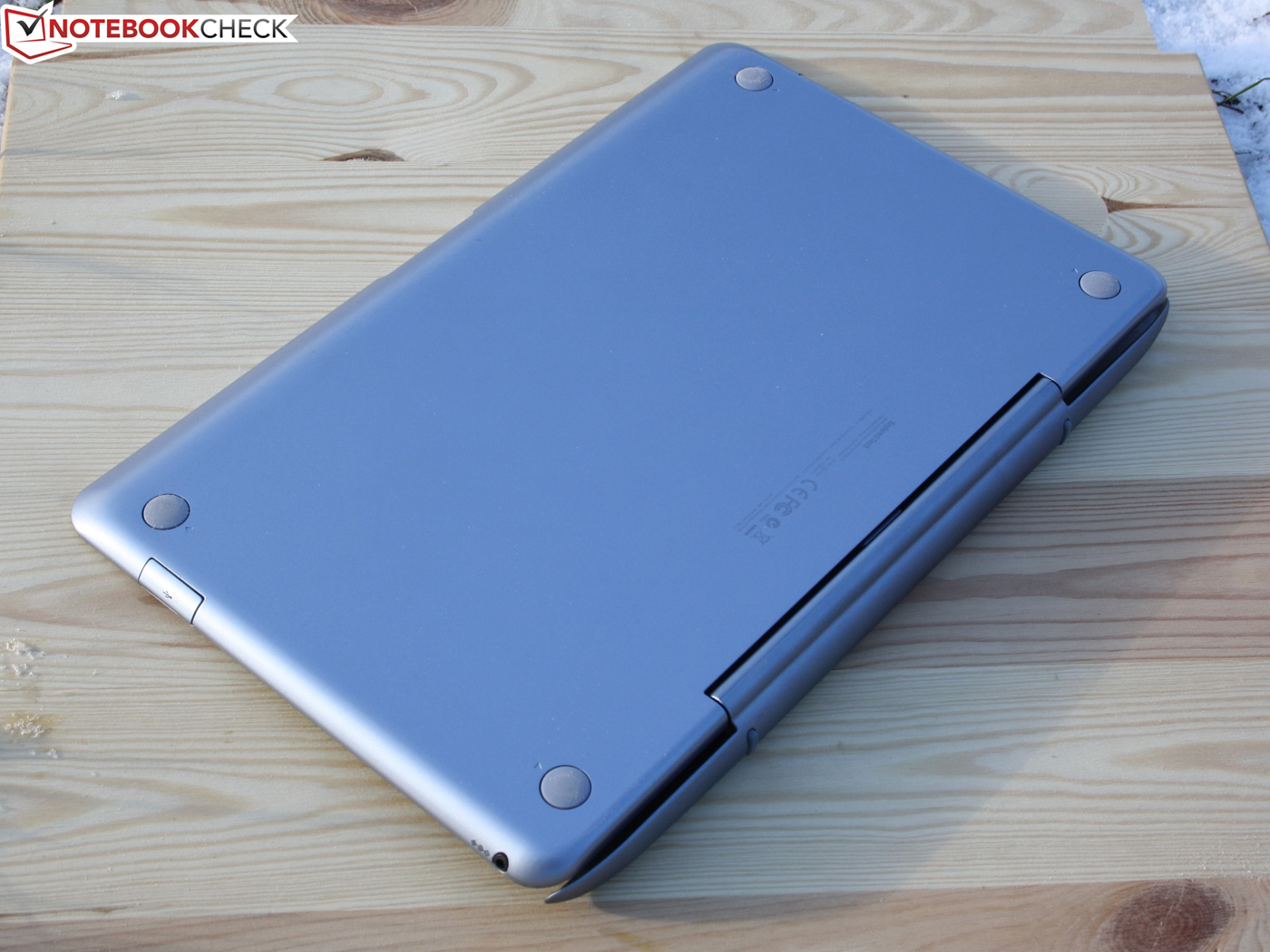

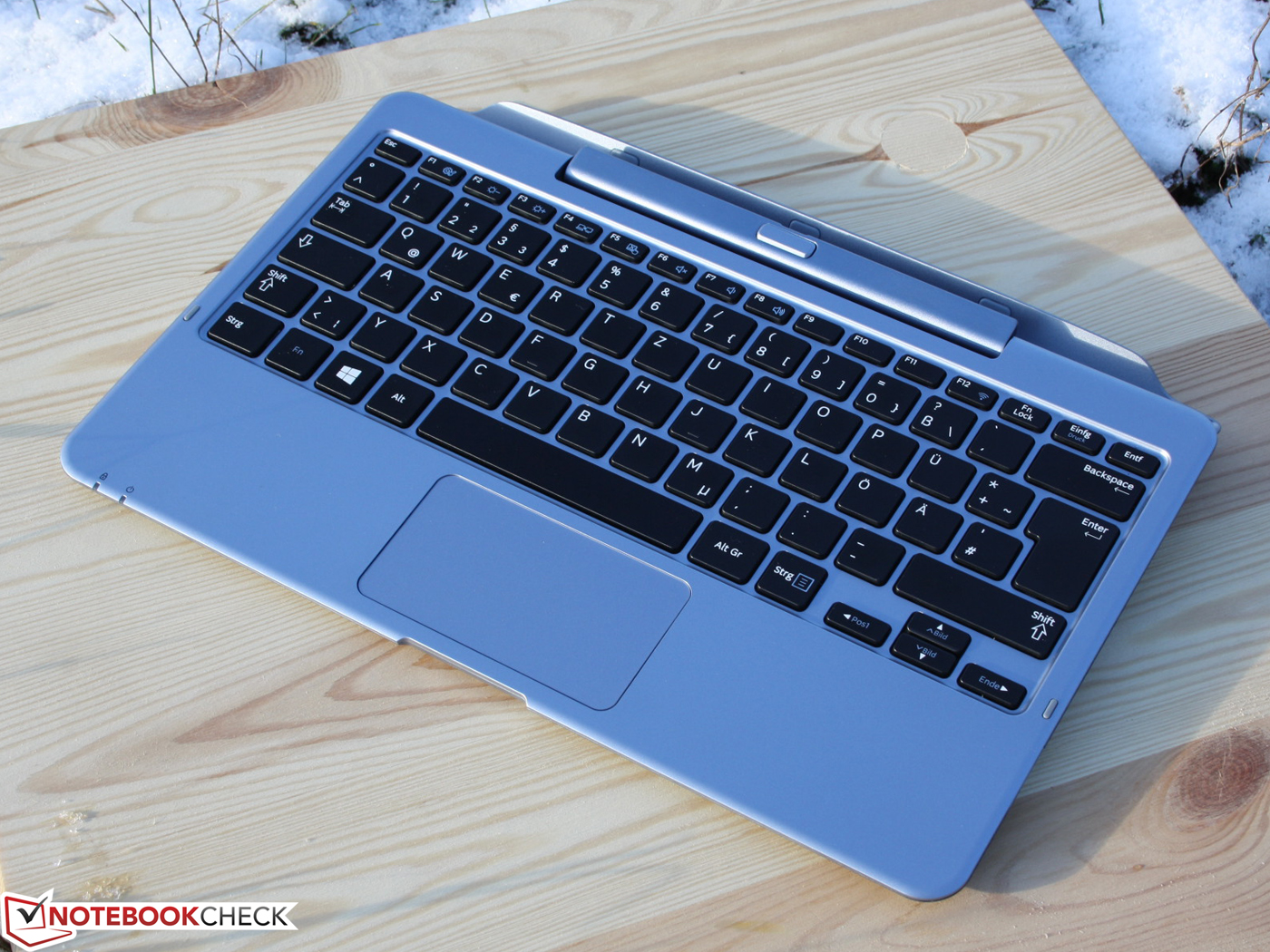

The keyboard's base does not match to the tablet body's stable impression. It can be warped with relatively little effort and you can see how the metal hinge tugs at the keys' plastic base when opening it.
对接的解决方案的优点是你不必随身携带一个笨重的外壳，当你不需要键盘。其缺点是，该片剂具有容纳电池和计算能力。然而，即使非常薄的片做到这一点。三叶草径原子并不需要主动冷却，是在某些情况下比的Tegra 3（Android平板电脑）更节能。因此，大的60瓦小时的笔记本电脑电池是不是在所有需要。
现在仔细一看在11.6 incher大量的金属铰链。两个螺栓固定的平板电脑牢固地锁被释放，由机械推动一个大按钮的中心。连接功能一个不错的选择，它和平板电脑将停止坚定地在最广泛的开启角度。有利的，这是因为该设备可以安全地在笔记本电脑模式并触摸输入的键盘底座找到一个合适的固定的表面上。然而，铰链不能防止重“盖”的摆动。
我们不喜欢狭窄的开口角度为120度，仅仅在笔记本电脑模式下。然而，我们怀疑，它是如此狭窄，因为沉重的平板电脑，否则相当轻抬起键盘底座。但更糟糕的是，如果本身的键返回到“屏幕”，除了最后一站，铰链不提供保持点。这已成为加重时，Ativ的不仅是放在桌上使用，但在笔记本电脑模式下进行。 “盖”，不断关闭，这是恼人。我们无法想象这种“松散”的铰链mighthave的目的是什么。但它必须是有意的，因为有轻微的阻力要克服在约5度，通过使用秒针。
我们真的很喜欢平板电脑的实际稳定性和做工。屏幕提供一个很好的抗压性，如从优质非Windows平板电脑。圆滑的，透明涂层背面有同样的感觉的正面像往常一样，并就摆满了指纹。我们认为是不适合的，因为它是如此的光滑的平板电脑可能会滑倒的手后面。
键盘的基础不匹配，平板电脑的机身稳定的印象。它可以被扭曲相对较少的努力，你可以看到键的塑料底座的金属铰链，拖船，当打开它。
Connectivity

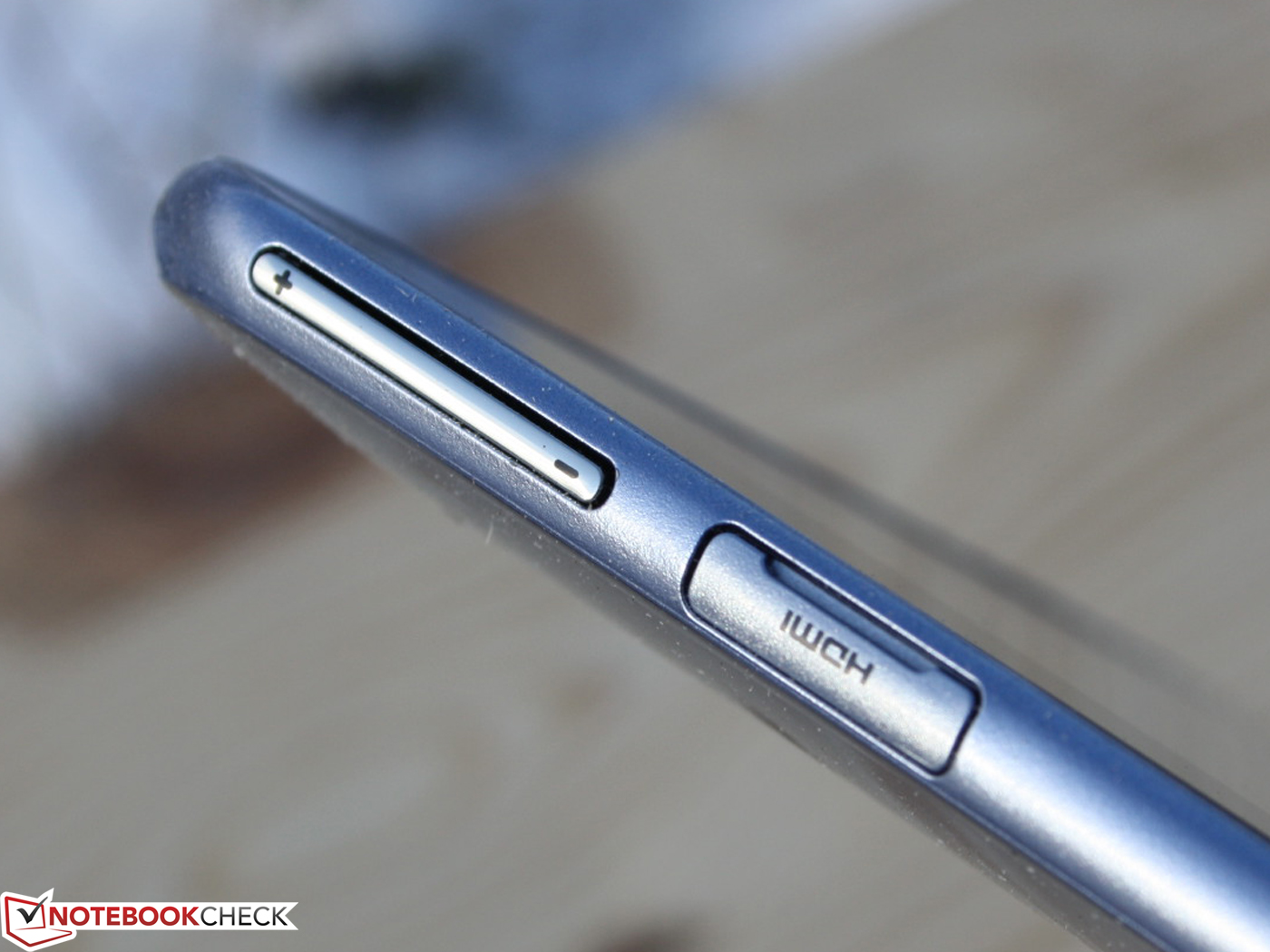

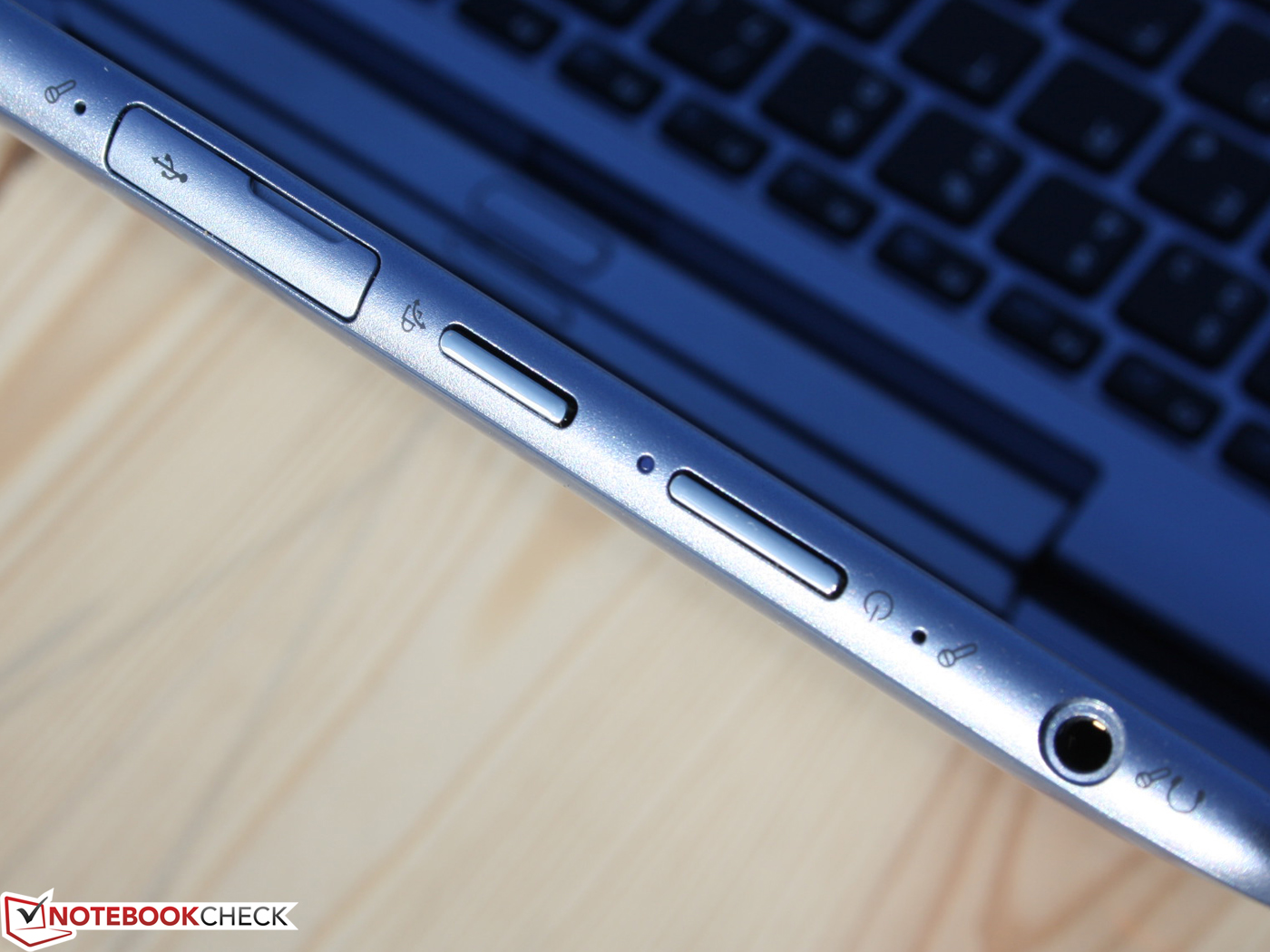

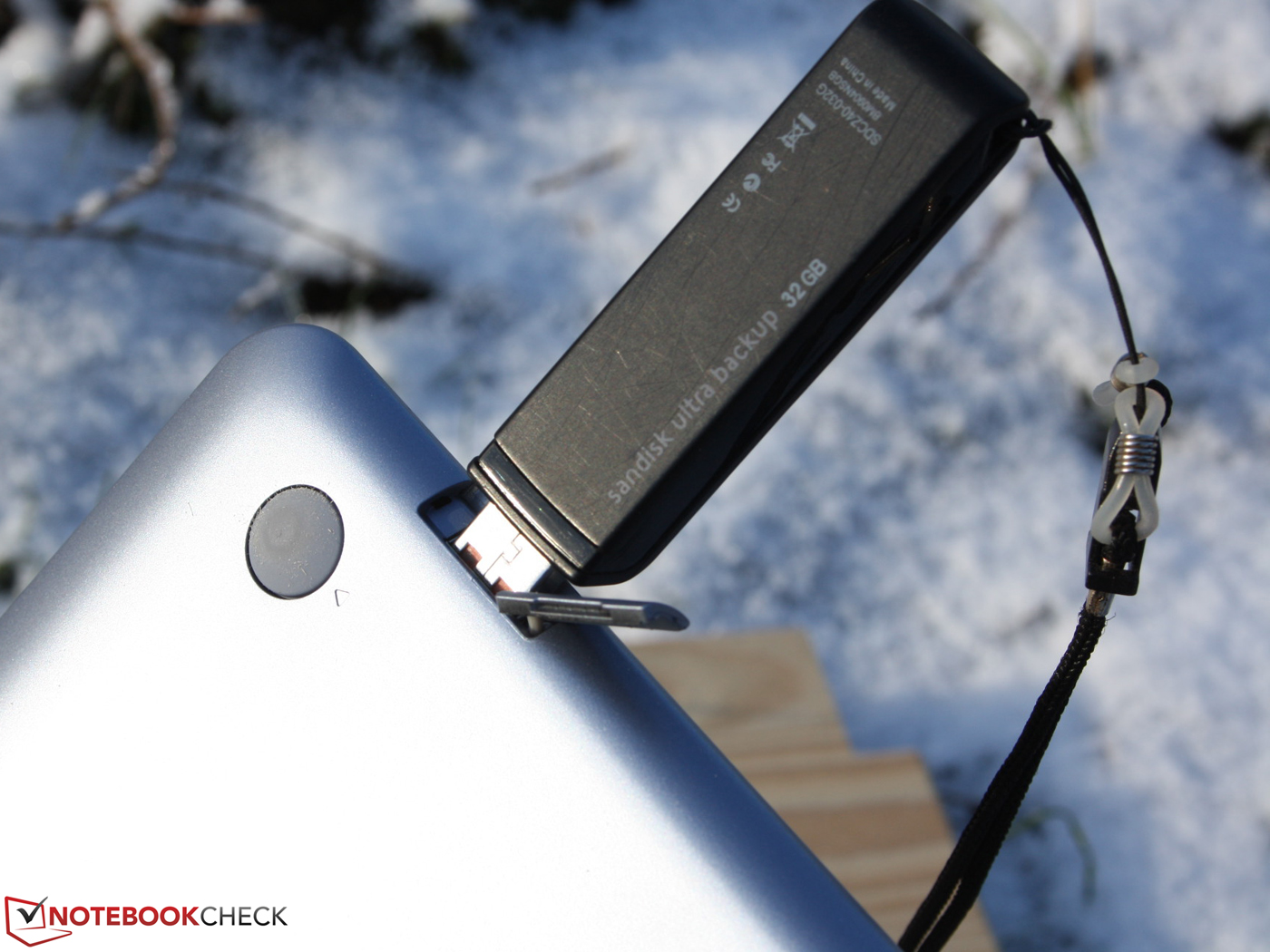

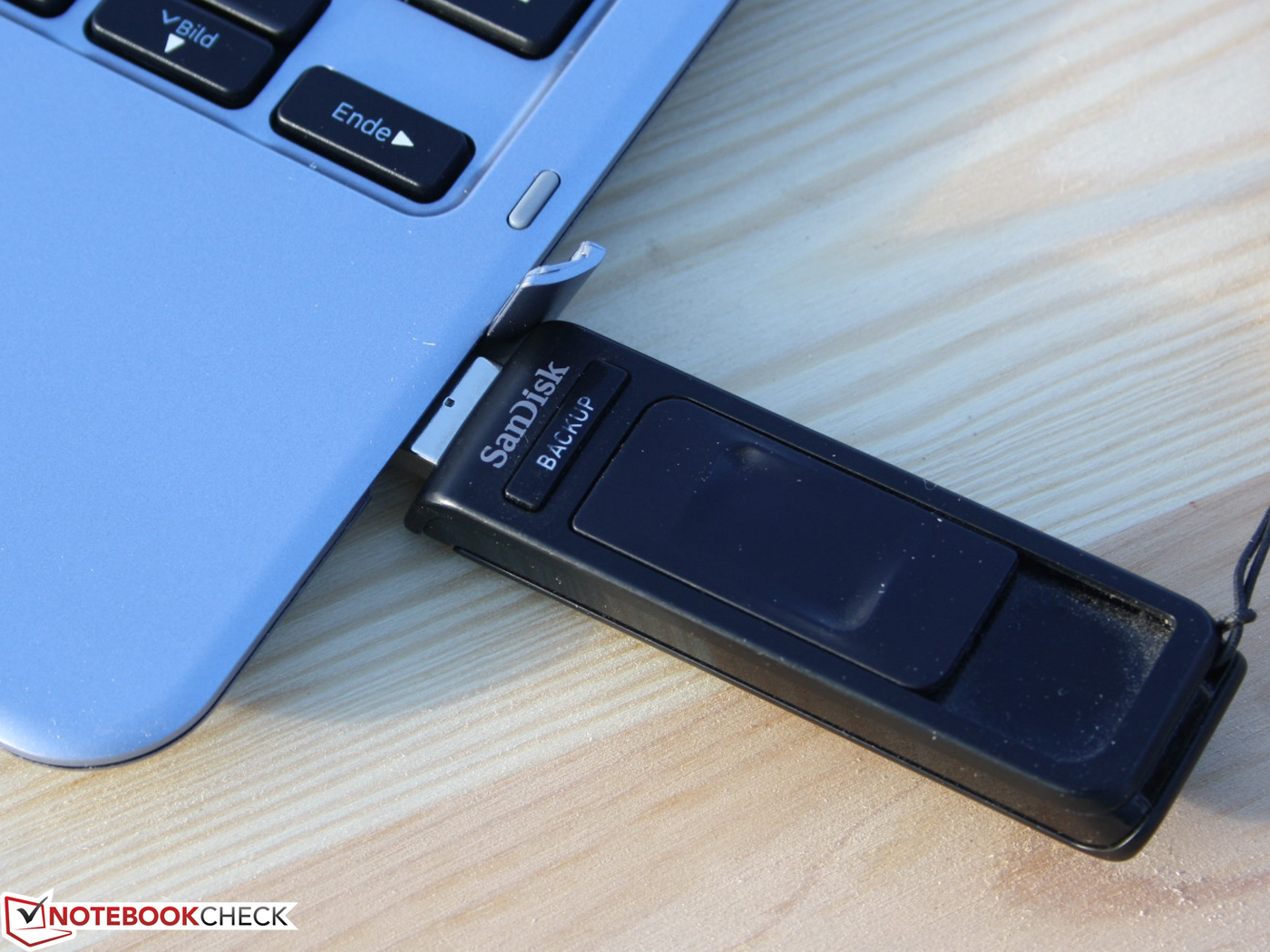

The combination of tablet and keyboard dock let the connectivity of Android devices look inferior. Three (full-size!) USB 2.0 ports, one of which is on the tablet, and a micro HDMI are the highlights. A SIM card slot for the integrated 4G/LTE modem is also available. Micro SD memory cards fit into the ATIV just as well as standard 3.5 mm jack plugs for microphones / headphones (headsets).
平板电脑和键盘底座的组合，让Android设备的连通性显得逊色的。 USB 2.0三（full-size!）端口，其中一个是平板电脑上，和微型HDMI的亮点。也可为一体的综合4G/LTE调制解调器的SIM卡插槽。 Micro SD记忆卡放入的Ativ的一样好，标准的3.5毫米插头麦克风/耳机（耳机）。
Communication

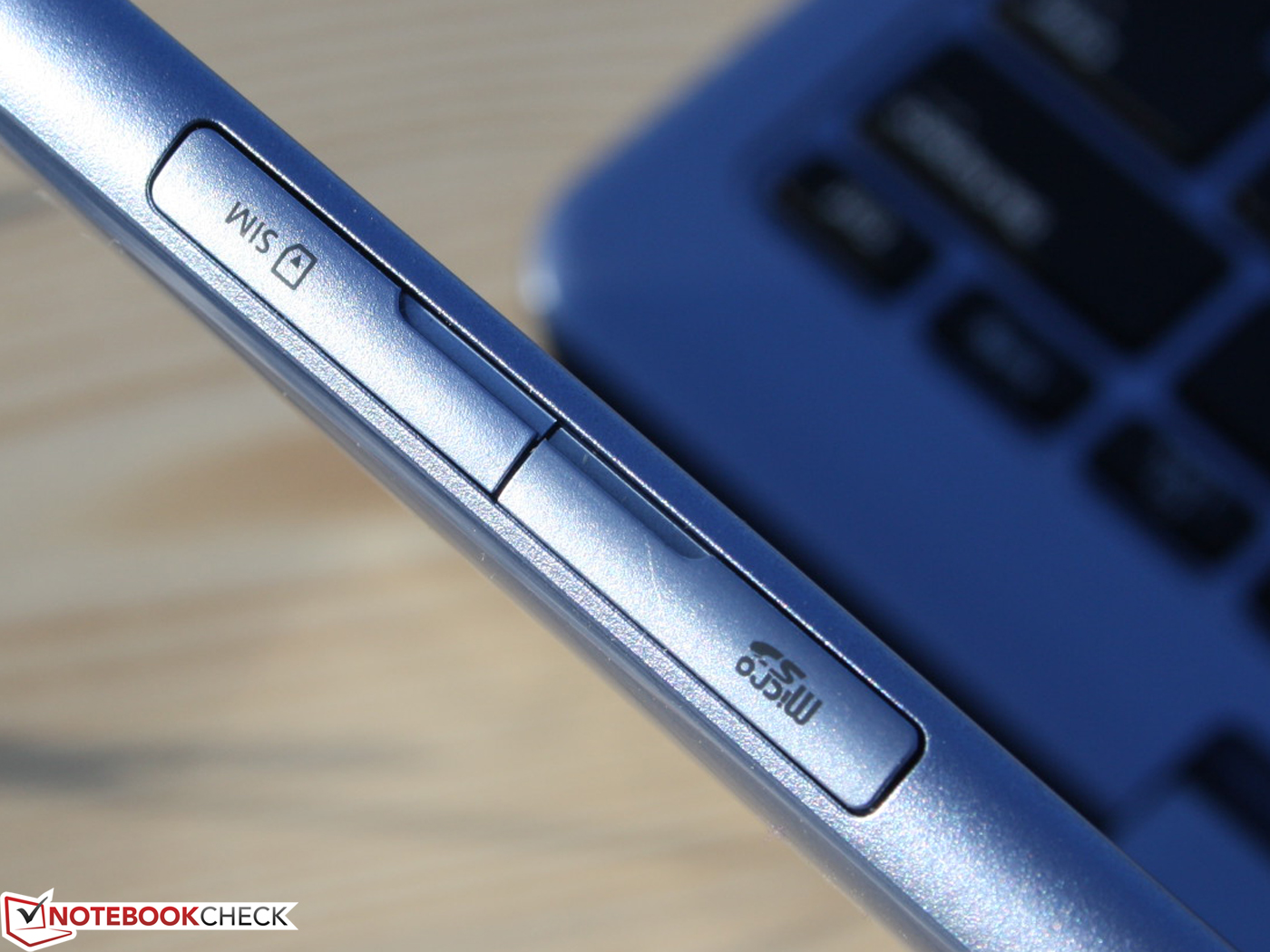

The tablet's connection to the network via draft-n Wi-Fi (a/b/g/n) and 4G/LTE modem is state-of-the-art. This is also appropriate because fast Internet access from the client's side is standard for EUR 700 including a keyboard dock. Bluetooth 4.0 finishes off the mobility bundle.
Accessories
Samsung's ATIV Smart PC is also available without the keyboard dock. Strangely, offers found without the dock are more expensive than with one (EUR 700). Regardless of that, the buyer should opt for the keyboard in any event since it is necessary for the tablet to mutate to a small Windows laptop.

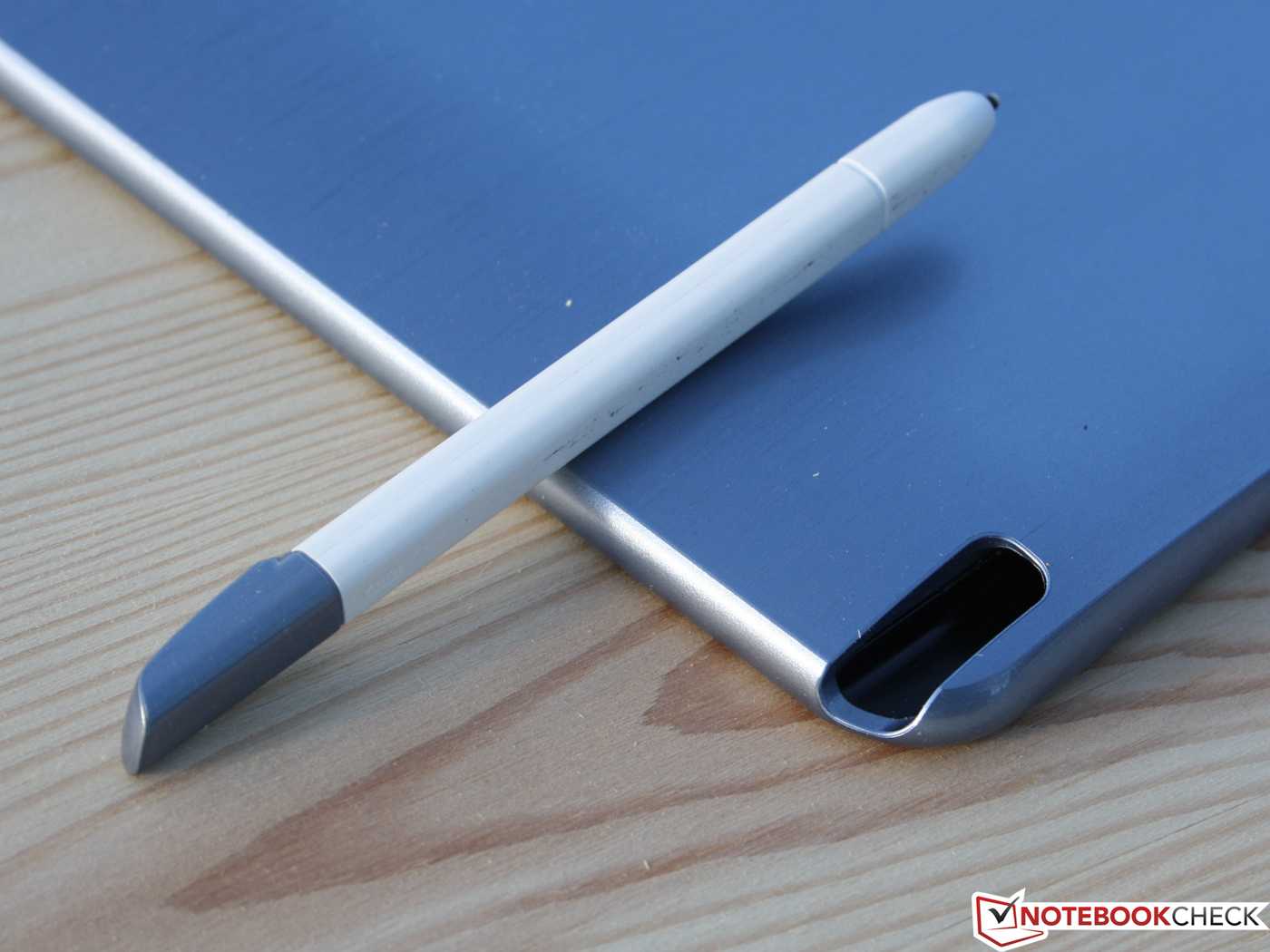

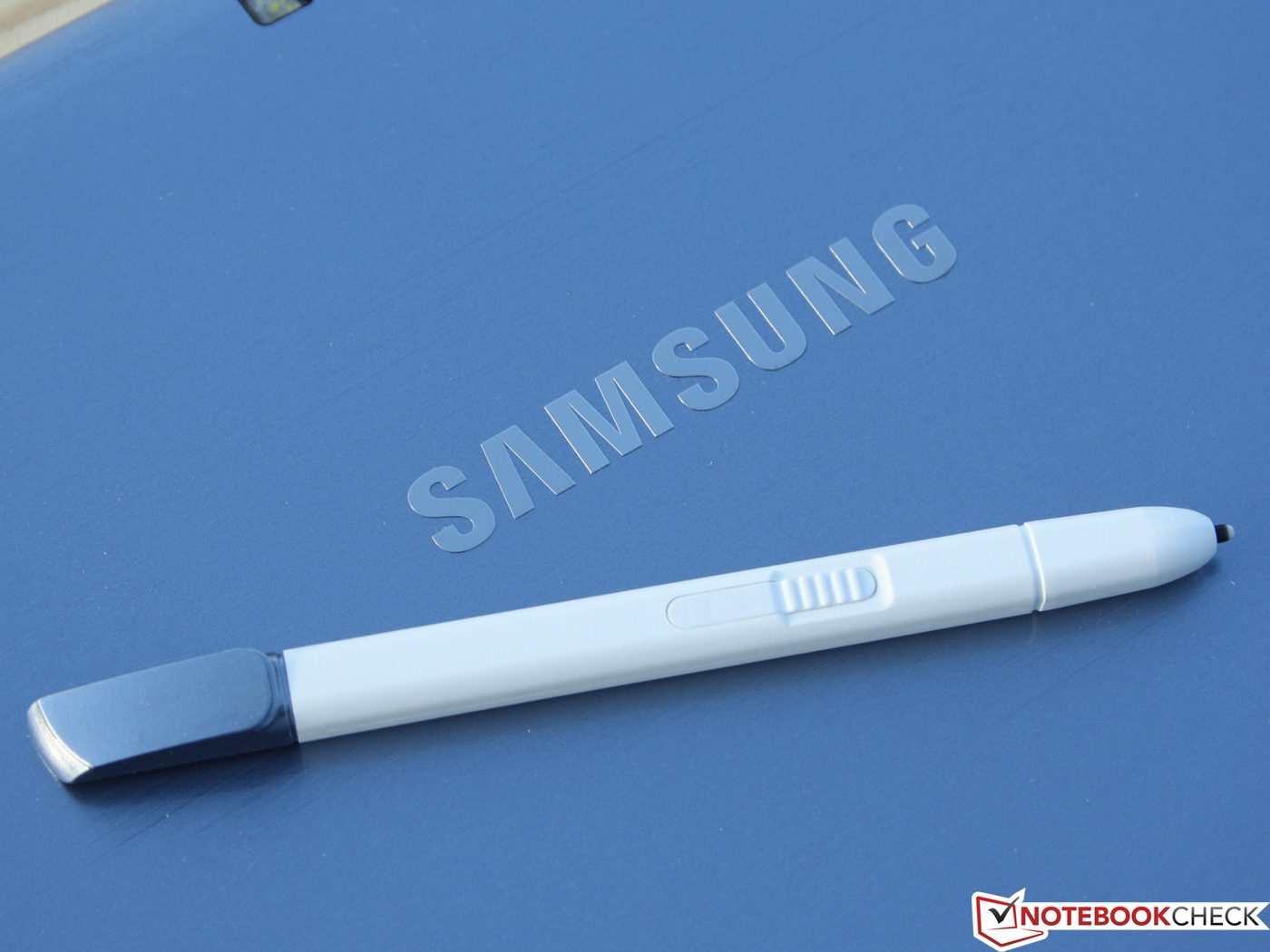

A stylus pen (passive, no battery) is inserted in the tablet's chassis. Invisible yet present, the tablet sports an accelerometer, position sensor and gyroscope (stabilizing gyro, detects the tablets position e.g. in games; standard in modern tablets).
Software

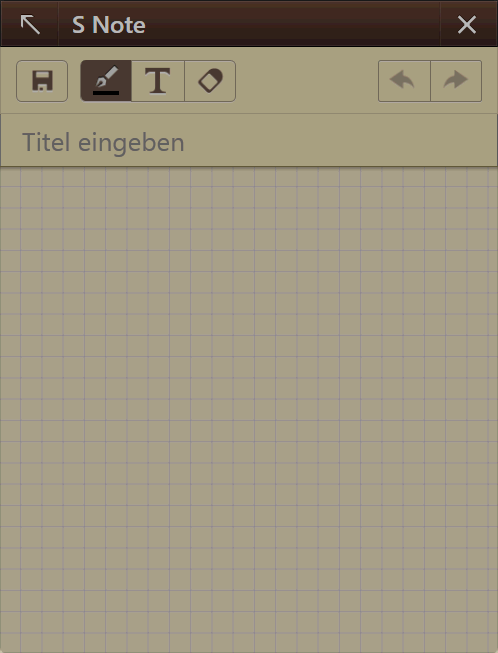

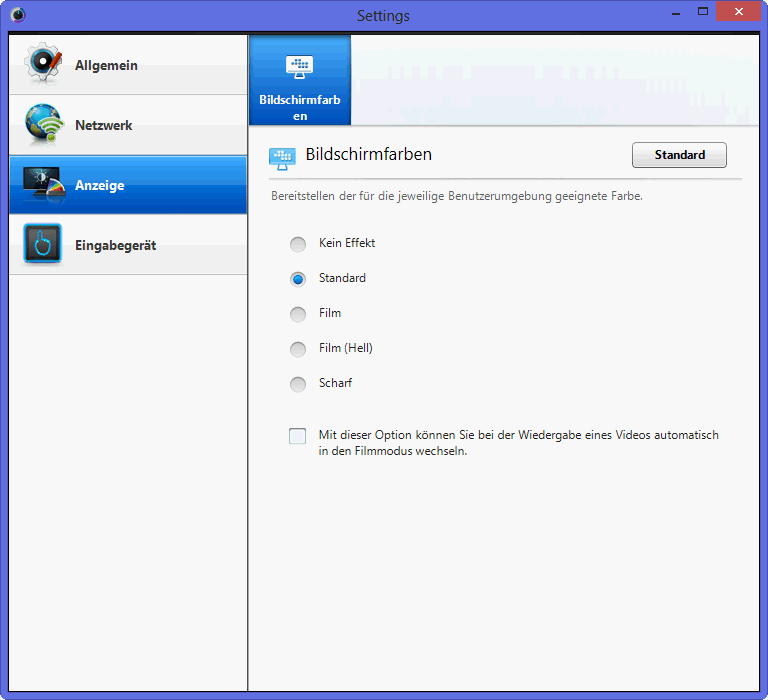

Samsung restrains itself when it comes to software. Besides S-Note, S-Player, Photo Editor and Norton Internet Security (90 day trial) there is only the familiar Easy Settings tool. However, the user does not have much storage capacity for personal programs. Shockingly low 20 GB of the 64 GB flash memory are free. We recurrently found the limits and had to delete games/benchmarks right away. If you are planning to use the ATIV as a small work device, you will definitely need a micro SD memory card (64 GB approx. EUR 50).
The BIOS is more than Spartan. No settings can be made apart from the booting order and TPM module's activity. The Smart PC sports such a module for uniquely authenticating the device. Larger IT infrastructures employ this technology.
Warranty
Samsung includes a 24 month warranty with a flexible service. This means an on-site repair service rather than pick-up service. An upgrade to a total of 48 months costs approximately EUR 139.
通讯
平板电脑连接至网络的Draft-N无线网络连接（A / B / G / N）和4G/LTE调制解调器是国家的最先进的。这是因为几乎适当的Internet连接的客户端的标准为EUR 700包括一个键盘底座。蓝牙4.0结束束的流动性。
饰品
三星Ativ的智能电脑没有键盘底座也可。奇怪的是，提供发现没有码头是更昂贵的比（700欧元）。重要的是，买方应该选择的键盘，在任何情况下发生变异，一个小型的Windows笔记本电脑的平板电脑，因为它是必要的。
手写笔（被动的，不带电池）插入平板电脑的机箱。无形的但目前，平板运动的加速度，位置传感器和陀螺仪。（稳定陀螺仪，检测片位置，例如在游戏中，标准的现代粒）
软件
三星自我约束，当它涉及到软件。除了S-级，S-播放器，图片编辑器和诺顿网络安全特警（90天试用版），只有熟悉的简单设置工具。然而，用户不具有多大的存储容量为个人方案。令人震惊的是低20 GB，64 GB的快闪记忆体是免费的。我们反复发现的限制和删除游戏/基准。如果您计划使用Ativ的工作作为一个小装置，你肯定会需要一个微型SD存储卡（64 GB约50欧元）。
的BIOS多斯巴达。没有设置可以由除了启动顺序和TPM模块的活动。唯一的设备进行身份验证的模块的智能电脑等运动。大型IT基础设施，采用这种技术。
保
三星电子与灵活的服务包括24个月的保修期。这意味着现场维修服务，而不是接机服务。要升级到48个月，总成本约EUR第139
Webcam

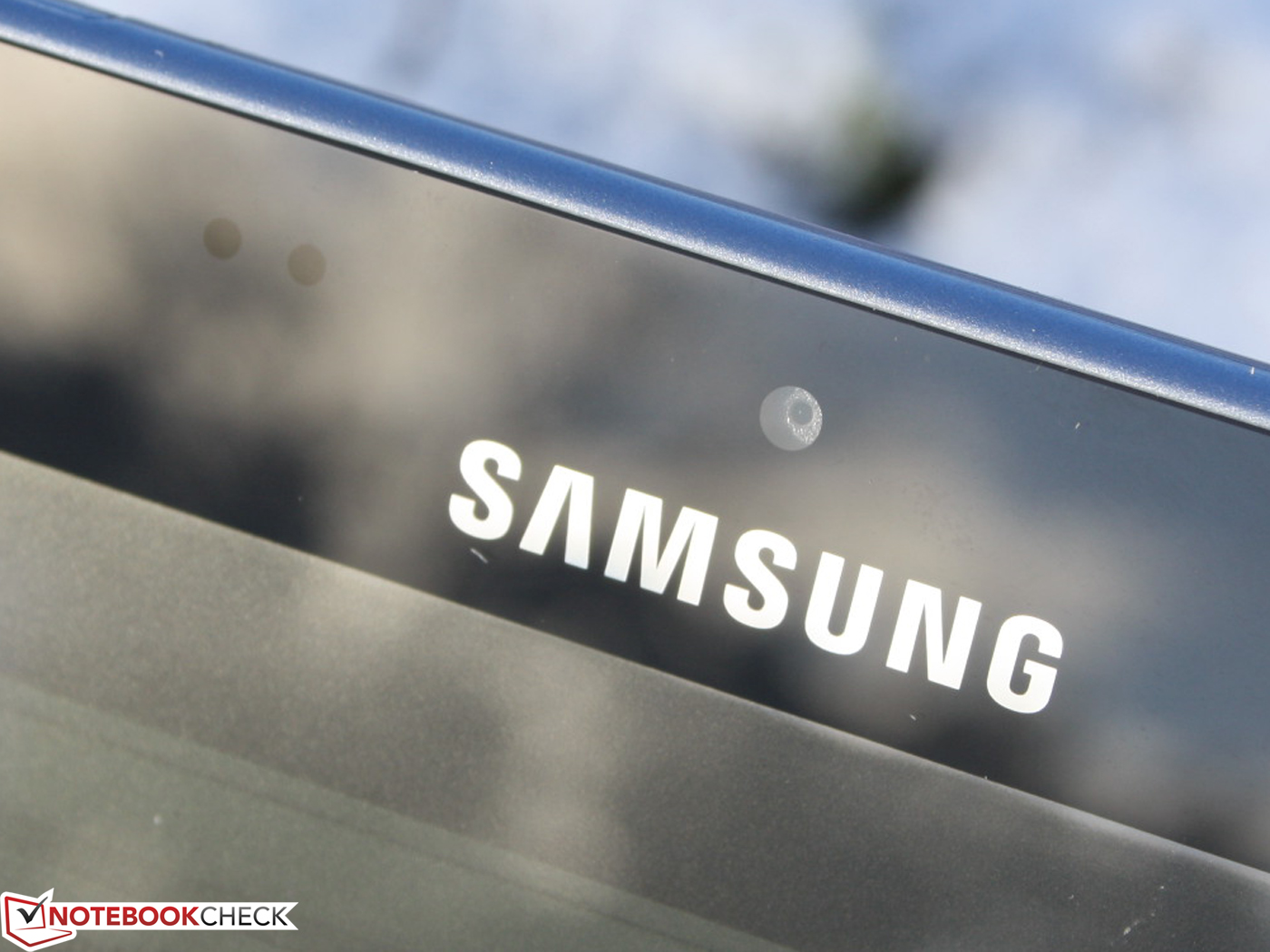

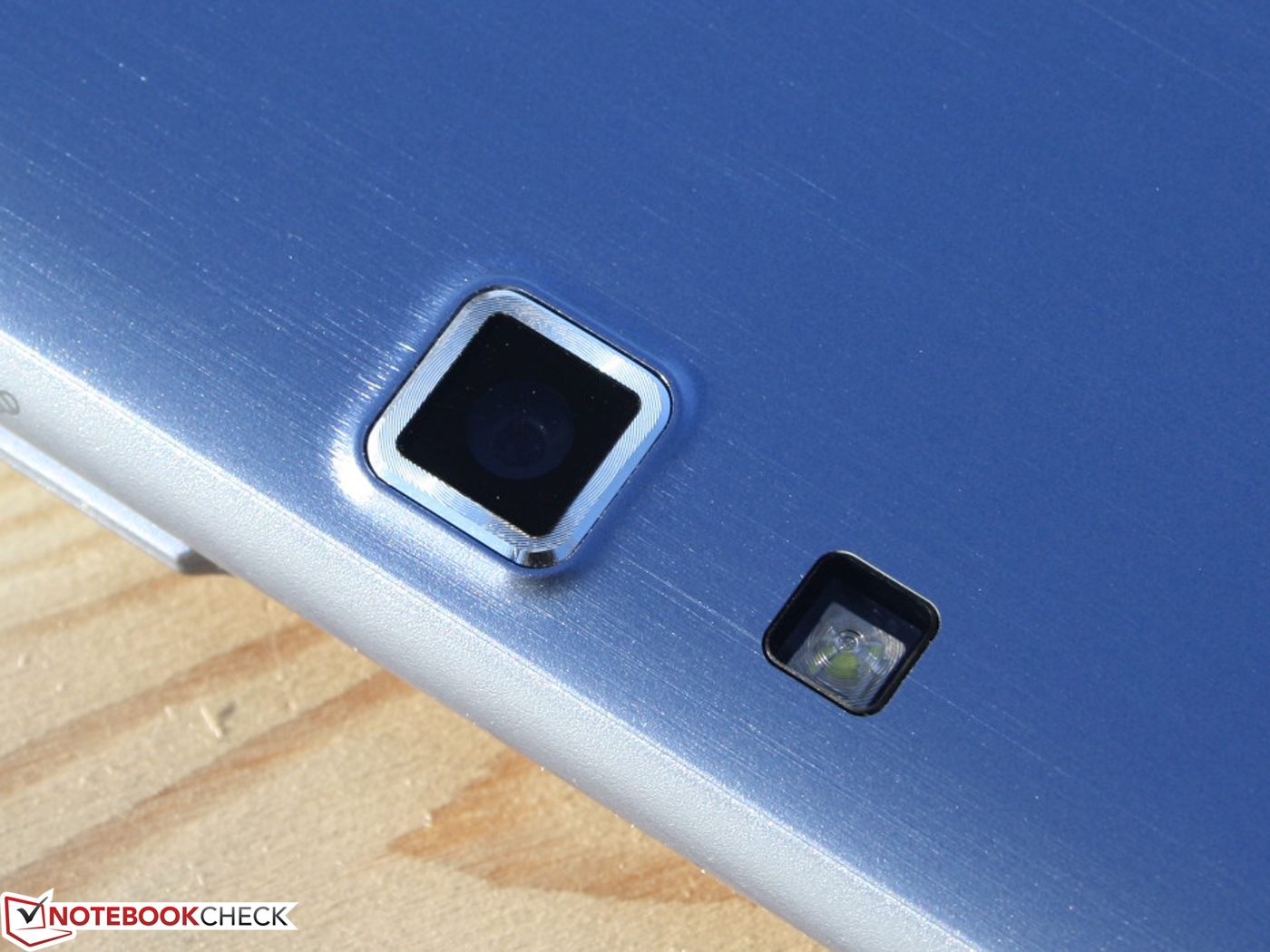

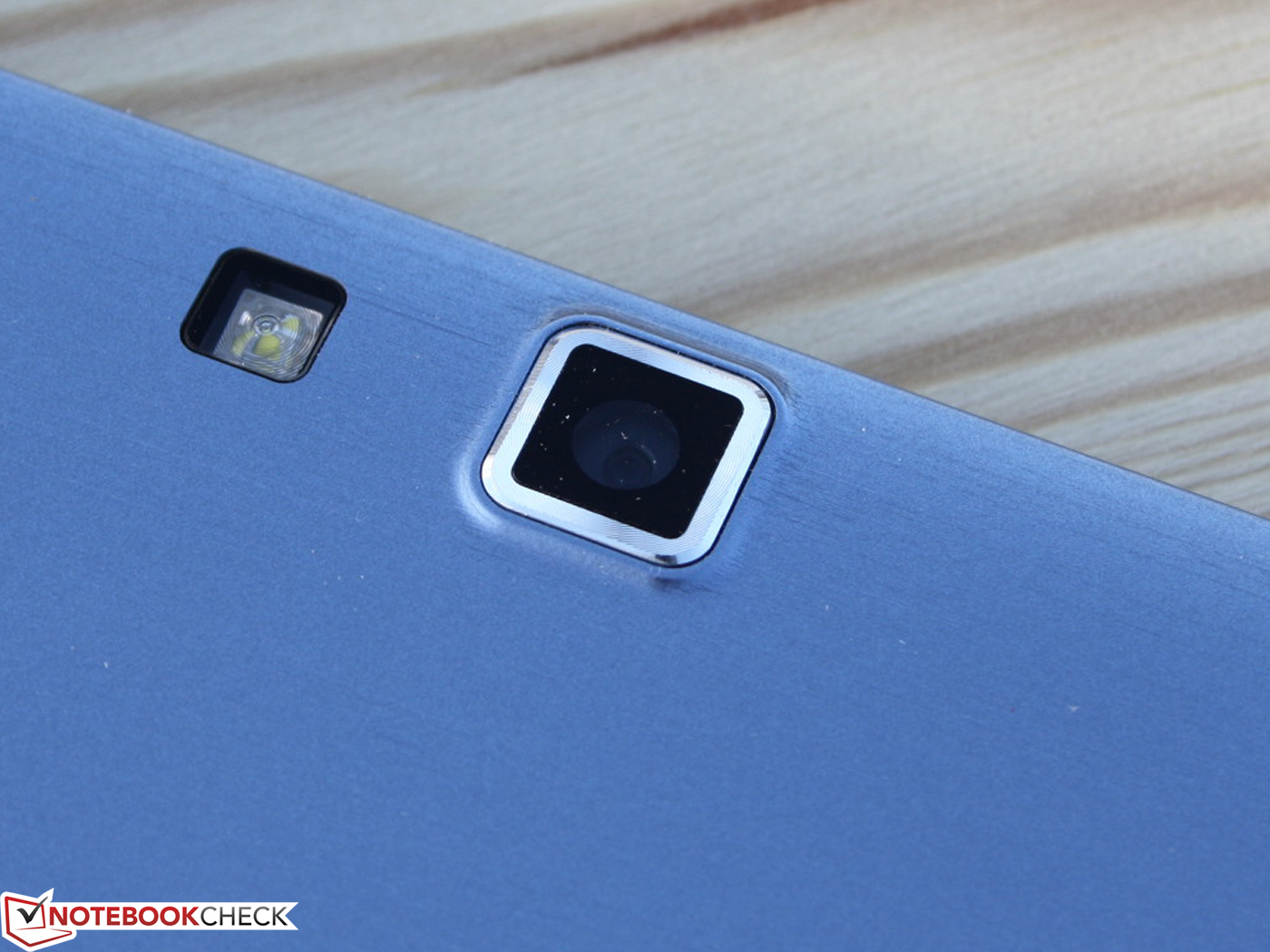

2.0 megapixels (front) and 8.0 megapixels (rear) transforms the ATIV to a gigantic camera. Unfortunately, the picture quality is anything but compelling because focused pictures with fairly natural colors should be possible even in overcast conditions. The Smart PC's 8 MP rear-facing camera exhibits an absolutely satiated red and an imprecise focus. The front-facing camera reproduces more natural colors but the focus is also weak. The Vaio Duo 11's 8 MP cam does a much better job.
摄像头
2.0百万像素（前），8.0百万像素（后）将Ativ的一个巨大的相机。不幸的是，图像质量是任何东西，但引人注目的应该是可能的，即使在阴天的情况下，因为集中的图片，相当自然的色彩。智能PC的800万像素的后置摄像头具有绝对酒足饭饱的红色和重点不精确的。前置摄像头重现色彩更自然，但重点是那么的无力。 VAIO的双核11的800万像素的摄像头做一个更好的工作。
Input Devices
Keyboard

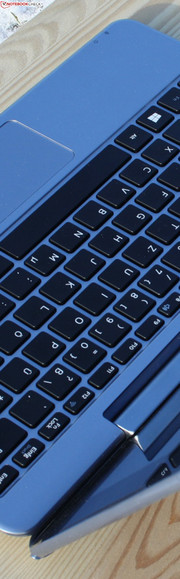

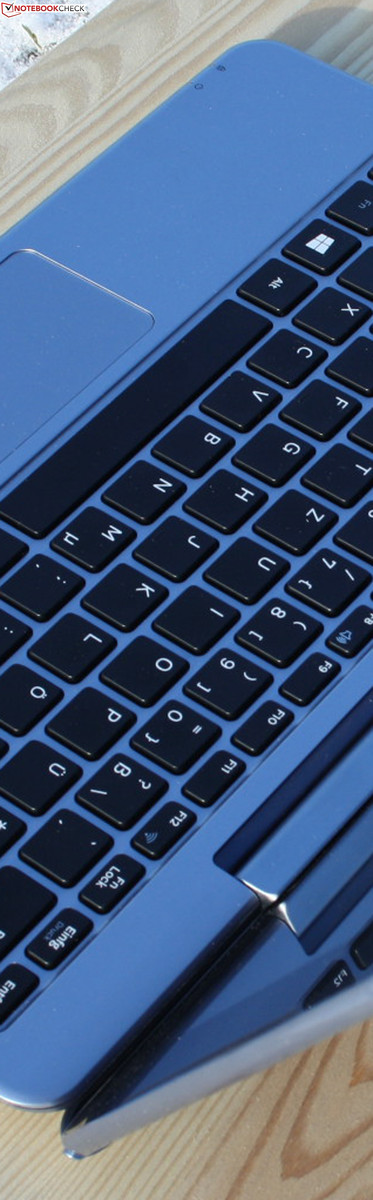

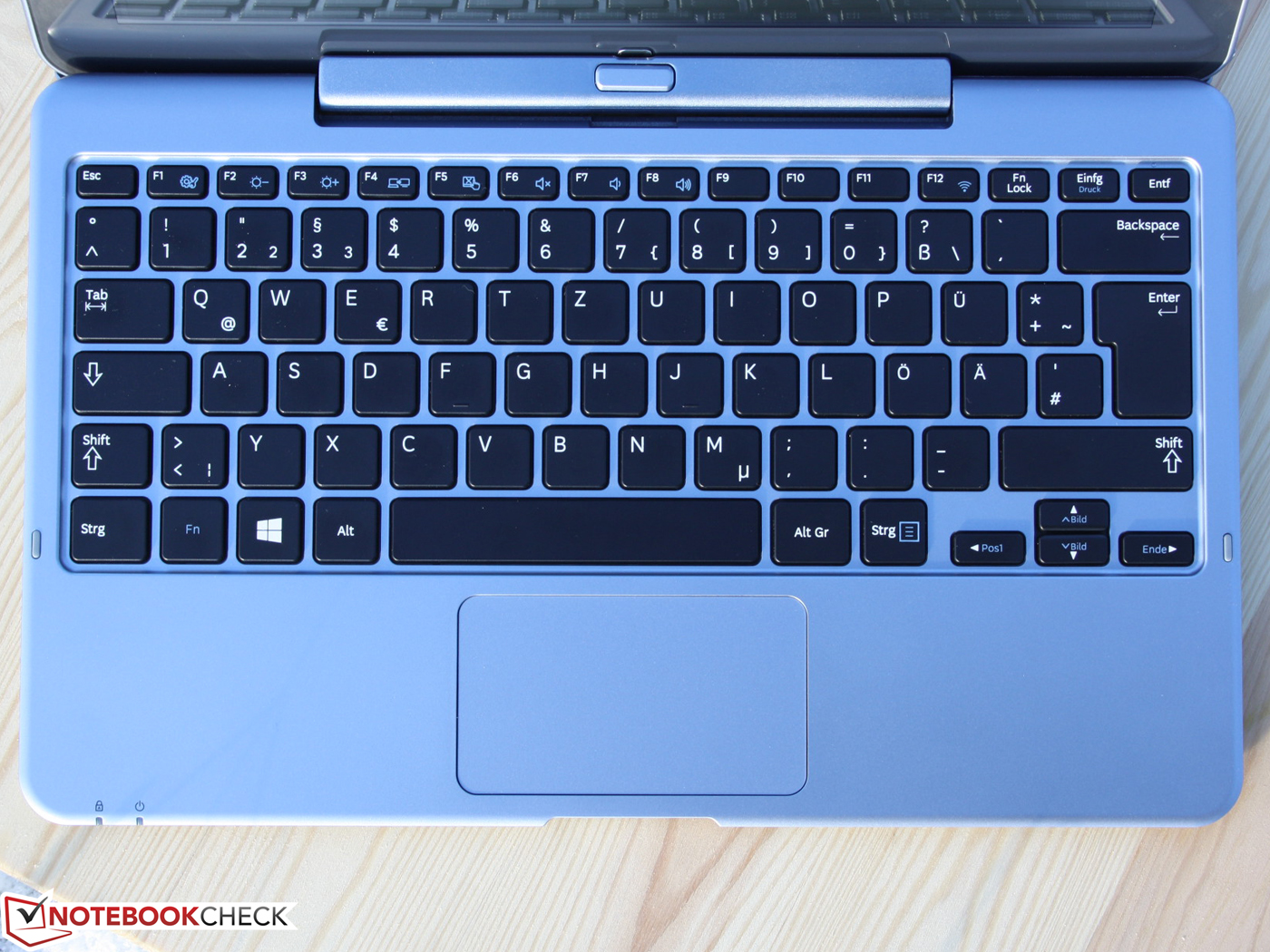

Using the keyboard and touchpad is logical when working in classic menu trees. The stylus pen is useful for triggering icons, markings, etc. more accurately, but recurrently picking up the pen while typing seems unreasonable.

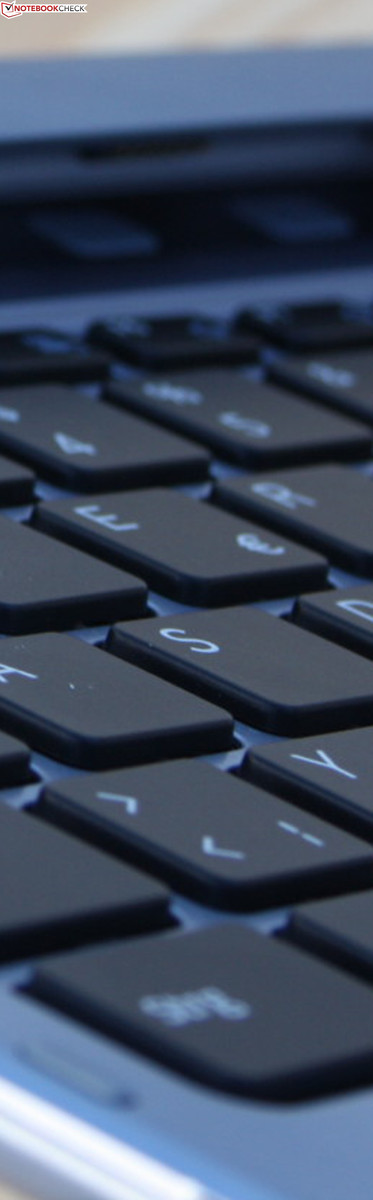

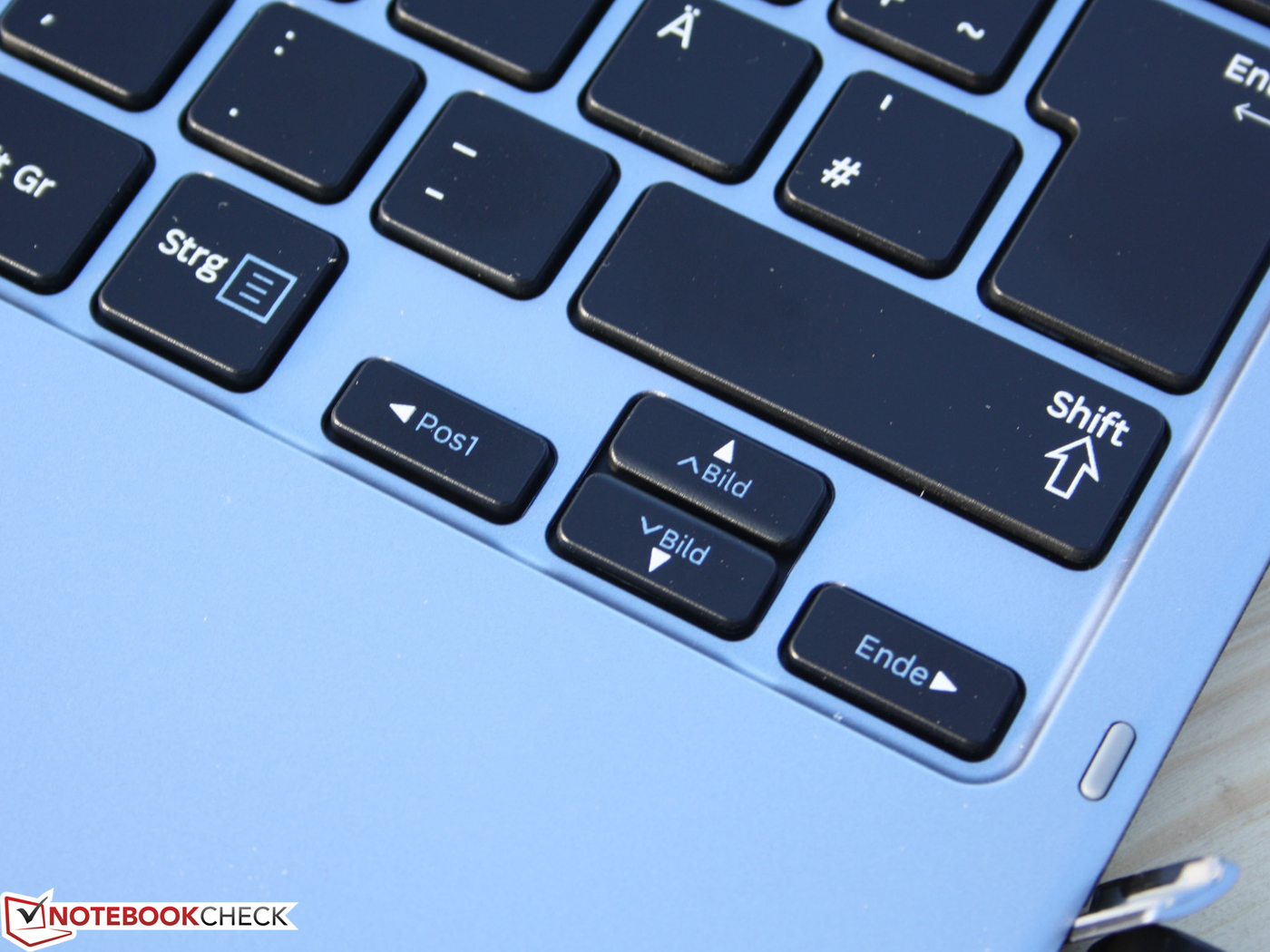

The key bed regrettably does not fit as tight as we would have wanted for a crisp pressure point. The keys therefore produce a coiling stroke that vibrates in the center. That is too bad since the good key drop and clear pressure point alongside the clearly arranged layout would have created a very good keyboard. The 13 mm keys (desktop 19 mm) feature a big gap of 4 mm, which allows accurate typing.
Touchpad

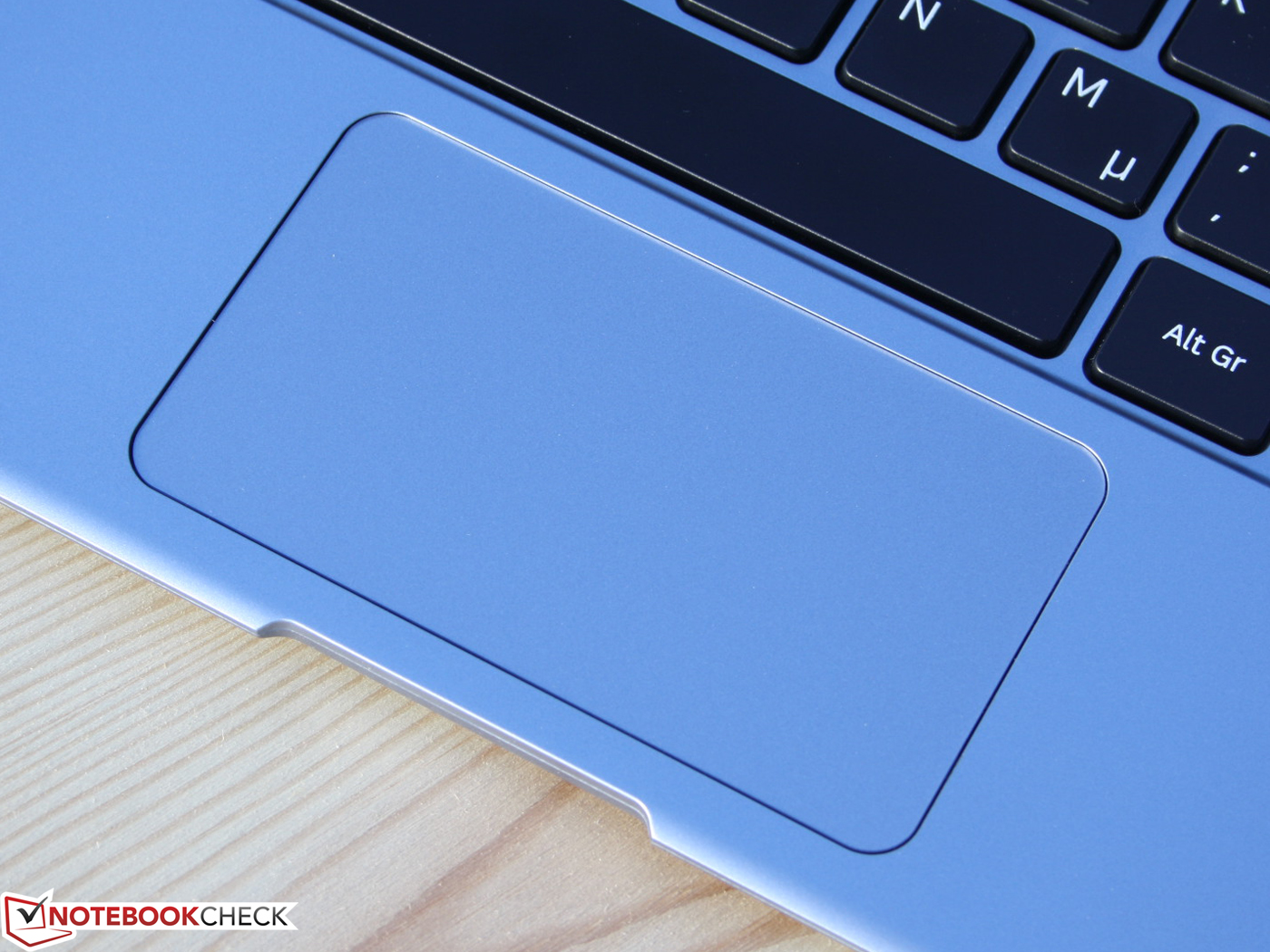

The wrist rest features a pleasant size and allows incorporating a sufficiently sized touchpad for its dimensions. The 9.6 centimeter in diagonal field is a ClickPad with buttons incorporated beneath it. The pad's just still sufficient key drop is not as agreeable when a mouse click is performed in the center. The right and left mouse button underneath the pad's front feature a long, smooth drop and firm stop. The keys' click noise is very loud and will soon get annoying in, for example, the library.
Touchscreen
The 10 finger multi-touchscreen can be used with either the fingers or stylus. In keeping with Samsung's concept "The pen makes the difference", as used in the Galaxy Note, a small plastic pen belongs to the tablet. It is extremely useful for navigating in the desktop environment or on websites. The cursor displays its position 10 millimeters before it touches the screen. That increases the accuracy and enables handwritten inputs (tool: S-Note). The touch feature can also be disabled in Easy Settings.
键盘
经典的菜单树中工作时，使用键盘和触摸板是合乎逻辑的。笔是有用的触发图标标记，更准确，但反复地拿起笔在打字时似乎是不合理的。
令人遗憾的是，关键的床不适合紧张，因为我们本来想要一个清脆的压力点。因此，密钥产生的卷取strokethatdick在中心振动。这是太糟糕了，因为良好的关键压降和压力点清晰明确的安排布局一起创造了很好的键盘。键13毫米（19毫米桌面）配备了4毫米，可以实现精确的类型有很大差距的。
触摸板
腕托设有一个宜人的大小，并允许将一个足够大的触控板，其尺寸。 9.6厘米的视场角是它下面的按钮注册一个ClickPad的。垫的，只是仍有足够的键降不同意时，用鼠标点击的中心。左，右鼠标按钮，下面垫的正面拥有一个长期的，平滑的下降和公司停止。键的点击噪音是非常响亮的，很快就会讨厌的，例如，图书馆。
触摸屏
10个手指的多点触摸屏不能使用手指或手写笔。在保持与三星的理念“笔差”，在银河注意，一个小塑料笔的平板电脑。导航在桌面环境中，或在网站上，这是非常有用的。的光标显示它的位置，前10毫米，触摸屏。这提高精度，能够手写输入（工具：S-级）。那么容易设置的触摸功能可以被禁用。
Display
The 11.6 inch HD LC screen (liquid crystal, TFT) features a low resolution in comparison with other convertibles. Its identically sized Smart PC Pro brother supplies 1920 x 1080 pixels. Most convertibles use the latter resolution: Dell's XPS 12, Vaio Duo 11, Asus Taichi 21.
We could not perform the contrast measurement due to a driver incompatibility (calibration failed; GMA driver does not support any adjustable gamma curves, so-called video LUTs). Consequently, we cannot provide a color gamut comparison. Subjectively, the colors looked a bit pale but not faded. It will likely be a midfield contrast between 350 and 700:1 (estimate).
11.6英寸的高清液晶屏（TFT）液晶与其他敞篷车相比，具有分辨率低。相同大小的智能PC Pro的兄弟提供1920 x 1080像素。多数敞篷车使用后者的分辨率：戴尔XPS12，VAIO铎11日，华硕太极21
我们不能进行对比测量，由于驱动程序不兼容（校准失败; GMA驱动程序不支持任何调节伽玛曲线，即所谓的视频的LUT）。因此，我们不能提供的色域比较。主观上，颜色看起来有点苍白，但不褪色。它可能会是一个中场对比350和700:1（估计）。
| |||||||||||||||||||||||||
Brightness Distribution: 87 %
Center on Battery: 293 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)

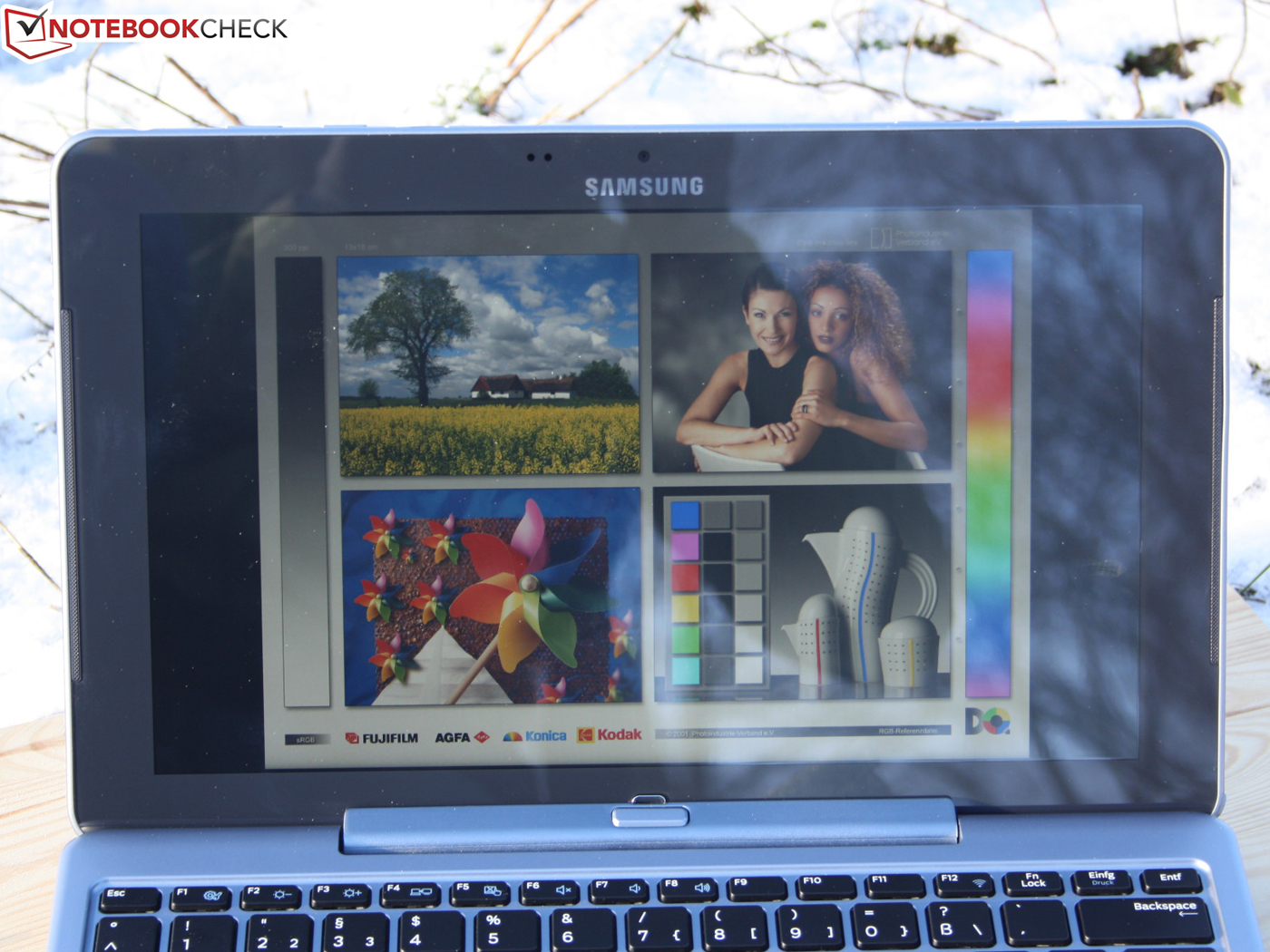

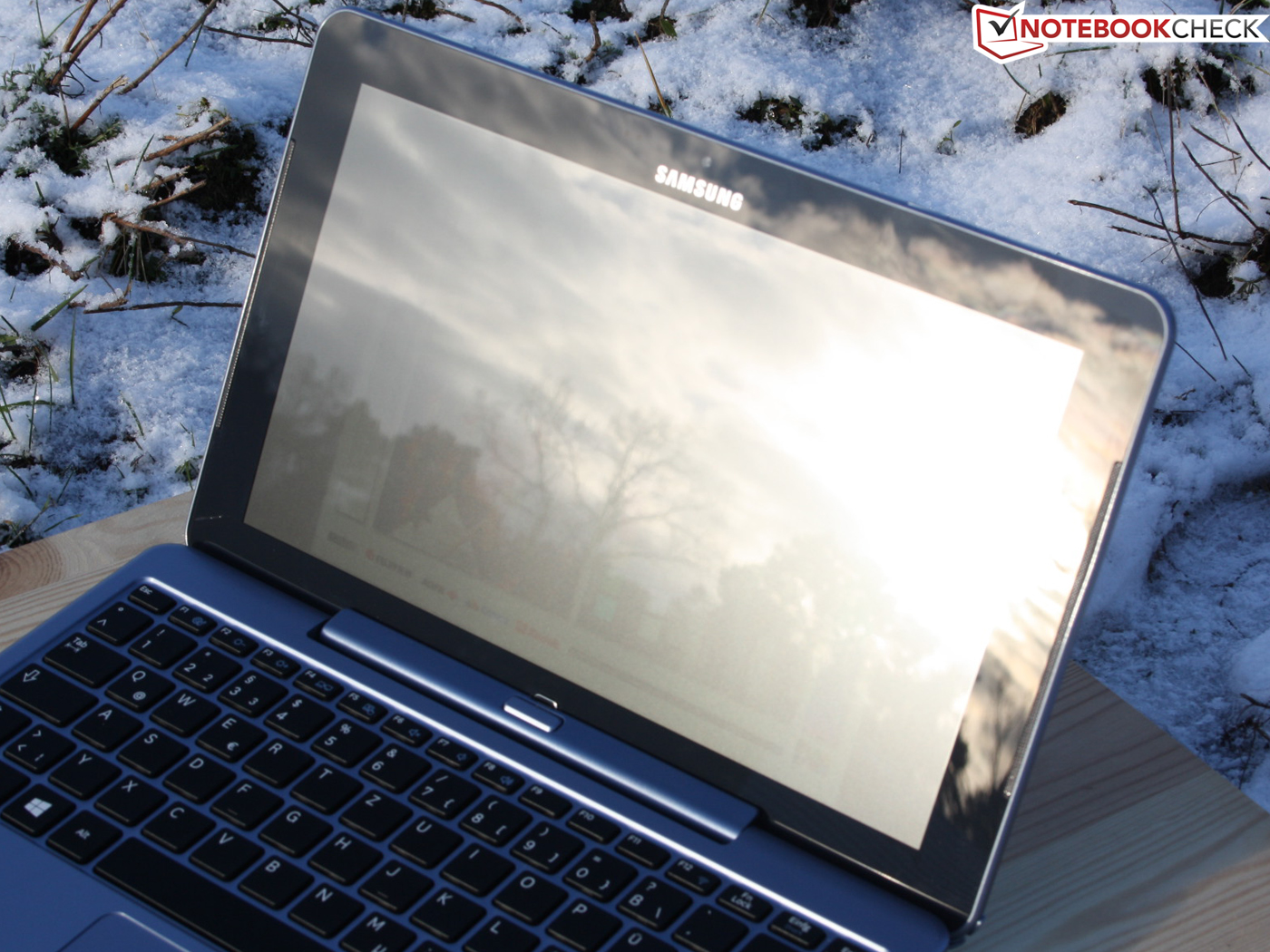

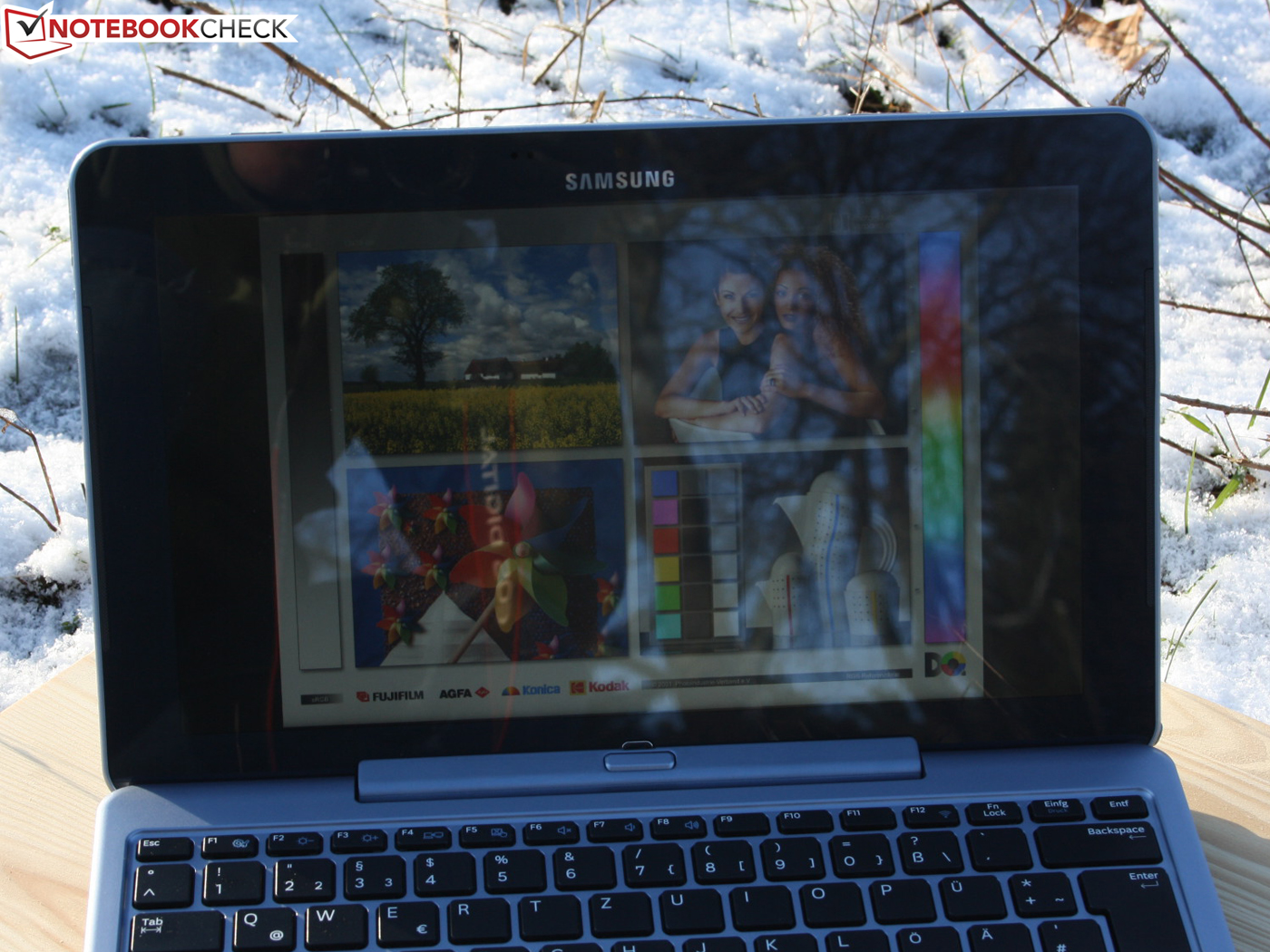

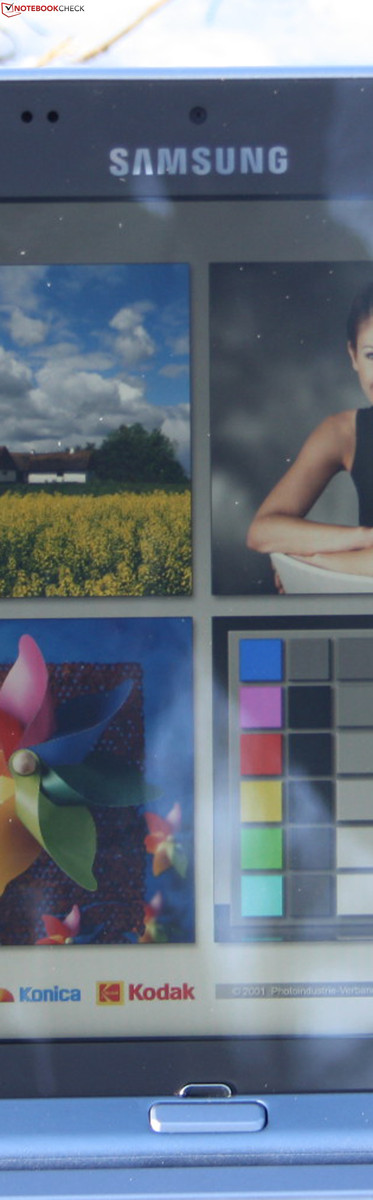

The brightness is automatically adapted to the lighting conditions via an ambient light sensor (beside the webcam, front). This results in an average brightness of 354 cd/m² in daylight (AC mode). The mobile user has a maximum of 293 cd/m² on battery power in bright daylight, which is more than most laptops have to offer.
Depending on the quality, tablets occasionally even achieve 350 to 450 cd/m². Most manufacturers deem a high brightness to be a waste of power and consequently limits the brightness on battery power. However, using a tablet on sunny days is pretty difficult due to the intensely reflective touch surface. Although this shortcoming, which applies to all tablets, can be lessened by a high brightness, it cannot be eliminated.
亮度自动适应的照明条件，通过环境光传感器（旁边的摄像头，前置）。这结果中的平均亮度为354坎德拉/平方米在日光（AC模式）。移动用户有一个最大的电池电量在明亮的日光下，哪一个更比大多数笔记本电脑所提供的293 cd /m²的。
视质量，的片有时甚至达到350〜450 cd /m²的。大多数厂商认为一个高亮度的权力和限制，因此在电池供电的亮度是一种浪费。然而，使用平板电脑在阳光明媚的日子，是非常困难的，因为强烈的反射触摸表面。虽然这个缺点，这适用于所有的片剂，可以减少由高亮度，它可以不被淘汰。

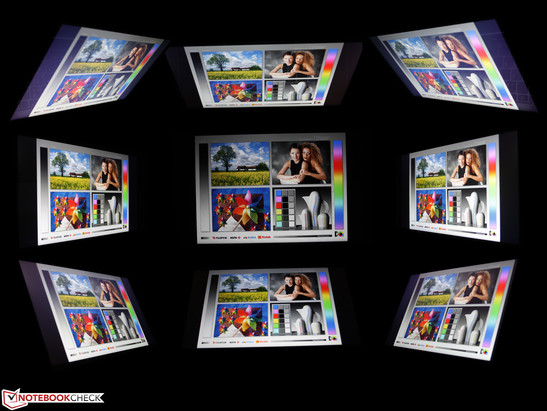

The screen's viewing angles correspond to that of IPS (in plane switching; TFT screen model) displays. Large deviations from a central seating position are possible both vertically and horizontally. We could look at the screen at an angle of 85 degrees from the side and the top/bottom and did not observe ghosting or unwanted dimming.
屏幕的可视角度项目的IPS（面内切换，TFT屏幕的机型）显示到达。从中央座椅位置的大偏差是可能的垂直和水平。我们可以看屏幕的角度为85度，从侧面和顶部/底部并没有观察重影或不需要的调光。
Performance

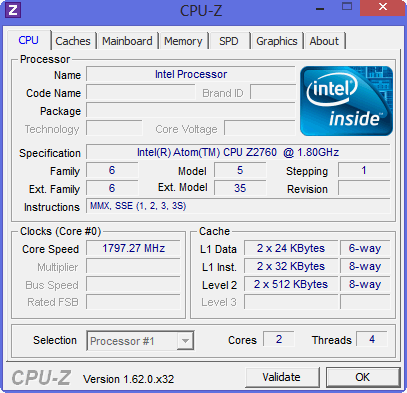

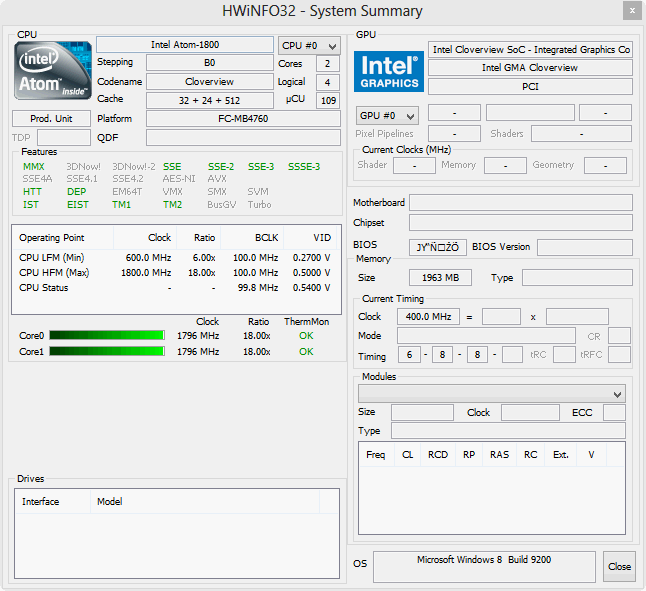

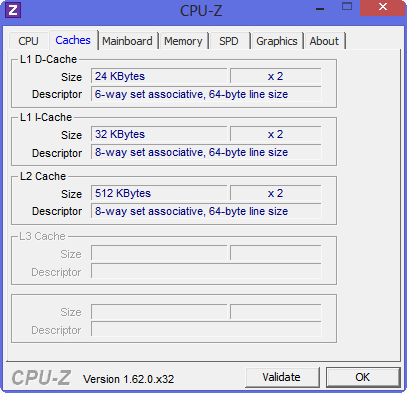

The system-on-a-chip (SoC) Atom Z2760 (Clover Trail) is Intel's answer to the massive distribution of Nvidia's Tegra SoCs found in Android tablets. The chip is to be as energy-efficient and scalable as a Tegra due to the 32 nm build. Moreover, Intel wants to benefit from Microsoft's affinity to the x86 architecture and Windows fan community. The Clover Trail is also available for smartphones as the Atom Z2000 and Z2580. This is Intel's attempt to prevail against the ARM and Tegra competition.
系统级芯片（SoC）的原子Z2760（四叶草径）是英特尔的Nvidia的Tegra的SoC发现在Android平板电脑的块状分布。该芯片是能源效率和可扩展性，由于32纳米建立一个Tegra的。此外，英特尔希望从微软的亲和力和Windows x86架构的球迷社区。三叶草之路也可用于智能手机的Atom Z2000和Z2580。这英特尔企图战
Processor
What does the computing performance look like in relation to the other Atom generations? We can relax: the 2008 N270 (Diamond Ville; Eee PC 1002HA) is 50% and the 2011 N2600 (Cedarview, Aspire One D270) is 9% slower. Seen on a low level, this is remarkable because the load power consumption is virtually halved (see stress test).
Before we engage ourselves in window-dressing, a look at both latter laptops shows that even weak low voltage Celeron/Pentium processors in budget laptops are 80 up to over 110% faster in multi-core calculations. We add another device with a Core i5 3317U (Z930-119) for comparison. The Smart PC Pro's big sister (XE700T1C-A02DE) is one of many devices equipped with this ultrabook CPU and could calculate 327% faster with it (providing Turbo Boost similar Z930).
To prevent the impression that Intel has not made any progress with this Atom, we take a look at smartphones and tablets in Geekbench 2. The Z2760 can keep up with the currently fastest smartphones here.
处理器
不计算性能中的其他原子代看起来像什么？我们可以放松：2008年N270（Diamondville的，华硕Eee PC1002HA）为50％，2011年的N2600（Cedarview的Aspire One D270）是慢了9％。上看到一个低的水平，这是显着的，因为负载的功耗几乎减半（见应力试验）。
在我们从事自己的门面，一看后期的笔记本电脑都表明，即使是微弱的低电压赛扬/奔腾处理器的笔记本电脑预算超过80至110％的速度在多核计算。我们添加其他设备了酷睿i53317U（Z930-119）进行比较。智能PC Pro的大的妹妹（XE700T1C A02DE）是本Ultrabook的CPU配备了多台设备，并可以计算出327％的速度（提供类似Z930涡轮增压）。
为了防止，英特尔一直没有取得任何进展，这个原子的印象，我们先来看看在智能手机和平板电脑在第二个测试软件Geekbench Z2760能跟上目前最快的智能手机。
| Cinebench R10 | |
| Rendering Multiple CPUs 32Bit (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| Asus Eee PC 1002HA | |
| Asus Eee PC 1005PE | |
| Acer Aspire One 725 | |
| Acer Aspire One D270-26Dbb | |
| Asus EEE PC 1015PX | |
| HP Pavilion dm1-4200sg | |
| Acer Aspire V5-531 | |
| Acer Aspire V5-431-887B4G50Mauu | |
| Toshiba Satellite Z930-119 | |
| Shading 32Bit (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| Asus Eee PC 1002HA | |
| Asus Eee PC 1005PE | |
| Acer Aspire One 725 | |
| Acer Aspire One D270-26Dbb | |
| Asus EEE PC 1015PX | |
| HP Pavilion dm1-4200sg | |
| Acer Aspire V5-531 | |
| Acer Aspire V5-431-887B4G50Mauu | |
| Toshiba Satellite Z930-119 | |
| Geekbench 2 - 32 Bit - Total Score (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| HTC One X | |
| Apple iPad mini | |
| Asus Transformer Pad TF300T | |
| Lenovo IdeaPad A2109 | |
| Google Nexus 7 | |
| Apple iPhone 5 | |
System Performance
The system finished PCMark 7 quite well despite the processor's weak performance. The ATIV is 50% better than the current netbook generation (Atom N2600, Aspire One D270) and only 8 to 15% inferior to Pentium or Celeron laptops (low voltage): The reason for this is doubtlessly the flash memory that outclasses all HDDs in the comparison devices by good 40% (System Storage score).
系统性能
该系统完成的PCMark 7相当不错尽管处理器的薄弱表现。 Ativ的50％，比目前这一代上网本（凌动N2600的Aspire One D270），只有8％至15％逊色于Pentium或Celeron笔记本电脑（低电压）：这样做的原因无疑是所有硬盘驱动器的快闪记忆体，还好设备的比较好40％
| PCMark 7 | |
| System Storage (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| Asus EEE PC 1015PX | |
| Acer Aspire One 725 | |
| HP Pavilion dm1-4200sg | |
| Acer Aspire V5-531 | |
| Acer Aspire V5-431-887B4G50Mauu | |
| Score (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| Asus EEE PC 1015PX | |
| Acer Aspire One D270-26Dbb | |
| Acer Aspire One 725 | |
| HP Pavilion dm1-4200sg | |
| Acer Aspire V5-531 | |
| Acer Aspire V5-431-887B4G50Mauu | |
| PCMark 7 Score | 1263 points | |
Help | ||
Storage Devices

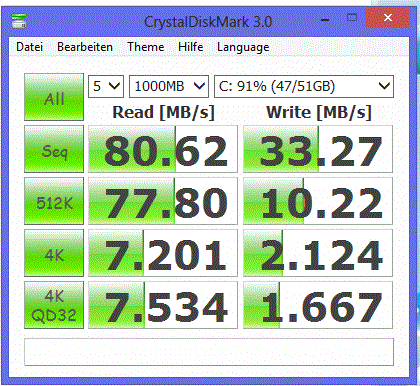

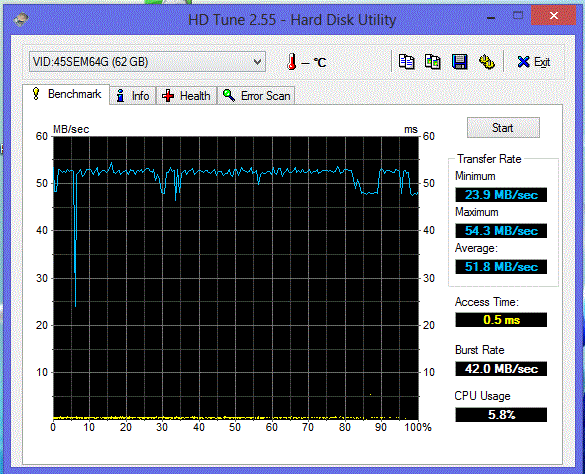

Fast storage device? We wanted to take a closer look at that. HDTune and CrystalDiskMark however clearly fail the normal level of current SSD storages with 52 and 80 MB/s respectively. We used slate and convertible PCs for comparison. The good access speed is achieved by the feasible 4K throughput. 7MB/s are not perfect, but much faster than the ~0.4 MB/s of a conventional HDD.
快速存储设备？我们希望采取一个仔细看看。 HDTune的和CrystalDiskMark但是清楚地失败分别为52和80 MB/ s的正常水平，目前的SSD储存。我们用石板及可换股电脑进行比较。良好的存取速度是通过可行的4K吞吐量。 7MB / s是不完美的，但速度远远超过了〜0.4 MB / s的传统的硬盘驱动器。
| CrystalDiskMark 3.0 | |
| Read Seq (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| HP Slate 2 Wi-Fi + 3G | |
| Samsung Series 7 XE700T1A-H01DE | |
| Dell XPS 12 | |
| Sony Vaio Duo 11 SV-D1121X9EB | |
| Read 4k (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| HP Slate 2 Wi-Fi + 3G | |
| Samsung Series 7 XE700T1A-H01DE | |
| Dell XPS 12 | |
| Sony Vaio Duo 11 SV-D1121X9EB | |
Graphics Card

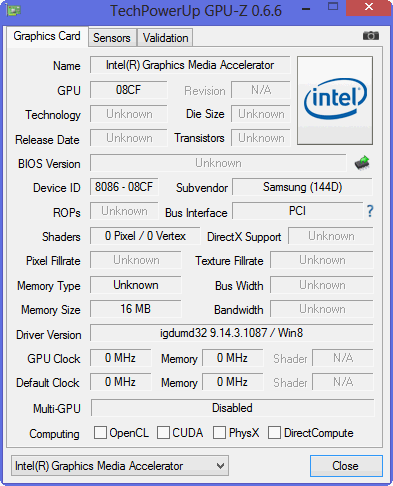

The PowerVR SGX545 (IGP) in the SoC lags very far behind in comparison with other integrated solutions from AMD or Intel. It can only excel the old GMA 950 and 3150 (see Cinebench R10 Shading 32 bit above). AMD netbooks (Aspire One 725) feature a much superior GPU performance.
Due to the lack of a HDMI adapter (executing 1280 x 1024 not possible), we compared 3DMark 05 (1024 x 768) with the Atom, AMD, Pentium and Intel Core system used in CPU performance. The old Atom GPUs (GMA 3150 / 950) are clearly defeated, while AMD (E1-1200) wins.
HD Graphics (Sandy Bridge) and HD 3000 calculate much faster and can thus even be used for gaming in low details. This is not the case with the PowerVR SGX545 due to the lack of DirectX 10 support. Even the undemanding Fifa 13 fails in low settings for the first time (including graphic errors Fifa, World in Conflict).
图形卡
在SoC的PowerVR SGX545（IGP）方面远远落后于AMD或Intel集成解决方案比较。它只能胜过旧的GMA 950和3150（见Cinebench R10的底纹32位以上）。 AMD的Aspire One725上网本（）提供一个优越得多的GPU（图形处理器）性能。
由于缺乏一个HDMI转接器（不执行1280×1024），我们的3DMark05（1024×768）的Atom，奔腾，AMD和Intel Core系统中使用的CPU性能。清楚地击败老核的GPU（GMA 3150/950），而AMD（E1-1200）获得。
HD图形（距桥）和HD 3000计算速度更快，可用于游戏马尔萨斯，即使在低细节。这是没有的PowerVR SGX545的情况下，由于缺乏DirectX 10支持，。即使要求不高国际足联13在低设置失败，在第一次（包括图形错误国际足联，在冲突中世界）。
| 3DMark 05 - 1024x768 Standard AA:0x AF:0x (sort by value) | |
| Samsung ATIV Smart PC XE500T1C-A02DE | |
| HP Slate 2 Wi-Fi + 3G | |
| Asus Eee PC 1005PE | |
| Asus EEE PC 1015PX | |
| Acer Aspire One D270-26Dbb | |
| HP Pavilion dm1-4200sg | |
| Samsung Series 7 XE700T1A-H01DE | |
| Acer Aspire V5-531 | |
| 3DMark 03 Standard | 1674 points | |
| 3DMark 05 Standard | 640 points | |
| 3DMark 06 1280x720 Score | 367 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| World in Conflict - Benchmark (2007) | 8 | 1 | ||
| Far Cry 2 (2008) | 7.68 | |||
| Left 4 Dead (2008) | 11.8 | |||
| Anno 1404 (2009) | 5.2 | |||
| Risen (2009) | 4.4 | |||
| Mass Effect 3 (2012) | 1.7 | |||
| Fifa 13 (2012) | 9.7 |
Emissions
System Noise
The Smart PC does not sport a fan and is cooled passively.
Noise Level
| Idle |
| 29.5 / 29.5 / 29.5 dB(A) |
| HDD |
| 29.5 dB(A) |
| Load |
| 29.5 / 29.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm distance) | ||
Temperature
Like Tegra-based devices, the ATIV Smart PC does not sport a case fan. This is possible despite the Atom processor because Intel designed the Z2760 as an energy-efficient tablet CPU. As the power consumption shows us, the former Atom generations in netbooks were downright energy wasters. Thus, an active case fan was almost always installed. Though it was principally possible to passively cool the Atom since the second generation (N450, etc.), the manufacturers shied the weight and dimensions of larger heat sinks and preferred conventional fans.
Since a flash memory is used as the storage device, there are no other movable parts inside the tablet that could produce noise. Consequently, the ATIV always remains absolutely silent.
This is not a drawback for possible heat. The ATIV was always within an inconspicuous range during all operating states we tested. The user should not experience any restrictions in tablet mode with a maximum surface temperature of merely 32°C on the back and up to 34°C on the screen. We recorded the temperatures on the tablet's front and back. The keyboard dock remained at room temperature since it does not contain circuits or a battery.

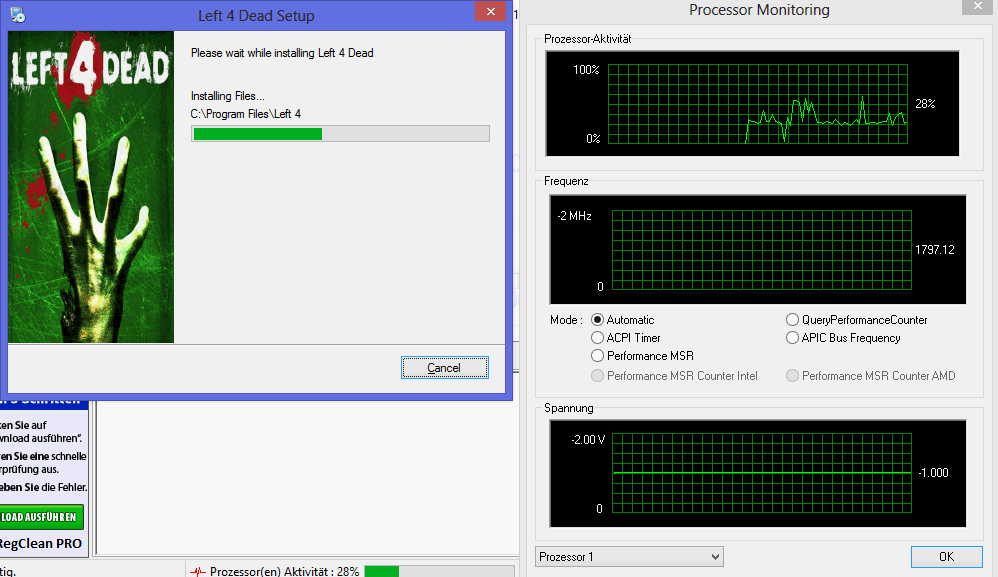

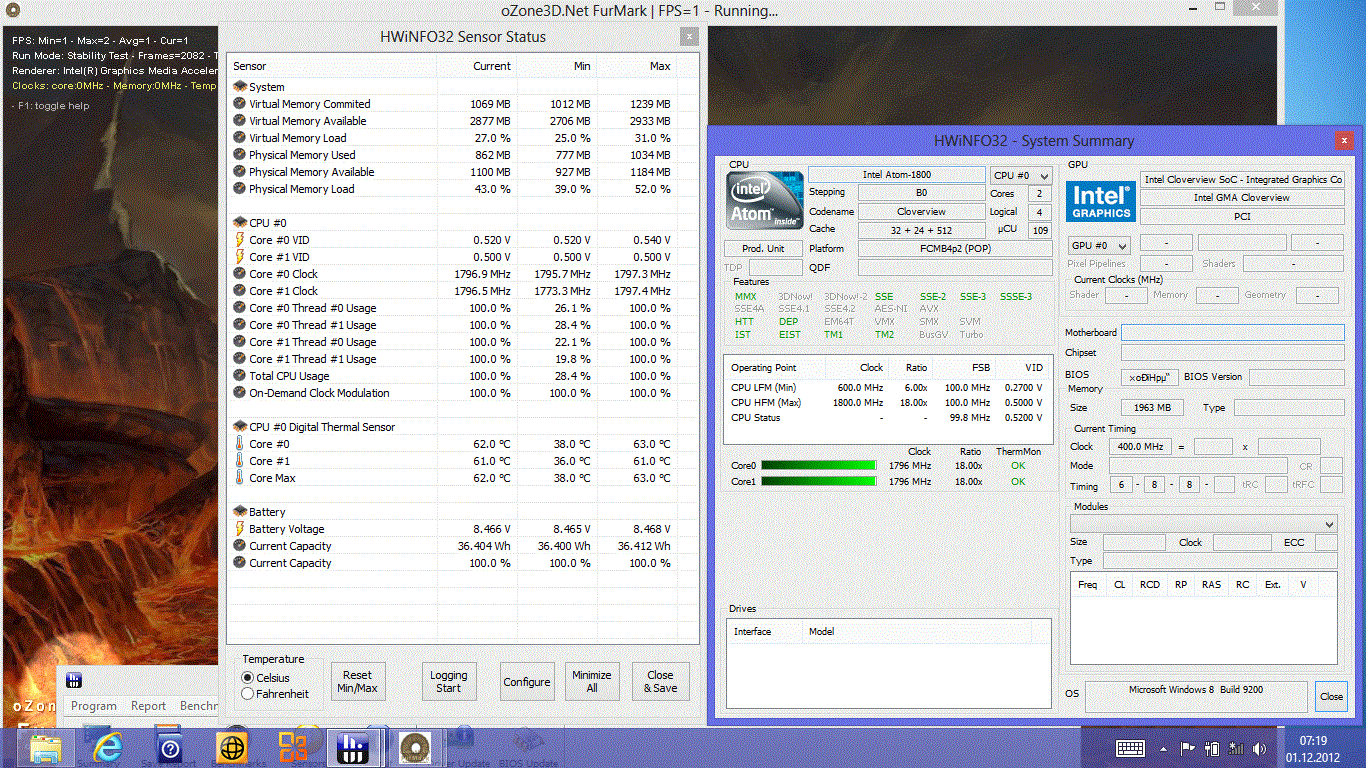

The ATIV runs through the stress test (load: Furmark + Prime95) with a stable CPU clock of 1.8 GHz. Since we noticed that the mouse cursor recurrently jerked during simultaneous activities (parallel installations), we checked the CPU's capacity. In cases like this, the Atom is constantly loaded to 100%.
基于Tegra的设备一样，Ativ的智能电脑不运动的情况下风扇。这是可能的，尽管英特尔的Atom处理器，因为能源效率的CPU平板电脑设计的Z2760。由于功耗告诉我们，前几代Atom在上网本是彻头彻尾的能源浪费。因此，在活跃的情况下，风扇几乎总是被安装。主要虽然这是可能的，以被动地冷却，因为第二代（N450，等）的原子，制造商避开较大的散热片，和优选的常规风扇的重量和尺寸。
由于闪速存储器被用作存储装置，有没有其他活动部分内的片剂可能产生噪音。因此，Ativ的始终保持绝对的沉默。
这是可能的热不是一个缺点。 Ativ的总是在一个不显眼的范围内，在我们测试的所有运行状态。在平板模式下，用户应该不会遇到任何限制，最高表面温度32℃。仅仅在背部和高达34°C在屏幕上。我们记录了温度对平板电脑的正面和背面。键盘底座残留在室温下，因为它不包含电路或电池。
Ativ的运行提供一个稳定的1.8 GHz的CPU时钟通过压力测试（负载的Furmark+ Prime95的）。因为我们注意到，将鼠标光标猛地循环过程中同时进行的活动（平行安装），我们检查了CPU的能力。在这样的情况下，原子不断地加载到100％。
(+) The maximum temperature on the upper side is 33.8 °C / 93 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 32.2 °C / 90 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.3 °C / 82.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.2 °C / -0.3 F).
Speakers

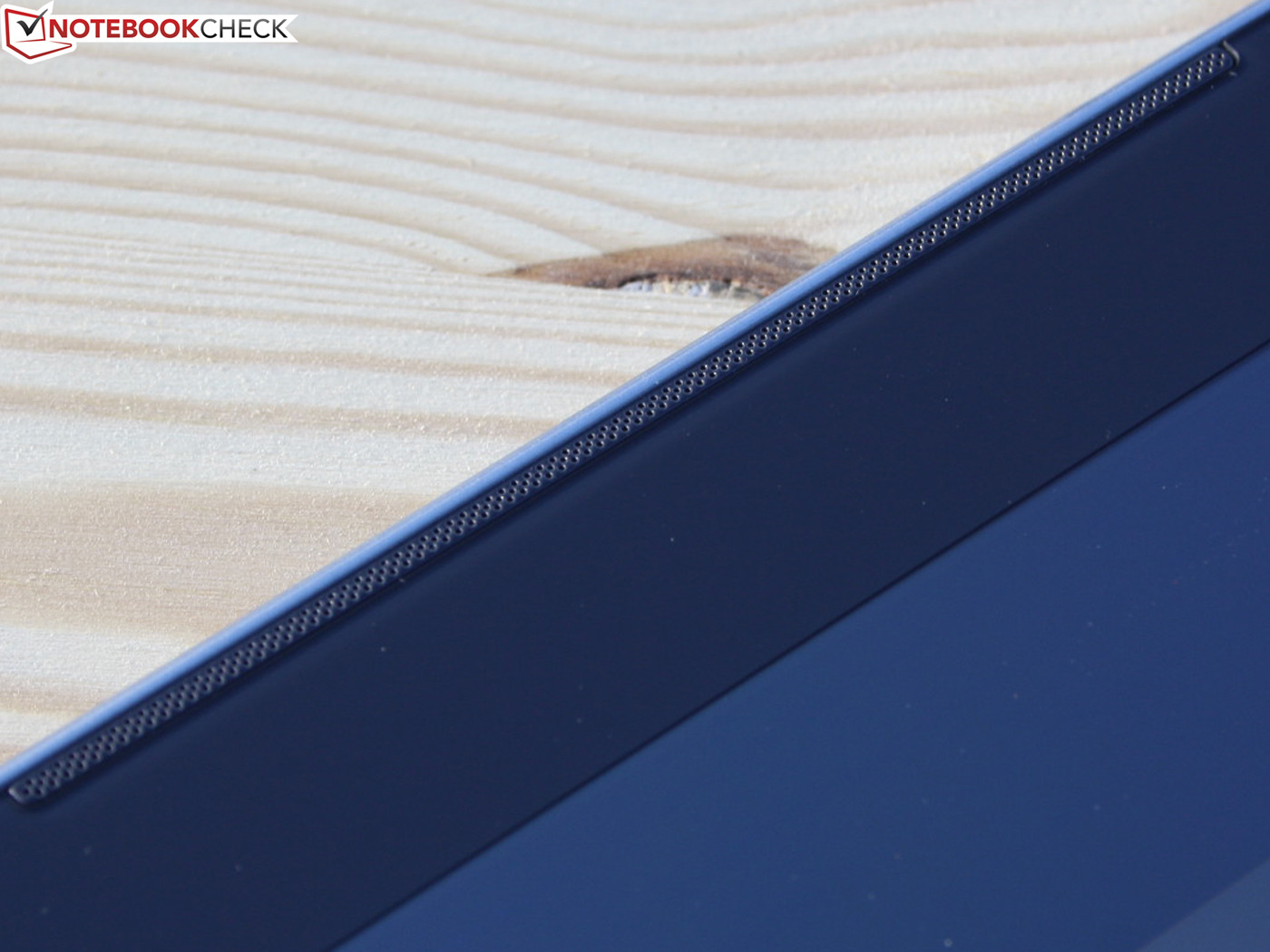

The built-in speakers at the tablet's edges provide an acceptable sound for quiet background music or a movie when the volume is properly adjusted. The maximum volume lets the speakers overdrive slightly and the sound loses some of its quality. Low ranges and bass are disappointing since they simply do not exist (treble-heavy sound). A standard 3.5 millimeter combo audio jack is available for earphones and is the perfect solution for headsets.
音箱
内置的扬声器可以接受的声音安静的背景音乐或电影时调节音量适当的平板电脑的边缘很抱歉。让扬声器最大音量和声音超速稍宽松一些质量。因为他们根本Tellows，存在（高音沉重的声音）低的范围和低音是令人失望的。一个标准的3.5毫米音频插孔的组合是可用于耳机和耳机是完美的解决方案。
Energy Management
Power Consumption
The power consumption ranged between 1.6 - 4 watts in idle and good 6 watts during load via 3DMark 2006. This extremely low power consumption is on the level of 10 inch Tegra tablets and thus no longer comparable with the Windows convertibles we have previously tested. The Vaio Duo 11, featuring the same screen size but the i5 3317U ultrabook processor, consumes 5 - 11 watts in idle and 34 watts during load. The computing power of this genuine PC hardware is naturally much higher than our Intel Atom based ATIV Smart PC.

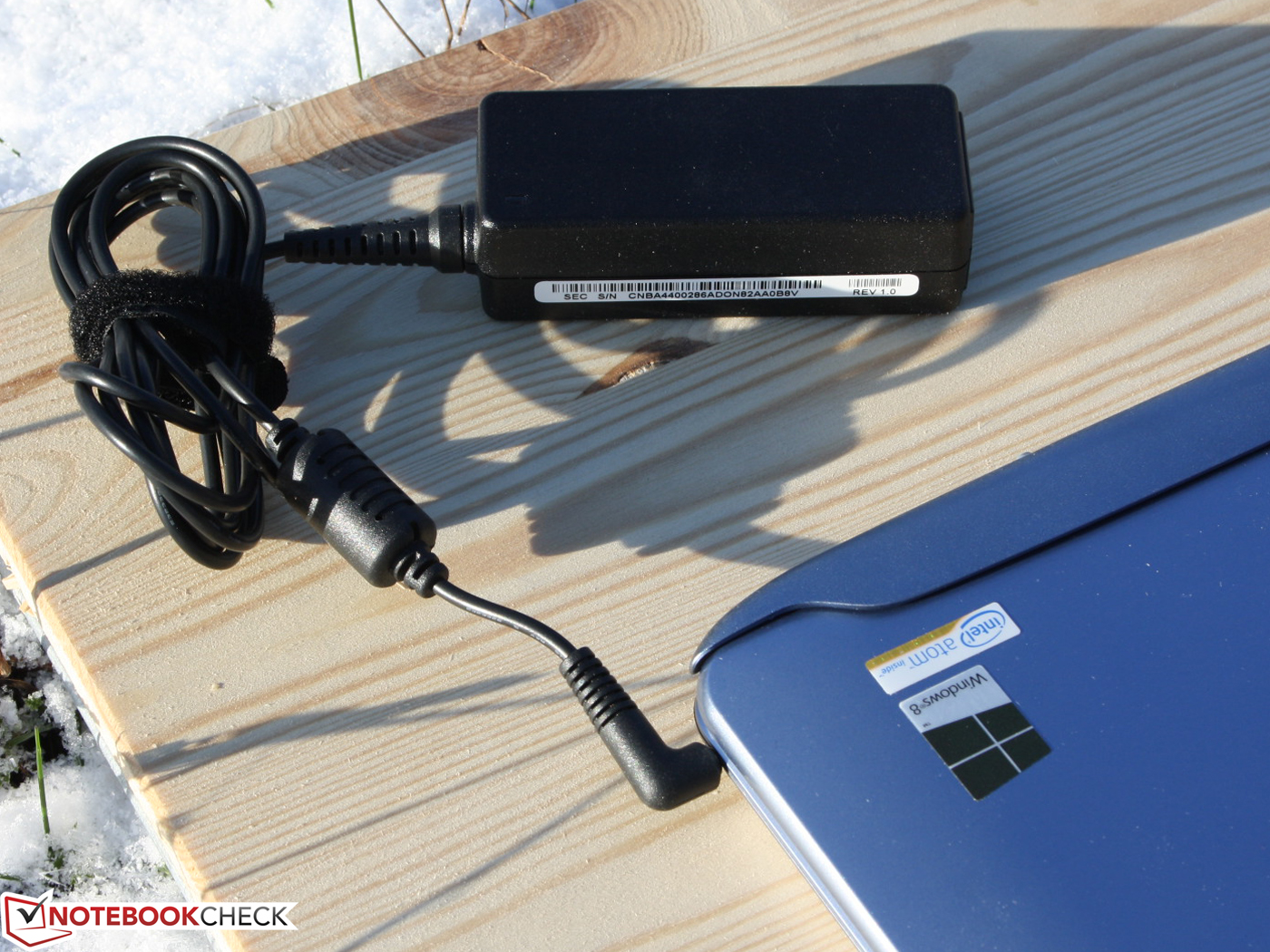

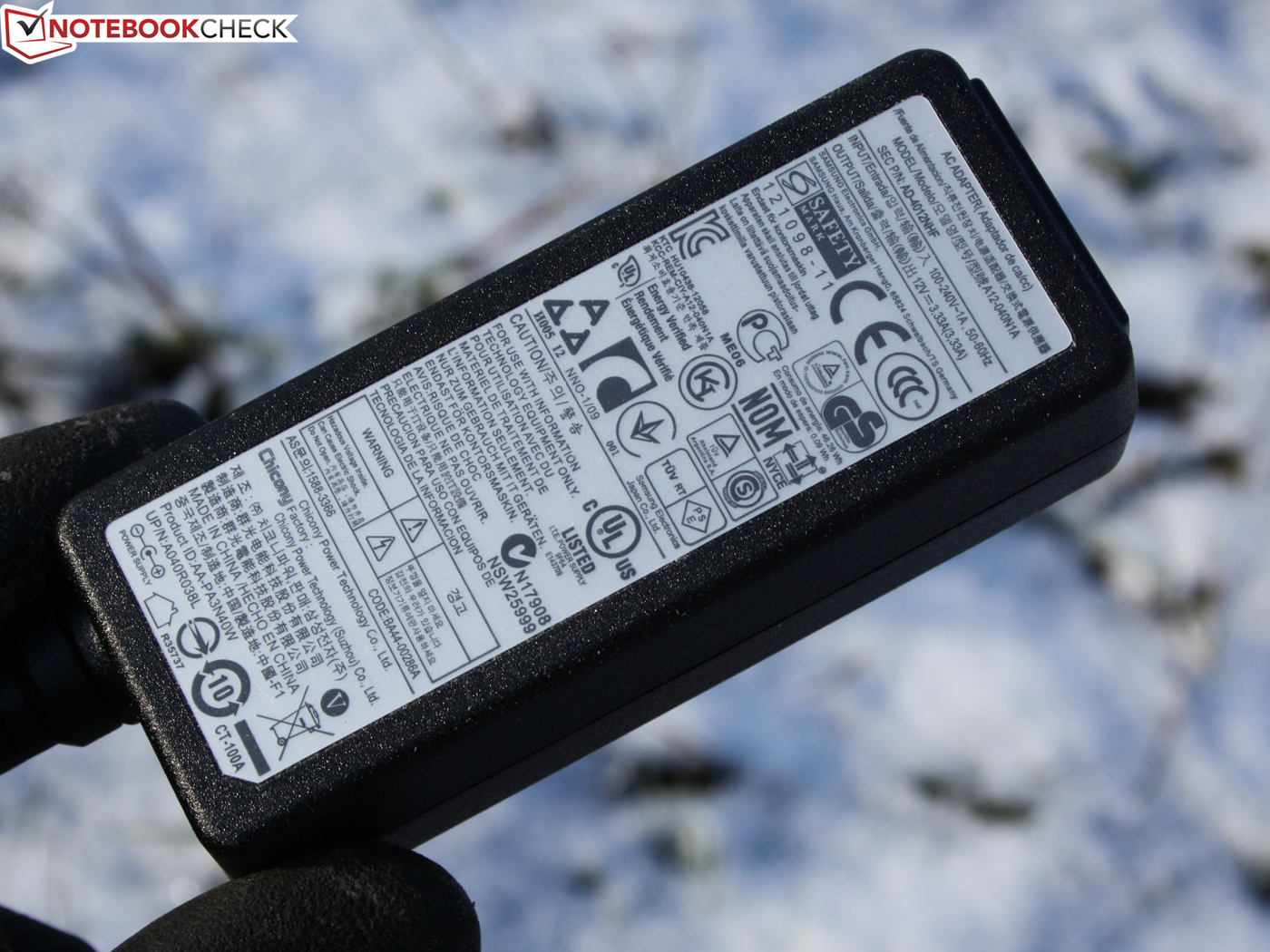

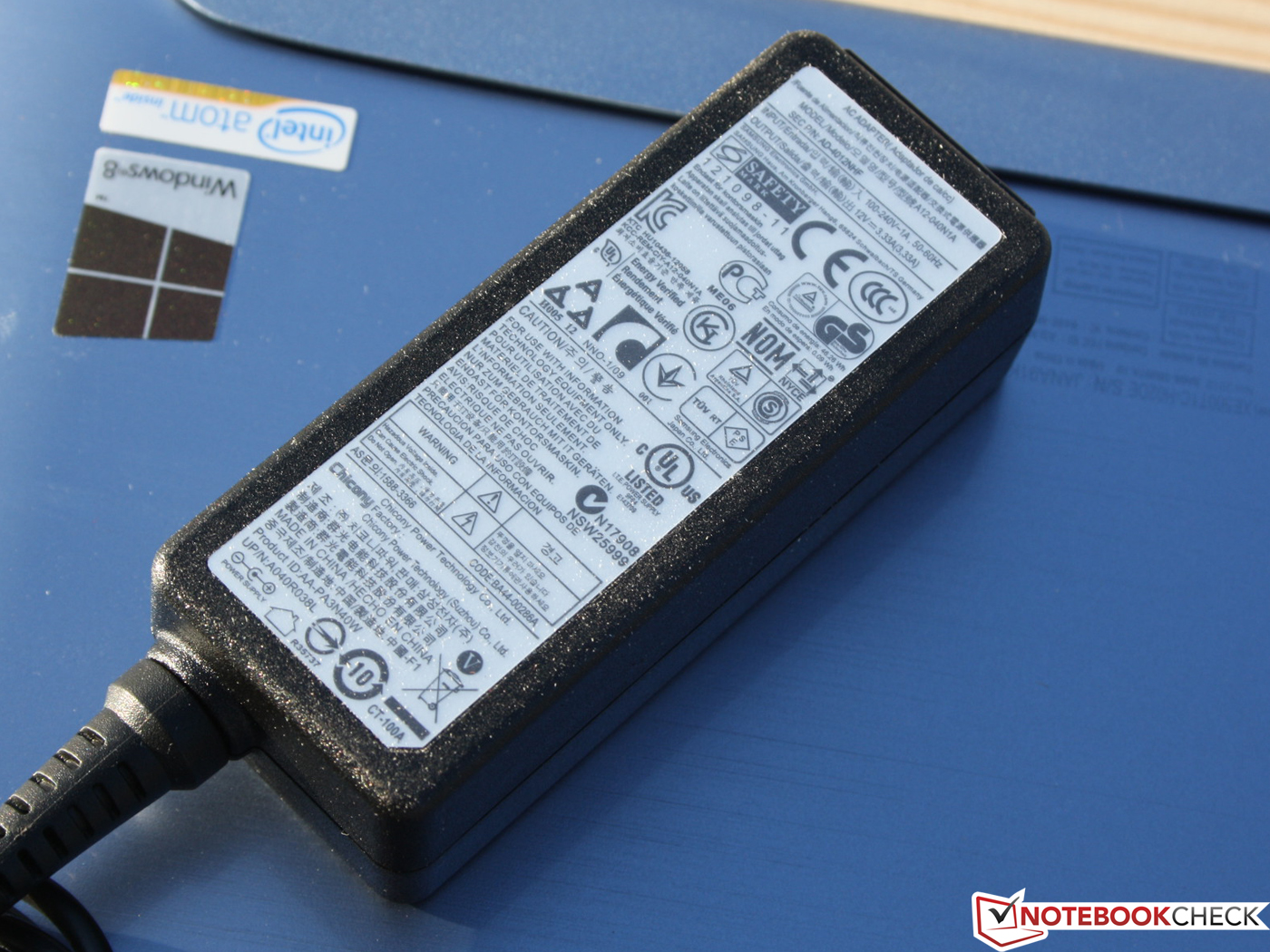

The 40 watt PSU is apparently oversized for this power consumption. However, recharging the battery consumes 23 watts. When added up, we have 31.5 watts during maximum load. A complete recharge takes almost three hours when the device is on.
耗电量
负载在闲置和良好的6瓦特在2006年通过的3DMark介于1.6 - 4瓦的功耗。这种极低的功耗水平的10寸Tegra的平板电脑和马尔萨斯不再与我们先前测试过的Windows敞篷车的Vaio具有同样的屏幕尺寸，但3317U Ultrabook的酷睿i5处理器，双核11，在加载过程中的闲置和34瓦消耗5瓦至11瓦。真正的PC硬件的计算能力，这自然是远远高于我们的基于英特尔凌动Ativ的智能电脑。
该功耗40瓦PSU显然是过大的。然而，电池的充电消耗23瓦。当添加了，我们有31.5瓦特在最大负载。时，该设备是一个完整的充电需要将近三个小时。
| Off / Standby | 0.2 / 0.8 Watt |
| Idle | 1.6 / 4.1 / 4 Watt |
| Load |
7 / 8.5 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC 960 | |
Battery Runtime
We test three battery runtime scenarios: The minimum possible battery life (screen: maximum brightness, no timeout) and the maximum runtime in idle with disabled Wi-Fi module and minimum screen brightness. The third scenario is Wi-Fi surfing at a brightness of 150 cd/m² (brightness sensor is fully exposed) and a script opens various websites every 40 seconds. It also includes playing many video.

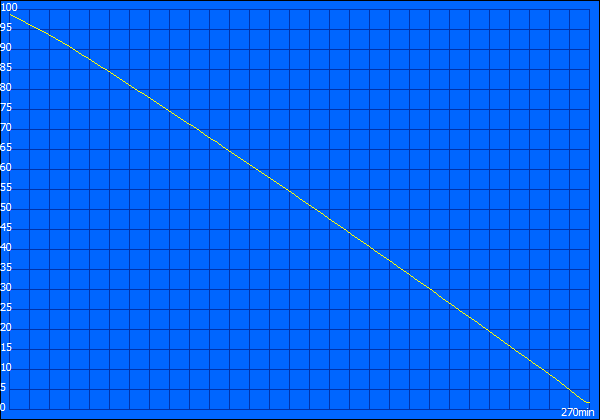

The ATIV lasted for 270 minutes before it was drained in the load scenario. The read test ran for 883 minutes before the battery gave up. We could browse through websites for over seven hours (434 minutes, Wi-Fi test). That is a decent runtime for the 30 Wh battery.
However, Microsoft's Surface RT (932/./516) lasted longer and most 10 inch Android tablets are online for up to three hours more in the relevant Wi-Fi test. Here a small list: Huawei MediaPad 10 FHD (883/312/417), Medion Lifetab S9714 (683/216/416), Amazon Kindle Fire HD 8.9" (855/183/456), Lenovo IdeaTab S2110A (1182/223/494), Apple iPad 4 (1264/252/555), Google Nexus 10 (1030/212/653).
The convertible contenders using an ultrabook platform cannot keep up with these figures: Sony Vaio Duo 11 (440/106/227), Dell XPS 12 (578/91/334), IdeaPad Yoga (385/119/269), Asus Taichi 21 (308/77/195).
我们测试了电池的运行情况：可能的最小的电池寿命（屏幕的最大亮度，无超时），最大运行在空闲残疾人士使用的Wi-Fi模块和最小的屏幕亮度。第三个方案是Wi-Fi上网冲浪时的亮度为150坎德拉/平方米（亮度传感器充分暴露）和脚本打开不同的网站每40秒。它包括所以许多播放视频。
Ativ的持续时间为270分钟，然后才在负载情况下排出。读取测试为883分钟跑了，之前的电池了，我们可以通过网站浏览超过七小时（434分钟，Wi-Fi测试）。这是一个体面的运行时间为30 Wh电池。
然而，微软的的表面RT（932/./516）持续时间长，大多数10英寸的Android平板电脑在线测试长达3个小时在相关的Wi-Fi的。在这里一个小清单：华为MediaPad10 FHD（883/312/417），“麦迪龙：LifeTab S9714（683/216/416），亚马逊Kindle Fire HD8.9”（855/183/456），联想IdeaTab S2110A（1182/223 / 494），苹果iPhone 4（1264/252/555），谷歌Nexus10（1030/212/653）。
的Ultrabook平台的可换股竞争者使用不能跟上这些数字：索尼双核11（440/106/227），戴尔XPS12（578/91/334）：的IdeaPad瑜珈（385/119/269），华硕太极21 （308/77/195）
Verdict
Samsung launched a versatile Windows tablet on the market with its ATIV Smart PC. It aims at Windows users who want to work just as productively as on a Windows subnotebook but without an App Store (Windows RT) and with a dockable tablet keyboard. Samsung won't win over Android fans because those who simply need a keyboard will buy a tablet stand and a Bluetooth keyboard. Moreover, the Android hardware is much less expensive than the almost EUR 700 ATIV Smart PC XE500T1C plus keyboard dock.
So we'll stick to the Windows fan who wants to get comfortable with the Smart PC without a cloud printer and alternative software. However, a big hurdle has to be overcome: The 64 GB flash memory is definitely too small. We only had 20 GB available in state of delivery. A micro SD with additional 64 GB has to be inserted right away.
The Atom Z2760 naturally does not provide a speedy performance, but a comparison with laptop processors would be unfair for the tablet CPU. Unfortunately, this does not interest Windows 8 much. If you are used to jumping back and forth between several windows, you will still be able to work fast enough. However, even the cursor starts to jerk as soon as the processor is put under load (copying, program installations, etc.). Buyers should realize that they are purchasing netbook power that is far below the work speed of simple laptops (Pentium / Celeron). The flash memory improves the work speed a bit and makes non-power use quite pleasant.
Memory too small, processor too slow - why not buy the big Smart PC Pro (XE700T1C-A02DE) with a Core i5 and a 128 GB SSD right away? The answer could be yes if it were not for a small price difference. It costs EUR 1500.
Ativ的智能PC市场上，三星推出了一款多功能的Windows平板。它的目的是Windows用户谁想要工作在亚笔记本一样高效地为Windows，但没有App Store的（的Windows RT）和一个可停靠的平板电脑键盘。三星Android不会赢得球迷，因为只需要一个键盘会买一个平板电脑支架和一个蓝牙键盘。此外，Android硬件是便宜得多几乎EUR700 Ativ的智能电脑XE500T1C加上键盘底座。
因此，我们将坚持到Windows的球迷谁想要得到舒适与智能无云打印机和替代软件的PC。然而，一个很大的障碍，必须克服：64 GB快闪记忆体绝对是太小了。我们只有20 GB的可用状态交货。一个额外的64 GB的微型SD马上要插入。
的Atom Z2760自然也不能提供一个高速性能，但笔记本电脑处理器的比较是不公平的平板电脑CPU。不幸的是，这并不感兴趣。多的Windows8。如果你正在使用几个窗口之间来回跳动，你会静静地工作速度不够快。然而，即使是光标开始挺举尽快所述处理器放置在负载下（复印，安装的程序，等等）。应该认识到，他们所购买的上网本电源是简单的工作笔记本电脑（奔腾/赛扬）的速度远低于买家。快闪记忆体的工作提高了速度有点和使非电力使用相当愉快。
内存太小，速度太慢处理器 - 为什么不买大的Smart PC Pro的（XE700T1C A02DE）与酷睿i5和128 GB SSD？答案可以是肯定的，如果不是因为一个小的价格差。它的成本EUR1500次
