Acer Aspire E5-551-T8X3 Kaveri A10-7300 笔记本电脑简短评测

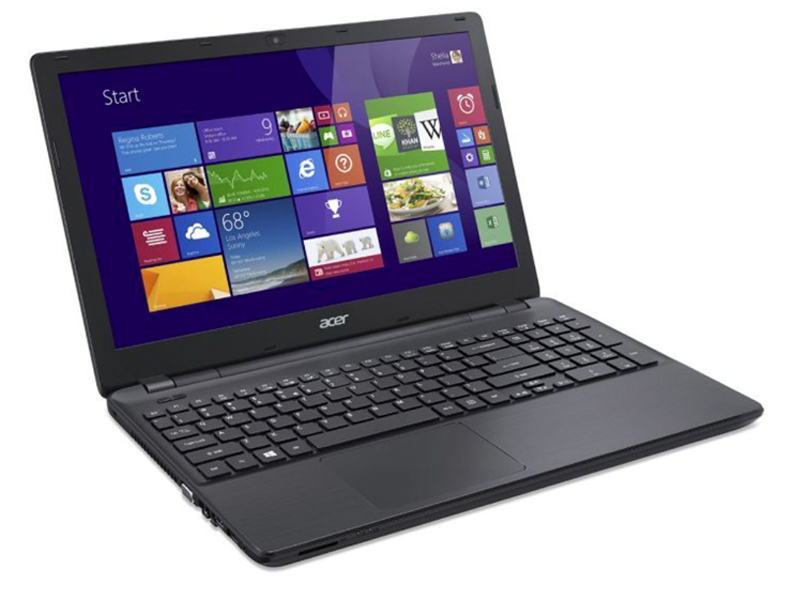

Name: Acer Aspire E5-551-T8X3
Brand: Acer

Kaveri来临。 AMD希望借助Bulldozer架构的后续平台来对抗Intel的Haswell入门级处理器。Acer在它们常用的机身设计中加入了全新的A10-7300四核处理器和集成的Radeon R6显卡，以仅500欧元（约670美元）的售价为手头较紧的消费者提供了一款实惠的多媒体笔记本电脑。这次AMD可以与Intel一争高下吗？

Sven Kloevekorn, ✓ Tanja Hinum (translated by Yuchen Wang), Published 08/03/2014 🇺🇸 🇩🇪 ...

Laptop / Notebook Windows

	Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	HP Compaq 15-a024sg GeForce 820M, 3110M, HGST Travelstar 5K1000 HTS541010A9E680	Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	Acer Aspire V5-573G-54208G50aii GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
Display		42%	6%	62%
Display P3 Coverage	38.41	54.7 42%	40.36 5%	64.1 67%
sRGB Coverage	56.8	81.4 43%	60.7 7%	89 57%
AdobeRGB 1998 Coverage	39.9	56.5 42%	41.7 5%	64.6 62%
Screen		5%	20%	63%
Brightness middle	178	211 19%	210 18%	287 61%
Brightness	179	200 12%	207 16%	278 55%
Brightness Distribution	94	83 -12%	88 -6%	77 -18%
Black Level *	0.44	0.36 18%	0.43 2%	0.24 45%
Contrast	405	586 45%	488 20%	1196 195%
Colorchecker dE 2000 *	9.78	11.25 -15%	5.19 47%	4.8 51%
Greyscale dE 2000 *	10.01	13.17 -32%	4.43 56%	5 50%
Gamma	2.06 ^107%	2.61 ^84%	2.17 ^101%	2.7 ^81%
CCT	11038 ^59%	19928 ^33%	7253 ^90%	6360 ^102%
Color Space (Percent of AdobeRGB 1998)	37		38.5 4%	61 65%
Total Average (Program / Settings)		24% / 16%	13% / 16%	63% / 63%

* ... smaller is better


176 cd/m²	181 cd/m²	181 cd/m²
180 cd/m²	178 cd/m²	177 cd/m²
184 cd/m²	173 cd/m²	181 cd/m²

Distribution of brightness

AU Optronics AUO47EC tested with X-Rite i1Pro 2

Maximum: 184 cd/m² (Nits) Average: 179 cd/m²
Brightness Distribution: 94 %
Center on Battery: 178 cd/m²
Contrast: 405:1 (Black: 0.44 cd/m²)
ΔE Color 9.78 | 0.5-29.43 Ø4.92
ΔE Greyscale 10.01 | 0.5-98 Ø5.2
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.8% sRGB (Argyll 2.2.0 3D)
38.41% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.06

Download ICC File (X-Rite i1Pro 2)

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	1.74 Points
HP Compaq 15-a024sg GeForce 820M, 3110M, HGST Travelstar 5K1000 HTS541010A9E680	2.38 Points +37%
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	2.48 Points +43%
Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	1.75 Points +1%
Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX	1.48 Points -15%
Asus F550DP-XX022H Radeon HD 8550G + HD 8670M Dual Graphics, A8-5550M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	1.9 Points +9%
CPU Single 64Bit (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	0.49 Points
HP Compaq 15-a024sg GeForce 820M, 3110M, HGST Travelstar 5K1000 HTS541010A9E680	0.97 Points +98%
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	1.11 Points +127%
Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	0.44 Points -10%
Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX	0.39 Points -20%
Asus F550DP-XX022H Radeon HD 8550G + HD 8670M Dual Graphics, A8-5550M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	0.79 Points +61%

Cinebench R10 Shading 32Bit

3868

Cinebench R10 Shading 64Bit

3731 Points

Cinebench R10 Rendering Single 32Bit

1759

Cinebench R10 Rendering Multiple CPUs 32Bit

4886

Cinebench R10 Rendering Multiple CPUs 64Bit

6252 Points

Cinebench R10 Rendering Single CPUs 64Bit

2359 Points

Cinebench R11.5 CPU Multi 64Bit

1.74 Points

Cinebench R11.5 CPU Single 64Bit

0.49 Points

Cinebench R11.5 OpenGL 64Bit

21.25 fps

Cinebench R15 CPU Multi 64Bit

139 Points

Cinebench R15 CPU Single 64Bit

44 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

22.53 fps

Help

... in comparison

	Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	HP Compaq 15-a024sg GeForce 820M, 3110M, HGST Travelstar 5K1000 HTS541010A9E680	Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
PCMark 7		28%	31%	-5%	-14%
Score	1723	2464 43%	2533 47%	1790 4%	1473 -15%
Lightweight	1587	2070 30%	2090 32%	1445 -9%	1323 -17%
Productivity	1166	1376 18%	1490 28%	916 -21%	812 -30%
Entertainment	1811	2409 33%	2424 34%	1644 -9%	1498 -17%
System Storage	1375	1601 16%	1560 13%	1500 9%	1513 10%

PCMark 7 Score		1723 points
PCMark 8 Home Score Accelerated v2		2574 points
PCMark 8 Work Score Accelerated v2		3558 points
Help

... in comparison

HD Tune

CrystalDiskMark 3.0

Western Digital Scorpio Blue WD5000LPVX

Transfer Rate Minimum: 48.3 MB/s

Transfer Rate Maximum: 111.6 MB/s

Transfer Rate Average: 83.4 MB/s

Access Time: 17.9 ms

Burst Rate: 200.6 MB/s

CPU Usage: 5.7 %

	Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	HP Compaq 15-a024sg GeForce 820M, 3110M, HGST Travelstar 5K1000 HTS541010A9E680	Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050
3DMark		39%	36%
1280x720 Ice Storm Standard Score	32809	51917 58%	50055 53%
1280x720 Ice Storm Standard Graphics	42872	68312 59%	64577 51%
1280x720 Ice Storm Standard Physics	18012	28216 57%	28010 56%
1280x720 Cloud Gate Standard Score	3726	4323 16%	4225 13%
1280x720 Cloud Gate Standard Graphics	6523	5697 -13%	5398 -17%
1280x720 Cloud Gate Standard Physics	1490	2345 57%	2401 61%
3DMark 11		14%	12%
1280x720 Performance	1363	1351 -1%	1302 -4%
1280x720 Performance GPU	1290	1237 -4%	1194 -7%
1280x720 Performance Physics	2059	3029 47%	3047 48%
Total Average (Program / Settings)		27% / 31%	24% / 28%

3DMark 11 Performance		1363 points
3DMark Ice Storm Standard Score		32809 points
3DMark Cloud Gate Standard Score		3726 points
3DMark Fire Strike Score		853 points
Help

... in comparison

	low	med.	high
Batman: Arkham City (2011)	47	40	20
The Elder Scrolls V: Skyrim (2011)	32.4	27.1	18.4
Anno 2070 (2011)	59.6	31.4	19.6
Dishonored (2012)	38.3	32.6	29.5
Medal of Honor: Warfighter (2012)	35	23.4	18.2
Call of Duty: Black Ops 2 (2012)	52.8	37.7	19.7
Hitman: Absolution (2012)	18.58
Crysis 3 (2013)	24.8	15.5
Tomb Raider (2013)	51.6	26.9	19
BioShock Infinite (2013)	45.85	26.23	22.36
Dota 2 (2013)	42.2	24.5
Call of Duty: Ghosts (2013)	26.3	22.3
Thief (2014)	18.8
Wolfenstein: The New Order (2014)	29.6	29.1
Watch Dogs (2014)	17.5
GRID: Autosport (2014)	70.1	30.66	16.99

Noise Level

Idle		28.5 / 29.4 / 29.4 dB(A)
HDD		30.3 dB(A)
DVD		36.5 / 43.8 dB(A)
Load		31 / 33.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: PCE-322A (15 cm distance)

Max. Load

Idle


29.4 °C	26.9 °C	24.8 °C
32.2 °C	30.1 °C	25.1 °C
28.7 °C	31.5 °C	28.6 °C

Maximum: 32.2 °C
Average: 28.6 °C


24.9 °C	27 °C	34.8 °C
25.9 °C	33.5 °C	37.7 °C
27.3 °C	31.9 °C	28.4 °C

Maximum: 37.7 °C
Average: 30.2 °C

Power Supply (max.) 36.6 °C | Room Temperature 20.3 °C | Fennel First 550

(+) The average temperature for the upper side under maximal load is 31 °C / 88 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 35.4 °C / 96 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 39.5 °C / 103 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.6 °C / 83 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.3 °C / 95.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-6.5 °C / -11.7 F).

Power Consumption

Off / Standby	0.3 / 0.5 Watt
Idle	9 / 11.9 / 18.4 Watt
Load	37.1 / 38.5 Watt


Key: min: , med: , max: Voltcraft VC 870 ISO kalibriert

Battery Runtime

Idle (without WLAN, min brightness)		8h 01min
WiFi Surfing		4h 40min
DVD		3h 20min
Load (maximum brightness)		2h 00min

华硕基于Kaveri处理器的Aspire E5-551-T8X3的表现没能征服我们。尽管Radeon R6的图形性能有时可以追上GeForce 820M，甚至在Cloud Gate测试中超过它，很大程度上取决于测试软件，这点有可能在之后的驱动更新重得到改善。它的实际游戏性能更为重要。在本节下面列出的游戏运行帧数表明它的性能介于Intel的HD 4400和GeForce 820M之间。单线程运算性能仍然是AMD最大的软肋。压力测试下的成绩让我们对它处理器和显卡共享的19W热设计功率下仍持怀疑态度。因为从性能来看它的能耗依然很高，虽然我们的测试机配备了大容量的电池，但最终续航时间并不理想。

就像之前提到的，它的噪音控制和散热设计都很优秀。在这方面它并没有任何缺陷，甚至超过了大多数多媒体笔记本的表现。它的机身虽然设计有些乏味但质量很好，同样不错的输入设备（尽管有些小瑕疵）也是Acer Aspire的长项。锐利、不过整体表现中庸的屏幕在校正后的色彩还原之准确让我们略感意外。不过，我们认为这款笔记本电脑只值得推荐给需要它的这些优点的读者，或可以等待E5-551-T8X3的价格降到约400欧元的读者。Kaveri架构处理器在未来笔记本型号中的表现仍有待观察。

补充：在安装了最新的驱动包后，我们又对Kaveri处理器进行了一些更详细的测试。特别是这可以提供对MANTLE效果的测试。最后它在单线程运算测试中得到了更好的成绩。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Tomb Raider
1024x768 Low Preset (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	51.6 fps
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	70.4 fps +36%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO	44.1 fps -15%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	26.9 fps
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	34.7 fps +29%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO	23.5 fps -13%

BioShock Infinite
1280x720 Very Low Preset (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	45.85 fps
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	51.2 fps +12%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO	31.49 fps -31%
1366x768 Medium Preset (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	26.23 fps
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	28.6 fps +9%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO	17.06 fps -35%

The Elder Scrolls V: Skyrim
1280x720 Low Preset (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	32.4 fps
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	43.5 fps +34%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO	31.69 fps -2%
1366x768 Medium Preset AA:4x (sort by value)
Acer Aspire E5-551-T8X3 Radeon R6 (Kaveri), A10-7300, Western Digital Scorpio Blue WD5000LPVX	27.1 fps
Asus X550LD-XX023H GeForce 820M, 4200U, Toshiba MQ01ABF050	29.5 fps +9%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO	17.33 fps -36%

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Acer Aspire E5-551-T8X3

Processor

AMD A10-7300 4 x 1.9 - 3.2 GHz, Kaveri

Graphics adapter

AMD Radeon R6 (Kaveri), Core: 533 MHz, DDR3L, 共享内存, 总线位宽: 64位, 13.351.1002.1002

Memory

8 GB

, DDR3L, 1600 MHz, 双通道, 2内存插槽均占用

Display

15.60 inch 16:9, 1366 x 768 pixel, AU Optronics AUO47EC, TN LED, glossy: no

Mainboard

AMD A76M

Storage

Western Digital Scorpio Blue WD5000LPVX, 500 GB

, 5400 rpm

Soundcard

AMD Hudson-2 High Definition Audio Controller

Connections

2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD/SDHC/SDXC

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Atheros Communications AR9565 Wireless Network Adapter (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Optical drive

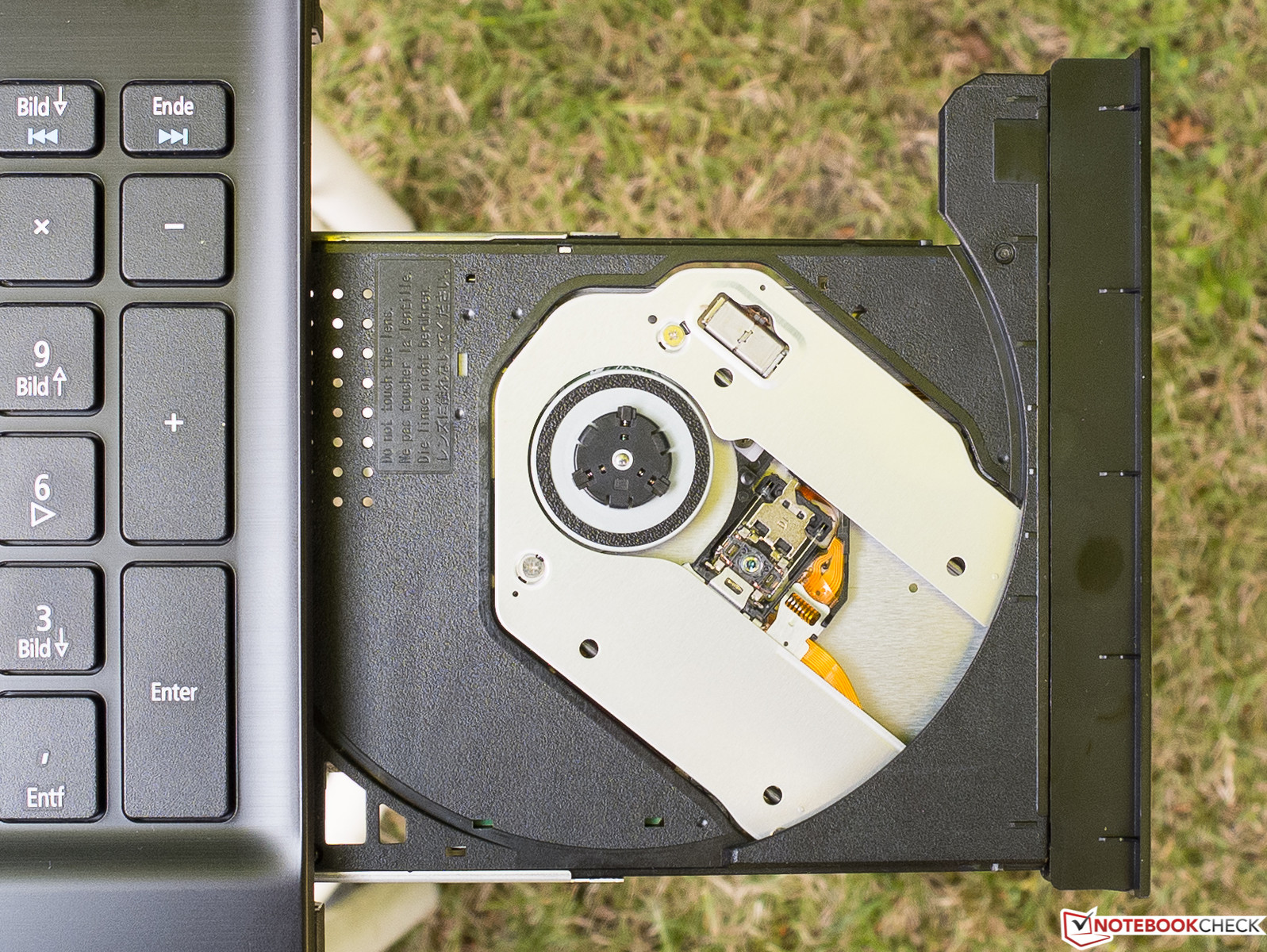

Matshita DVD-RAM UJ8E2Q

Size

height x width x depth (in mm): 25 x 382 x 256

Battery

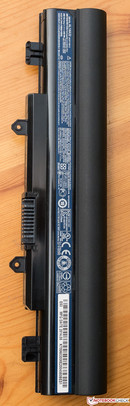

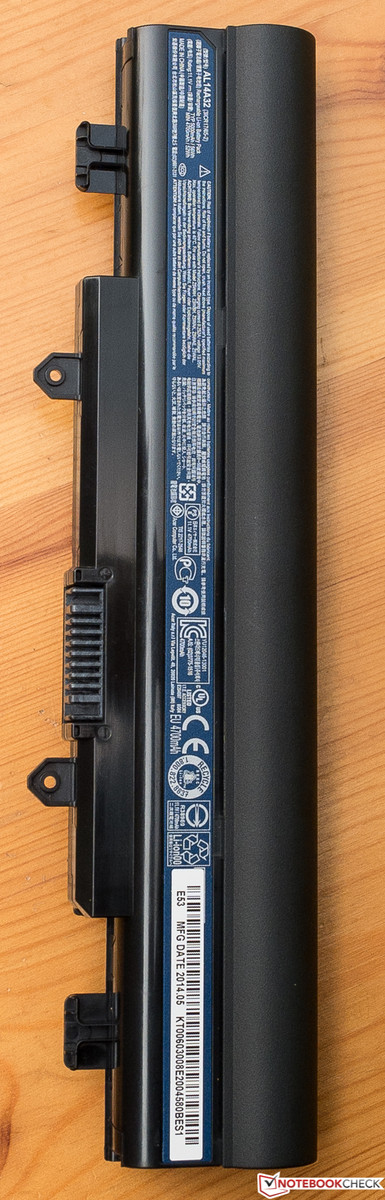

56 Wh Lithium-Ion

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: 90万像素

Additional features

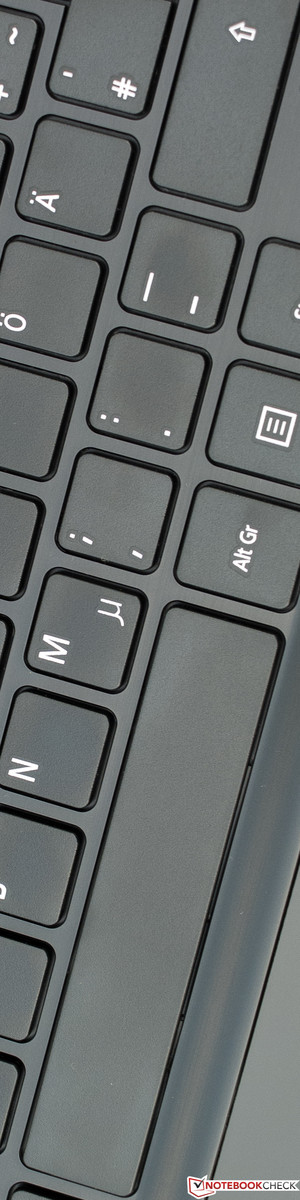

Speakers: 前置立体声扬声器, Keyboard: 孤岛式, Keyboard Light: no, McAfee Internet Security 30天试用版, CyberLink: PowerDVD 12, PowerDirector, PhotoDirector 3, 和其他许多Acer工具软件, 24 Months Warranty

Weight

2.5 kg

Price

500 Euro

Links

Acer homepage
Acer notebook section

Devices with Same Screen Size and/or Weight

宏碁 Aspire 17 2024 笔记本电脑评测：薄弱的 dGPU 和令人失望的显示屏
GeForce RTX 2050 Mobile, Raptor Lake-U Core 7 150U, 17.30", 2.2 kg

宏碁 Aspire 16 2024 评测：没有多媒体屏幕的多媒体全能王
GeForce RTX 2050 Mobile, Raptor Lake-U Core 7 150U, 16.00", 1.866 kg

宏碁Swift X 14 2023 OLED评测--配备RTX 4050的多媒体笔记本电脑仅在纸面上令人印象深刻
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i7-13700H, 14.50", 1.529 kg

宏碁Swift Go 16评论：拥有耀眼的OLED显示屏的多媒体笔记本电脑
Iris Xe G7 96EUs, Raptor Lake-H i7-13700H, 16.00", 1.644 kg

宏碁Swift X SFX16-52G回顾：平衡效率和性能的笔记本电脑
A370M, Alder Lake-P i5-1240P, 16.00", 1.77 kg

宏碁Aspire 5 A515-57G笔记本电脑评测：RTX 2050的表现疲软
GeForce RTX 2050 Mobile, Alder Lake-P i5-1240P, 15.60", 1.824 kg

Acer Swift X 16 (2022)回顾。具有强大更新的16英寸笔记本电脑
A370M, Alder Lake-P i7-1260P, 16.00", 1.75 kg

Pros

+ 实用、坚固的机身

+ 不易沾染指纹

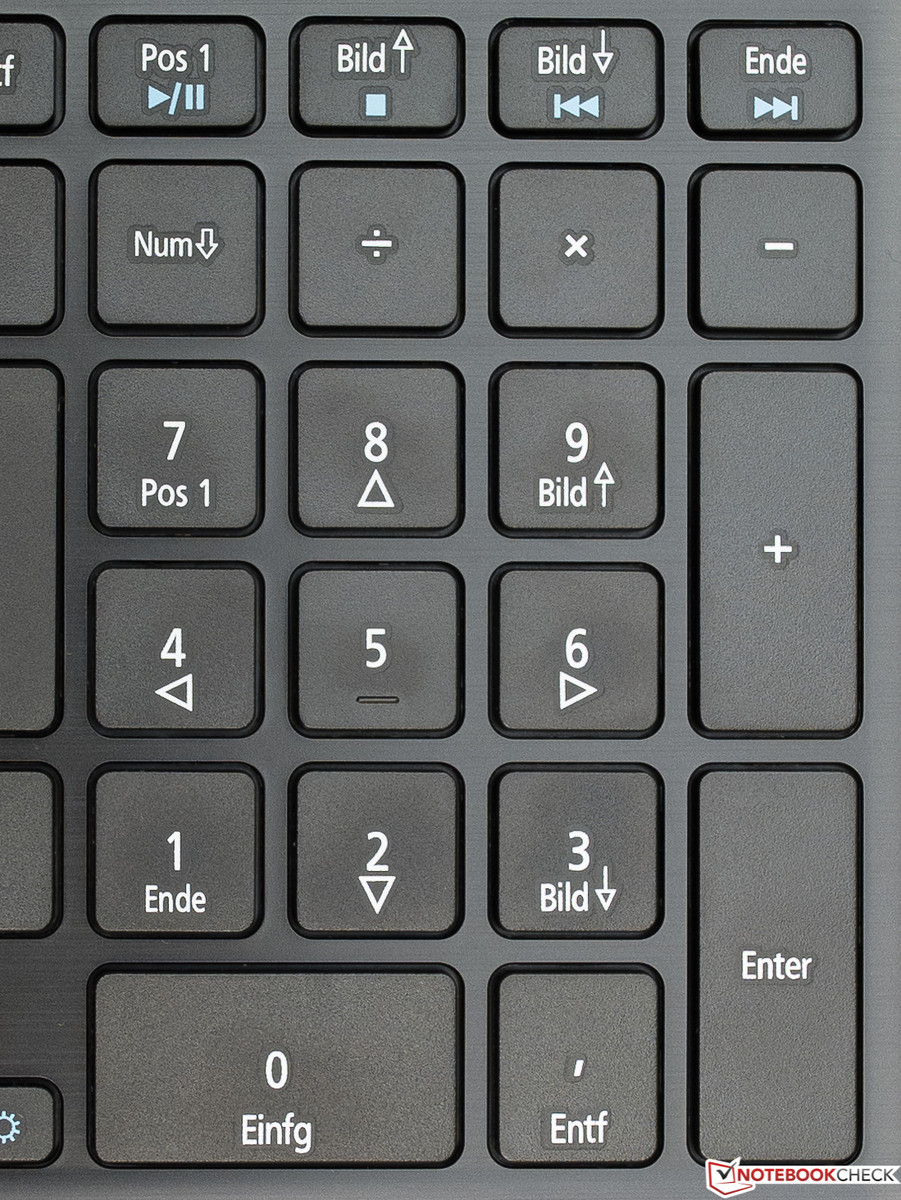

+ 好用的键盘

+ 不错的触控板

+ 非常安静

+ 散热很好

+ 屏幕锐利

+ 校色后屏幕色彩还原准确

+ 多任务处理性能

+ 性能可以满足通常的游戏需求

+ 较快的硬盘

+ DVD刻录机

Cons

- 几乎所有接口都在前端

- 机身容易弯折

- 中庸的TN面板

- 在极端情况下有降频问题

- 低系统性能

- 很差的单线程性能

- 硬盘有时很慢

- 相对性能来说功耗较高

- 尽管电池容量很大，续航时间不长

Acer Aspire E5-551-T8X3 - 11/06/2014 v4 ^(old)
Sven Kloevekorn

Chassis

76 / 98 → 78%

Keyboard

82%

Pointing Device

81%

Connectivity

64 / 81 → 79%

Weight

60 / 20-67 → 85%

Battery

83%

Display

75%

Games Performance

68 / 85 → 80%

Application Performance

54 / 92 → 59%

Temperature

90%

Noise

94 / 95 → 99%

Audio

70%

Average

75%

77%

Multimedia - Weighted Average

> Notebookcheck中文版（NBC中国） > 评测 > Acer Aspire E5-551-T8X3 Kaveri A10-7300 笔记本电脑简短评测

Sven Kloevekorn, 2014-08- 3 (Update: 2014-09-19)

Specifications

More articles related to this device

Pros

Cons
