Acer Aspire Switch 10 SW5-011-12VU 变形本简短评测

转变过晚? Acer最近推出了Aspire Switch 10以替代Clovertrail时代的W510二合一平板,这款Win8平板采用了新的Baytrail-T架构处理器和相似的键盘底座设计。它将会与至今最成功的变形本之一的华硕Transformer Book T100直接竞争。Acer是否提供了足够的吸引力来争夺消费者的目光呢?
Convertible / 2-in-1 Windows Tablet Bay Trail
332
cd/m²
331
cd/m²
325
cd/m²
335
cd/m²
357
cd/m²
353
cd/m²
311
cd/m²
311
cd/m²
314
cd/m²
Distribution of brightness
LP101WH4-SLAA tested with X-Rite i1Pro 2
Maximum: 357 cd/m² (Nits) Average: 329.9 cd/m²
Brightness Distribution: 87 %
Center on Battery: 257 cd/m²
Contrast: 965:1 (Black: 0.37 cd/m²)
ΔE Color 3.88 | 0.5-29.43 Ø4.92
ΔE Greyscale 2.79 | 0.5-98 Ø5.2
40.92% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.62% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.5% sRGB (Argyll 2.2.0 3D)
43.15% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26
Cinebench R10 Rendering Single 32Bit
972
Cinebench R10 Rendering Multiple CPUs 32Bit
3389
Cinebench R10 Shading 32Bit
2004
Help
Cinebench R10 - Rendering Multiple CPUs 32Bit (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
3389 Points
Asus Transformer Book T100TA-C1-GR
3334 Points -2%
Lenovo Miix 2 10
3226 Points -5%

Legend


Acer Aspire Switch 10 SW5-011-12VU Intel Atom Z3745D, Intel HD Graphics (Bay Trail), Hynix HCG8E 64 GB

Asus Transformer Book T100TA-C1-GR Intel Atom Z3740, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo Miix 2 10 Intel Atom Z3740D, Intel HD Graphics (Bay Trail), SanDisk U100 128 GB

Lenovo IdeaPad Yoga 11S (Haswell) Intel Core i5-4210Y, Intel HD Graphics 4200, Samsung MZMPC128HBFU
PCMark 7 - Score (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
2530 Points
Asus Eee PC 1011CX
703 Points -72%
Lenovo IdeaPad Flex 10
1521 Points -40%
Asus Transformer Book T100TA-C1-GR
2339 Points -8%
Lenovo Miix 2 10
2342 Points -7%
Lenovo IdeaPad Yoga 11S (Haswell)
3694 Points +46%
Acer Iconia W510
1248 Points -51%

Legend


Acer Aspire Switch 10 SW5-011-12VU Intel Atom Z3745D, Intel HD Graphics (Bay Trail), Hynix HCG8E 64 GB

Asus Eee PC 1011CX Intel Atom N2600, Intel Graphics Media Accelerator (GMA) 3600, WDC Scorpio Blue WD3200BPVT-80JJ5T0

Lenovo IdeaPad Flex 10 Intel Celeron N2806, Intel HD Graphics (Bay Trail), Hitachi Travelstar Z5K320 HTS543225A7A

Asus Transformer Book T100TA-C1-GR Intel Atom Z3740, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo Miix 2 10 Intel Atom Z3740D, Intel HD Graphics (Bay Trail), SanDisk U100 128 GB

Lenovo IdeaPad Yoga 11S (Haswell) Intel Core i5-4210Y, Intel HD Graphics 4200, Samsung MZMPC128HBFU

Acer Iconia W510 Intel Atom Z2760, Intel Graphics Media Accelerator (GMA) 3650, 64 GB SSD
Peacekeeper - --- (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
1122 Points
Lenovo ThinkPad 8
1214 Points +8%
Dell XPS 11
1590 Points +42%
Acer C720-2800 Chromebook
2871 Points +156%
PCMark 7 Score
2530 points
Help
Hynix HCG8E 64 GB
Sequential Read: 138.1 MB/s
Sequential Write: 45.14 MB/s
512K Read: 121.2 MB/s
512K Write: 43.87 MB/s
4K Read: 14.4 MB/s
4K Write: 3.855 MB/s
4K QD32 Read: 16.68 MB/s
4K QD32 Write: 4.272 MB/s
CrystalDiskMark 3.0
Read Seq (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
138.1 MB/s
Asus Eee PC 1011CX
87.5 MB/s -37%
Lenovo IdeaPad Flex 10
77.2 MB/s -44%
Asus Transformer Book T100TA-C1-GR
109 MB/s -21%
Lenovo Miix 2 10
75.4 MB/s -45%
Acer Aspire S7-392
838 MB/s +507%
Write 4k (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
3.855 MB/s
Asus Eee PC 1011CX
0.838 MB/s -78%
Lenovo IdeaPad Flex 10
0.891 MB/s -77%
Asus Transformer Book T100TA-C1-GR
4.034 MB/s +5%
Lenovo Miix 2 10
3.639 MB/s -6%
Acer Aspire S7-392
61.8 MB/s +1503%
3DMark 06 Standard Score
2009 points
3DMark 11 Performance
233 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
233 Points
Lenovo Miix 2 10
215 Points -8%
Asus Transformer Book T100TA-C1-GR
209 Points -10%
Lenovo IdeaPad Yoga 11S (Haswell)
747 Points +221%
World of Warcraft
800x600 low AA:0x AF:0x (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
49 fps
Acer Aspire V5-132P
78.3 fps +60%
Toshiba Encore WT8-A-102
47 fps -4%
Microsoft Surface Pro 2
176 fps +259%
1024x768 med (sort by value)
Acer Aspire V5-132P
28.3 fps
Toshiba Encore WT8-A-102
26 fps
Microsoft Surface Pro 2
128 fps

Legend


Acer Aspire Switch 10 SW5-011-12VU Intel Atom Z3745D, Intel HD Graphics (Bay Trail), Hynix HCG8E 64 GB

Acer Aspire V5-132P Intel Pentium 2129Y, Intel HD Graphics (Ivy Bridge), Toshiba MQ01ABF050

Toshiba Encore WT8-A-102 Intel Atom Z3740, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Microsoft Surface Pro 2 Intel Core i5-4200U, Intel HD Graphics 4400, Hynix HFS128G3MNM
lowmed.highultra
World of Warcraft (2005) 49
Max. Load
 25.6 °C35.9 °C38.4 °C
 26.9 °C37.4 °C38.6 °C
 29.8 °C36.2 °C36.5 °C
Maximum: 38.6 °C
Average: 33.9 °C
38.2 °C35.1 °C29.1 °C
38.1 °C34.7 °C28.7 °C
34.3 °C32.4 °C28.7 °C
Maximum: 38.2 °C
Average: 33.3 °C
Power Supply (max.)  44.1 °C | Room Temperature 21.6 °C | Raytek Raynger ST
(±) The average temperature for the upper side under maximal load is 33.9 °C / 93 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 38.2 °C / 101 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31 °C / 88 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.5 °C / 97.7 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-8.4 °C / -15.1 F).
Battery Runtime
Idle (without WLAN, min brightness)
7h 55min
WiFi Surfing
5h 52min
Big Buck Bunny H.264 1080p
4h 50min
Load (maximum brightness)
3h 00min
WLAN test performed with Internet Explorer (Desktop.) Video playback via Windows 8 Video app.
Battery Runtime
Reader / Idle (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
475 min
Asus Transformer Book T100TA-C1-GR
999 min
Lenovo Miix 2 10
461 min
Acer Iconia W510
1149 min
Lenovo IdeaPad Flex 10
400 min
Lenovo IdeaPad Yoga 11S (Haswell)
625 min
WiFi (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
352 min
Asus Transformer Book T100TA-C1-GR
647 min
Lenovo Miix 2 10
345 min
Acer Iconia W510
815 min
Lenovo IdeaPad Flex 10
220 min
Lenovo IdeaPad Yoga 11S (Haswell)
387 min
Load (sort by value)
Acer Aspire Switch 10 SW5-011-12VU
180 min
Asus Transformer Book T100TA-C1-GR
256 min
Lenovo Miix 2 10
224 min
Acer Iconia W510
677 min
Lenovo IdeaPad Yoga 11S (Haswell)
135 min

Legend


Acer Aspire Switch 10 SW5-011-12VU Intel Atom Z3745D, Intel HD Graphics (Bay Trail), Hynix HCG8E 64 GB

Asus Transformer Book T100TA-C1-GR Intel Atom Z3740, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo Miix 2 10 Intel Atom Z3740D, Intel HD Graphics (Bay Trail), SanDisk U100 128 GB

Acer Iconia W510 Intel Atom Z2760, Intel Graphics Media Accelerator (GMA) 3650, 64 GB SSD

Lenovo IdeaPad Flex 10 Intel Celeron N2806, Intel HD Graphics (Bay Trail), Hitachi Travelstar Z5K320 HTS543225A7A

Lenovo IdeaPad Yoga 11S (Haswell) Intel Core i5-4210Y, Intel HD Graphics 4200, Samsung MZMPC128HBFU
Power Consumption
Off / Standbydarklight 0 / 0.01 Watt
Idledarkmidlight 1.7 / 3.1 / 4.1 Watt
Load midlight 9.3 / 16.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Acer Aspire Switch 10
Acer Aspire Switch 10

在这个价位的产品中,我们难免会遇到一些功能上的妥协,不过Acer Aspire Switch 10是一个很全面、没有明显缺点的产品。可能是因为面对华硕Transformer Book T100的强大实力,Acer必须保证Switch 10有足够的能力在这个市场中获得一席之地。

Switch 10相对前代的Acer Iconia W510有了很大的性能提升,它甚至可以与更贵的联想Miix 2 10一争高下。尽管屏幕分辨率“只有”1366x768,不过它的质量很高,明亮且色彩准确;因为键盘和触控板同样设计优秀,它的笔记本模式并不只是可以用来发个微博而已。强劲的扬声器,稳固的屏幕转轴和高质量的WiFi同样让系统整体表现增色不少。我们对Aspire Switch 10最大的一点希望是它能有更长的电池续航时间,不过在379美元的价位,这也没什么可抱怨的了

华硕的Transformer Book T100是Acer Aspire Switch 10的直接竞争对手,也同样是一款优秀的产品。如果电池续航时间不是非常重要的话,T100应该是更好的选择,不过根据我们的评分标准,Acer Aspire Switch 10总体得分稍高,是个更好的低价2和1平板产品。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

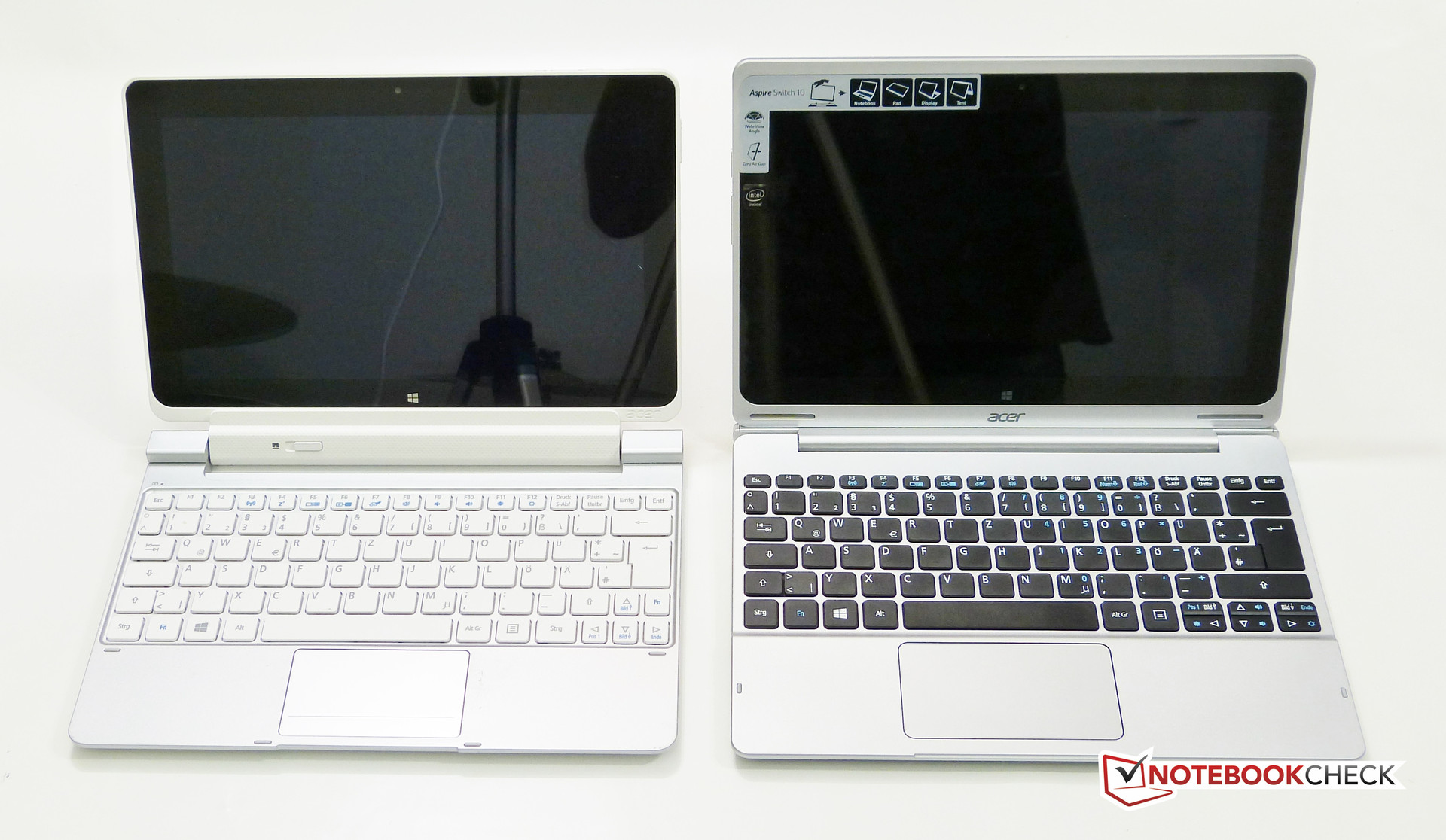

Acer Iconia W510 和 Acer Aspire Switch 10。
Acer Iconia W510 和 Acer Aspire Switch 10。

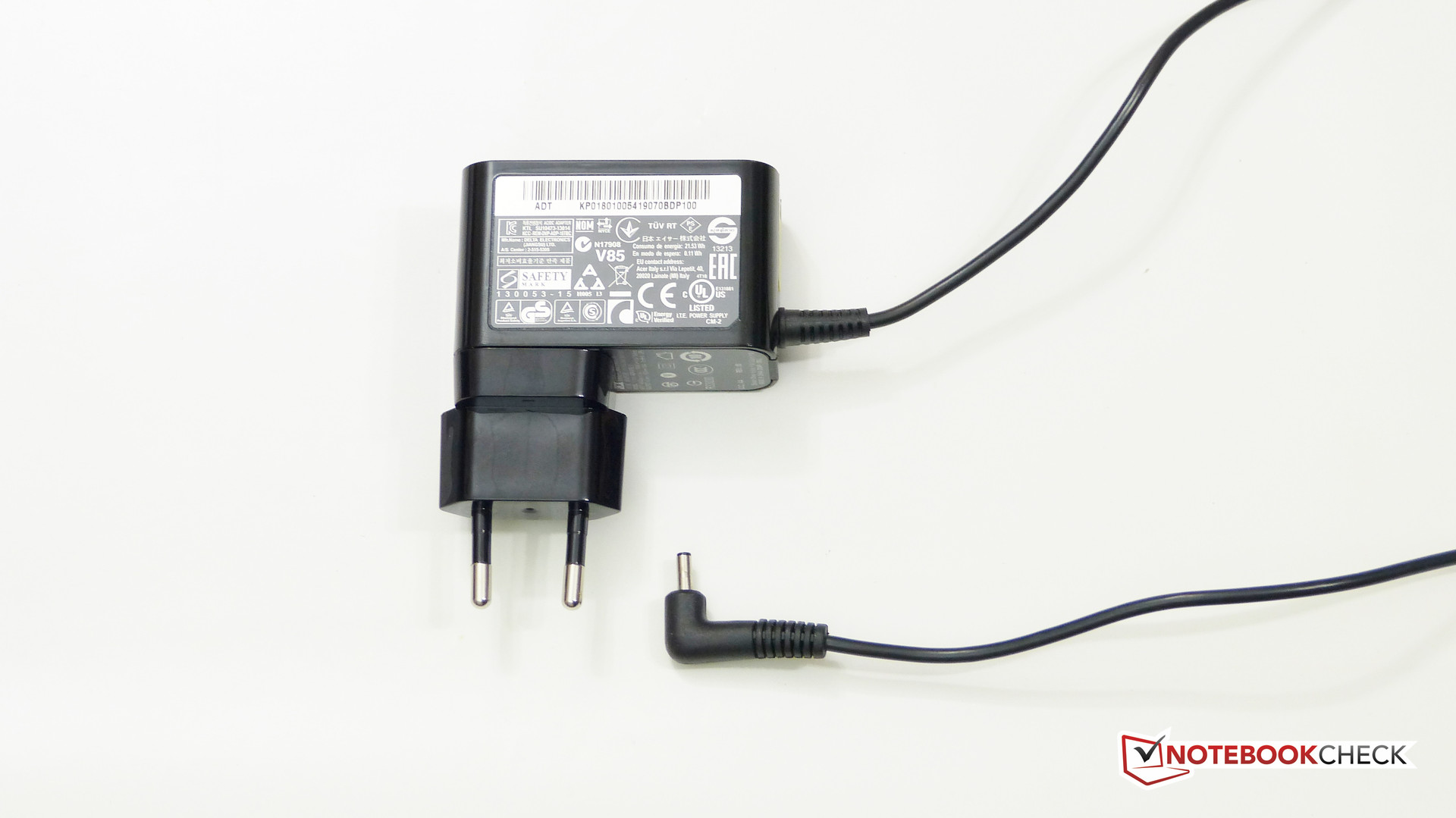

Acer Aspire Switch 10 电源适配器。
Acer Aspire Switch 10 电源适配器。

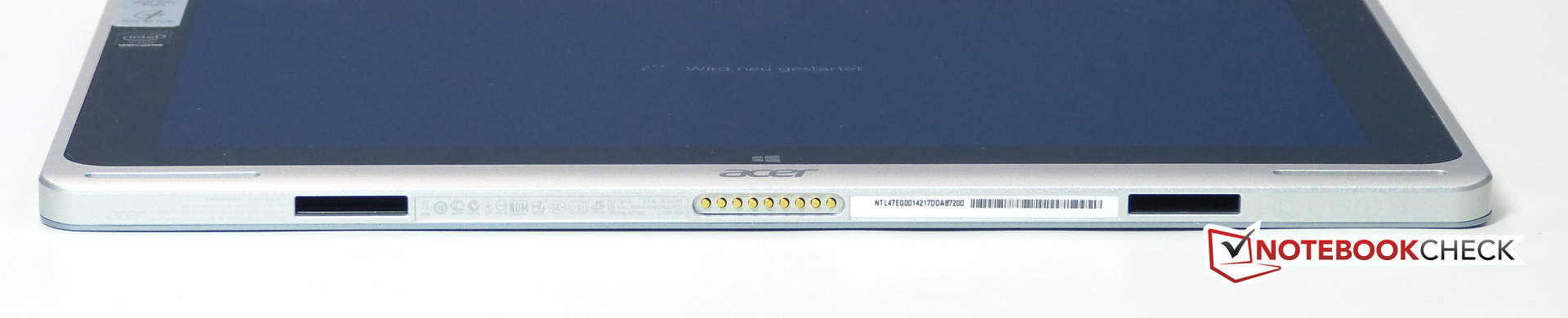

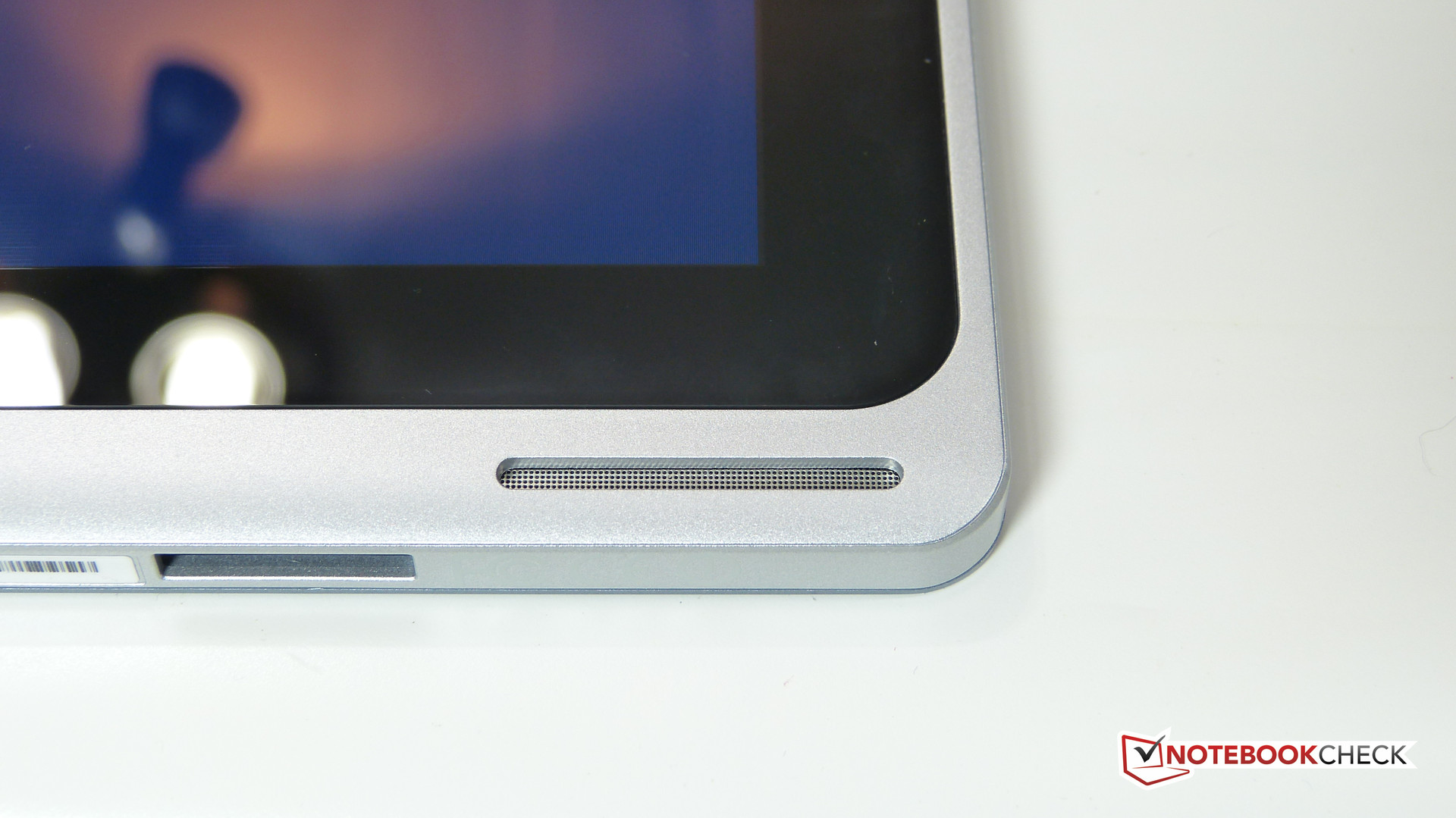

扬声器在平板的底部左面和右面。
扬声器在平板的底部左面和右面。

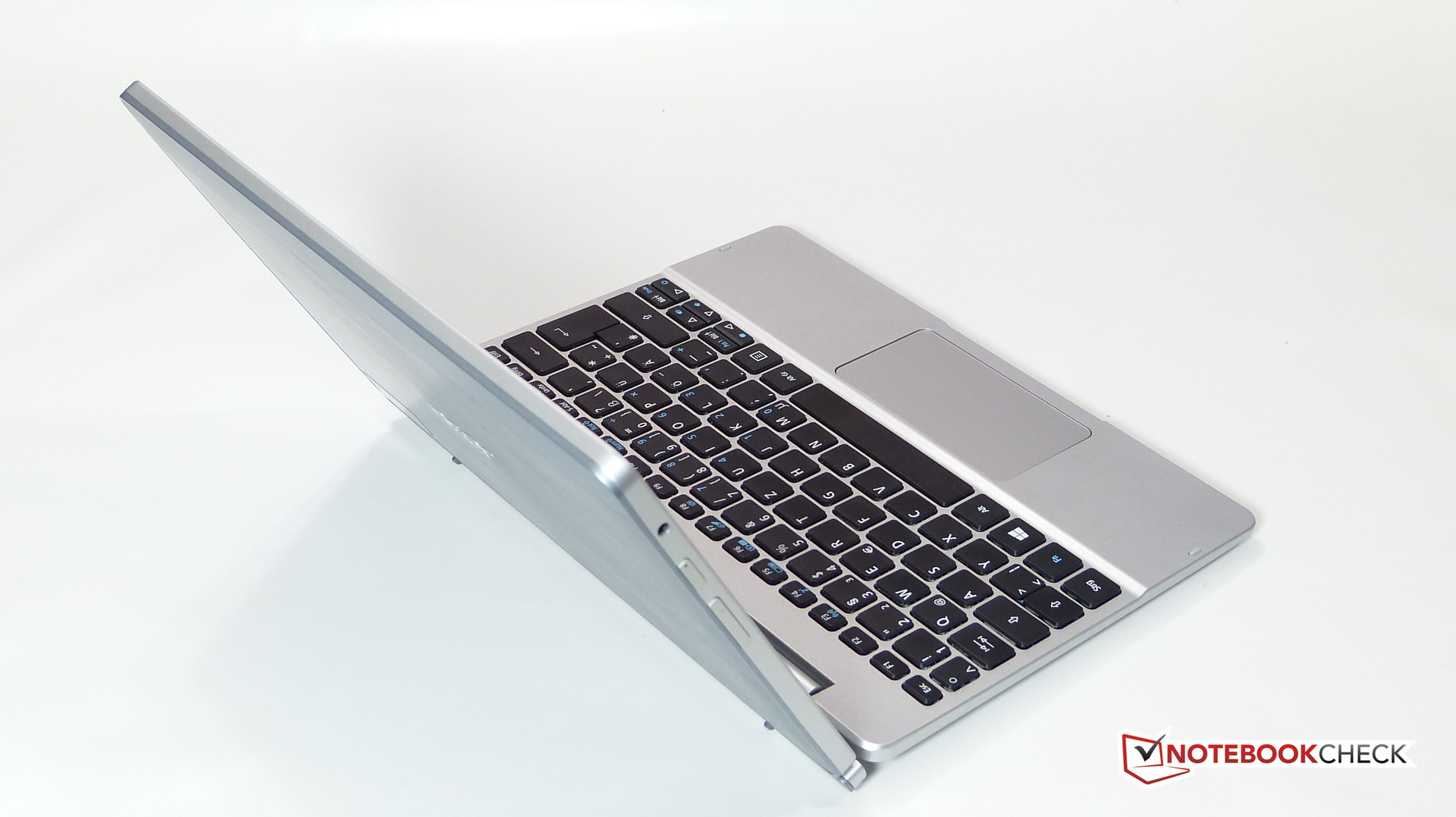

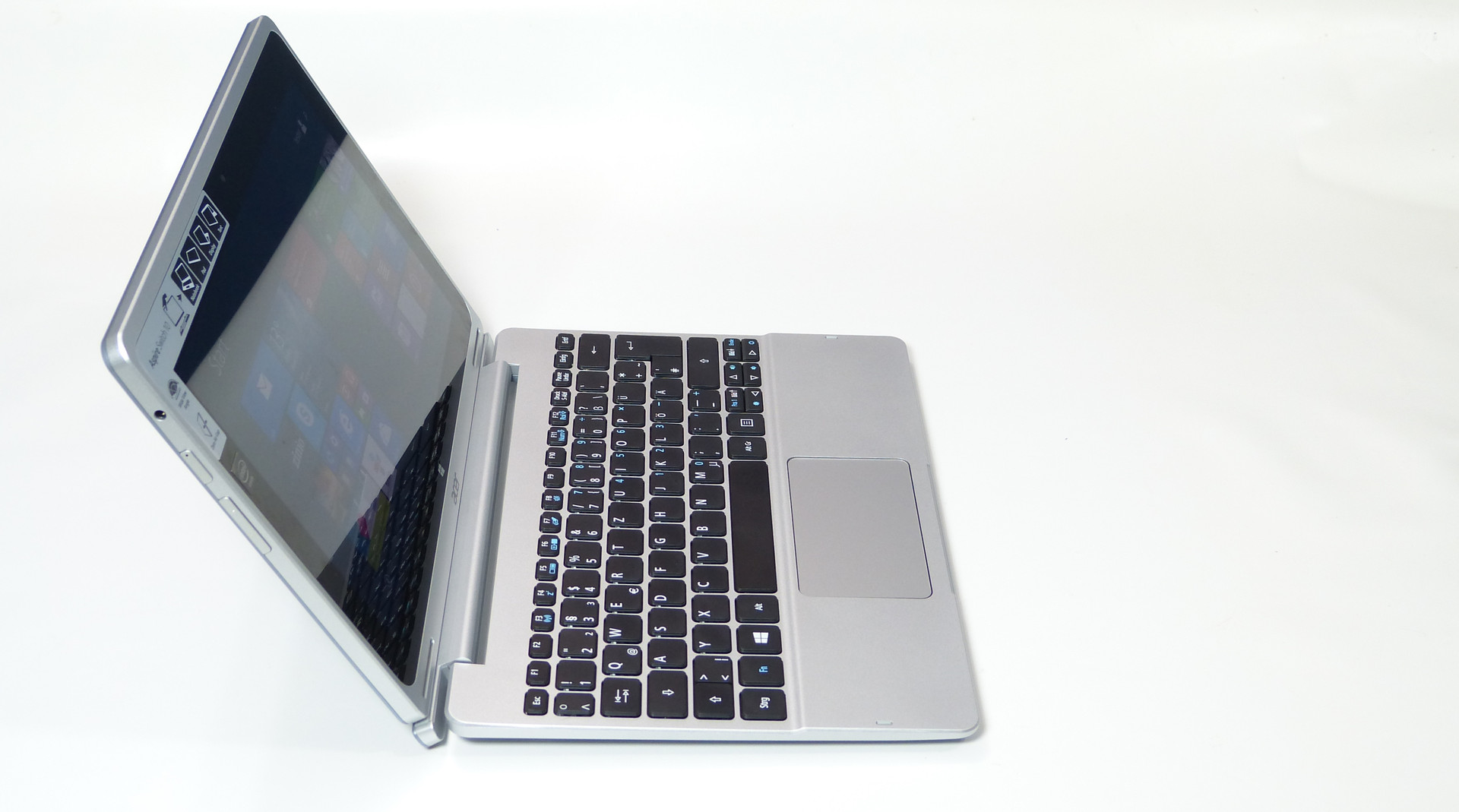

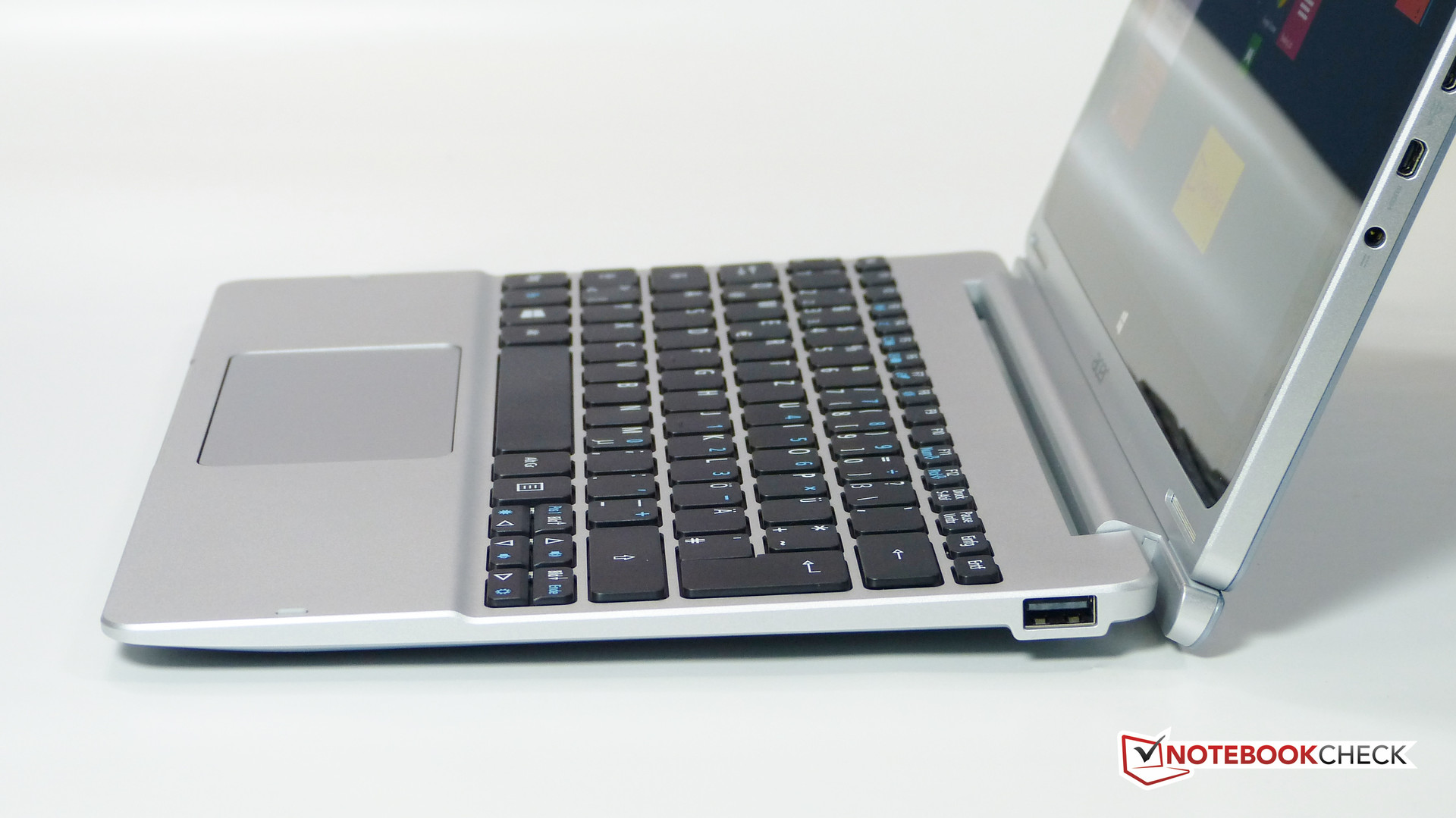

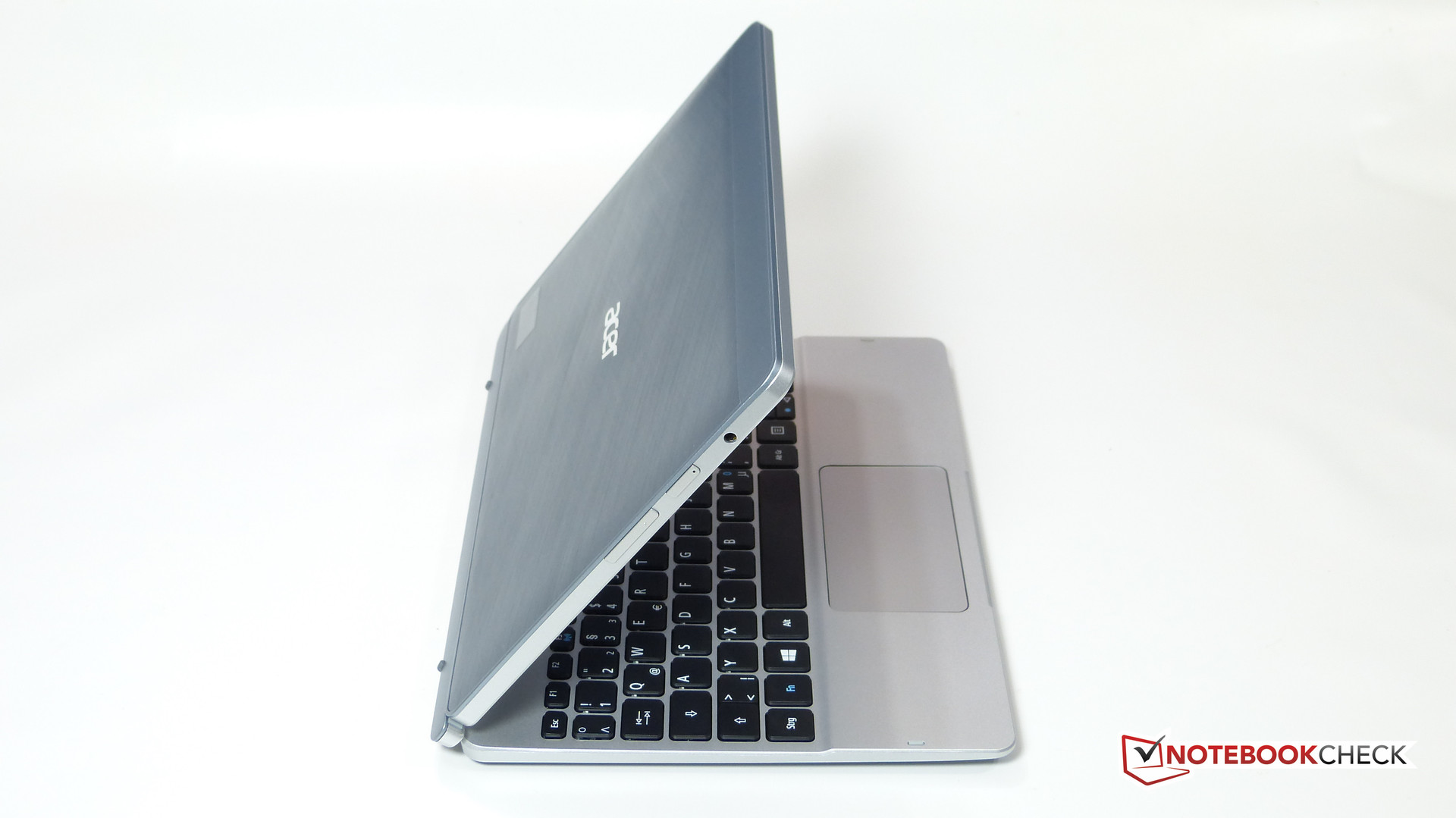

The Switch 10 可以最多展开130度。
The Switch 10 可以最多展开130度。

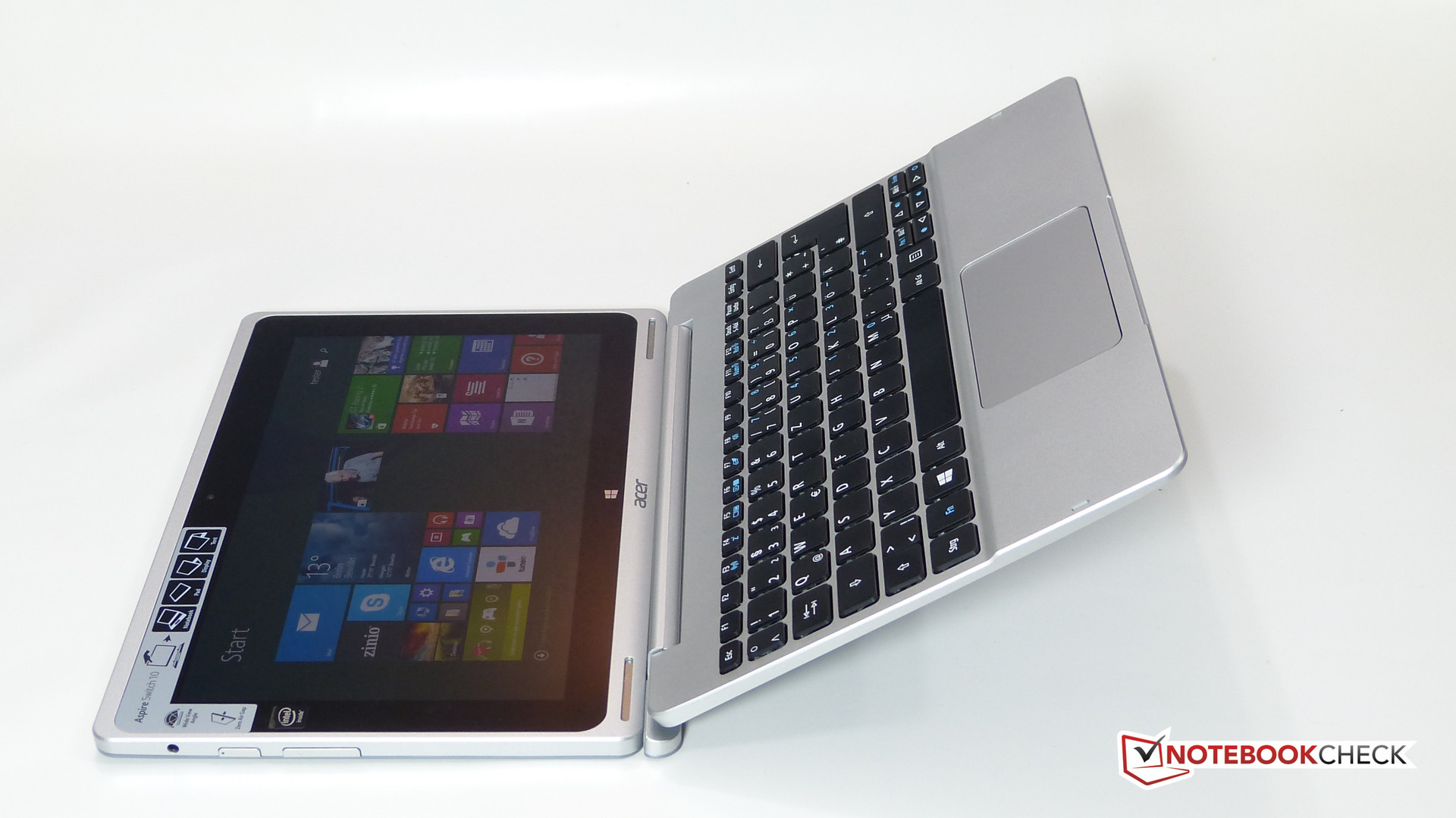

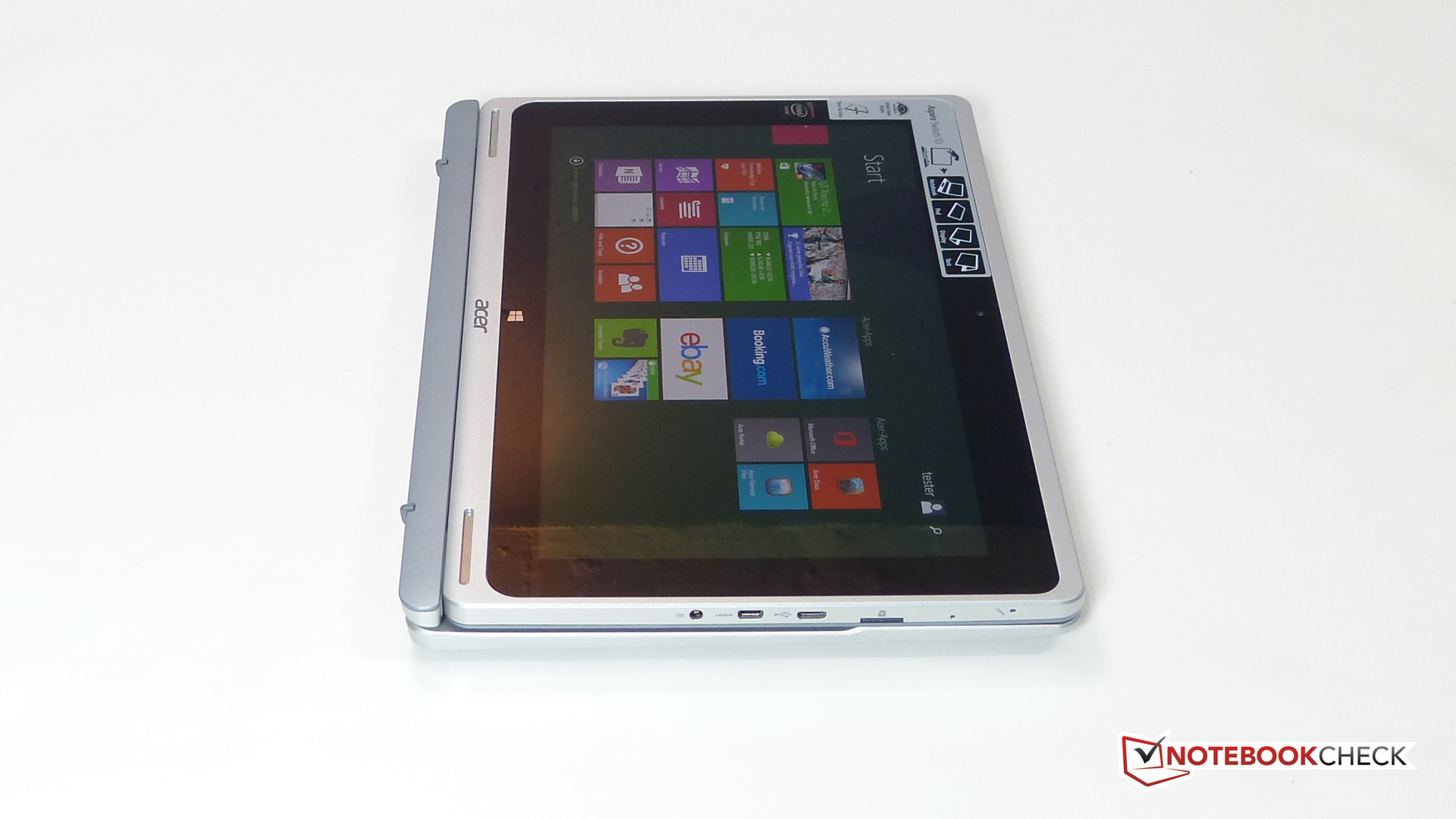

Acer Aspire Switch 10 平板的阅读模式。
Acer Aspire Switch 10 平板的阅读模式。


Please share our article, every link counts!

Specifications

Acer Aspire Switch 10 SW5-011-12VU (Aspire Switch Series)
Processor
Intel Atom Z3745D 4 x 1.3 - 1.8 GHz, Bay Trail-T, Bay Trail T
Graphics adapter
Intel HD Graphics (Bay Trail) - 1029 MB VRAM, Core: 792 MHz, Intel HD Graphics 第7代 4个执行核心, 10.18.10.3383
Memory
2048 MB
Display
10.10 inch 16:9, 1366 x 768 pixel, 5点触控, LP101WH4-SLAA, IPS, glossy: yes
Storage
Hynix HCG8E 64 GB, 64 GB
, 40 GB free
Connections
2 USB 2.0, 1 HDMI, 1 Docking Station Port, Audio Connections: 整合耳机接口, Card Reader: MicroSD, Sensors: 陀螺仪, 环境光传感器,Invensense传感器组合
Networking
Broadcom 802.11a/b/g/n (a/b/g/n = Wi-Fi 4/)
Size
height x width x depth (in mm): 20 x 262 x 189
Battery
24 Wh Lithium-Ion
Operating System
Microsoft Windows 8.1 32 Bit
Camera
Webcam: 200万像素前置
Additional features
Speakers: 立体声, Keyboard Light: no, 12 Months Warranty, TPM2.0. 存储加密选项, CS (InstantGo),触控仅支持5点,预装32-bit Windows.
Weight
1.05 kg, Power Supply: 70 g
Price
399 Euro



Devices from a different Manufacturer and/or with a different CPU

惠普 Pavilion x2 10-n013dx 变形本简短评测
HD Graphics (Bay Trail), Atom Z3736F
Acer Aspire Switch 10E SW3-013 变形本简短评测
HD Graphics (Bay Trail), Atom Z3735F
戴尔 Venue 10 Pro 5055 变形本简短评测
HD Graphics (Bay Trail), Atom Z3735F
联想 Miix 3 10 变形本简短评测
HD Graphics (Bay Trail), Atom Z3735F
微星 S100 变形本简短评测
HD Graphics (Bay Trail), Atom Z3740D

Devices with the same GPU

惠普 Stream 11 X360 支持3G 变形笔记本电脑简短评测
HD Graphics (Bay Trail), Celeron N2840, 11.60", 1.55 kg

Pros

+ 同类产品中优秀的工作区域(键盘,触控板,屏幕)
+ 多模式设计和坚固的屏幕转轴
+ 扬声器质量
+ 性价比

Cons

- 相比Asus T100和Acer W510的电池续航
- 塑料外壳显得有些廉价
- 屏幕与键盘无法打开成180度角

Acer Aspire Switch 10 SW5-011-12VU - 07/09/2014 v4 (old)
Steve Chippy Paine

Chassis
68 / 98 → 69%
Keyboard
65%
Pointing Device
72%
Connectivity
47 / 80 → 59%
Weight
74 / 35-78 → 91%
Battery
88%
Display
83%
Games Performance
44 / 68 → 65%
Application Performance
59 / 87 → 68%
Temperature
88%
Noise
100%
Audio
70 / 91 → 77%
Camera
42 / 85 → 49%
Average
69%
78%
Convertible - Weighted Average
