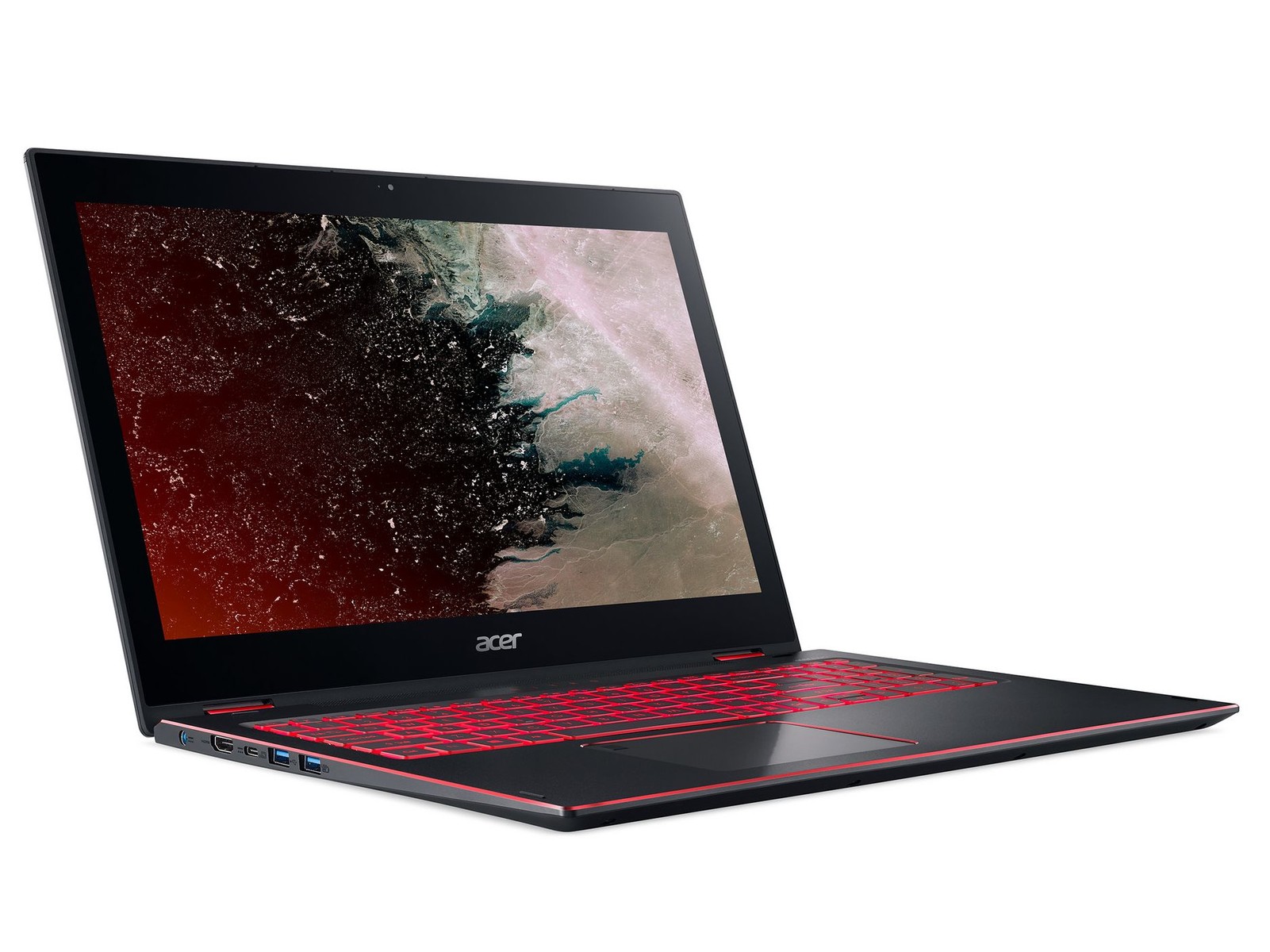

Acer Nitro 5 Spin NP515-51-86CX

Specifications

Acer Nitro 5 Spin NP515-51-86CX
Acer Nitro 5 Spin NP515-51-86CX (Nitro 5 AN515 Series)
Processor
Intel Core i7-8550U 4 x 1.8 - 4 GHz, Kaby Lake Refresh
Graphics adapter
NVIDIA GeForce GTX 1050 Mobile - 4 GB VRAM, Core: 1354 MHz, RAM: 1752 MHz, GDDR5, 23.21.13.8792
Memory
8 GB
, DDR4 (Dual Channel 2 x 4 GB)
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Ja, native pen support, Chi Mei CMN15D7, IPS, glossy: yes
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Micron 1100 MTFDDAV256TBN, 256 GB
, + 1.000 GB HDD (Western Digital WD10SPZX), 190 GB free
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 0 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Audio Connections: 1, Card Reader: SD-Kartenleser, 1 Fingerprint Reader, Sensors: Gyroskop
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 17.9 x 381 x 258
Battery
48 Wh, 3220 mAh Lithium-Ion, Battery runtime (according to manufacturer): 10 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD (720p)
Additional features
Speakers: 2 Stereo-Lautsprecher + 1 Subwoofer, Keyboard: Chiclet + Numpad, Keyboard Light: yes, 24 Months Warranty
Weight
2.2 kg, Power Supply: 320 g
Price
1299 Euro



Price comparison

Average Score: 77.6% - good
Average of 2 scores (from 2 reviews)
price: - %, performance: 87%, features: 52%, display: 83% mobility: 75%, workmanship: 87%, ergonomy: 80%, emissions: 87%

Reviews for the Acer Nitro 5 Spin NP515-51-86CX

85.2% Acer Nitro 5 Spin NP515 (i7-8550U, GTX 1050) Convertible Review | Notebookcheck
Display upgrade vs. SSD downgrade. On the outside, the Acer Nitro 5 Spin is easily recognizable as the gaming version of the Acer Spin 5. However, trying to find other differences between the two convertibles is more difficult - there do not seem to be any at first glance. Is the Nitro hoping to reach gamer status by its red stripes alone, or does it have more to offer? We have put it to the test.
70% Acer Nitro 5 Spin Review
Source: Laptop Mag English EN→zh-CN Archive.org version
Not quite a gaming laptop, but not totally a work machine, the Acer Nitro Spin 5 tries its best to be a Jack- of-all-trades. But sometimes your best is not good enough. For $1,099, you get a system that can turn from laptop to tablet, which makes it extremely versatile -- especially when you throw in the optional Active Stylus. And the discrete graphics, comfortable keyboard and surprisingly good audio bolster the Nitro 5 Spin's case.
Single Review, online available, Long, Date: 11/08/2019
Rating: Total score: 70%
Acer Nitro 5 Spin: первый игровой трансформер
Source: Hi-Tech Mail RU→zh-CN Archive.org version
Single Review, online available, Long, Date: 09/07/2018

Comment

NVIDIA GeForce GTX 1050 Mobile:

基于Nvidia Pascal架构的主流显卡以及GeForce GTX 960M的后续产品,制造于三星的14纳米工艺,其技术规格于桌面版本非常相似。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8550U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的时钟频率介于1.8和4 GHz之间(Turbo Boost),并支持超线程。集成GPU的时钟频率介于300和1,150 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


2.2 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
