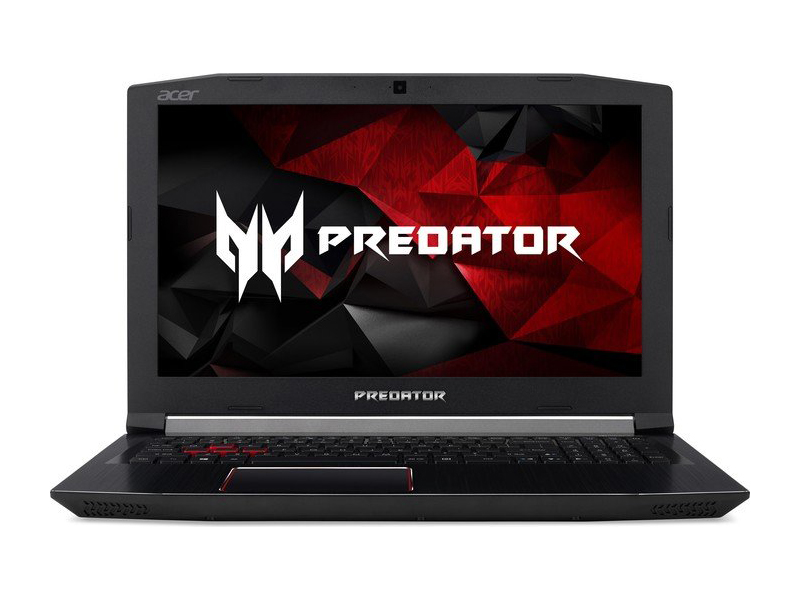

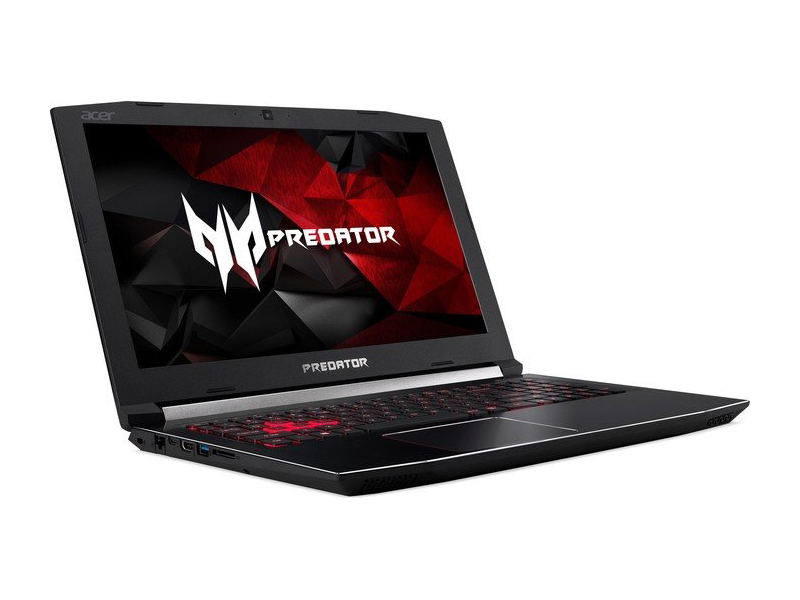

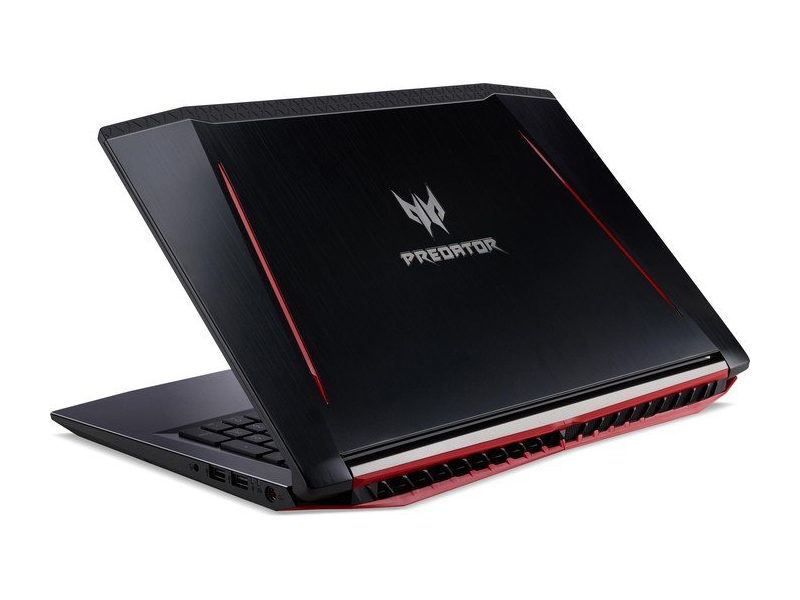

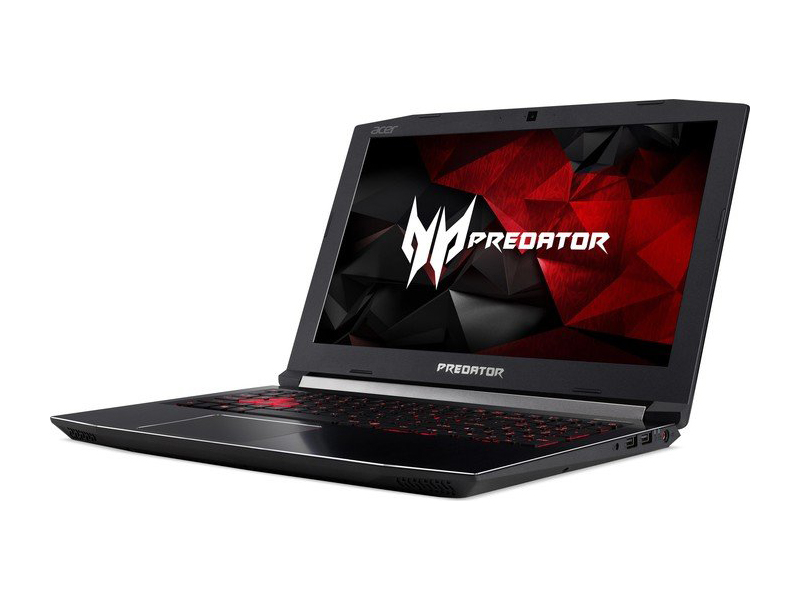

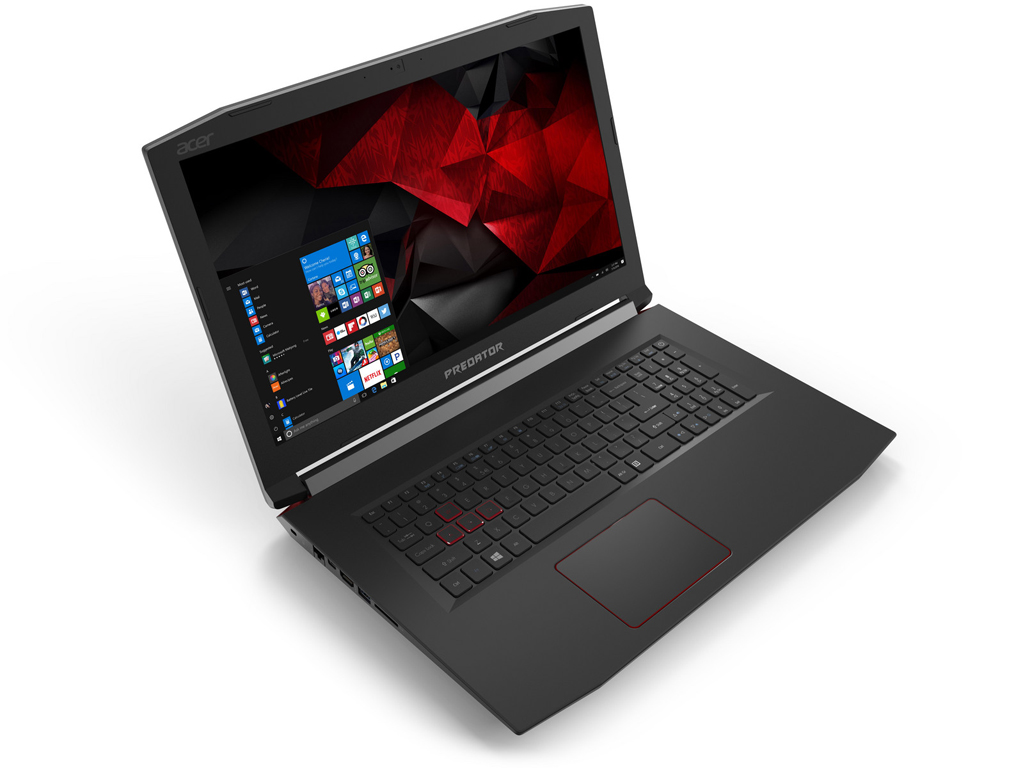

Acer Predator Helios 300 PH317-51-78SZ

Specifications

Acer Predator Helios 300 PH317-51-78SZ
Acer Predator Helios 300 PH317-51-78SZ (Predator Helios 300 PH317 Series)
Processor
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Graphics adapter
NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, GDDR5
Memory
16 GB
, DDR4 (2x 8GB, 2 Slots)
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, IPS, glossy: no
Mainboard
Intel HM175
Storage
512 MB NAND Flash, 0.5 GB
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5mm, Card Reader: SD, 1x USB 3.1 Typ-C
Networking
10/100/1000 LAN Card (10/100/1000MBit/s), 802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 29 x 432.3 x 289.9
Battery
48 Wh, 3220 mAh Lithium-Ion, 4-cell, Battery runtime (according to manufacturer): 7 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p
Additional features

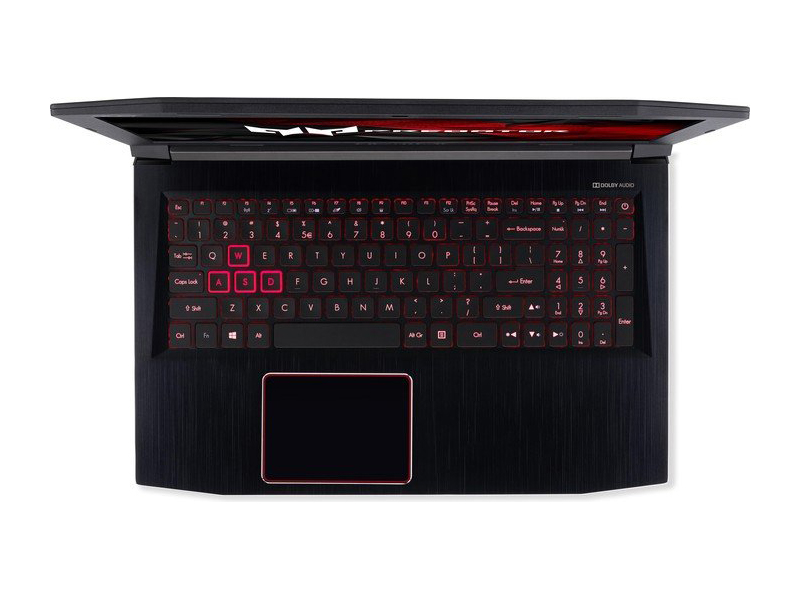

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
3 kg
Price
1600 Euro



Price comparison

Average Score: 84% - good
Average of 1 scores (from 1 reviews)
price: 84%, performance: 86%, features: 84%, display: - % mobility: 84%, workmanship: - %, ergonomy: - %, emissions: - %

Reviews for the Acer Predator Helios 300 PH317-51-78SZ

84% Acer Predator Helios 300 PH317-51-78SZ
Source: 15 Zoll Notebooks Test German DE→zh-CN Archive.org version
Single Review, online available, Medium, Date: 09/09/2017
Rating: Total score: 84% price: 84% performance: 86% features: 84% mobility: 84%

Comment

NVIDIA GeForce GTX 1060 Mobile:

移动GTX 1060基于GP106芯片,提供1280个着色器。相比于同名的桌面版本,它采用了稍低的时钟频率。它应该可以为全高清分辨率最高设定运行游戏提供足够的性能。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7700HQ: » Further information can be found in our Comparison of Mobile Processsors.


17.30":

这个大尺寸屏幕常见于以桌面使用为主的笔记本电脑。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


3 kg: 这是15寸笔记本电脑的常见重量。


» Further information can be found in our Notebook Purchase Guide.
