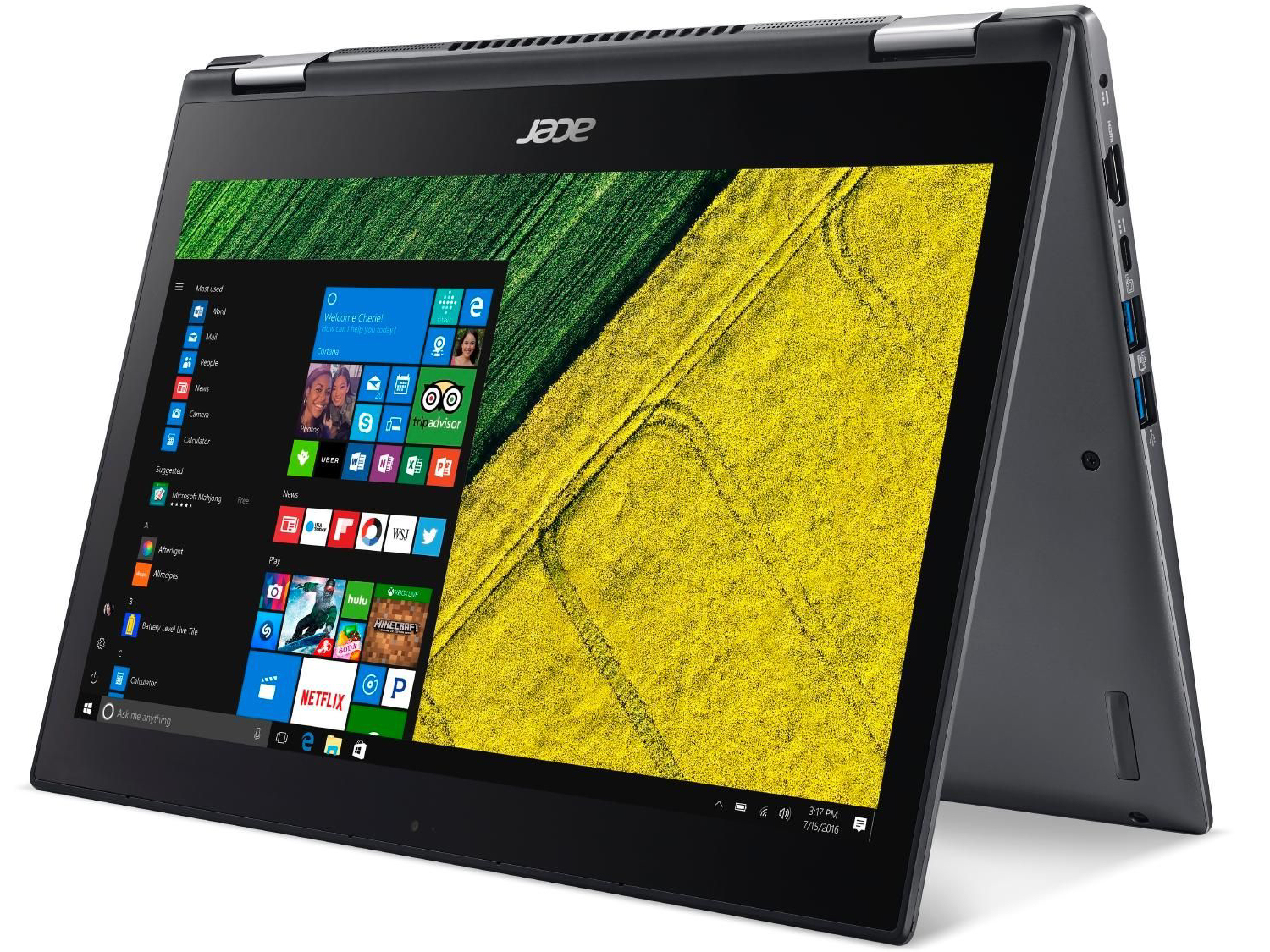

Acer Spin 5 SP513-52N-54SF

Specifications

Acer Spin 5 SP513-52N-54SF
Acer Spin 5 SP513-52N-54SF (Spin 5 SP513 Series)
Processor
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620, Core: 1100 MHz, Dual-Channel, 23.20.16.4849
Memory
8 GB
, DDR4-2400, Dual-Channel, keine Speicherbänke, Speicher fest verlötet
Display
13.30 inch 16:9, 1920 x 1080 pixel 141 PPI, kapazitiv, 10 Berührungspunkte, native pen support, LC133LF102, IPS, glossy: yes
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Micron 1100 MTFDDAV256TBN, 256 GB
, 212 GB free
Soundcard
Realtek ALC295 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Audiokombo, Card Reader: SD, 1 Fingerprint Reader, Sensors: Beschleunigungssensor, TPM 2.0
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 15.9 x 324.4 x 226
Battery
53.9 Wh, 4670 mAh Lithium-Ion, 11.55 V
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, MS Office 365 (Testversion), Norton Security (Testversion), 24 Months Warranty
Weight
1.5 kg, Power Supply: 276 g
Price
899 Euro
Links
Acer homepage
Acer notebook section



Price comparison

Average Score: 87.7% - good
Average of 2 scores (from 2 reviews)
price: 93%, performance: 81%, features: 55%, display: 85% mobility: 80%, workmanship: 85%, ergonomy: 85%, emissions: 92%

Reviews for the Acer Spin 5 SP513-52N-54SF

84.4% Acer Spin 5 SP513-52N-54SF (i5-8250U, FHD) Convertible Laptop Review | Notebookcheck
A success. The Spin 5 has a lot to offer, including a fast SSD, a backlit keyboard and a powerful quad-core ULV processor. The laptop offers a good battery life to boot. The battery can be charged via the USB Type-C port. The touchscreen can be operated with fingers or with an Acer stylus (available separately).
91% Acer Spin 5 Pro: che autonomia!
Source: Webnews.it Italian IT→zh-CN Archive.org version
Single Review, online available, Medium, Date: 12/03/2018
Rating: Total score: 91% price: 93% performance: 90% workmanship: 90%
Acer Spin 5 Pro: il convertibile ora con processore quad core
Source: Leonardo.it Tech Italian IT→zh-CN Archive.org version
Single Review, online available, Long, Date: 07/23/2018

Comment

Intel UHD Graphics 620:

集成显卡（GT2,24 EU），可以在一些Kaby-Lake-Refresh 中央处理器型号（15 W ULV系列）上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8250U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的频率介于1.6和3.4 GHz之间（Turbo Boost），并支持超线程。集成GPU的时钟频率介于300和1,100 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


13.30":

大体上，这个屏幕尺寸常见于亚笔记本电脑，超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。

» To find out how fine a display is, see our DPI List.


1.5 kg: 这是11到13寸的超大尺寸平板电脑，亚笔记本电脑，超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
