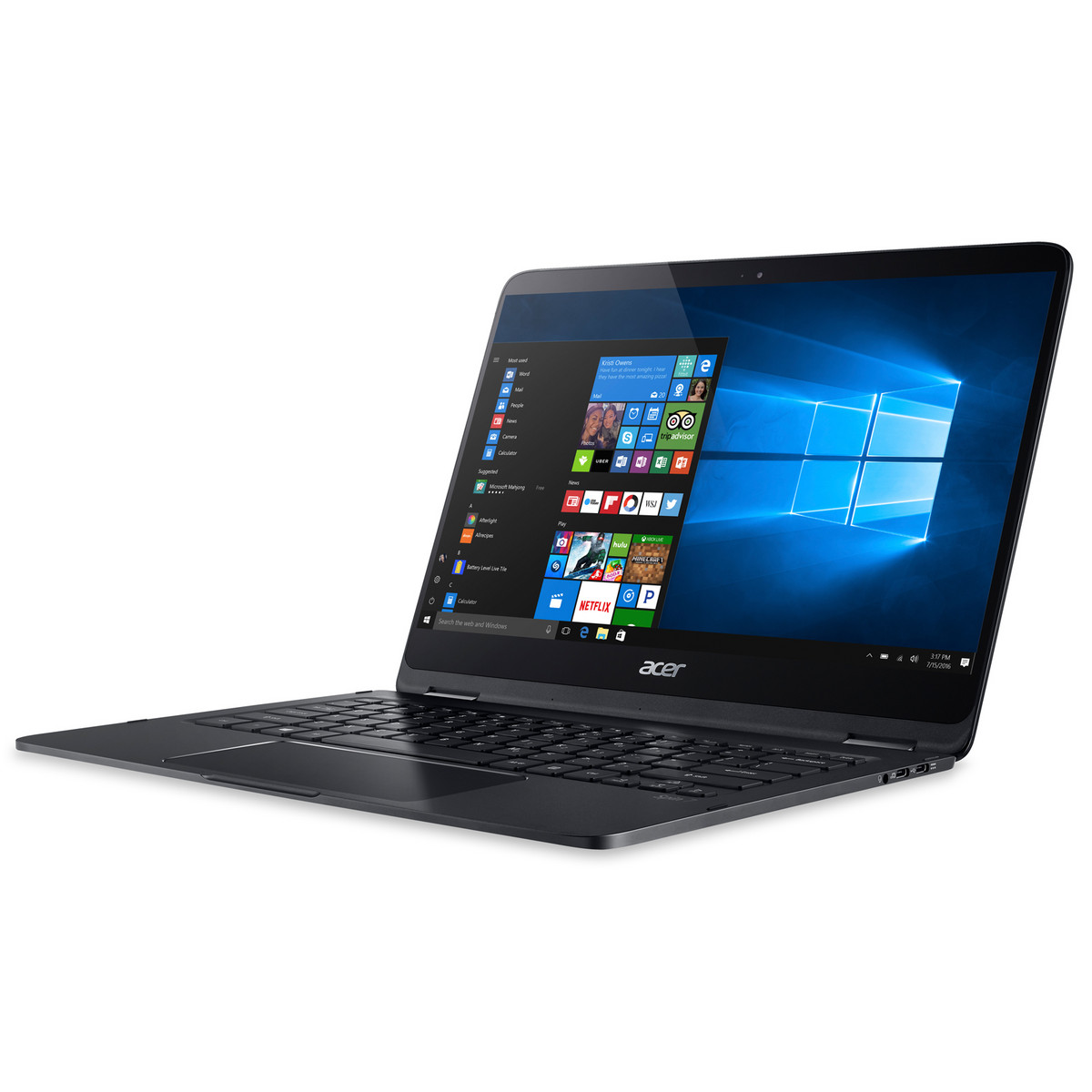

Acer Spin 7 SP714-51-M09D

Specifications

Acer Spin 7 SP714-51-M09D
Acer Spin 7 SP714-51-M09D (Spin 7 Series)
Processor
Intel Core i5-7Y54 2 x 1.2 - 3.2 GHz, Kaby Lake
Graphics adapter
Memory
8 GB
, 双通道板载 LPDDR3
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, 十指触控, AUO B140HAN03.2 / AUO323D, IPS, glossy: yes
Mainboard
Intel Kaby Lake-Y Premium PCH
Storage
Kingston RBUSNS4180S3256GG, 256 GB
, 金士顿 RBUSNS4180S3256GG, 195 GB free
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 1 Kensington Lock, Audio Connections: 复合耳机/麦克风接口, Brightness Sensor, Sensors: 陀螺仪
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 10.98 x 324.6 x 229.6
Battery
42 Wh, 2770 mAh Lithium-Polymer, 4芯, Battery runtime (according to manufacturer): 8 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 1280x720
Additional features
Speakers: 立体声, Keyboard: 巧克力键盘, Keyboard Light: no, Type-C 转 Type-A 转接器, Acer Care Center, Acer Quick Access, Recovery Management, , 24 Months Warranty, fanless
Weight
1.271 kg, Power Supply: 293 g
Price
1200 Euro



Price comparison

Average Score: 81.9% - good
Average of 5 scores (from 6 reviews)
price: 75%, performance: 68%, features: 29%, display: 81% mobility: 87%, workmanship: 87%, ergonomy: 76%, emissions: 95%

Reviews for the Acer Spin 7 SP714-51-M09D

81.5% 宏碁 Spin 7 SP714-51-M09D 变形本简短评测 | Notebookcheck
超薄,超静音。 宏碁的这台厚度仅为11mm的14寸笔记本看起来的确是不错。但是,虽然它有着良好的可维护性,它的稳定性却成为了它的短板。它所搭载的 Kaby Lake ULV 处理器并没有出奇的性能甚至在当和它的上一代进行对比时,令我们感到十分失望。在阅读我们的评测后,你可以了解到为什么它的屏幕是出色的但是仍然存在一点扣分项。
Recensione Acer Spin 7, notebook convertibile in soli 11 millimetri
Source: HDblog.it Italian IT→zh-CN Archive.org version
Single Review, online available, Long, Date: 06/30/2017
83% Acer Spin 7 – Il Convertibile Che Vola Alto
Source: Techzilla.it Italian IT→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 01/09/2017
Rating: Total score: 83% price: 70% performance: 75% display: 85% mobility: 90% workmanship: 90%
65% Review: Acer Spin 7 – tegenvallende convertible met 14″-scherm
Source: Tablets Magazine Dutch NL→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 04/26/2017
Rating: Total score: 65%
100% Acer Spin 7 – Indrukwekkend dunne convertible
Source: Computer Totaal Dutch NL→zh-CN Archive.org version
Single Review, online available, Long, Date: 01/06/2017
Rating: Total score: 100%
Test: Acer Spin 7 - 14" překlopný konvertibilní notebook, úsporný Intel, IPS LCD, zcela tichý provoz
Source: Notebook.cz CZ→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 11/24/2016
80% Acer Spin 7 [TEST]: Ultralet hybrid
Source: Alt om Data DA→zh-CN Archive.org version
Single Review, online available, Medium, Date: 03/28/2017
Rating: Total score: 80% price: 80% performance: 60% display: 80% mobility: 90%

Comment

Intel HD Graphics 615:

一些Kaby LakeY系列处理器(4.5瓦TDP)搭配的集成显卡,提供了24个EU(GT2),没有独立显存。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-7Y54: » Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.271 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
