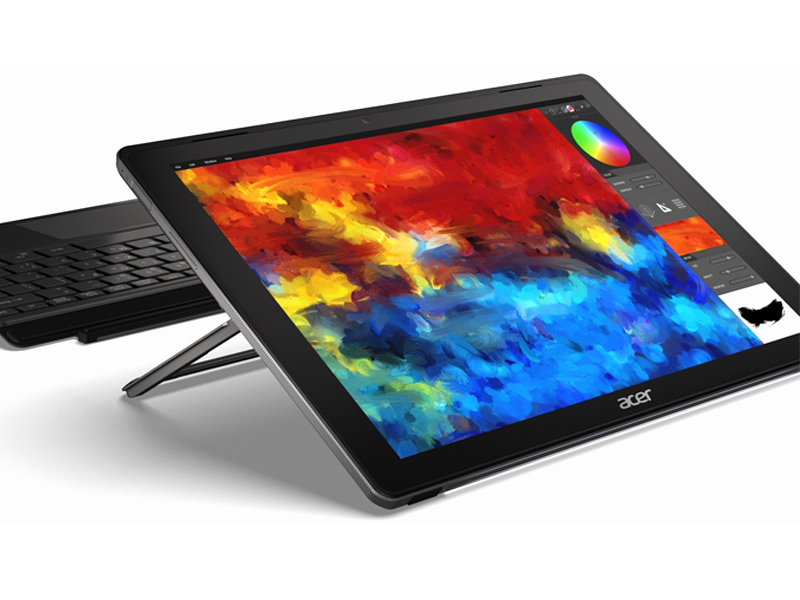

Acer Switch 5 SW512-52-5819

Specifications

Acer Switch 5 SW512-52-5819
Acer Switch 5 SW512-52-5819 (Switch 5 Series)
Processor
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz @ 3.5 GHz, Kaby Lake
Graphics adapter
Memory
8 GB
, DDR3L
Display
12.00 inch 3:2, 2160 x 1440 pixel 216 PPI, 10-finger multitouch, native pen support, WST KL.1200w.004, IPS, glossy: yes, detachable screen
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Intel SSD 600p SSDPEKKW512G7, 512 GB
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, Audio Connections: combo headphone/microphone jack, Card Reader: micro-SD, micro-SDXC, 1 Fingerprint Reader, Brightness Sensor
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth Bluetooth 4.1
Size
height x width x depth (in mm): 9.6 x 292.9 x 201.8
Battery
4870 mAh Lithium-Polymer, Battery runtime (according to manufacturer): 10.5 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Primary Camera: 5 MPix
Secondary Camera: 2 MPix
Additional features
Speakers: 2, Keyboard: keyboard dock, Keyboard Light: yes, Acer USB Type-C dock, 24 Months Warranty, fanless
Weight
1.291 kg, Power Supply: 159 g
Price
1299 Euro



Price comparison

Average Score: 79.55% - good
Average of 6 scores (from 9 reviews)
price: 60%, performance: 77%, features: 56%, display: 75% mobility: 80%, workmanship: 82%, ergonomy: 89%, emissions: 93%

Reviews for the Acer Switch 5 SW512-52-5819

84.3% 宏碁 Switch 5 (7500U, 512 GB) 变形本简短评测 | Notebookcheck
发热者。我们正在测试该机的竞争对手Surface Pro和Acer的Swift Alpha 12的后续版本,我们将会明白该机在多大程度上可以满足Windows标准。宏碁以低价格、高性能的方式完成了这个壮举。
更新:idle scenario下低耗能
80% Acer Switch 5 review: The silent Surface killer?
Source: Pocket Lint English EN→zh-CN Archive.org version
The Acer Switch 5 is a largely successful progression of the series, with decent battery life, operation, ample power, plus other great features such as the one-handed stand adjustment and the fingerprint scanner being built into the power button.
Single Review, online available, Long, Date: 07/20/2017
Rating: Total score: 80%
78% Lüfterloser Allzweck-Convertible
Source: Netzwelt German DE→zh-CN Archive.org version
Single Review, online available, Long, Date: 08/29/2017
Rating: Total score: 78% performance: 80% features: 70% display: 70%
Acer Switch 5, un convertible ligero, capaz y realmente cómodo
Source: Tuexperto Spanish ES→zh-CN Archive.org version
Single Review, online available, Medium, Date: 02/12/2018
Recensione Acer Switch 5: fanless, penna e Core i7-7500U
Source: HDblog.it Italian IT→zh-CN Archive.org version
Single Review, online available, Medium, Date: 05/19/2018
75% Review: Acer Switch 5 – capabele hybride met Windows 10
Source: Tablets Magazine Dutch NL→zh-CN Archive.org version
Single Review, online available, Short, Date: 02/21/2018
Rating: Total score: 75%
Acer Switch 5: csúcstablet munkára?
Source: Prohardver.hu HU→zh-CN Archive.org version
Single Review, online available, Long, Date: 03/14/2018
80% Test Acer Switch 5
Source: Tek.no NO→zh-CN Archive.org version
Single Review, online available, Short, Date: 01/14/2018
Rating: Total score: 80%
80% Acer Switch 5 SW512 [TEST]: Hybrid med fed skærm
Source: Alt om Data DA→zh-CN Archive.org version
Single Review, online available, Very Short, Date: 07/03/2018
Rating: Total score: 80% price: 60% performance: 80%
Review Acer Switch 5 – un hibrid intre laptop si tableta
Source: Arena IT →zh-CN Archive.org version
Single Review, online available, Medium, Date: 09/26/2017

Comment

Intel HD Graphics 620:

集成显卡(GT2, 24 EUs)可以在一些Kaby-Lake-Refresh处理器构架(15 W ULV 系列)中找到。而在技术上,与前代 Kaby-Lake集成显卡相同,我们称它为HD Graphics 620.



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7500U:

基于Kaby-Lake架构的双核处理器,主频为2.7至3.5 GHz,支持超线程,采用改进的14纳米制程技术制造。

» Further information can be found in our Comparison of Mobile Processsors.


12.00":

这个屏幕尺寸对于平板来说略大,而对亚笔记本来说稍小。一些变形本采用了这个尺寸的屏幕。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.291 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
