Aorus X3 Plus v7-CF1

Specifications

Aorus X3 Plus v7-CF1
Aorus X3 Plus v7-CF1 (X3 Series)
Processor
Intel Core i7-7820HK 4 x 2.9 - 3.9 GHz, Kaby Lake
Graphics adapter
NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, GDDR5
Memory
16 GB
, DDR4 2400 MHz SO-DIMM, 2 slots (Max 32GB)
Display
13.90 inch 16:9, 3200 x 1800 pixel 264 PPI, IGZO
Mainboard
Intel HM175
Storage
SSD: 512GB M.2 PCIe/​NVMe (2280/​M-Key Slot)
Connections

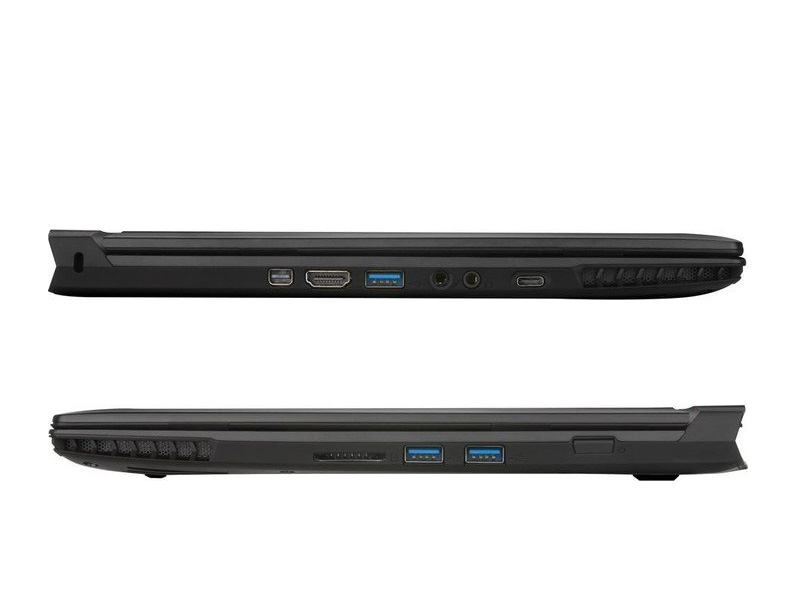

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5mm, Card Reader: SD, Mini DisplayPort, USB 3.1 (Type-C)
Networking
10/100/1000 LAN Card (10/100/1000MBit/s), 802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 22.9 x 330 x 263.5
Battery
73.26 Wh Lithium-Polymer, 73.26Wh or 94.24Wh
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Additional features
Speakers: 2x2W speakers, Keyboard: Chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.8 kg
Price
2300 Euro



Price comparison

Average Score: 80% - good
Average of 1 scores (from 1 reviews)

Reviews for the Aorus X3 Plus v7-CF1

80% Aorus X3 Plus v7-CF1 Gaming Laptop Review
Source: Kitguru English EN→zh-CN Archive.org version
We approached the Aorus X3 Plus v7-CF1 with trepidation, wondering how it would perform and whether it would be as noisy as a high speed train arriving at the platform. All the big questions were answered favourably as the new Kaby Lake processor pulls the performance along nicely.
Single Review, online available, Very Long, Date: 02/16/2017
Rating: Total score: 80%

Comment

NVIDIA GeForce GTX 1060 Mobile:

移动GTX 1060基于GP106芯片,提供1280个着色器。相比于同名的桌面版本,它采用了稍低的时钟频率。它应该可以为全高清分辨率最高设定运行游戏提供足够的性能。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7820HK:

基于Kaby Lake架构的四核笔记本电脑处理器,运行频率2.9-3.9GHz。它在2017年是消费级H系列处理器中第二快的型号。该芯片还集成了高清显卡GPU 630主频为350  -  1100兆赫,采用14纳米工艺(相比Skylake微架构得到改进)制造。相比酷睿i7-7820HQ,7820HK缺乏商务功能如vPro或TXT支持。

» Further information can be found in our Comparison of Mobile Processsors.


13.90":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.8 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
