Apple M3 Pro 11-Core

Apple Apple M3 Pro 11-Core

Apple M3 是Apple 于 2023 年底推出的笔记本电脑片上系统（SoC）。它集成了一个新的 8 核 CPU，其中 4 个性能内核的主频高达 4.06 GHz，4 个效率内核的主频高达 2.75 GHz。Apple 声称，该 CPU 比旧的 M2（3.5 GHz）快 20%。 Apple M2（3.5 GHz）.

由于更高的时钟频率和架构改进，该处理器在基准测试中的性能也明显优于 M2（见下文 Geekbench 等），并能在短时间的单核测试中赶上最快的 CPU（如 Raptor Lake i9-13950HX).

M3 还集成了新的显卡，具有动态缓存、网格着色和光线跟踪加速功能。根据Apple 的数据，它比 M2 的 M2 的 GPU 快 20% 。.芯片再次集成了 10 个 GPU 内核，但更便宜的型号只提供 8 个内核（如入门级 iMac）。此外，GPU 仅支持 2 个显示器（在内部显示器之外增加一个 6K60 显示器）。

GPU 和 CPU 可一起访问软件包上的统一内存。它仍有 8 GB、16 GB 和 24 GB 三种规格可供选择，并提供相同的 100 GB/s 最大带宽（与 Pro 机型不同的是，Pro 机型的内存带宽有所降低）。

集成的 16 核神经引擎也进行了修改，现在可提供 18 TOPS 的峰值性能（M2 为 15.8 TOPS，而新的 A17 Pro 为 35 TOPS）。视频引擎现在支持硬件 AV1 解码。H.264、HEVC 和 ProRes（RAW）仍可解码和编码。

遗憾的是，集成的无线局域网只支持 Wi-Fi 6E（不支持 Wi-Fi 7），而且由于只支持单个外接显示器，该芯片也不支持 Thunderbolt 4（官方支持 Thunderbolt 3/USB4，速度为 40 Gbit/s）。

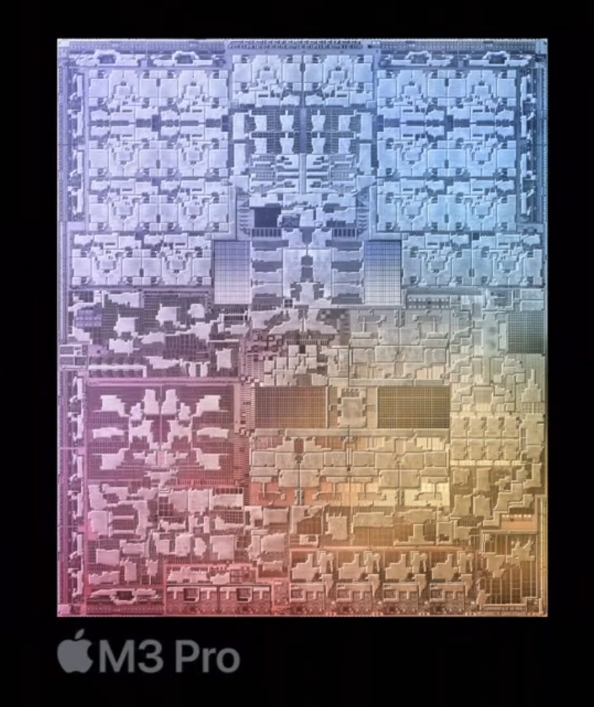

该芯片采用台积电目前的 3 纳米工艺（最有可能是 N3B）制造，包含 250 亿个晶体管（与Apple M2 相比增加了 25%）。3 纳米工艺还有助于提高芯片的效率。在负载情况下，M3 CPU 的功耗约为 20 瓦。

SeriesApple M3

Series: M3

Apple M3 Max 16-Core2.75 - 4.06 GHz16 / 16 cores
Apple M3 Max 14-Core2.75 - 4.06 GHz14 / 14 cores
Apple M3 Pro 12-Core2.75 - 4.06 GHz12 / 12 cores
Apple M3 Pro 11-Core « 2.75 - 4.06 GHz11 / 11 cores
Apple M32.75 - 4.06 GHz8 / 8 cores
Clock Rate2748 - 4056 MHz
Number of Cores / Threads11 / 11
5 x 4.1 GHz Apple M3 P-Core
6 x 2.7 GHz Apple M3 E-Core
Power Consumption (TDP = Thermal Design Power)27 Watt
Transistor Count37000 Million
Manufacturing Technology3 nm
FeaturesARMv8 Instruction Set
GPUApple M3 Pro 14-Core GPU
64 Bit64 Bit support
ArchitectureARM
Announcement Date10/30/2023
Product Link (external)www.apple.com

Benchmarks

Cinebench 2024 - Cinebench 2024 CPU Single Core
144 Points (81%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench 2024 - Cinebench 2024 CPU Multi Core
908 Points (17%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R23 - Cinebench R23 Multi Core
13315 Points (12%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
1942 Points (83%)
+ 1 benchmarks and specifications   - Hide comparison chart
Cinebench R20 - Cinebench R20 CPU (Single Core)
502 Points (56%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R20 - Cinebench R20 CPU (Multi Core)
3529 Points (9%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
1913 Points (12%)
+ 1 benchmarks and specifications   - Hide comparison chart
01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
281 Points (79%)
+ 1 benchmarks and specifications   - Hide comparison chart
Blender - Blender 3.3 Classroom CPU *
355 Seconds (5%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 2.79 BMW27 CPU *
365 Seconds (3%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Single-Core
3113 points (79%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Multi-Core
14412 points (57%)
+ 1 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
2331 points (91%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
13312 points (24%)
+ 1 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
374.1 ms (0%)
+ 1 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
98732 Points (82%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
431 Points (79%)
+ 1 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
1966 Points (75%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
40.1 Watt (7%)
+ 1 benchmarks and specifications   + Show comparison chart
0510152025303540Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
2.1 Watt (1%)
+ 1 benchmarks and specifications   + Show comparison chart
00.10.20.30.50.60.70.80.911.21.31.41.51.61.71.822.12.2Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
4.8 Watt (5%)
+ 1 benchmarks and specifications   + Show comparison chart
00.20.50.711.21.51.722.22.52.733.23.53.744.24.54.7Tooltip
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
47.7 Points per Watt (36%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
