Apple M4 10-core GPU

Apple M4 10-Core GPU

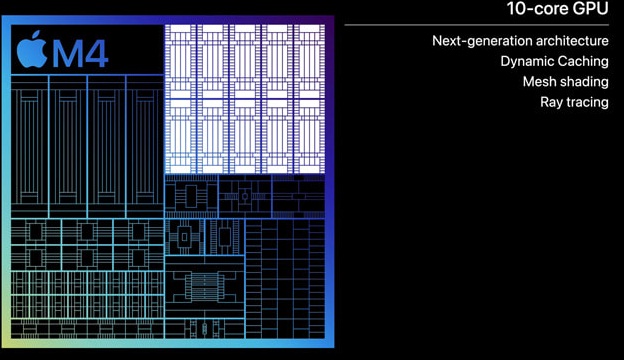

10 核Apple M4 GPU是Apple M4 SoC 中内置的图形适配器，具有 10 个内核，使用统一内存架构（LPDDR5X-7500，120 GB/s 带宽）。遗憾的是，这款由Apple 设计的 iGPU 没有任何值得一提的新功能，无法帮助它从 M3 系列的前辈中脱颖而出。

与 M3 SoC 内置的 10 核 GPU 一样一样，M4 GPU（10 核）的硬件支持光线跟踪、网格着色和其他现代技术。它支持分辨率高达 6K 的外部显示器，并能对流行的 AV1、HEVC 和 AVC 视频编解码器进行硬件解码（目前还不支持 AV1 编码）。

虽然 M4 GPU 与 M3 GPU 的早期基准比较显示性能提升高达 15%，但必须指出的是，由于新款 iPad 的机身很薄，缺乏主动散热，因此 M4 芯片的性能可持续性很差。

  • M4 GPU Geekbench Metal - 早期结果：~53,800 分
  • M3 GPU Geekbench Metal - Notebookcheck 数据库：~约 47,000 分

与Apple M4 芯片的其他部分一样，图形适配器也采用 "第二代 3 纳米 "台积电工艺制造，以实现高能效（截至 2024 年上半年）。

Apple M4 Series

M4 40-core GPU 40 ? Bit @ 8533 MHz
M4 32-core GPU 32 ? Bit @ 8533 MHz
M4 20-core GPU 20 ? Bit @ 8533 MHz
M4 16-core GPU 16
M4 10-Core GPU 10
M4 8-Core GPU 8
Pipelines10 - unified
Memory TypeLPDDR5X-7500
Shared Memoryyes
Power Consumption8 Watt
technology3 nm
Date of Announcement07.05.2024
PredecessorM3 10-Core GPU
CPU in M4 10-Core GPUGPU Base SpeedGPU Boost / Turbo
Apple M4 (10 cores)10 x 2890 MHz, 40 W? MHz? MHz
Apple M4 (9 cores)9 x 2900 MHz, 9 W? MHz? MHz
min. - max.? MHz? MHz

Benchmarks

3DMark - 3DMark Wild Life Unlimited
min: 31653     avg: 32089     median: 32089 (16%)     max: 32525 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Wild Life Extreme Unlimited
min: 8457     avg: 9153     median: 9258.5 (11%)     max: 9636 Points
+ 4 benchmarks and specifications   + Show comparison chart
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 150.9     avg: 151.8     median: 151.8 (9%)     max: 152.78 fps
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
99.5 % (100%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench 5.0 4K Aztec Ruins High Tier Offscreen
min: 48.6     avg: 56.7     median: 57.5 (23%)     max: 63.1 fps
+ 4 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench 5.0 Aztec Ruins High Tier Offscreen
min: 105.4     avg: 125.1     median: 125.6 (23%)     max: 144 fps
+ 4 benchmarks and specifications   - Hide comparison chart
PowerVR GE8100
0.314 -100%
...
Apple M3 8-Core GPU
101.7 -19%
NVIDIA Quadro RTX 3000 Max-Q
102.9 -18%
Qualcomm Adreno 830
103.4 -17%
Qualcomm SD X Adreno X1-85 3.8 TFLOPS
106.3 -15%
NVIDIA GeForce RTX 3050 Ti Laptop GPU
108 -14%
AMD Radeon RX 6500M
109 -13%
NVIDIA GeForce GTX 1660 Ti Max-Q
110.2 -12%
ARM Immortalis-G925 MC12
113.5 -9%
Apple M3 10-Core GPU
118.5 -5%
Apple M4 10-core GPU
125.1
Nvidia RTX 500 Ada Generation Laptop GPU
126.4 1%
Apple M1 Pro 14-Core GPU
147 18%
NVIDIA Quadro RTX 5000 Max-Q
153 22%
NVIDIA RTX A3000 Laptop GPU
161.4 29%
Apple M1 Pro 16-Core GPU
166 33%
Apple M3 Pro 14-Core GPU
178.7 43%
Apple M2 Pro 16-Core GPU
181.1 45%
AMD Radeon RX 6700S
185.4 48%
Intel Arc A730M
187 49%
...
NVIDIA GeForce RTX 4090 Laptop GPU
536 328%
0%
100%
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Offscreen
min: 287.9     avg: 345.9     median: 356.6 (26%)     max: 382.6 fps
+ 4 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench Car Chase Offscreen
min: 233.8     avg: 279.4     median: 291.1 (31%)     max: 301.6 fps
+ 4 benchmarks and specifications   + Show comparison chart
GFXBench 3.1 - GFXBench Manhattan ES 3.1 Offscreen
min: 351     avg: 407.4     median: 419.5 (9%)     max: 439.7 fps
+ 4 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 449.3     avg: 559     median: 576.5 (24%)     max: 632.8 fps
+ 4 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 706.3     avg: 858     median: 869 (7%)     max: 987.9 fps
+ 4 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 GPU OpenCL
min: 37898     avg: 38095     median: 38094.5 (11%)     max: 38291 points
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 GPU Metal
min: 53465     avg: 56470     median: 57948 (32%)     max: 57998 points
+ 3 benchmarks and specifications   + Show comparison chart
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
27.6 Watt (4%)
+ 1 benchmarks and specifications   + Show comparison chart
0510152025Tooltip
Power Consumption - GFXBench Aztec Ruins Normal Tier Offscreen Power Consumption 150cd *
min: 16.8     avg: 17.2     median: 17.2 (7%)     max: 17.6 Watt
+ 2 benchmarks and specifications   + Show comparison chart
01234567891011121314151617Tooltip
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
min: 1.036     avg: 1     median: 1 (86%)     max: 1.207 fps per Watt
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Cyberpunk 2077 Power Consumption 150cd *
42.8 Watt (14%)
+ 1 benchmarks and specifications   + Show comparison chart
051015202530354045Tooltip
Power Consumption - Cyberpunk 2077 Power Consumption - external Monitor *
min: 39.6     avg: 39.9     median: 39.9 (5%)     max: 40.2 Watt
+ 2 benchmarks and specifications   + Show comparison chart
0510152025303540Tooltip
Power Consumption - Cyberpunk 2077 ultra Power Efficiency
min: 0.4652     avg: 0.5     median: 0.5 (68%)     max: 0.4798 fps per Watt
+ 2 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Total War Pharaoh

Total War Pharaoh

2023
low 1920x1080
53 54.9 ~ 54 fps    + Compare
med. 1920x1080
45.7 46.4 ~ 46 fps    + Compare
high 1920x1080
45 45.1 ~ 45 fps    + Compare
ultra 1920x1080
39.9 40.8 ~ 40 fps    + Compare
QHD 2560x1440
27.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Cyberpunk 2077 2.1 Phantom Liberty

Cyberpunk 2077 2.1 Phantom Liberty

2023
low 1920x1080
34.8 34.8 ~ 35 fps    + Compare
med. 1920x1080
27.9 28.1 ~ 28 fps    + Compare
high 1920x1080
23.7 23.8 ~ 24 fps    + Compare
ultra 1920x1080
20.4 20.4 ~ 20 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Additional Benchmarks
30min Start Ultra Preset (FSR off) 1920x1080
19
18.7
Baldur's Gate 3

Baldur's Gate 3

2023
low 1920x1080
43.9 44.3 ~ 44 fps    + Compare
med. 1920x1080
36.4 37.3 ~ 37 fps    + Compare
high 1920x1080
32.3 32.9 ~ 33 fps    + Compare
ultra 1920x1080
30.1 31.6 ~ 31 fps    + Compare
» With all tested laptops playable in detail settings med..
Diablo Immortal

Diablo Immortal

2022
ultra Ultra
58.3 59.8 ~ 59 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Call of Duty Mobile

Call of Duty Mobile

2020
ultra
78.2  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Genshin Impact

Genshin Impact

2020
low
78.3 80.9 ~ 80 fps    + Compare + 📈 Graph
med.
78.2 79.8 ~ 79 fps    + Compare + 📈 Graph
ultra
76.5 97.3 ~ 87 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Shadow of the Tomb Raider

Shadow of the Tomb Raider

2018
low 1280x720
139 141 ~ 140 fps    + Compare
med. 1920x1080
50 52 ~ 51 fps    + Compare
high 1920x1080
47 47 ~ 47 fps    + Compare
ultra 1920x1080
41 41 ~ 41 fps    + Compare
QHD 2560x1440
27  fps    + Compare
» With all tested laptops playable in detail settings ultra.
PUBG Mobile

PUBG Mobile

2018
low
63.2 80.5 ~ 72 fps    + Compare + 📈 Graph
high
38.2 42.3 ~ 40 fps    + Compare + 📈 Graph
ultra
38.2 43.9 ~ 41 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
The Witcher 3

The Witcher 3

2015
low 1024x768
120  fps    + Compare
high 1920x1080
42.8  fps    + Compare
ultra 1920x1080
28.6  fps    + Compare
» With all tested laptops playable in detail settings high.
Asphalt 8: Airborne

Asphalt 8: Airborne

2013
high
85.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
Asphalt 9: Legends

Asphalt 9: Legends

2013
high
75  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
Total War Pharaoh5446454027.1
Cyberpunk 2077 2.1 Phantom Liberty35282420
Baldur's Gate 344373331
Diablo Immortal59
Call of Duty Mobile78.2
Genshin Impact807987
Shadow of the Tomb Raider14051474127
PUBG Mobile724041
The Witcher 312042.828.6
Asphalt 8: Airborne85.8
Asphalt 9: Legends75
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
3
2
2		1
3
1
1
5
2
2
5
2
2





For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 21. 05:51:53

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.026s ... 0.027s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s

#9 composed specs +0.001s ... 0.028s

#10 did output specs +0s ... 0.028s

#11 start showIntegratedCPUs +0s ... 0.028s

#12 getting avg benchmarks for device 12502 +0.013s ... 0.042s

#13 got single benchmarks 12502 +0.012s ... 0.053s

#14 got avg benchmarks for devices +0s ... 0.053s

#15 min, max, avg, median took s +0.276s ... 0.329s

#16 before gaming benchmark output +0s ... 0.33s

#17 Got 71 rows for game benchmarks. +0.008s ... 0.337s

#18 composed SQL query for gamebenchmarks +0s ... 0.337s

#19 got data and put it in $dataArray +0.006s ... 0.344s

#20 benchmarks composed for output. +0.32s ... 0.664s

#21 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 0.666s

#22 return log +0s ... 0.666s

Notebook reviews with Apple M4 10-core GPU graphics card

Apple MacBook Pro 14 M4 评测--具有重要改进的 M4 基本机型

Apple MacBook Pro 14 M4 评测--具有重要改进的 M4 基本机型

去年，Apple ，MacBook Pro 14 首次配备了普通的 M3 SoC--与 MacBook Air 机型相同。今年的更新带来了新的 M4 SoC，性能大幅提升，连接性也有所改进。...
Apple M4 (10 cores) | Apple M4 10-core GPU | 14.20" | 1.5 kg
Apple Mac Mini M4 评测：更小、更快、更响

Apple Mac Mini M4 评测：更小、更快、更响

AppleMac Mini 进行了重大更新，除了采用新一代 M4 处理器外，新机型的体积也小了很多。我们测试了配备 M4 SoC、16GB 内存和 256GB SSD 的基本版本，售价 599 美元。...
Apple M4 (10 cores) | Apple M4 10-core GPU | 648 g
Apple iPad Pro 13 (2024) 评测--几乎只能用 "超级 "来形容的平板电脑

Apple iPad Pro 13 (2024) 评测--几乎只能用 "超级 "来形容的平板电脑

大型 iPad Pro 现在比以前更薄、更轻。尽管如此，它仍有足够的空间容纳最先进的Apple M4 芯片，现在还拥有 OLED 显示屏。Apple 似乎在其产品系列中拥有一款超级平板电脑。请阅读我们的深度评测，了解有关该设备的所有信息。...
Apple M4 (10 cores) | Apple M4 10-core GPU | 13.00" | 579 g
Apple iPad Pro 11 2024 平板电脑评测--更轻、更薄、快如闪电

Apple iPad Pro 11 2024 平板电脑评测--更轻、更薄、快如闪电

多年来，创意用户和娱乐爱好者一直在使用 iPad Pro，现在Apple 又推出了一款更新机型：11 英寸机型变得更薄，电池续航时间和性能也更强。现在采用 OLED 显示技术。我们将详细介绍这些创新。...
Apple M4 (9 cores) | Apple M4 10-core GPU | 11.00" | 444 g
Apple M4 SoC 分析--AMD、英特尔和高通公司目前没有机会

Apple M4 SoC 分析--AMD、英特尔和高通公司目前没有机会

Apple 与新款 iPad Pro 一起亮相的还有其全新的 M4 芯片。它是 M3 SoC 的进一步发展，同样采用 3 纳米工艺制造。我们仔细观察了这两款全新的 M4 芯片，并将它们与 AMD 和英特尔的最新处理器进行了比较。...
Apple M4 (9 cores) | Apple M4 10-core GPU | 11.00" | 444 g

Apple iPad Pro 13 2024: Apple M4 (10 cores), 13.00", 0.6 kg
  Review » Apple M4 SoC 分析--AMD、英特尔和高通公司目前没有机会

Apple MacBook Pro 14 2024 M4: Apple M4 (10 cores), 14.20", 1.5 kg
  External Review » Apple MacBook Pro 14 2024 M4

Apple iPad Pro 11 2024: Apple M4 (9 cores), 11.00", 0.4 kg
  External Review » Apple iPad Pro 11 2024

Apple iPad Pro 13 2024: Apple M4 (10 cores), 13.00", 0.6 kg
  External Review » Apple iPad Pro 13 2024

Apple Mac Mini M4: Apple M4 (10 cores), 0.6 kg
   » M4 Mac Mini 是最适合大多数人的台式机

Apple iPad Pro 11 2024: Apple M4 (9 cores), 11.00", 0.4 kg
   » Apple 在即将推出的搭载 M4 处理器的 Mac 产品系列中大幅增加内存

Apple iPad Pro 13 2024: Apple M4 (10 cores), 13.00", 0.6 kg
   » Apple 在即将推出的搭载 M4 处理器的 Mac 产品系列中大幅增加内存

Apple iPad Pro 11 2024: Apple M4 (9 cores), 11.00", 0.4 kg
   » 采用液氮冷却技术的 iPad Pro 凭借Apple M4 达到基准记录

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

Class 2

Radeon RX 6800S
GeForce RTX 5060 Laptop *
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M4 32-core GPU *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 5050 Laptop *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
Radeon 890M *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
M4 10-Core GPU *
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
Arc 8-Core *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Quadro T1000 (Laptop) *
Radeon Pro WX 7100 *
Arc 7-Core *
Radeon RX 570X (Laptop) *

Class 3

M4 8-Core GPU *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Quadro T1000 Max-Q *
A310 *
A350M *
T600 Laptop GPU *
T550 Laptop GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
M3 10-Core GPU *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
M3 8-Core GPU *
M2 10-Core GPU *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
A18 Pro GPU *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
M2 8-Core GPU *
M1 8-Core GPU *
Vega 8 *
M1 7-Core GPU *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
A18 GPU *
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
A12Z Bionic GPU *
A12X Bionic GPU *
A17 Pro GPU *
Quadro M600M
FirePro W4190M
Adreno 750 *
Radeon R9 M375
Xclipse 940 *
Adreno 740 *
Immortalis-G925 MC12 *
Immortalis-G720 MP12 *
Immortalis-G715 MP11 *
A16 GPU 5-Core *
Iris Plus Graphics 655
Radeon R7 M445
Adreno 735 *
A15 GPU 5-Core *
Adreno 732 *
Adreno 730 *
Mali-G715 MP7 *
Mali-G615 MP6 *
Adreno 725 *
Adreno 720 *
Mali-G710 MP10 *
Quadro M500M
A15 GPU 4-Core *
A14 Bionic GPU *
Xclipse 920 *
Adreno 660 *
Mali-G78 MP24 *
Mali-G710 MP7 *
Mali-G78 MP22 *
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
A13 Bionic GPU *
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
A12 Bionic GPU *
Adreno 650 *
Mali-G78 MP20 *
Mali-G78 MP14 *
A11 Bionic GPU *
A10X Fusion GPU *
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
A9X / PowerVR GT7xxx
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Tegra X1 Maxwell GPU
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
A10 Fusion GPU
HD Graphics 6000
Mali-G77 MP11 *
Xclipse 530
Mali-G77 MP9 *
Mali-G76 MP16 *
Mali-G610 MP6 *
Mali-G610 MP4 *
Adreno 644 *
Adreno 643 *
Adreno 642 *
Mali-G610 MP3 *
Mali-G615 MP2 *
Adreno 642L *
Adreno 710 *
Adreno 640 *
Maleoon 910 *
Adreno 630 *
Mali-G76 MP12 *
Mali-G76 MP10 *
Mali-G68 MP5 *
Mali-G57 MP6 *
Mali-G57 MP5 *
Adreno 540 *
Mali-G72 MP18 *
Mali-G71 MP20 *
UHD Graphics (Jasper Lake 32 EU) *
Mali-G72 MP12 *
Mali-G71 MP8
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
PowerVR GM9446
Adreno 530
PowerVR GXA6850
GeForce ULP K1 (Tegra K1 Kepler GPU)
A9 / PowerVR GT7600
Mali-T880 MP12
Mali-G76 MP4 *
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Mali-T760 MP8
Mali-G71 MP2 *
Radeon R4 (Stoney Ridge)
Adreno 430
Radeon R2 (Stoney Ridge)
Mali-G72 MP3 *
VideoCore VII *
Mali-G68 MP4 *
Mali-T880 MP4
Mali-G52 MP6 *
Mali-G68 MP2 *
Mali-G52 MP2 *
Mali-G52 MP1 *
UHD Graphics 600
HD Graphics 500
Mali-T760 MP6
Mali-T880 MP2
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)
PowerVR GX6450
Adreno 420
Adreno 620 *
IMG BXM-8-256
Mali-G57 MP4 *
Mali-G57 MP3 *

Class 5

Adreno 418
Adreno 619 *
Adreno 619L *
Adreno 618 *
Mali-G57 MP2 *
Mali-G57 MP1 *
Adreno 616 *
Mali-G51 MP4 *
HD Graphics (Cherry Trail)
Adreno 613 *
Adreno 612 *
Adreno 610 *
Adreno 512 *
Adreno 510 *
Adreno 330
PowerVR G6430
PowerVR GX6250
PowerVR G6400
Mali-T628 MP6
Mali-T760 MP4
SGX554MP4
Mali-T628 MP4
Adreno 509 *
Adreno 508 *
Adreno 506 *
GE8322 / IMG8322 *
Adreno 505 *
Adreno 504 *
Mali-T860 MP2
Mali-T830 MP3
Mali-T604 MP4
PowerVR G6200
Adreno 405 *
Mali-T830 MP2

Class 6

SGX543MP4 *
Mali-T624
Adreno 320 *
Mali-T760 MP2
PowerVR GE8320 *
PowerVR GE8300 *
PowerVR GE8100 *
Mali-T720 MP4
Mali-450 MP4
Mali-T830 MP1
SGX543MP3 *
SGX543MP2 *
SGX545
SGX544MP2 *
Mali-T720 MP2
SGX544 *
Adreno 308
Adreno 306
Adreno 305
Adreno 304
Mali-T720
GC7000UL
Adreno 302
Adreno 225 *
GC4000 *
Mali-400 MP4 *
VideoCore-IV *
Adreno 220 *
Vivante GC1000+ Dual-Core
Mali-400 MP2 *
Mali-400 MP *
SGX540 *
Adreno 205 *
Adreno 203 *
GC800 *
SGX535
SGX531
SGX530
Adreno 200 *
Mali-200 *

* Approximate position of the graphics adapter
