Apple M4 20-core GPU

Apple M4 20-core GPU

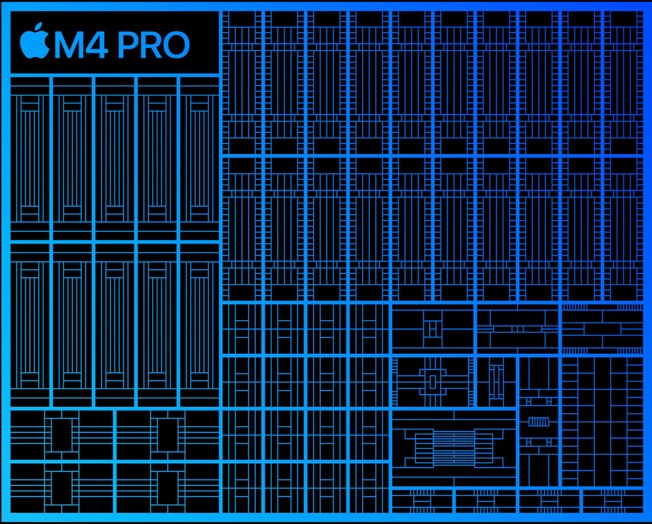

Apple M4 GPU（20 核）是由Apple 设计的集成图形适配器，内置在 14 核Apple M4 ProSoC 中。它有 20 个 "内核"，可访问至少 24 GB 快速 273 GB/s LPDDR5x 封装内存，具体取决于配置。作为 2024 年发布的图形适配器的典型产品，它对光线跟踪、网格着色和其他现代技术提供硬件支持。它还支持分辨率高达 "8K "的外部显示器，并能对 h.264、h.265 和 AV1 等几种流行的视频编解码器进行硬件解码。

性能

其游戏性能至少不亚于 GTX 1660 Ti 笔记本电脑.请记住，很少有游戏是专门为Apple silicon Macs 编译的，这意味着大多数游戏必须通过模拟层运行。因此，有些游戏在显示时会出现视觉假象，或者根本无法启动。

功耗

根据监控软件显示，在 CPU 和 GPU 负载较高的情况下，14 核 M4 Pro 的 iGPU 部分功耗略高于 30 W。在空载情况下，功耗仅为 1 至 3 瓦。

与Apple M4 Pro 芯片的其他部分一样，集成图形适配器也是采用 "第二代 3 纳米 "台积电工艺制造的，这种工艺到 2024 年底仍是最先进的。

Apple M4 Series

M4 20-core GPU 20
M4 10-Core GPU 10
M4 8-Core GPU 8
Pipelines20 - unified
Memory TypeLPDDR5X
Shared Memoryyes
Memory Bandwidth273 GB/s
technology3 nm
Notebook Sizemedium sized
Date of Announcement30.10.2024
CPU in M4 20-core GPUGPU Base SpeedGPU Boost / Turbo
Apple M4 Pro (14 cores)14 x ? MHz, 40 W? MHz? MHz

Benchmarks

3DMark - 3DMark Wild Life Extreme Unlimited
19284 Points (22%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench 5.0 4K Aztec Ruins High Tier Offscreen
125.7 fps (51%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench 5.0 Aztec Ruins High Tier Offscreen
283.5 fps (52%)
+ 2 benchmarks and specifications   - Hide comparison chart
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Offscreen
751 fps (56%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench Car Chase Offscreen
575 fps (65%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench 3.1 - GFXBench Manhattan ES 3.1 Offscreen
899 fps (19%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
1316 fps (77%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
2128 fps (17%)
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 GPU OpenCL
69553 points (20%)
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 GPU Metal
113258 points (73%)
+ 2 benchmarks and specifications   + Show comparison chart
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
60 Watt (8%)
+ 1 benchmarks and specifications   + Show comparison chart
051015202530354045505560Tooltip
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
0.9 fps per Watt (73%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Cyberpunk 2077 Power Consumption 150cd *
83.4 Watt (27%)
+ 1 benchmarks and specifications   + Show comparison chart
0510152025303540455055606570758085Tooltip
Power Consumption - Cyberpunk 2077 Power Consumption - external Monitor *
80.5 Watt (10%)
+ 2 benchmarks and specifications   + Show comparison chart
05101520253035404550556065707580Tooltip
Power Consumption - Cyberpunk 2077 ultra Power Efficiency
0.5 fps per Watt (65%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Total War Pharaoh

Total War Pharaoh

2023
low 1920x1080
64.4 65.8 ~ 65 fps    + Compare
med. 1920x1080
55.2 55.4 ~ 55 fps    + Compare
high 1920x1080
51.2 51.7 ~ 51 fps    + Compare
ultra 1920x1080
50.6 51.2 ~ 51 fps    + Compare
QHD 2560x1440
49.3 49.5 ~ 49 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Cyberpunk 2077 2.1 Phantom Liberty

Cyberpunk 2077 2.1 Phantom Liberty

2023
low 1920x1080
50.1 50.5 ~ 50 fps    + Compare
med. 1920x1080
48 48.7 ~ 48 fps    + Compare
high 1920x1080
44.5 44.6 ~ 45 fps    + Compare
ultra 1920x1080
39.6 39.6 ~ 40 fps    + Compare
QHD 2560x1440
24.8 24.9 ~ 25 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
30min Start Ultra Preset (FSR off) 1920x1080
36.6
Baldur's Gate 3

Baldur's Gate 3

2023
low 1920x1080
89 92 ~ 91 fps    + Compare
med. 1920x1080
77 78 ~ 78 fps    + Compare
high 1920x1080
63 64 ~ 64 fps    + Compare
ultra 1920x1080
61 62 ~ 62 fps    + Compare
QHD 2560x1440
42 43 ~ 43 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Total War: Three Kingdoms

Total War: Three Kingdoms

2019
low 1280x720
186  fps    + Compare
med. 1920x1080
108.4  fps    + Compare
high 1920x1080
76  fps    + Compare
ultra 1920x1080
55  fps    + Compare
QHD 2560x1440
35.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Shadow of the Tomb Raider

Shadow of the Tomb Raider

2018
low 1280x720
157 204 ~ 181 fps    + Compare
med. 1920x1080
108 111 ~ 110 fps    + Compare
high 1920x1080
100 100 ~ 100 fps    + Compare
ultra 1920x1080
86 87 ~ 87 fps    + Compare
QHD 2560x1440
57 57 ~ 57 fps    + Compare
» With all tested laptops playable in detail settings ultra.
The Witcher 3

The Witcher 3

2015
high 1920x1080
85  fps    + Compare
ultra 1920x1080
53  fps    + Compare
» With all tested laptops playable in detail settings ultra.
lowmed.highultraQHD4K
Total War Pharaoh6555515149
Cyberpunk 2077 2.1 Phantom Liberty5048454025
Baldur's Gate 39178646243
Total War: Three Kingdoms186108.4765535.6
Shadow of the Tomb Raider1811101008757
The Witcher 38553
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
1
2
2
2
3

2
4

4
2
1
4




For more games that might be playable and a list of all games and graphics cards visit our Gaming List
