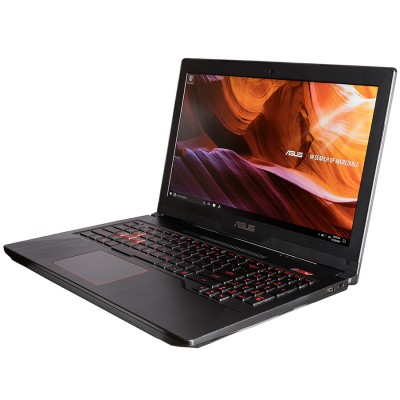

Asus FX503VM-EH73

Specifications

Asus FX503VM-EH73
Asus FX503VM-EH73 (FX503 Series)
Processor
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Graphics adapter
NVIDIA GeForce GTX 1060 Mobile - 3 GB VRAM, Core: 1405 MHz, RAM: 1671 MHz, GDDR5, GeForce Game Ready Driver 382.90
Memory
16 GB
, 1 x 16 GB, DDR4, 1200.5 MHz (DDR4-2400 / PC4-19200)
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, AU Optronics B156HAN06.1, IPS, glossy: no
Mainboard
Intel HM175 (Skylake PCH-H)
Storage
SanDisk SD8SN8U128G1002, 128 GB
, 128 GB SATA SSD + 1 TB 5400 RPM HDD, 1049 GB free
Soundcard
Intel Skylake PCH-H High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: Combo audio/headset jack, Card Reader: SD/SDHC/SDXC Card Reader, Brightness Sensor
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth Bluetooth 4.1
Size
height x width x depth (in mm): 24 x 384 x 262
Battery
64 Wh Lithium-Ion, 4S1P, 4-cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Additional features
Speakers: 2 x 2 Watt, Keyboard: Chiclet, Keyboard Light: yes, ASUS Splendid, 12 Months Warranty
Weight
2.199 kg, Power Supply: 642 g
Price
1180 USD



Price comparison

Average Score: 78.55% - good
Average of 2 scores (from 3 reviews)
price: - %, performance: 90%, features: 51%, display: 83% mobility: 70%, workmanship: 79%, ergonomy: 82%, emissions: 82%

Reviews for the Asus FX503VM-EH73

82.1% Asus FX503VM (7700HQ, GTX 1060, FHD) Laptop Review | Notebookcheck
Plastic, pragmatic. The Asus FX503VM is a mid-tier gaming laptop at a budget-minded price. Although there are some cut corners, the overall package is capable, competent, and attractive.
ASUS FX503VM Review
Source: Yugatech English EN→zh-CN Archive.org version
The ASUS FX503VM starts at Php49,995 for the Core i5, 4GB RAM, 1TB HDD, GTX 1050 model; while the Core i7 variant with GTX 1060 (FX503VM-E4070T) starts at Php69,995. The i7 + GTX 1060 model is exclusively available at Complink stores nationwide, while the i5 + GTX 1050 model available at ROG stores.
Single Review, online available, Long, Date: 04/04/2018
75% Asus Fx503V
Source: PC Guia Portuegese PT→zh-CN Archive.org version
Single Review, online available, Very Short, Date: 10/07/2018
Rating: Total score: 75%
ASUS FX503VM teszt – arany középút
Source: Laptopkalauz HU→zh-CN Archive.org version
Single Review, online available, Long, Date: 06/30/2018

Comment

NVIDIA GeForce GTX 1060 Mobile:

移动GTX 1060基于GP106芯片,提供1280个着色器。相比于同名的桌面版本,它采用了稍低的时钟频率。它应该可以为全高清分辨率最高设定运行游戏提供足够的性能。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7700HQ: » Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


2.199 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
