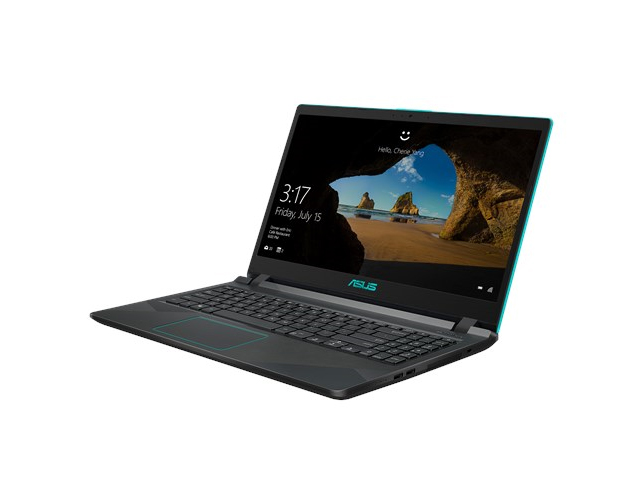

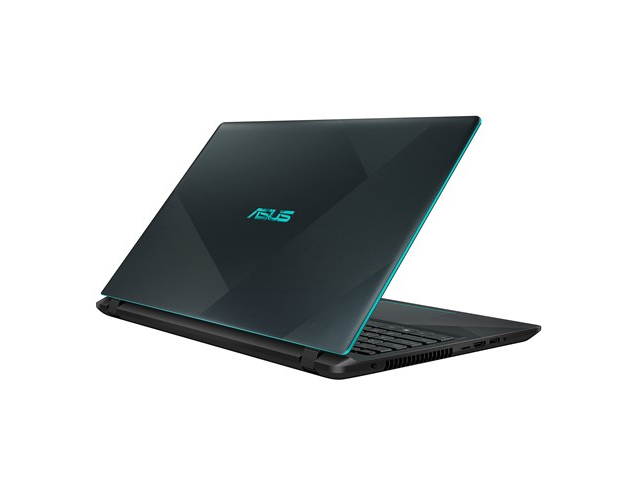

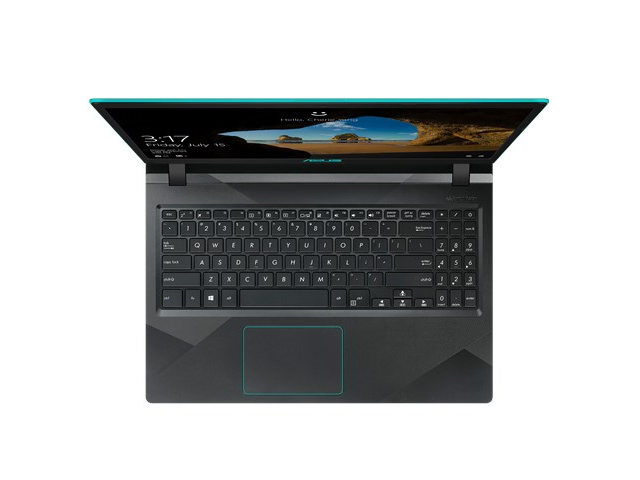

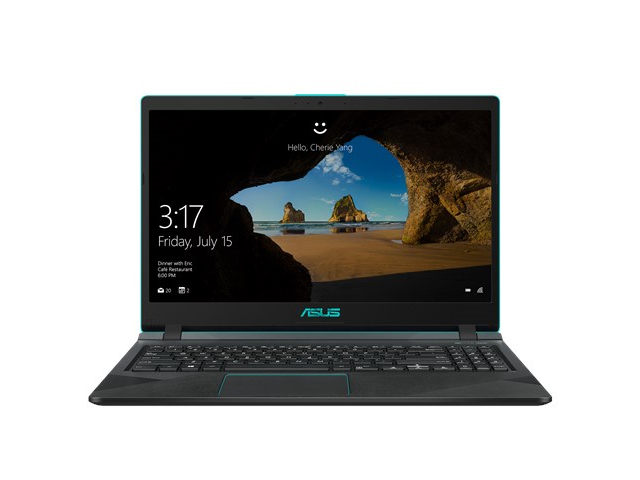

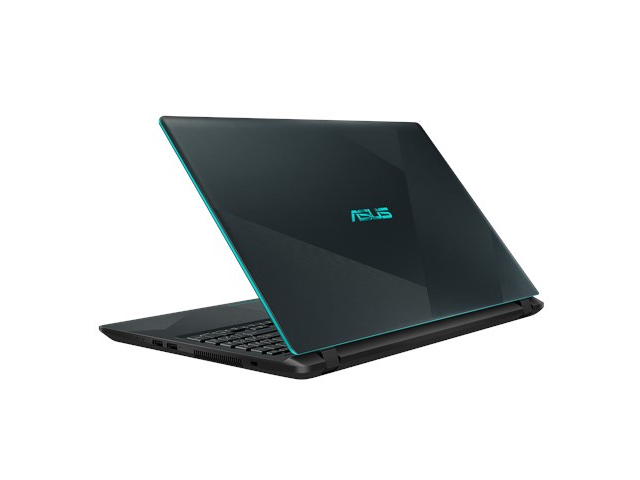

Asus K560UD-BQ183T

Specifications

Asus K560UD-BQ183T
Asus K560UD-BQ183T
Processor
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Graphics adapter
NVIDIA GeForce GTX 1050 Mobile - 2048 MB VRAM, GDDR5
Memory
8 GB
, DDR4 2400Hz
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LED, glossy: no
Storage
256 GB NVMe, 256 GB
, + 1TB HDD 5400rpm
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5mm, Card Reader: microSD
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 24 x 364 x 259
Battery
36 Wh
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: VGA
Additional features
Speakers: Stereo 2W, Keyboard: 3-cell, Keyboard Light: yes, 12 Months Warranty
Weight
1.97 kg
Price
800 Euro



Price comparison

Average Score: 70% - average
Average of 1 scores (from 1 reviews)

Reviews for the Asus K560UD-BQ183T

70% ASUS VivoBook 15 X560UD / K560UD review (Core i5-8250U, Nvidia GTX 1050)
Source: Ultrabook Review English EN→zh-CN Archive.org version
Asus cut many corners with this VivoBook X560UD. On one hand it's a compact laptop, decently well made and offers good performance with everyday use and even games, as well as very nice speakers and an OK screen (if you opt for the IPS version). On the other hand it's a poor typer, gets a small battery and doesn't match the similar Asus VivoBook X570 series in games (read the article for more details), so it needs to be cheaper in order to compete. But even so, you'd still have to live with the quirks, and it's hard to recommend it over the other option.
Single Review, online available, Very Long, Date: 09/03/2018
Rating: Total score: 70%

Comment

NVIDIA GeForce GTX 1050 Mobile:

基于Nvidia Pascal架构的主流显卡以及GeForce GTX 960M的后续产品,制造于三星的14纳米工艺,其技术规格于桌面版本非常相似。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8250U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的频率介于1.6和3.4 GHz之间(Turbo Boost),并支持超线程。集成GPU的时钟频率介于300和1,100 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


1.97 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
