Asus Strix GL502VM-FY039T

Specifications

Asus Strix GL502VM-FY039T
Asus Strix GL502VM-FY039T (GL502 Series)
Processor
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake
Graphics adapter
NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, Core: 1405 MHz, RAM: 4000 MHz, GDDR5, 192 bit 位宽, ForceWare 375.95, kein Optimus
Memory
16 GB
, DDR4-2133, 双通道, 单插槽(被占用), 8 GB 板载
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LP156WF6-SPB6 (LGD046F), IPS, G-Sync, glossy: no
Mainboard
Intel HM170 (Skylake PCH-H)
Storage
Micron SSD 1100 (MTFDDAV256TBN), 256 GB
, 东芝 MQ01ABD100, 1 TB HDD, 5,400 rpm
Soundcard
Realtek ALC255 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections

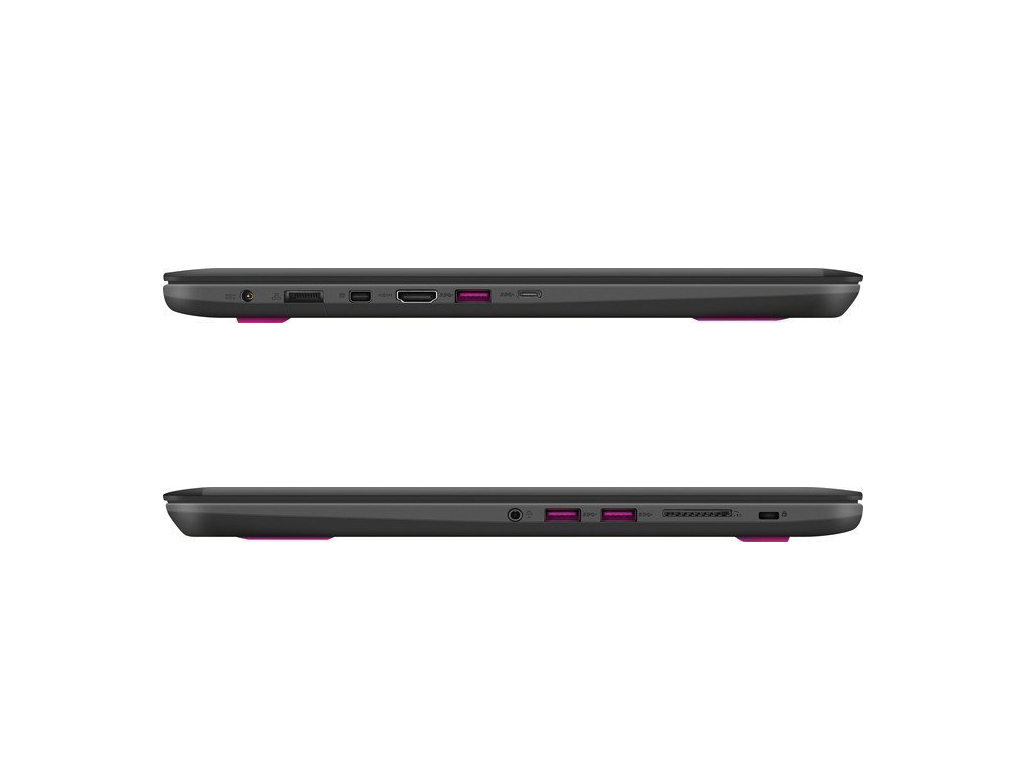

4 USB 3.0 / 3.1 Gen1, 0 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 复合音频接口, Card Reader: SD,SDHC,SDXC,MMC, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 24 x 390 x 266
Battery
64 Wh, 4240 mAh Lithium-Ion, 15.2 V, 4 cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0 MPix
Additional features
Speakers: 立体声扬声器, Keyboard: 巧克力键盘, Keyboard Light: yes, 180 W 电源适配器, 线缆轧带, McAfee Live Safe (trial), MS Office (trial), WPS Office for Asus, 24 Months Warranty
Weight
2.53 kg, Power Supply: 575 g
Price
1700 Euro



Price comparison

Average Score: 84.7% - good
Average of 1 scores (from 2 reviews)
price: - %, performance: 93%, features: 63%, display: 87% mobility: 66%, workmanship: 82%, ergonomy: 81%, emissions: 76%

Reviews for the Asus Strix GL502VM-FY039T

84.7% 华硕 ROG Strix GL502VM 笔记本电脑简短评测 | Notebookcheck
强大而纤薄。 华硕GL502VM是一台能够在它雾面全高清屏幕上流畅地运行游戏的超薄15.6寸游戏本。其硬件需要强力的散热,因此系统噪音可能会很大。
Asus GL502VM Review (GTX 1060, I7)
Source: Gaming Laptops Junky English EN→zh-CN Archive.org version
Well, what can I say. The GL502VM is generally a good machine with the basic parts in place – 3D performance and keyboard. It also relatively smaller and more lightweight and the cooling system’s noise levels are relatively low no matter what. However, it has some noticeable downsides. The thermal performance is not as good as other machines with CPU/GPU reaching higher-then-90C degrees under very high load, connection ports selection is very limited, build quality is not that great for such a price compared to the others and most importantly, you can’t change the keyboard’s color to purple or green. It doesn’t have a Thunderbolt 3 port either.
Single Review, online available, Medium, Date: 10/01/2016
Premium gaming notebook with special attention to detail
Source: Laptop Media English EN→zh-CN Archive.org version
ASUS GL502 can stand proud before gamers in almost every aspect that matters – in addition to the awesome appearance, the notebook has pretty powerful hardware in a thin and light form factor. The latter definitely doesn’t make the model fragile, on the contrary – the metal lid protects the screen from random impacts and prevents potential problems when relatively heavy objects are placed on top of the laptop. Good news for the die hard gamers – the notebook keeps stable frame rates even after hours of gaming (although with relatively high surface temperatures). Upgrades are an easy task and the IPS screen screen has great potential which is fulfilled when used with our custom profiles. The Samsung SM951 M.2 NVMe SSD is blazing fast, but keep in mind that there are configurations with LiteOn CV1 on the market and the latter is much, much slower.
Single Review, online available, Very Long, Date: 09/08/2016

Comment

NVIDIA GeForce GTX 1060 Mobile:

移动GTX 1060基于GP106芯片,提供1280个着色器。相比于同名的桌面版本,它采用了稍低的时钟频率。它应该可以为全高清分辨率最高设定运行游戏提供足够的性能。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


6700HQ:

Skylake架构笔记本电脑四核处理器。 它提供了一块集成的HD Graphics 530显卡,采用14纳米工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


2.53 kg: 这是14到16寸的标准笔记本电脑的常见重量。


» Further information can be found in our Notebook Purchase Guide.
