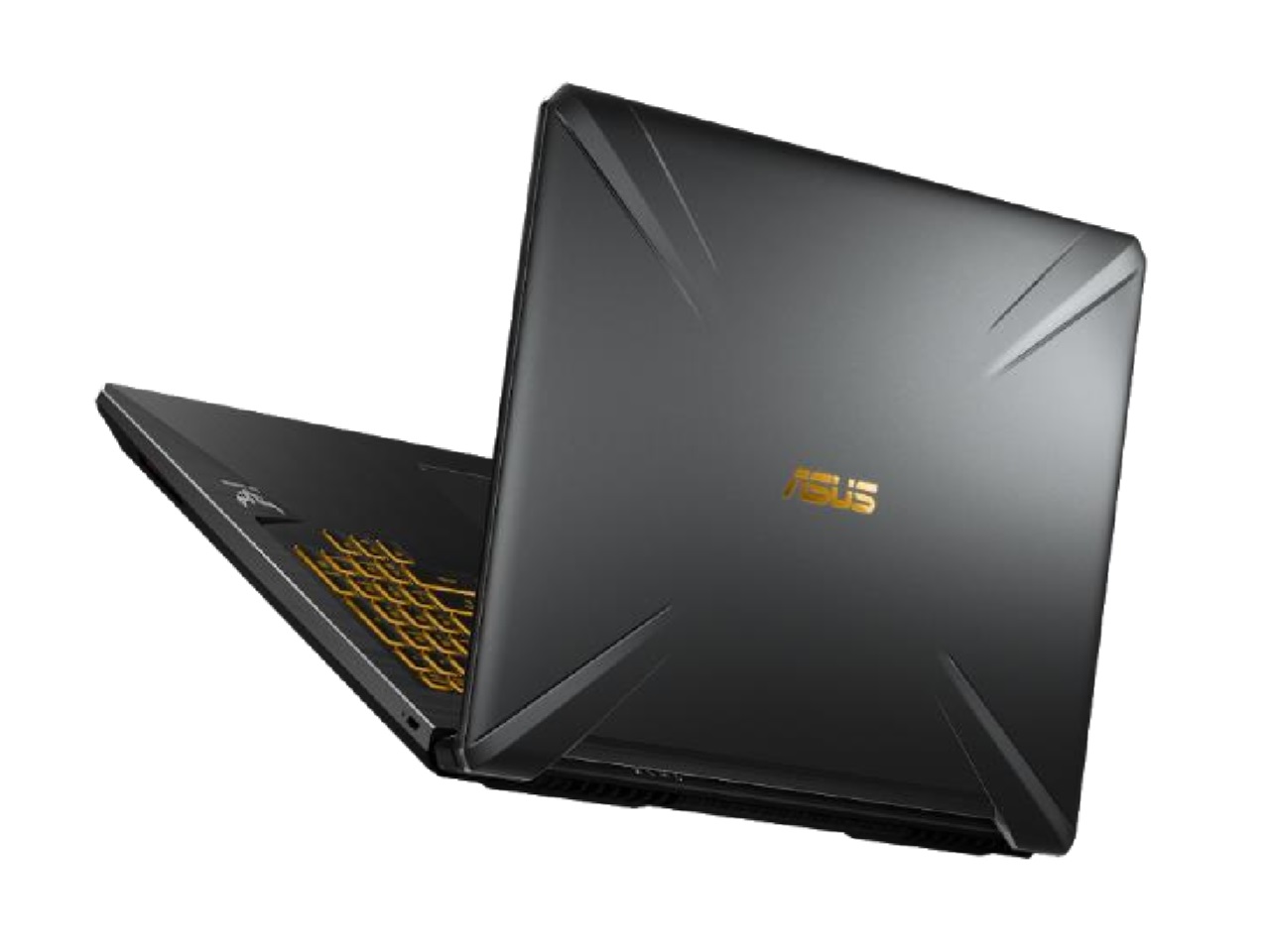

Asus TUF FX705GM

Specifications

Asus TUF FX705GM
Asus TUF FX705GM (TUF FX705 Series)
Processor
Intel Core i7-8750H 6 x 2.2 - 4.1 GHz, Coffee Lake-H
Graphics adapter
NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, Core: 1405 MHz, RAM: 8000 MHz, GDDR5, ForceWare 398.35, Optimus
Memory
32 GB
, 2x 16 GB SO-DIMM DDR4-2666, Dual Channel, alle Slots belegt
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.0 (AUO409D), IPS, Full-HD, 144 Hz, glossy: no
Mainboard
Intel HM370
Storage
WDC PC SN520 SDAPNUW-256G, 256 GB
, NVMe-SSD + Seagate BarraCuda Pro ST1000LM049, 1 TB HDD, 7200 rpm. Schächte: 1x M.2 Typ 2280 & 1x 2.5 Zoll
Soundcard
Realtek ALC235 @ Intel Cannon Lake PCH
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5 mm Klinke
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0
Size
height x width x depth (in mm): 27 x 400 x 279
Battery
64 Wh, 4240 mAh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Additional features
Speakers: 2.0, Keyboard: Chiclet RGB, Keyboard Light: yes, 180-Watt-Netzteil, McAfee LiveSafe Trial, 24 Months Warranty
Weight
2.753 kg, Power Supply: 439 g
Price
1499 Euro



Price comparison

Average Score: 80.83% - good
Average of 3 scores (from 4 reviews)
price: - %, performance: 95%, features: 52%, display: 88% mobility: 68%, workmanship: 80%, ergonomy: 79%, emissions: 74%

Reviews for the Asus TUF FX705GM

82.5% Asus TUF FX705GM (i7-8750H, GTX 1060, FHD) Laptop Review | Notebookcheck
Despite cutting multiple corners, the Asus TUF FX705 is an interesting gaming notebook with a good balance of cost and performance. Find out in this review where the 17-inch model shines and which weaknesses have to be taken into account.
80% Asus TUF Gaming FX705 Review
Source: Laptop Mag English EN→zh-CN Archive.org version
The TUF Gaming FX705 is a good choice for anyone who wants a large, midrange gaming laptop. The FX705's 17.3-inch, 144-Hz display is vivid and detailed, and its Core i7 CPU and GTX 1060 GPU provide excellent all-around performance.
Single Review, online available, Long, Date: 11/08/2019
Rating: Total score: 80%
80% Asus TUF Gaming FX705 Review
Source: Laptop Mag English EN→zh-CN Archive.org version
The GeForce GTX 1060-equipped Asus TUF Gaming FX705 is a reasonably priced gaming laptop with strong performance and a vivid display.
Single Review, online available, Long, Date: 03/05/2019
Rating: Total score: 80%
Review: Asus TUF Gaming FX705 (17,3″ 144 Hz, i7-8750H, GTX 1060)
Source: El chapuzas Informatico Spanish ES→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 12/11/2018
Zamknęli 17-calowy ekran w obudowie od 15-stki. Test laptopa ASUS FX705
Source: Antyweb Turkish PL→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 12/31/2018

Comment

NVIDIA GeForce GTX 1060 Mobile:

移动GTX 1060基于GP106芯片,提供1280个着色器。相比于同名的桌面版本,它采用了稍低的时钟频率。它应该可以为全高清分辨率最高设定运行游戏提供足够的性能。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-8750H:

基于Coffee Lake架构的处理器,适用于大型笔记本电脑。集成了6个处理器内核,主频为2.2 - 4.1 GHz(4 GHz,4核,3.9 GHz,6核),支持超线程。采用改进的14nm工艺(14nm ++)制造。

» Further information can be found in our Comparison of Mobile Processsors.


17.30":

这个大尺寸屏幕常见于以桌面使用为主的笔记本电脑。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


2.753 kg: 这是15寸笔记本电脑的常见重量。


» Further information can be found in our Notebook Purchase Guide.
