Asus TUF Gaming F15 FX506HM-HN184
Specifications
Asus TUF Gaming F15 FX506HM-HN184 (TUF Gaming F15 FX506 Series)
Processor
Intel Core i5-11400H 6 x 2.7 - 4.5 GHz, Tiger Lake-H
Graphics adapter
NVIDIA GeForce RTX 3060 Laptop GPU - 6 GB VRAM, Core: 1630 MHz, 90 W TDP ( including 5 W Dynamic Boost), GDDR6
Memory
16 GB
, DDR4-3200
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, IPS, glossy: no, 144 Hz
Storage
512GB SSD
Connections

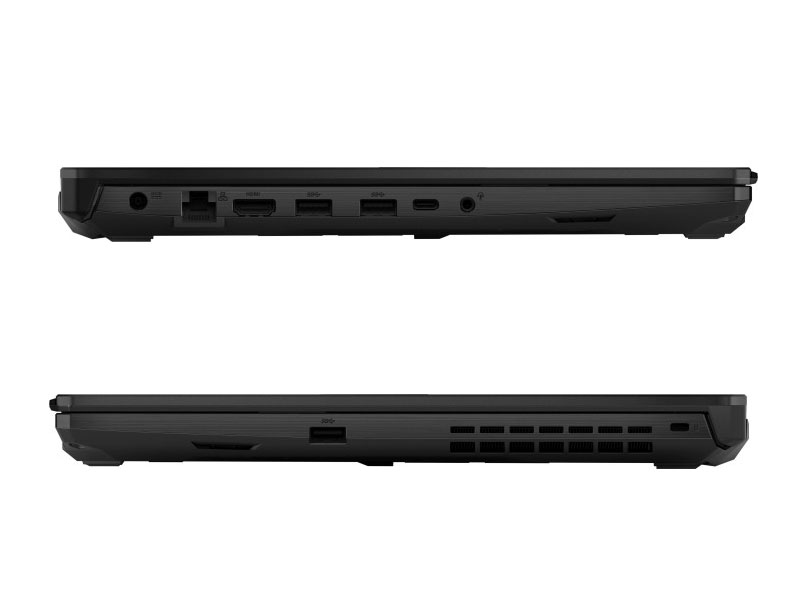

3 USB 3.0 / 3.1 Gen1, 1 Thunderbolt, 1 HDMI, Audio Connections: 3.5mm
Networking
10/100/1000 LAN Card (10/100/1000MBit/s), 802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 24.5 x 359 x 256
Battery
90 Wh Lithium-Polymer, 4-cell
Camera
Webcam: HD 720p
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
2.3 kg
Price
1350 Euro
Price comparison
Reviews for the Asus TUF Gaming F15 FX506HM-HN184
Test ordinateur portable ASUS TUF F15 : Intel et NVIDIA pour le meilleur ?
Source: Cowcotland
FR→zh-CN
Single Review, online available, Very Long, Date: 10/18/2021
Source: Cowcotland
FR→zh-CNSingle Review, online available, Very Long, Date: 10/18/2021
Comment
NVIDIA GeForce RTX 3060 Laptop GPU:
采用安培GA106芯片的高端笔记本电脑显卡，内核为3072。 TDP从60瓦特到115瓦特不等。
» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.
i5-11400H:
基于Tiger Lake（H45系列）的高端Hexa核心SoC，适用于笔记本电脑和工作站。 2.7~4.5GHz的6个CPU核心时钟。 集成UHD显卡GPU可提供32个内核，最高1.45GHz。 芯片采用10nm SuperFin（改进型10nm）工艺制造。
» Further information can be found in our Comparison of Mobile Processsors.
15.60": 15到16寸是笔记本电脑的标准尺寸，产品型号最为丰富。» To find out how fine a display is, see our DPI List.
2.3 kg: 这是14到16寸的标准笔记本电脑的常见重量。
» Further information can be found in our Notebook Purchase Guide.
