Asus TUF Gaming F17 FX706HM
Specifications

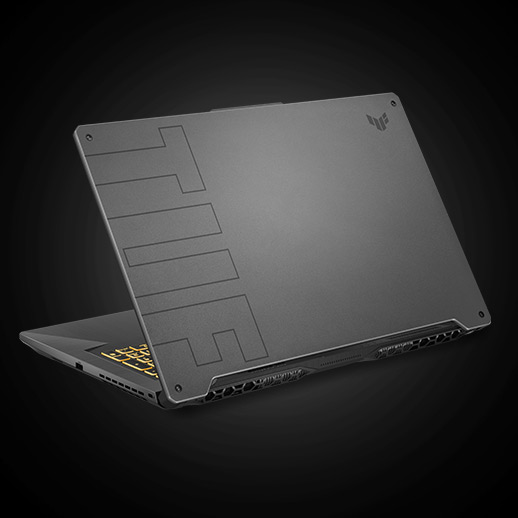

Asus TUF Gaming F17 FX706HM (TUF Gaming F17 Series)
Processor
Intel Core i9-11900H 8 x 2.5 - 4.9 GHz, 105 W PL2 / Short Burst, 80 W PL1 / Sustained, Tiger Lake-H
Graphics adapter
NVIDIA GeForce RTX 3060 Laptop GPU - 6 GB VRAM, 95 W TDP ( including 5 W Dynamic Boost), Geforce 462.42, Otimus
Memory
16 GB
, 2x 8 GB DDR4-3200, 1600 MHz
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics AUI8294 (B173HAN04.9), IPS, glossy: no, 144 Hz
Mainboard
Intel HM570
Storage
SK Hynix HFM001TD3JX013N, 1024 GB
, 860 GB free
Soundcard
Realtek ALC1220 @ Intel Tiger Lake PCH - cAVS
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 1x 3.5 mm Combo Audio Jack
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Bluetooth Bluetooth 5.2
Size
height x width x depth (in mm): 26 x 399 x 269
Battery
90 Wh Lithium-Ion, Battery runtime (according to manufacturer): 14.3 h
Camera
Webcam: 720p HD Camera
Primary Camera: 0.9 MPix
Primary Camera: 0.9 MPix
Additional features
Keyboard: Chiclet with RGB, Keyboard Light: yes
Weight
2.65 kg, Power Supply: 590 g
Price comparison
Average Score:
Average of 1 scores (from 2 reviews)
Average of 1 scores (from 2 reviews)
price: - %, performance: 95%, features: 55%, display: 80% mobility: 68%, workmanship: 82%, ergonomy: 83%, emissions: 77%
Reviews for the Asus TUF Gaming F17 FX706HM
Asus TUF Gaming F17 laptop review: Good gaming device with RTX 3060 but average display despite 144 Hz | Notebookcheck
With the TUF A17, the series was revised last year, and the new case now packs an Intel Core i9 and an RTX 3060 instead of an AMD CPU and a GTX 1660 Ti. Is the entry that Asus offers into the current RTX generation worth it?
With the TUF A17, the series was revised last year, and the new case now packs an Intel Core i9 and an RTX 3060 instead of an AMD CPU and a GTX 1660 Ti. Is the entry that Asus offers into the current RTX generation worth it?
ASUS TUF Gaming F17 (FX706, 2021) - disassembly and upgrade options
Source: Laptop Media
Support, online available, Short, Date: 02/08/2022
Source: Laptop Media
Support, online available, Short, Date: 02/08/2022
Asus ra mắt TUF Gaming F15/F17: khi laptop gaming sinh ra không chỉ để chơi game
Source: Nghenhin Vietnam
VN→zh-CN
Single Review, online available, Long, Date: 09/29/2021
Source: Nghenhin Vietnam
VN→zh-CNSingle Review, online available, Long, Date: 09/29/2021
Comment
NVIDIA GeForce RTX 3060 Laptop GPU:
采用安培GA106芯片的高端笔记本电脑显卡，内核为3072。 TDP从60瓦特到115瓦特不等。
» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.
i9-11900H:
基于Tiger Lake（H45系列）的高端八核SoC，适用于笔记本电脑和工作站。 2.5~4.9GHz的8个CPU核心时钟。 集成UHD显卡GPU可提供32个内核，最高1.45GHz。 芯片采用10nm SuperFin（改进型10nm）工艺制造。
» Further information can be found in our Comparison of Mobile Processsors.
17.30":
这个大尺寸屏幕常见于以桌面使用为主的笔记本电脑。
大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。
» To find out how fine a display is, see our DPI List.
2.65 kg: 这是14到16寸的标准笔记本电脑的常见重量。
» Further information can be found in our Notebook Purchase Guide.
