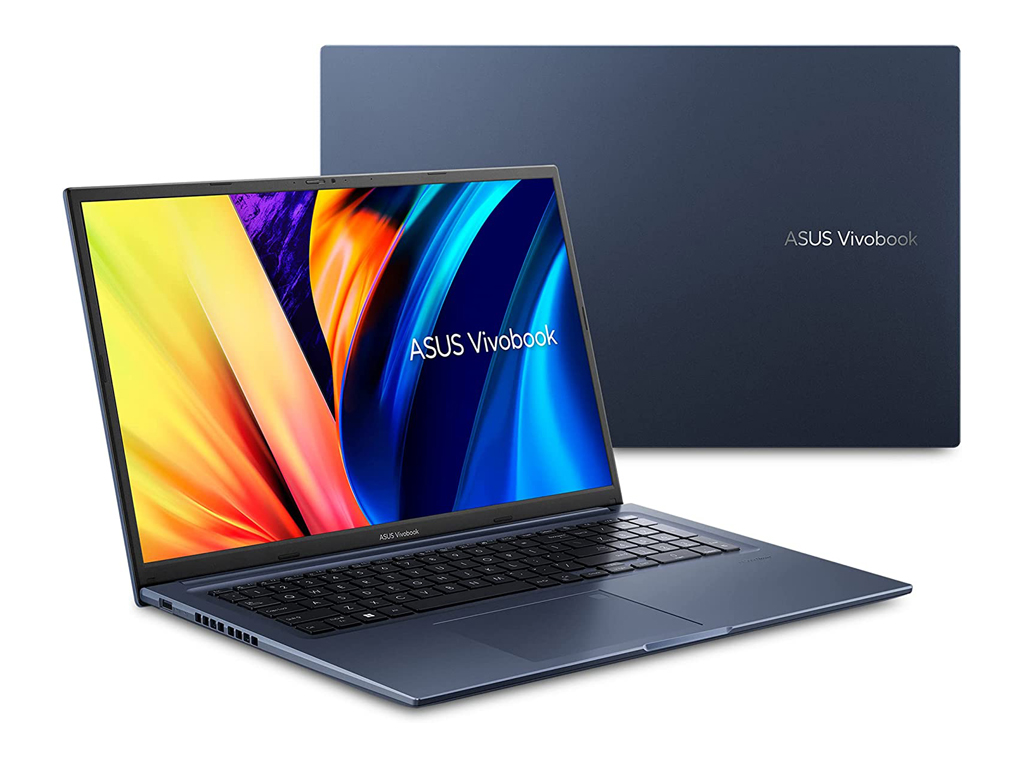

Asus Vivobook 17 X1702, i5-1235U
Specifications
Asus Vivobook 17 X1702, i5-1235U (VivoBook 17 X Series)
Processor
Intel Core i5-1235U 10 x 0.9 - 4.4 GHz, Alder Lake-U
Graphics adapter
Memory
16 GB
, DDR4
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, IPS, glossy: no, 60 Hz
Storage
512GB SSD
Connections
2 USB 2.0, 2 USB 3.1 Gen2, 1 HDMI, Audio Connections: 3.5mm
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Size
height x width x depth (in mm): 21 x 399.3 x 254.3
Battery
42 Wh Lithium-Ion, 3-cell
Operating System
Microsoft Windows 11 Home
Camera
Webcam: HD 720p
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes
Weight
2.1 kg
Price comparison
Reviews for the Asus Vivobook 17 X1702, i5-1235U
How to open ASUS Vivobook 17 (X1702) - disassembly and upgrade options
Source: Laptop Media
Support, online available, Very Short, Date: 01/24/2023
Source: Laptop Media
Support, online available, Very Short, Date: 01/24/2023
ASUS Vivobook 17 (X1702) review – large footprint but short battery life
Source: Laptop Media EN→zh-CN
As usual, the low-to-medium budget section of the market is saturated with tons of good devices. Those of 17-inch size are not that popular but still get into the mix. In particular, Vivobook 17 (X1702) shows a decent performance, which doesn’t drop too much after long periods of time. More so, it provides some upgradeability, like a single RAM SODIMM slot (paired with some soldered memory), and an M.2 PCIe x4 slot for Gen 3 or Gen 4 storage. ASUS Vivobook 17 (X1702)’s 17-inch IPS panel has a Full HD resolution, good contrast ratio, and comfortable viewing angles. It doesn’t use PWM for brightness adjustment, which is great. However, its 52% sRGB color coverage is a limiting factor in visual perception. The disappointing color coverage is not too bad for a laptop in this price range. However, its battery life is drastically lower than that of one of its main competitors – the IdeaPad 3 (17″, 2022). It lasts nearly 3 hours less in Web browsing but closes that gap to a two-hour deficit in video playback. Unfortunately, this means that you won’t be able to use your device for an entire workday only on battery power. Thankfully, the comfort is not hindered, as its keyboard is great, while the touchpad is simply fantastic – Probably the best in its class. Again, you have to be wary of its port selection. Since there is no SD card reader of any sort, and the USB Type-C port is limited to data transfer only, we consider it to be unsatisfactory. At the end of the day, we think that Vivobook 17 (X1702) is worth considering. Especially if you find a good deal on it. What is a good deal on this device? Well, that’s if it’s cheaper than the IdeaPad 3 (17″, 2022).
Single Review, online available, Very Long, Date: 01/24/2023
Source: Laptop Media
EN→zh-CNAs usual, the low-to-medium budget section of the market is saturated with tons of good devices. Those of 17-inch size are not that popular but still get into the mix. In particular, Vivobook 17 (X1702) shows a decent performance, which doesn’t drop too much after long periods of time. More so, it provides some upgradeability, like a single RAM SODIMM slot (paired with some soldered memory), and an M.2 PCIe x4 slot for Gen 3 or Gen 4 storage. ASUS Vivobook 17 (X1702)’s 17-inch IPS panel has a Full HD resolution, good contrast ratio, and comfortable viewing angles. It doesn’t use PWM for brightness adjustment, which is great. However, its 52% sRGB color coverage is a limiting factor in visual perception. The disappointing color coverage is not too bad for a laptop in this price range. However, its battery life is drastically lower than that of one of its main competitors – the IdeaPad 3 (17″, 2022). It lasts nearly 3 hours less in Web browsing but closes that gap to a two-hour deficit in video playback. Unfortunately, this means that you won’t be able to use your device for an entire workday only on battery power. Thankfully, the comfort is not hindered, as its keyboard is great, while the touchpad is simply fantastic – Probably the best in its class. Again, you have to be wary of its port selection. Since there is no SD card reader of any sort, and the USB Type-C port is limited to data transfer only, we consider it to be unsatisfactory. At the end of the day, we think that Vivobook 17 (X1702) is worth considering. Especially if you find a good deal on it. What is a good deal on this device? Well, that’s if it’s cheaper than the IdeaPad 3 (17″, 2022).
Single Review, online available, Very Long, Date: 01/24/2023
Comment
Intel Iris Xe G7 80EUs:
基于80个EU的新Gen.12体系结构的英特尔Tiger Lake G7 SoC集成显卡。 时钟速率因处理器型号而异。 Tiger Lake芯片采用英特尔10纳米以上的现代工艺生产。
» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.
i5-1235U:
一个基于Alder-Lake的移动处理器，有2个性能核心和8个高效核心。性能核心提供超线程，可以处理12个线程。该CPU的运行频率从0.9到4.4GHz不等。TDP规定为15瓦。
» Further information can be found in our Comparison of Mobile Processsors.17.30":
这个大尺寸屏幕常见于以桌面使用为主的笔记本电脑。
大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。
» To find out how fine a display is, see our DPI List.
2.1 kg: 大部分12到16寸的亚笔记本电脑，超极本和轻盈标准笔记本电脑的重量在这个水平上。
» Further information can be found in our Notebook Purchase Guide.
