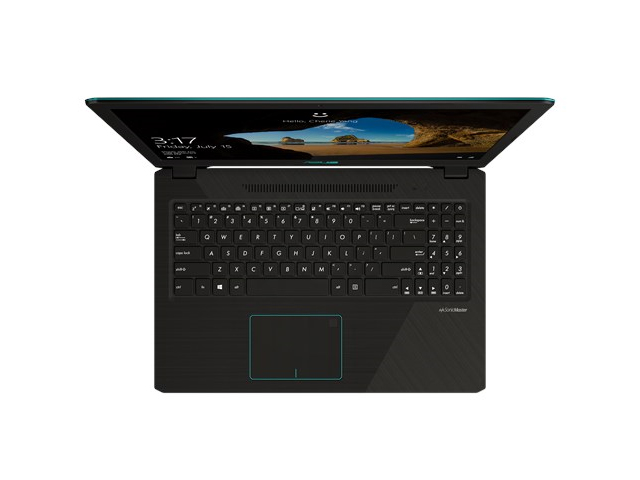

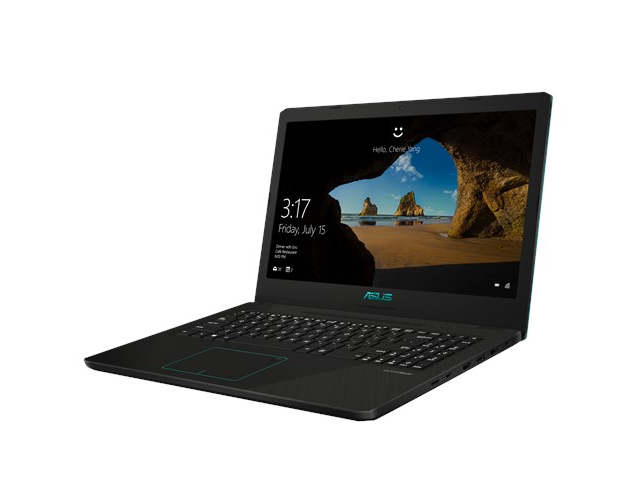

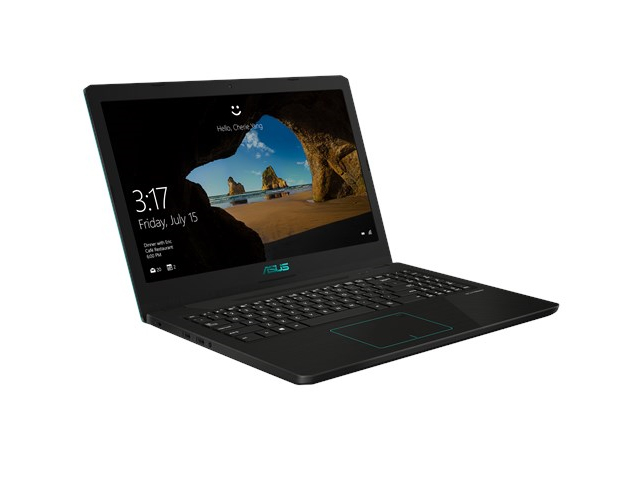

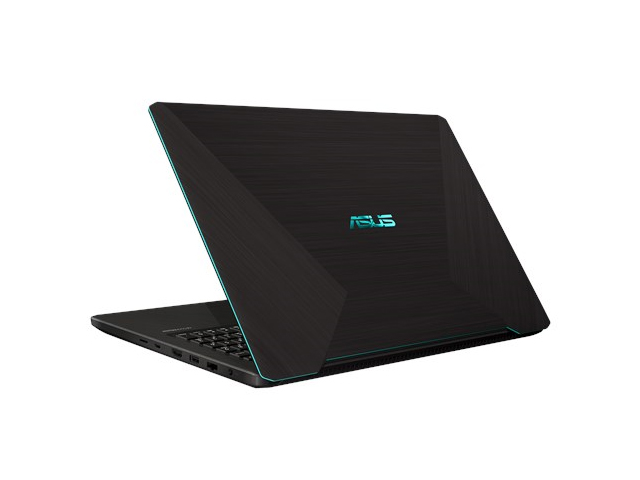

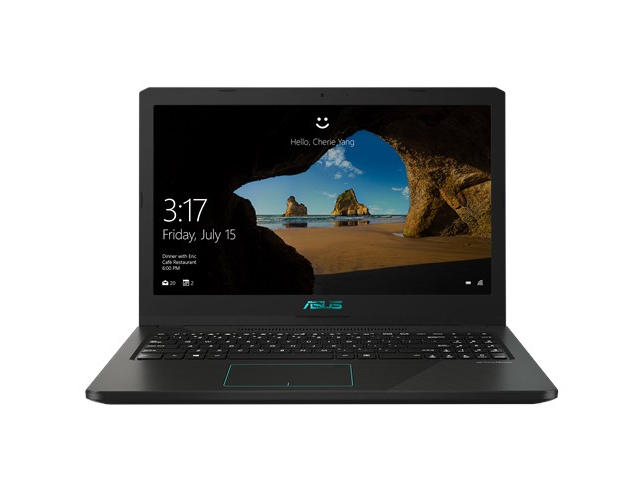

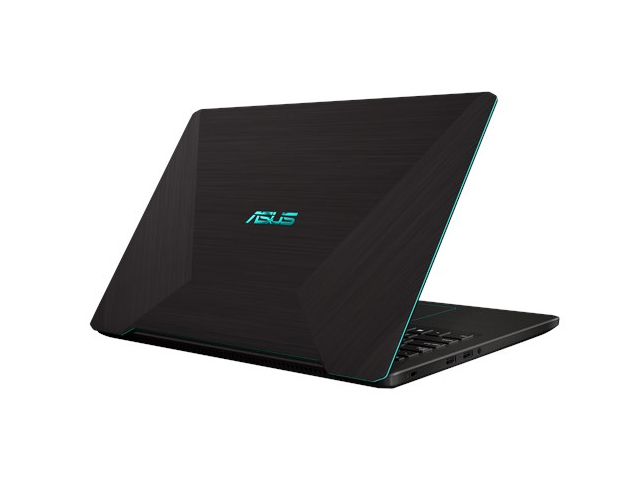

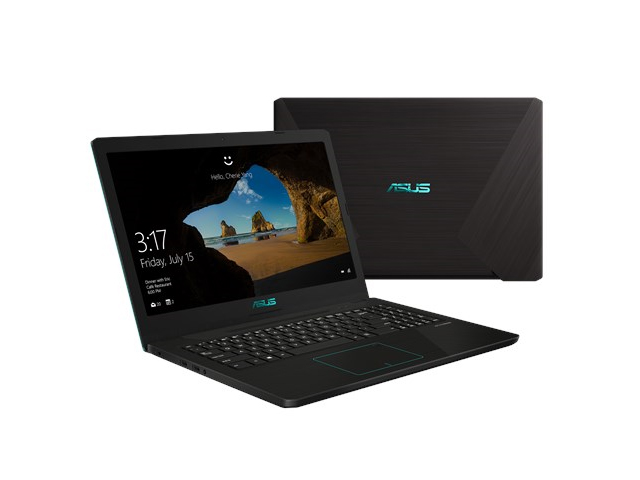

Asus VivoBook 15 X570ZD

Specifications

Asus VivoBook 15 X570ZD
Asus VivoBook 15 X570ZD
Processor
AMD Ryzen 5 2500U 4 x 2 - 3.6 GHz, Zen
Graphics adapter
NVIDIA GeForce GTX 1050 Mobile - 2048 MB VRAM, GDDR5
Memory
8 GB
, DDR4
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, IPS, glossy: no
Storage
1TB 5400rpm HDD
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5mm, Card Reader: microSD, USB 3.1 Type-C
Networking
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 21.9 x 375 x 256
Battery
48 Wh
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: VGA
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes
Weight
1.97 kg



Price comparison

Average Score: 80% - good
Average of 1 scores (from 2 reviews)

Reviews for the Asus VivoBook 15 X570ZD

ASUS VivoBook K570 review – one of the most affordable gaming notebooks
Source: Laptop Media English EN→zh-CN Archive.org version
How about upgradability? Again – mixed results. It is great that you can put two RAM sticks and add up to 32GB of memory. Moreover, you have one M.2 NVMe PCIe x2 slot and a SATA drive slot. Now, it all seems fun and games, until you pop the device open. The only thing you can change right out the bat is the SATA drive. Everything else requires the removal of the motherboard from the chassis. You can do that yourself with only a single Phillips screwdriver and you can check our guide HERE. Nevertheless, it takes plenty of steps more, compared to the Ideapad L340 Gaming (15) or the VivoBook K571.
Single Review, online available, Very Long, Date: 02/20/2020
80% Asus VivoBook X570ZD / K570ZD review (AMD Ryzen 5 2500U, Nvidia GTX 1050)
Source: Ultrabook Review English EN→zh-CN Archive.org version
This VivoBook is a hard sell. On one hand it's rather unique, as it combines a low-power CPU with mid-tier Nvidia dedicated graphics, and it performs well in most situations and doesn't throttle in games. On the other it's just average in terms of build, looks, screen quality and even typing experience, although I find this a good match for my style. Pricing is going to make it or break it though, as Asus also offers an Intel Core U based model with the exact same traits, quirks and kind of GPU, and this one needs to be more affordable in order to compete and overcome the flaws associated with the Ryzen platform. Read on for the whole story.
Single Review, online available, Very Long, Date: 08/22/2018
Rating: Total score: 80%

Comment

NVIDIA GeForce GTX 1050 Mobile:

基于Nvidia Pascal架构的主流显卡以及GeForce GTX 960M的后续产品,制造于三星的14纳米工艺,其技术规格于桌面版本非常相似。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


R5 2500U:

集成了4个Zen核心的移动APU,主频为2-3.6 GHz。TDP的配置范围为12至25瓦(标称值为15 W),集成的Radeon RX Vega 8的时钟频率高达1100 MHz。

» Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


1.97 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
