Asus ZenBook Duo UX481FL-BM040T

Specifications

Asus ZenBook Duo UX481FL-BM040T
Asus ZenBook Duo UX481FL-BM040T (ZenBook Duo UX481 Series)
Processor
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Graphics adapter
Memory
8 GB
, DDR3-2133
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, IPS, second display: 12.6", glossy: no
Storage
512GB M.2
Connections

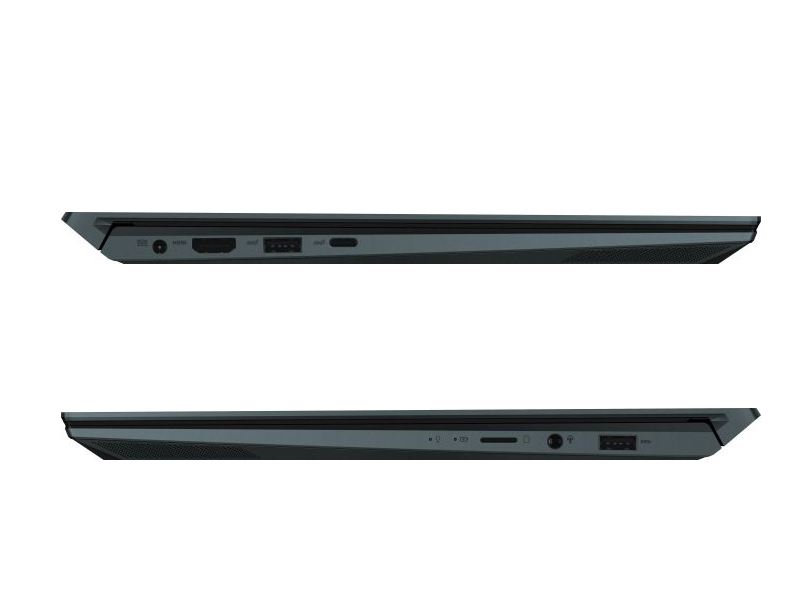

2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5mm, Card Reader: microSD, USB-C
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0
Size
height x width x depth (in mm): 19.9 x 323 x 223
Battery
70 Wh Lithium-Polymer, 4-cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.5 kg
Price
1200 Euro



Price comparison

Reviews for the Asus ZenBook Duo UX481FL-BM040T

ASUS ZenBook Duo - Double the screen, double the productivity... kind of...
Source: Tech Nave English EN→zh-CN Archive.org version
If you're still keen on getting the ASUS ZenBook Duo for slightly heavier workloads such as video editing, you might want to consider getting the i7 variant instead which is priced at RM5699. If money is no object, why not get the ASUS ZenBook Pro Duo which comes equipped with up to a 9th generation i9 processor, Nvidia RTX 2060 graphics card as well as up to 1TB of primary storage starting from the price of RM12999.
Single Review, online available, Long, Date: 12/03/2019
Обзор и тест ASUS ZenBook Duo UX481F: два дисплея в массы
Source: 3DNews.ru RU→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 01/21/2020
Đánh giá Asus Zenbook Duo, laptop nhỏ 2 màn tiện dụng
Source: Nghenhin Vietnam VN→zh-CN Archive.org version
Single Review, online available, Medium, Date: 03/26/2020
Trên tay Asus ZenBook Duo: laptop 2 màn hình siêu độc, siêu sáng tạo
Source: FPT shop VN→zh-CN Archive.org version
Single Review, online available, Long, Date: 02/06/2020
Mở hộp & trên tay nhanh ASUS ZenBook Duo: Nhỏ gọn tinh tế, trải nghiệm vẫn "đã"!
Source: The Gioididong VN→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 11/26/2019

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-10210U:

基于Comet Lake的低功耗四核处理器(在技术上与Whiskey Lake相同,但仍采用14nm ++生产)。通过超线程(8个线程),CPU频率在1.6和4.2 GHz之间(全核最大为3.9 GHz)。集成内存控制器支持DDR4-2666,性能可以由OEM调整(可能为10-25瓦,默认为15W)。

与更快的i5-10510U相比,三级缓存从8 MB减少到6 MB。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.5 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
