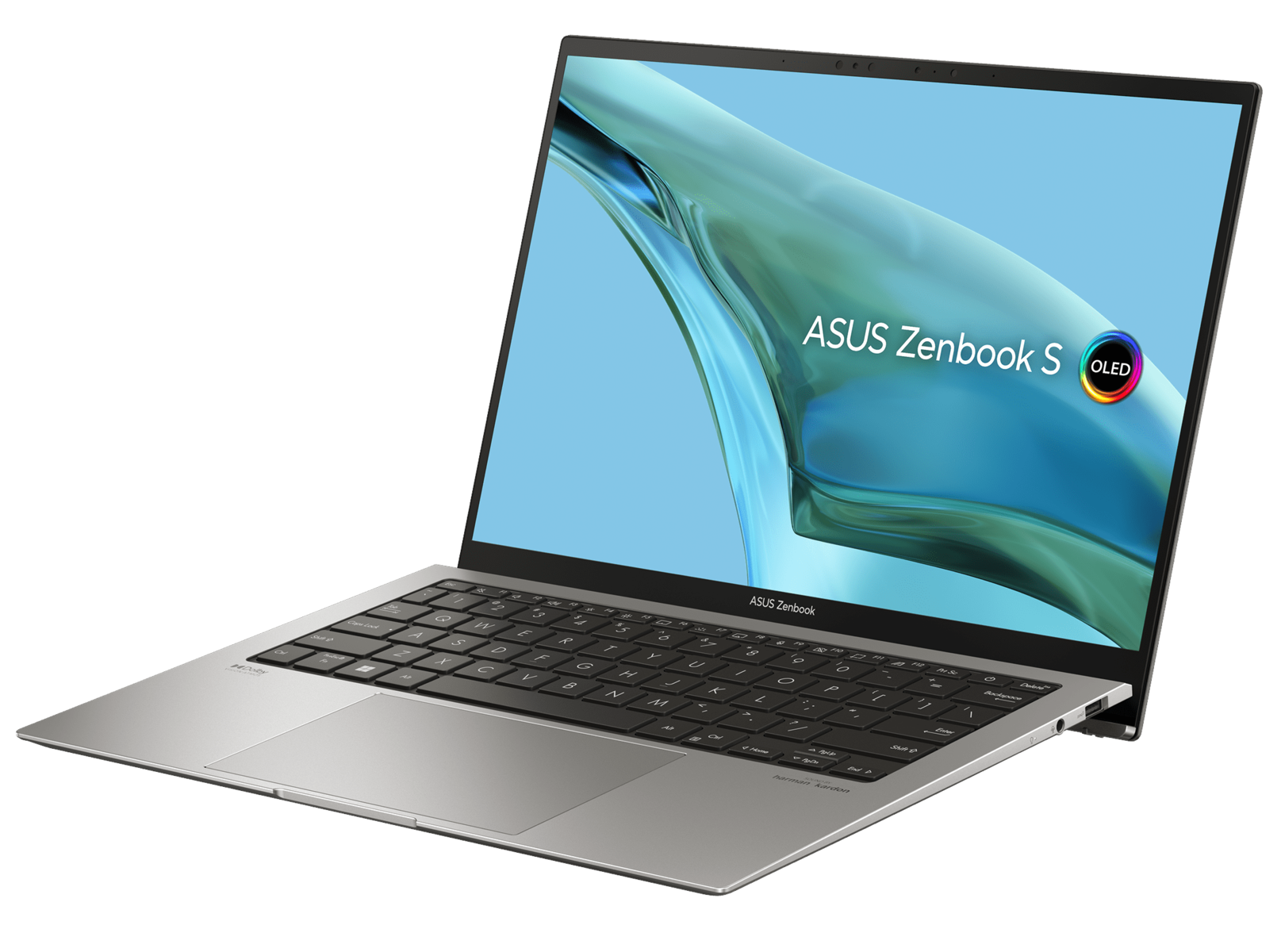

Asus Zenbook S 13 UX5304MA

Specifications

Asus Zenbook S 13 UX5304MA
Asus Zenbook S 13 UX5304MA
Processor
Intel Core Ultra 7 155U 12 x 3.8 - 4.8 GHz, Meteor Lake-P
Graphics adapter
Intel Graphics 4-Cores iGPU (Arc)
Memory
16 GB
, LPDDR5X-7467 Quad-Channel, Timings: 64-52-52-120
Display
13.30 inch 16:10, 2880 x 1800 pixel 255 PPI, Samsung ATNA33AA05 (SDC417B), OLED, Four-sided NanoEdge, DisplayHDR 600 True Black, Dolby Vision, glossy: yes, HDR, 60 Hz
Mainboard
Intel Meteor Lake-U/P/H PCH
Storage
WD PC SN560 SDDPNQE-1T00, 1024 GB
, 900 GB free
Soundcard
Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)
Connections
1 USB 3.1 Gen2, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm combo audio jack, Brightness Sensor, Sensors: Color sensor
Networking
Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3
Size
height x width x depth (in mm): 10.9 x 296.2 x 216.3
Battery
63 Wh Lithium-Ion, 2S2P, 4-cell, Battery runtime (according to manufacturer): 14 h
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 1080p 3DNR with IR
Primary Camera: 2.07 MPix
Additional features
Speakers: Stereo speakers, Harmon Kardon-certified with Dolby Atmos, Keyboard: Chiclet, Keyboard Light: yes, MyAsus, ScreenXpert, GlideX, 12 Months Warranty
Weight
1000 g, Power Supply: 140 g
Price
1200 USD
Links
Asus homepage
Asus notebook section



Price comparison

Average Score: 100% - very good
Average of 1 scores (from 1 reviews)

Reviews for the Asus Zenbook S 13 UX5304MA

100% ASUS Zenbook S 13 OLED UX5304MA-NQ039W (Qwerty toetsenbord) Review
Source: Tweakers Dutch NL→zh-CN
User Review, online available, Very Short, Date: 08/24/2024
Rating: Total score: 100%

Comment

Intel Graphics 4-Core: 基于 Xe LPG 架构的集成显卡（与专用 Arc GPU 相似，但更注重效率）。提供 4 个 Xe 内核（64 Xe 矢量引擎）和 4 个光线追踪单元。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Ultra 7 155U: 一款于 2023 年 12 月亮相的中端流星湖芯片。这款第 1 代酷睿 Ultra 处理器将取代第 13 代酷睿处理器；它拥有 12 个内核（2 + 8 + 2）和 14 个线程。其性能内核（有 2 个）的运行频率高达 4.8 GHz，而其高效内核（有 10 个）（8 个主内核加上低功耗岛中的 2 个额外内核）的运行频率高达 3.8 GHz。刚刚出炉的 4 核 Intel Arc Graphics 用作集成图形适配器，其运行频率高达 1.95 GHz，此外还提供了大量其他全新技术，包括集成 AI Boost NPU（带有两个用于硬件 AI 工作负载加速的第 3 代引擎）。这款笔记本处理器的基本功耗为 15 W，英特尔建议的最大 Turbo 功耗为 57 W。» Further information can be found in our Comparison of Mobile Processsors.


13.30":

大体上，这个屏幕尺寸常见于亚笔记本电脑，超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。

» To find out how fine a display is, see our DPI List.


1 kg: 这是10到11寸大尺寸平板电脑，小型亚笔记本，超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
