富士通 Celsius H730 工作站简短评测

Name: Fujitsu Celsius H730
Brand: Fujitsu

产品维护。 富士通更新了他们的移动工作站机型Celsius H730的2015年版本，并改进了一些细节。我们的深入评测将会告诉你除了处理器的小升级外它还有哪些值得期待的新亮点。

Tobias Winkler, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 02/07/2015 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Windows


308 cd/m²	295 cd/m²	305 cd/m²
284 cd/m²	267 cd/m²	279 cd/m²
273 cd/m²	238 cd/m²	279 cd/m²

Distribution of brightness

LP156WF4-SPH1 tested with X-Rite i1Pro 2

Maximum: 308 cd/m² (Nits) Average: 280.9 cd/m²
Brightness Distribution: 77 %
Center on Battery: 279 cd/m²
Contrast: 861:1 (Black: 0.31 cd/m²)
ΔE Color 4.59 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.83 | 0.5-98 Ø5.2
48% AdobeRGB 1998 (Argyll 1.6.3 3D)
52.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
74.4% sRGB (Argyll 2.2.0 3D)
51.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21

Download ICC File (X-Rite i1Pro 2)

Cinebench R10 Shading 32Bit

6435

Cinebench R10 Rendering Multiple CPUs 32Bit

18274

Cinebench R10 Rendering Single 32Bit

4932

Cinebench R11.5 OpenGL 64Bit

45 fps

Cinebench R11.5 CPU Multi 64Bit

6.56 Points

Cinebench R11.5 CPU Single 64Bit

1.55 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

52 fps

Cinebench R15 CPU Multi 64Bit

600 Points

Cinebench R15 CPU Single 64Bit

134 Points

Help

... in comparison

PCMark 7 Score		5075 points
PCMark 8 Home Score Accelerated v2		3123 points
PCMark 8 Creative Score Accelerated v2		3200 points
PCMark 8 Work Score Accelerated v2		4254 points
Help

... in comparison

HD Tune

AS SSD

Samsung SSD PM851 256 GB MZ7TE256HMHP

Transfer Rate Minimum: 135.4 MB/s

Transfer Rate Maximum: 462.9 MB/s

Transfer Rate Average: 384 MB/s

Access Time: 0.1 ms

Burst Rate: 200.4 MB/s

CPU Usage: 1 %

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Fujitsu Celsius H730	23.1 fps
HP ZBook 15	20.54 fps -11%
Toshiba Tecra W50-A-104	31.33 fps +36%
Dell Precision M2800	25.04 fps +8%
HP ZBook 15 G2	27.58 fps +19%
1920x1080 Tcvis (sort by value)
Fujitsu Celsius H730	27.3 fps
HP ZBook 15	26.47 fps -3%
Toshiba Tecra W50-A-104	34.82 fps +28%
Dell Precision M2800	9.81 fps -64%
HP ZBook 15 G2	21.79 fps -20%
1920x1080 SolidWorks (sort by value)
Fujitsu Celsius H730	38.2 fps
HP ZBook 15	35.16 fps -8%
Toshiba Tecra W50-A-104	44.64 fps +17%
Dell Precision M2800	47.75 fps +25%
HP ZBook 15 G2	54.2 fps +42%
1920x1080 Pro/ENGINEER (sort by value)
Fujitsu Celsius H730	17.3 fps
HP ZBook 15	13.93 fps -19%
Toshiba Tecra W50-A-104	18.79 fps +9%
Dell Precision M2800	11 fps -36%
HP ZBook 15 G2	10.38 fps -40%
1920x1080 Maya (sort by value)
Fujitsu Celsius H730	46.6 fps
HP ZBook 15	42.44 fps -9%
Toshiba Tecra W50-A-104	53.3 fps +14%
Dell Precision M2800	68.4 fps +47%
HP ZBook 15 G2	75.3 fps +62%
1920x1080 Lightwave (sort by value)
Fujitsu Celsius H730	50 fps
HP ZBook 15	49.06 fps -2%
Toshiba Tecra W50-A-104	50.6 fps +1%
Dell Precision M2800	71.6 fps +43%
HP ZBook 15 G2	77.5 fps +55%
1920x1080 Ensight (sort by value)
Fujitsu Celsius H730	17.4 fps
HP ZBook 15	14.67 fps -16%
Toshiba Tecra W50-A-104	28.26 fps +62%
Dell Precision M2800	19.94 fps +15%
HP ZBook 15 G2	24.67 fps +42%
1920x1080 Catia (sort by value)
Fujitsu Celsius H730	34.5 fps
HP ZBook 15	28.72 fps -17%
Toshiba Tecra W50-A-104	42.66 fps +24%
Dell Precision M2800	26.24 fps -24%
HP ZBook 15 G2	36.35 fps +5%

Legend

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

HP ZBook 15 Intel Core i7-4800MQ, NVIDIA Quadro K610M, Hitachi Travelstar Z7K500 HTS725050A7E630

Toshiba Tecra W50-A-104 Intel Core i7-4800MQ, NVIDIA Quadro K2100M, Toshiba MQ01ABD100

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 15 G2 Intel Core i7-4710MQ, AMD FirePro M5100, HGST Travelstar 5K1000 HTS541075A9E680

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Fujitsu Celsius H730	32.9 fps
Toshiba Tecra W50-A-104	36.02 fps +9%
Dell Precision M2800	37.52 fps +14%
HP ZBook 15 G2	39.85 fps +21%
1900x1060 Siemens NX (snx-02) (sort by value)
Fujitsu Celsius H730	15.5 fps
Toshiba Tecra W50-A-104	20.86 fps +35%
Dell Precision M2800	23.52 fps +52%
HP ZBook 15 G2	28.9 fps +86%
1900x1060 Showcase (showcase-01) (sort by value)
Fujitsu Celsius H730	9.1 fps
Toshiba Tecra W50-A-104	10 fps +10%
Dell Precision M2800	12.75 fps +40%
HP ZBook 15 G2	15.47 fps +70%
1900x1060 Medical (medical-01) (sort by value)
Fujitsu Celsius H730	4.9 fps
Toshiba Tecra W50-A-104	5.88 fps +20%
Dell Precision M2800	5.84 fps +19%
HP ZBook 15 G2	7.81 fps +59%
1900x1060 Maya (maya-04) (sort by value)
Fujitsu Celsius H730	14.2 fps
Toshiba Tecra W50-A-104	18.1 fps +27%
Dell Precision M2800	22.75 fps +60%
HP ZBook 15 G2	25.5 fps +80%
1900x1060 Energy (energy-01) (sort by value)
Fujitsu Celsius H730	0.33 fps
Toshiba Tecra W50-A-104	0.34 fps +3%
Dell Precision M2800	0.35 fps +6%
HP ZBook 15 G2	0.43 fps +30%
1900x1060 Creo (creo-01) (sort by value)
Fujitsu Celsius H730	16.2 fps
Toshiba Tecra W50-A-104	20.47 fps +26%
Dell Precision M2800	18.8 fps +16%
HP ZBook 15 G2	21.76 fps +34%
1900x1060 Catia (catia-04) (sort by value)
Fujitsu Celsius H730	16.6 fps
Toshiba Tecra W50-A-104	20.81 fps +25%
Dell Precision M2800	19.33 fps +16%
HP ZBook 15 G2	23.03 fps +39%

Legend

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Toshiba Tecra W50-A-104 Intel Core i7-4800MQ, NVIDIA Quadro K2100M, Toshiba MQ01ABD100

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 15 G2 Intel Core i7-4710MQ, AMD FirePro M5100, HGST Travelstar 5K1000 HTS541075A9E680

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Fujitsu Celsius H730	108 Samples/s
Toshiba Tecra W50-A-104	75 Samples/s -31%
HP ZBook 17 E9X11AA-ABA	102 Samples/s -6%
Dell Precision M2800	256 Samples/s +137%
Sala GPUs-only (sort by value)
Fujitsu Celsius H730	221 Samples/s
Toshiba Tecra W50-A-104	160 Samples/s -28%
HP ZBook 17 E9X11AA-ABA	48 Samples/s -78%
Dell Precision M2800	462 Samples/s +109%

Legend

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Toshiba Tecra W50-A-104 Intel Core i7-4800MQ, NVIDIA Quadro K2100M, Toshiba MQ01ABD100

HP ZBook 17 E9X11AA-ABA Intel Core i7-4900MQ, NVIDIA Quadro K610M, Micron RealSSD C400 MTFDDAK128MAM

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

3DMark 11 Performance		2002 points
3DMark Ice Storm Standard Score		71943 points
3DMark Cloud Gate Standard Score		8600 points
3DMark Fire Strike Score		1297 points
Help

... in comparison

	low	med.	high	ultra
World of Warcraft (2005)	351	215	54	22
Thief (2014)	32	20	17	9
GRID: Autosport (2014)	214	76	35	17

Noise Level

Idle		27 / 27 / 27 dB(A)
Load		44.9 / 48.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: PCE-322A (15 cm distance)

Max. Load

Idle


25.6 °C	31.1 °C	31.2 °C
25 °C	29.3 °C	28.3 °C
24.1 °C	24.8 °C	24.8 °C

Maximum: 31.2 °C
Average: 27.1 °C


43.2 °C	38.5 °C	27.2 °C
27.3 °C	38.6 °C	26.4 °C
25.1 °C	27.1 °C	24.8 °C

Maximum: 43.2 °C
Average: 30.9 °C

Power Supply (max.) 41 °C | Room Temperature 20 °C | Fennel Firt 550

(+) The average temperature for the upper side under maximal load is 27.1 °C / 81 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 31.2 °C / 88 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.5 °C / 81.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+0.4 °C / 0.7 F).

Power Consumption

Off / Standby	0.1 / 0.2 Watt
Idle	13.5 / 16.7 / 17.9 Watt
Load	65.5 / 103.9 Watt


Key: min: , med: , max: Voltcraft VC 870 ISO kalibriert

Battery Runtime

Idle (without WLAN, min brightness)		5h 59min
WiFi Surfing		4h 41min
Big Buck Bunny H.264 1080p		4h 12min
Load (maximum brightness)		2h 14min

富士通保持了一贯的水准。富士通Celsius H730是一款平衡全面的移动工作站，在各方面都有优秀的成绩。在它身上你找不到什么大毛病，或任何影响选择它的问题，因此它在我们的工作站产品中应当可以名列前茅。

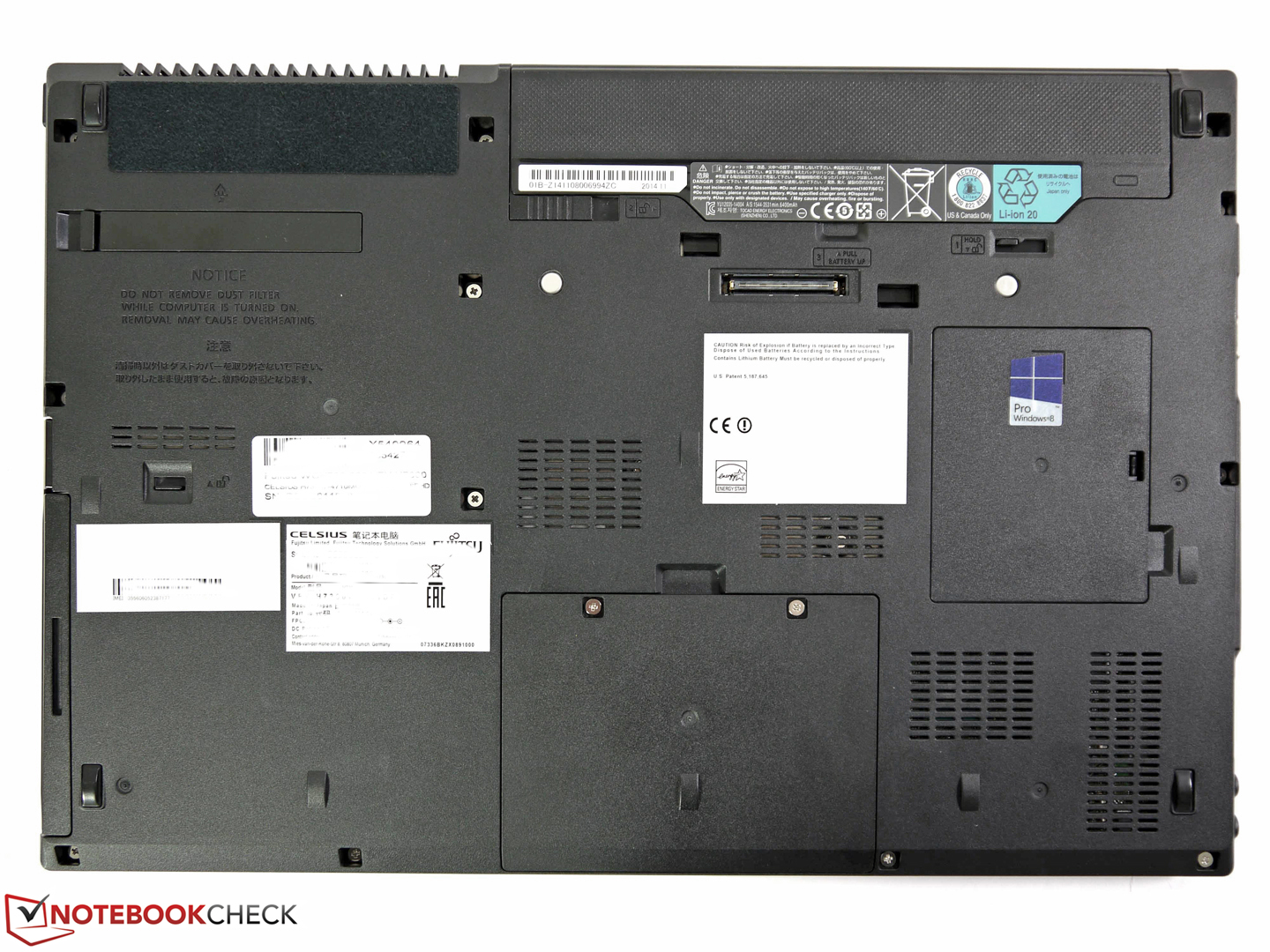

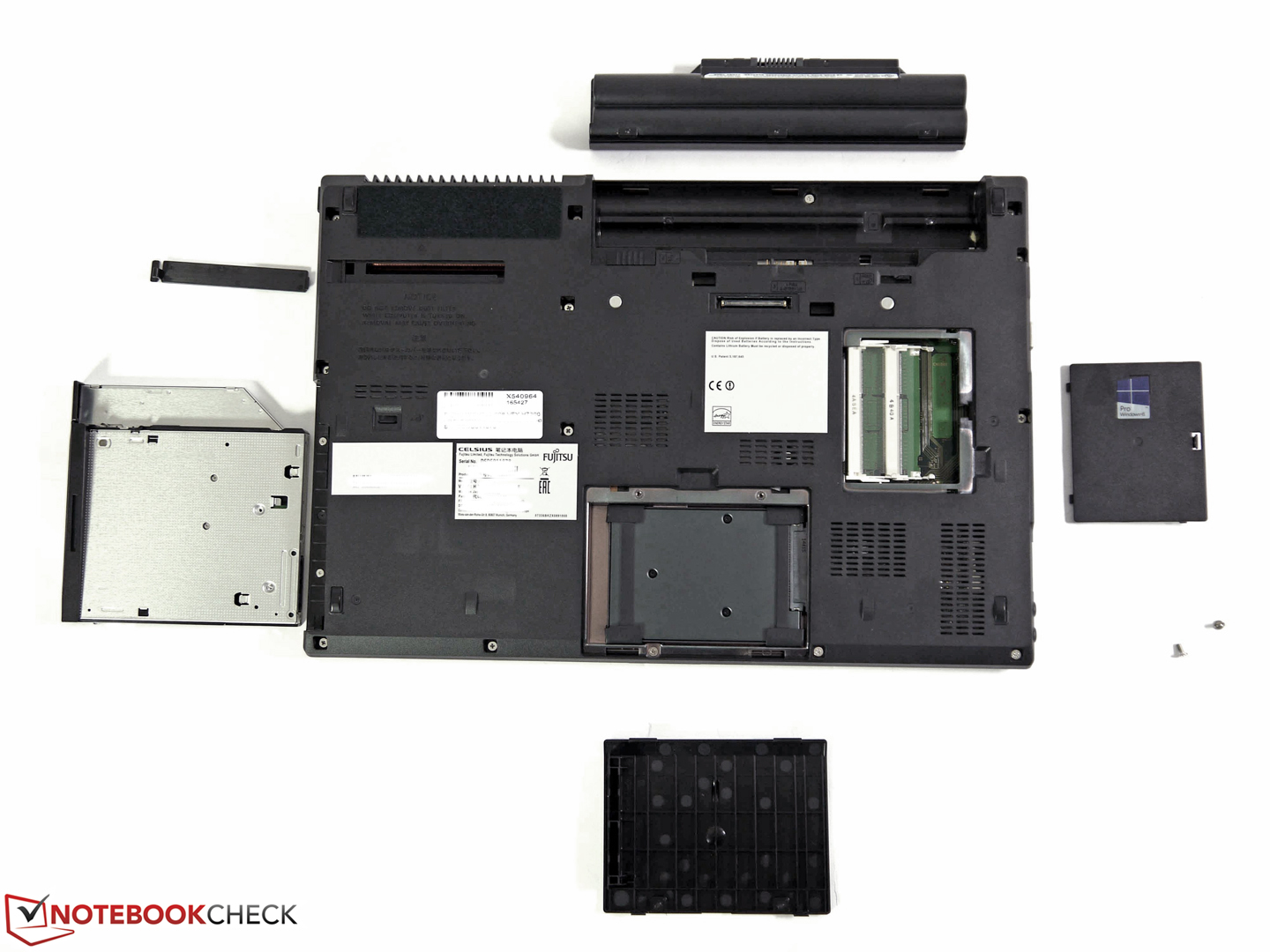

不过我们认为在一些方面它仍然还有改进的空间。它缺少对一些最新接口的支持，为用户留下的升级维护空间并不是特别出色，而一些潜在用户可能希望有更多可选的屏幕类型，特别是当它的全高清屏幕并没在所有参数上都让人满意的情况下。

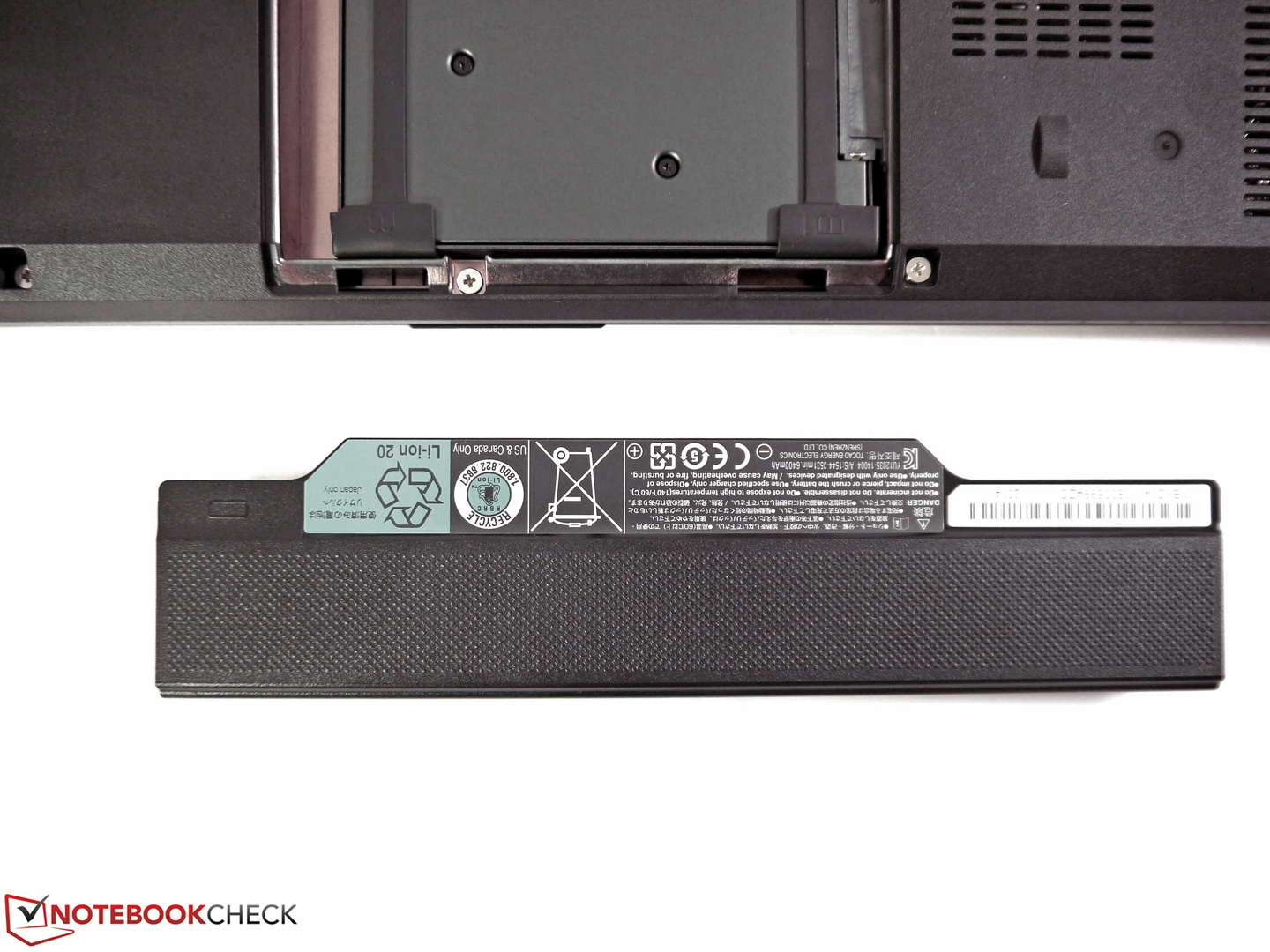

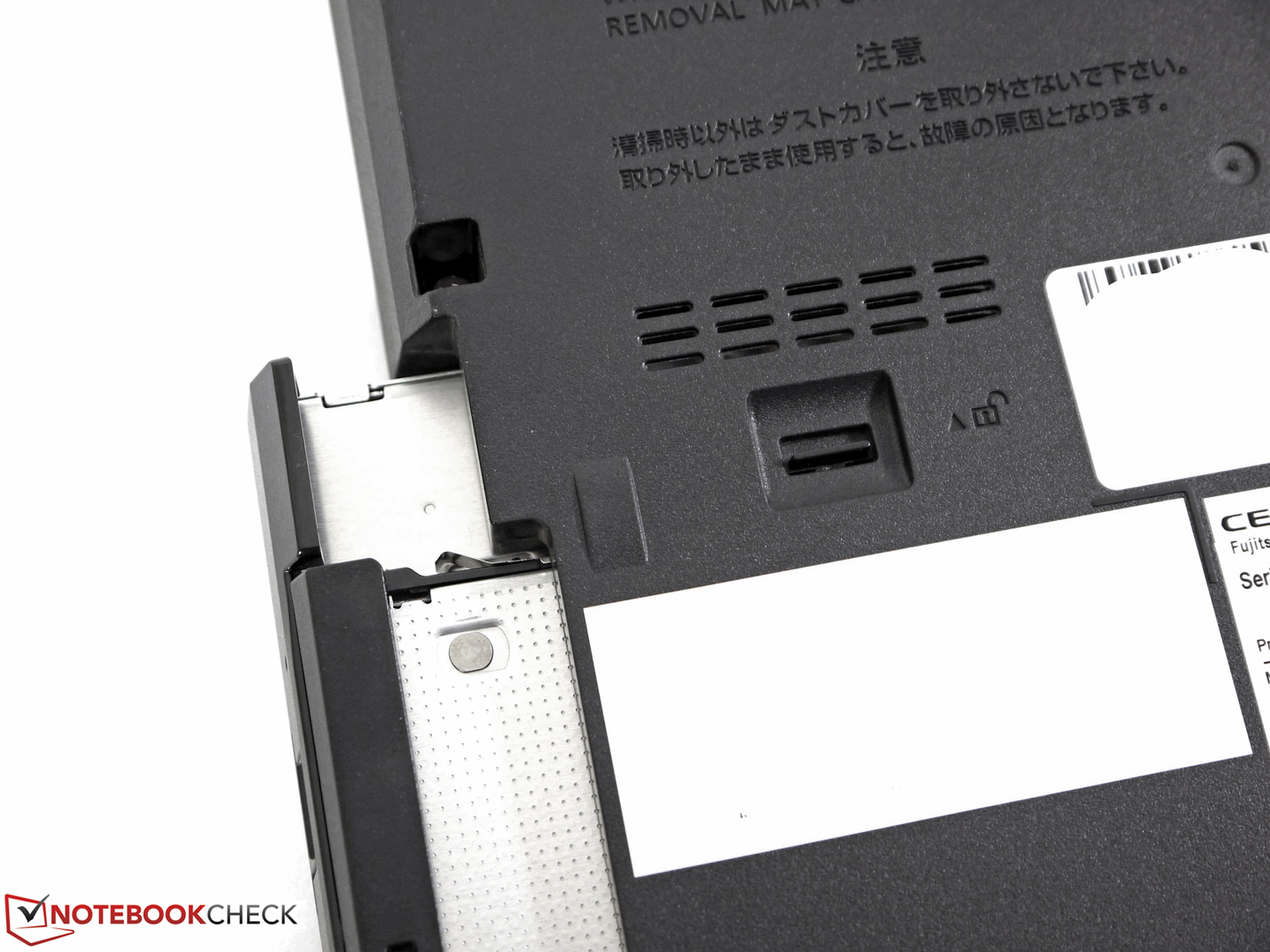

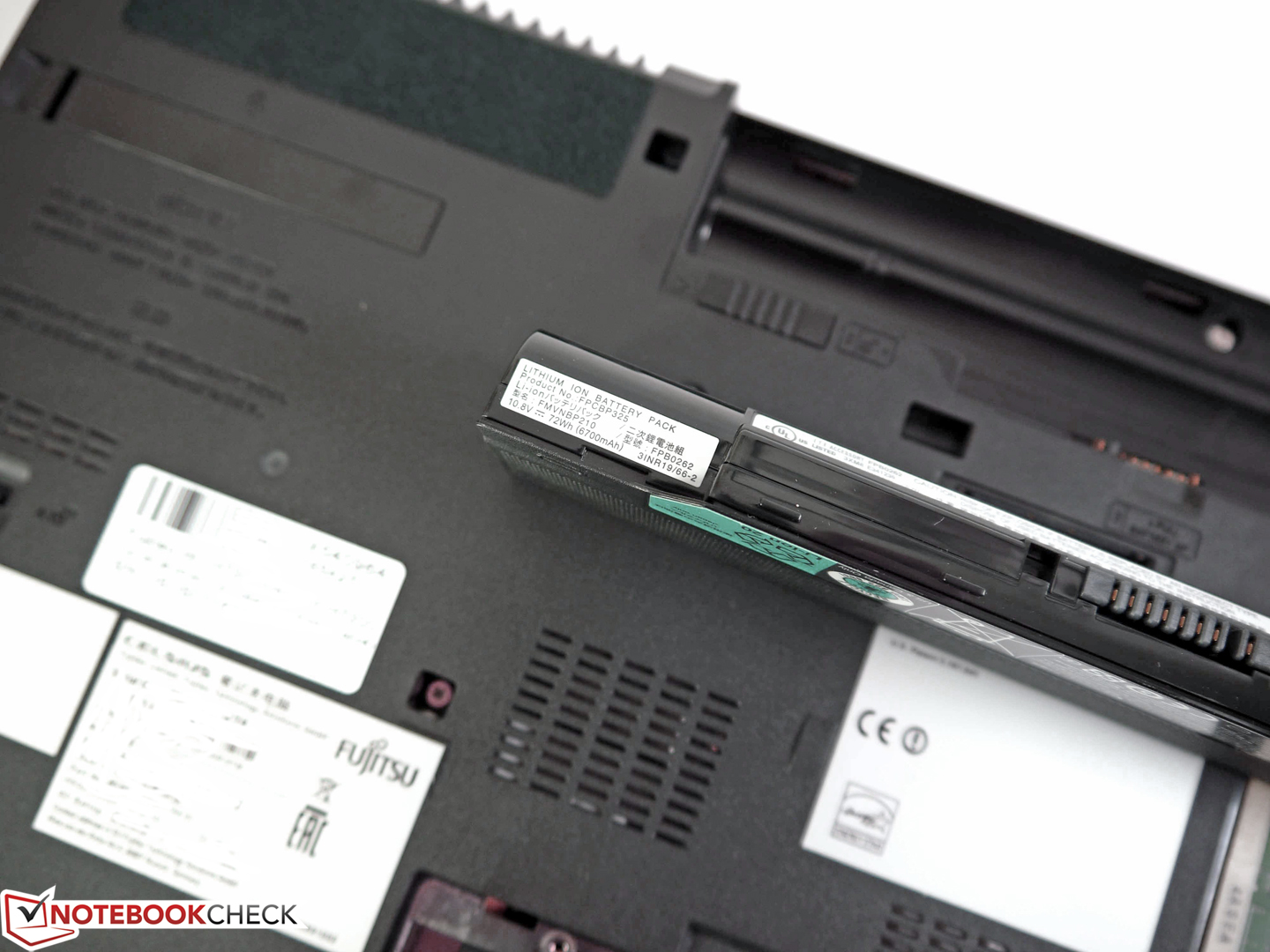

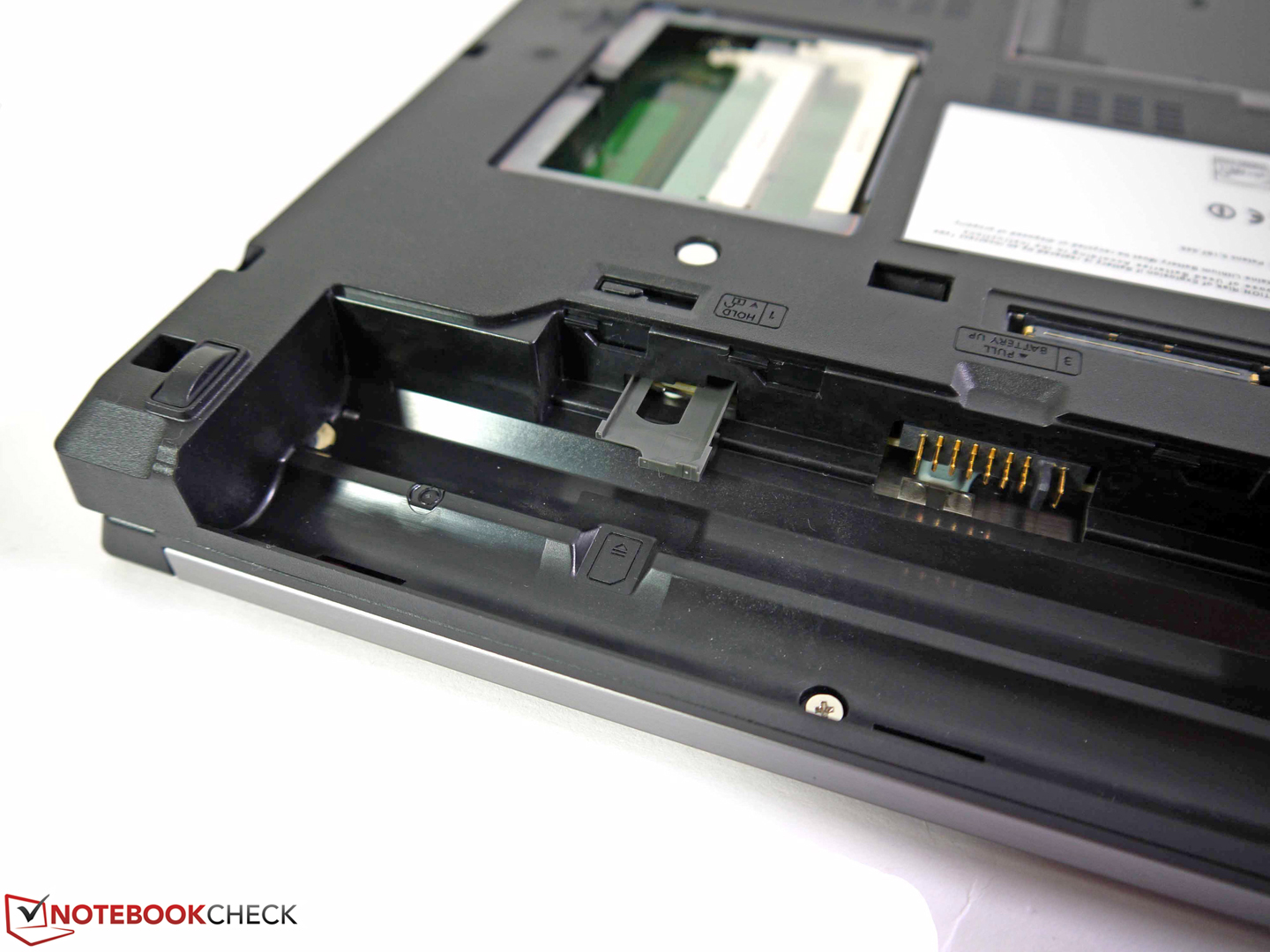

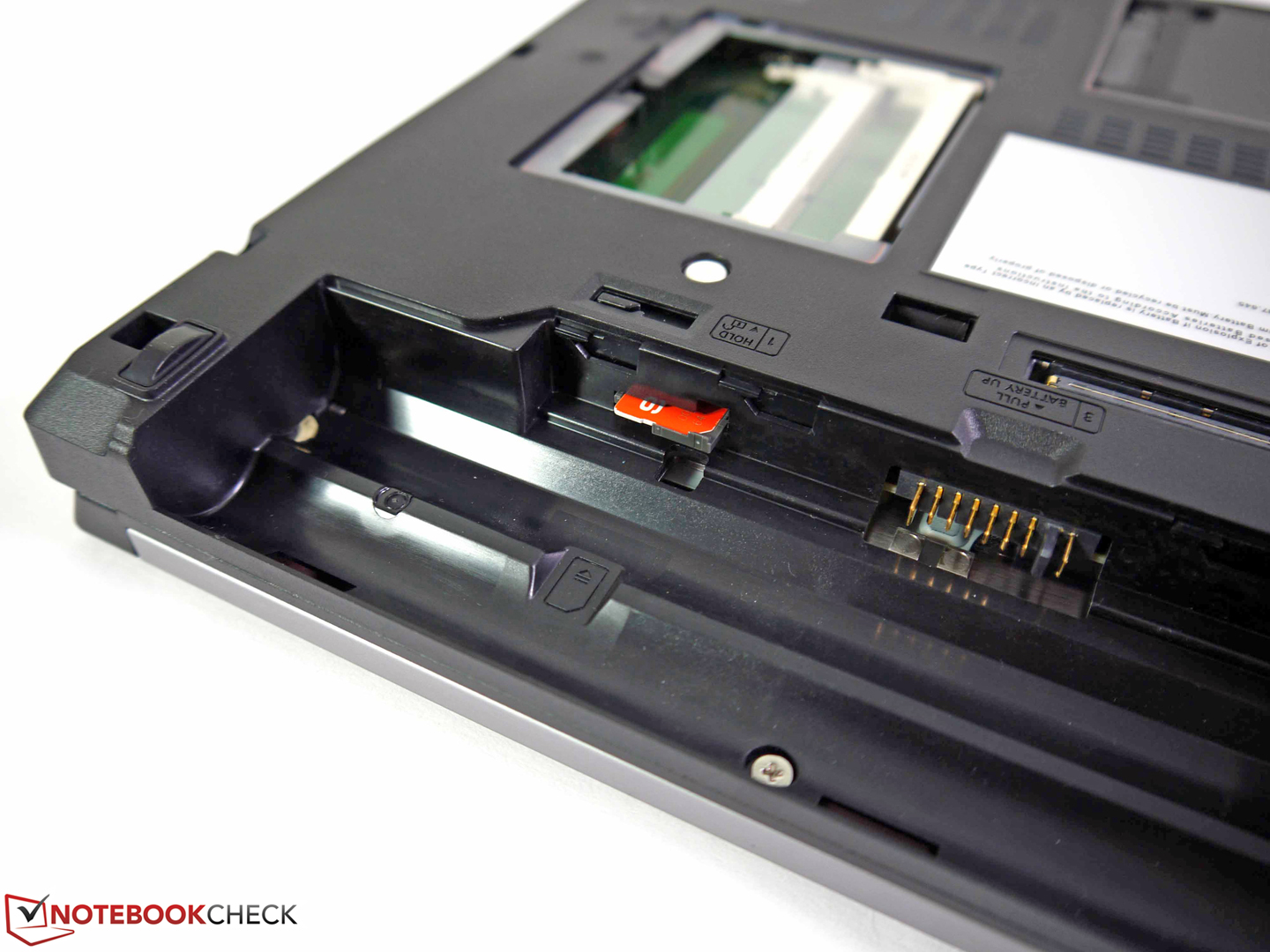

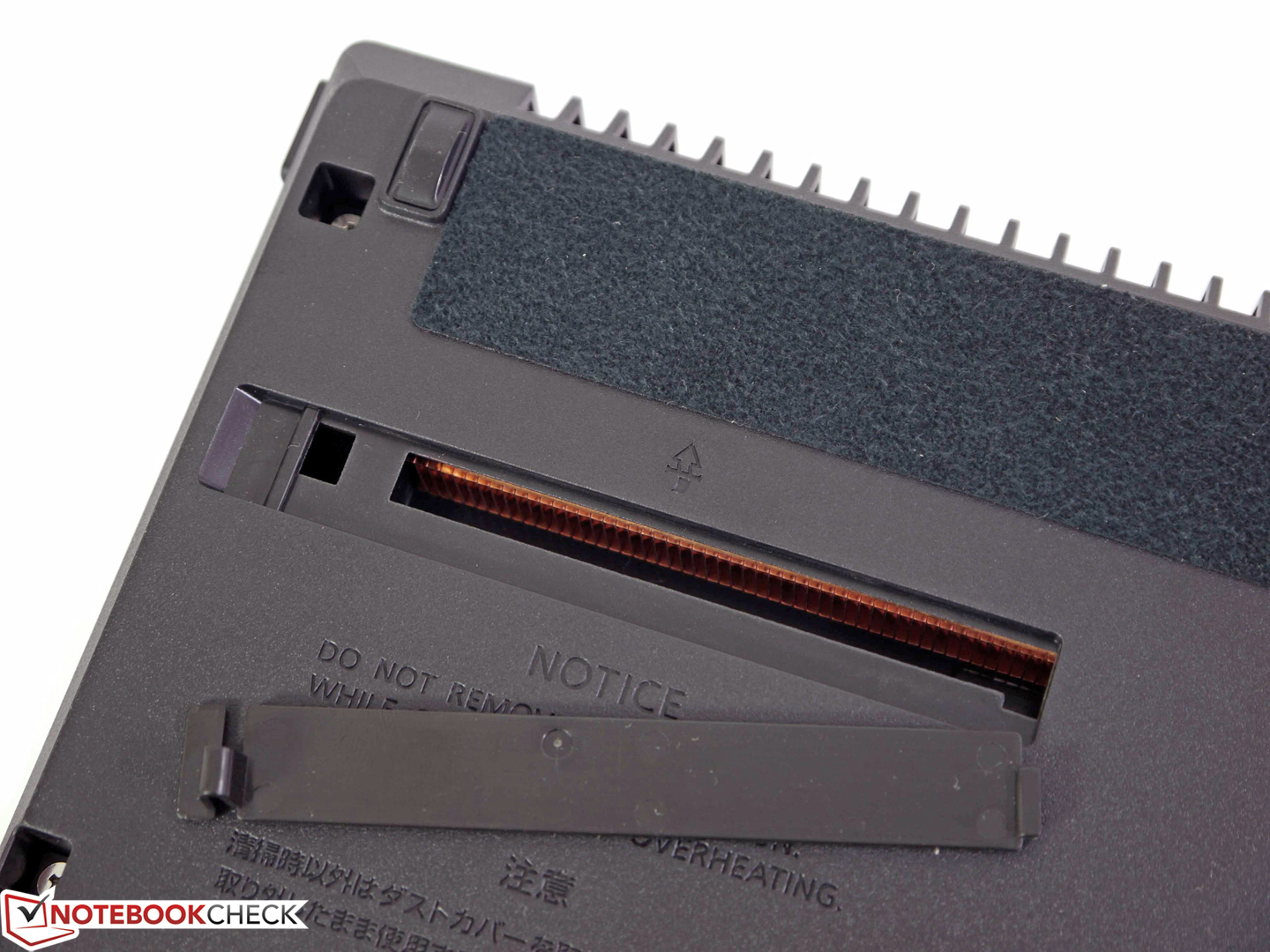

不过，富士通Celsius H730也提供了一些独特而有想法的功能，如可选的多用途插槽电池，和风扇尘埃监控槽等等。

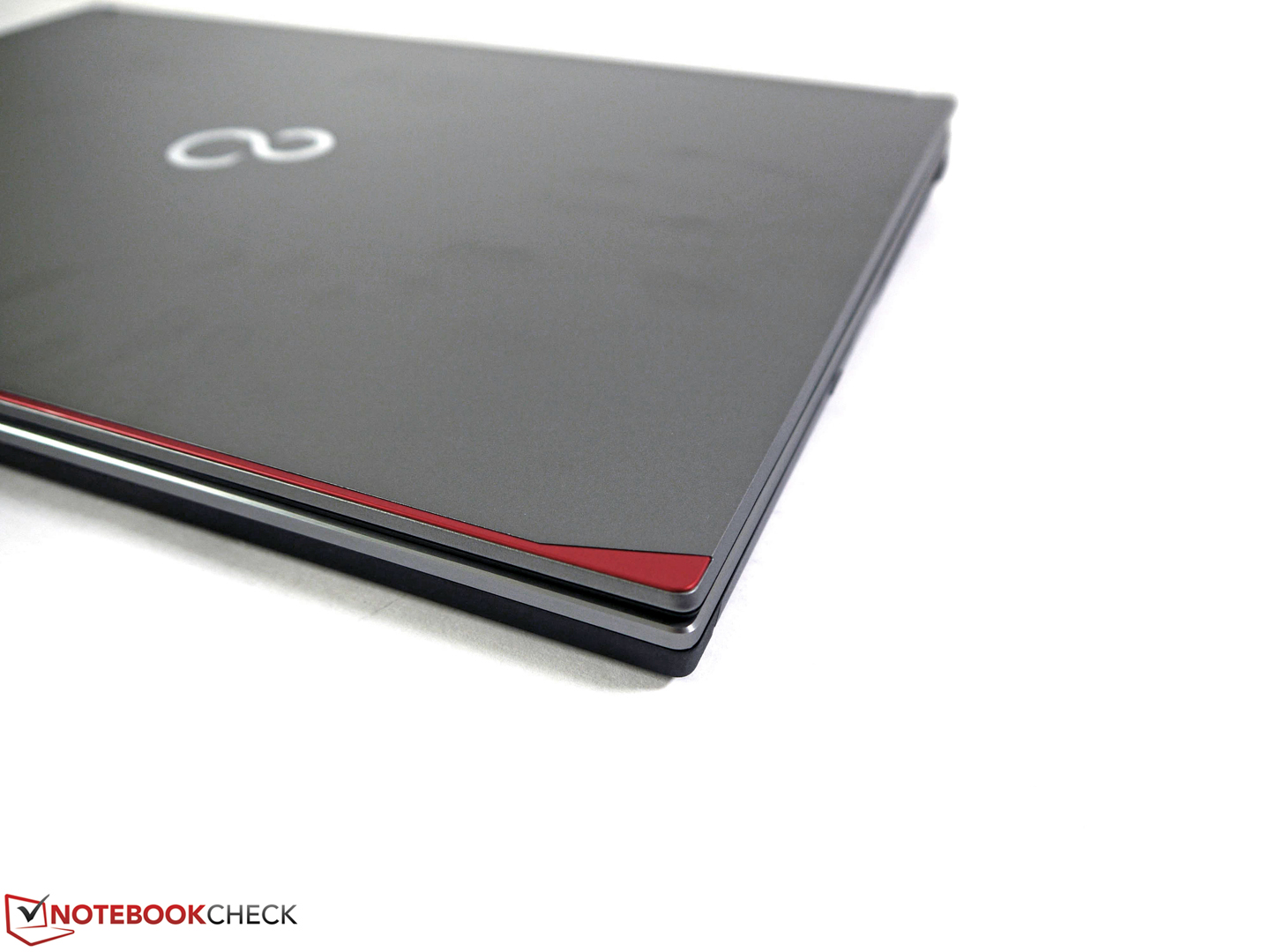

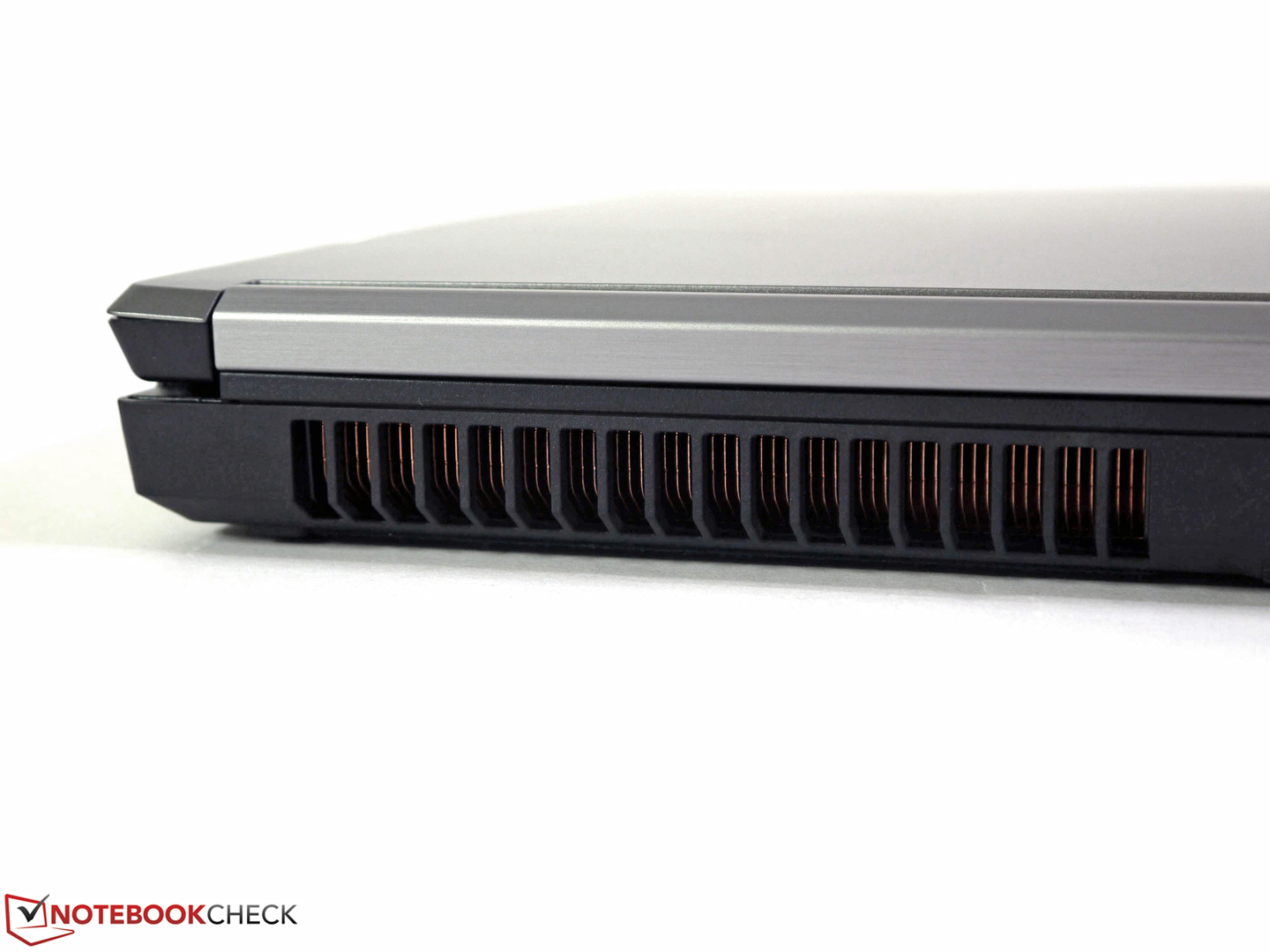

这款移动工作站的所有基本功能如坚固的机身、优秀的输入设备、高系统性能、和便携性等方面都做得十分出色。值得一提的还有它十分有效的散热系统，在长时间的高负载工作中它成功地帮助部件避免了过热降频问题。不过相对的，如果你交给富士通Celsius H730过于繁重的工作的话，需要忍受它吵闹的风扇声。

我们的测试配置机型最新市场价约1600欧元，还是十分合理的，这还包括了对于需要移动工作站的用户来说十分重要的：3年质保。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

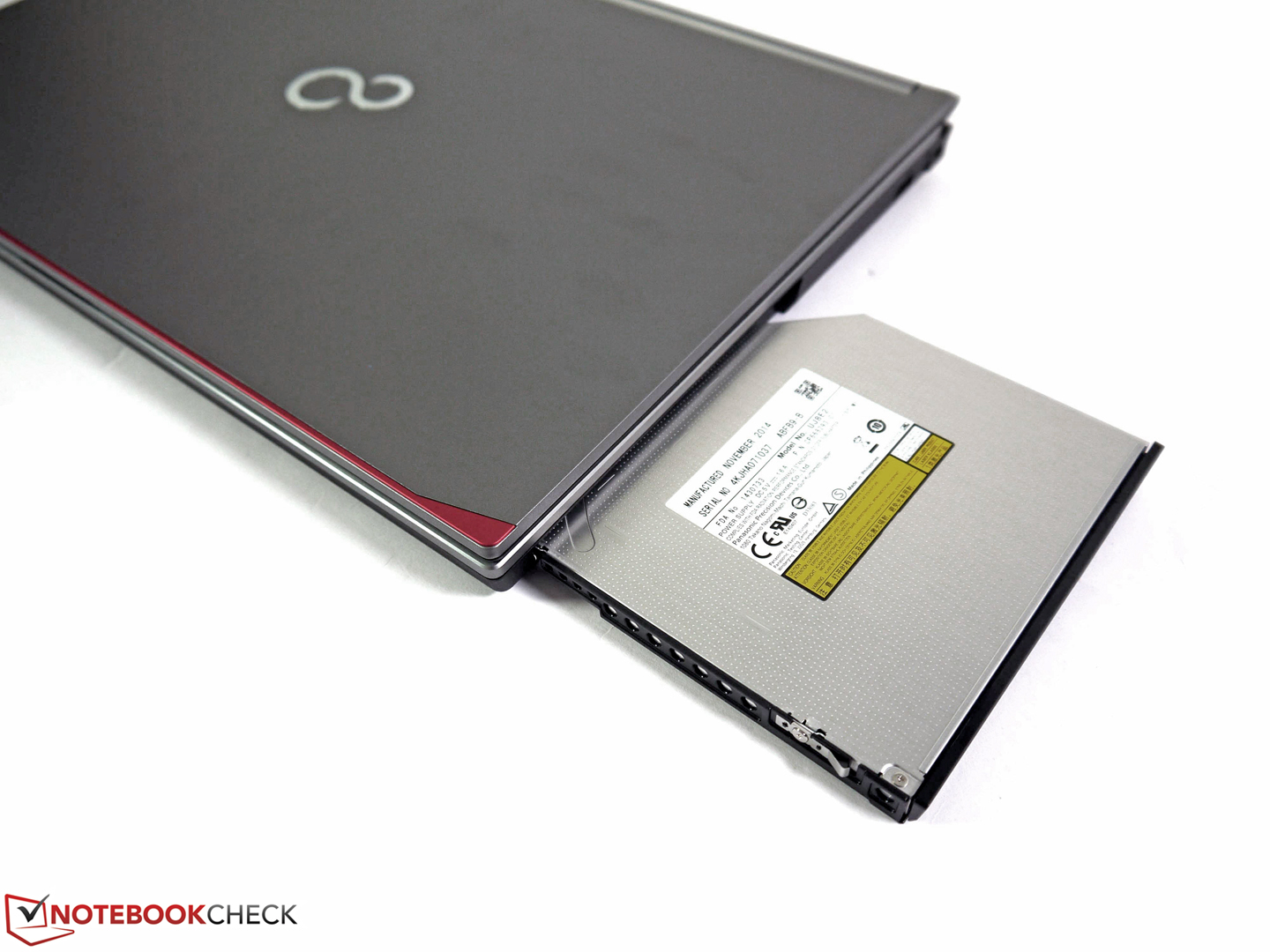

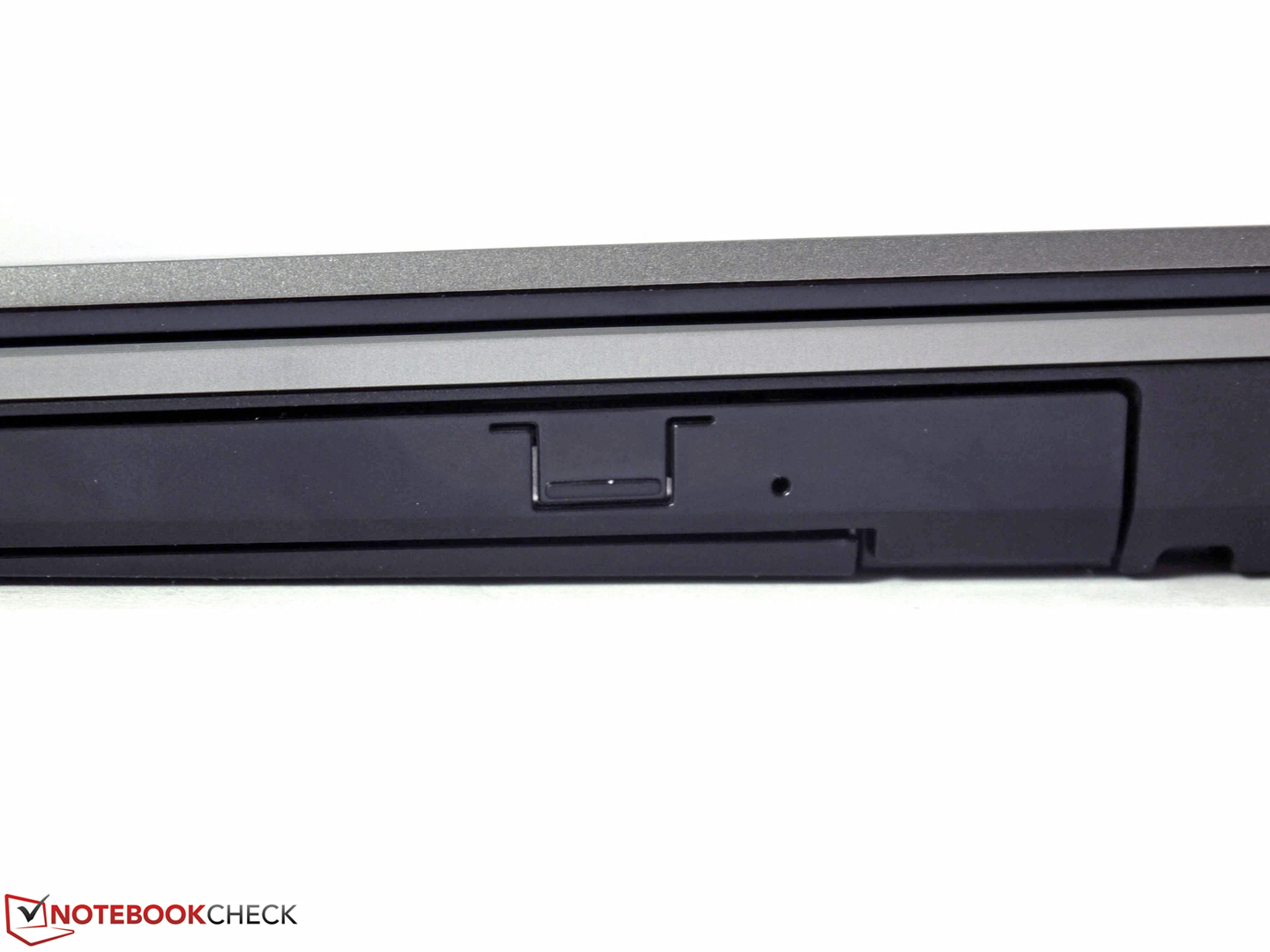

富士通 Celsius H730 依然配备了光驱，尽管在现在的新机型上它十分少见了。

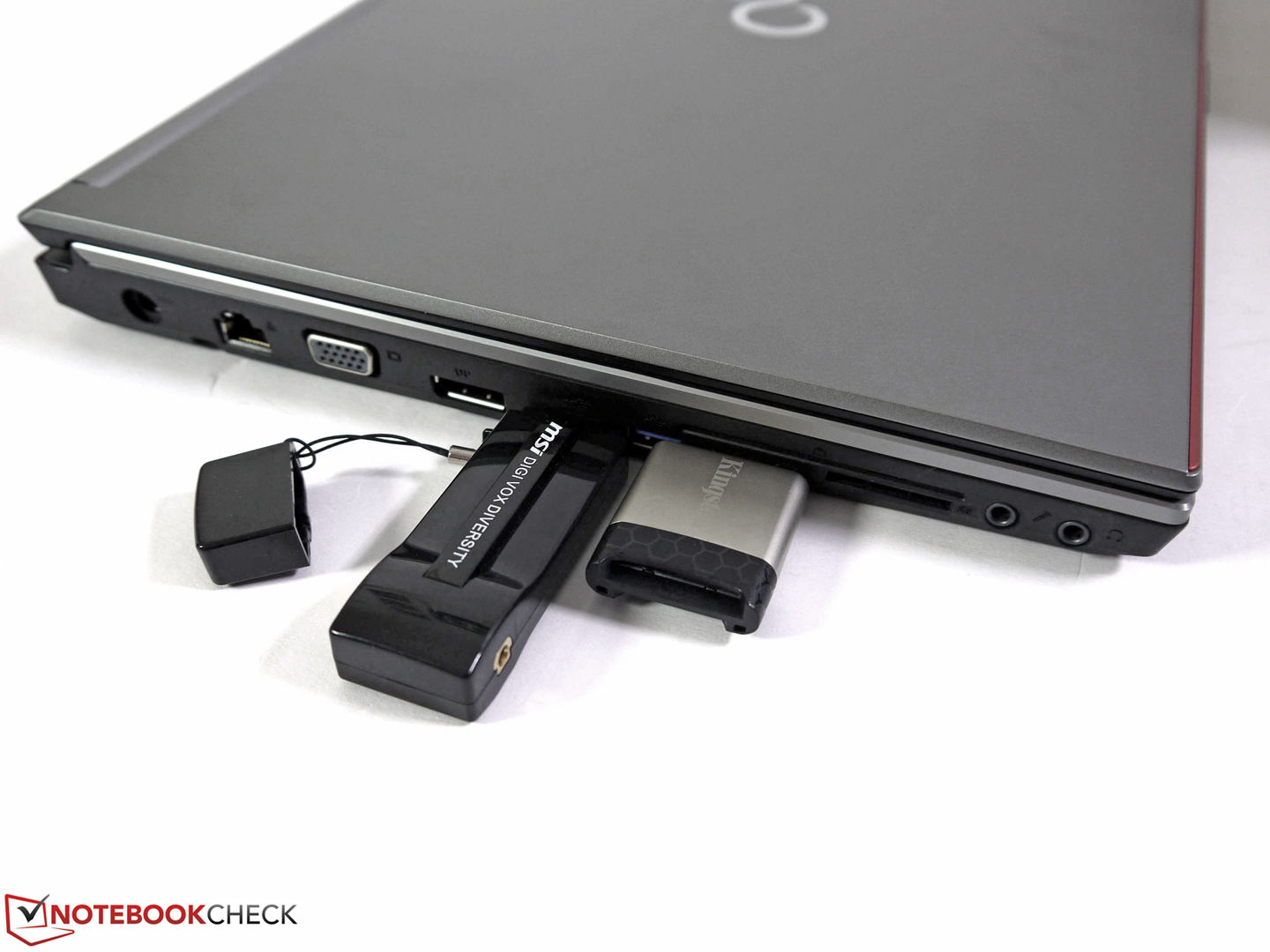

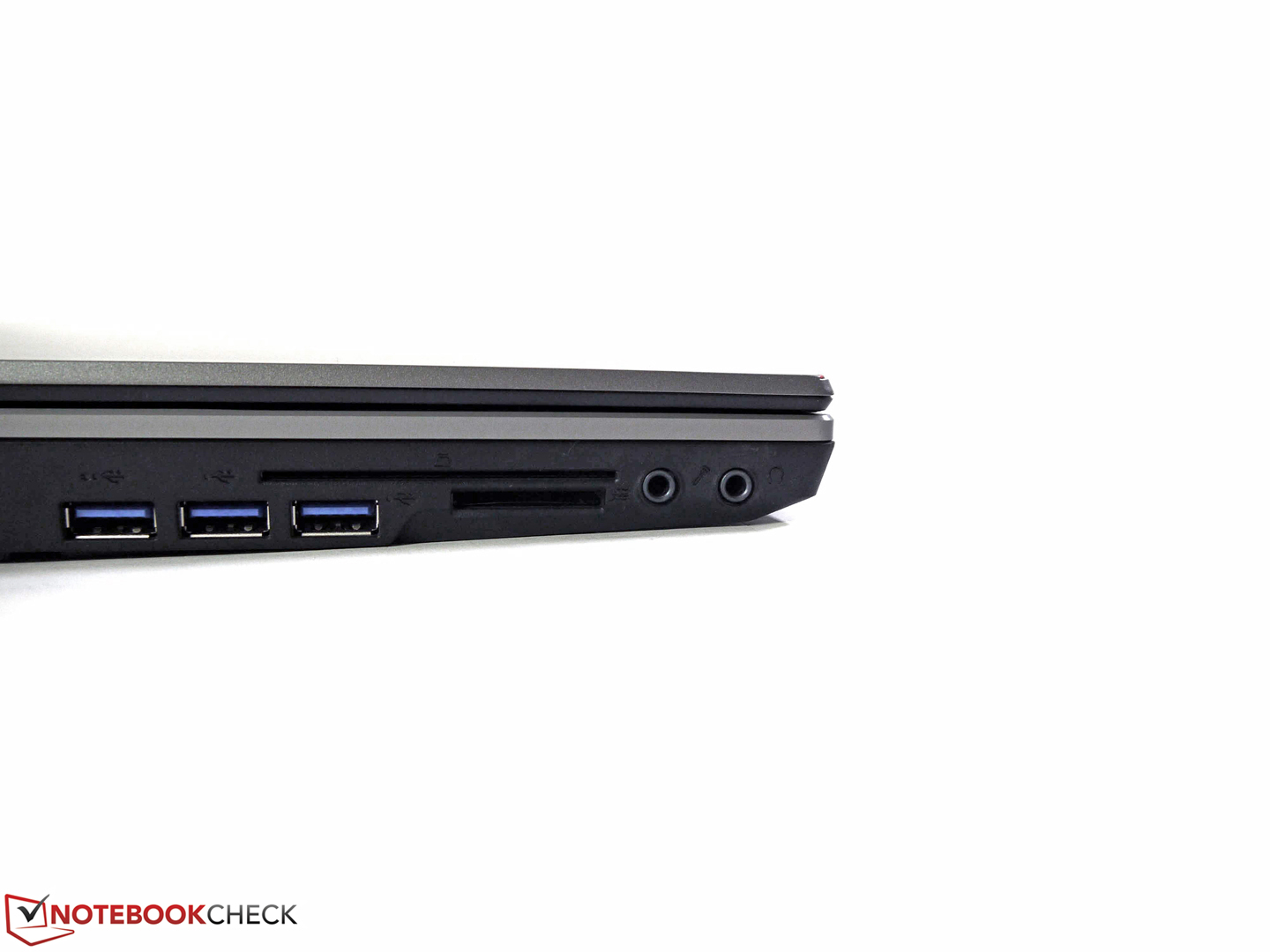

读卡器采用了高速的内部接口连接，在我们的测试中最高达到了88 MB/s (读取, UHS-I)的传输速率。

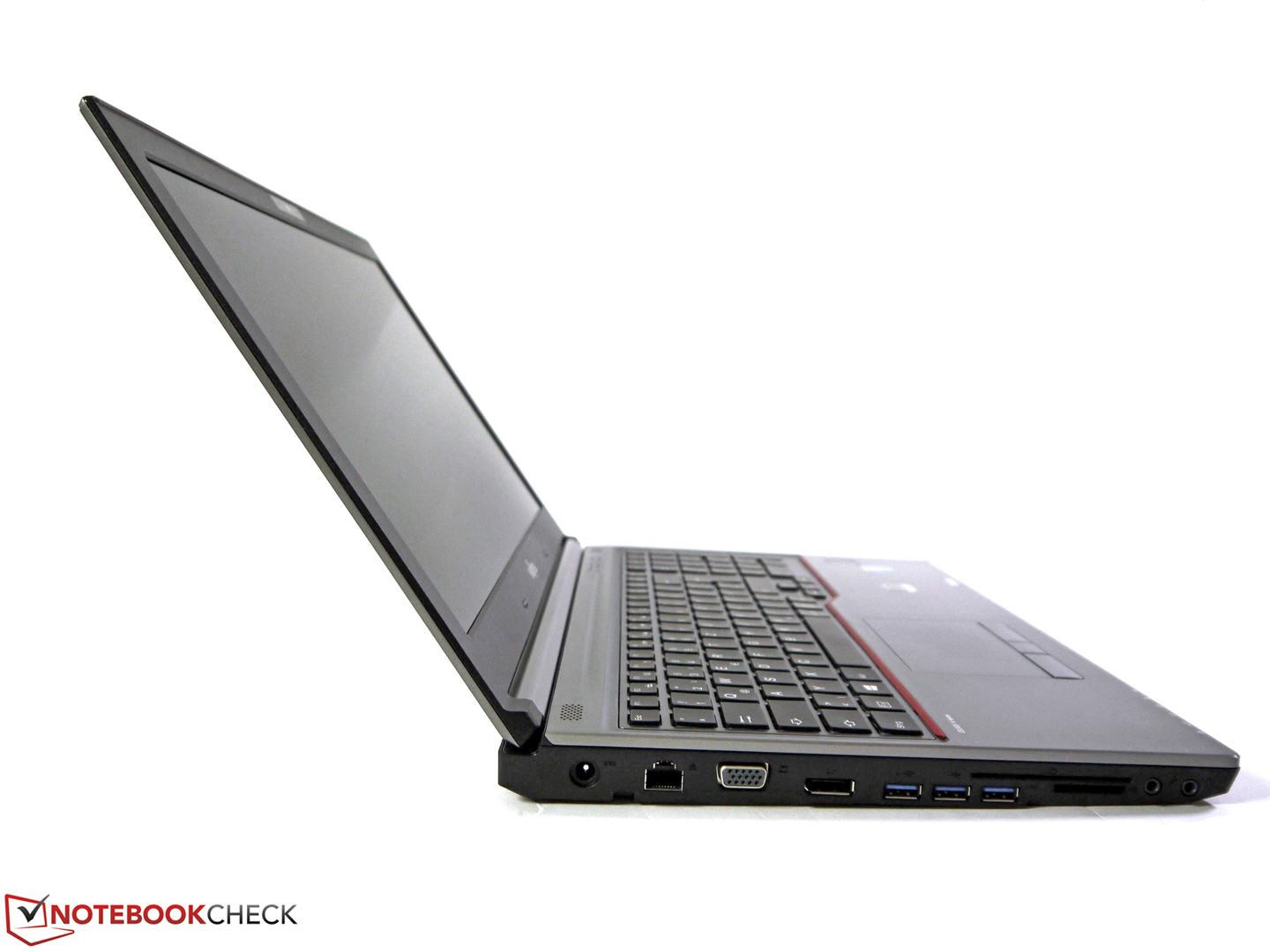

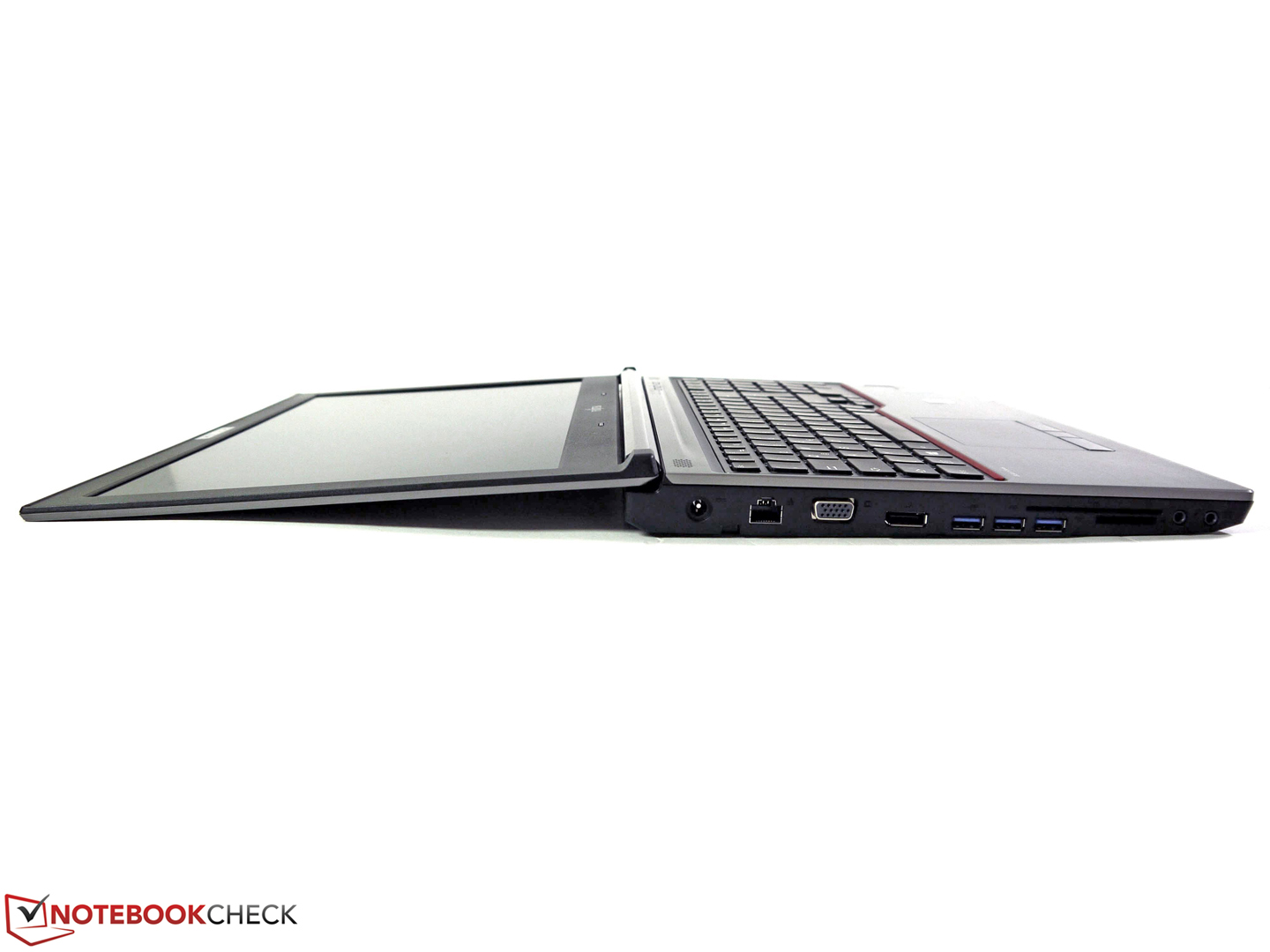

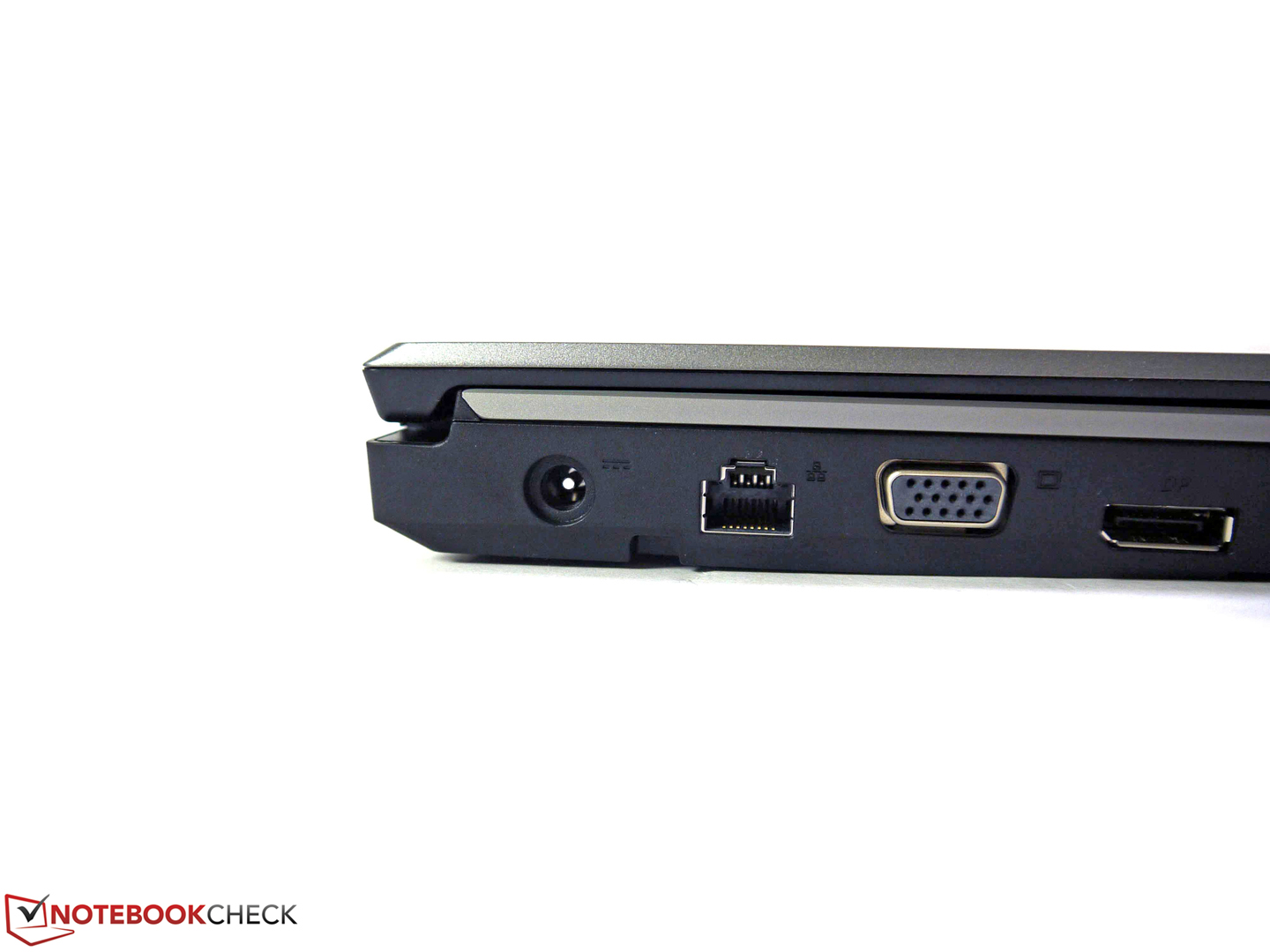

除了数字信号DisplayPort你也可以得到一个模拟信号VGA接口，以连接外部显示器。

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1693 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Fujitsu Celsius H730 (Celsius H Series)

Processor

Intel Core i7-4710MQ 4 x 2.5 - 3.5 GHz, Haswell

Graphics adapter

NVIDIA Quadro K1100M - 2048 MB VRAM, Core: 705 MHz, RAM: 700 MHz, Forceware 341.21 05.12.2014, Nvidia Optimus mit Intel HD Graphics 4600

Memory

8 GB

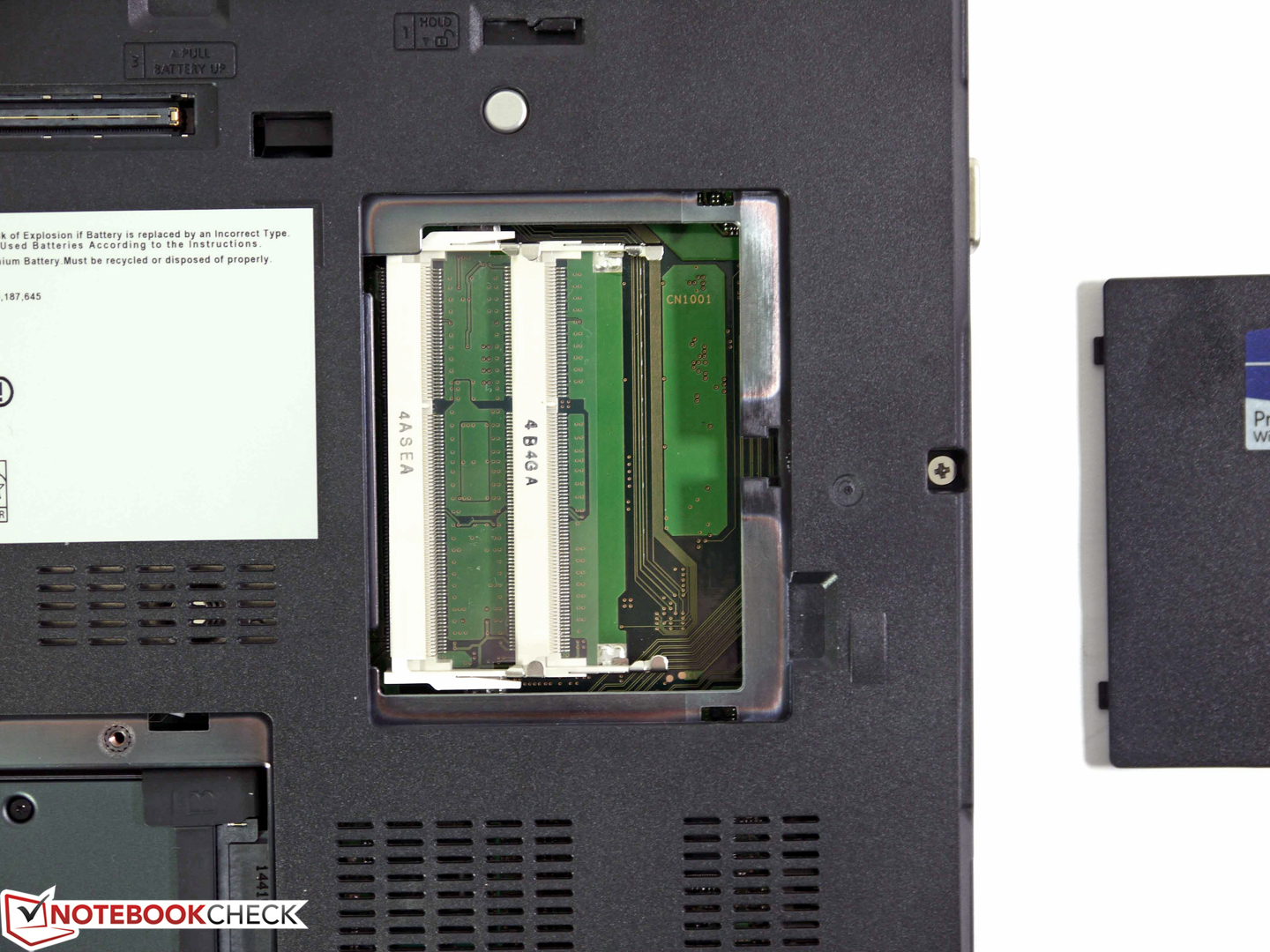

, 2x 4 GB PC3-12800, 双通道, 两个空余内存槽

Display

15.60 inch 16:9, 1920 x 1080 pixel, LP156WF4-SPH1, AH-IPS, 白色LED背光, 66% sRGB, 48% AdobeRGB98, glossy: no

Mainboard

Intel QM87 (Lynx Point)

Storage

Samsung SSD PM851 256 GB MZ7TE256HMHP, 256 GB

, 177 GB free

Soundcard

Realtek ALC282 @ Intel Lynx Point PCH - High Definition Audio Controller

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 分开的音频输入输出接口, Card Reader: Realtek PCIe 读卡器 SD, SDHC, SDXC, UHS-I, 1 SmartCard, 1 Fingerprint Reader, Sensors: GPS, 多用途接口

Networking

Intel I218-LM Gigabit (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, Sierra Wireless EM8805

Optical drive

Matshita DVD-RAM UJ8E2

Size

height x width x depth (in mm): 32 x 380 x 257

Battery

72 Wh Lithium-Ion, 10.8V, 6700 mAh

Operating System

Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)

Camera

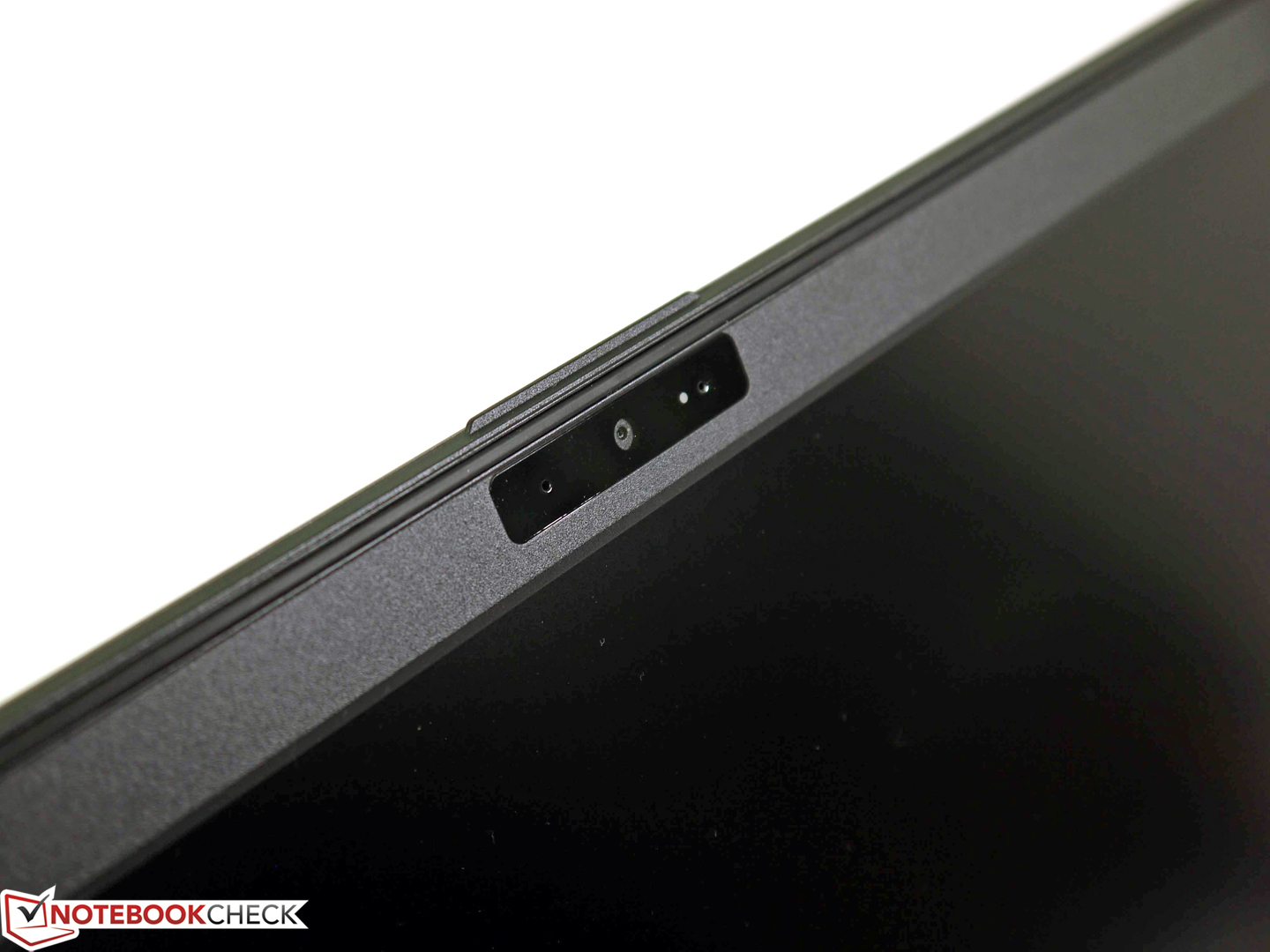

Webcam: 高清

Additional features

Speakers: 立体声, Keyboard: 孤岛式 104键, Keyboard Light: yes, Corel Draw Excentials X6, Audials, 36 Months Warranty

Weight

2.83 kg, Power Supply: 930 g

Links

Fujitsu homepage

Devices from a different Manufacturer and/or with a different CPU

华硕 PU551JH 工作站简短评测
Quadro K1100M, Core i5 4210M

Devices with the same GPU and/or Screen Size

惠普 Omen Pro 15 工作站简短评测
Quadro K1100M, Core i7 4870HQ, 2.12 kg

Devices with Same Screen Size and/or Weight

富士通 Celsius H970 (E3-1535M v6, P4000) 工作站简短评测
Quadro P4000, Kaby Lake E3-1535M v6, 17.30", 3 kg

富士通 Celsius H760 工作站简短评测
Quadro M2000M, Xeon E3-1505M v5, 15.60", 2.98 kg

Devices from the same Manufacturer

富士通LifeBook E5412A笔记本电脑评论：一台有两个内存插槽的经典商务笔记本
Vega 7, Cezanne (Zen 3, Ryzen 5000) R5 PRO 5675U, 14.00", 1.389 kg

富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板
UHD Graphics G1 (Ice Lake 32 EU), Ice Lake i3-1005G1, 15.60", 1.8 kg

富士通LifeBook U9311X评测--带LTE的1公斤商务敞篷车
Iris Xe G7 96EUs, Tiger Lake i7-1185G7, 13.30", 1.029 kg

Pros

+ 机身

+ 系统性能

+ CAD性能

+ 理论上的升级空间

+ 可选的多用途接口功能，包括第二块电池

+ 电池续航

+ 在轻负载下的噪音控制

+ 散热控制，散热系统设计

+ 质保时间

+ 可选的服务和质保延长

+ 屏幕

Cons

- 接口布局

- 不支持最新功能如AC WLAN, Thunderbolt接口 (2), M.2接口

Fujitsu Celsius H730 - 2016-03-17 03/17/2016 v5 ^(old)
Tobias Winkler

Chassis

89 / 98 → 91%

Keyboard

91%

Pointing Device

89%

Connectivity

61 / 81 → 75%

Weight

58 / 10-66 → 86%

Battery

87%

Display

85%

Games Performance

83%

Application Performance

90%

Workstation

53%

Temperature

92 / 95 → 97%

Noise

84 / 90 → 93%

Audio

41%

Camera

44 / 85 → 52%

Average

75%

79%

Workstation - Weighted Average

Read about the changes in the new rating version 5

> Notebookcheck中文版（NBC中国） > 评测 > 富士通 Celsius H730 工作站简短评测

Tobias Winkler, 2015-02- 7 (Update: 2015-02- 7)

Specifications

More articles related to this device

Pros

Cons
