联想 Edge 15-80H10004US 笔记本电脑简短评测

Yoga式多媒体本。 联想的Edge 15笔记本电脑是一款采用了时尚铝合金机身的Best Buy限定版产品,它采用了一些与Yoga系列机型类似的变形设计。这是个非常有趣的组合,但它会成为他们产品线中一款实用的新产品吗?
Haswell Laptop / Notebook Windows
238.9
cd/m²
250.4
cd/m²
243.9
cd/m²
245
cd/m²
272.8
cd/m²
242.1
cd/m²
235.5
cd/m²
258.4
cd/m²
242.3
cd/m²
Distribution of brightness
LGD044F tested with X-Rite i1Basic Pro 2
Maximum: 272.8 cd/m² (Nits) Average: 247.7 cd/m²
Brightness Distribution: 86 %
Center on Battery: 272.8 cd/m²
Contrast: 729:1 (Black: 0.374 cd/m²)
ΔE Color 6.97 | 0.5-29.43 Ø4.94
ΔE Greyscale 6.26 | 0.5-98 Ø5.2
35.36% AdobeRGB 1998 (Argyll 1.6.3 3D)
38.54% AdobeRGB 1998 (Argyll 2.2.0 3D)
55.3% sRGB (Argyll 2.2.0 3D)
37.22% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21
Cinebench R10 Shading 64Bit
5109 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
7554 Points
Cinebench R10 Rendering Single CPUs 64Bit
3812 Points
Cinebench R10 Shading 32Bit
4094
Cinebench R10 Rendering Multiple CPUs 32Bit
7123
Cinebench R10 Rendering Single 32Bit
3191
Cinebench R11.5 OpenGL 64Bit
16.99 fps
Cinebench R11.5 CPU Multi 64Bit
2.44 Points
Cinebench R11.5 CPU Single 64Bit
0.91 Points
Cinebench R15 OpenGL 64Bit
21.74 fps
Cinebench R15 CPU Multi 64Bit
218 Points
Cinebench R15 CPU Single 64Bit
97 Points
Help
PCMark 7 Score
2648 points
PCMark 8 Home Score Accelerated v2
2250 points
PCMark 8 Creative Score Accelerated v2
2274 points
Help
WDC Slim WD10SPCX-22HWST0
Transfer Rate Minimum: 39.5 MB/s
Transfer Rate Maximum: 110.4 MB/s
Transfer Rate Average: 82.4 MB/s
Access Time: 18.5 ms
Burst Rate: 217.1 MB/s
CPU Usage: 79.7 %
3DMark 06 Standard Score
5192 points
3DMark Vantage P Result
3698 points
3DMark 11 Performance
788 points
3DMark Ice Storm Standard Score
37887 points
3DMark Cloud Gate Standard Score
4186 points
3DMark Fire Strike Score
559 points
Help
low med. high ultra
BioShock Infinite (2013) 31.62 16.81 13.89 8.12

Noise Level

Idle
35.1 / 35.3 / 35.5 dB(A)
Load
37.3 / 39.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)
Max. Load
 31.6 °C34 °C32 °C
 30 °C30.4 °C30.8 °C
 28.4 °C27.2 °C29.8 °C
Maximum: 34 °C
Average: 30.5 °C
32.4 °C40.2 °C33.8 °C
32.2 °C32.8 °C32.2 °C
30.8 °C30.4 °C29.6 °C
Maximum: 40.2 °C
Average: 32.7 °C
Power Supply (max.)  47 °C | Room Temperature 21.5 °C | Raytek Raynger ST
(+) The average temperature for the upper side under maximal load is 30.5 °C / 87 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 34 °C / 93 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.2 °C / 104 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.7 °C / 78 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.8 °C / 85.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1 °C / -1.8 F).
Battery Runtime
Idle (without WLAN, min brightness)
7h 44min
WiFi Surfing
6h 06min
Load (maximum brightness)
1h 35min

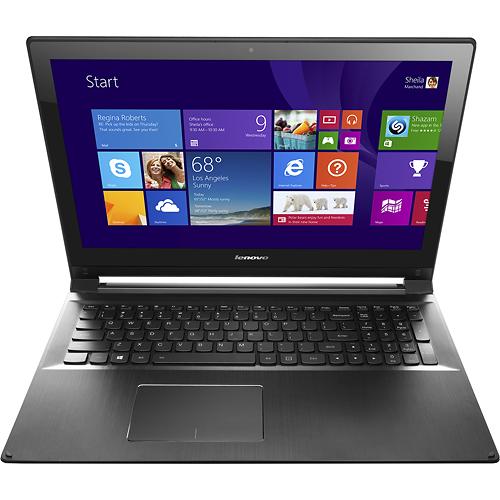

The Lenovo Edge 15
The Lenovo Edge 15

Edge 15显然是相比IdeaPad Flex 15有了长足的进步,它采用了接近高端品质且有不错坚固性的时尚低调金属机身,使它可以满足更多用户的喜好。我们的测试机售价也很合理:配备Core i5处理器,6GB内存和一块1080p触控屏幕(加上之前提到的坚固金属机身)仅699美元。采用了Yoga系列二合一变形本的设计,加上大尺寸主流多 媒体笔记本的基础,让它可以为需要的用户提供更多的功能(尽管可能大多数用户依然会经常在普通的笔记本模式下使用这款电脑)。Edge 15在温度控制和噪音控制上也做得非常好,运行中散热风扇在大部分时间内都保持着安静,只有偶尔会有些吵人。

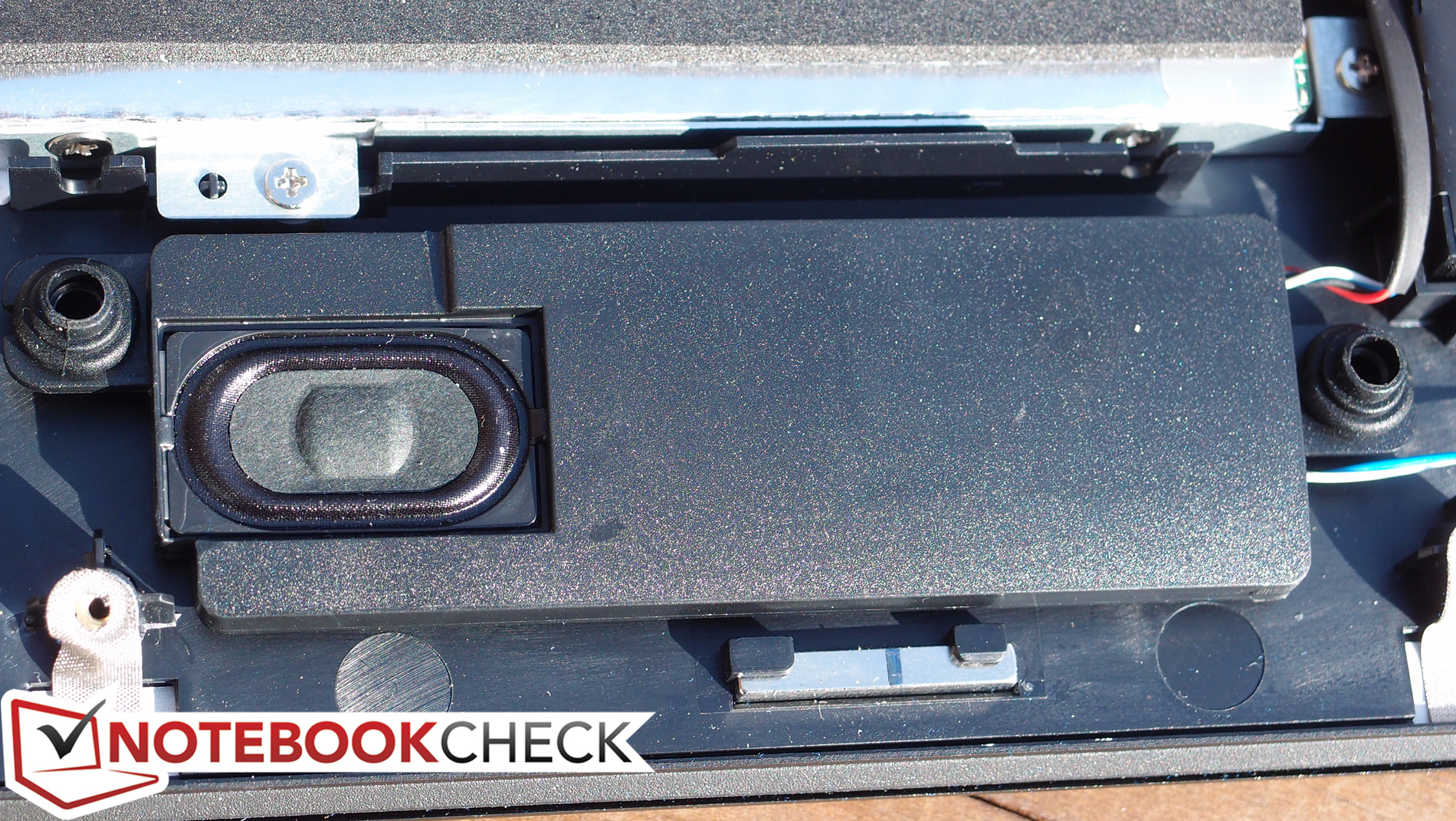

但 它也有一些问题,首先是输入设备。它较差的键盘有很短的键程,不明确的反馈,和一些容易粘连的按键,都让它不适合长时间的打字。它的触控板也不算好,尽管 尺寸很大,但它点击式触控板的设计不太实用。另外,它的性能也不算优秀,这主要由于它采用了5400转的传统硬盘(尽管速度和容量都很高),略显保守的热 设计功率限制也限制了它处理器和显卡的性能表现。它IPS屏幕的色彩质量和亮度也让人十分失望,给人一种十分暗淡的感觉。它的扬声器效果也不尽如人意——考虑到支款笔记本较大的尺寸的话算是非常差了。

作为一款Yoga系列的大尺寸替代品,Edge 15依然值得考虑。如果你不打算用它长时间打字,也对屏幕色彩是否绚丽准确不太在意,不需要顶级的性能的话,它的性价比十分高——不过你必须在Best Buy购买。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

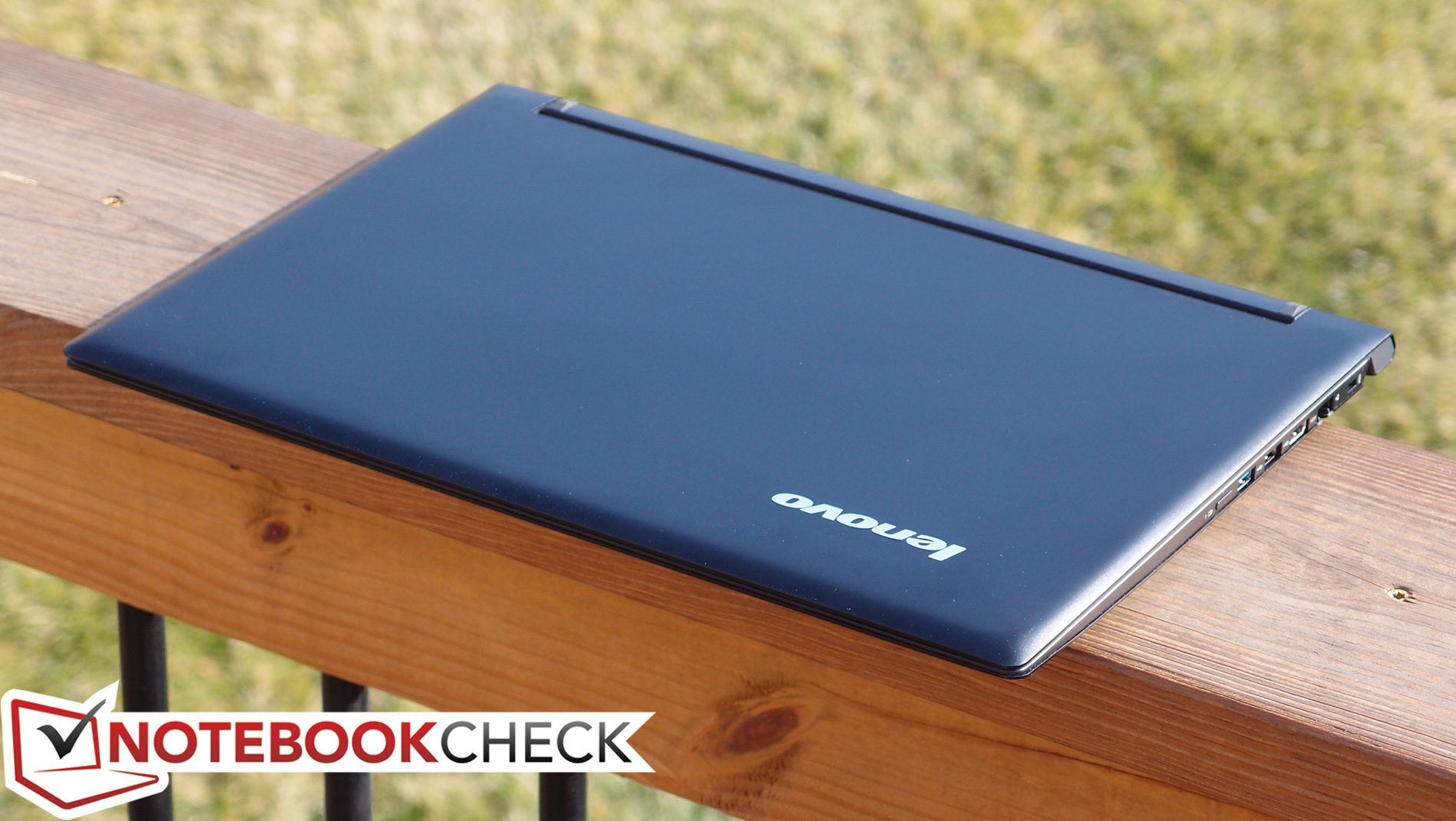

它的机身相比IdeaPad Flex系列其他产品有很大的进步。
它的机身相比IdeaPad Flex系列其他产品有很大的进步。

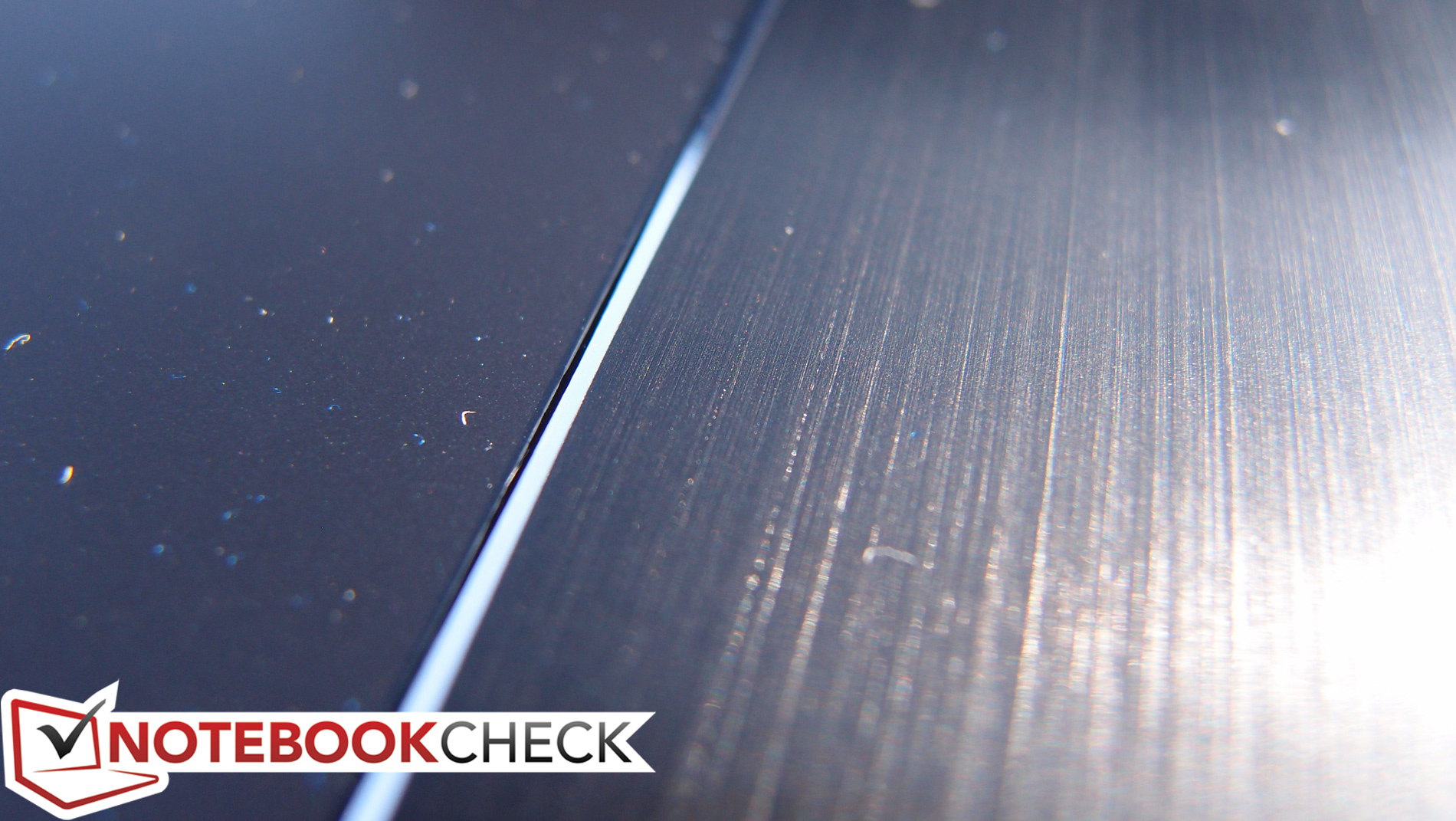

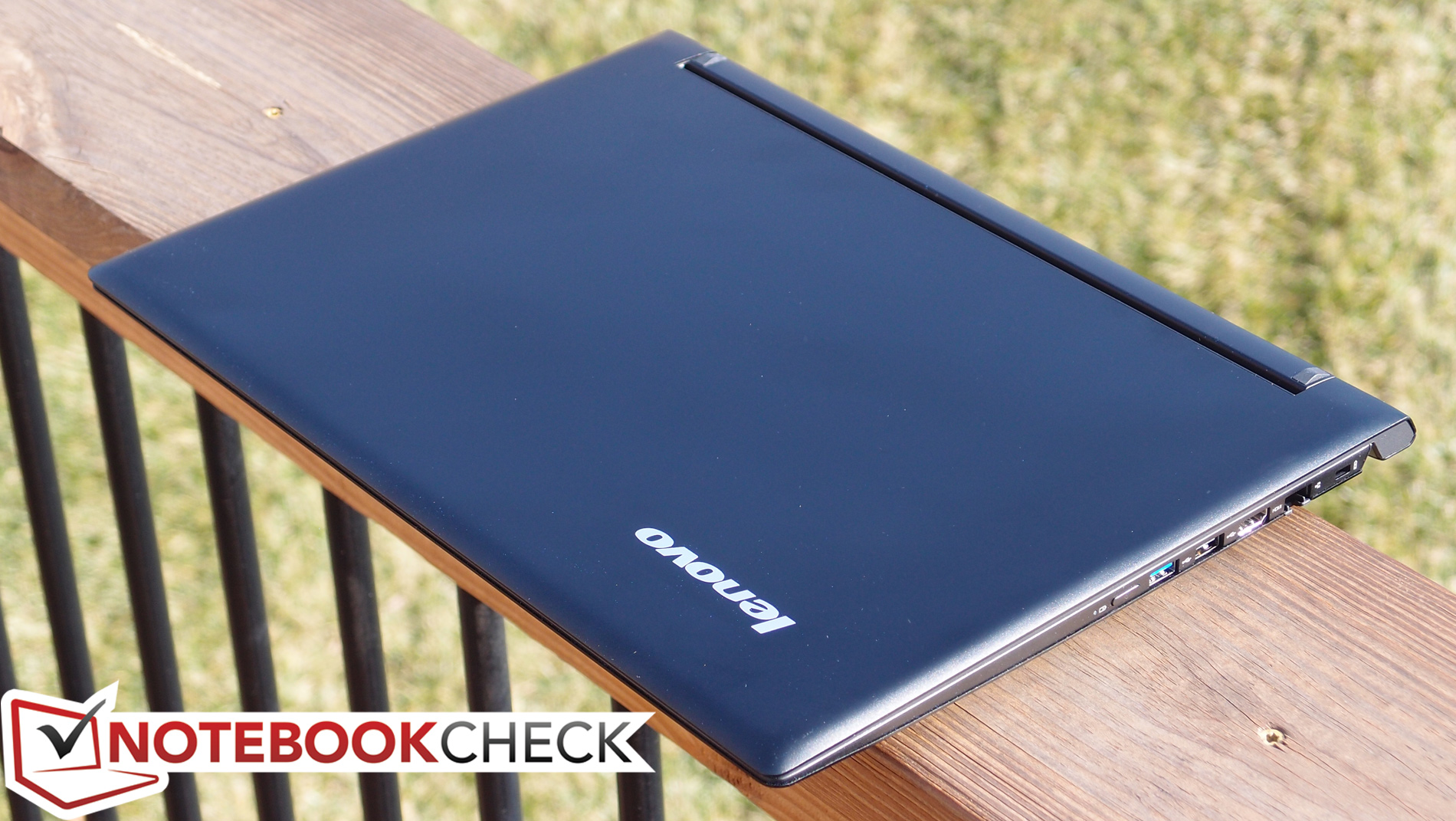

它时尚,轻薄,又坚固。
它时尚,轻薄,又坚固。

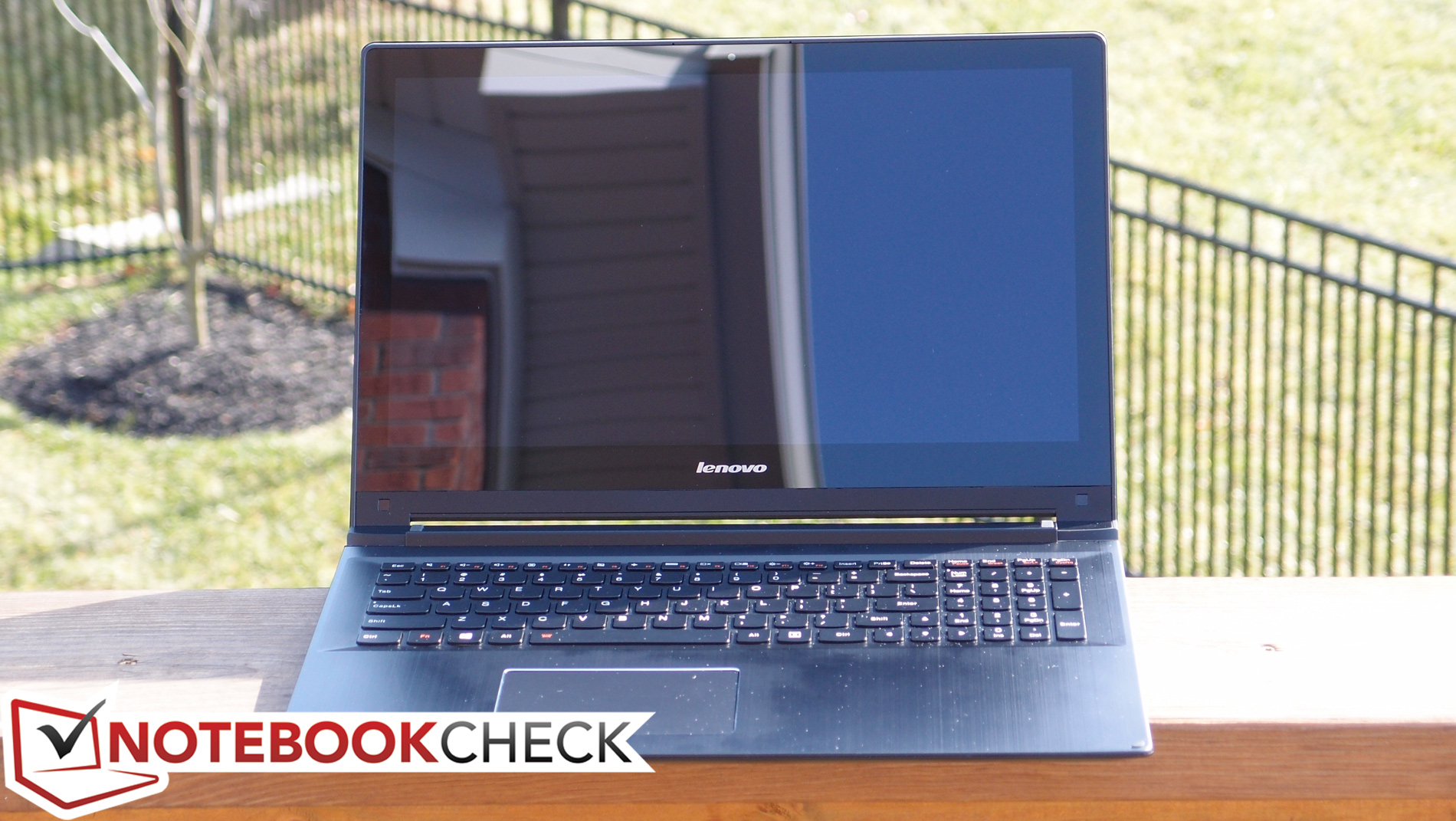

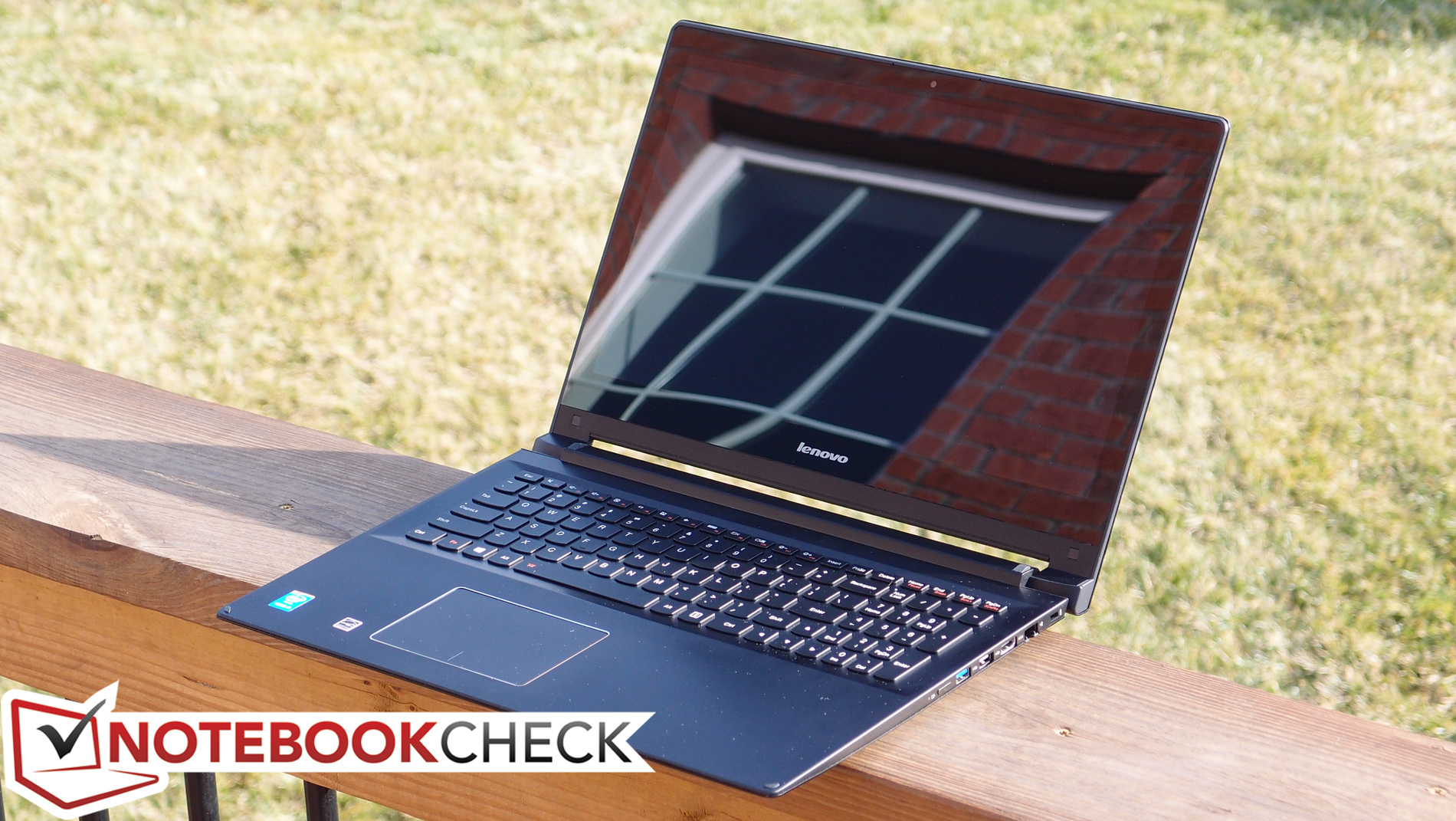

与预计的一样,它采用了镜面材质的屏幕。
与预计的一样,它采用了镜面材质的屏幕。

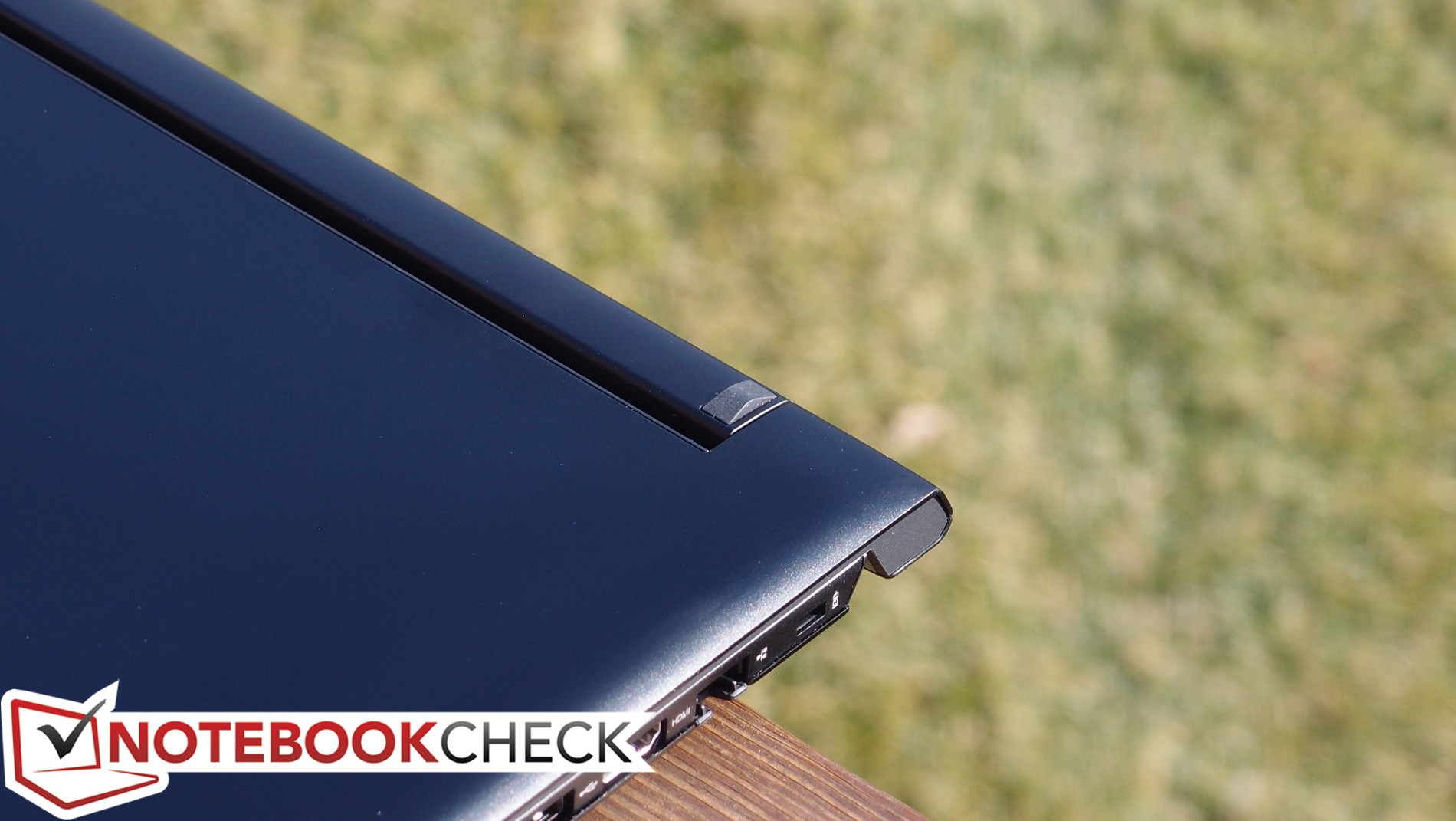

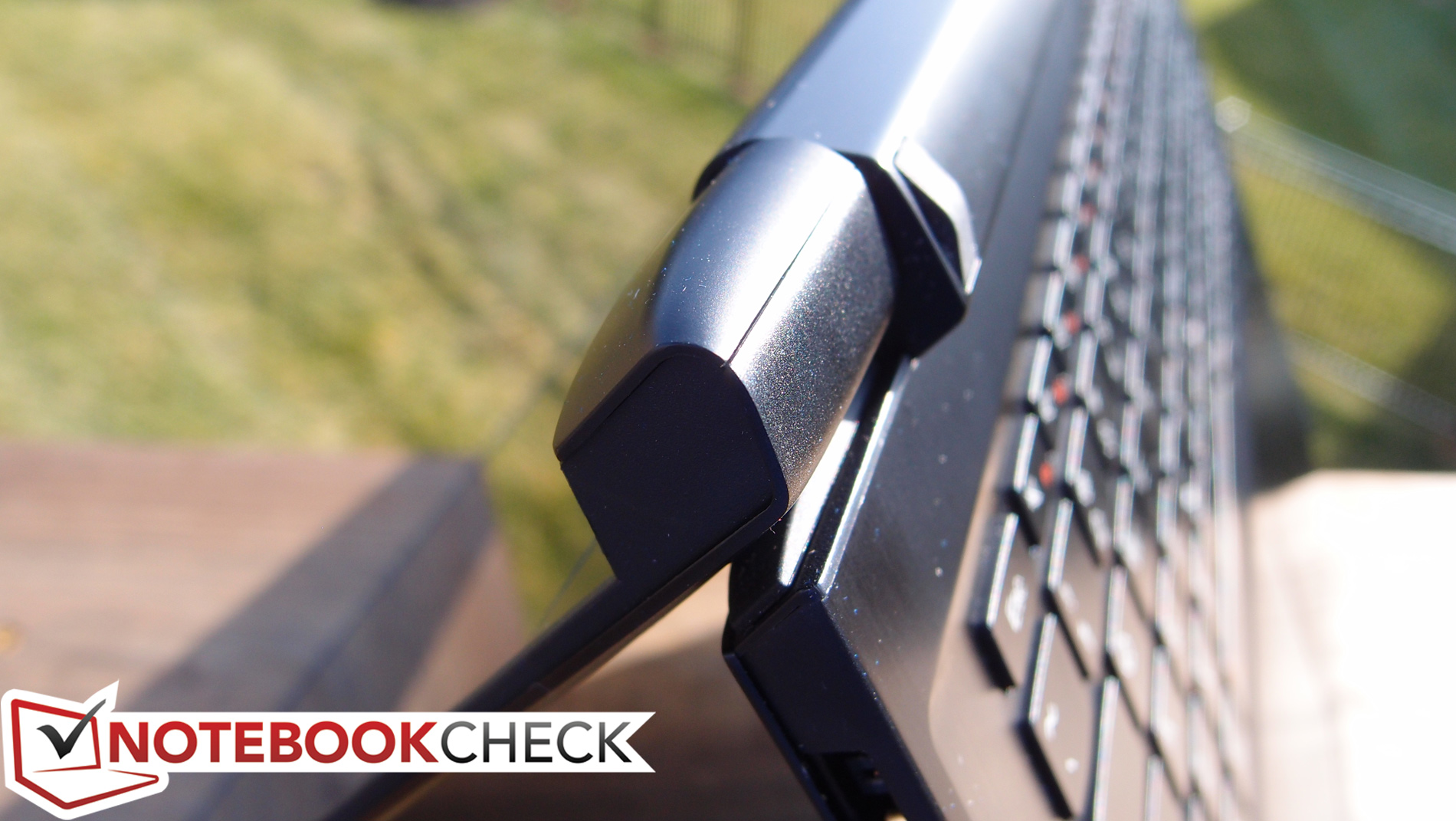

稳定的转轴可以很好地支撑屏幕。
稳定的转轴可以很好地支撑屏幕。

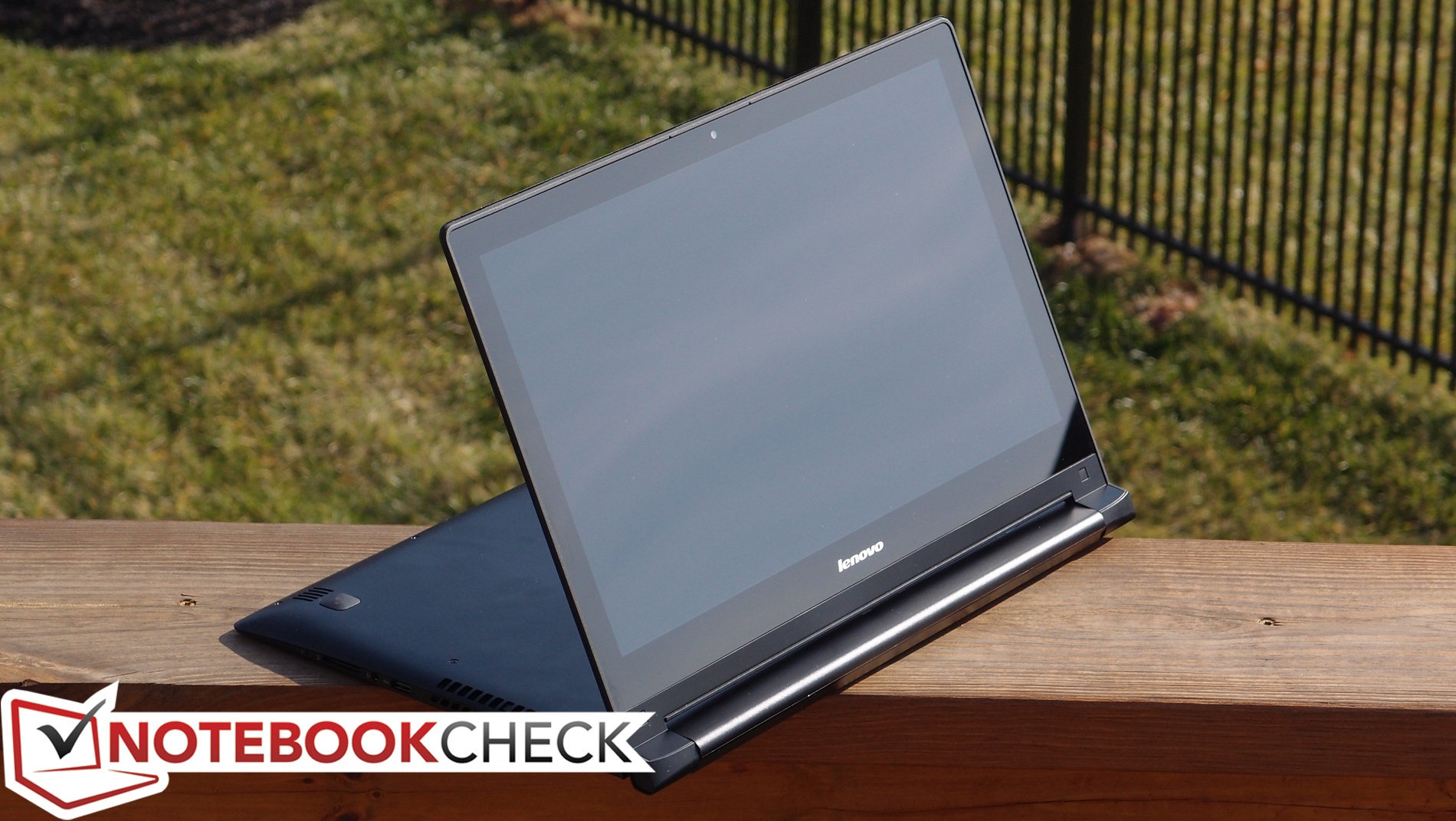

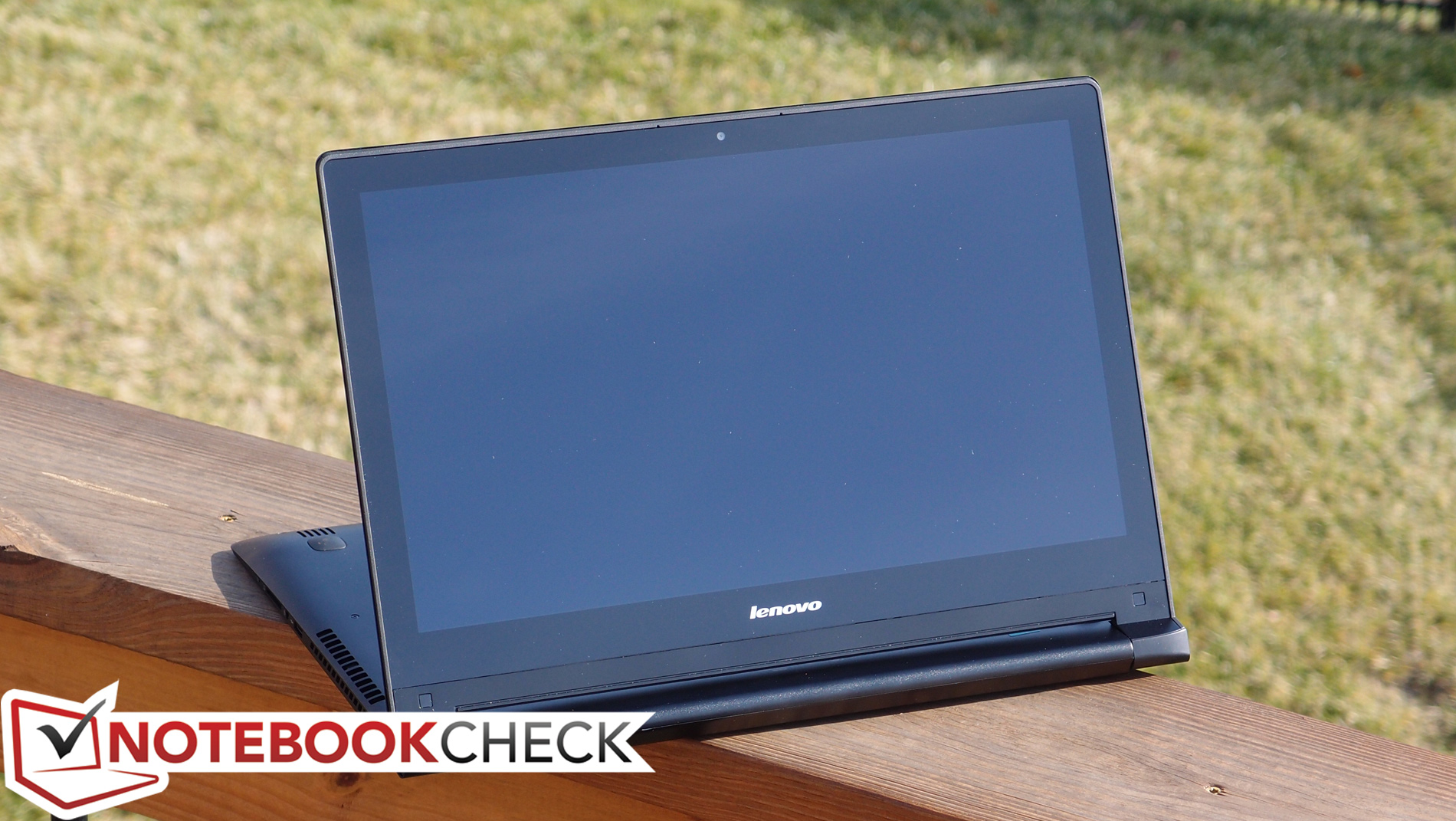

这是它支持的唯一一种变形功能。
这是它支持的唯一一种变形功能。

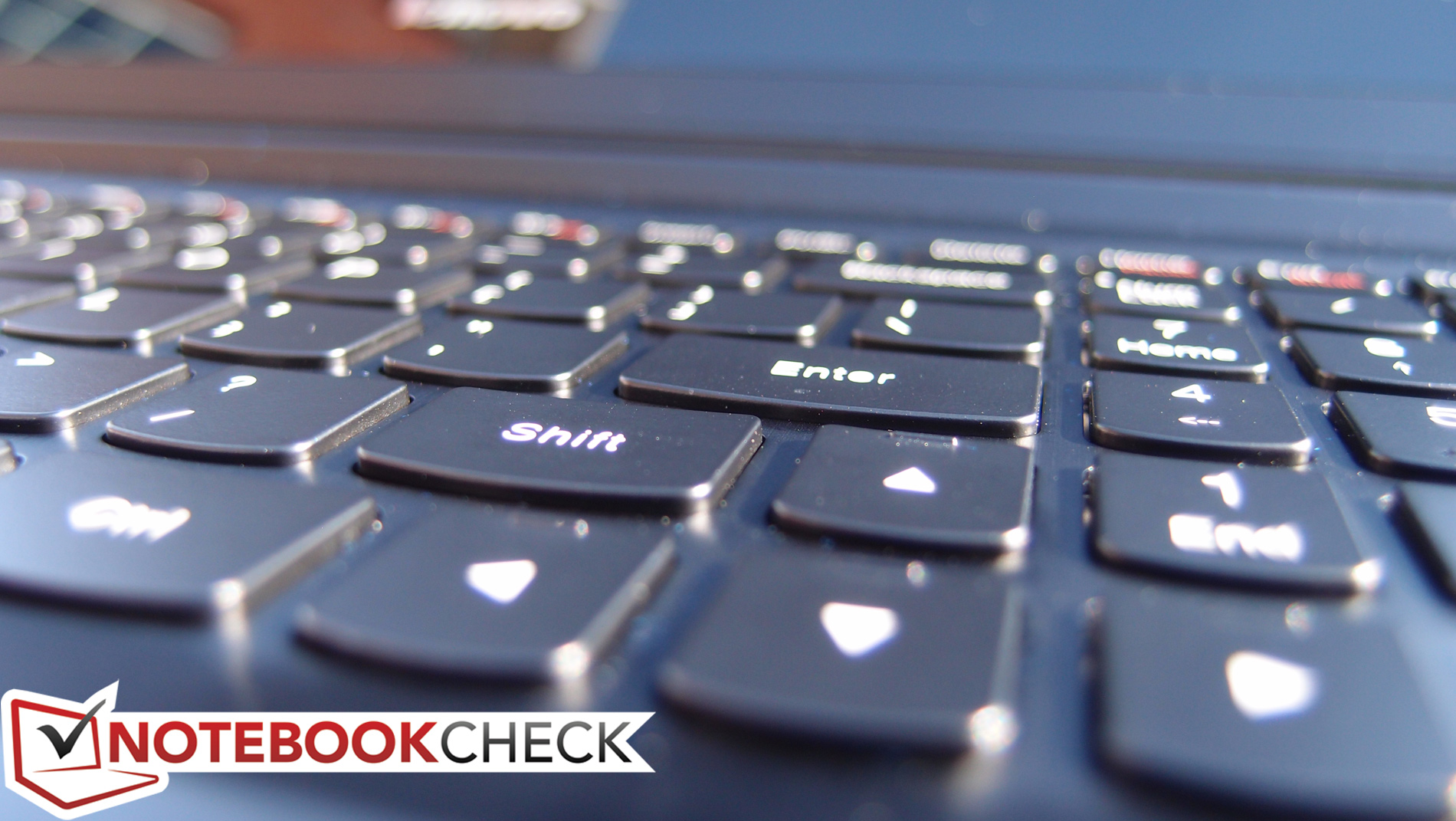

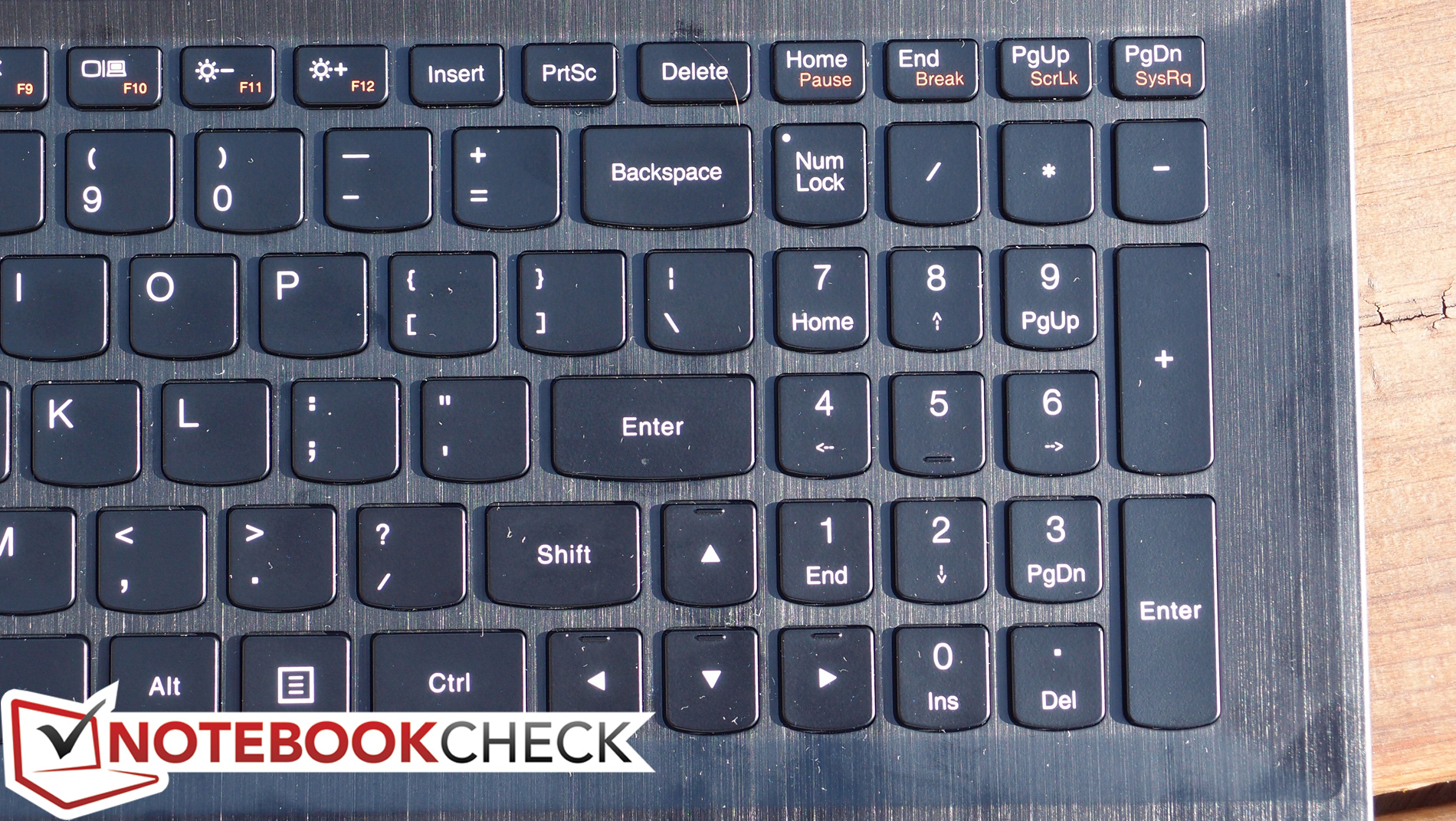

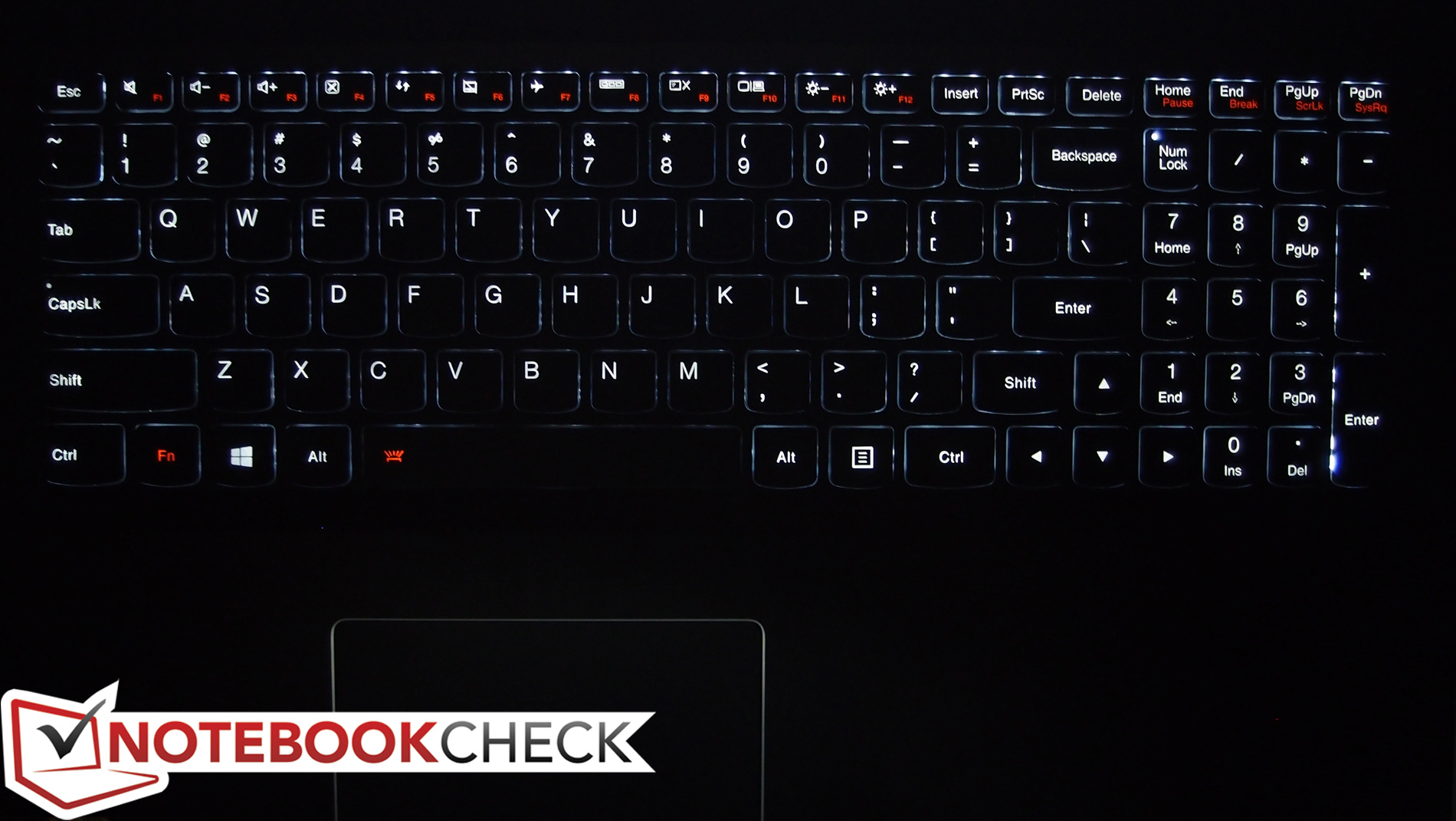

它的按键键程较短。
它的按键键程较短。

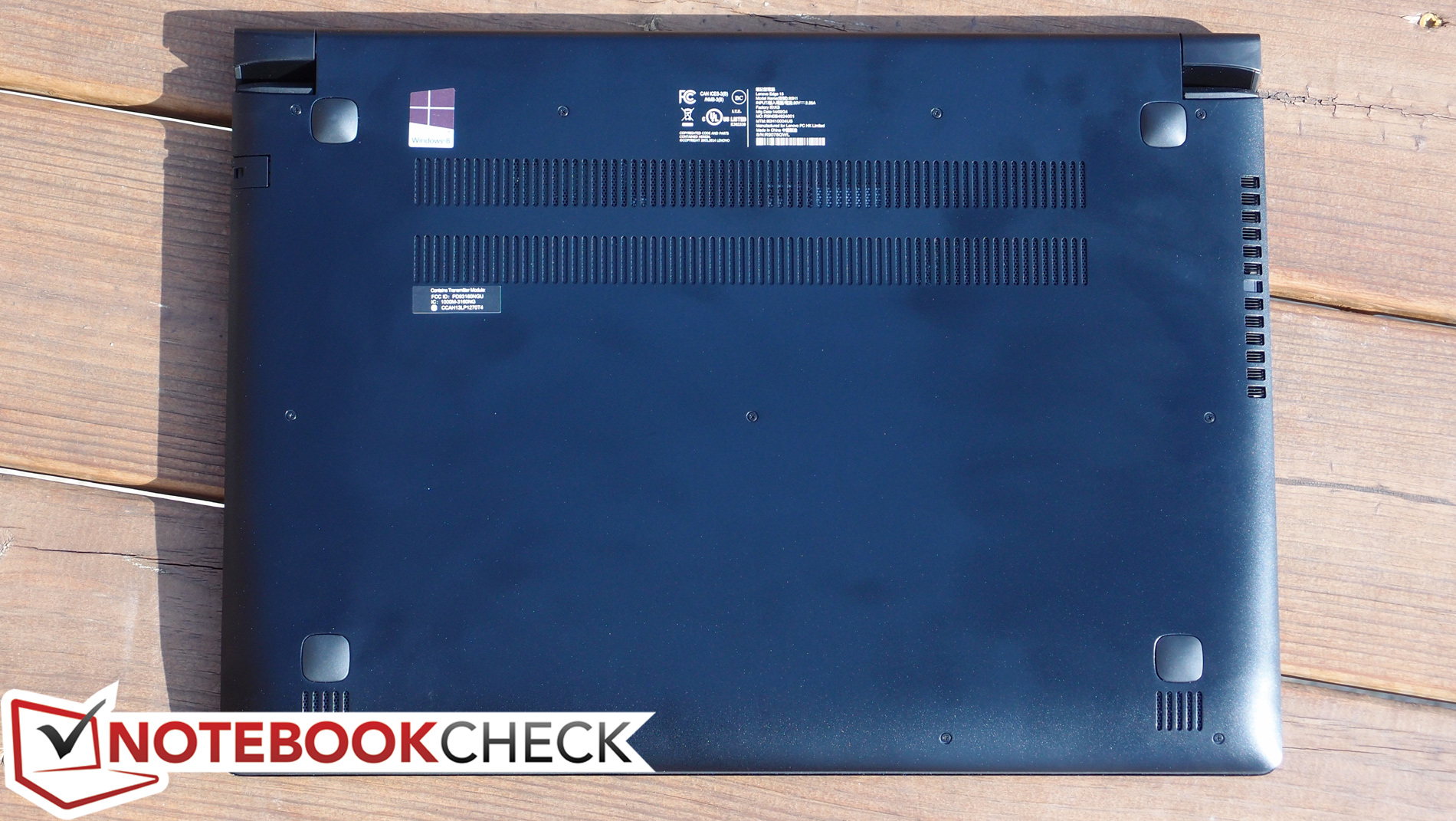

打开底盖后...
打开底盖后...

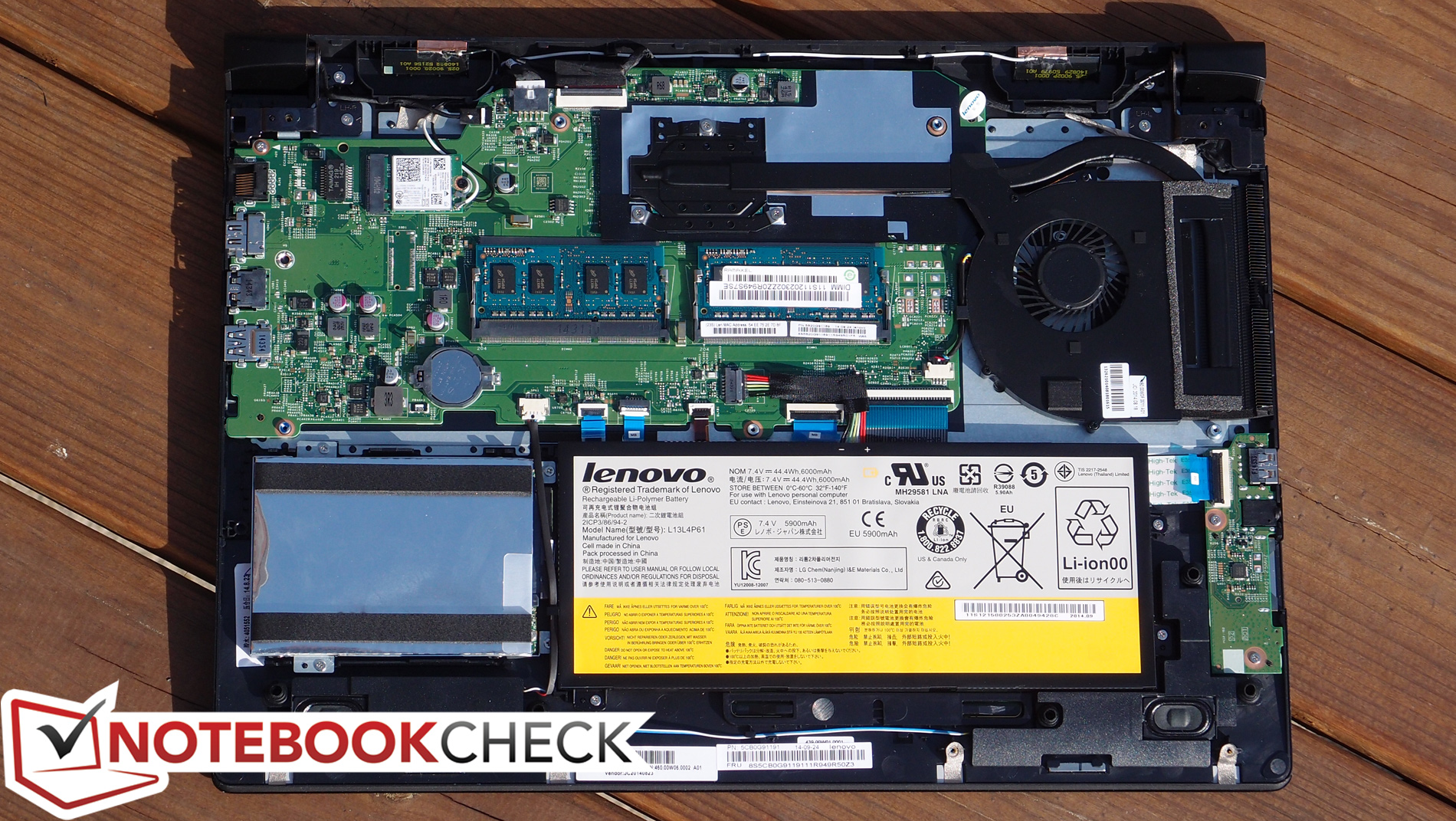

...所有的部件都可以看到。
...所有的部件都可以看到。

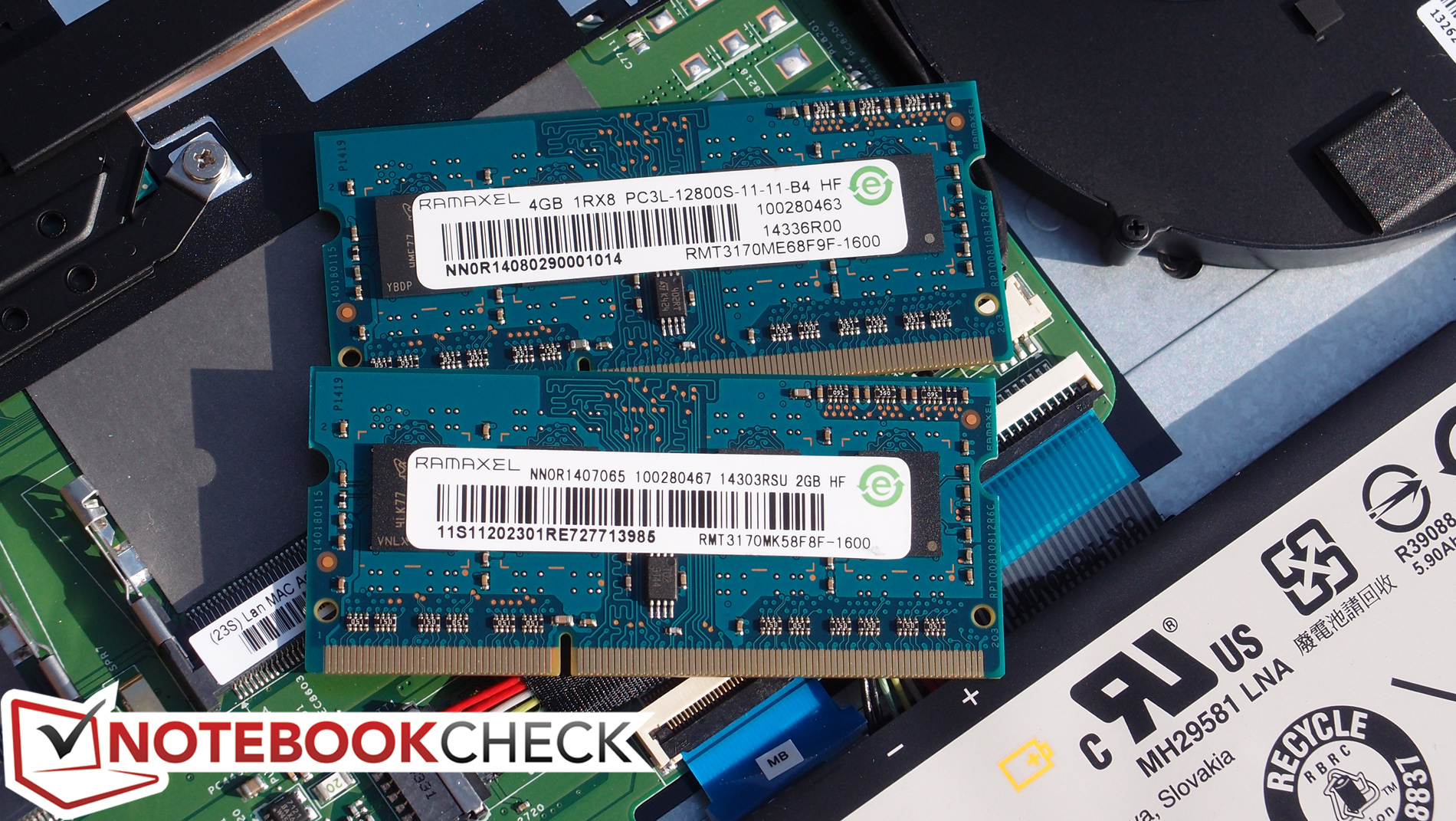

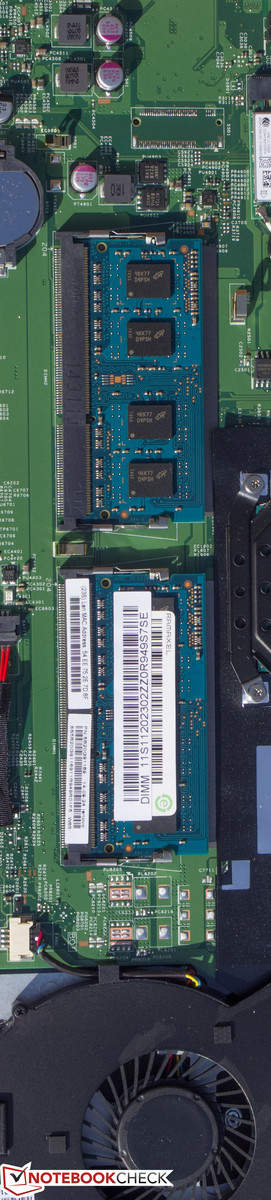

将2GB的内存条换成4GB的话你将会得到更好的双通道内存性能。
将2GB的内存条换成4GB的话你将会得到更好的双通道内存性能。
Please share our article, every link counts!

Specifications

Lenovo Edge 15-80H10004US
Processor
Intel Core i5-4210U 2 x 1.7 - 2.7 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400, Core: 1000 MHz, Memory: (shared memory) MHz, 10.18.10.3383
Memory
6 GB
, DDR3L PC3L-12800
Display
15.60 inch 16:9, 1920 x 1080 pixel, 10点触控, LGD044F, IPS, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
WDC Slim WD10SPCX-22HWST0, 1000 GB
, 5400 rpm
Soundcard
Realtek ALC233 @ Intel Lynx Point-LP PCH
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5mm 整合耳机插头, Card Reader: SD, Sensors: 陀螺仪
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0 LE
Size
height x width x depth (in mm): 23 x 383 x 276
Battery
44 Wh Lithium-Polymer, 6000 mAh
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: HD (720p)
Additional features

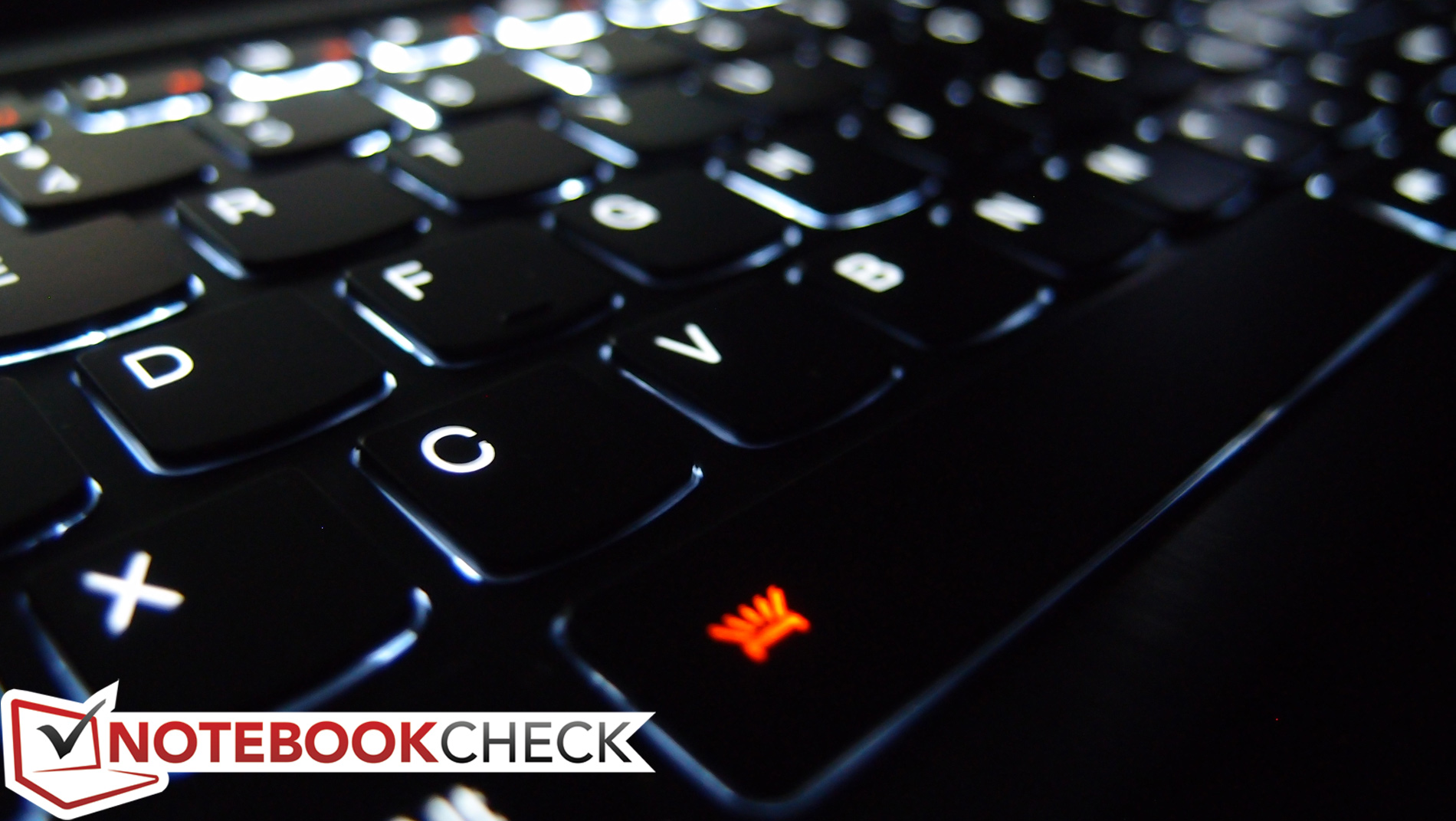

Speakers: 2.0声道,位于机身底部,朝向桌面, Keyboard: 孤岛式, Keyboard Light: yes, 12 Months Warranty
Weight
2.418 kg, Power Supply: 270 g
Price
699 Euro



Devices with Same Screen Size and/or Weight

联想 IdeaPad Pro 5 16IMH G9 评测:90 WGeForce RTX 4050 几乎与 RTX 4060 不相上下
NVIDIA GeForce RTX 4050 Laptop GPU, Meteor Lake-H Ultra 9 185H, 16.00", 2.002 kg
联想 Yoga Pro 9i 16 G9 笔记本电脑评测:配备 1200 尼特和酷睿 9 处理器的 MiniLED 笔记本电脑
NVIDIA GeForce RTX 4070 Laptop GPU, Meteor Lake-H Ultra 9 185H, 16.00", 2.074 kg
Radeon RX 6550M 性能首次亮相:联想 ThinkPad Z16 Gen 2 笔记本电脑评测
Radeon RX 6550M, Phoenix (Zen 4, Ryzen 7040) R9 PRO 7940HS, 16.00", 1.841 kg
联想 Slim Pro 9i 16IRP8 笔记本电脑评测:Apple MacBook Pro 16 的替代品
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i9-13905H, 16.00", 2.217 kg

Pros

+ 坚固的金属机身
+ 时尚的设计
+ 高性价比
+ 优质屏幕转轴
+ 优秀的温度控制
+ 负载下相对安静
+ 便于维护

Cons

- 让人失望的屏幕亮度
- 色彩还原差
- 键盘质量低
- 由于热设计限制性能较低
- 由于采用了5400转传统硬盘,应用程序性能不高
- 由于容量不匹配,而单通道运行的内存
- 风扇有些吵
- 机身易沾染指纹

Lenovo Edge 15-80H10004US - 12/07/2014 v4 (old)
Steve Schardein

Chassis
87 / 98 → 89%
Keyboard
56%
Pointing Device
78%
Connectivity
60 / 81 → 74%
Weight
60 / 20-67 → 85%
Battery
85%
Display
75%
Games Performance
63 / 85 → 74%
Application Performance
67 / 92 → 73%
Temperature
92%
Noise
79 / 95 → 83%
Audio
60%
Camera
74 / 85 → 87%
Average
72%
