华硕 F751LDV-TY178H 笔记本电脑简短评测

生以致用? 华硕 F751LDV-TY178H 希望成为一款全功能笔记本,在所有方面都能做得很好。这款售价650欧元(约4947人民币)的笔记本电脑能够完成这项使命吗?
Haswell Laptop / Notebook
420 mm 267 mm 32.8 mm 2.9 kg423.3 mm 290 mm 28 mm 2.9 kg415 mm 272 mm 35 mm 2.6 kg414.8 mm 275 mm 34 mm 3.2 kg297 mm 210 mm 1 mm 5.7 g
195
cd/m²
191
cd/m²
186
cd/m²
193
cd/m²
208
cd/m²
194
cd/m²
224
cd/m²
229
cd/m²
208
cd/m²
Distribution of brightness
Chi Mei N173FGE-L23 CMN tested with X-Rite i1Pro 2
Maximum: 229 cd/m² (Nits) Average: 203.1 cd/m²
Brightness Distribution: 81 %
Center on Battery: 207 cd/m²
Contrast: 650:1 (Black: 0.32 cd/m²)
ΔE Color 3.14 | 0.5-29.43 Ø4.92
ΔE Greyscale 2.28 | 0.5-98 Ø5.2
50% AdobeRGB 1998 (Argyll 1.6.3 3D)
54.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
76.7% sRGB (Argyll 2.2.0 3D)
52.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.18
Cinebench R15
CPU Multi 64Bit (sort by value)
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
238 Points
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
298 Points +25%
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
225 Points -5%
CPU Single 64Bit (sort by value)
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
103 Points
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
120 Points +17%
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
102 Points -1%
Cinebench R11.5
CPU Multi 64Bit (sort by value)
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2.61 Points
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
3.25 Points +25%
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
2.44 Points -7%
HP Pavilion 17-e126sg
Radeon HD 8670M, 4200M, TOSHIBA MQ01ABD075
3.23 Points +24%
CPU Single 64Bit (sort by value)
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1.18 Points
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
1.36 Points +15%
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
0.89 Points -25%
HP Pavilion 17-e126sg
Radeon HD 8670M, 4200M, TOSHIBA MQ01ABD075
1.38 Points +17%
Cinebench R10 Shading 64Bit
6119 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
10284 Points
Cinebench R10 Rendering Single CPUs 64Bit
5121 Points
Cinebench R11.5 OpenGL 64Bit
26.47 fps
Cinebench R11.5 CPU Multi 64Bit
2.61 Points
Cinebench R11.5 CPU Single 64Bit
1.18 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
35.4 fps
Cinebench R15 CPU Multi 64Bit
238 Points
Cinebench R15 CPU Single 64Bit
103 Points
Help
PCMark 7 - Score (sort by value)
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2841 Points
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
2630 Points -7%
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
2787 Points -2%
HP Pavilion 17-e126sg
Radeon HD 8670M, 4200M, TOSHIBA MQ01ABD075
2953 Points +4%
PCMark 7 Score
2841 points
PCMark 8 Home Score Accelerated
356 points
PCMark 8 Home Score Accelerated v2
2486 points
PCMark 8 Creative Score Accelerated v2
2462 points
PCMark 8 Work Score Accelerated v2
3321 points
Help
Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Transfer Rate Minimum: 44.8 MB/s
Transfer Rate Maximum: 121.8 MB/s
Transfer Rate Average: 84.6 MB/s
Access Time: 17.7 ms
Burst Rate: 277.3 MB/s
CPU Usage: 3.3 %
3DMark 11 - 1280x720 Performance (sort by value)
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1384 Points
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
1389 Points 0%
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
2361 Points +71%
HP Pavilion 17-e126sg
Radeon HD 8670M, 4200M, TOSHIBA MQ01ABD075
1542 Points +11%
3DMark 11 Performance
1384 points
3DMark Ice Storm Standard Score
47380 points
3DMark Cloud Gate Standard Score
4558 points
3DMark Fire Strike Score
840 points
Help
Asus F751LDV-TY178H
GeForce 820M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Acer Aspire E5-771G-553Q
GeForce 840M, 4210U, WDC Scorpio Blue WD10JPVX-22JC3T0
HP Pavilion 17-e126sg
Radeon HD 8670M, 4200M, TOSHIBA MQ01ABD075
Acer Aspire E1-772G 54208G1TMnsk
GeForce 820M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0
BioShock Infinite
48%
3%
1280x720 Very Low Preset
55.1
79.9
45%
58.7
7%
1366x768 Medium Preset
31.4
47.7
52%
31.1
-1%
1366x768 High Preset
26.4
38.7
47%
27
2%
Tomb Raider
-26%
-1%
1024x768 Low Preset
78
53
-32%
77.5
-1%
1366x768 Normal Preset AA:FX AF:4x
38.4
27.8
-28%
37.9
-1%
1366x768 High Preset AA:FX AF:8x
21.9
17.8
-19%
21.7
-1%
Total Average (Program / Settings)
48% / 48%
-26% / -26%
1% / 1%
lowmed.highultra
Tomb Raider (2013) 78 38.4 21.9
BioShock Infinite (2013) 55.1 31.4 26.4
Alien: Isolation (2014) 40 27
F1 2014 (2014) 95 64

Noise Level

Idle
31.7 / 33.5 / 33.7 dB(A)
HDD
34.1 dB(A)
DVD
37.6 / dB(A)
Load
35.6 / 39.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
 25.9 °C24.8 °C24.3 °C
 26.8 °C26.5 °C24.4 °C
 27.2 °C26.2 °C27.4 °C
Maximum: 27.4 °C
Average: 25.9 °C
24.8 °C25.6 °C27.5 °C
24.5 °C28.1 °C27.2 °C
27.7 °C26.6 °C27.6 °C
Maximum: 28.1 °C
Average: 26.6 °C
Power Supply (max.)  49.3 °C | Room Temperature 21.5 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 30 °C / 86 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 34.7 °C / 94 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 39.3 °C / 103 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.9 °C / 79 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1.2 °C / -2.2 F).
Power Consumption
Off / Standbydarklight 0.3 / 0.4 Watt
Idledarkmidlight 6 / 9.8 / 9.8 Watt
Load midlight 43.2 / 55.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Battery Runtime
Idle (without WLAN, min brightness)
5h 34min
WiFi Surfing
3h 20min
DVD
2h 47min
Load (maximum brightness)
3h 25min
Asus F751LDV
Asus F751LDV

华硕F751LDV是一款名副其实的全能型笔记本。它的输入设备十分易用,我们特别喜欢的是它大尺寸触控板的流畅多指触控功能。不过,它的屏幕质量非常值得质疑。像Acer Aspire E5-771G-553Q一样的全高清屏幕面板应该是个更理想的选择。另外,它在像素密度和亮度上都比较欠缺。它的应用程序性能很高,与同配置的直接竞争对手都水平相当。对我们的测试机来说,玩游戏也不是太大的问题,不过图形设置需要相应地降低。如果用户需要更好的游戏体验的话,可以考虑售价高50欧元(约380人民币)的Acer Aspire E5-771G-553Q,它配备了Nvidia GeForce 840M独立显卡。

几乎没有另外一款产品可以和这台华硕笔记本在散热和噪音控制的方面相媲美。用它来工作时几乎不会被噪音和尖锐的风扇声或滚烫机身所干扰。

打算购买这款笔记本的用户可以得到一款整体上相当不错的笔记本电脑。不过,它的竞争对手也应该纳入考虑范围,用户可根据自己的需要谨慎选择购买。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

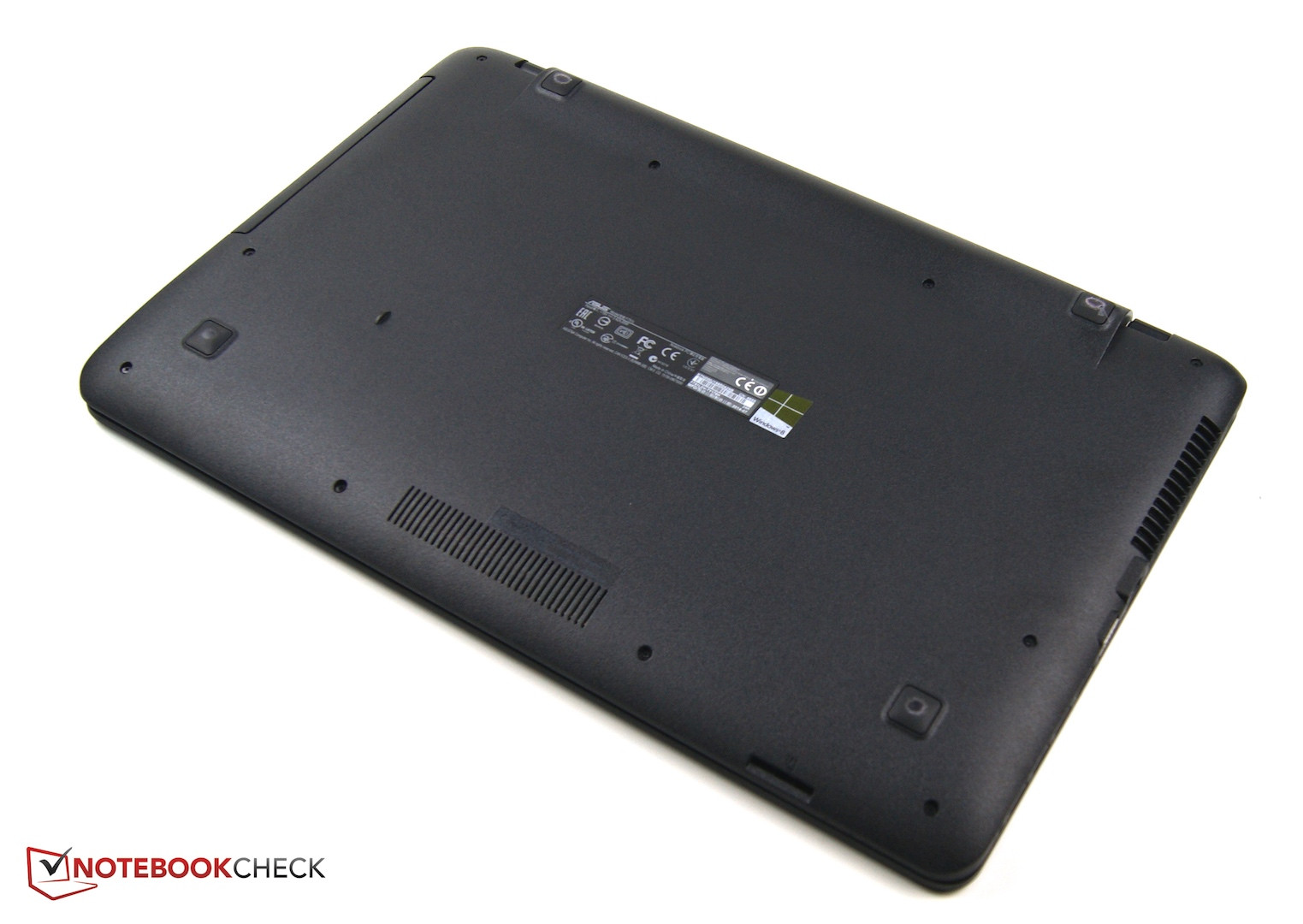

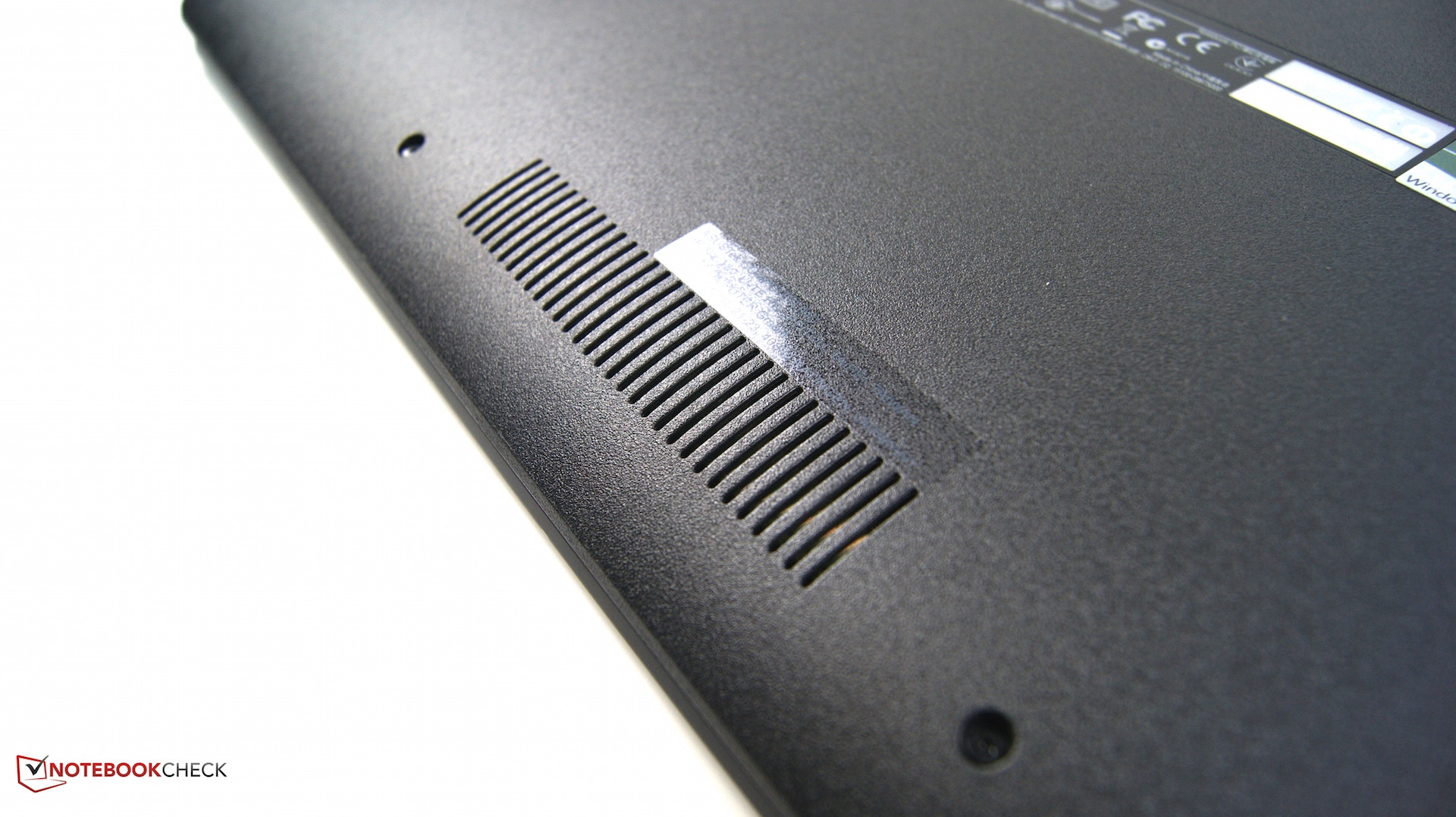

无维护窗口。
无维护窗口。

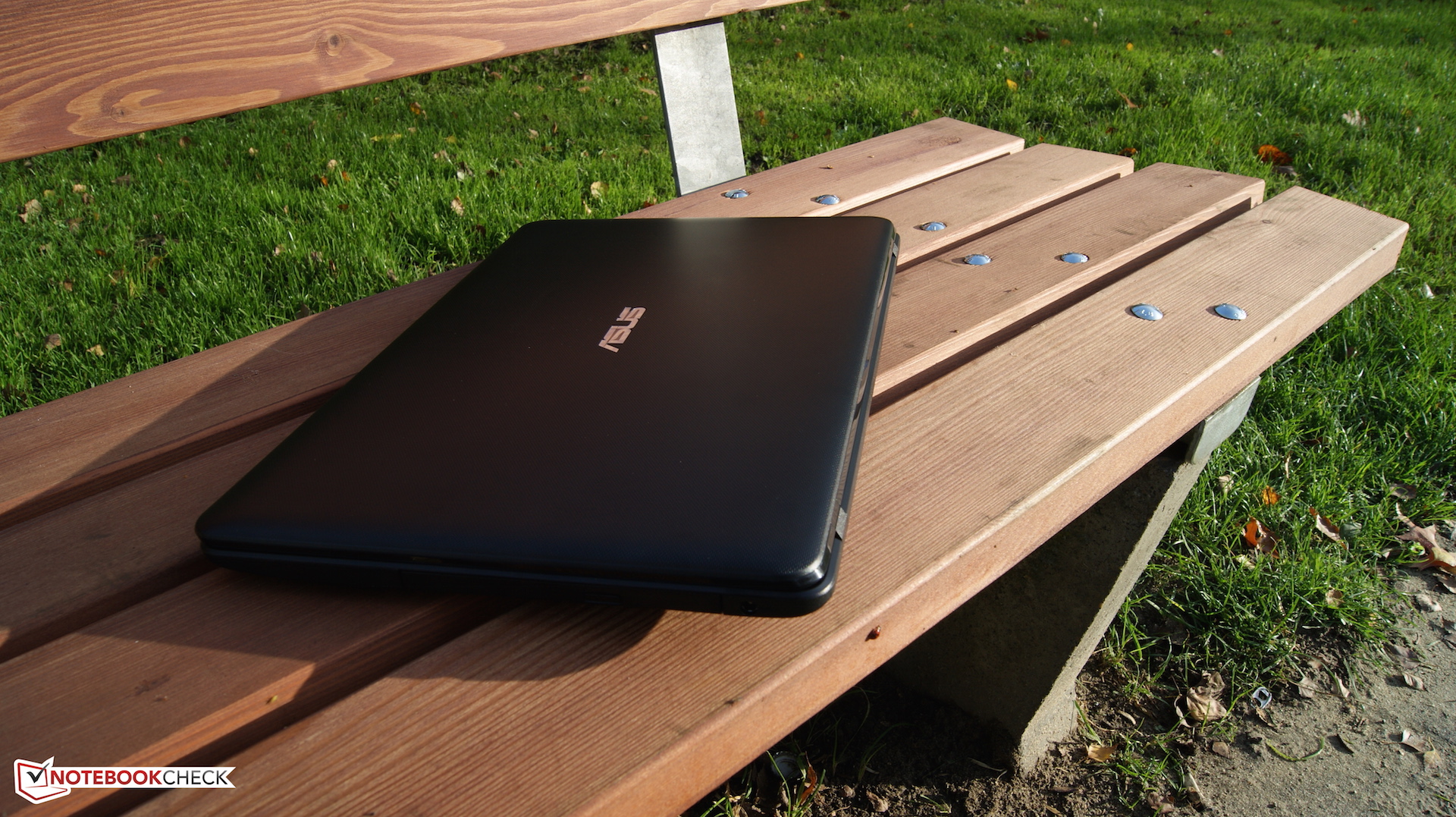

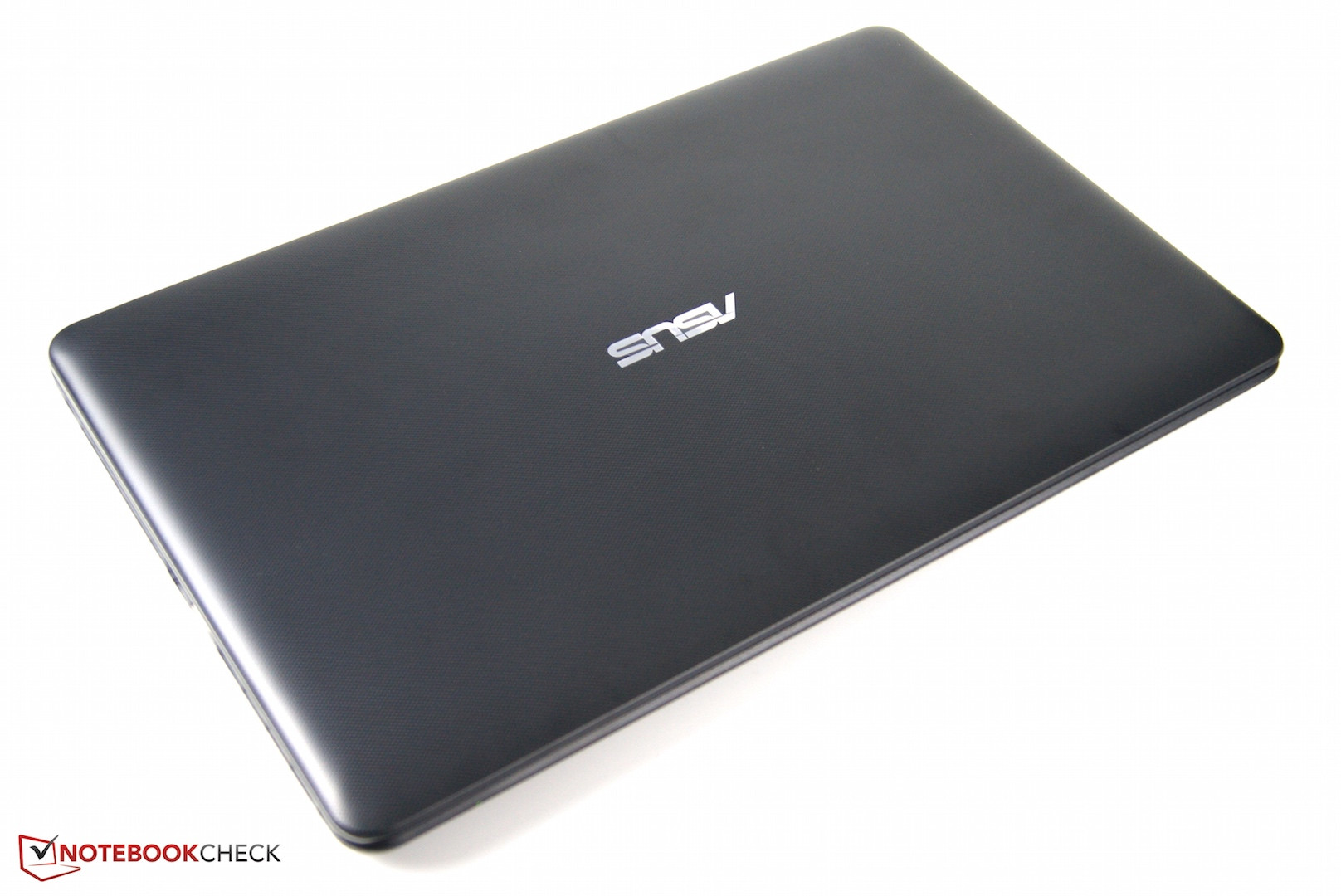

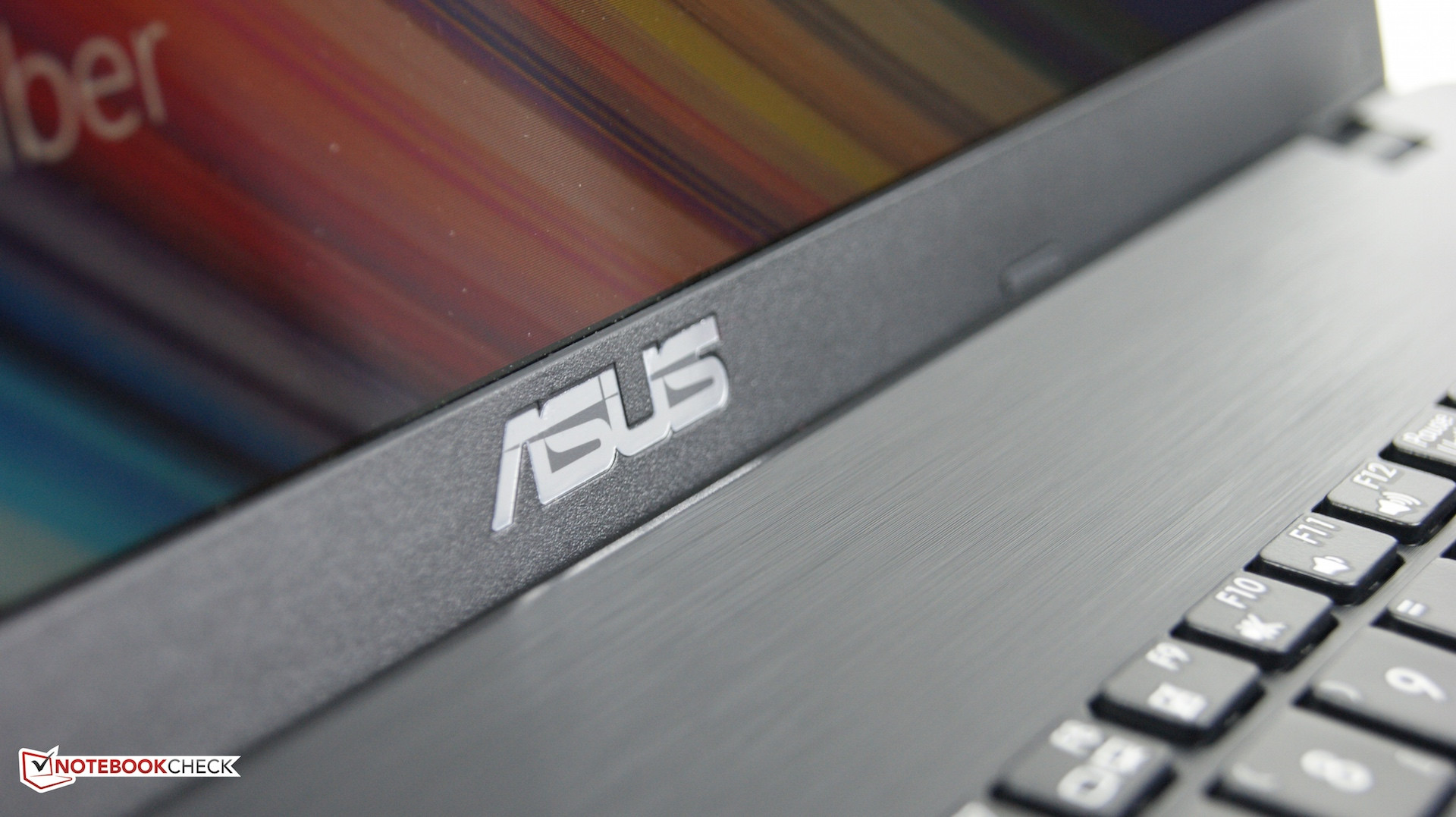

简洁设计。
简洁设计。

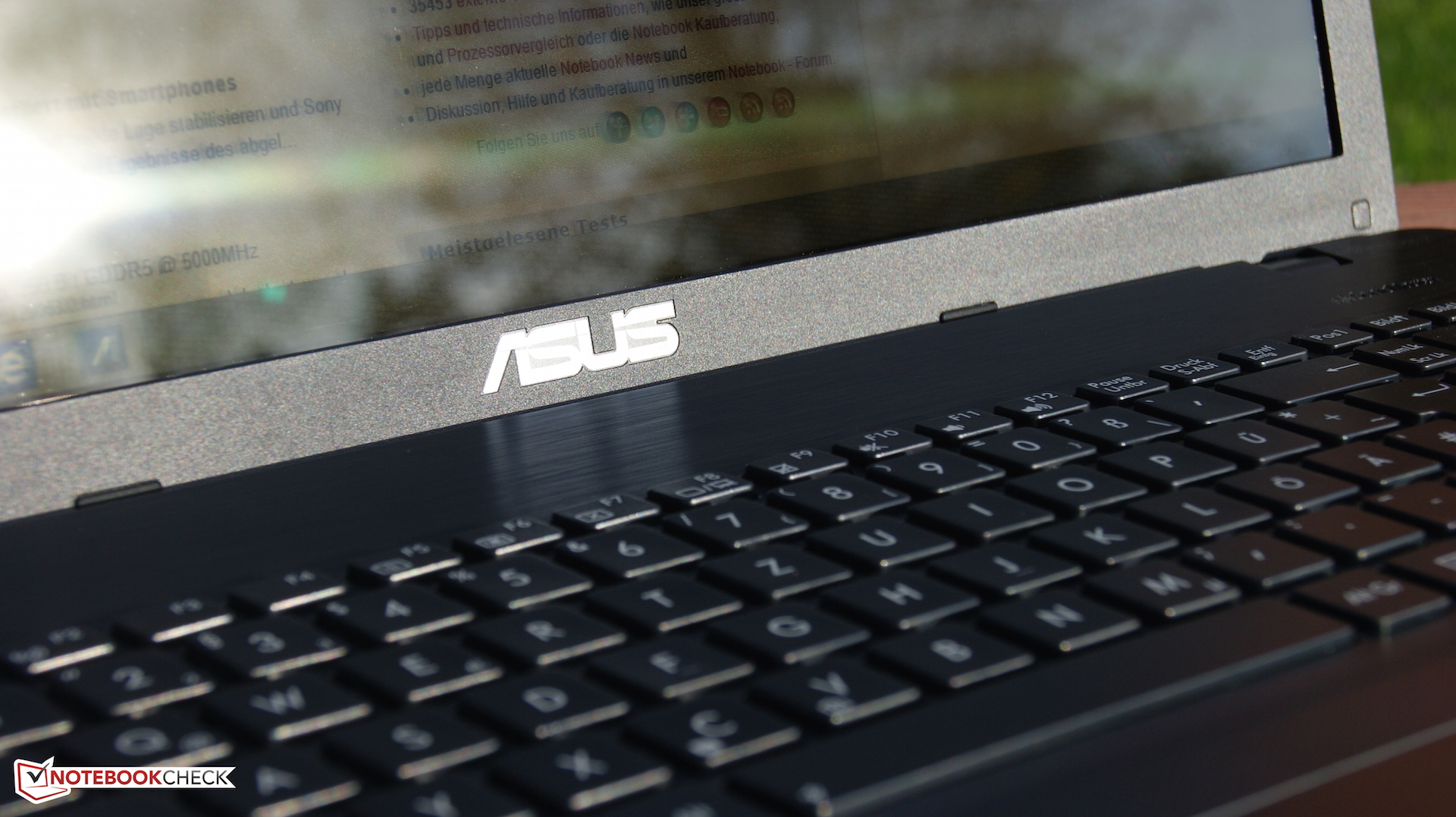

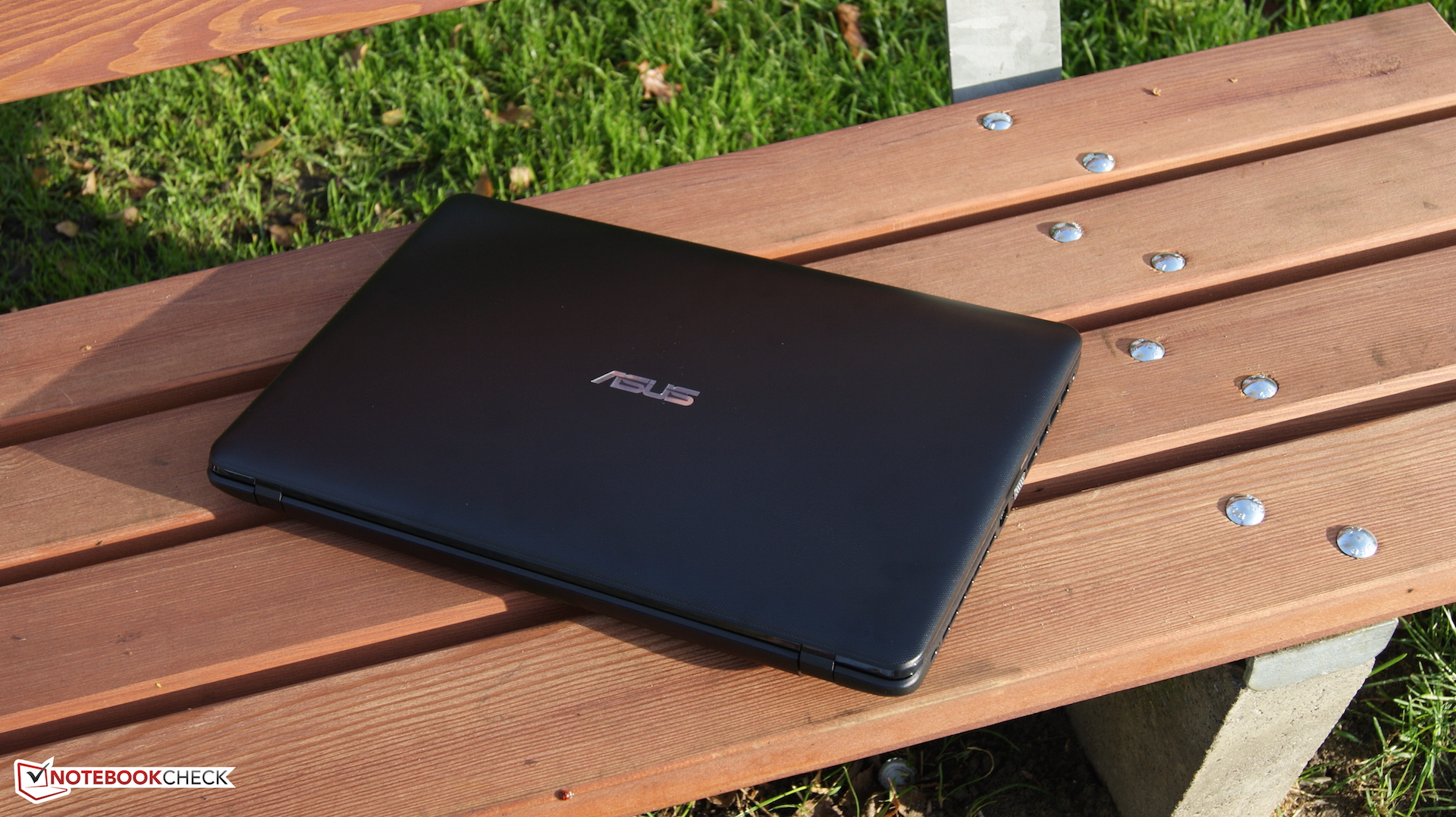

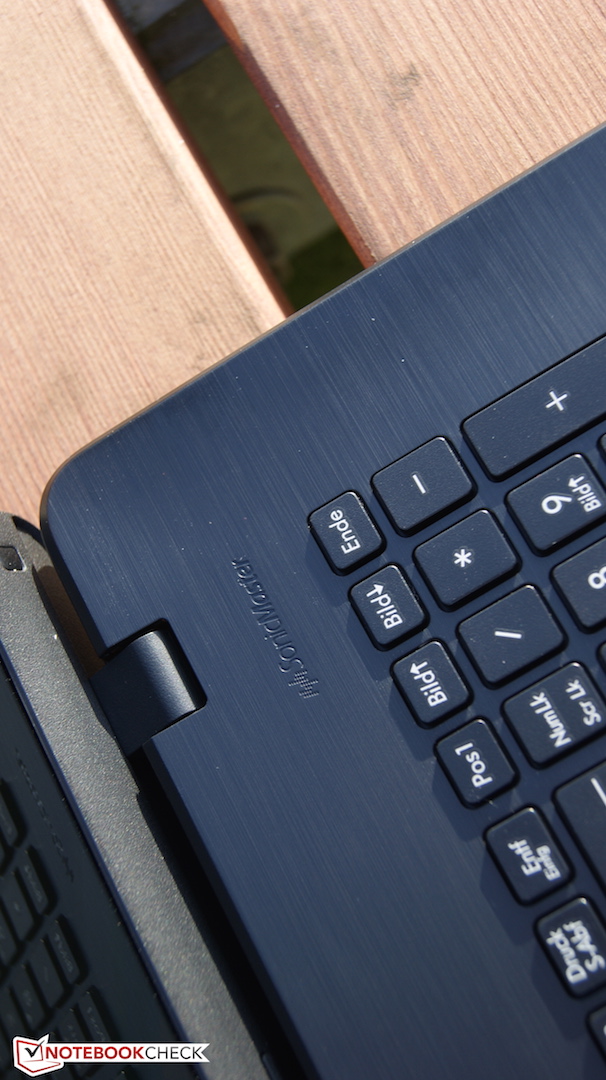

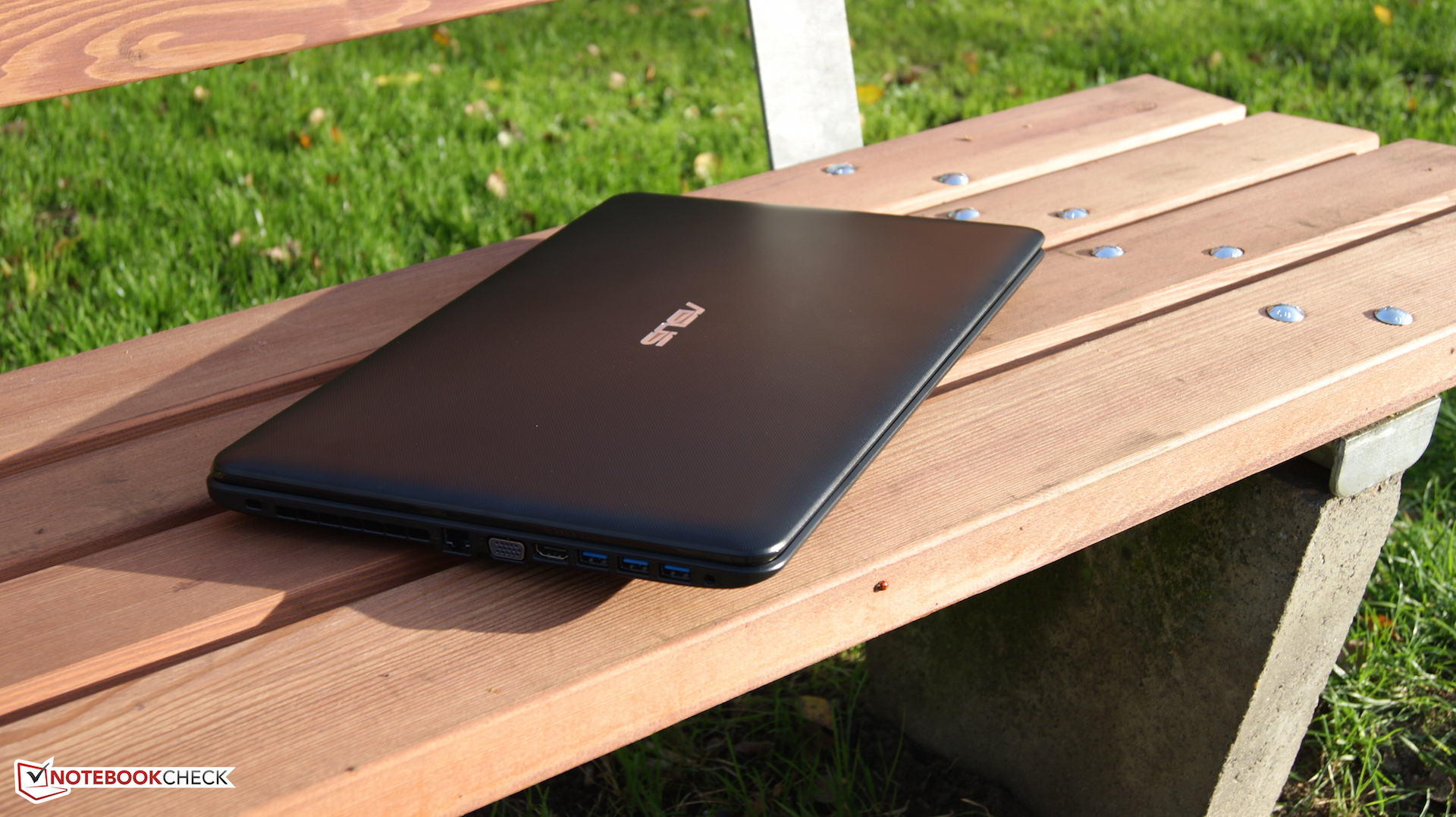

不适合户外使用。
不适合户外使用。

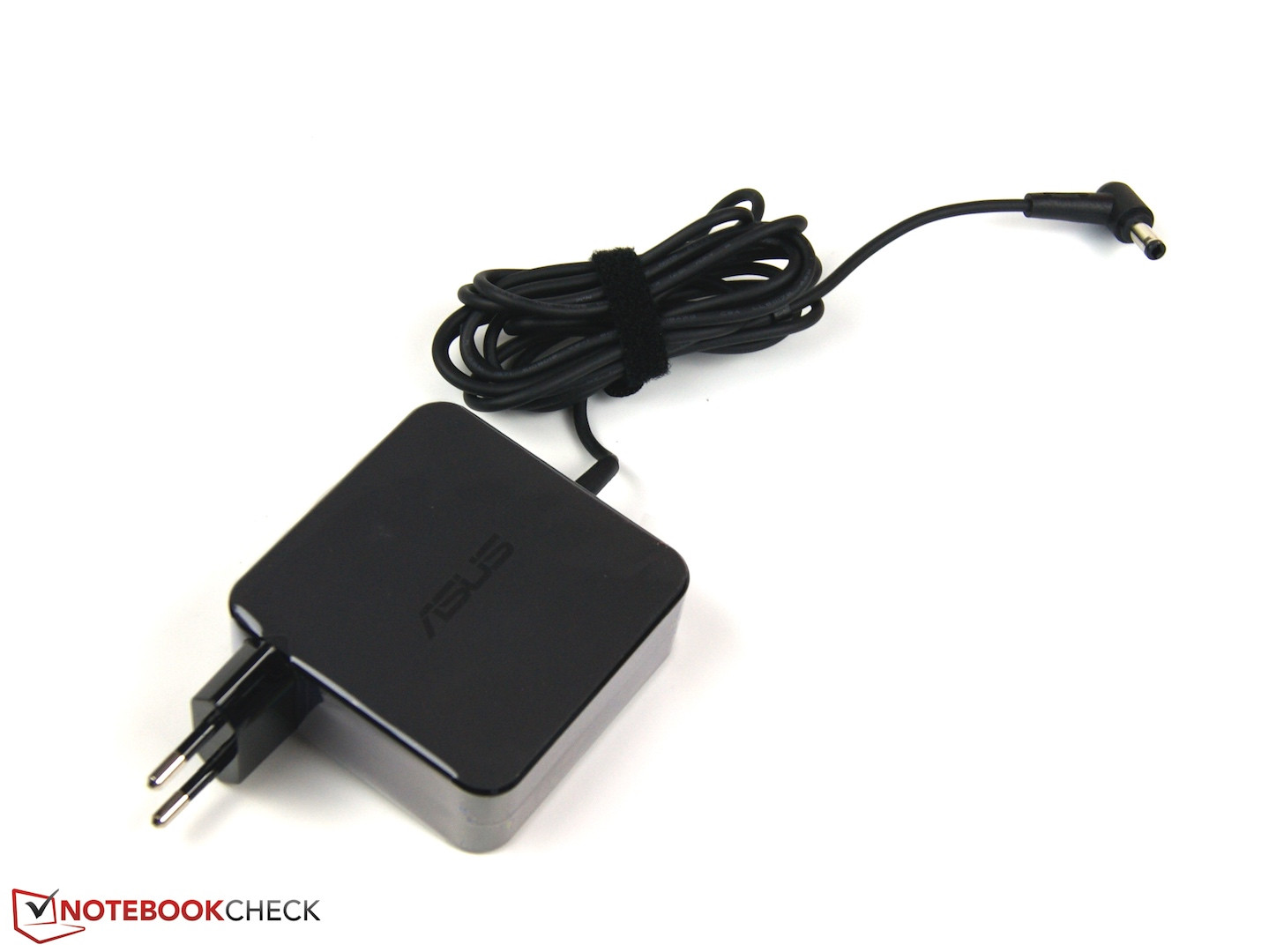

华硕的65W电源适配器。
华硕的65W电源适配器。

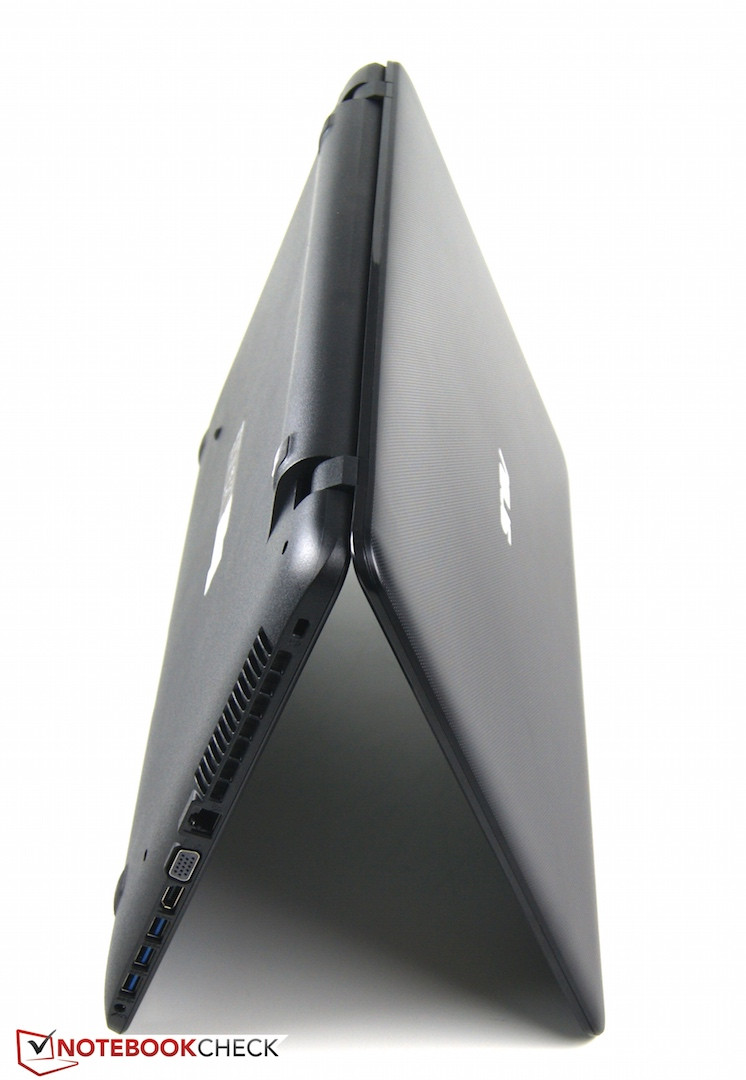

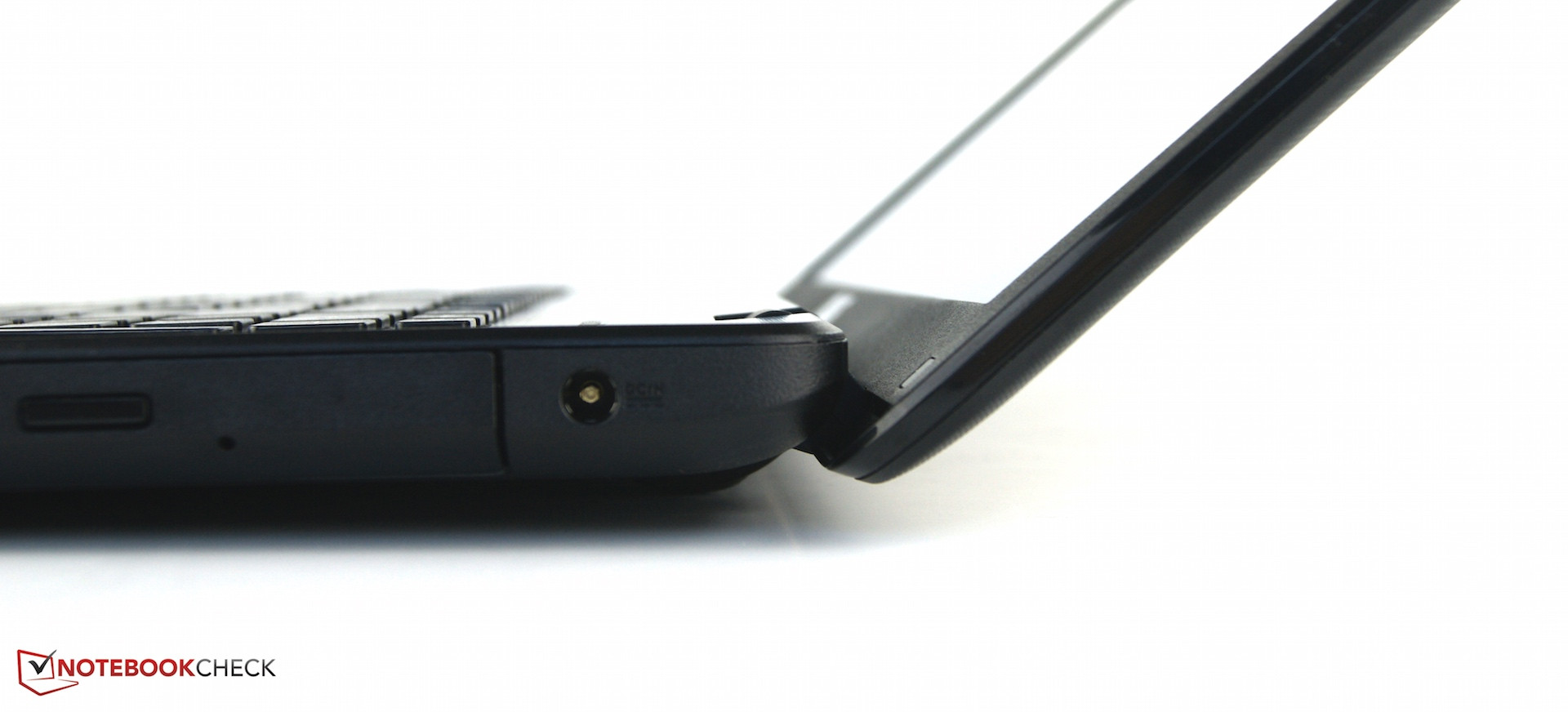

最大展开角度。
最大展开角度。

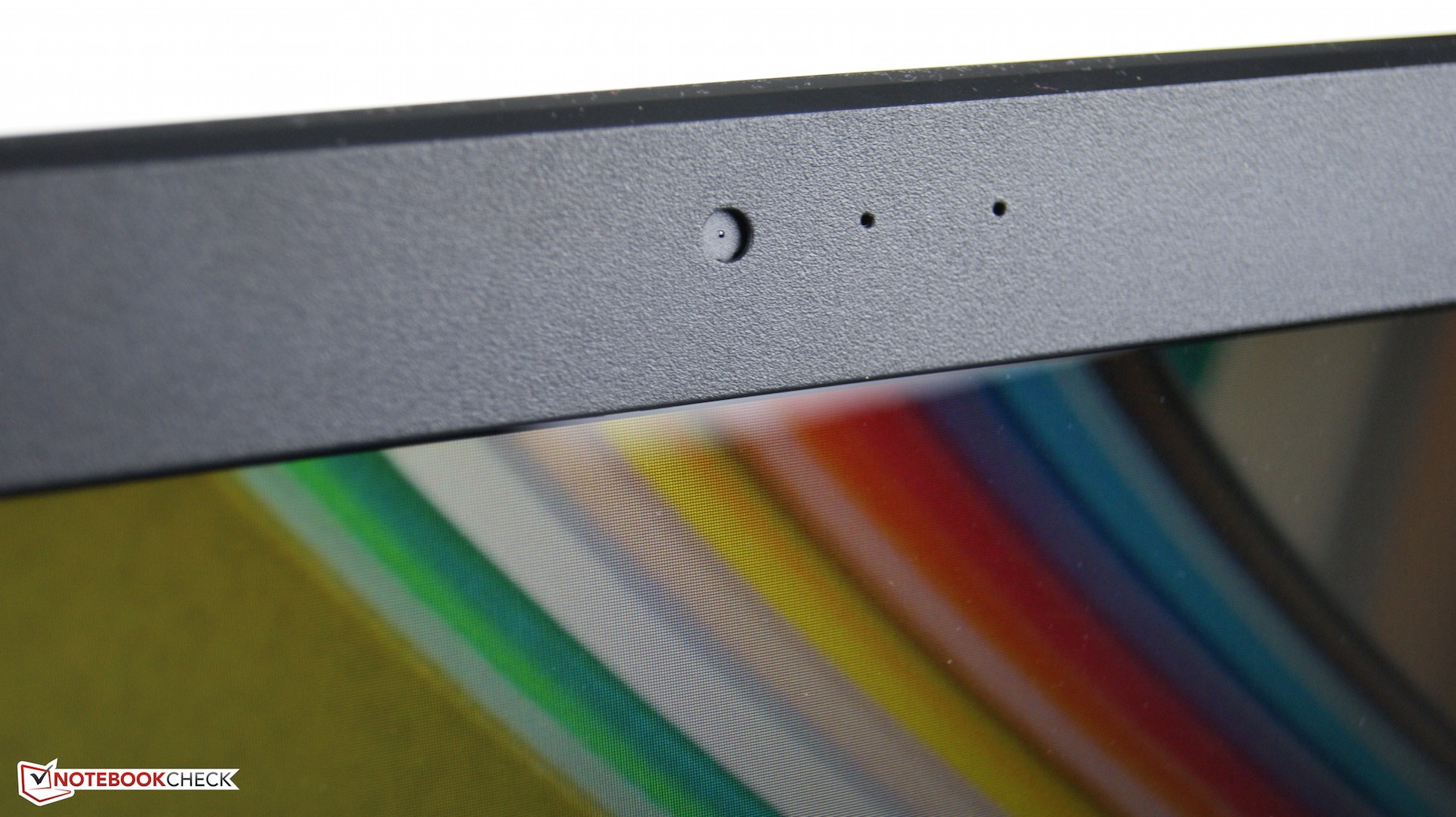

摄像头的质量较差。
摄像头的质量较差。
Please share our article, every link counts!

Specifications

Asus F751LDV-TY178H
Processor
Intel Core i5-4210U 2 x 1.7 - 2.7 GHz, Haswell
Graphics adapter
NVIDIA GeForce 820M - 2048 MB VRAM, Core: 625 MHz, RAM: 900 MHz, DDR3, nvlddmkm 9.18.13.3285 (ForceWare 332.85), Nvidia Optimus
Memory
8 GB
, 1/1 内存槽,4GB 板载
Display
17.30 inch 16:9, 1600 x 900 pixel, Chi Mei N173FGE-L23 CMN, TN, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB, 1000 GB
, 5400 rpm, 8 MB 缓存
Soundcard
Intel Lynx Point-LP - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合耳机插口, Card Reader: SD
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Atheros AR9485 WiFi Adapter (b/g/n = Wi-Fi 4/)
Optical drive
TSSTcorp CDDVDW SU-228CB
Size
height x width x depth (in mm): 35 x 415 x 272
Battery
36 Wh Lithium-Ion, 4 芯
Operating System
Microsoft Windows 8 64 Bit
Camera
Webcam: 130万像素
Additional features
Speakers: 两个扬声器, Keyboard: 孤岛式, Keyboard Light: no, 24 Months Warranty
Weight
2.615 kg, Power Supply: 240 g



Devices with the same GPU

联想 Z40-59422614 笔记本电脑简短评测
GeForce 820M, Core i5 4200U, 14.00", 2.066 kg

Devices with Same Screen Size and/or Weight

高通骁龙 X Plus 8 核分析 - X1P-42-100 更小、更便宜,但效率不高
Adreno X1-45 1.7 TFLOPS, Snapdragon X SD X Plus X1P-42-100, ", 0 kg
高通骁龙 X Plus 8 核分析 - X1P-42-100 更小、更便宜,但效率不高
Adreno X1-45 1.7 TFLOPS, Snapdragon X SD X Plus X1P-42-100, 15.60", 1.428 kg
华硕 ZenBook S 16 OLED 笔记本电脑评测:Ryzen AI 9 365 和 Radeon 880M 的首秀
Radeon 880M, Strix Point (Zen 5/5c, Ryzen AI 3/5/7/9) Ryzen AI 9 365, 16.00", 1.5 kg
AMD Zen 5 Strix Point iGPU 分析 - Radeon 890M 与英特尔 Arc Graphics、Apple M3 和高通 Adreno X1-85 的比较
Radeon 890M, Strix Point (Zen 5/5c, Ryzen AI 3/5/7/9) Ryzen AI 9 HX 370, ", 0 kg

Pros

+ 24个月质保
+ 舒适的噪音水平
+ 散热控制
+ 应用和游戏性能
+ 高容量硬盘

Cons

- 低分辨率
- 无维护窗口
- 屏幕亮度

Asus F751LDV-TY178H - 01/22/2015 v4 (old)
Nino Ricchizzi

Chassis
78 / 98 → 80%
Keyboard
71%
Pointing Device
83%
Connectivity
61 / 81 → 75%
Weight
59 / 20-67 → 83%
Battery
82%
Display
77%
Games Performance
72 / 85 → 85%
Application Performance
65 / 92 → 71%
Temperature
93%
Noise
86 / 95 → 91%
Audio
60%
Camera
37 / 85 → 44%
Average
71%
