华硕 GL550JK-CN391H 笔记本电脑简短评测

Name: Asus GL550JK-CN391H
Brand: Asus

多面手... ...或者类似的说法应该适合GL550JK。与750系列不同的是，华硕在相当薄的机身中搭载了适合游戏的中端显卡和高端IPS屏幕。请阅读我们的评测以参考这款15寸笔记本和其他竞争对手的比较。

Florian Glaser, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 07/20/2014 🇺🇸 🇩🇪 ...

Gaming Haswell Laptop / Notebook Windows


322 cd/m²	338 cd/m²	317 cd/m²
305 cd/m²	328 cd/m²	308 cd/m²
291 cd/m²	287 cd/m²	298 cd/m²

Distribution of brightness

Samsung 156HL01-102 (SDC324C) tested with X-Rite i1Pro 2

Maximum: 338 cd/m² (Nits) Average: 310.4 cd/m²
Brightness Distribution: 85 %
Center on Battery: 328 cd/m²
Contrast: 763:1 (Black: 0.43 cd/m²)
ΔE Color 3.99 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.18 | 0.5-98 Ø5.2
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.4% sRGB (Argyll 2.2.0 3D)
63.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.5

Download ICC File (X-Rite i1Pro 2)

Cinebench R15
CPU Single 64Bit (sort by value)
Asus GL550JK Core i7-4700HQ	134 Points
Schenker M504 Core i5-4310M	128 Points -4%
MSI GE60 Core i7-4700HQ	135 Points +1%
Gigabyte P35W v2 Core i7-4710HQ	126 Points -6%
Nexoc M731 Core i7-4810MQ	148 Points +10%
CPU Multi 64Bit (sort by value)
Asus GL550JK Core i7-4700HQ	642 Points
Schenker M504 Core i5-4310M	325 Points -49%
MSI GE60 Core i7-4700HQ	642 Points 0%
Gigabyte P35W v2 Core i7-4710HQ	588 Points -8%
Nexoc M731 Core i7-4810MQ	627 Points -2%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus GL550JK Core i7-4700HQ	1.49 Points
Schenker M504 Core i5-4310M	1.47 Points -1%
MSI GE60 Core i7-4700HQ	1.5 Points +1%
Gigabyte P35W v2 Core i7-4710HQ	1.55 Points +4%
Nexoc M731 Core i7-4810MQ	1.67 Points +12%
CPU Multi 64Bit (sort by value)
Asus GL550JK Core i7-4700HQ	6.99 Points
Schenker M504 Core i5-4310M	3.56 Points -49%
MSI GE60 Core i7-4700HQ	6.97 Points 0%
Gigabyte P35W v2 Core i7-4710HQ	6.89 Points -1%
Nexoc M731 Core i7-4810MQ	6.79 Points -3%

Cinebench R11.5 CPU Single 64Bit

1.49 Points

Cinebench R11.5 CPU Multi 64Bit

6.99 Points

Cinebench R11.5 OpenGL 64Bit

57.6 fps

Cinebench R15 CPU Single 64Bit

134 Points

Cinebench R15 CPU Multi 64Bit

642 Points

Cinebench R15 OpenGL 64Bit

92.9 fps

Help

... in comparison

Unigine Heaven 3.0 - 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	43.4 fps
MSI GP70 GeForce 840M	22.5 fps -48%
Nexoc M731 GTX 850M DDR3 @ Standard	41.8 fps -4%
MSI GE70 GTX 850M GDDR5	45.6 fps +5%
Schenker XMG A504 GTX 860M Maxwell	49.5 fps +14%

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	3151 Points
MSI GP70 GeForce 840M	1631 Points -48%
Nexoc M731 GTX 850M DDR3 @ Standard	3082 Points -2%
MSI GE70 GTX 850M GDDR5	3596 Points +14%
Schenker XMG A504 GTX 860M Maxwell	3936 Points +25%

3DMark 11 - 1280x720 Performance GPU (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	4682 Points
MSI GP70 GeForce 840M	2493 Points -47%
Nexoc M731 GTX 850M DDR3 @ Standard	4458 Points -5%
MSI GE70 GTX 850M GDDR5	4476 Points -4%
Schenker XMG A504 GTX 860M Maxwell	4946 Points +6%

3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	14615 Points
MSI GP70 GeForce 840M	7412 Points -49%
Nexoc M731 GTX 850M DDR3 @ Standard	14102 Points -4%
MSI GE70 GTX 850M GDDR5	16943 Points +16%
Schenker XMG A504 GTX 860M Maxwell	18373 Points +26%

3DMark Vantage P Result		16119 points
3DMark 11 Performance		4858 points
3DMark Ice Storm Standard Score		104745 points
3DMark Cloud Gate Standard Score		14231 points
3DMark Fire Strike Score		2836 points
Help

... in comparison

CrystalDiskMark 3.0

AS SSD

SanDisk SD6SB1M256G1002

Sequential Read: 498.9 MB/s

Sequential Write: 457.4 MB/s

512K Read: 294.8 MB/s

512K Write: 375.9 MB/s

4K Read: 35.48 MB/s

4K Write: 107.5 MB/s

4K QD32 Read: 344.5 MB/s

4K QD32 Write: 211.6 MB/s

PCMark 7 Score		5891 points
PCMark 8 Home Score Accelerated v2		3588 points
PCMark 8 Creative Score Accelerated v2		4220 points
PCMark 8 Work Score Accelerated v2		4316 points
Help

... in comparison

GRID: Autosport - 1920x1080 Ultra Preset AA:4x MS (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	34.7 fps
Schenker W504 GTX 860M Kepler	42.6 (35^min) fps +23%

Watch Dogs - 1920x1080 Ultra Overall Quality, Ultra Textures AA:4x MS (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	14.7 fps
Schenker W504 GTX 860M Kepler	18.9 (14^min) fps +29%

Wolfenstein: The New Order - 1920x1080 Ultra Preset (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	32.7 fps
Schenker W504 GTX 860M Kepler	35.7 (29^min) fps +9%

The Elder Scrolls Online - 1920x1080 Ultra High Preset AA:On (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	34 fps
MSI GP70 GeForce 840M	17.9 fps -47%
Nexoc M731 GTX 850M DDR3 @ Standard	33.7 fps -1%
MSI GE70 GTX 850M GDDR5	38.6 fps +14%
Schenker W504 GTX 860M Kepler	39.8 fps +17%

Call of Duty: Ghosts - 1920x1080 Extra / High / HBAO+ / No dynamic fur AA:4x MS (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	21.2 fps
MSI GP70 GeForce 840M	10.8 fps -49%
Nexoc M731 GTX 850M DDR3 @ Standard	21 fps -1%
MSI GE70 GTX 850M GDDR5	28.9 fps +36%
Schenker W504 GTX 860M Kepler	26.1 fps +23%

Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	21 fps
MSI GP70 GeForce 840M	11.2 fps -47%
Nexoc M731 GTX 850M DDR3 @ Standard	20.7 fps -1%
MSI GE70 GTX 850M GDDR5	26.2 fps +25%
Schenker W504 GTX 860M Kepler	26.2 fps +25%

Saints Row IV - 1920x1080 Ultra Preset AA:8x MS AF:16x (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	23.4 fps
MSI GP70 GeForce 840M	12 fps -49%
Nexoc M731 GTX 850M DDR3 @ Standard	23.1 fps -1%
MSI GE70 GTX 850M GDDR5	30.2 fps +29%
Schenker W504 GTX 860M Kepler	31.1 fps +33%

Dota 2 - 1920x1080 High / On, Render Quality: 100 % (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	72.2 fps
MSI GP70 GeForce 840M	36 fps -50%
Nexoc M731 GTX 850M DDR3 @ Standard	68.4 fps -5%
MSI GE70 GTX 850M GDDR5	72.6 fps +1%
Schenker W504 GTX 860M Kepler	58.3 fps -19%

Far Cry 3 - 1920x1080 DX11 Ultra Preset (HDAO, Enhanced Alpha To Coverage) AA:4x MS (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	16.4 fps
MSI GP70 GeForce 840M	8.4 fps -49%
Nexoc M731 GTX 850M DDR3 @ Standard	16.1 fps -2%
MSI GE70 GTX 850M GDDR5	20.9 fps +27%
Schenker W504 GTX 860M Kepler	20.3 fps +24%

Hitman: Absolution - 1920x1080 Ultra Preset AA:4xMS AF:16x (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	14.2 fps
MSI GP70 GeForce 840M	6.7 fps -53%
Nexoc M731 GTX 850M DDR3 @ Standard	14.3 fps +1%
MSI GE70 GTX 850M GDDR5	22.8 fps +61%
Schenker W504 GTX 860M Kepler	19.6 fps +38%

Guild Wars 2 - 1920x1080 All Maximum / On AA:FX (sort by value)
Asus GL550JK GTX 850M DDR3 @ Asus-OC	24.1 fps
MSI GP70 GeForce 840M	11.9 fps -51%
Nexoc M731 GTX 850M DDR3 @ Standard	23.8 fps -1%
MSI GE70 GTX 850M GDDR5	26.8 fps +11%
Schenker W504 GTX 860M Kepler	24.8 fps +3%

	low	med.	high	ultra
Guild Wars 2 (2012)	112.7		58.3	24.1
Hitman: Absolution (2012)	59.3	55.4	37.1	14.2
Far Cry 3 (2012)	108.9	90.2	49.2	16.4
Dota 2 (2013)	118.2	110.3		72.2
Saints Row IV (2013)	70	60.2	37.3	23.4
Battlefield 4 (2013)	129.7	89.8	58.3	21
Call of Duty: Ghosts (2013)	85.8	72.1	41.1	21.2
The Elder Scrolls Online (2014)	80.4	71.6	63.9	34
Wolfenstein: The New Order (2014)	60	59.9	41.9	32.7
Watch Dogs (2014)	63.2	52.8	20.8	14.7
GRID: Autosport (2014)	157.8	99.3	68.3	34.7

Noise Level

Idle		30.2 / 30.6 / 31 dB(A)
DVD		37 / dB(A)
Load		40.2 / 42.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


59.5 °C	62.1 °C	43 °C
50.4 °C	51 °C	36.7 °C
42.7 °C	42.3 °C	33.3 °C

Maximum: 62.1 °C
Average: 46.8 °C


46.6 °C	60.3 °C	59.5 °C
32.9 °C	40 °C	39.1 °C
30.2 °C	33 °C	33 °C

Maximum: 60.3 °C
Average: 41.6 °C

Power Supply (max.) 60.4 °C | Room Temperature 27 °C | Voltcraft IR-900

(-) The average temperature for the upper side under maximal load is 46.8 °C / 116 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 62.1 °C / 144 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 60.3 °C / 141 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 31 °C / 88 F, compared to the device average of 33.9 °C / 93 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 42.7 °C / 108.9 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-13.8 °C / -24.9 F).

Power Consumption

Off / Standby	0.1 / 0.3 Watt
Idle	11.8 / 15 / 20.4 Watt
Load	81.2 / 115.8 Watt


Key: min: , med: , max: Voltcraft VC 940

Battery Runtime

Idle (without WLAN, min brightness)		4h 59min
WiFi Surfing		3h 21min
DVD		2h 42min
Load (maximum brightness)		0h 57min

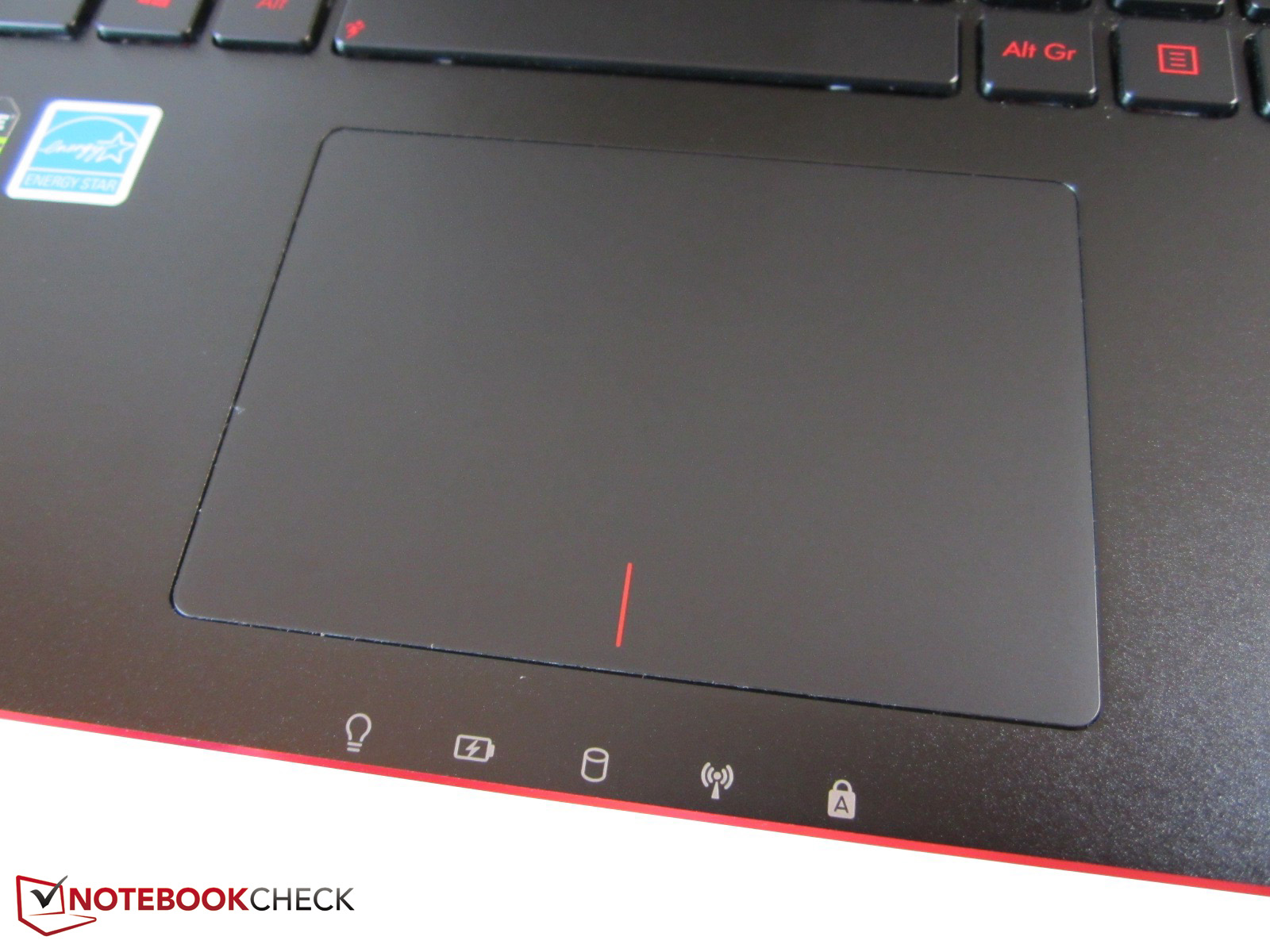

不需要有些不好用的触控板，且不需要超长电池续航的用户可以考虑这款笔记本电脑。

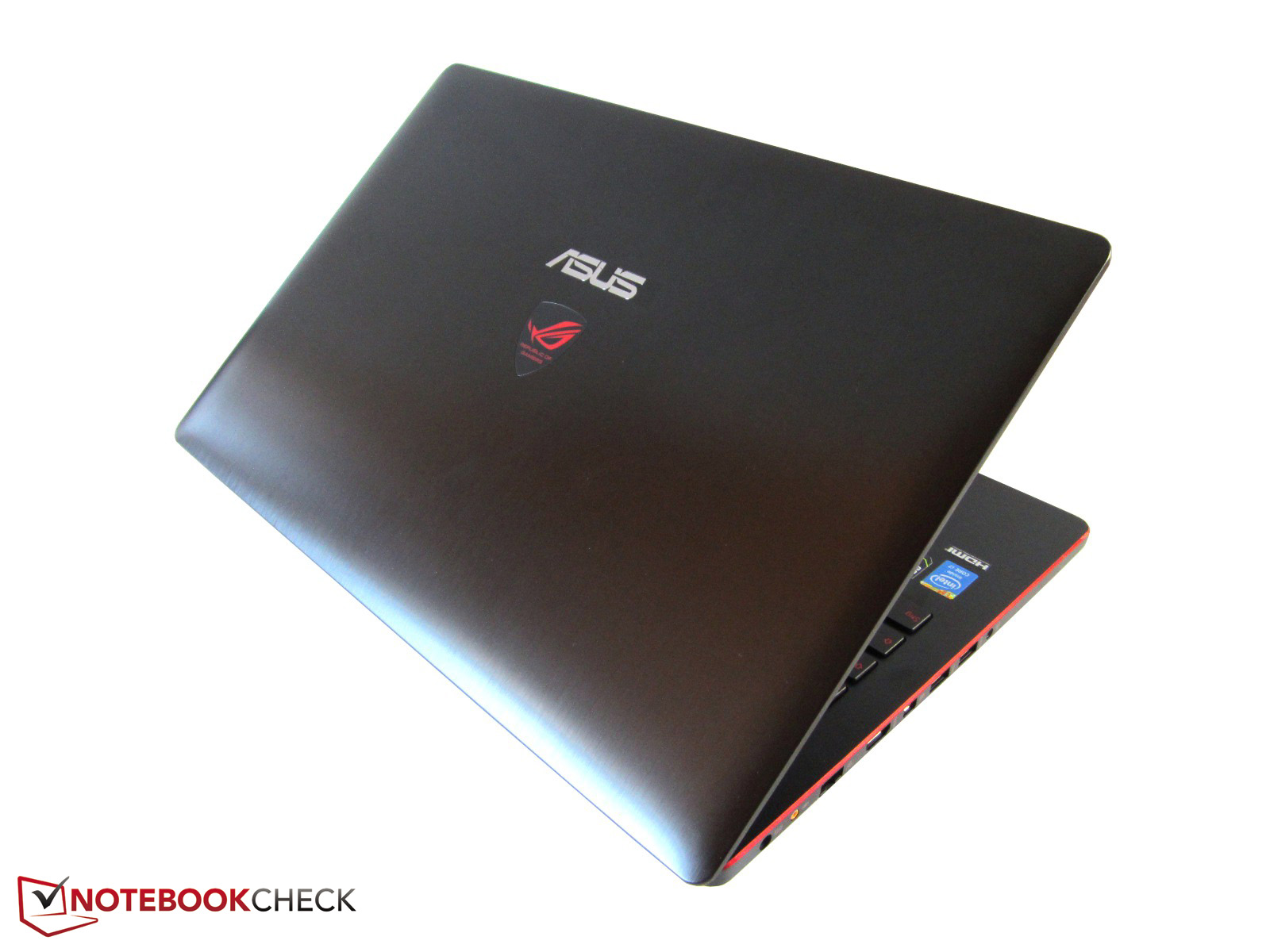

尽管Nvidia的显卡由于仅搭配了DDR3的显存而性能大降，不过华硕在整体设计上还是做得相当好。比如它时尚又美观的机身。仅2.3千克的重量让它更像是一款办公笔记本而不是游戏笔记本。

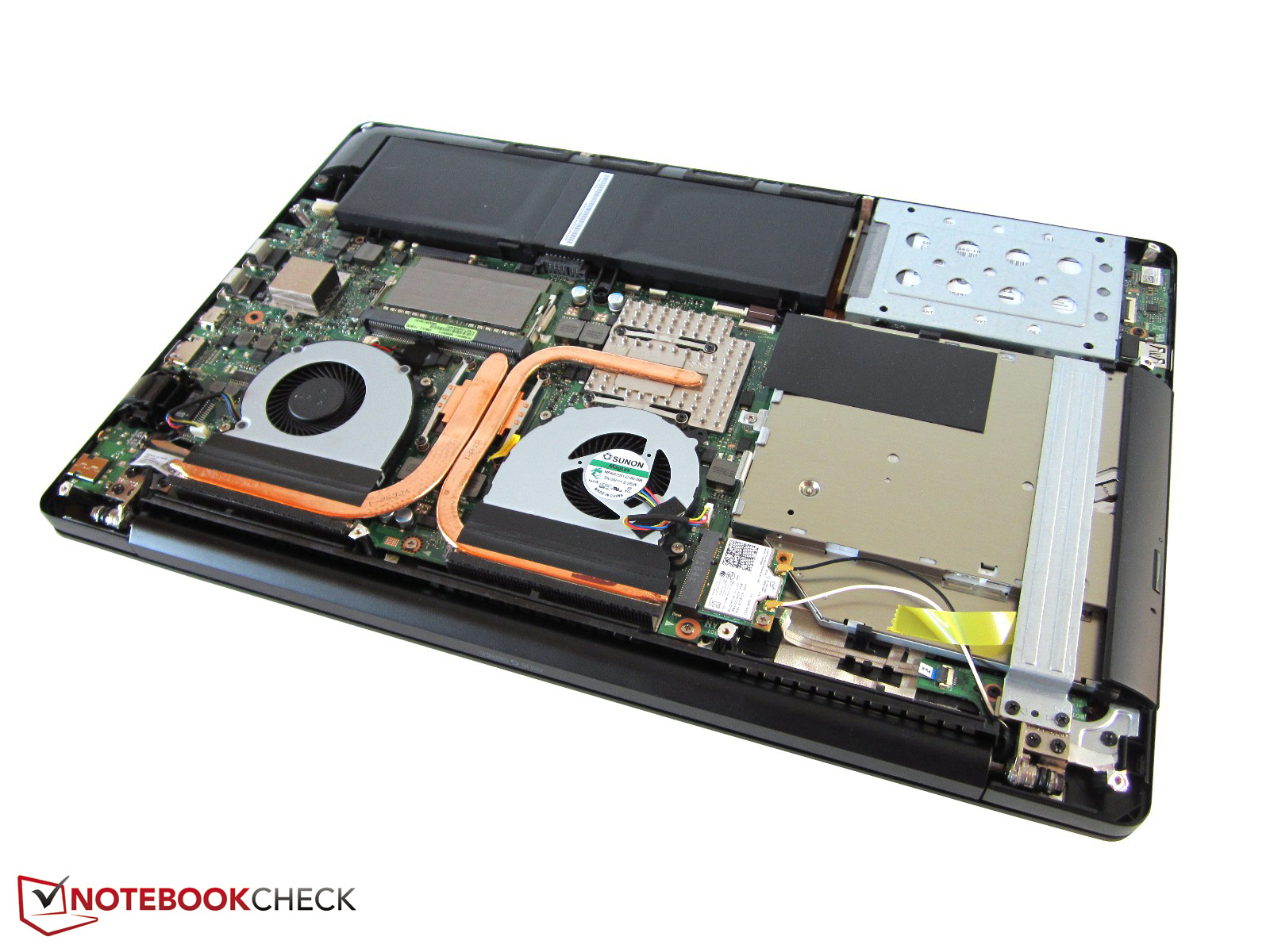

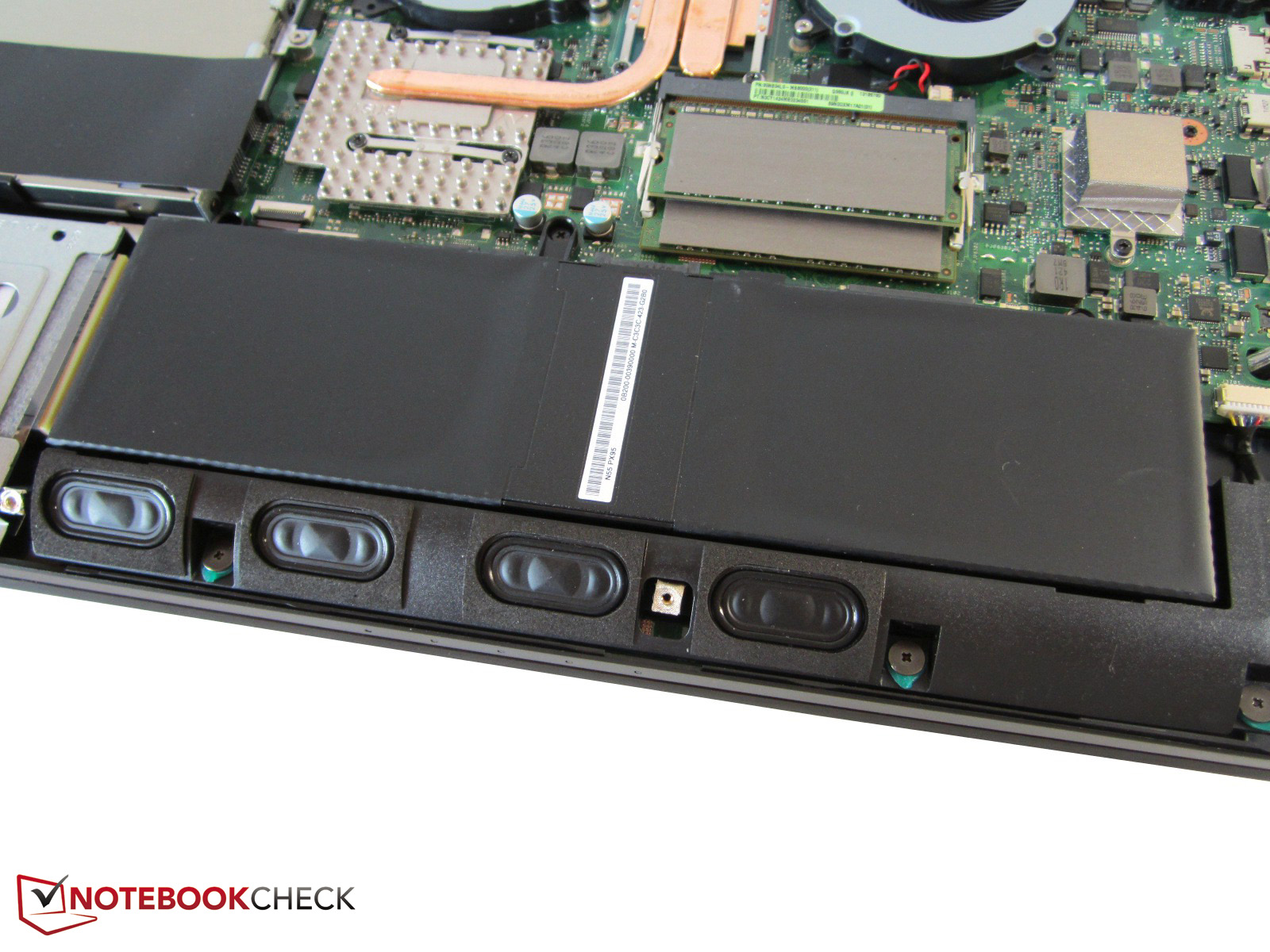

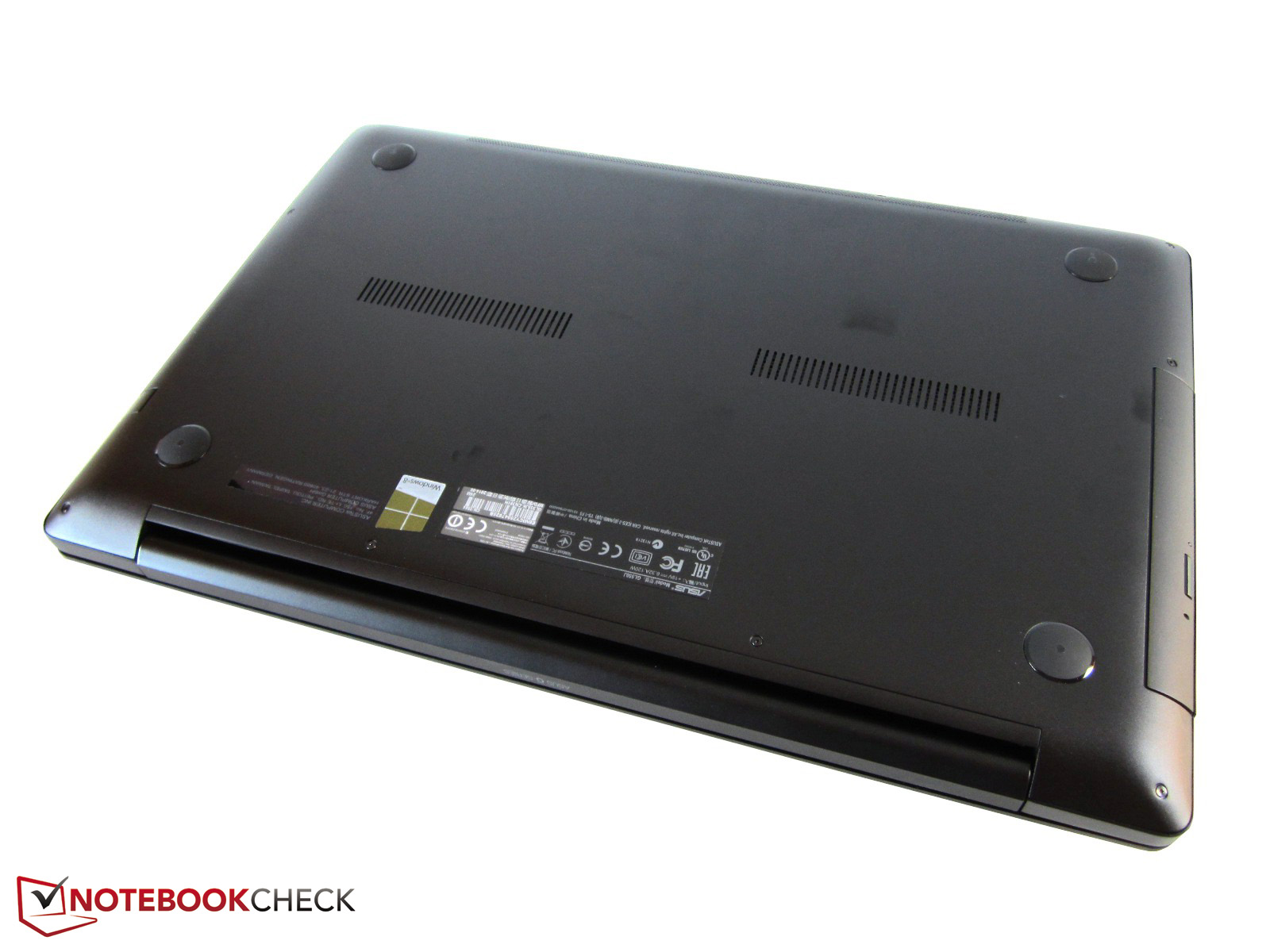

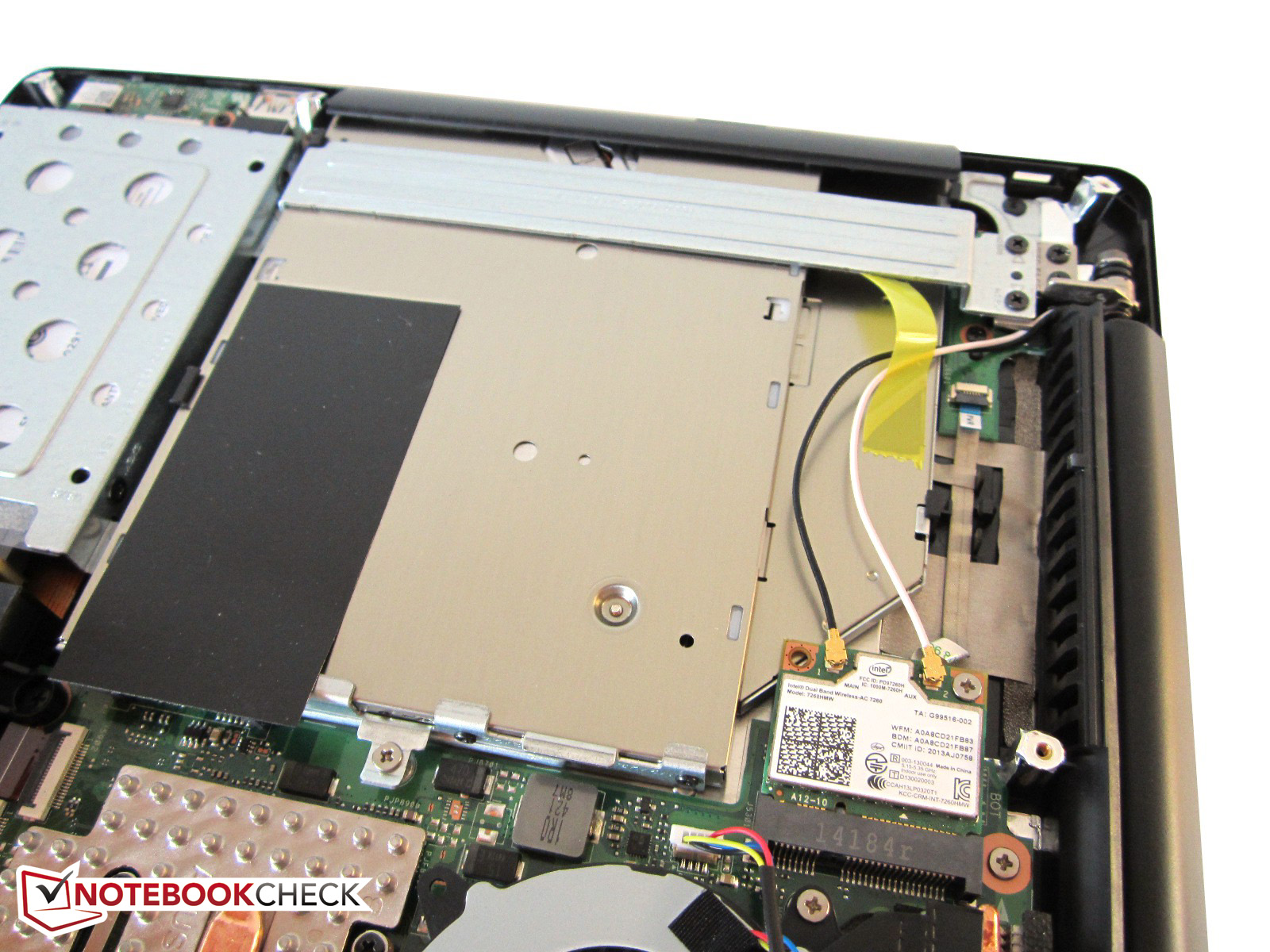

大量的超级本元素（底盖采用了Torx螺钉，植入的电池，等等）从游戏玩家的角度来看也很不寻常。现在只有很少几款15寸笔记本有相似的设计（微星 GS60，三星 ATIV Book 8）。

GL550JK在很多测试中都超过了采用IPS屏幕的对手Schenker M504。除了键盘背光，优秀的音响效果也是一个卖点。加上高对比度的屏幕，它可以很好地胜任多媒体播放的任务。相对安静的风扇虽然使得散热不够有效，机身温度时常很高，不过GL550JK不会因为在负载下噪音过大而让人厌烦。

相对较便宜版本的300欧元（约408美元）额外要价是否值得，需要消费者来自己决定。不论如何，Windows的日常应用都会得益于高速的固态硬盘而更加顺畅。如果华硕在下一代产品中采用更好地电池和GDDR5的显存的话，竞争对手们的日子将会更加难过。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Asus GL550JK-CN391H

Processor

Intel Core i7-4700HQ 4 x 2.4 - 3.4 GHz, Haswell

Graphics adapter

NVIDIA GeForce GTX 850M - 4 GB VRAM, Core: 1174 MHz, RAM: 2000 MHz, DDR3, ForceWare 332.35, Optimus

Memory

16 GB

, 由 2x 8 GB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz) 组成, 两个插槽均已占用, 最大支持 16 GB

Display

15.60 inch 16:9, 1920 x 1080 pixel, Samsung 156HL01-102 (SDC324C), IPS, LED, 全高清, glossy: no

Mainboard

Intel HM86 (Lynx Point)

Storage

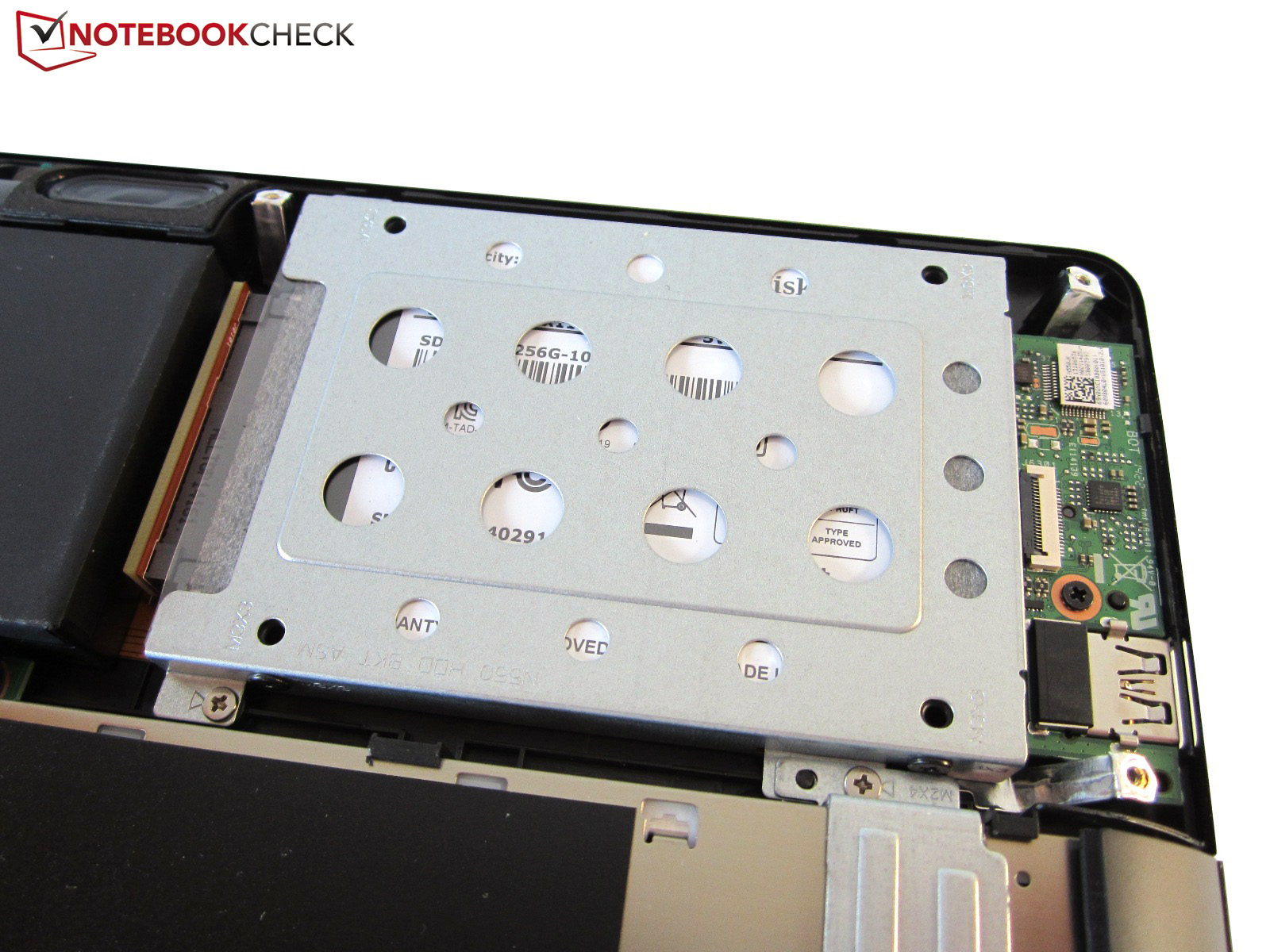

SanDisk SD6SB1M256G1002, 256 GB

, 2.5"

Soundcard

Realtek ALC668 @ Intel Lynx Point PCH - High Definition Audio Controller

Connections

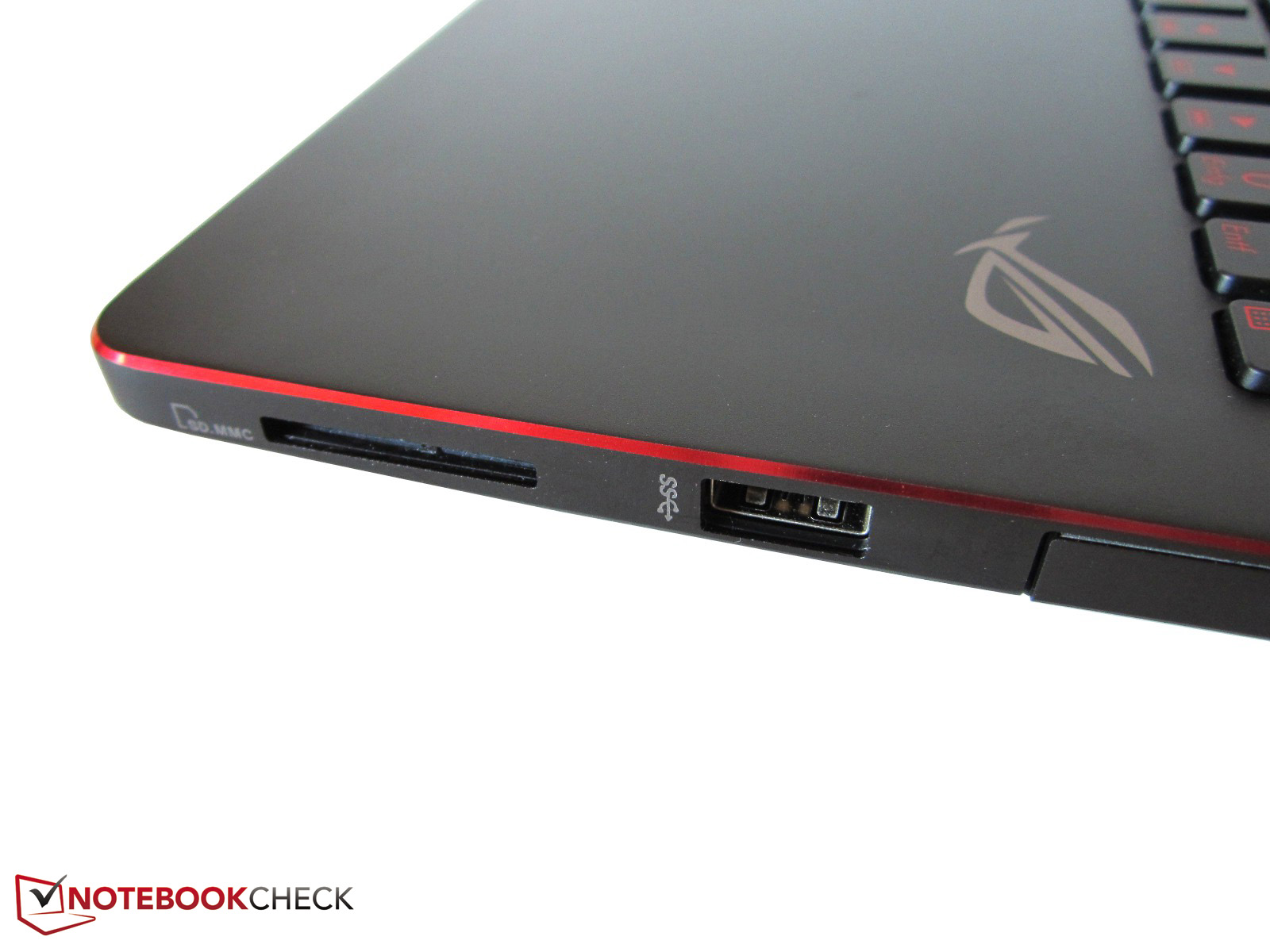

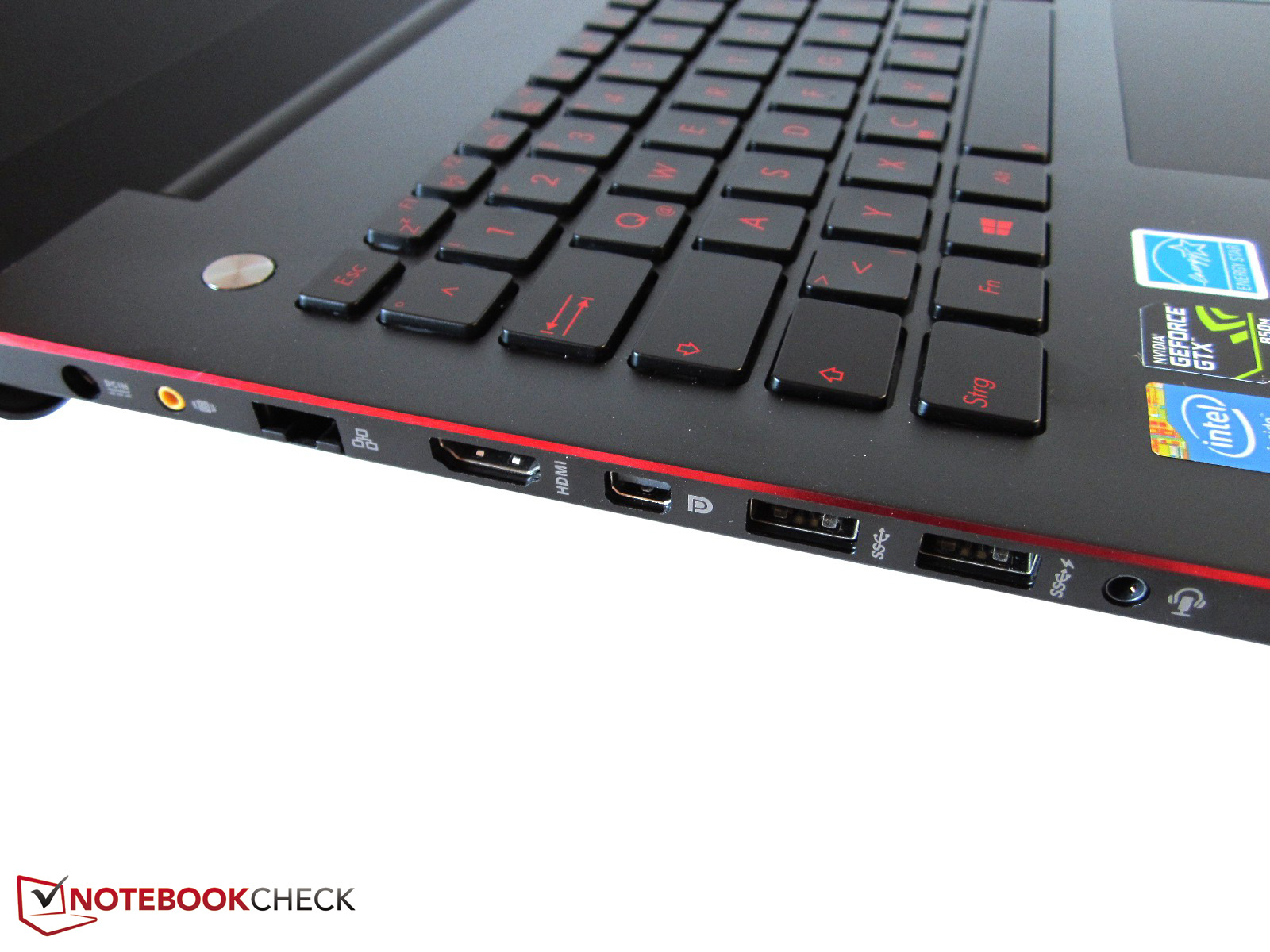

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD,SDXC,MMC, 低音炮接口

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

MATSHITA BD-CMB UJ172 S

Size

height x width x depth (in mm): 28 x 383 x 255

Battery

59 Wh Lithium-Polymer, 4 芯

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: HD

Additional features

Speakers: 四个扬声器 + 外置低音炮 (150 克), Keyboard: 孤岛式, Keyboard Light: yes, 电源适配器: 120 W, 抹拭布, 说明书, 安全指南, 质保单, 扎线器, Microsoft Office 365 试用, McAfee Internet Security 试用, CyberLink PowerDVD (支持Blu-Ray), 其他 Asus 工具软件, 24 Months Warranty

Weight

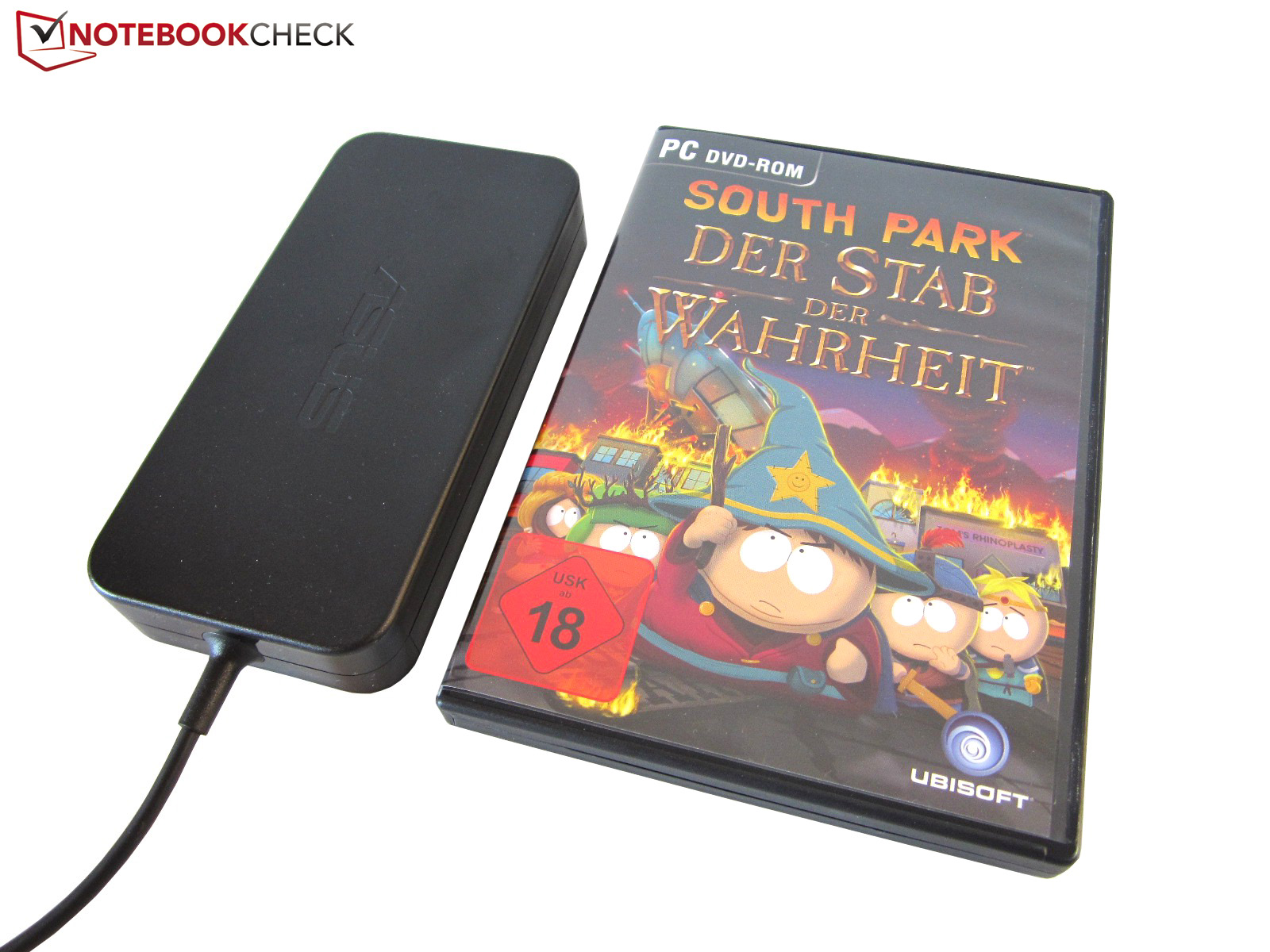

2.29 kg, Power Supply: 456 g

Price

1400 Euro

Links

Asus homepage
Asus notebook section

Devices with the same GPU

Acer Aspire V3-772G-747a8G1.12TWakk 笔记本电脑简短评测
GeForce GTX 850M, Core i7 4702MQ, 17.30", 3.2 kg

Devices with Same Screen Size and/or Weight

华硕 TUF Gaming A14 FA401WV 评测：Zen 5 Ryzen 9 继续给人留下深刻印象
NVIDIA GeForce RTX 4060 Laptop GPU, Strix Point (Zen 5/5c, Ryzen AI 3/5/7/9) Ryzen AI 9 HX 370, 14.00", 1.46 kg

华硕 ROG Zephyrus G16 2024 评测--配备 AMD Zen 5 的超薄游戏笔记本电脑
NVIDIA GeForce RTX 4060 Laptop GPU, Strix Point (Zen 5/5c, Ryzen AI 3/5/7/9) Ryzen AI 9 HX 370, 16.00", 1.813 kg

华硕 TUF Gaming A15 (2024) 评测：RTX 4060 性能强劲、价格适中、电池续航时间长
NVIDIA GeForce RTX 4060 Laptop GPU, Hawk Point (Zen 4/4c, Ryzen 8040) R9 8945H, 15.60", 2.122 kg

华硕 ROG Strix Scar 16 (2024) 笔记本电脑评测：炽热性能和迷你 LED 光彩，价格合理
NVIDIA GeForce RTX 4080 Laptop GPU, Raptor Lake-HX i9-14900HX, 16.00", 2.65 kg

华硕 ROG Zephyrus G16 笔记本电脑评测--搭载 RTX 4090 的超薄游戏本，潜力尚未发挥
NVIDIA GeForce RTX 4090 Laptop GPU, Meteor Lake-H Ultra 9 185H, 16.00", 1.908 kg

测试中的 AMD Ryzen 8000 Hawk Point - Zen4 更新版在数字运算和 GPU 性能方面优于 Meteor Lake
Radeon 780M, Hawk Point (Zen 4/4c, Ryzen 8040) R9 8945HS, ", 0 kg

Pros

+ 高质量IPS屏幕

+ 高能效的硬件

+ 快速的固态硬盘

+ 拉丝金属表面

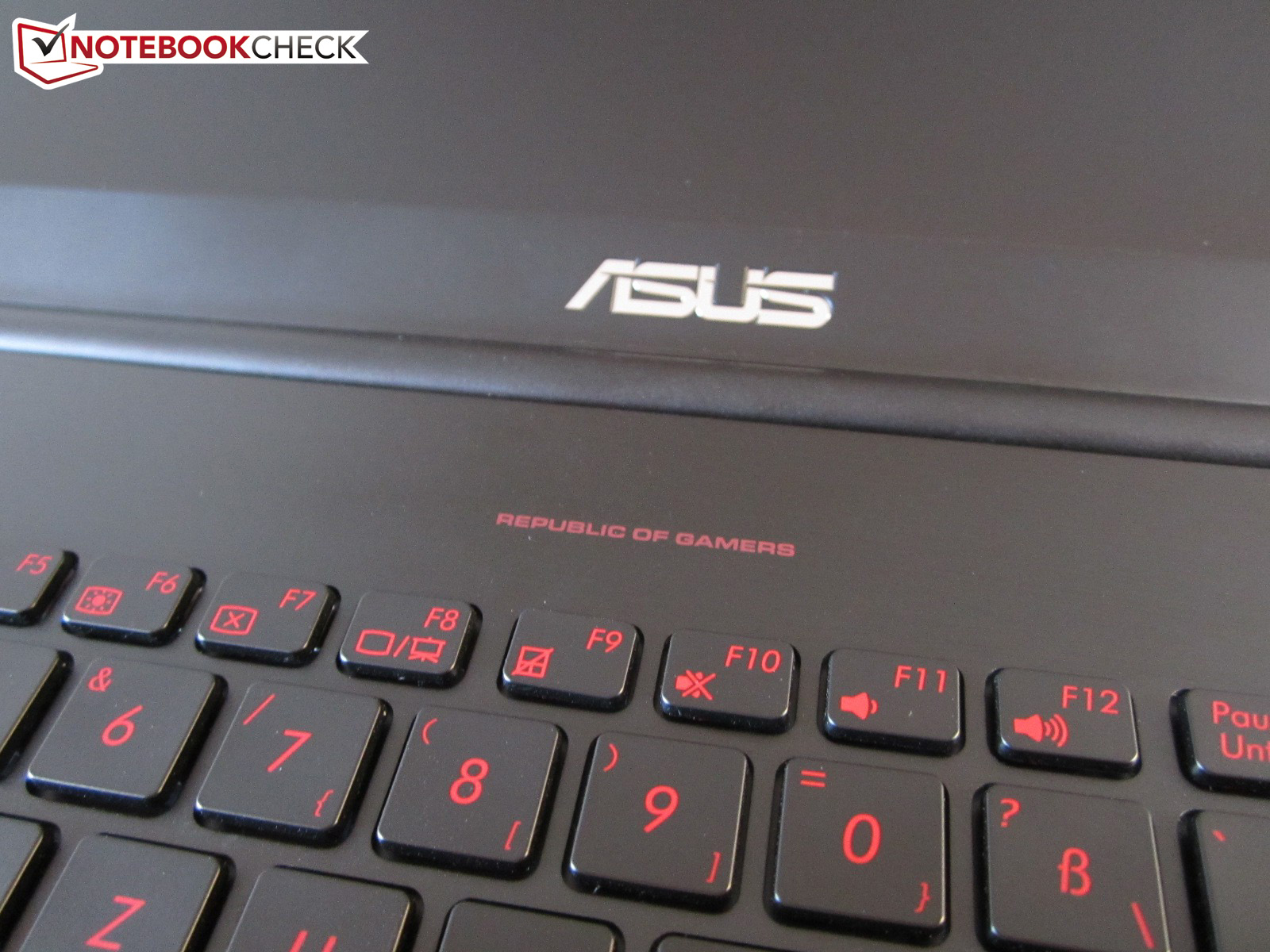

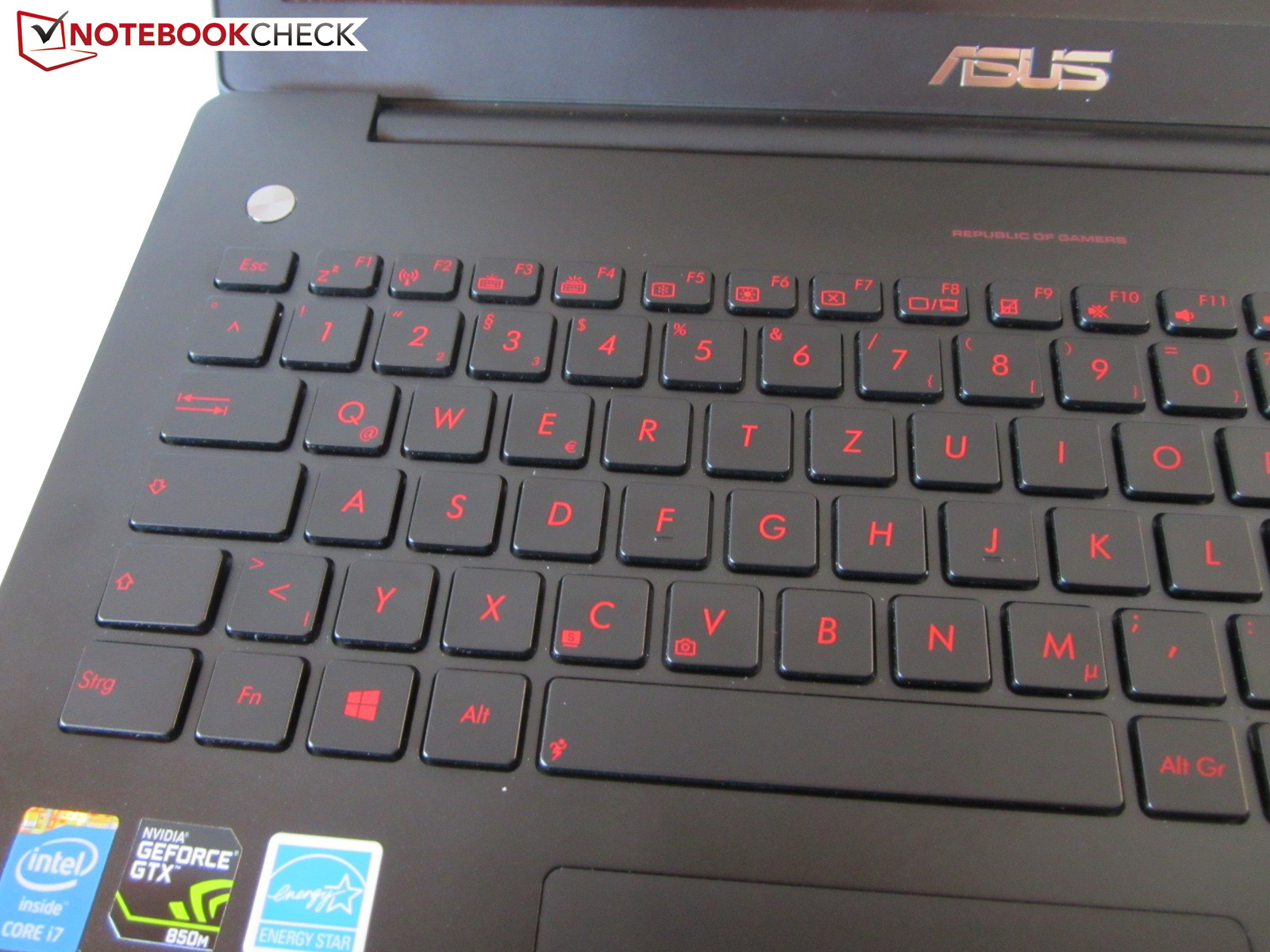

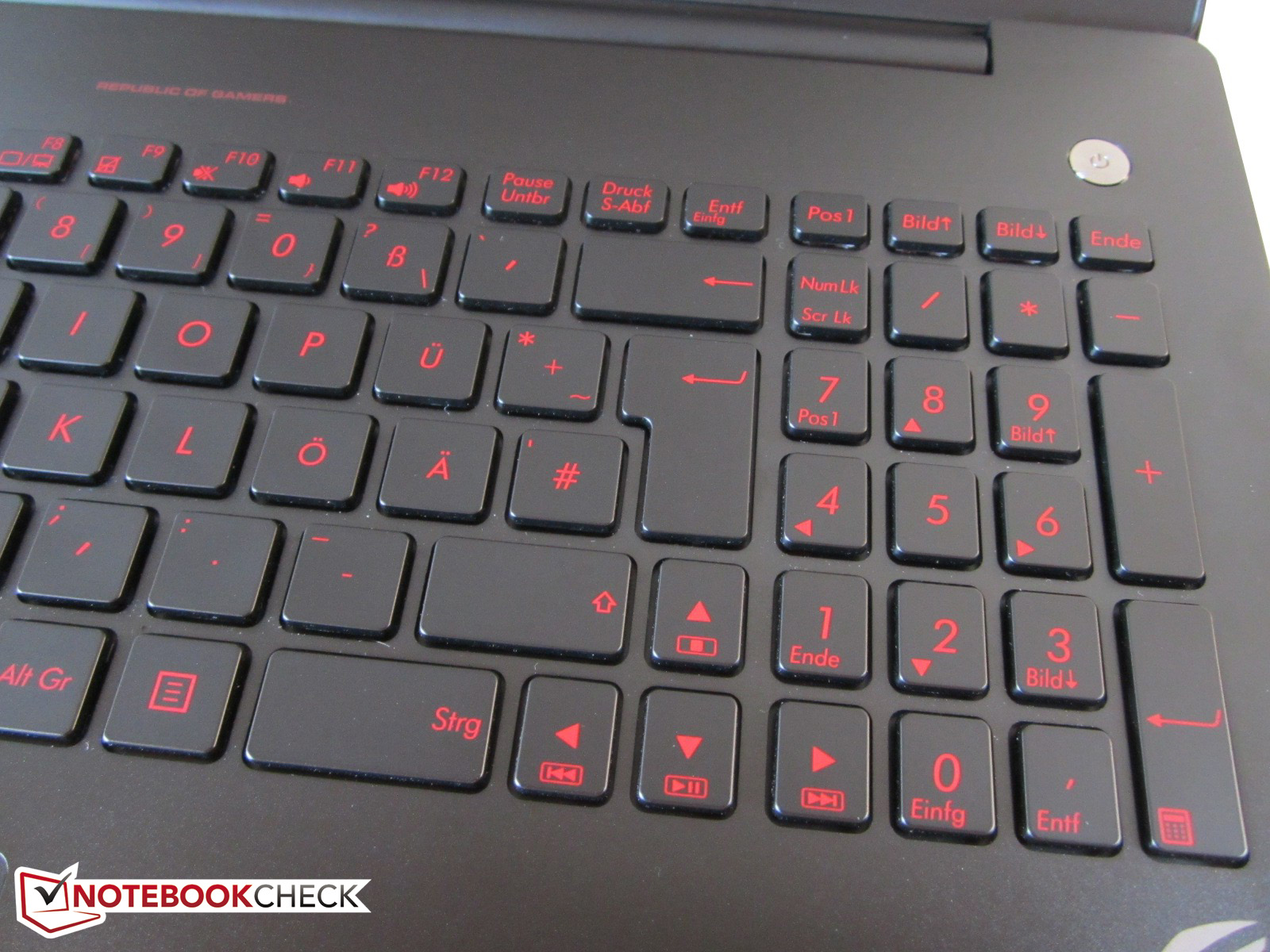

+ 键盘背光

+ 磨砂表面

+ 支持Optimus技术

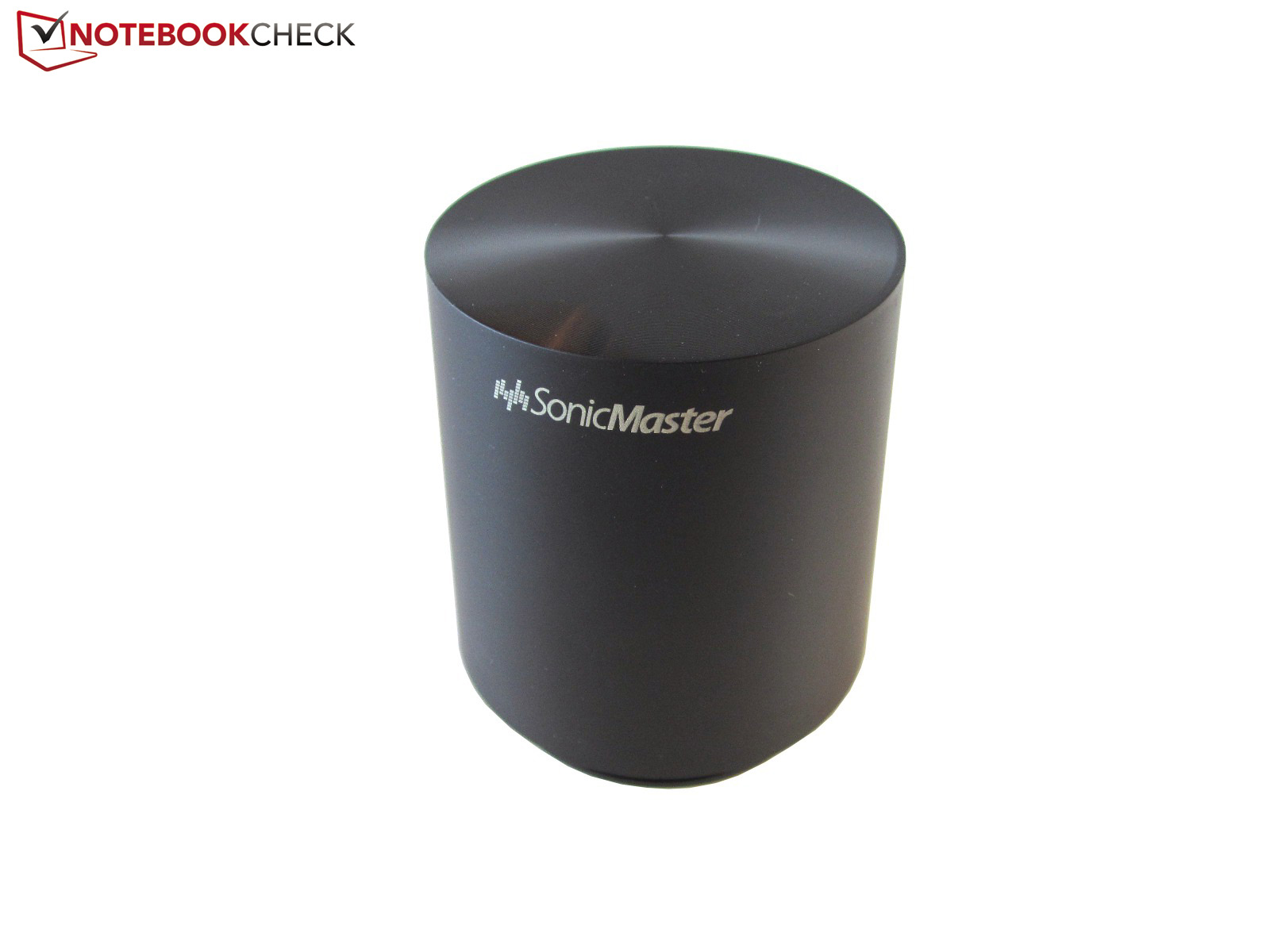

+ 额外的低音炮

+ 蓝光刻录机

+ 时尚外观设计

+ 安静的风扇

Cons

- 打开后盖需要特别的Torx改锥

- Wi-Fi信号还需改进

- GTX 850M仅搭配了DDR3显存

- 电池无法直接更换

- 不太好用的触控板

- 高发热

- 较差的电池续航

Asus GL550JK-CN391H - 2014-07-09 07/09/2014 v4 ^(old)
Florian Glaser

Chassis

78 / 98 → 80%

Keyboard

81%

Pointing Device

64%

Connectivity

73 / 81 → 90%

Weight

61 / 10-66 → 91%

Battery

74%

Display

88%

Games Performance

92%

Application Performance

93%

Temperature

68 / 95 → 72%

Noise

82 / 90 → 91%

Audio

80%

Average

78%

85%

Gaming - Weighted Average

> Notebookcheck中文版（NBC中国） > 评测 > 华硕 GL550JK-CN391H 笔记本电脑简短评测

Florian Glaser, 2014-07-20 (Update: 2014-09-19)
