微星 GP60-2PEi585 笔记本电脑简短评测

“半专业”游戏本。 微星再次更新了他们的全功能的GP笔记本系列的硬件配置,且保持了低廉的价格。它配备了一块Nvidia的中端显卡和Intel Core i5双核处理器。Maxwell架构的显卡和Haswell架构的处理器是个高效的搭配吗?
Gaming Haswell Laptop / Notebook Windows
235
cd/m²
234
cd/m²
216
cd/m²
207
cd/m²
228
cd/m²
199
cd/m²
185
cd/m²
196
cd/m²
180
cd/m²
Distribution of brightness
LP156WF1-TLF3 tested with X-Rite i1Pro 2
Maximum: 235 cd/m² (Nits) Average: 208.9 cd/m²
Brightness Distribution: 77 %
Center on Battery: 228 cd/m²
Contrast: 760:1 (Black: 0.3 cd/m²)
ΔE Color 7.11 | 0.5-29.43 Ø4.95
ΔE Greyscale 8.38 | 0.5-98 Ø5.2
56% AdobeRGB 1998 (Argyll 1.6.3 3D)
59.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
86.3% sRGB (Argyll 2.2.0 3D)
57.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
MSI GP60-2PEi585
GeForce 840M, 4200H, Western Digital Scorpio Blue WD5000LPVX
Lenovo IdeaPad Y510p
GeForce GT 750M SLI, 4700MQ, Samsung SpinPoint M8 HN-M101MBB
Asus F550LN-CN89H
GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Asus N550JK-CN109H
GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Display
3%
-29%
-11%
Display P3 Coverage
57.8
59.9
4%
40.82
-29%
55.1
-5%
sRGB Coverage
86.3
88.4
2%
61.2
-29%
71.8
-17%
AdobeRGB 1998 Coverage
59.5
61.5
3%
42.2
-29%
53.2
-11%
Screen
-5%
-6%
5%
Brightness middle
228
395
73%
178
-22%
284
25%
Brightness
209
368
76%
166
-21%
264
26%
Brightness Distribution
77
83
8%
81
5%
80
4%
Black Level *
0.3
0.65
-117%
0.41
-37%
0.388
-29%
Contrast
760
608
-20%
434
-43%
732
-4%
Colorchecker dE 2000 *
7.11
8.9
-25%
4.36
39%
5.24
26%
Greyscale dE 2000 *
8.38
10.88
-30%
3.35
60%
7.7
8%
Gamma
2.22 99%
2.55 86%
2.36 93%
2.63 84%
CCT
10041 65%
11341 57%
6991 93%
6119 106%
Color Space (Percent of AdobeRGB 1998)
56
39
-30%
47
-16%
Total Average (Program / Settings)
-1% / -3%
-18% / -12%
-3% / 1%

* ... smaller is better

Cinebench R11.5
CPU Multi 64Bit (sort by value)
MSI GP60-2PEi585
GeForce 840M, 4200H, Western Digital Scorpio Blue WD5000LPVX
3.5 Points
Asus F550LN-CN89H
GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2.93 Points -16%
Asus F550LN-CN89H
GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2.93 Points -16%
Lenovo IdeaPad Y510p 59-395032
GeForce GT 755M, 4700MQ, Seagate ST1000LM014 Solid State Hybrid Drive
6.95 Points +99%
Asus VivoBook S451LB-CA072H
GeForce GT 740M, 4200U, Hitachi Travelstar Z5K500 HTS545050A7E680
2.49 Points -29%
Medion Akoya E6239T
HD Graphics (Bay Trail), N3510, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1.47 Points -58%
CPU Single 64Bit (sort by value)
MSI GP60-2PEi585
GeForce 840M, 4200H, Western Digital Scorpio Blue WD5000LPVX
1.46 Points
Asus F550LN-CN89H
GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1.32 Points -10%
Asus F550LN-CN89H
GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1.32 Points -10%
Lenovo IdeaPad Y510p 59-395032
GeForce GT 755M, 4700MQ, Seagate ST1000LM014 Solid State Hybrid Drive
1.51 Points +3%
Asus VivoBook S451LB-CA072H
GeForce GT 740M, 4200U, Hitachi Travelstar Z5K500 HTS545050A7E680
1.12 Points -23%
Medion Akoya E6239T
HD Graphics (Bay Trail), N3510, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
0.38 Points -74%
Cinebench R11.5 CPU Single 64Bit
1.46 Points
Cinebench R11.5 CPU Multi 64Bit
3.5 Points
Cinebench R11.5 OpenGL 64Bit
40.31 fps
Cinebench R15 CPU Single 64Bit
128 Points
Cinebench R15 CPU Multi 64Bit
325 Points
Cinebench R15 OpenGL 64Bit
58.8 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
PCMark 7 Score
2953 points
PCMark 8 Home Score Accelerated
2912 points
PCMark 8 Creative Score Accelerated
3077 points
PCMark 8 Work Score Accelerated
3690 points
Help
PCMark 7 - Score (sort by value)
MSI GP60-2PEi585
GeForce 840M, 4200H, Western Digital Scorpio Blue WD5000LPVX
2953 Points
Asus F550LN-CN89H
GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2909 Points -1%
Asus VivoBook S451LB-CA072H
GeForce GT 740M, 4200U, Hitachi Travelstar Z5K500 HTS545050A7E680
2834 Points -4%
Medion Akoya E6239T
HD Graphics (Bay Trail), N3510, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1678 Points -43%
Western Digital Scorpio Blue WD5000LPVX
Transfer Rate Minimum: 39.5 MB/s
Transfer Rate Maximum: 118.6 MB/s
Transfer Rate Average: 87 MB/s
Access Time: 20.4 ms
Burst Rate: 175 MB/s
CPU Usage: 4.6 %
3DMark 11 Performance
2562 points
3DMark Ice Storm Standard Score
54685 points
3DMark Cloud Gate Standard Score
6707 points
3DMark Fire Strike Score
1448 points
Help
low med. high ultra
Tomb Raider (2013) 146.2 58.9 32.7 10.5
BioShock Infinite (2013) 97.3 54.3 43.41 14.75
Metro: Last Light (2013) 48.75 40.35 28.77 13.2
GRID 2 (2013) 93.3 77.4 63.2 20.27
Company of Heroes 2 (2013) 35.05 28.33 17.76 7.23

Noise Level

Idle
33 / 33.2 / 33.4 dB(A)
HDD
33.4 dB(A)
DVD
37.7 / 37.7 dB(A)
Load
36.2 / 50 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
 26.3 °C26.8 °C25.7 °C
 26.4 °C27 °C25.6 °C
 25.6 °C25.9 °C24.1 °C
Maximum: 27 °C
Average: 25.9 °C
23.9 °C25.6 °C26.6 °C
23.9 °C25.6 °C27.4 °C
23.6 °C24.9 °C27.5 °C
Maximum: 27.5 °C
Average: 25.4 °C
Power Supply (max.)  52.1 °C | Room Temperature 20 °C | Voltcraft IR-550
(±) The average temperature for the upper side under maximal load is 35.4 °C / 96 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 40.6 °C / 105 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 42.5 °C / 109 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.9 °C / 79 F, compared to the device average of 31.3 °C / 88 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.3 °C / 97.3 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-7.5 °C / -13.5 F).
Power Consumption
Off / Standbydarklight 0.1 / 0.2 Watt
Idledarkmidlight 7.3 / 13.1 / 21.7 Watt
Load midlight 50.8 / 74.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
6h 00min
WiFi Surfing
2h 50min
Big Buck Bunny H.264 1080p
2h 30min
Gaming
0h 45min
Load (maximum brightness)
0h 56min

GP60 2Pei585 Leopard是微星的这个产品系列里采用不同处理器和显卡配置的众多型号中的一款。它采用的配件为它接近800欧元(约1087美元)的价格提供了一定的理由,这其中还包括了操作系统的约100欧元(约136美元)。微星也提供了采用较老的GT 740M显卡和Intel Core i7-4700MQ四核处理器、无操作系统的版本,售价约600欧元(约815美元)。

这款笔记本的处理器和显卡配置并不真正适合骨灰级游戏玩家,不过一部分游戏也可以在高设定下运行。系统的性能一直保持在很高的水平,不过遗憾的是处理器的功耗也相应较高。因此,这款笔记本更适合于在桌面而非在花园里使用

值得一提的是它的全高清的磨砂屏幕。虽然不是非常明亮,但它的对比度和可视角度都很好。它磨砂的表面在户外光线下提供了同类产品中相对更好的可读性。

如果你不介意它较厚的塑料机身,且不需要运行大型游戏,鉴于它实惠的价格这款微星的笔记本值得你的考虑。你同样可以参考它同系列的其他配置版本,比如使用较弱的上代显卡和更快Intel四核处理器的版本。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

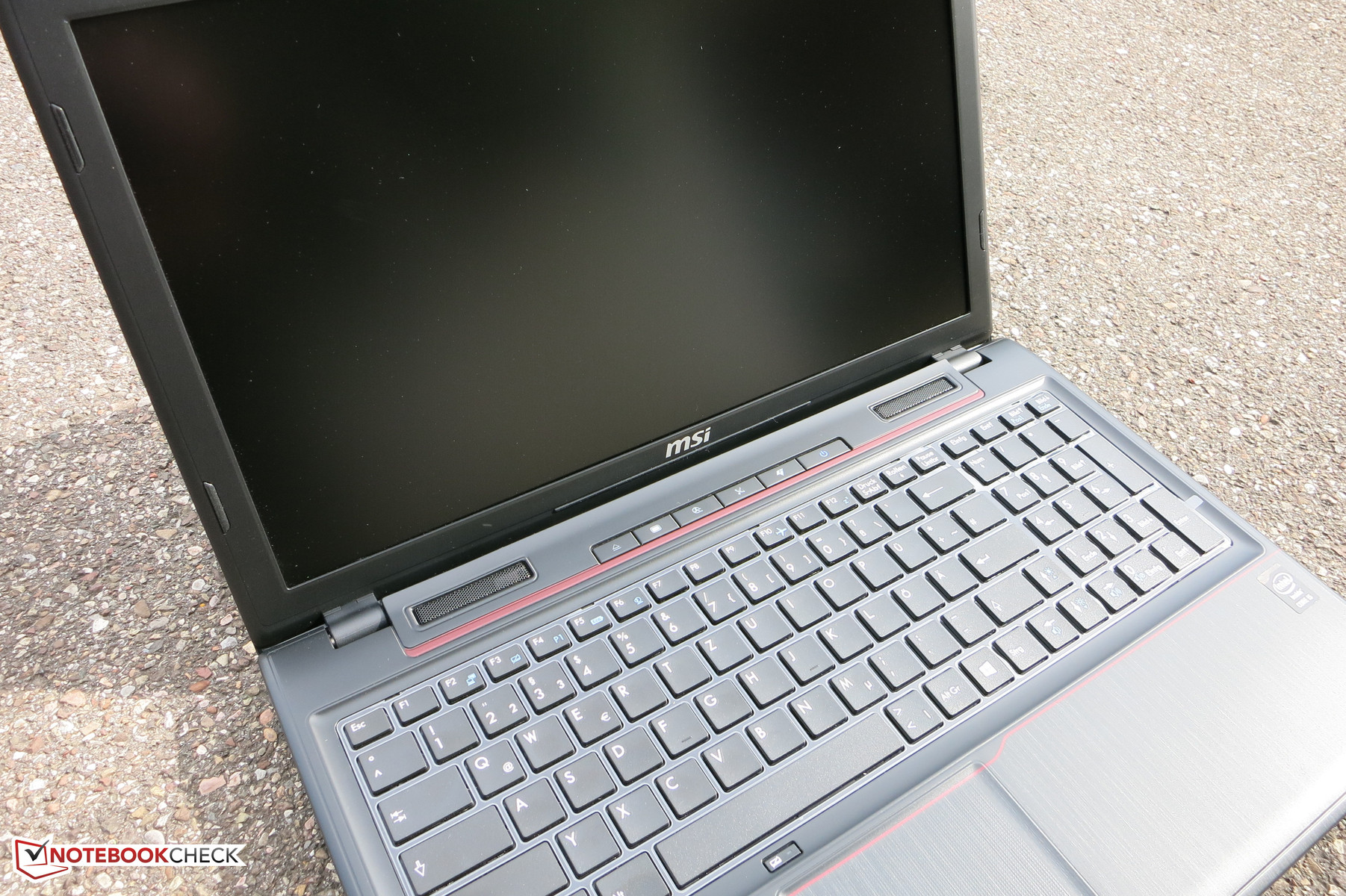

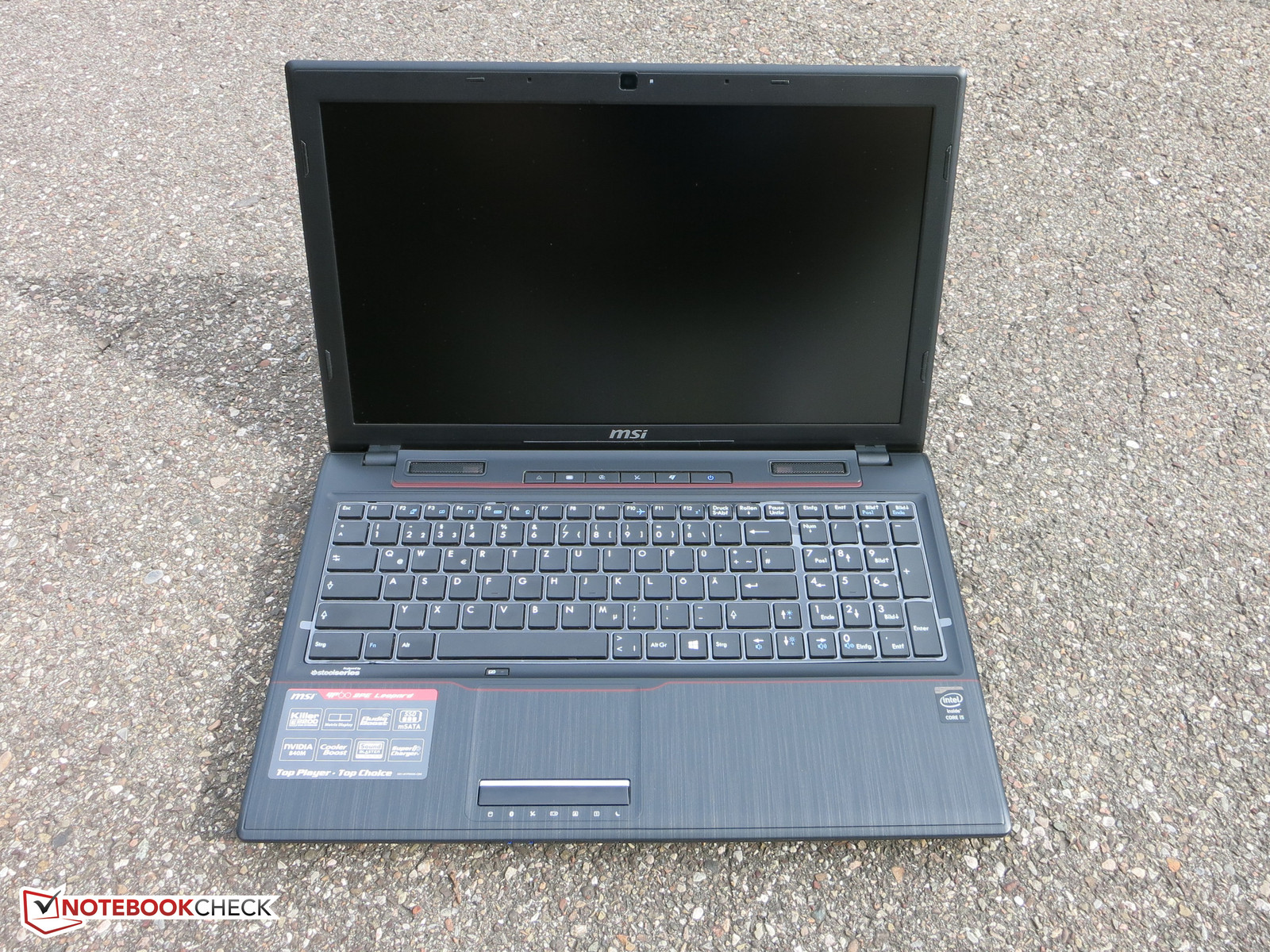

刚劲的设计
刚劲的设计
磨砂的表面
磨砂的表面

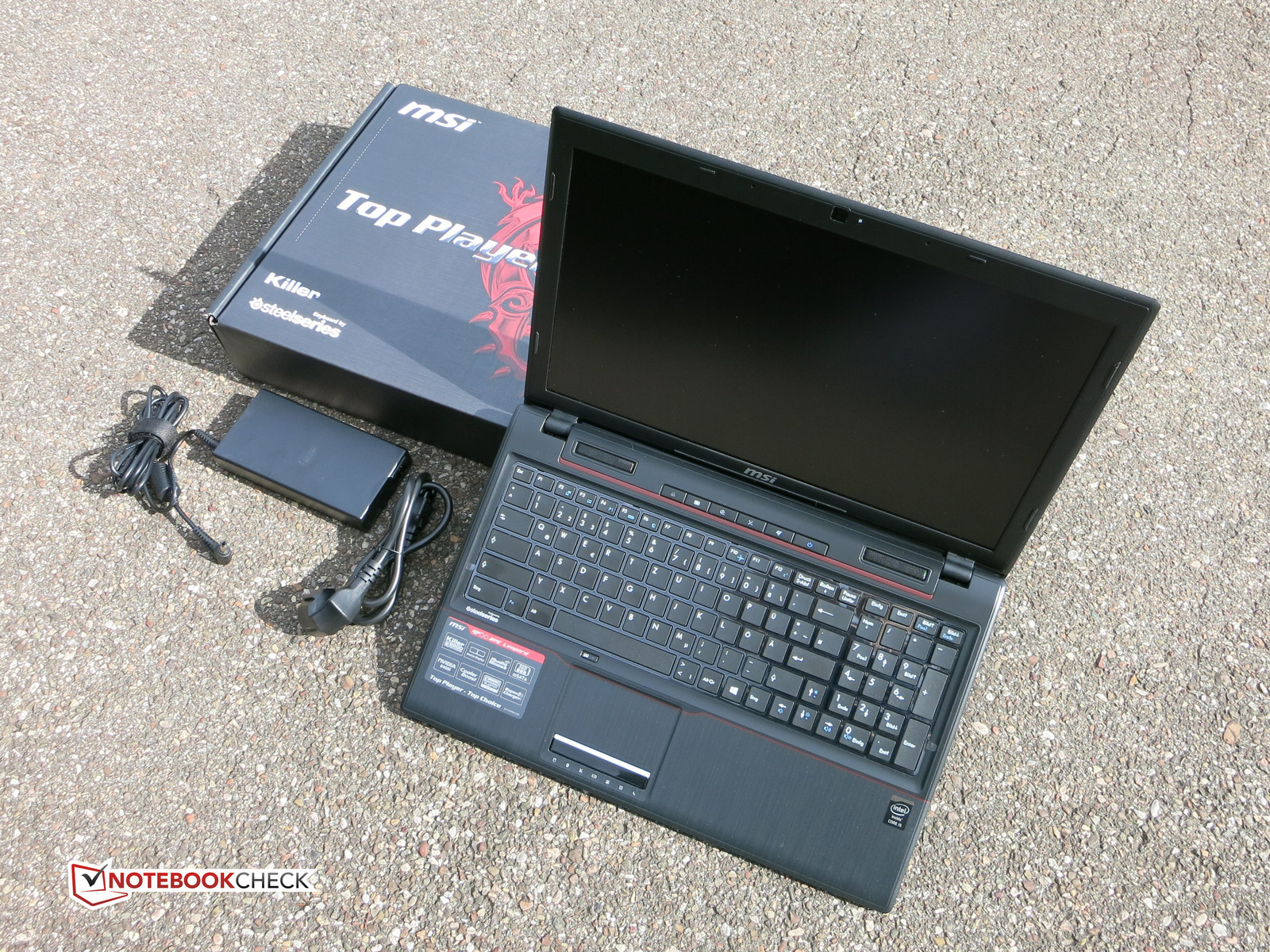

笔记本和它的包装盒
笔记本和它的包装盒

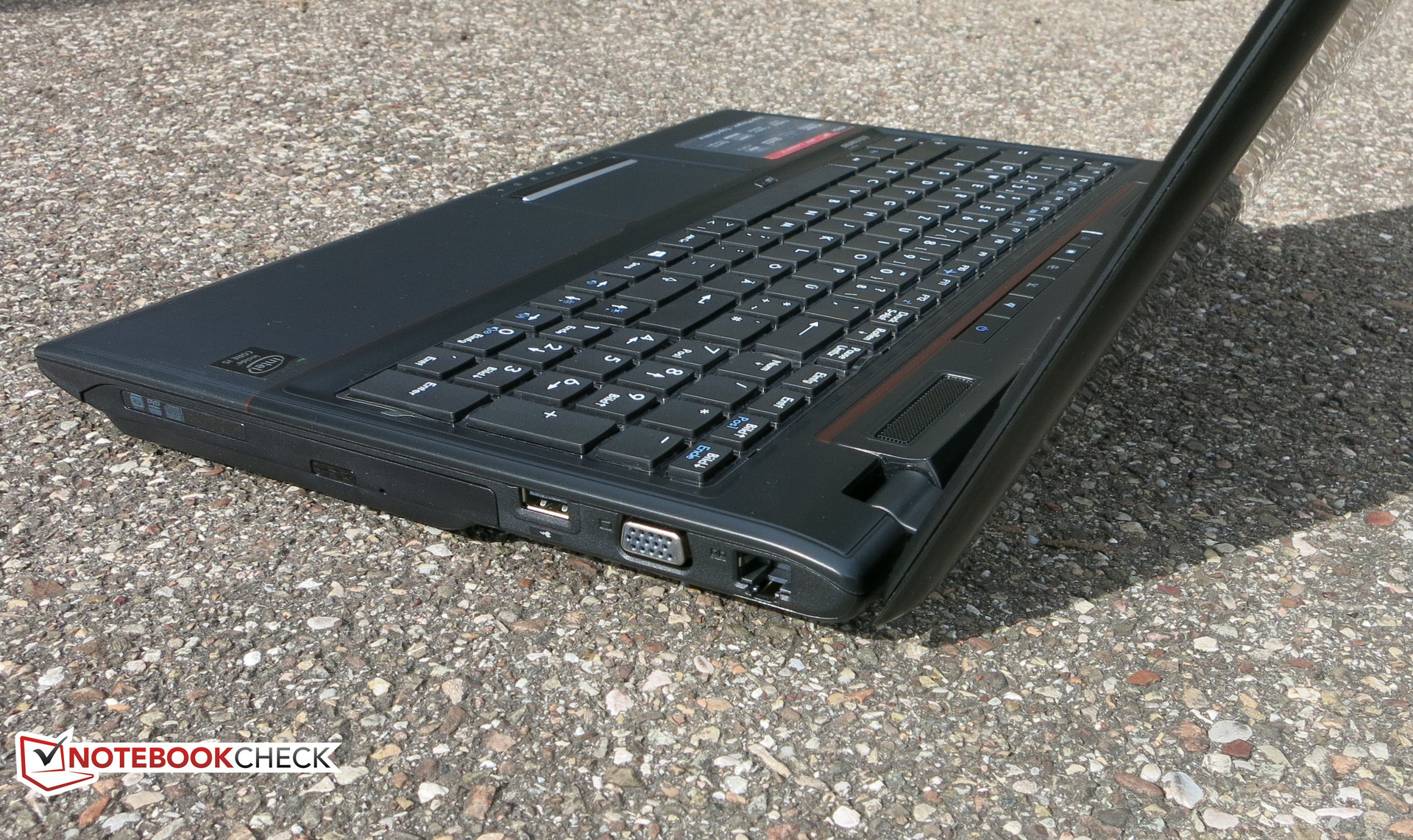

相当薄的机身
相当薄的机身

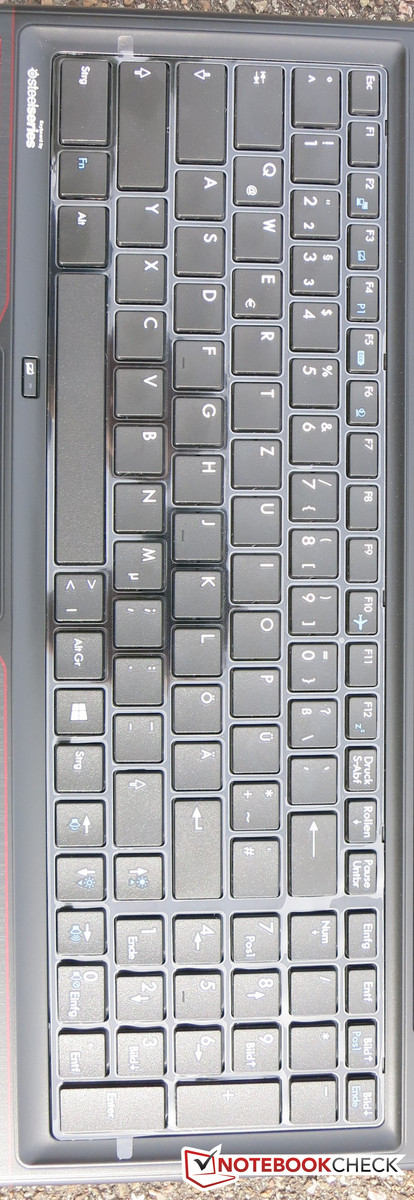

舒适的键盘
舒适的键盘

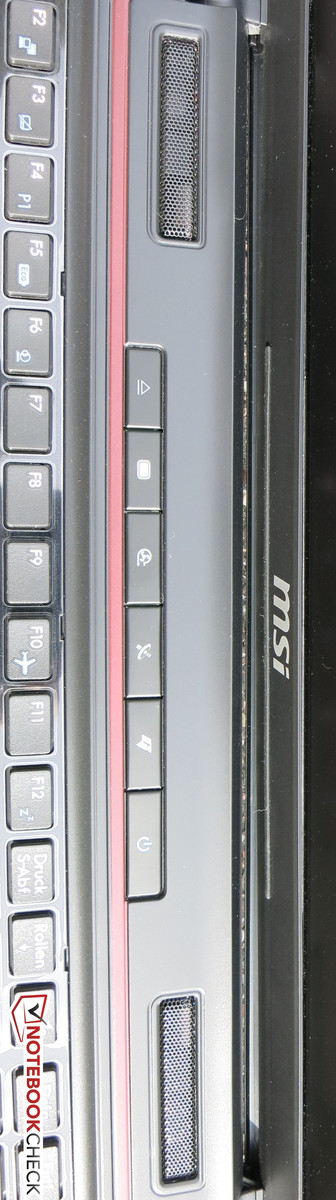

特别的按键设计和扬声器
特别的按键设计和扬声器

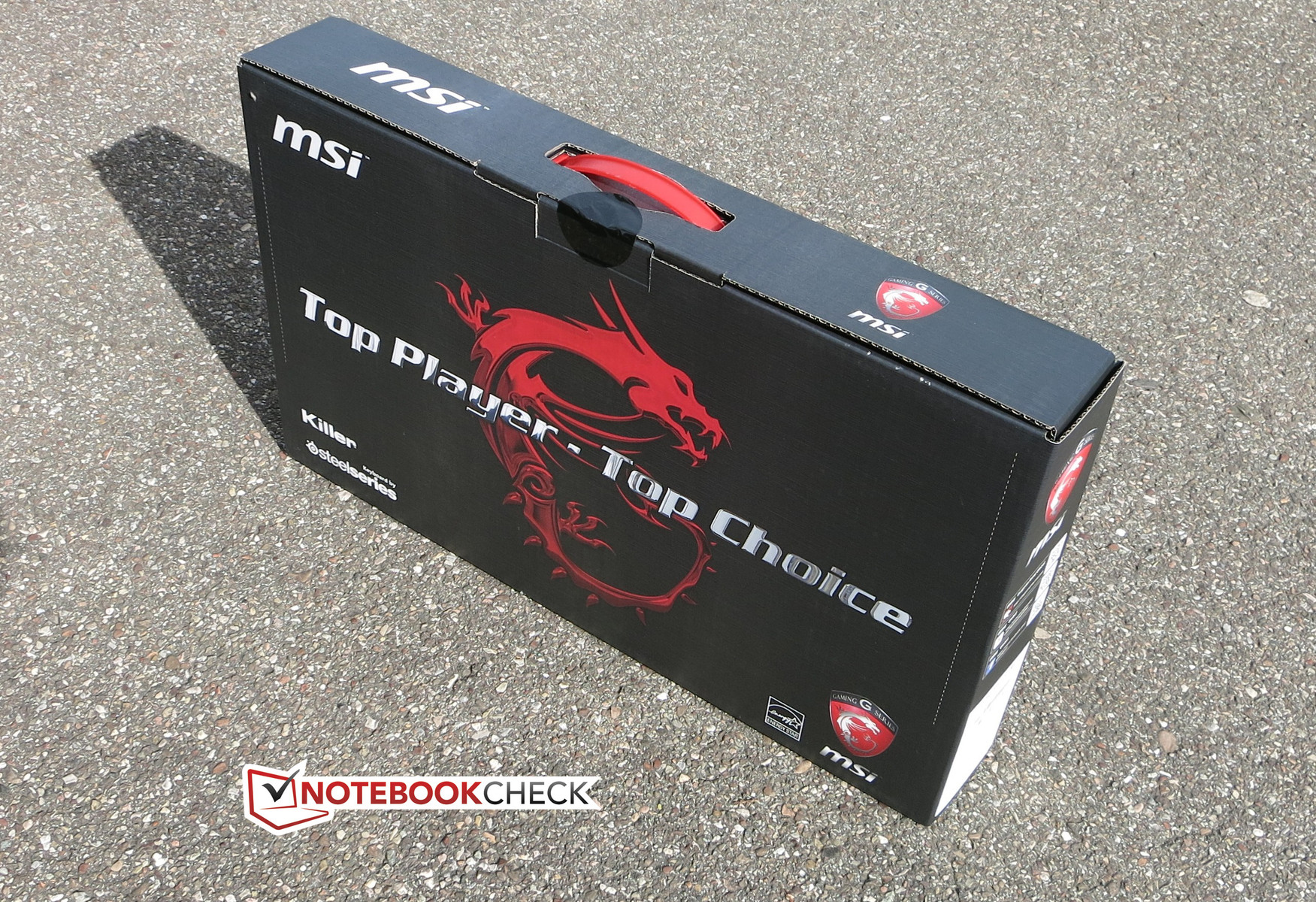

GP60的包装盒
GP60的包装盒

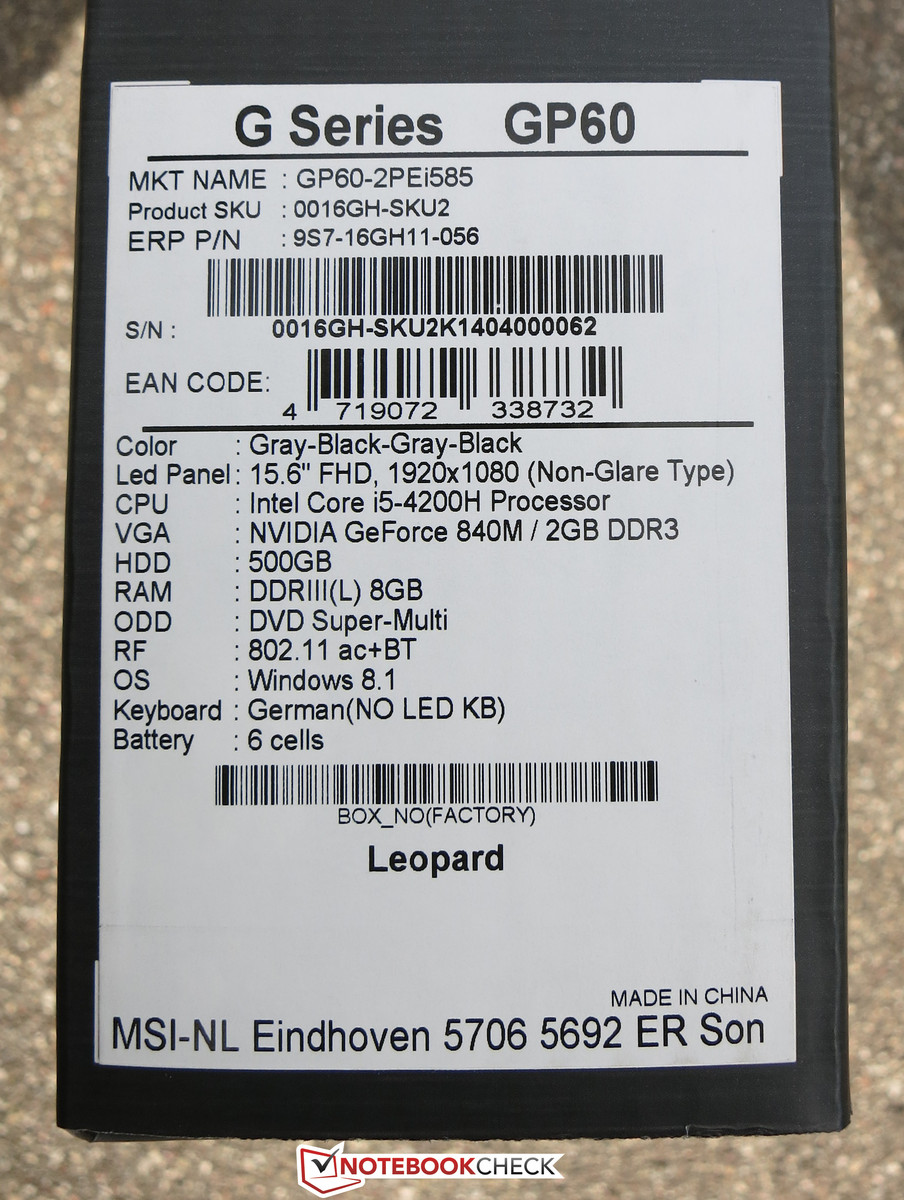

技术信息
技术信息

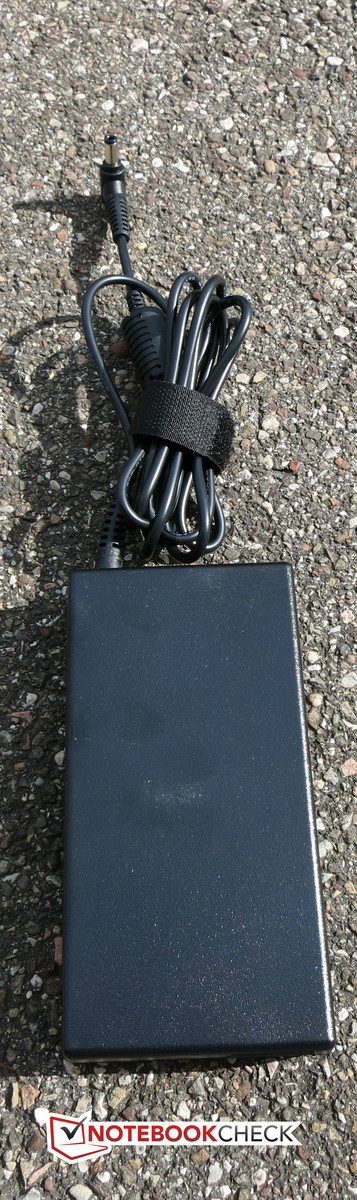

巨大的120W电源适配器
巨大的120W电源适配器

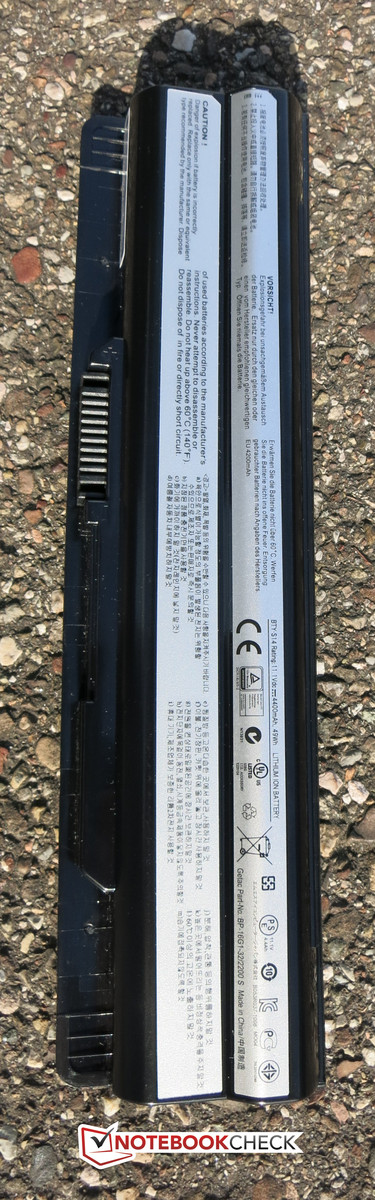

49 Wh 电池
49 Wh 电池


Please share our article, every link counts!

Specifications

0016GH-SKU2 (GP60 Series)
Processor
Intel Core i5-4200H 2 x 2.8 - 3.4 GHz, Haswell
Graphics adapter
NVIDIA GeForce 840M - 2048 MB VRAM, Core: 1124 MHz, Memory: 1001 MHz, DDR3, 332.70, Nvidia Optimus / Intel HD4600
Memory
8 GB
, 两个插槽中的一个已占用
Display
15.60 inch 16:9, 1920 x 1080 pixel, LP156WF1-TLF3, TN, 矩阵显示器, glossy: no
Mainboard
Intel HM86 (Lynx Point)
Storage
Western Digital Scorpio Blue WD5000LPVX, 500 GB
, 5400 rpm
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米耳机接口和3.5毫米麦克风接口, Card Reader: SD卡插槽, USB-2.0 1x 作为Super Charger充电接口
Networking
Killer E2200 (10/100/1000MBit/s), Intel Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth V4.0
Optical drive
HL-DT-ST DVDRAM GTA0N
Size
height x width x depth (in mm): 37.6 x 383 x 249.5
Battery
49 Wh Lithium-Polymer, 11.1V/6 芯
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: 立体声 (Audio Boost), Keyboard Light: no, 24 Months Warranty
Weight
2.4 kg, Power Supply: 439 g
Price
800 Euro



Devices from a different Manufacturer and/or with a different CPU

Devices with the same GPU

Acer TravelMate P276-MG-56FU 笔记本电脑简短评测
GeForce 840M, Core i5 4210U, 17.30", 3 kg

Devices with Same Screen Size and/or Weight

Pros

+高分辨率和大可视角度的屏幕
+高性能的组件
+舒适的键盘尺寸


Cons

-过大的体型
-质量稍差
-持续运转的散热风扇
-作为游戏本性能稍弱

MSI GP60-2PEi585 - 06/10/2014 v4 (old)
Melvin Pudellek

Chassis
71 / 98 → 72%
Keyboard
77%
Pointing Device
78%
Connectivity
69 / 81 → 85%
Weight
60 / 20-67 → 85%
Battery
74%
Display
81%
Games Performance
88 / 85 → 100%
Application Performance
65 / 92 → 71%
Temperature
84%
Noise
77 / 95 → 81%
Audio
73%
Camera
66 / 85 → 78%
Add Points
+1%
Average
69%
80%
Multimedia - Weighted Average
