联想 Horizon 2e-F0AS0014US AIO 一体机简短评测

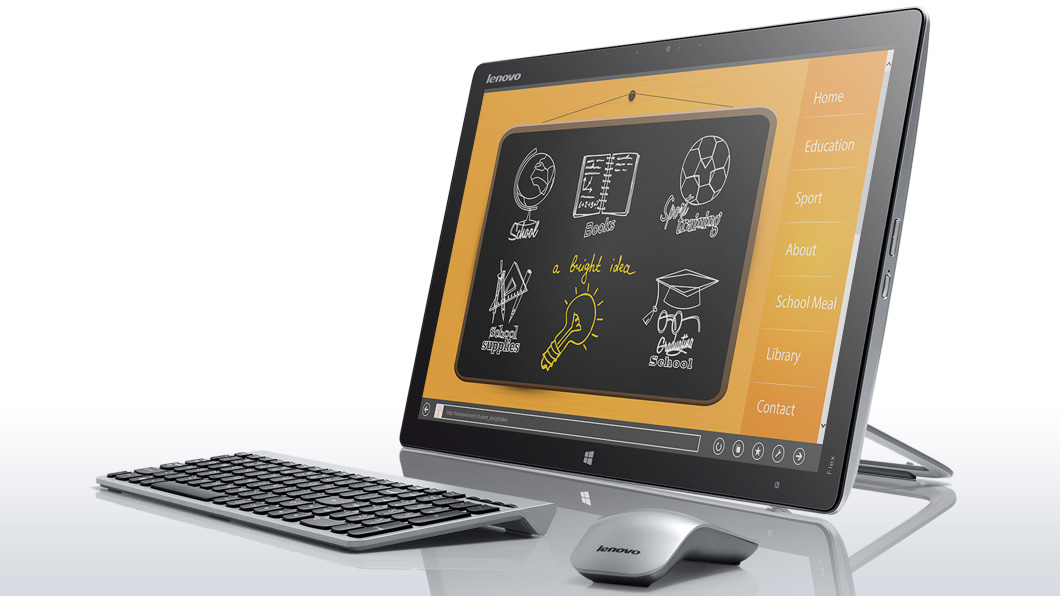

便携一体机。 联想的Horizon 2e是一款21.5寸的一体机系统(All-in-One)。由于采用了一块内置电池,这台联想称作“二合一平台电脑”的设备十分便携,可以方便地从一个房间搬到另一个房间使用。这个巨型平板还会给我们的桌面带来什么呢?
Tablet Windows Haswell
183.9
cd/m²
177.1
cd/m²
183.5
cd/m²
185.5
cd/m²
197.2
cd/m²
182.7
cd/m²
186.2
cd/m²
171.4
cd/m²
176.8
cd/m²
Distribution of brightness
LEN8000 tested with X-Rite i1Pro 2
Maximum: 197.2 cd/m² (Nits) Average: 182.7 cd/m²
Brightness Distribution: 87 %
Center on Battery: 197.2 cd/m²
Contrast: 1120:1 (Black: 0.176 cd/m²)
ΔE Color 6.31 | 0.5-29.43 Ø4.95
ΔE Greyscale 8.21 | 0.5-98 Ø5.2
52.97% AdobeRGB 1998 (Argyll 1.6.3 3D)
59.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
80.7% sRGB (Argyll 2.2.0 3D)
61.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.18
Cinebench R10 Shading 64Bit
4832 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
7841 Points
Cinebench R10 Rendering Single CPUs 64Bit
3137 Points
Cinebench R11.5 OpenGL 64Bit
10.98 fps
Cinebench R11.5 CPU Multi 64Bit
2.02 Points
Cinebench R11.5 CPU Single 64Bit
0.6 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
20.35 fps
Cinebench R15 CPU Multi 64Bit
189 Points
Cinebench R15 CPU Single 64Bit
62 Points
Help
PCMark 7 Score
2426 points
PCMark 8 Home Score Accelerated v2
2010 points
PCMark 8 Creative Score Accelerated v2
2143 points
PCMark 8 Work Score Accelerated v2
2825 points
Help
3DMark 06 Standard Score
4136 points
3DMark Vantage P Result
3218 points
3DMark 11 Performance
785 points
3DMark Ice Storm Standard Score
30261 points
3DMark Cloud Gate Standard Score
3578 points
3DMark Fire Strike Score
479 points
Help
low med. high ultra
Tomb Raider (2013) 36.5

Noise Level

Idle
32.8 / 33 / 33.1 dB(A)
Load
33.3 / 34.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)
Max. Load
 31.8 °C33.4 °C36.6 °C
 31.4 °C32.2 °C36.4 °C
 32.2 °C32 °C34.2 °C
Maximum: 36.6 °C
Average: 33.4 °C
34.6 °C47.2 °C36.2 °C
32.8 °C32.2 °C35.4 °C
32.8 °C31.2 °C34.4 °C
Maximum: 47.2 °C
Average: 35.2 °C
Power Supply (max.)  48.2 °C | Room Temperature 25 °C | Raytek Raynger ST
(±) The average temperature for the upper side under maximal load is 33.4 °C / 92 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 36.6 °C / 98 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 47.2 °C / 117 F, compared to the average of 36.8 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 32.5 °C / 91 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.2 °C / 93.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-6.1 °C / -11 F).
Battery Runtime
Idle (without WLAN, min brightness)
3h 32min
WiFi Surfing
1h 51min
Load (maximum brightness)
1h 16min

联想Horizon 2e是一款设计非常有新意的一体机。它的系统面向家庭使用设计,因为长距离搬运它由于重量和体积的缘故会有些辛苦。遗憾的是,我们很难评价它作为桌面平板的多用户游戏功能,因为我们没有收到摇杆、推杆、电子骰子这些配件。它的Aura界面是个十分有趣的附加软件,它可以帮助用户在系统中或是作为安卓设备快速地访问多媒体文件,在操作感上独特而现代。我们发现我们更多地在使用它的站立模式,由于我们并没有发现它作为一款巨大的平板会对实际使用提供很大帮助。

它的性能十分适合家庭用户,不过游戏爱好者可能需要另作打算了。尽管有些小瑕疵,但它的键盘和鼠标整体上比较易用,应该可以适应大多数用户的需要。它的屏幕的亮度较低,不过可视角度范围非常优秀。尽管电池性能并不出色,我们也不认为这类设备会需要很长的续航时间。实际上,一部分用户很可能更希望购买一款没有配备电池的普通一体机。例如联想自己的B40一体机,有更强大的Core i3-4150T处理器和Intel HD Graphics 4600显卡,一块1TB 7200转的硬盘,集成的DVD-RW刻录机,售价仅略高于700美元。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

联想Horizon 2e...
联想Horizon 2e...
...是一款体型纤细的一体机...
...是一款体型纤细的一体机...

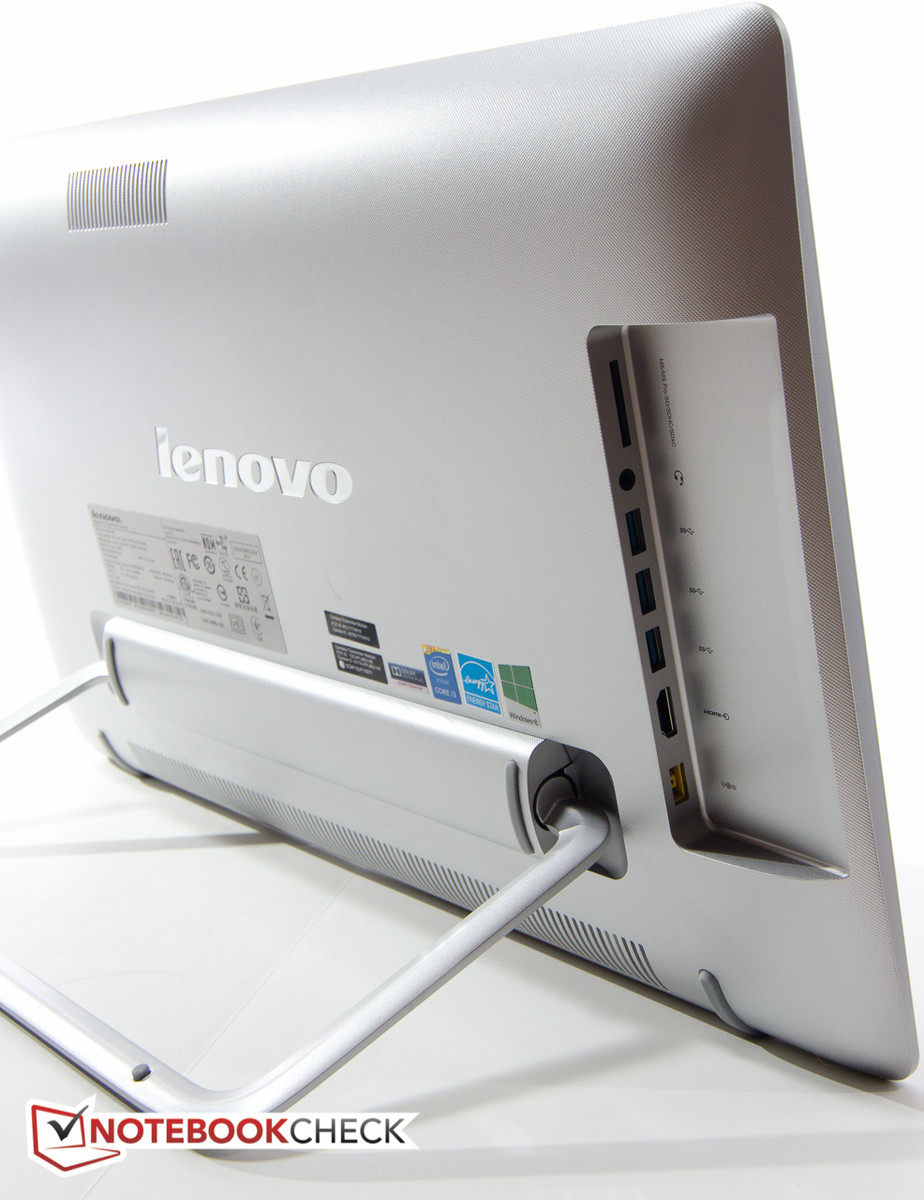

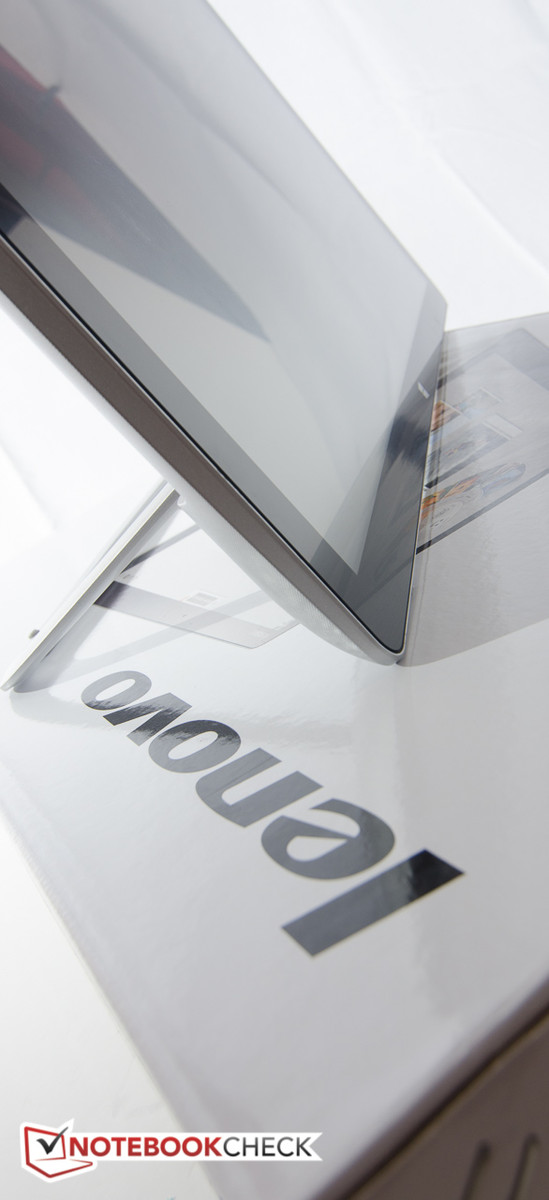

...它配备了可调节支架和内置电池。
...它配备了可调节支架和内置电池。

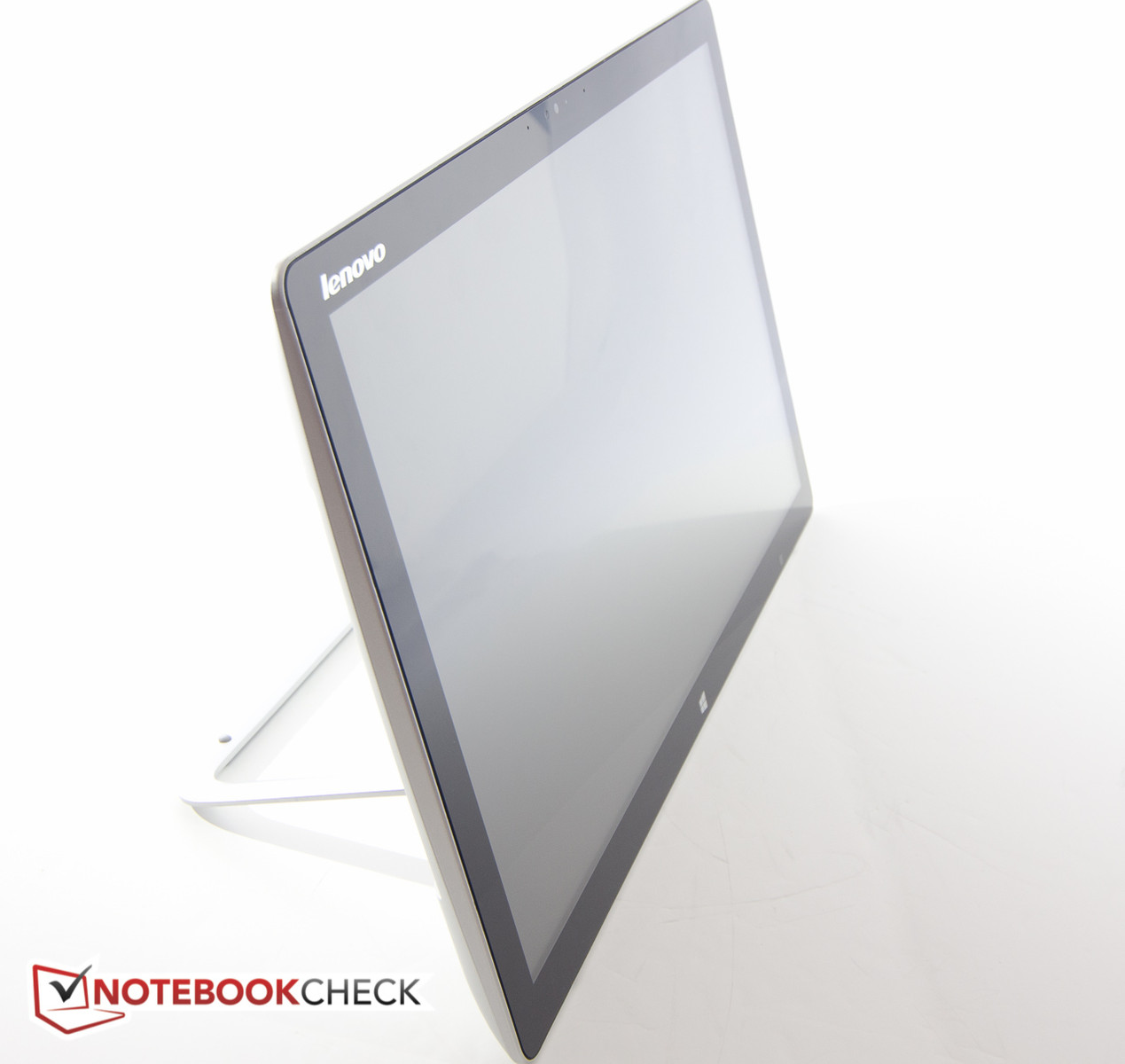

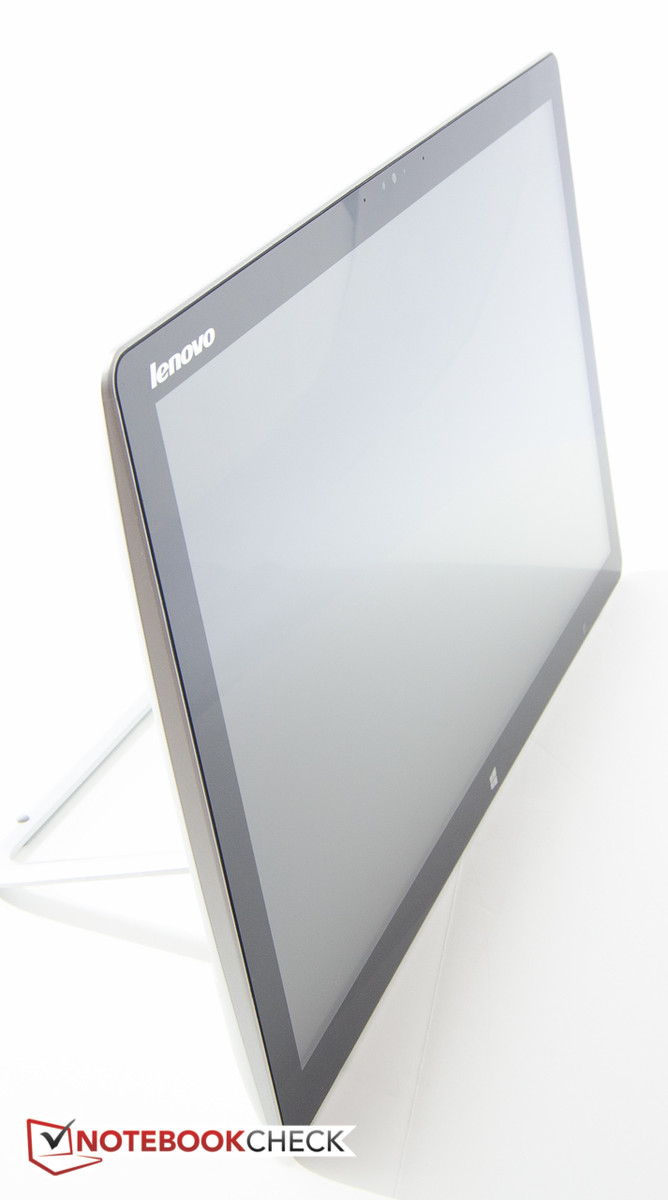

最大站立角度为73度。
最大站立角度为73度。

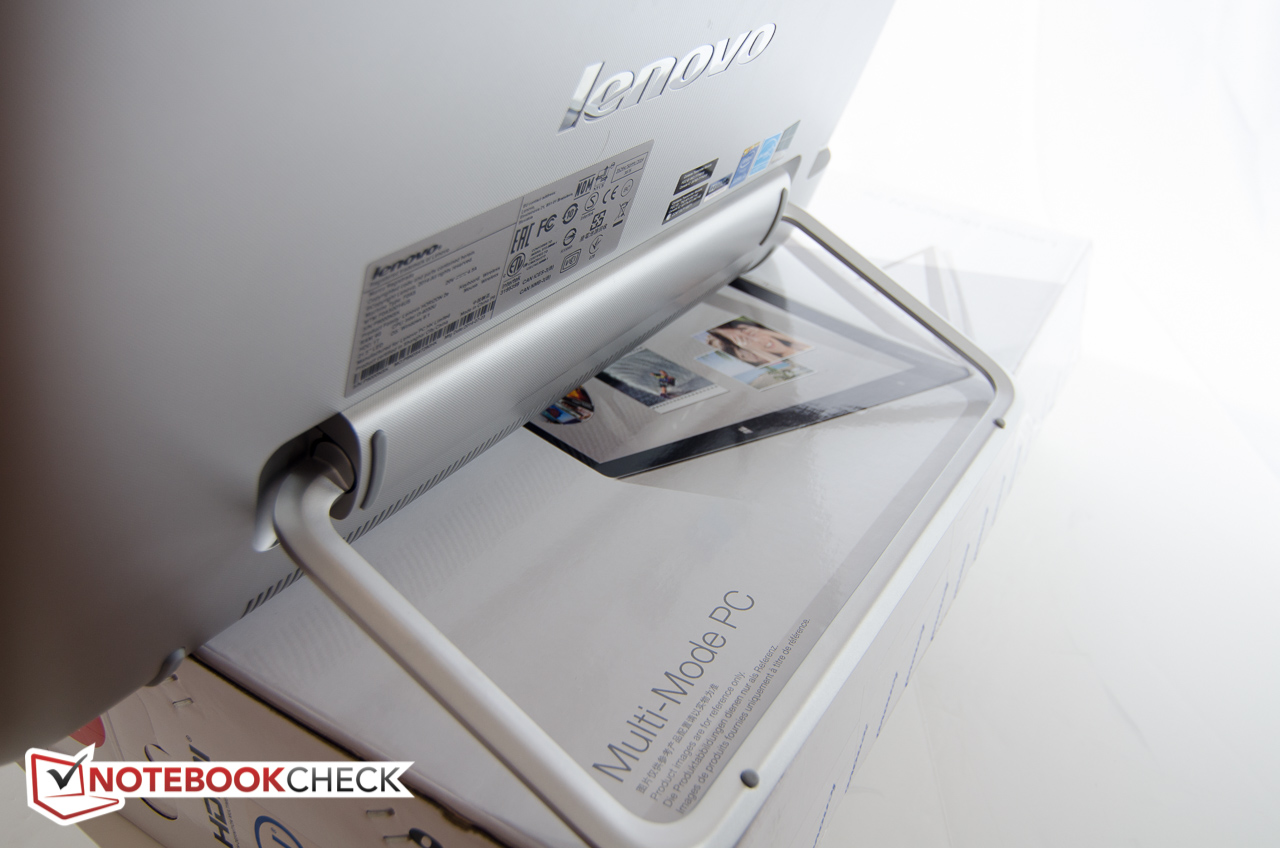

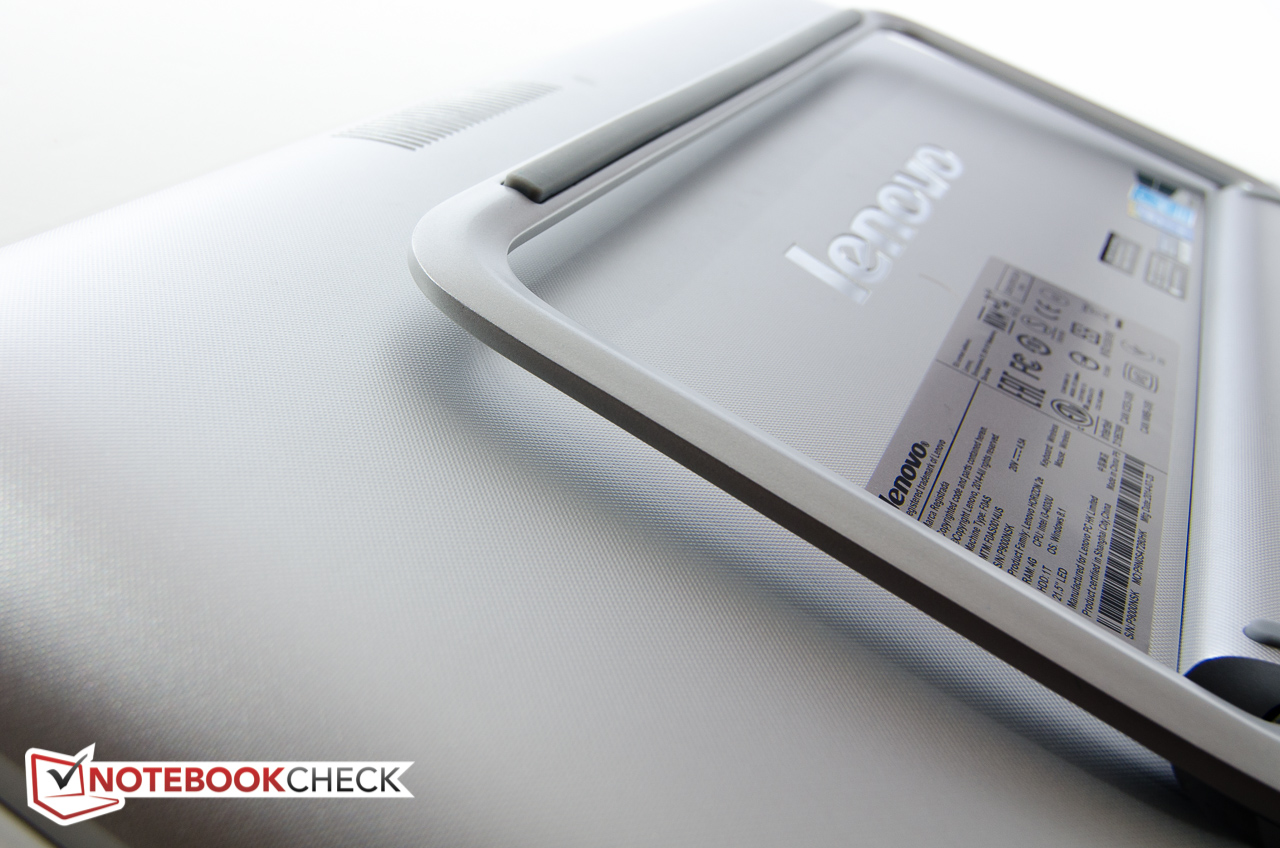

它的支架可以上折紧贴机背,但无法收入机身。
它的支架可以上折紧贴机背,但无法收入机身。

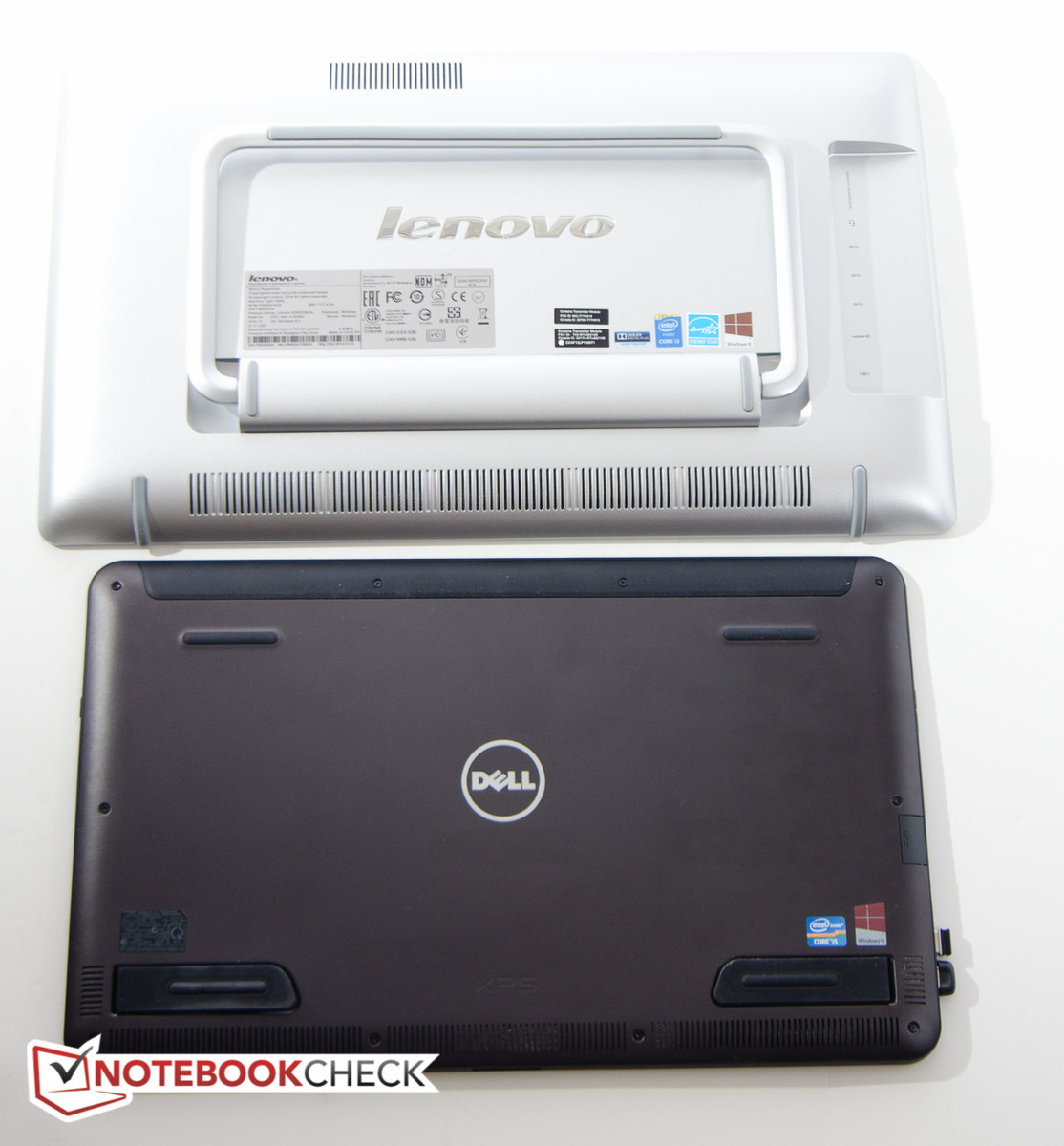

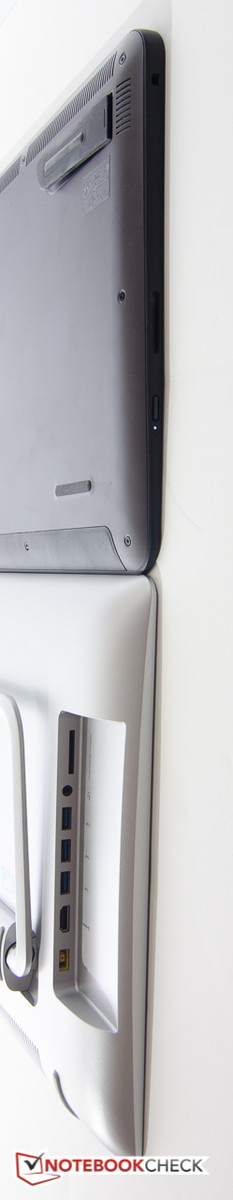

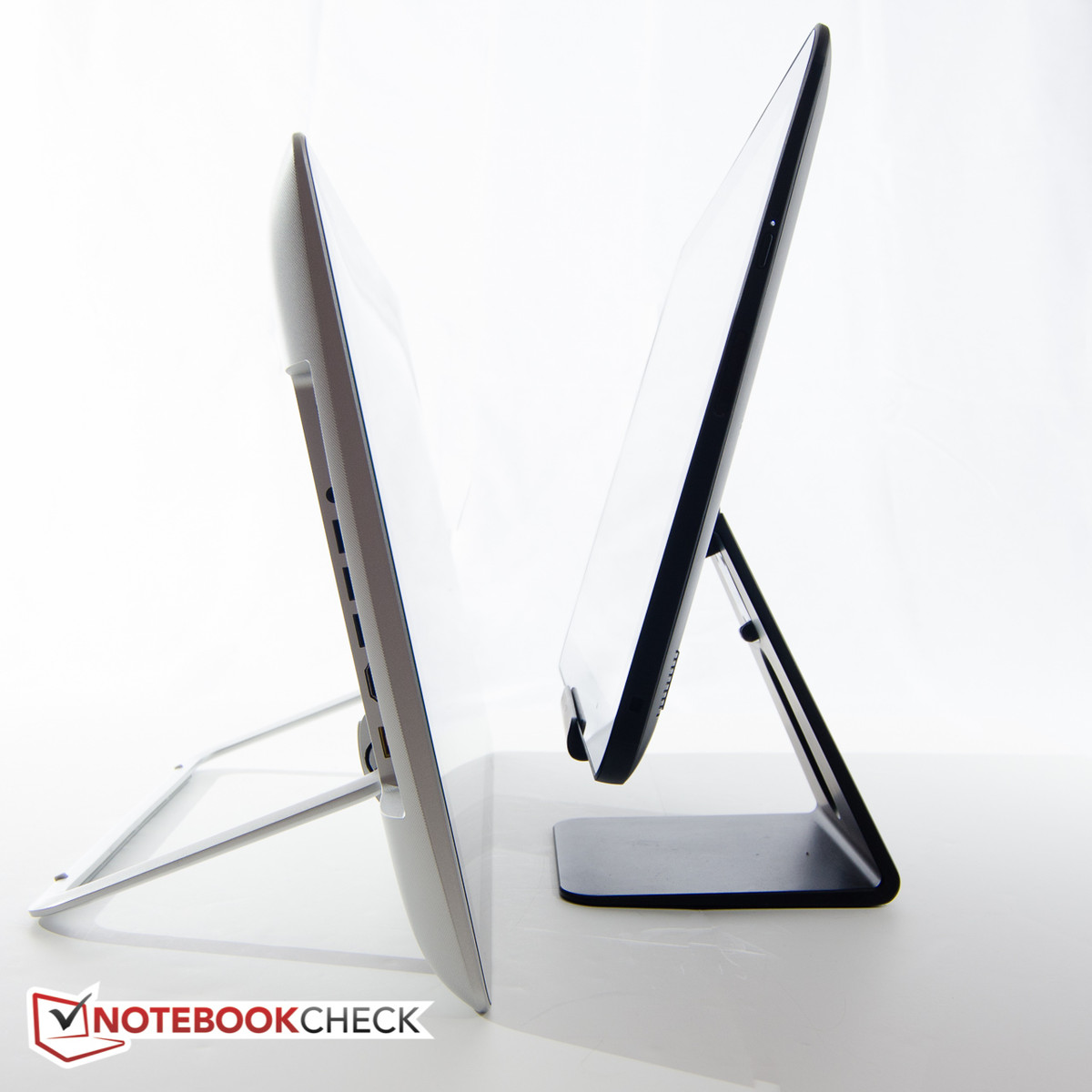

Horizon 2e 和 戴尔 XPS 18
Horizon 2e 和 戴尔 XPS 18
戴尔的这款产品屏幕较小,更薄,不过接口也较少
戴尔的这款产品屏幕较小,更薄,不过接口也较少
配合可选的支架,这台戴尔XPS站立时位置较高。
配合可选的支架,这台戴尔XPS站立时位置较高。

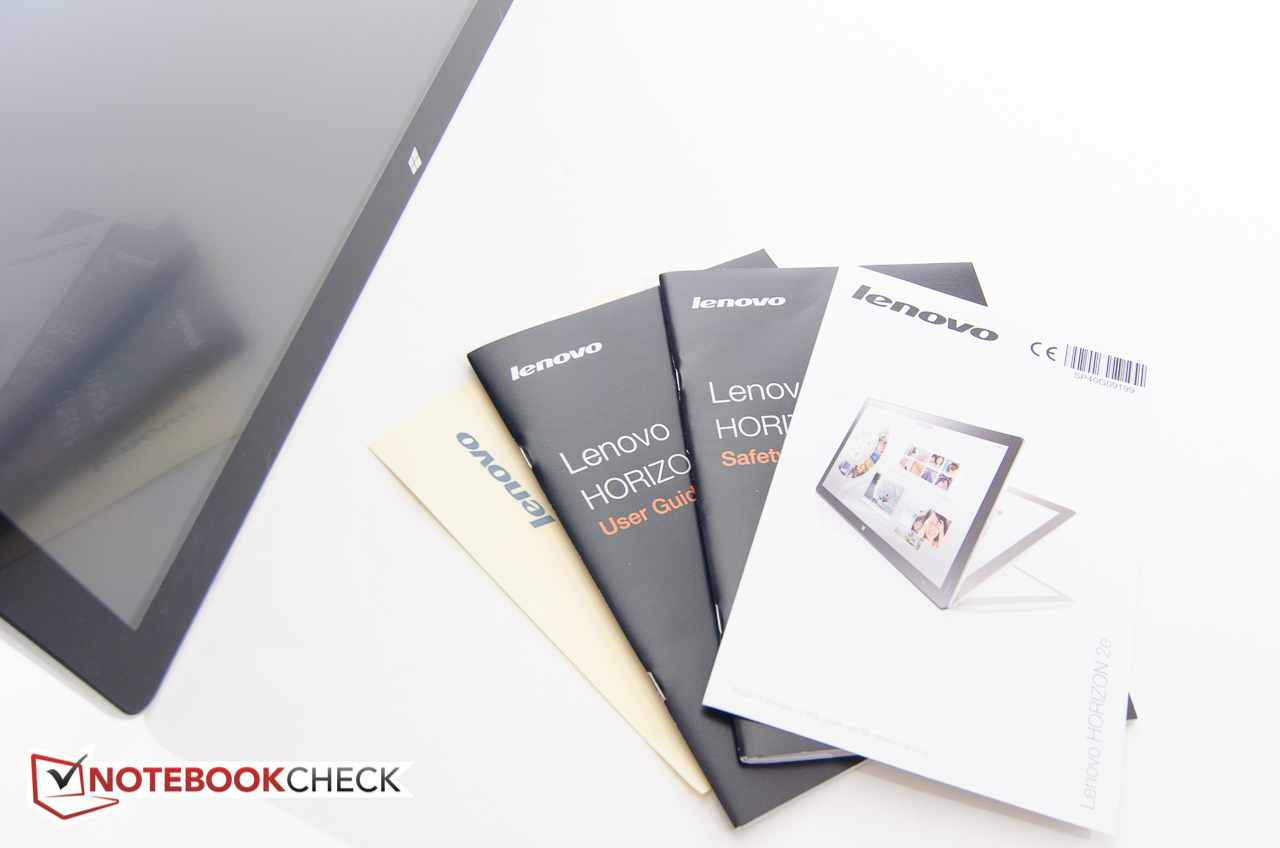

附带的手册。
附带的手册。

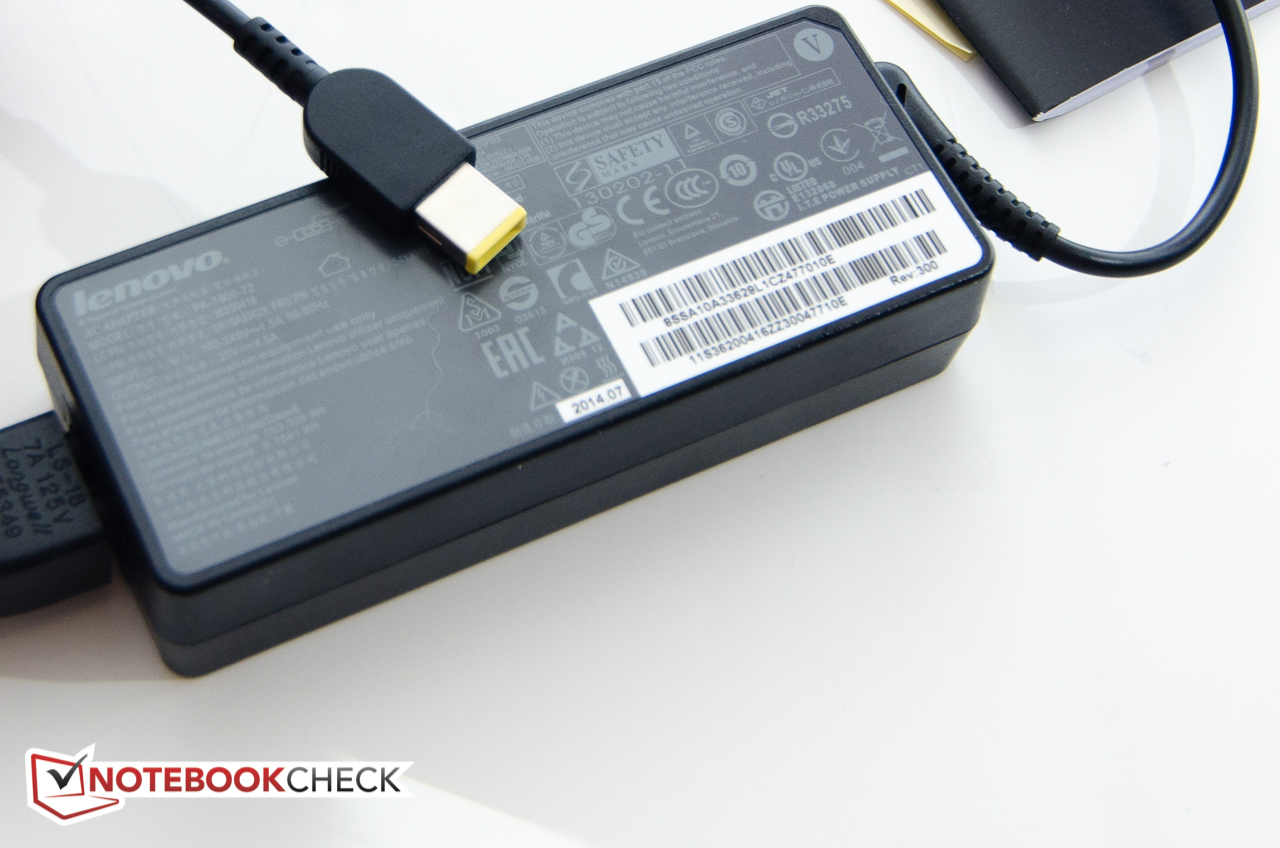

它的电源适配器为盒装设计,输出功率为90W。
它的电源适配器为盒装设计,输出功率为90W。

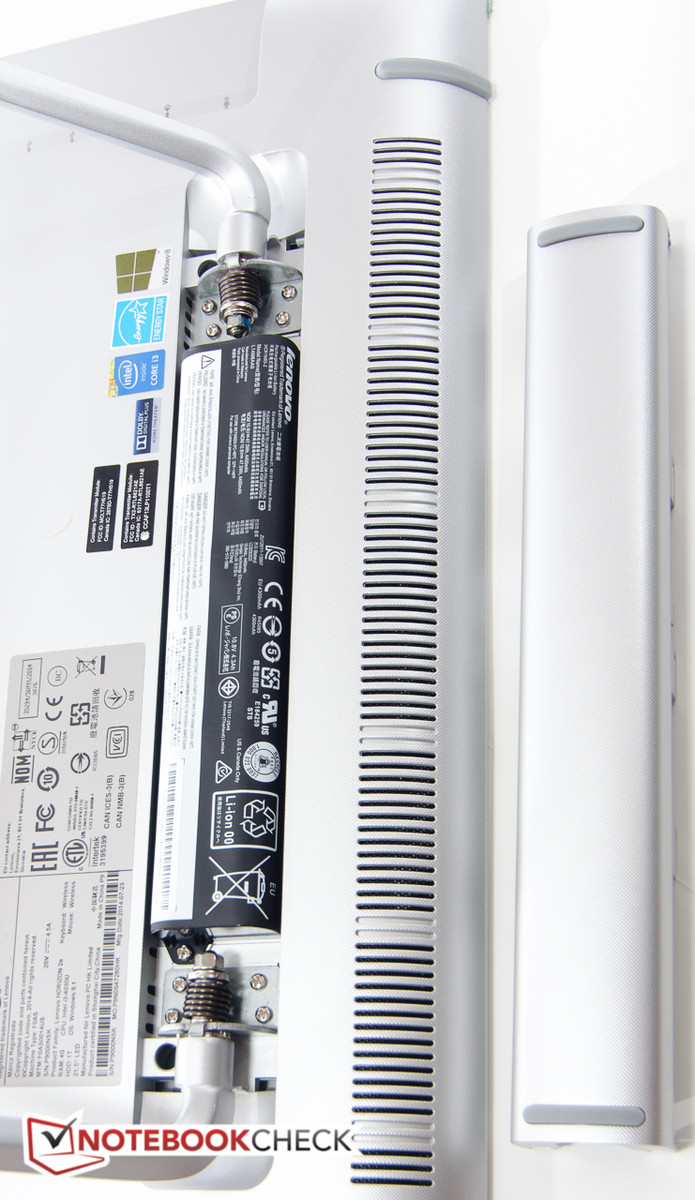

在转轴之间:它的47Wh电池。
在转轴之间:它的47Wh电池。

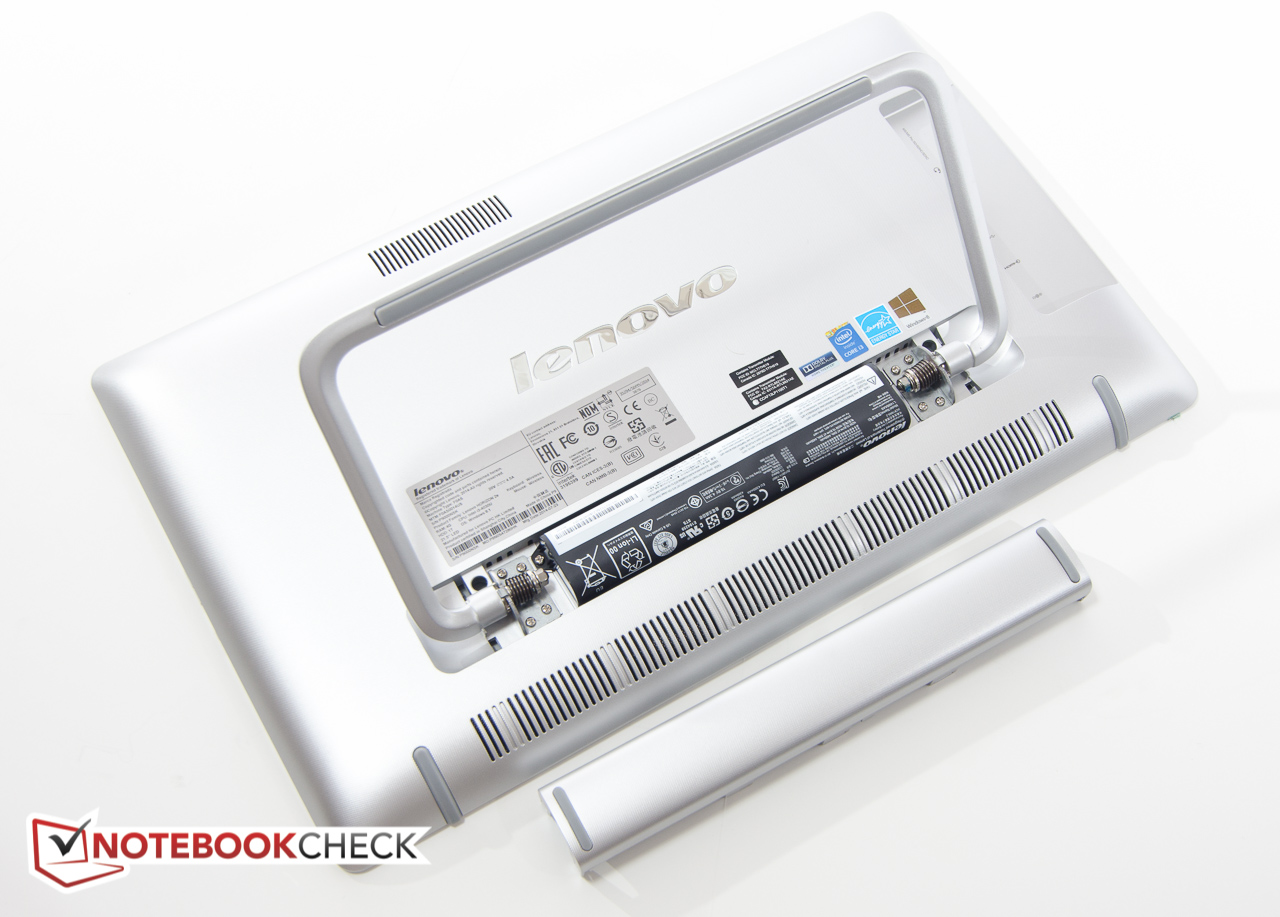

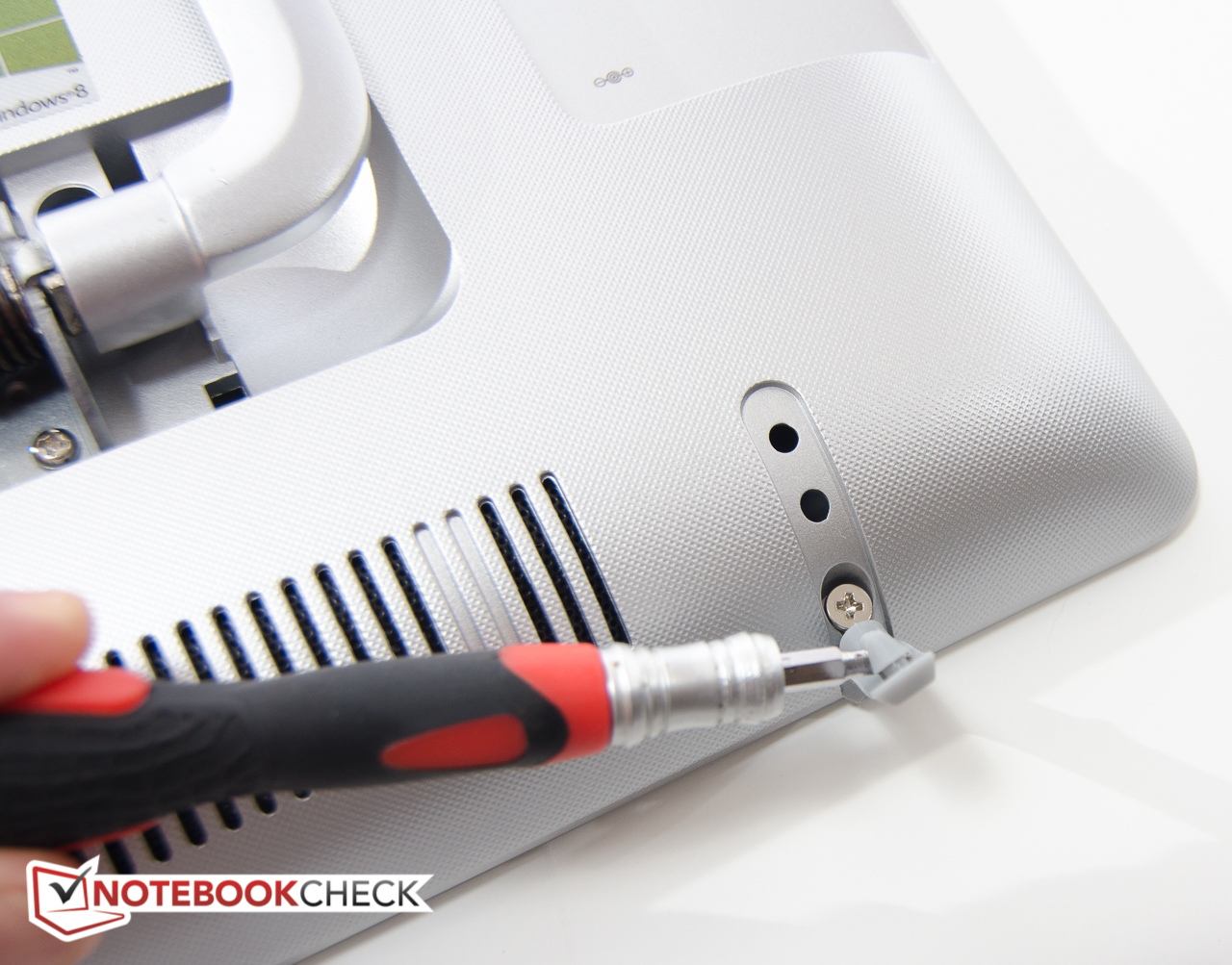

它的后盖在取下螺丝之后可以打开。
它的后盖在取下螺丝之后可以打开。

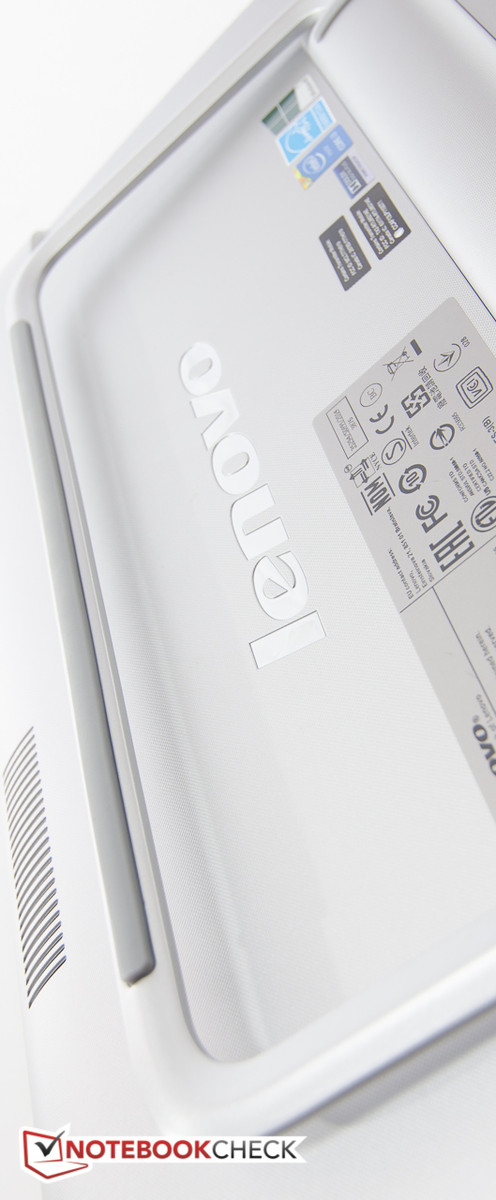

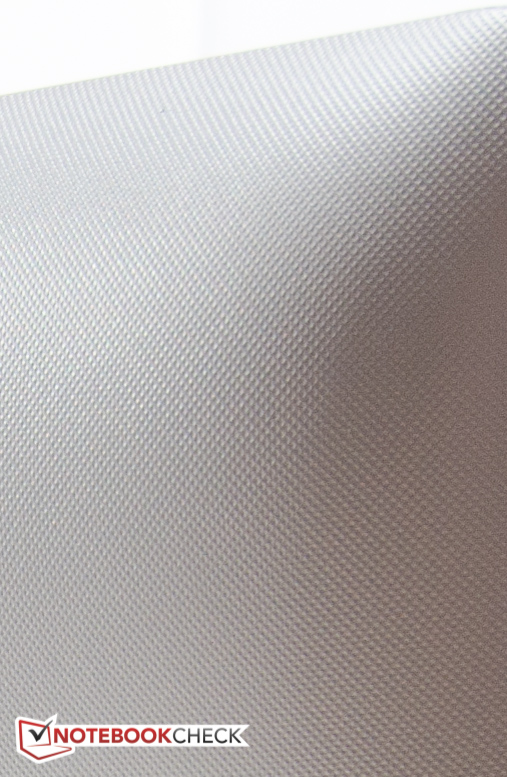

它的塑料后盖有一些纹理,不易沾染指纹。
它的塑料后盖有一些纹理,不易沾染指纹。

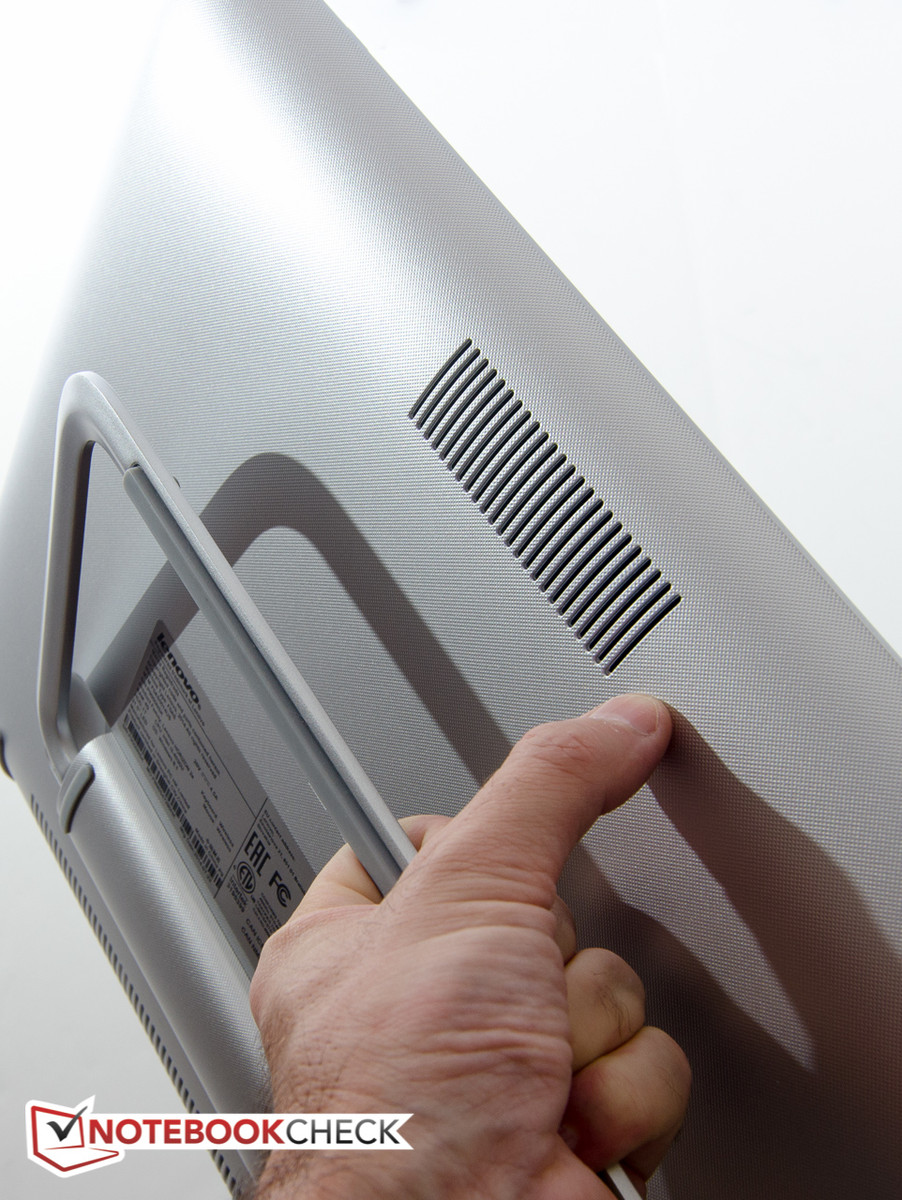

我们发现将支架用作提手会非常方便挪动它。
我们发现将支架用作提手会非常方便挪动它。

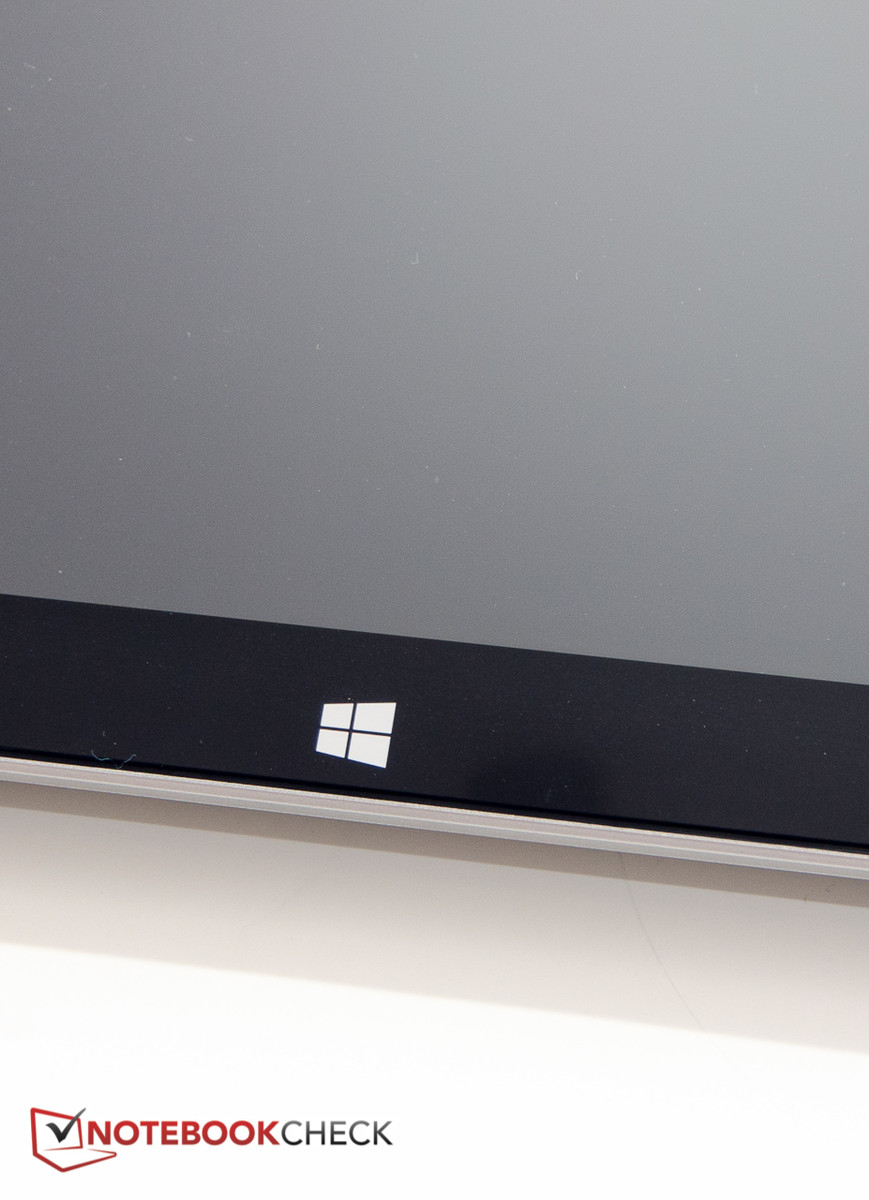

它的Windows键有震动反馈。
它的Windows键有震动反馈。
Please share our article, every link counts!

Specifications

Lenovo Horizon 2e-F0AS0014US
Processor
Intel Core i3-4030U 2 x 1.9 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400, Core: 600 MHz, Memory: 800 MHz
Memory
4 GB
, PC3-12800 DDR3
Display
21.50 inch 16:9, 1920 x 1080 pixel, 10点触控, LEN8000, IPS, glossy: no
Mainboard
Intel Lynx Point-LP
Storage
WDC WD10JPVX-08JC3T5, 1000 GB
, 5400 rpm
Soundcard
Intel Lynx Point-LP - High Definition Audio Controller
Connections

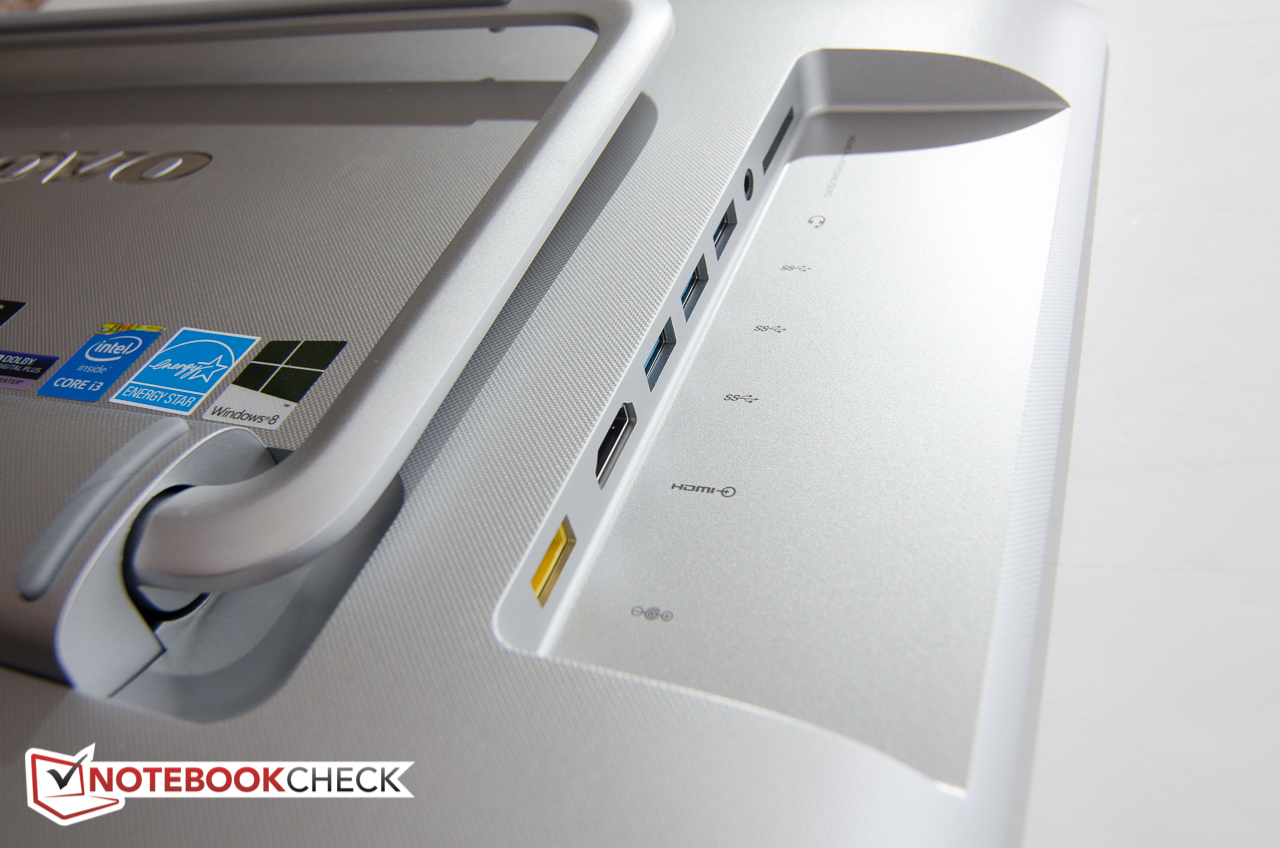

3 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5mm整合耳机接口, Card Reader: 6-in-1 , Sensors: 环境光传感器, NFC
Networking
Realtek RTL8821AE 802.11ac (), Bluetooth 4.0
Size
height x width x depth (in mm): 319 x 525.8 x 39.9
Battery
47 Wh Lithium-Ion, Battery runtime (according to manufacturer): 3 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 210万像素
Additional features
Speakers: 立体声扬声器 支持Dolby Home Theater技术, Keyboard Light: no, 可选配件: 游戏摇杆,推杆,电子骰子, 12 Months Warranty
Weight
4.581 kg, Power Supply: 422 g
Price
719 Euro



Devices with the same GPU

华硕 Q302LA 变形本简短评测
HD Graphics 4400, Core i3 4030U, 13.30", 1.814 kg
联想 Horizon 2s-F0AT0003US 一体机简短评测
HD Graphics 4400, Core i5 4210U, 19.50", 2.478 kg
东芝 Satellite Radius P50W-BST2N01 变形本简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.168 kg
戴尔 Inspiron 13 7347 变形本简短评测
HD Graphics 4400, Core i5 4210U, 13.30", 1.65 kg
惠普 Pavilion 13-a000ng x360 变形本简短评测
HD Graphics 4400, Core i3 4030U, 13.30", 1.76 kg
东芝 Satellite Click 2 Pro P30W-B-104 变形本简短评测
HD Graphics 4400, Core i5 4210U, 13.30", 1.982 kg
联想 Yoga 2 13 变形本简短评测
HD Graphics 4400, Core i3 4010U, 13.30", 1.56 kg

Pros

+有优秀可视角度范围的抗反射(IPS)屏幕
+触控屏幕响应准确
+紧凑设计
+内置支架
+非常安静
+3个USB 3.0接口
+有趣的Aura软件界面


Cons

-屏幕亮度低
-厚重
-电池续航不佳
-附带的键盘反弹过多
-有限的屏幕分辨率
-传统硬盘速度较慢

Lenovo Horizon 2e-F0AS0014US - 11/04/2014 v4 (old)
Bernhard Pechlaner

Chassis
74 / 98 → 76%
Keyboard
69%
Pointing Device
89%
Connectivity
60 / 80 → 75%
Weight
43 / 35-78 → 19%
Battery
70%
Display
79%
Games Performance
61 / 68 → 89%
Application Performance
66 / 87 → 76%
Temperature
87%
Noise
88%
Audio
68 / 91 → 75%
Camera
71 / 85 → 84%
Add Points
+3%
Average
66%
71%
