联想 IdeaPad Y500 笔记本测评
Editor's Note (January 23, 2013): The following review has not yet been edited for grammatical errors. A final draft of the review will be released soon.
For the original German review, see here.
Lenovo and gaming? Does that match at all? The manufacturer, mainly known for its Office laptops, now also wants to make a name for itself in the gaming sector. The IdeaPad Y500 is not just a copy of the devices from MSI, Asus or Samsung, but a unique product that in many ways treads new, or at least different paths.
For example, the UltraBay mentioned in the intro. In simple words, it is a special drive compartment that can optionally harbor a second graphics card. System fan modules (better cooling for EUR 20), a hard disk module (750 GB HDD for EUR 90) and a DVD/CD burner module (EUR 70) are also offered in Lenovo's German shop.

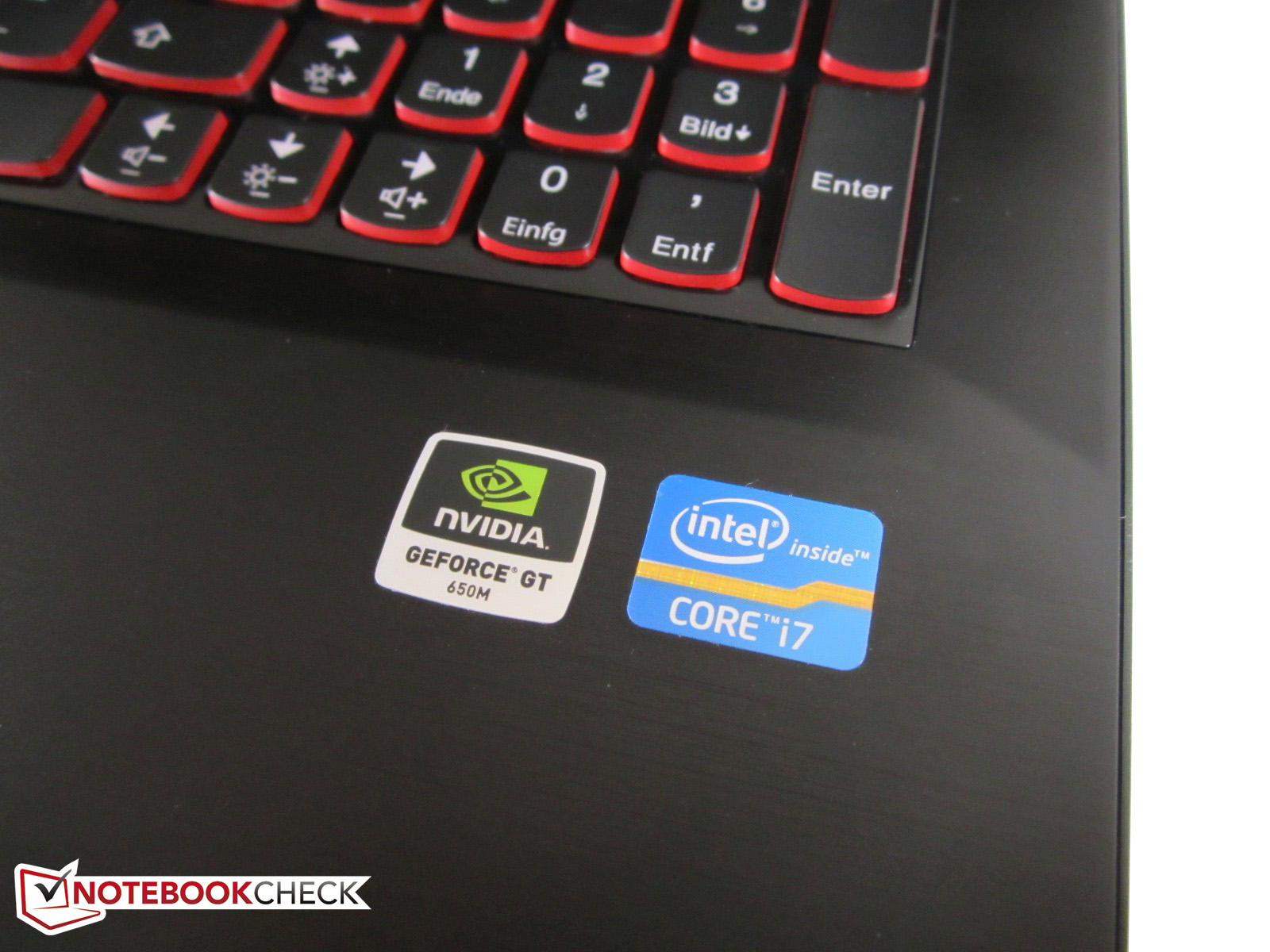

Lenovo relies on a well-tried DirectX 11 accelerator from NVidia for the GPU. While the 15 incher places itself in the midrange with a single GeForce GT 650M, the laptop is propelled into the high-end range when using a SLI configuration.
The other components can also compete with the contenders. The model we tested is dubbed MBG3DGE and sports 16 GB of DDR3 RAM (1600 MHz), a 1000 GB, 5400 rpm HDD and a small 16 GB mSATA SSD, which serves as a cache and cannot be used directly. Intel's popular Core i7 3630QM takes care of CPU calculations. Its four cores can clock with 2.4 to 3.4 GHz in load. The glare-type LED screen unsurprisingly has a resolution of 1920 x 1080 pixels. This bundle's price: EUR 1100.
Buyers who do not want to spend more than EUR 1000 could opt for the MBG2JGE. The EUR 100 cheaper family member sports a single GPU and a still fully sufficient eight GB of DDR3 RAM. The processor, screen and hard disk capacity are identical. Both laptops have Windows 8 64 bit in common.
Can the 15 incher attain a place among the premium gaming laptops? Our test shows whether the daring idea is successful or Lenovo goes belly up with it. Various complaints about the American version were made not long after its release (useless touchpads, non-functional power supplies, etc.).
编者注(1月23日,2013年):下面的检讨尚未被编辑语法错误。不久将公布最终草案审查。
对于的德国原装审查,在这里看到。
联想和游戏?这是否匹配?的制造商,主要为办公室的笔记本电脑,现在也想为自己在游戏行业做一个名字。 IdeaPad Y500的不只是一个副本来自微星,华硕和三星的设备,而是一个独特的产品,在许多方面胎面新的,或者至少不同的路径。

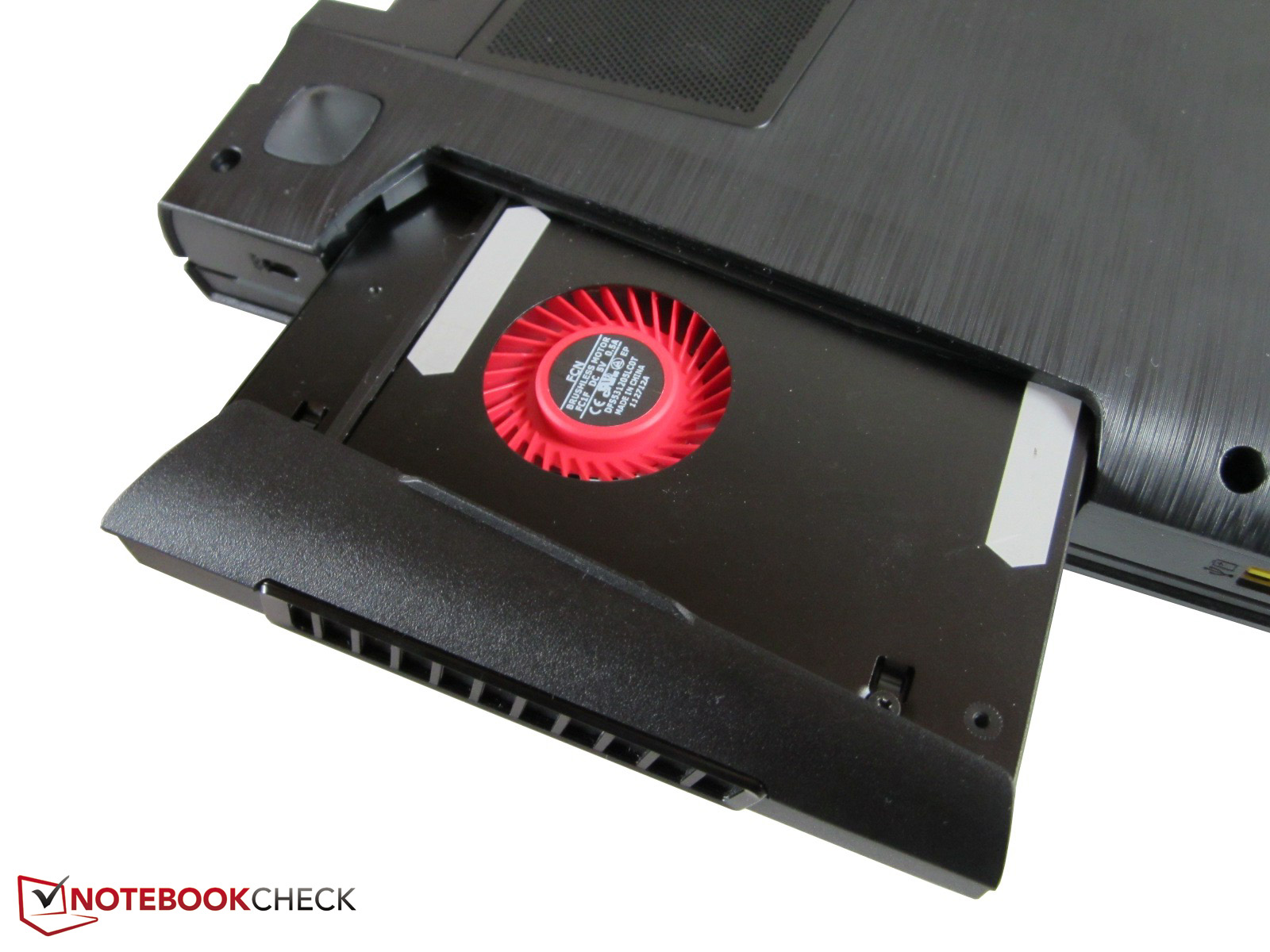

例如,在介绍中提到的UltraBay。简单地说,它是一个特殊的驱动器仓,可以选择怀有第二块显卡。联想在德国的商店也提供系统风扇模块(冷却20欧元),一个硬盘模块(750 GB硬盘90欧元)和一个DVD / CD刻录机模块(70欧元)。
联想依赖于一个行之有效的DirectX 11 NVIDIA的GPU加速器。 15 incher虽然本身与一个单一的GeForce GT 650M的中端,到高端的范围内推动笔记本电脑使用SLI配置。

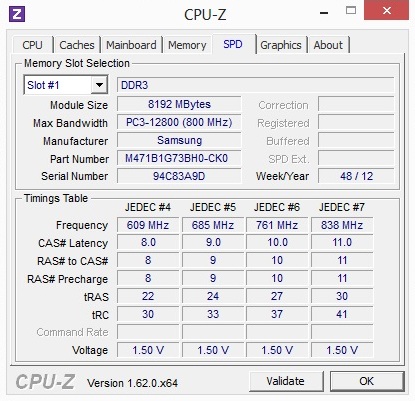

其他组件也可以与竞争者竞争。我们测试的模型被称为16 MBG3DGE和体育GB的DDR3内存(1600兆赫),1000 GB,5400转硬盘和16 GB的一个小的mSATA SSD作为高速缓存,并不能直接使用。英特尔流行的酷睿i7 3630QM CPU的计算需要照顾。它的四个内核可以负载2.4到3.4 GHz的时钟。勿庸置疑的眩光型LED屏幕的分辨率为1920 x 1080像素。这个包的价格:1100欧元。
谁不想花费超过1000欧元的买家可以选择的MBG2JGE。 100欧元便宜的家庭成员,体育单GPU和8 GB的DDR3内存还是完全够用。处理器,屏幕和硬盘容量是相同的。两款笔记本电脑有Windows 8 64位的共同点。
15 incher可以实现保费的游戏笔记本电脑之间的地方吗?我们的测试表明大胆的想法是否成功或联想去肚与。其释放(无用的触摸板,非功能性电源等)后没多久,美国版的各种投诉。
Case

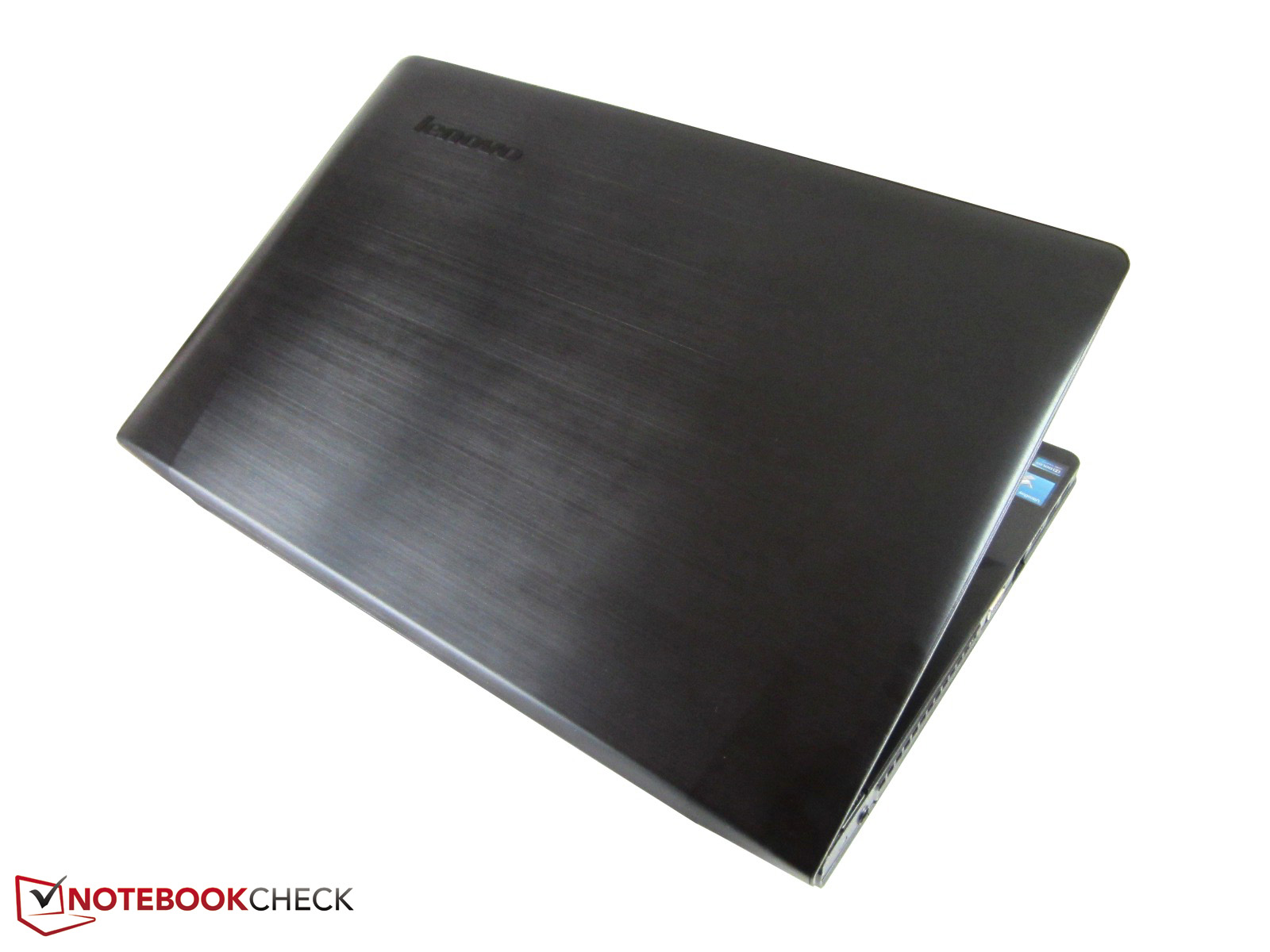

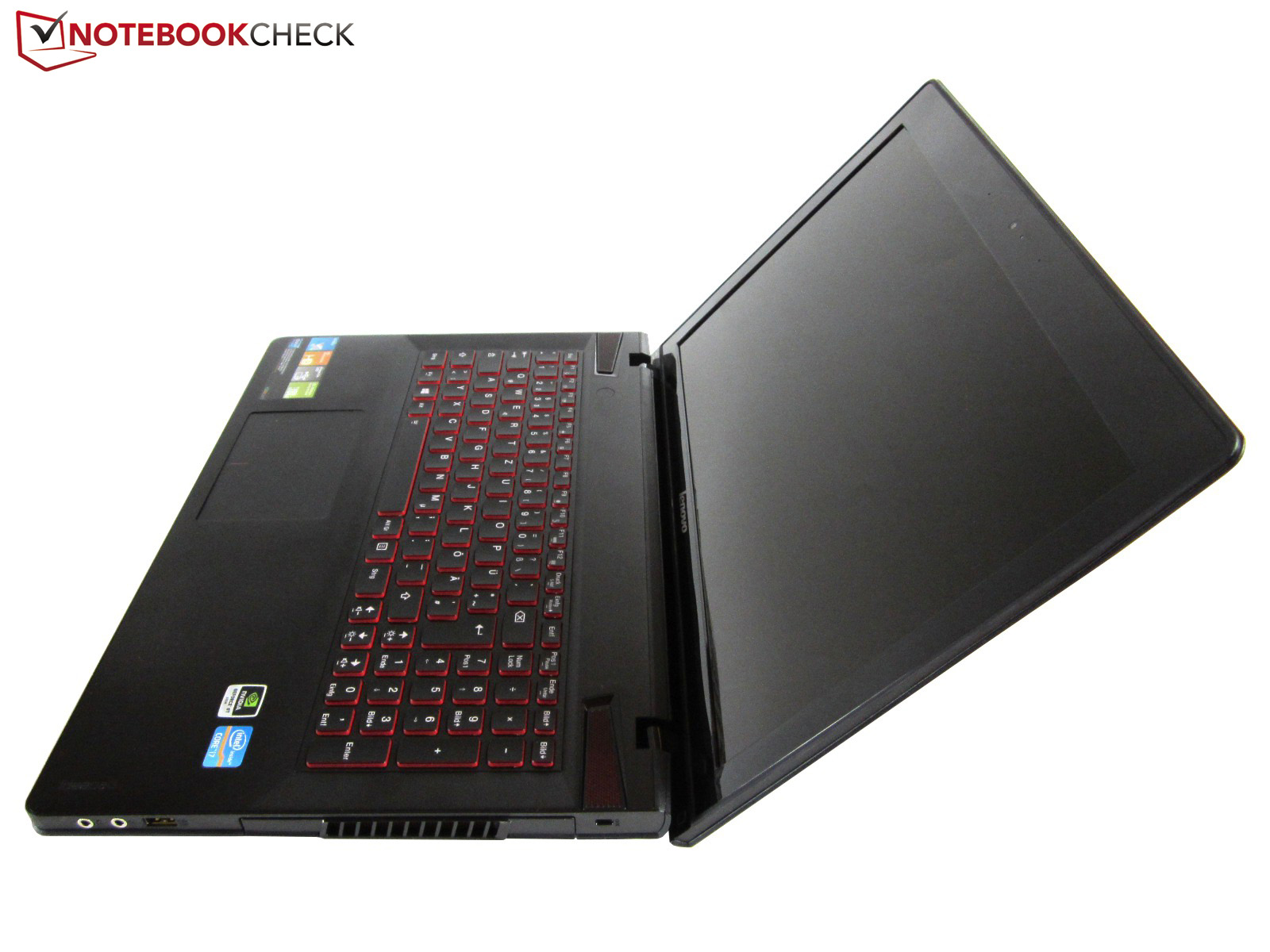

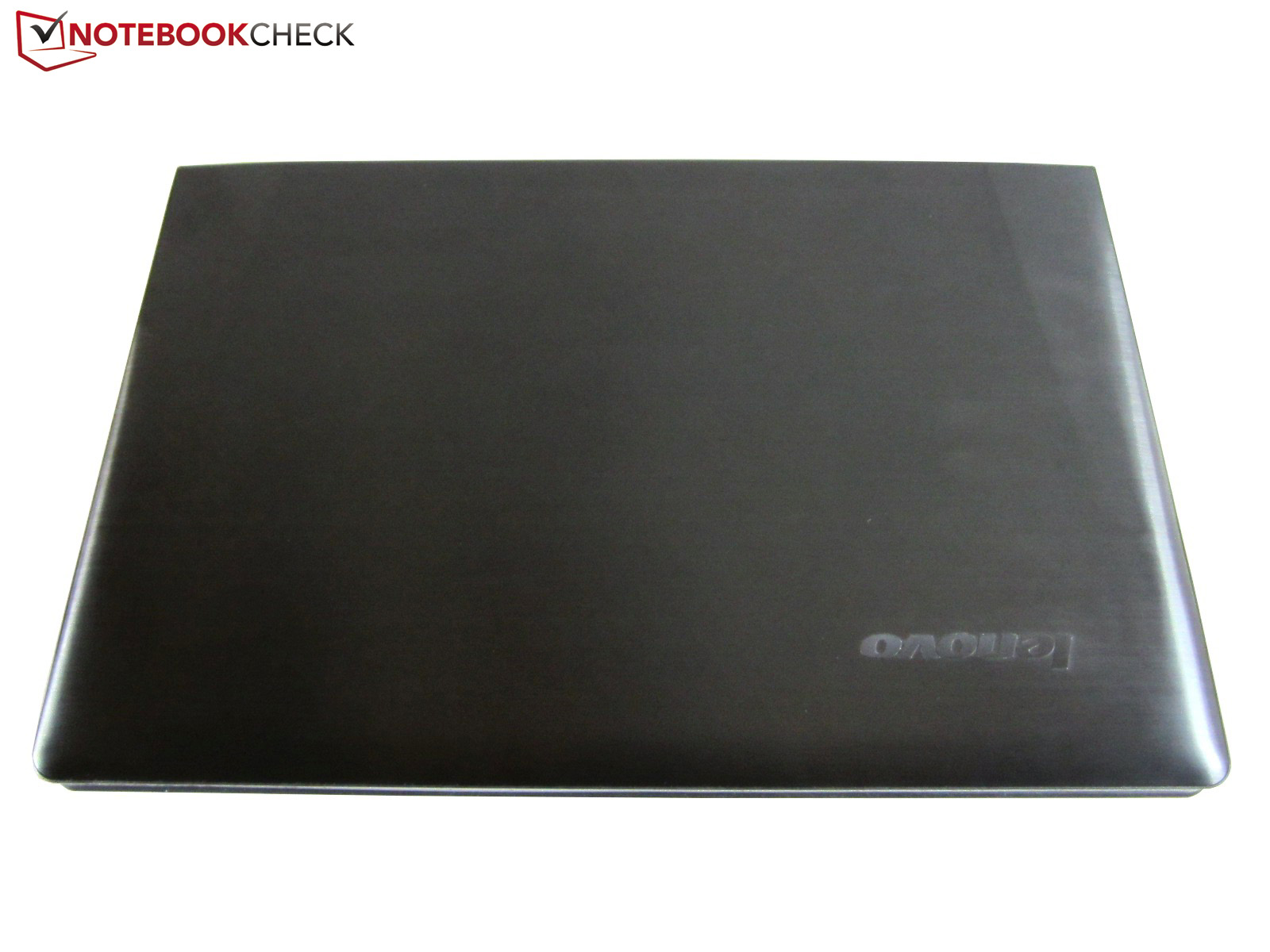

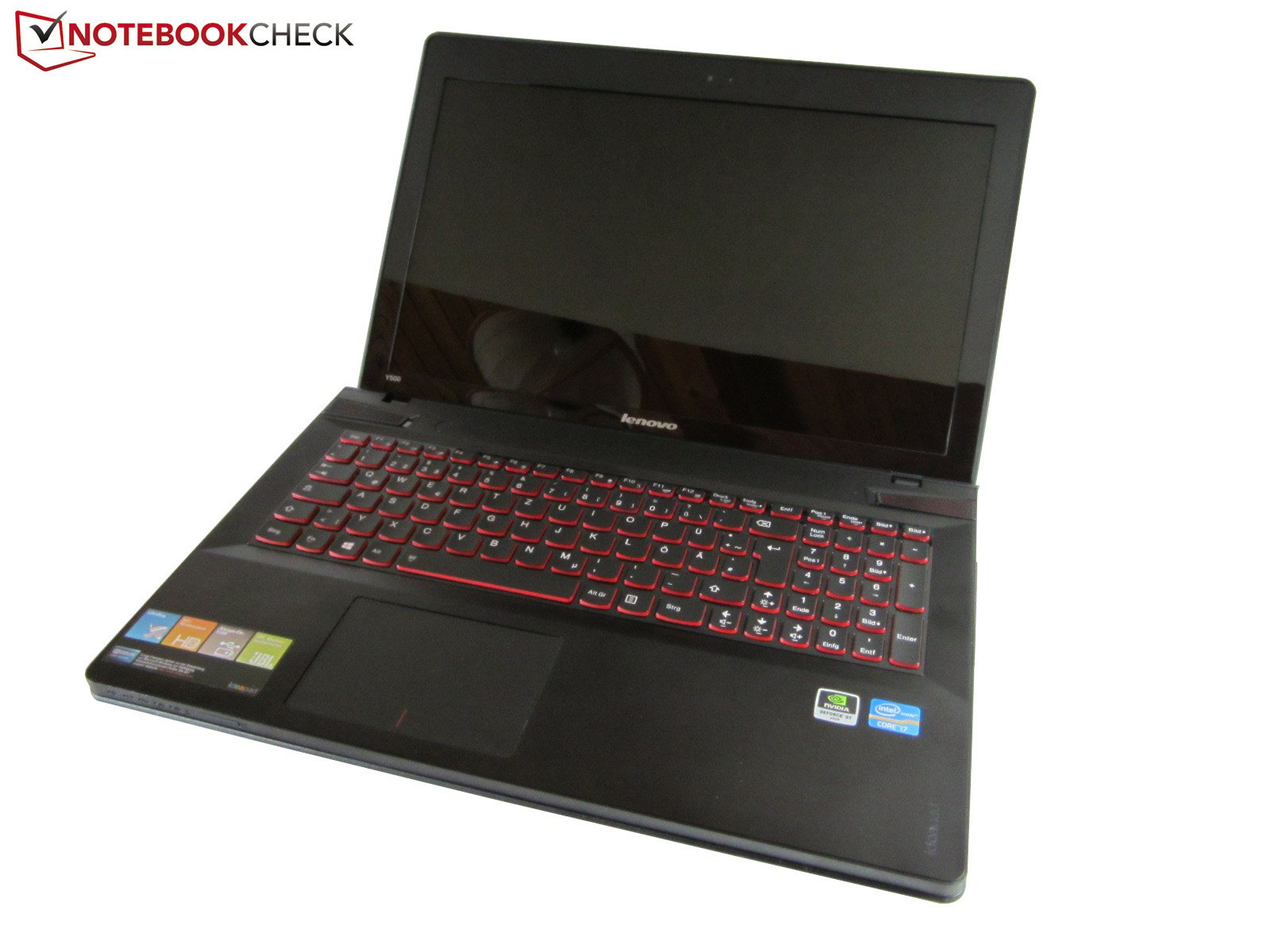

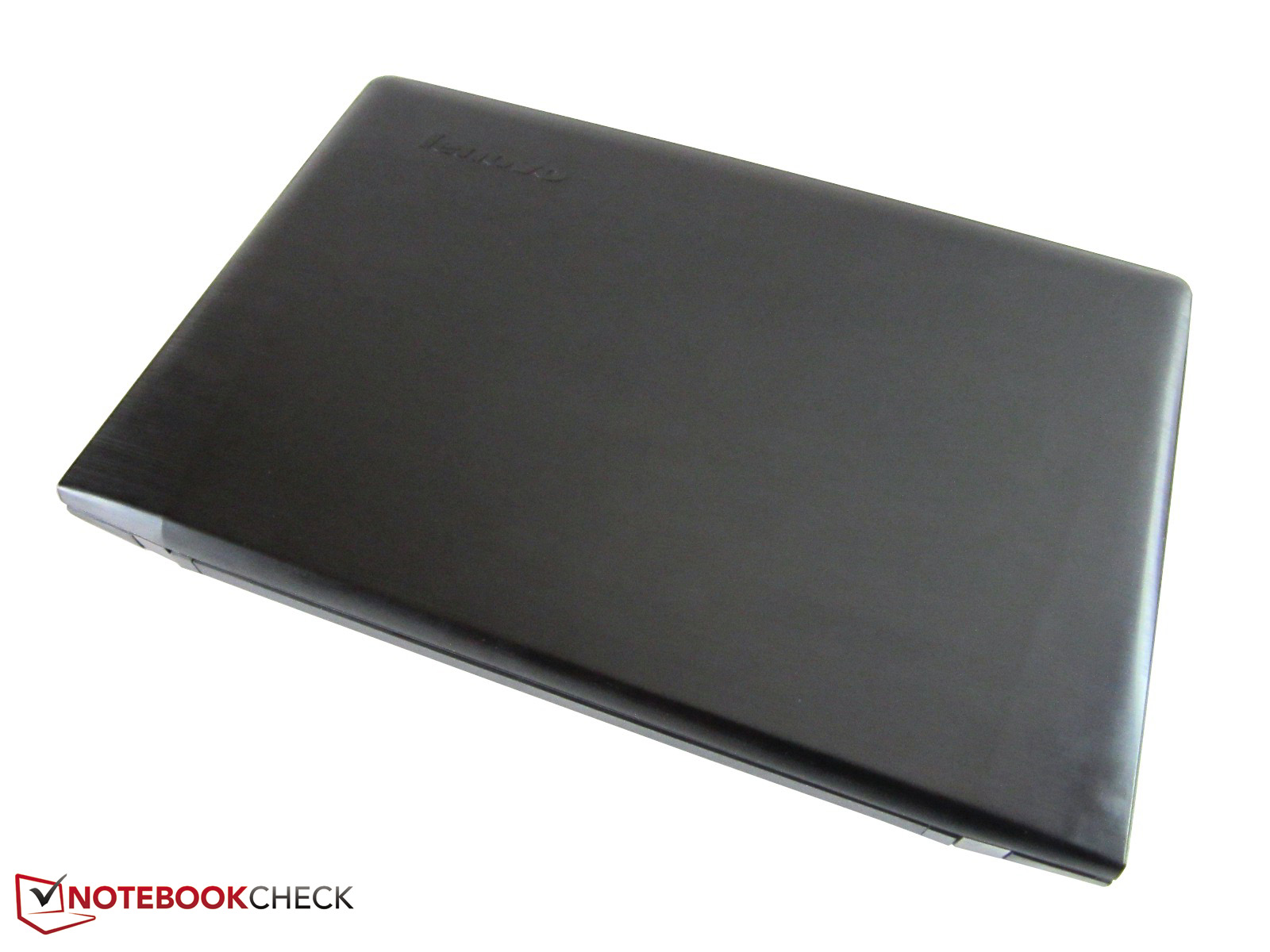

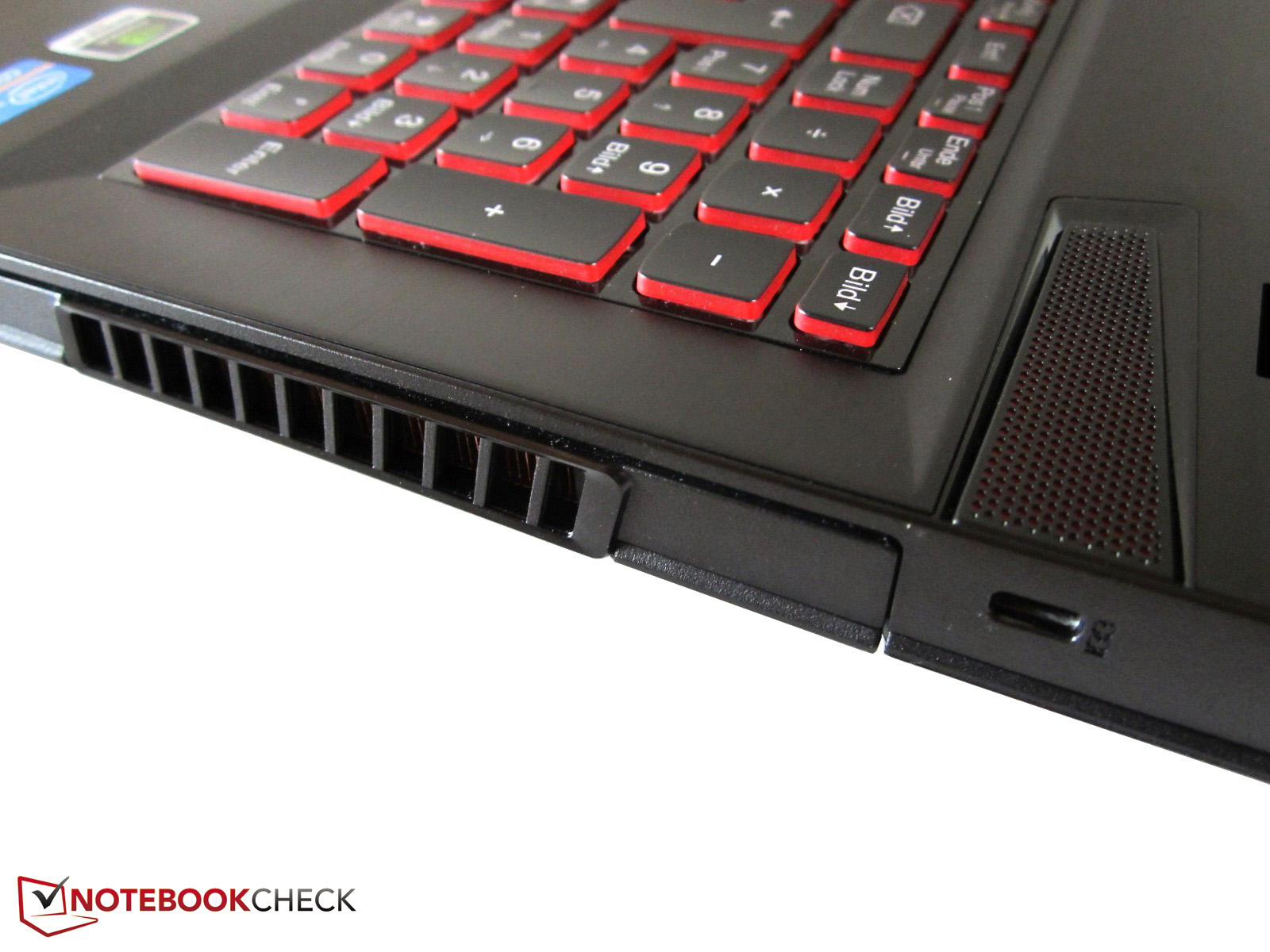

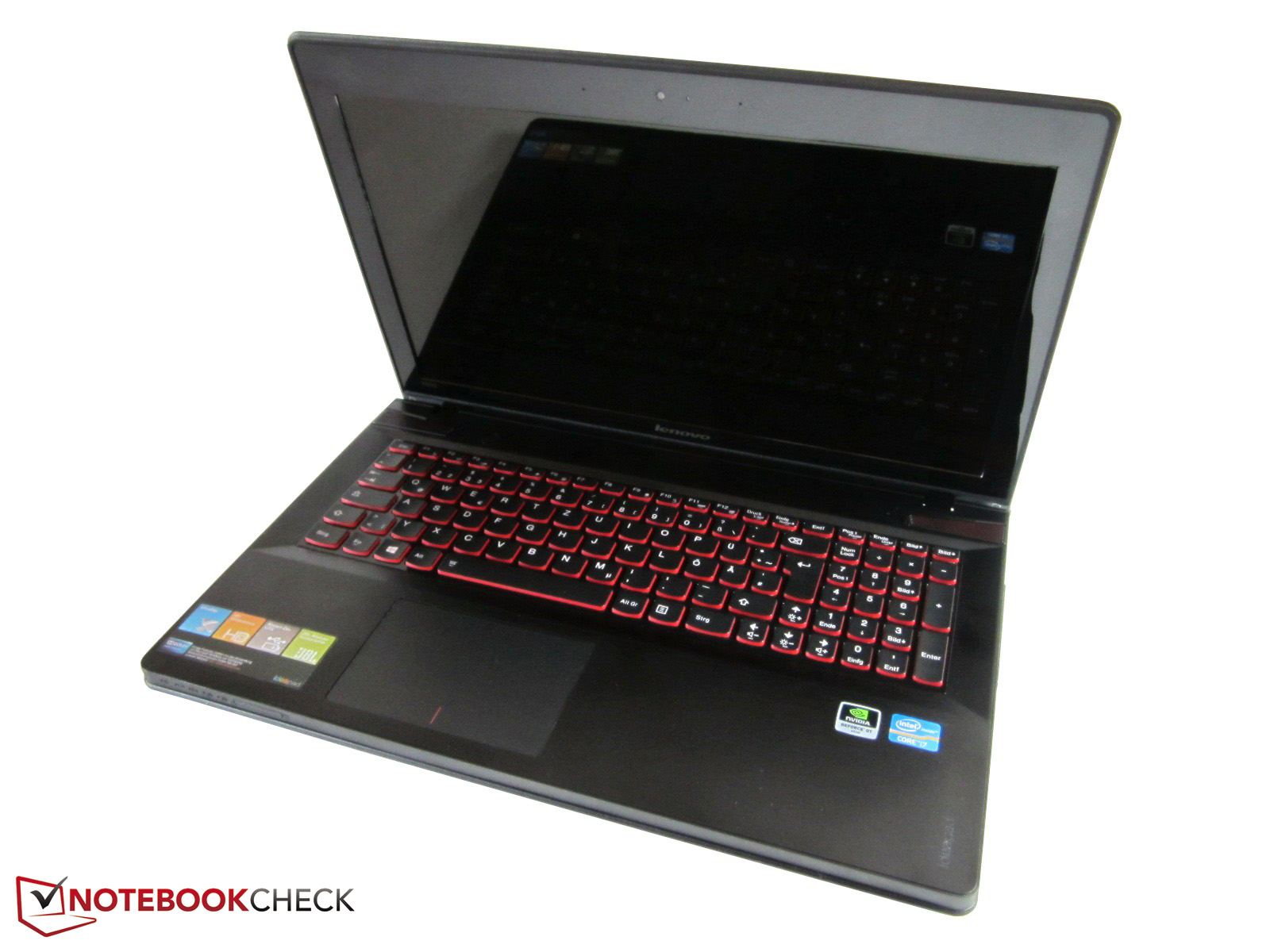

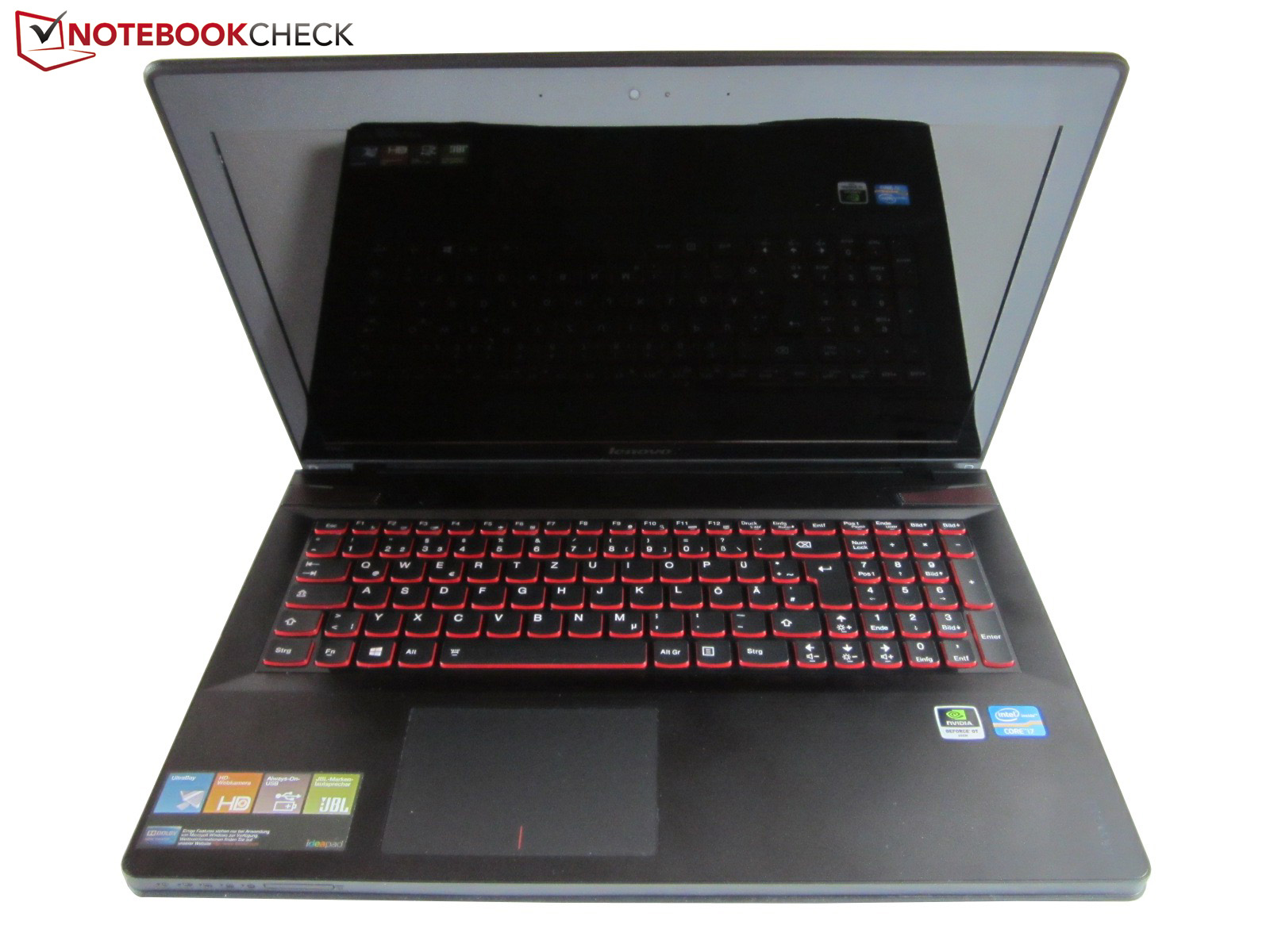

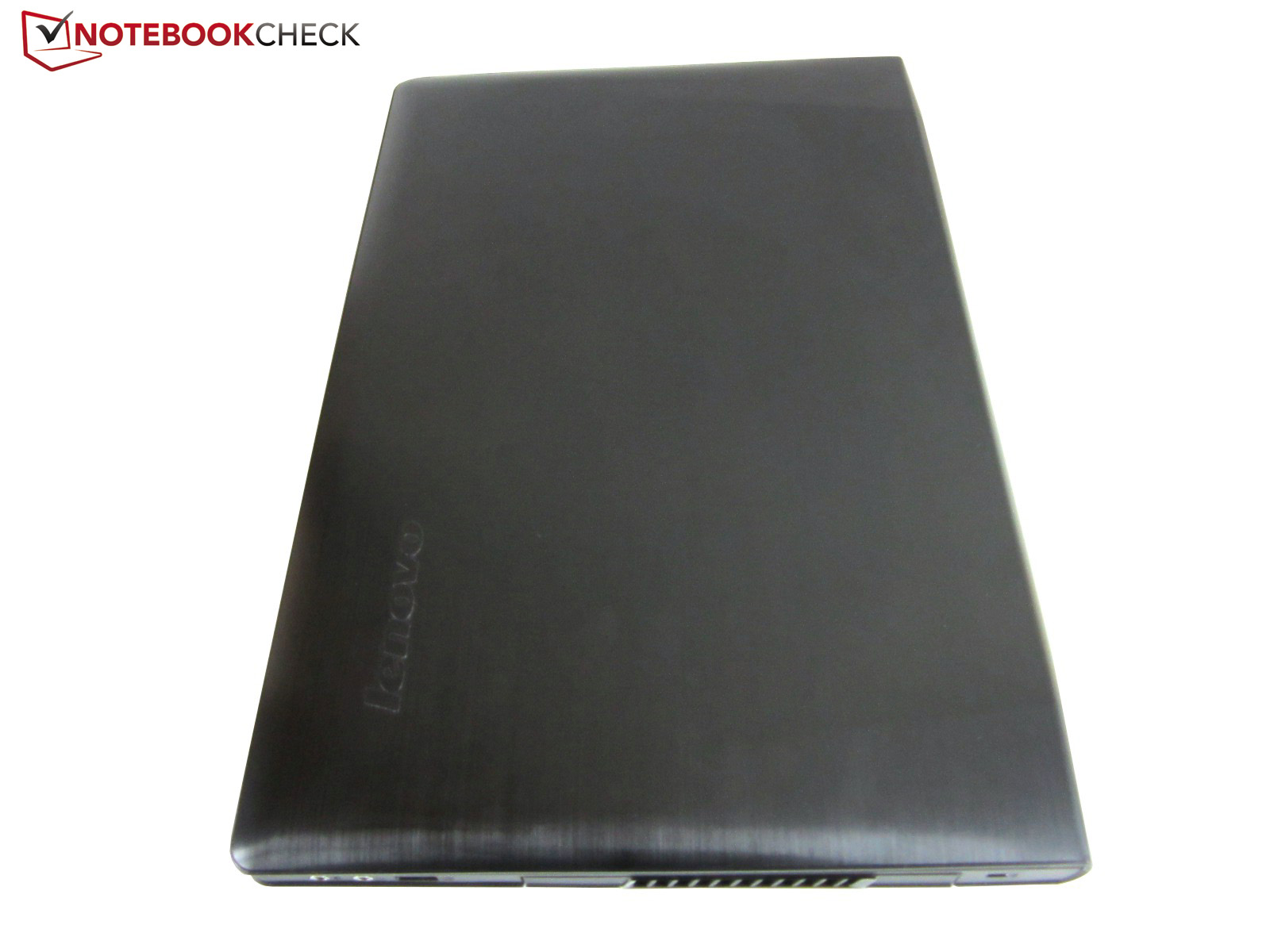

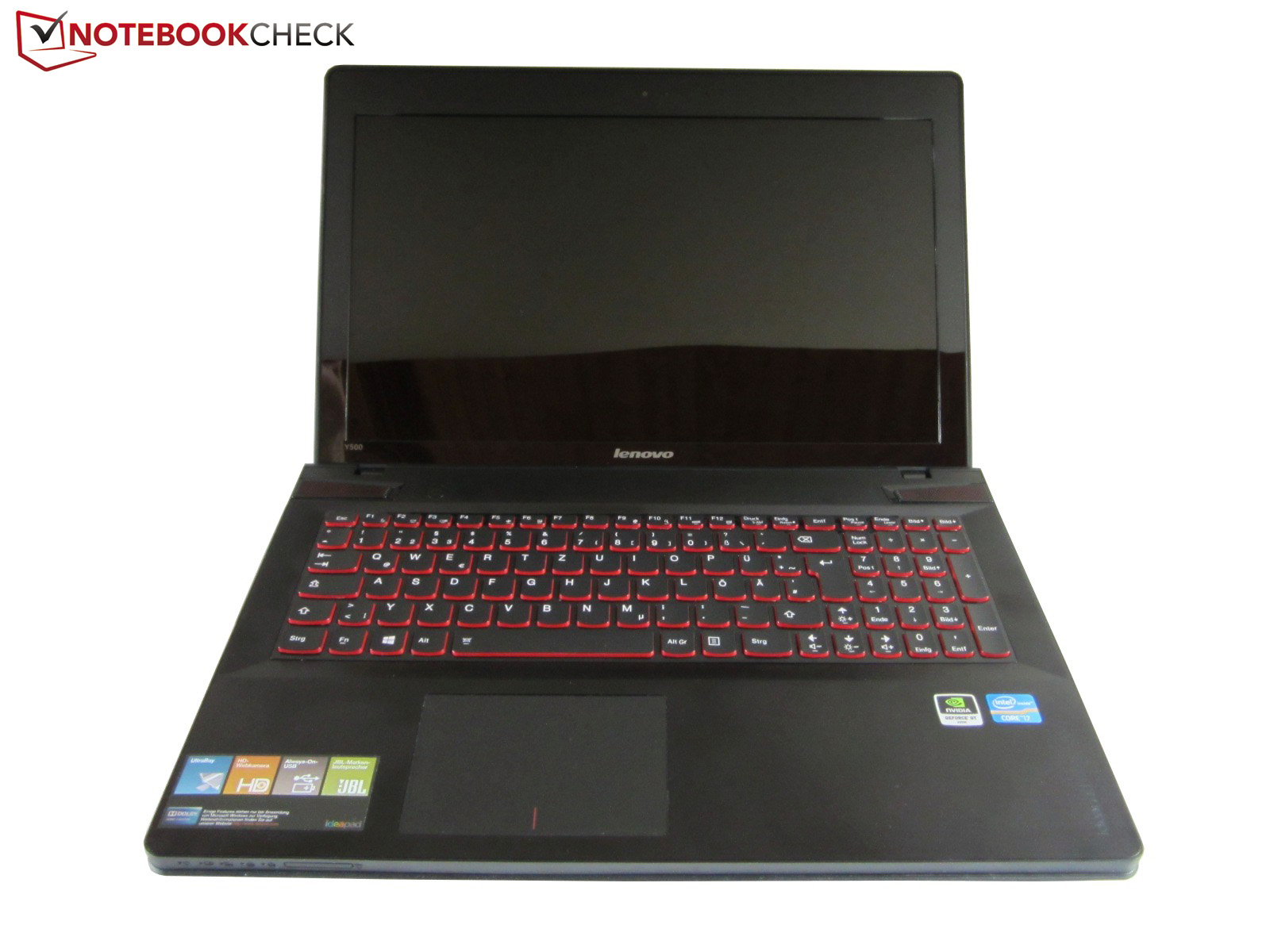

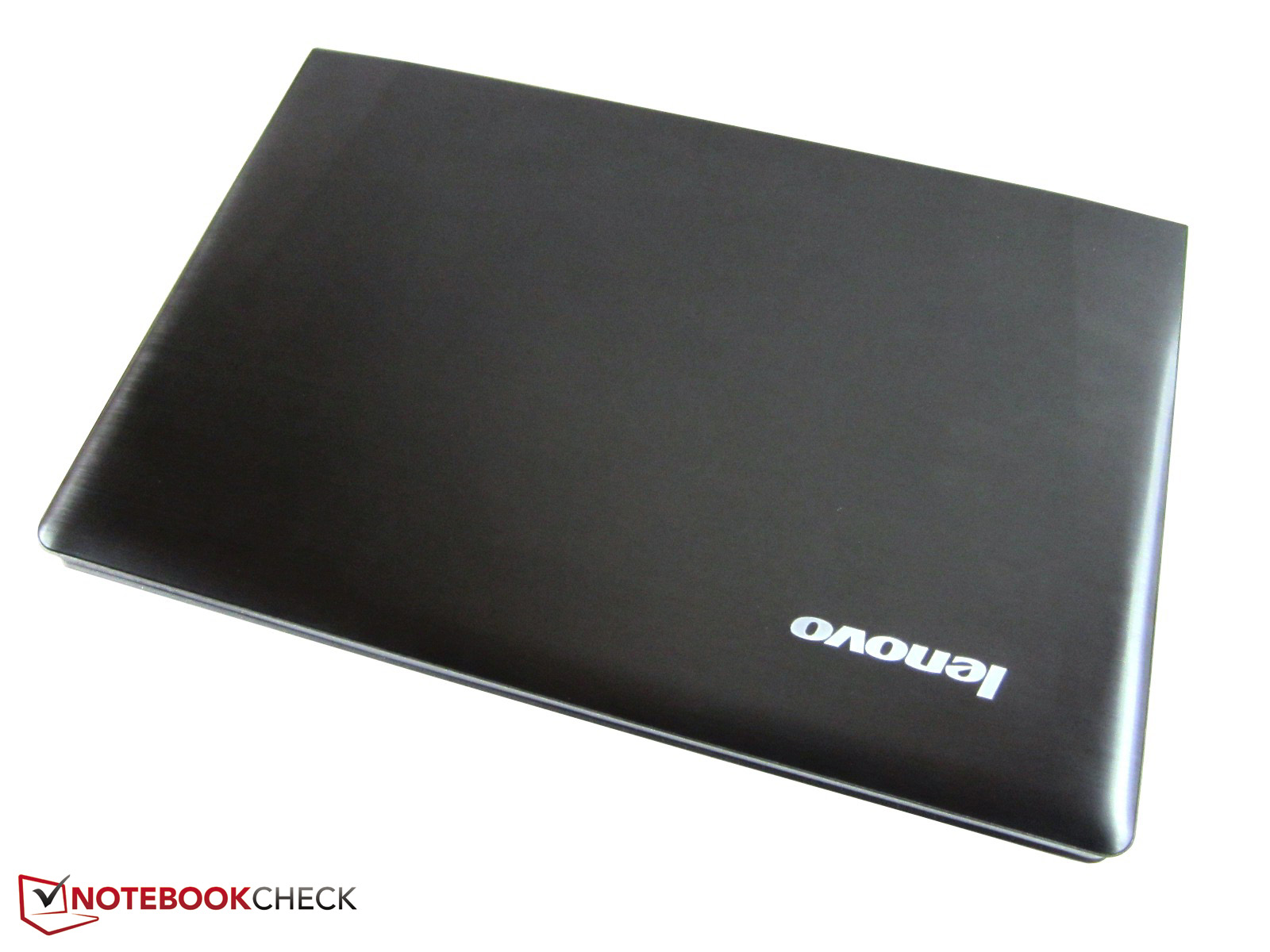

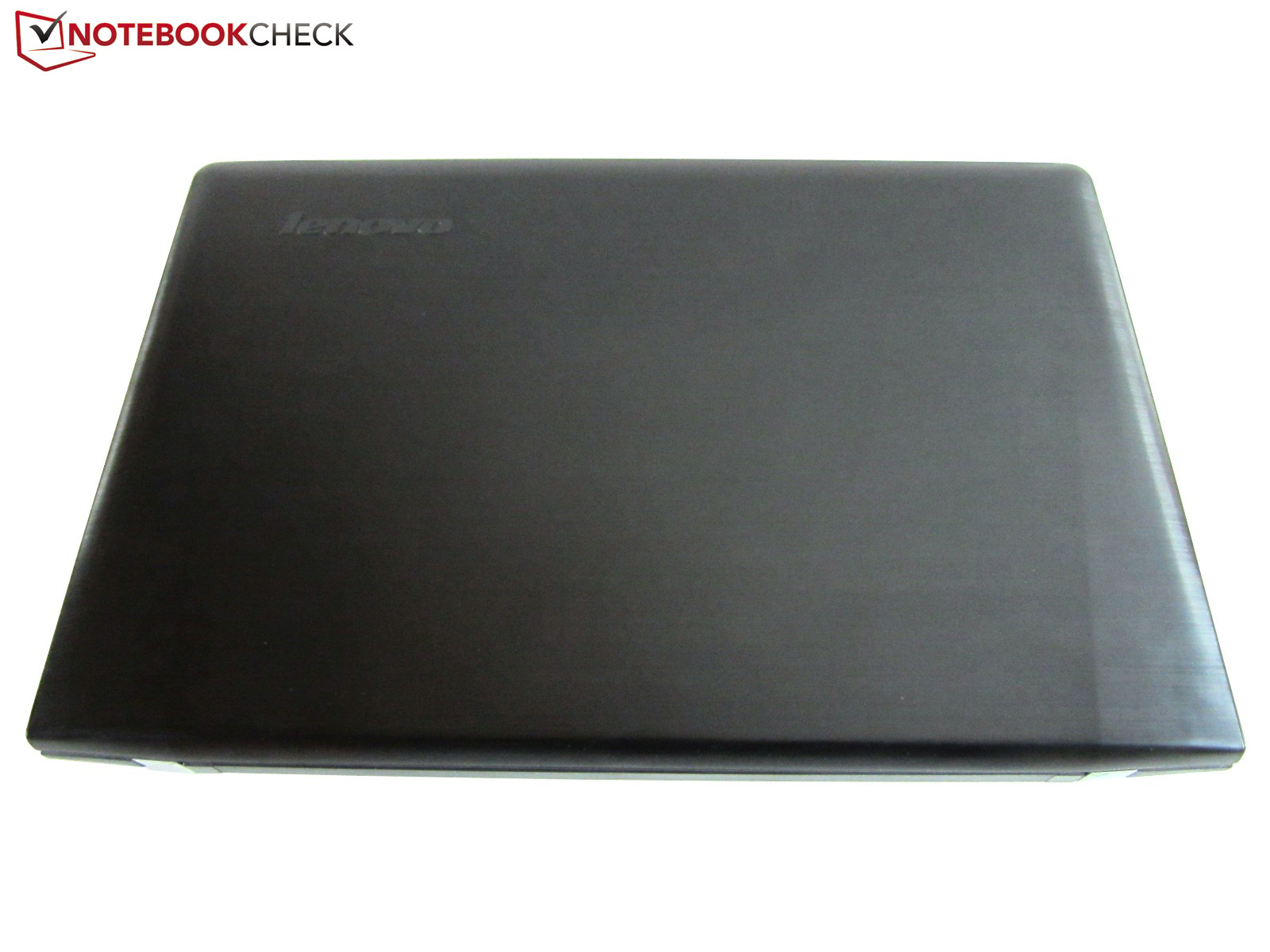

The IdeaPad Y500 looks rather unimposing in a closed state. The dark color and sooner basic design do not exactly indicate potent hardware. Merely the wide vents that blow out waste heat toward the (mouse) hand hint at the device's purpose. However, the manufacturer's ambitions quickly become evident as soon as the laptop is opened. The keys' red rim and speakers' red highlighted grille downright scream for games.

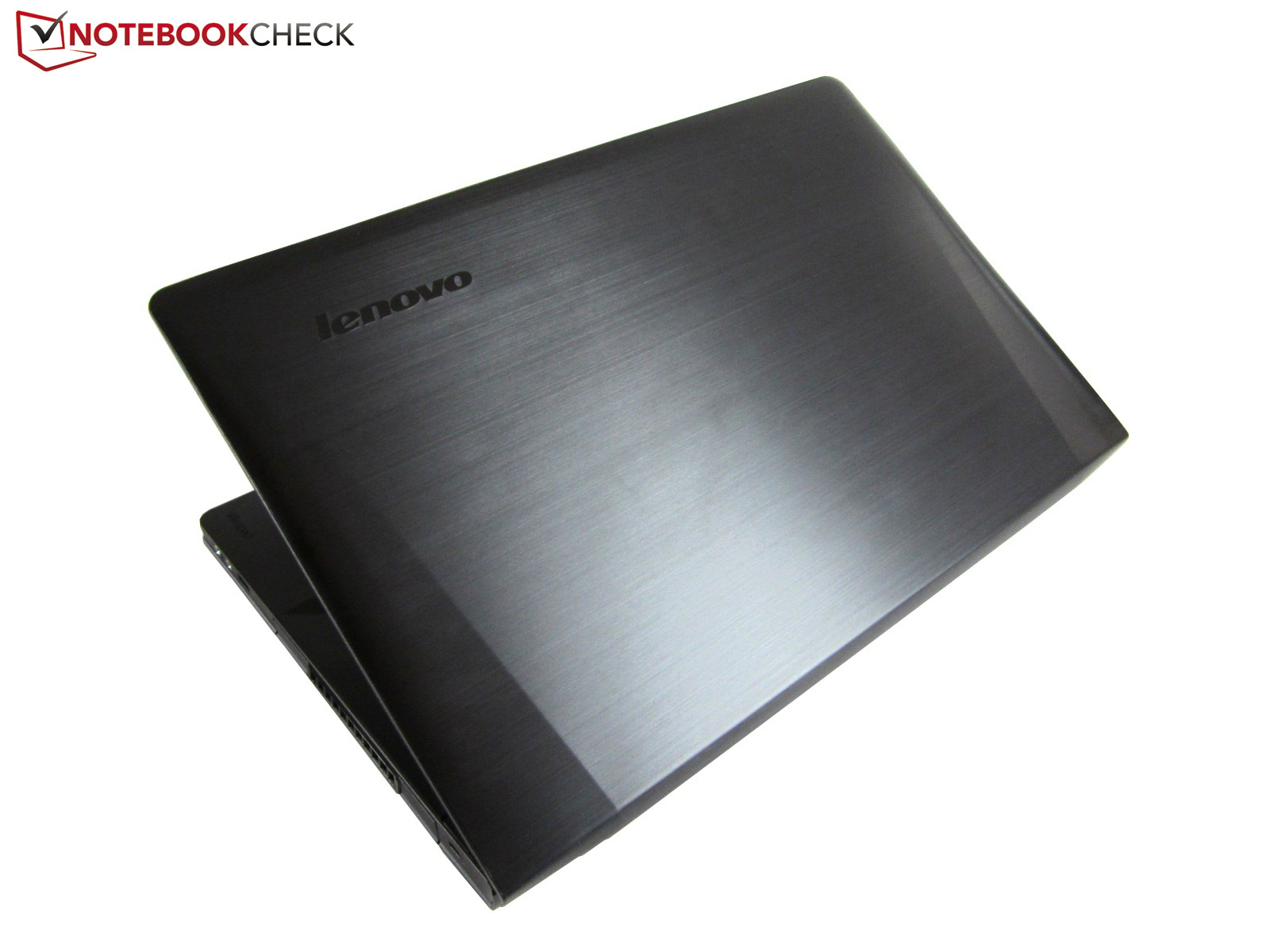

While the lid and the wrist rest are made of brushed aluminum, the base is completely comprised of plastic. The surfaces will soon be covered with smudge despite the matte finish because the laptop is susceptible for greasy fingers.

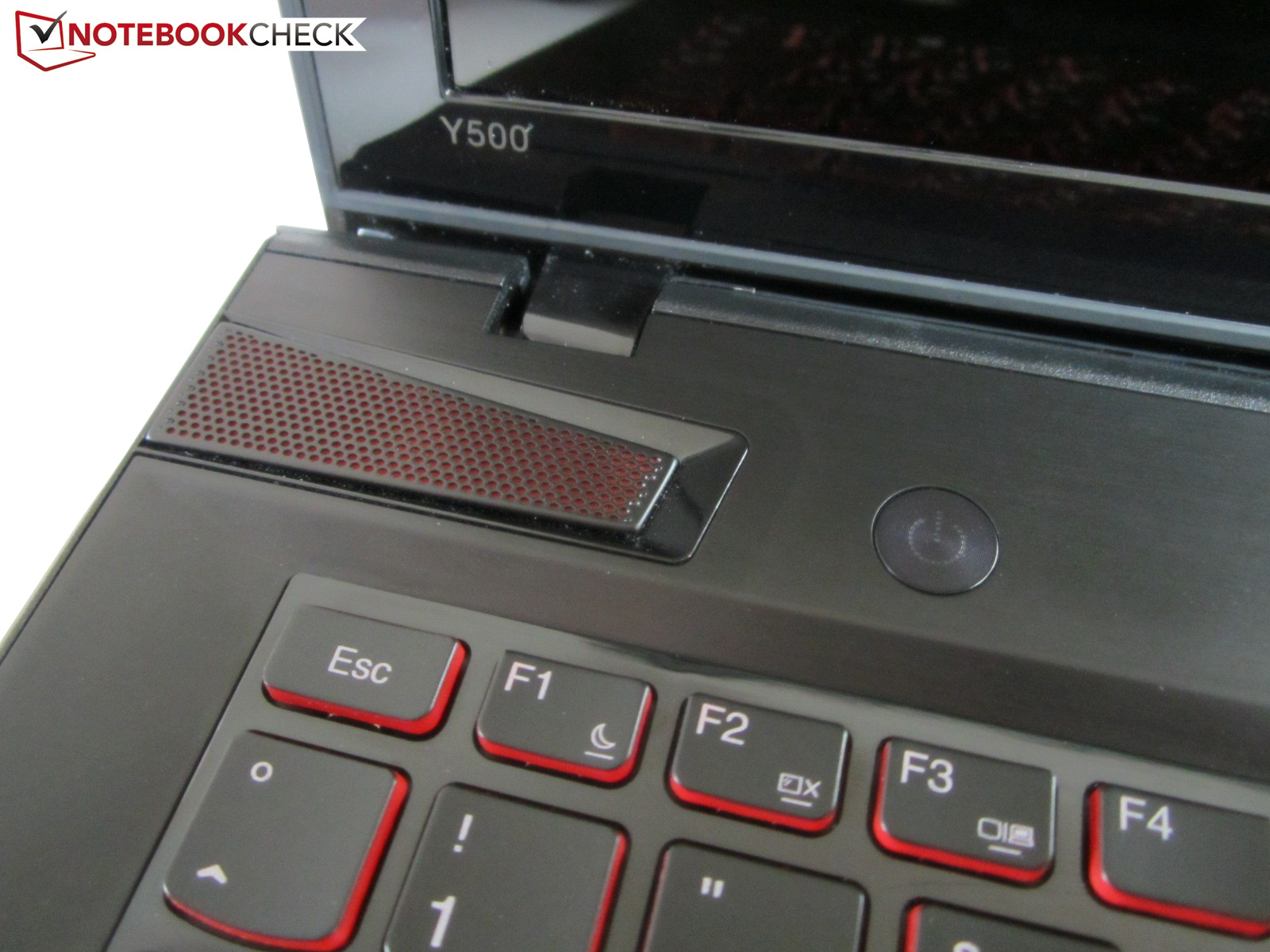

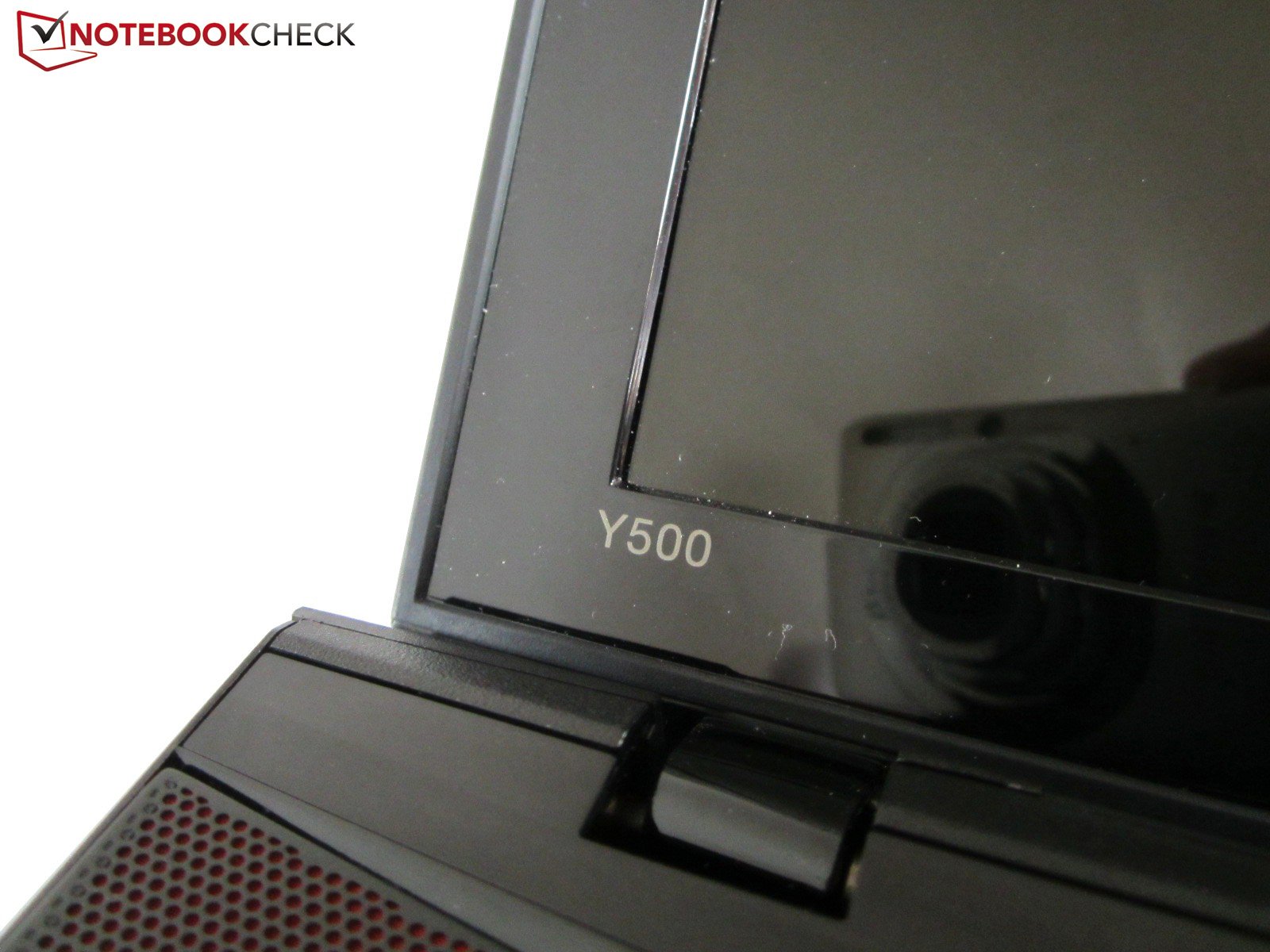

The glossy keyboard bed and display bezel is even more sensitive. Particularly the latter proves to be a real dust magnet. Fingerprints and scratches are also an issue here. The wide plastic bezel basically does not quite fit into the overall picture. It mars both the quality impression as well as the looks. Overall, the design places itself between the devices from Clevo (basic) and MSI (flashy).
Although the casing tends to yield in a few areas, such as the keyboard's left and right area, the stability is on a satisfactory to good level. Merely the touchpad yields very extremely at its sides and toward its bottom. The same applies to workmanship. The positive overall impression is marred by a few irregular material transitions.
The manufacturer earns kudos for the moderate size. With a height of almost 40 millimeters and a weight of approximately 2.9 kilograms, the 15 incher is significantly below the high-end Asus G55VW (50 mm, 3.8 kg), MSI GT60 (58 mm, 3.5 mm) and Schenker XMG P502 (51 mm, 3.2 kg), which partly calculate slower depending on the hardware configuration. The IdeaPad Y500's data sooner follow Asus' N56VZ GT 650 contender (37 mm, 2.7 kg), DevilTech's Fire DTX (38 mm, 2.6 kg) and Schenker's XMG A502 (47 mm, 2.9 kg). The laptop is also suitable for frequent transportation owing to its reasonable weight.
在一个封闭的状态看起来相当不起眼的IdeaPad Y500。深色越早基本设计不完全表示有力的硬件。只是宽通风口吹出余热向设备的目的(鼠标)手暗示。然而,制造商的野心很快变得明显,只要打开笔记本电脑。键的红色轮辋和扬声器的红色突出格栅彻头彻尾的尖叫游戏。
虽然制成的拉丝铝盖和腕托,基座完全由塑料制成。用涂抹的表面很快就会被覆盖,尽管粉嫩的,因为笔记本电脑是容易油腻的手指。
光滑的键盘床和显示屏挡板更敏感。特别是后者被证明是一个真正的灰尘磁铁。指纹和刮痕也是一个问题在这里。宽的塑料挡板基本上并不完全融入大局。火星的质量印象以及外观。总体而言,设计蓝天(基本)和微星(浮华)之间的设备。
虽然在壳体的倾向,得到在几个领域,如键盘的左侧和右侧的区域,其稳定性是令人满意的良好的水平。只是触摸板产生非常非常在其两侧和向其底部。这同样适用于做工。正面的整体印象是由几个不规则的材料过渡毁损。
制造商赢得荣誉的大小适中。随着高度几乎40毫米,重量约2.9公斤,15 incher明显低于高端的华硕G55VW(50毫米,3.8公斤),微星GT60(58毫米,3.5毫米)和辛克XMG P502(51毫米,3.2公斤),这部分计算更慢,取决于在硬件配置上。的IdeaPad Y500的的数据越快遵循华硕N56VZ GT650的竞争者(37毫米,2.7公斤),DevilTech的消防DTX(38毫米,2.6公斤)和辛克XMG A502(47毫米,2.9公斤)的。笔记本电脑也适用于交通频繁,由于其合理的重量。
Connectivity
Interfaces

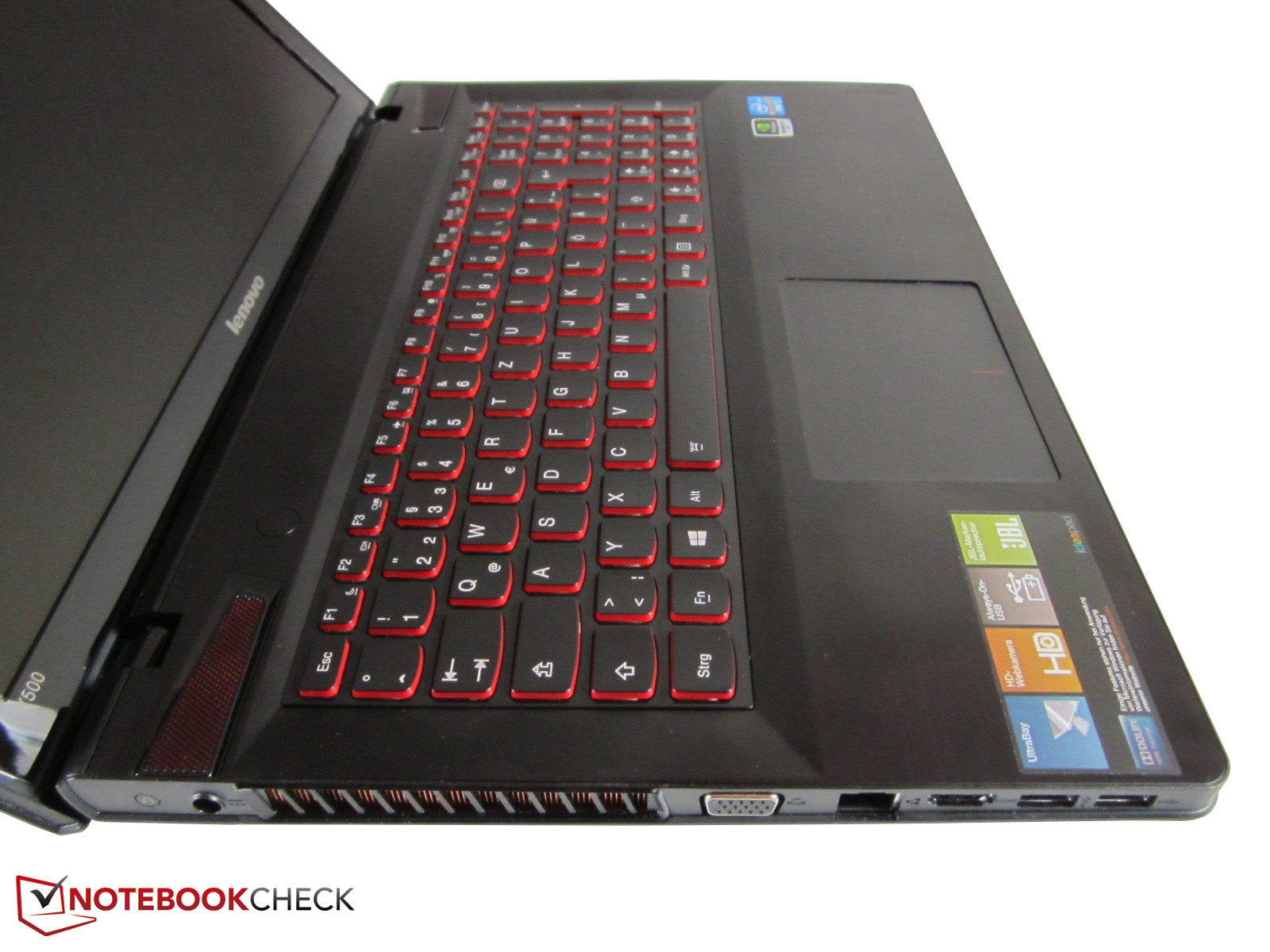

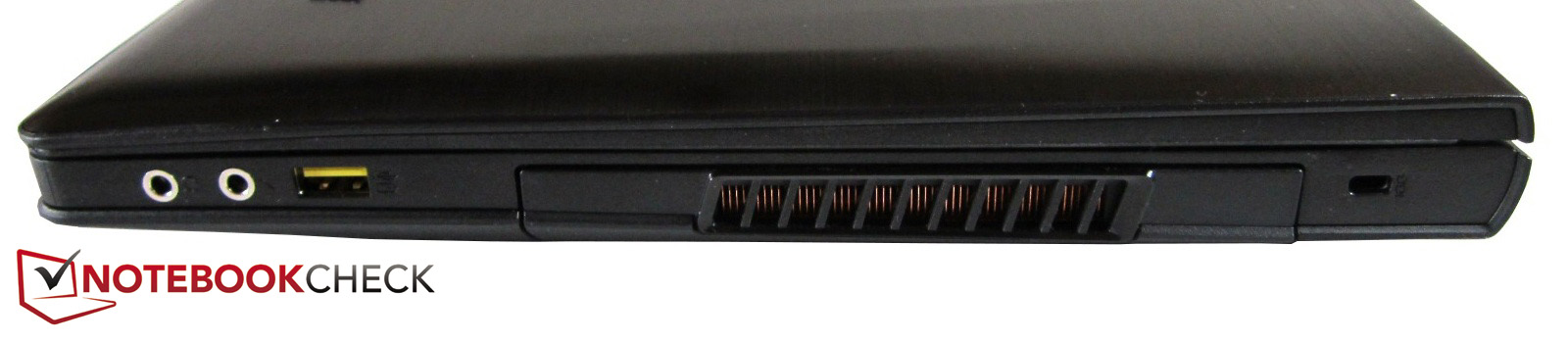

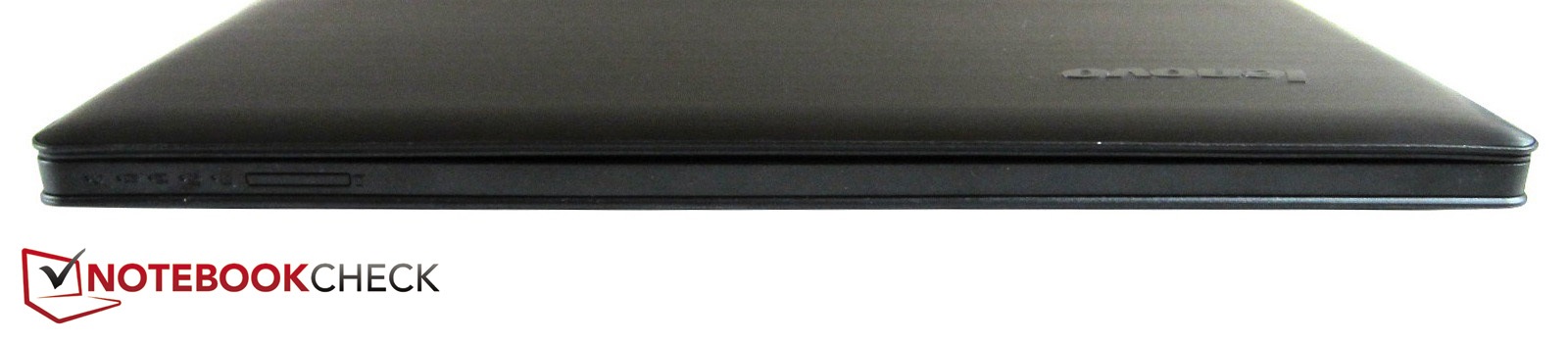

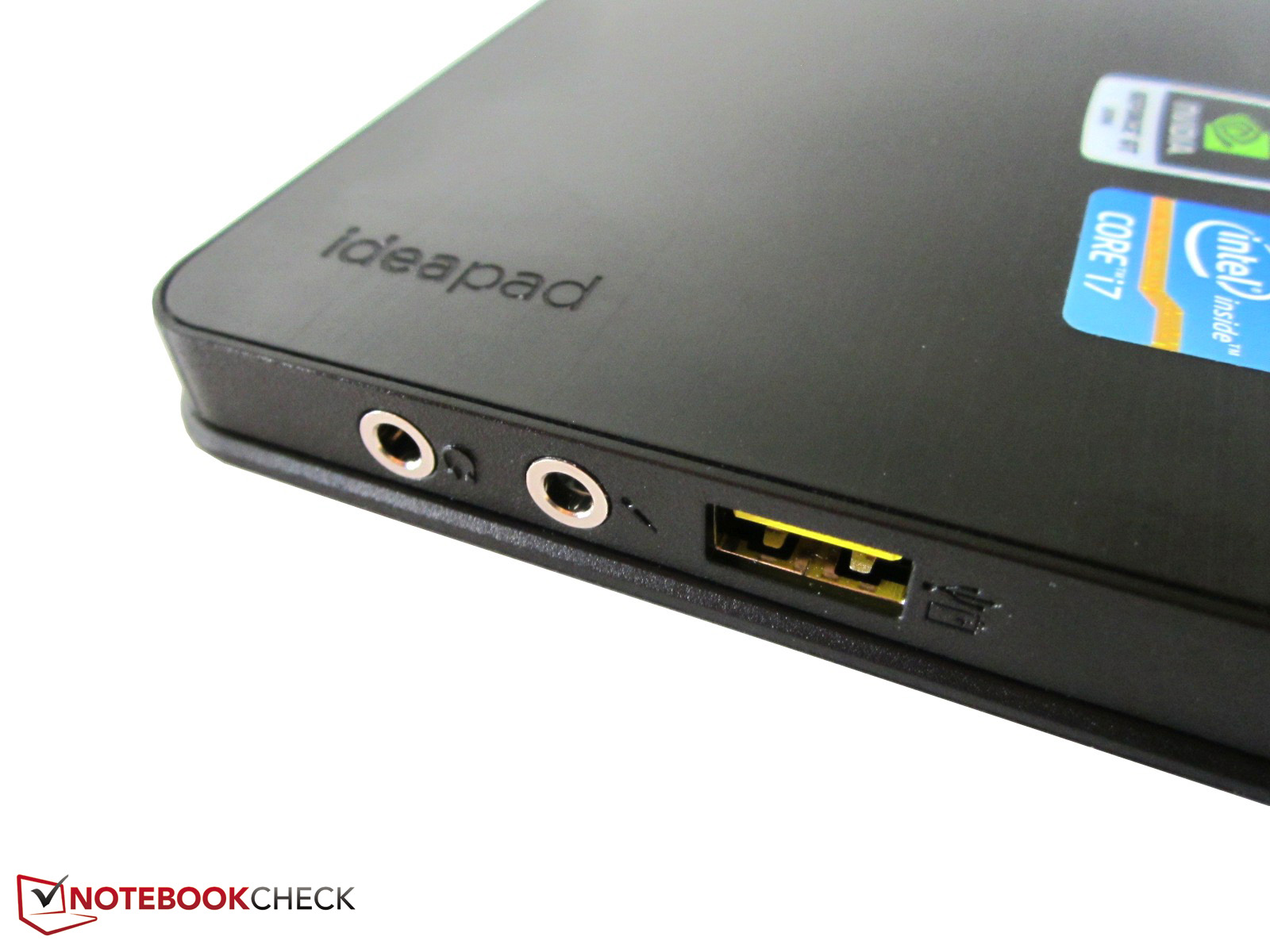

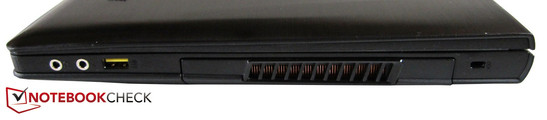

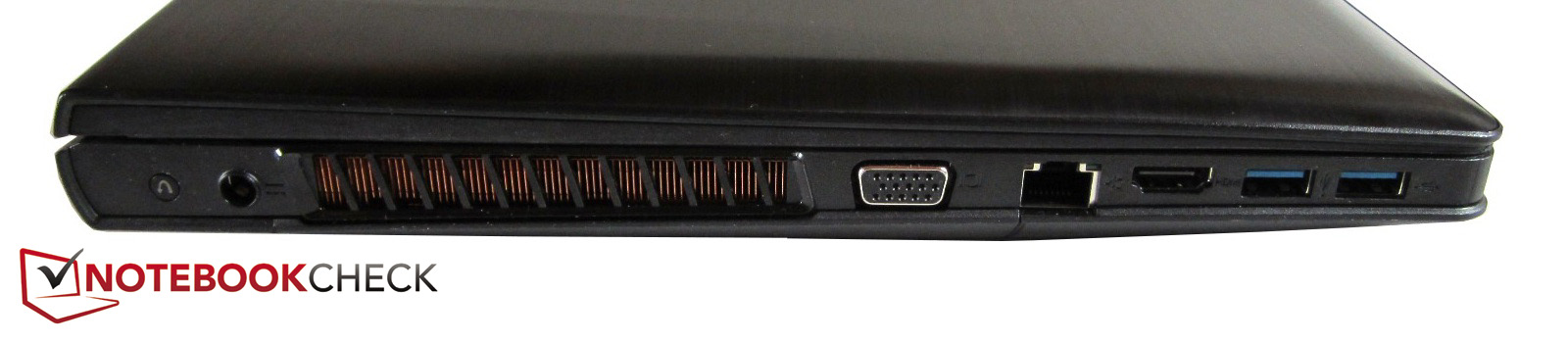

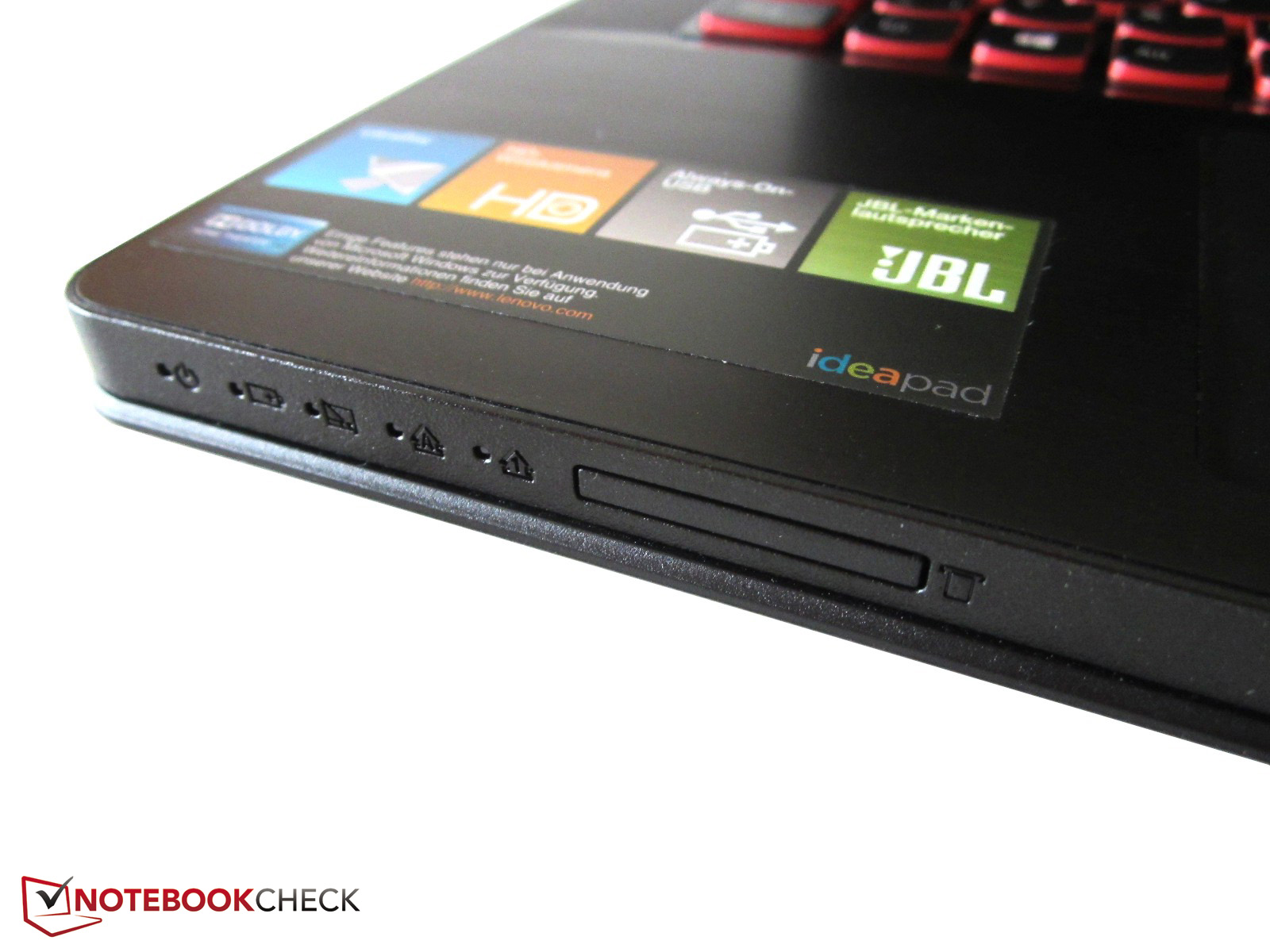

Most interfaces are on the laptop's front half because of the unfavorably placed vents. The laptop only achieves "satisfactory" in this category since Lenovo omits a FireWire or eSATA port as well as a DisplayPort.

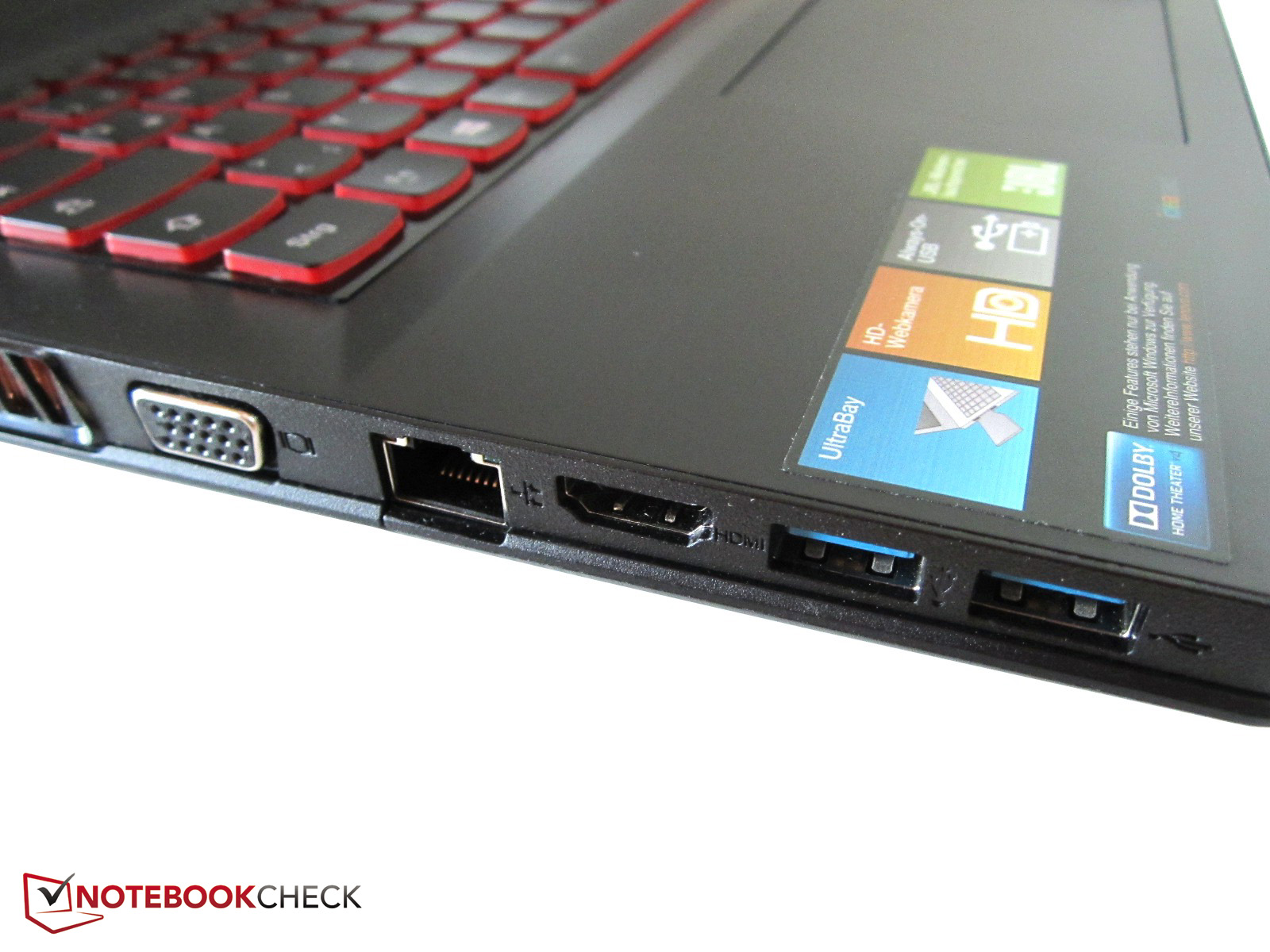

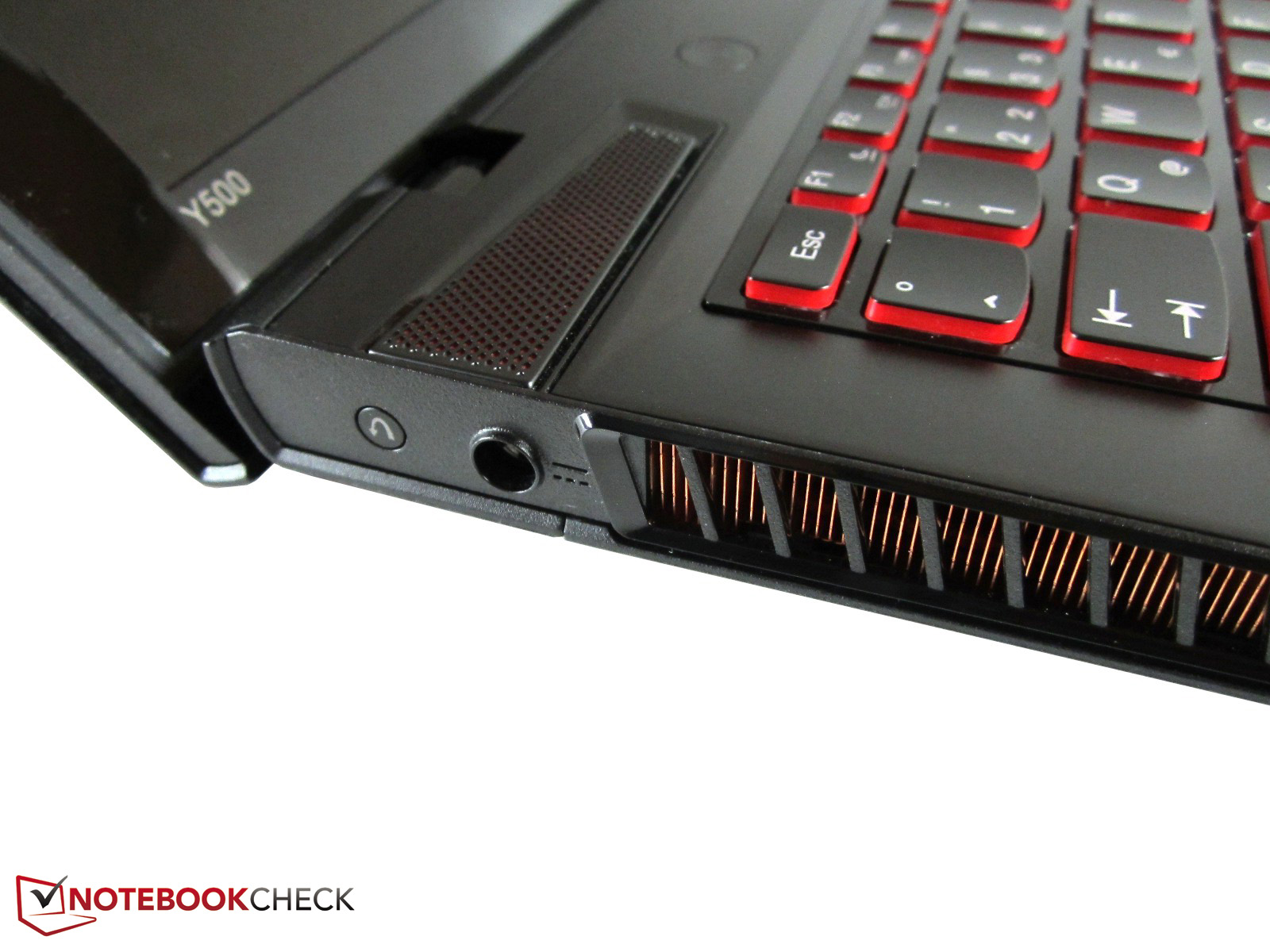

Two audio jacks (in + out) and a RJ45 Gigabit LAN port should be included in a gaming laptop just like a VGA and HDMI socket. Two of the three USB ports support the latest 3.0 standard. The 15 incher can optionally be secured against theft via the Kensington lock. According to the homepage, the card reader on the casing's front detects SD, SD Pro, MMC, MS, MS Pro and xD formats.
Wireless Communication

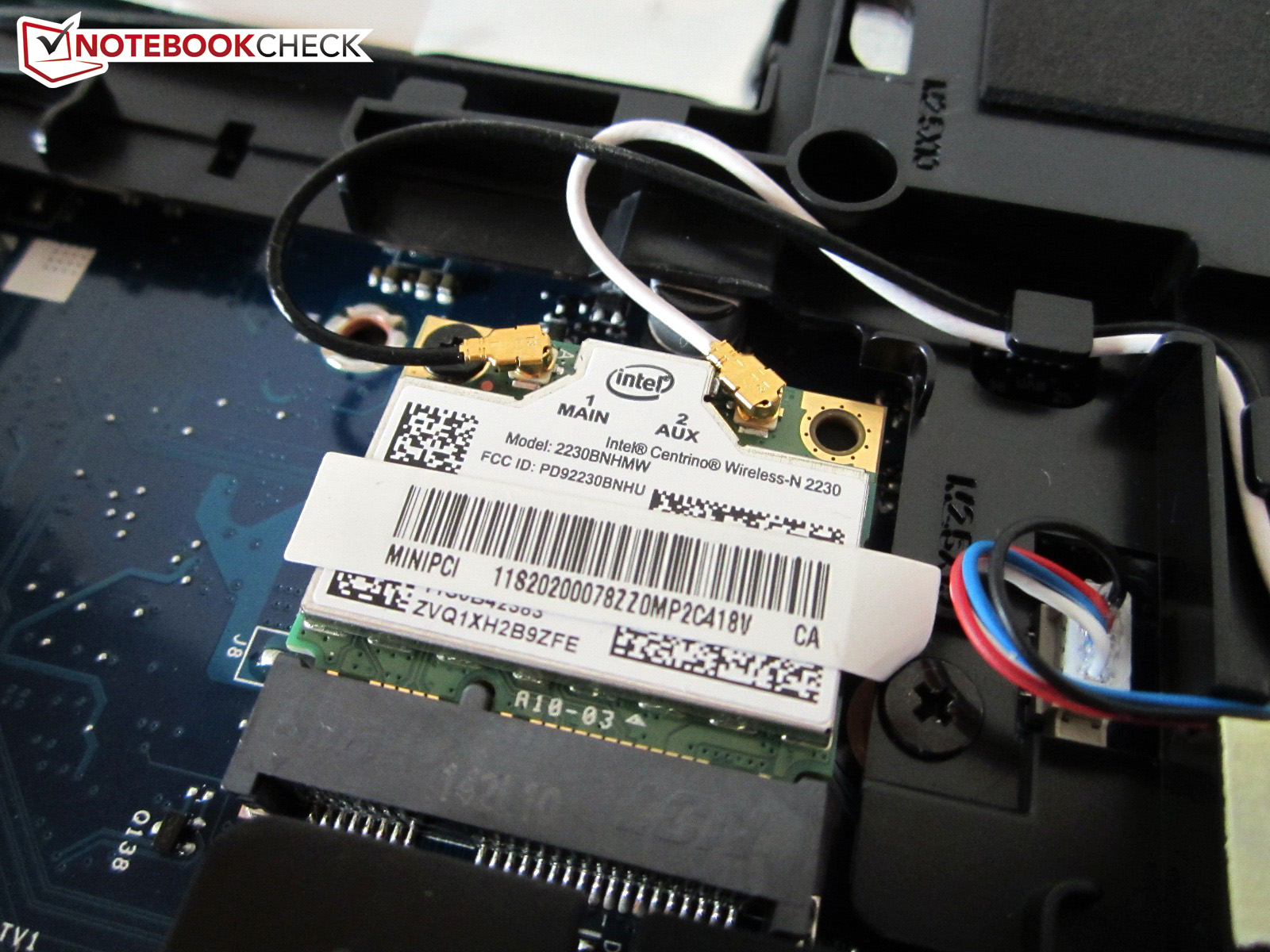

As expected, an Intel module is used for wireless communication. The Centrino Wireless N-2230 is installed in many devices due to its decent performance. Besides Wi-Fi 802.11 b/g/n, Bluetooth 4.0 is also available. Data is transmitted with a maximum speed of 300 Mbit/s (2.4 GHz). The device does not support 5.0 GHz. The transmission range was satisfactory in the test.
接口
大多数接口是笔记本电脑的前半部分,因为处于弱势位置的通风口。笔记本电脑只达到此类别中的“满意”,因为联想省略了FireWire或eSATA端口以及一个DisplayPort的。
应包括两个音频插孔,(输入+输出),1个RJ45千兆LAN端口,在游戏就像一个VGA和HDMI接口的笔记本电脑。两三个USB端口支持最新的3.0标准。 15 incher可以有选择地通过Kensington锁防盗抵押。根据主页外壳的前检测,读卡器,SD Pro的SD,MMC,MS,MS PRO和xD格式。
无线通信
正如预期的那样,英特尔模块被用于无线通信。迅驰无线N-2230是安装在许多设备由于其不俗的表现。除了的Wi-Fi的802.11 B / G/ N,蓝牙4.0也是可用的。数据传输的最大速度为300兆位/秒(2.4千兆赫)。该设备不支持5.0 GHz的。在测试中的传输范围是令人满意的。
Maintenance
The maintenance option left us with mixed feelings. We will start with the positive aspects. The manufacturer has done a good job with the UltraBay's release mechanism (illustrated on a sticker on the bottom). The user merely has to bring the release lever in the right position and firmly push the button in the vent's center after removing the battery. The module can then be easily removed (see picture gallery on the right). The drive automatically clicks in when the drive is inserted.

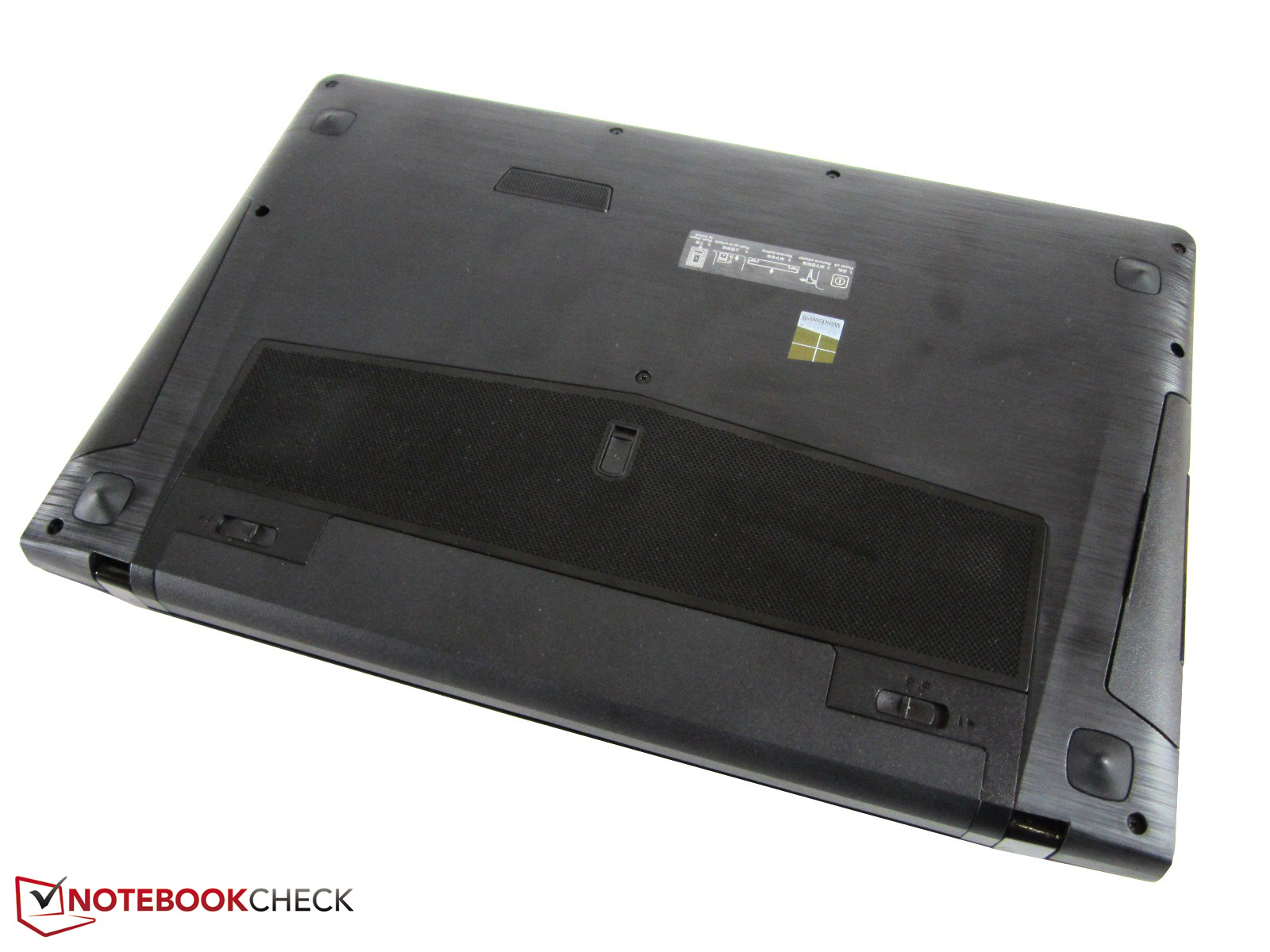

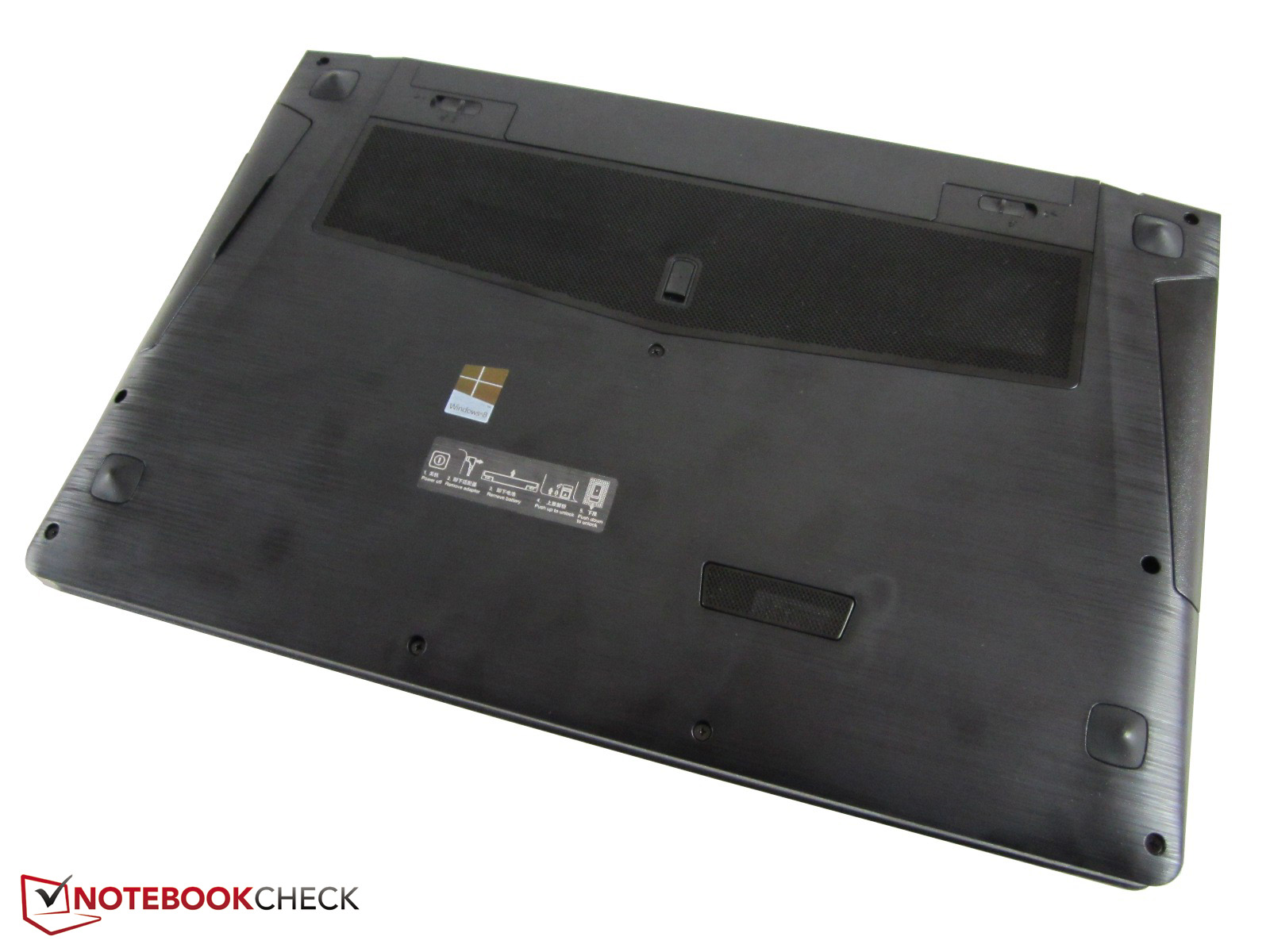

Removing the base tray is rather awkward. Lenovo secures the bottom with a total of nine Phillips screws. The big maintenance cover can only be removed with quite a bit of effort. The user should take care to prevent damaging anything.

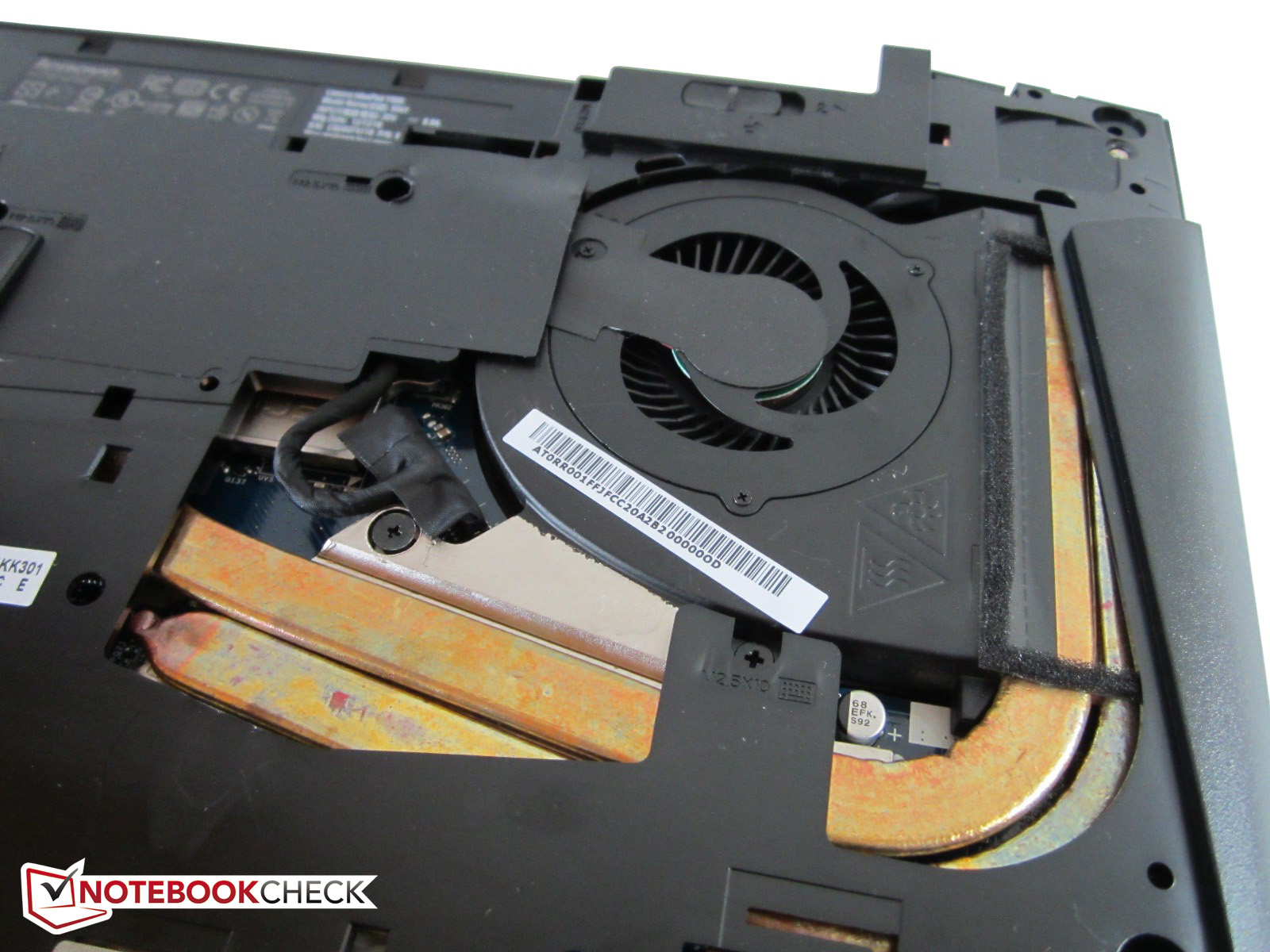

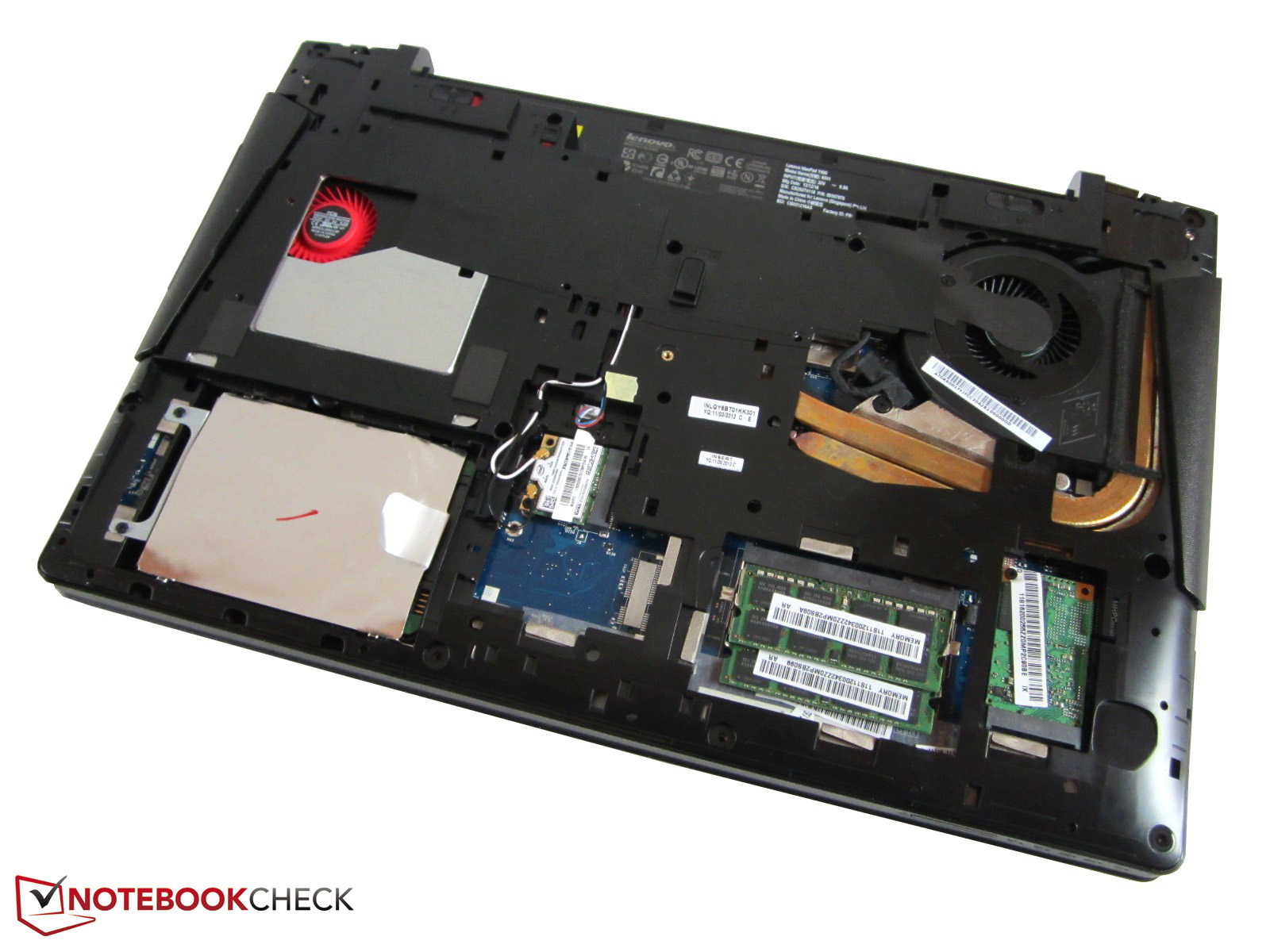

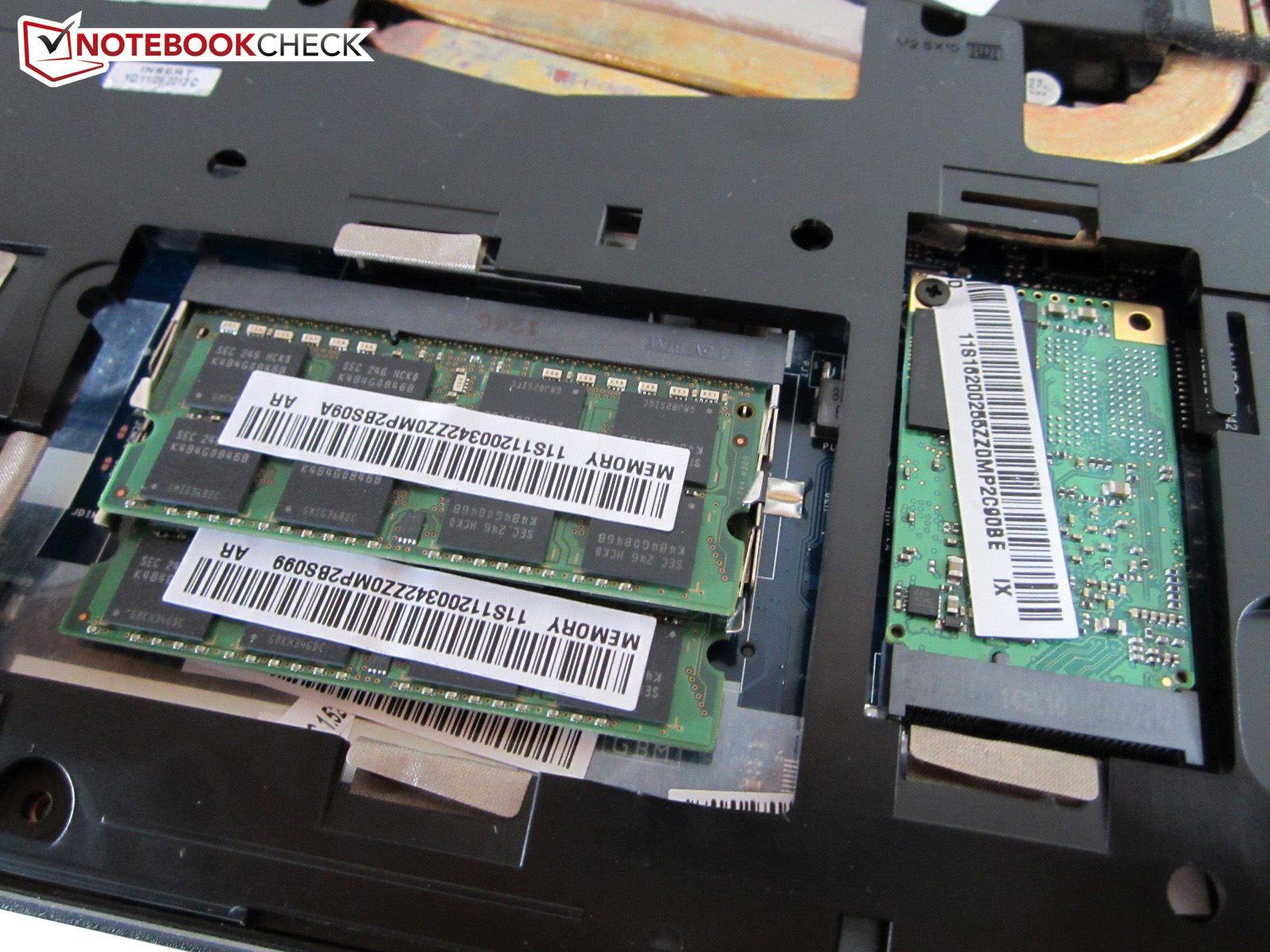

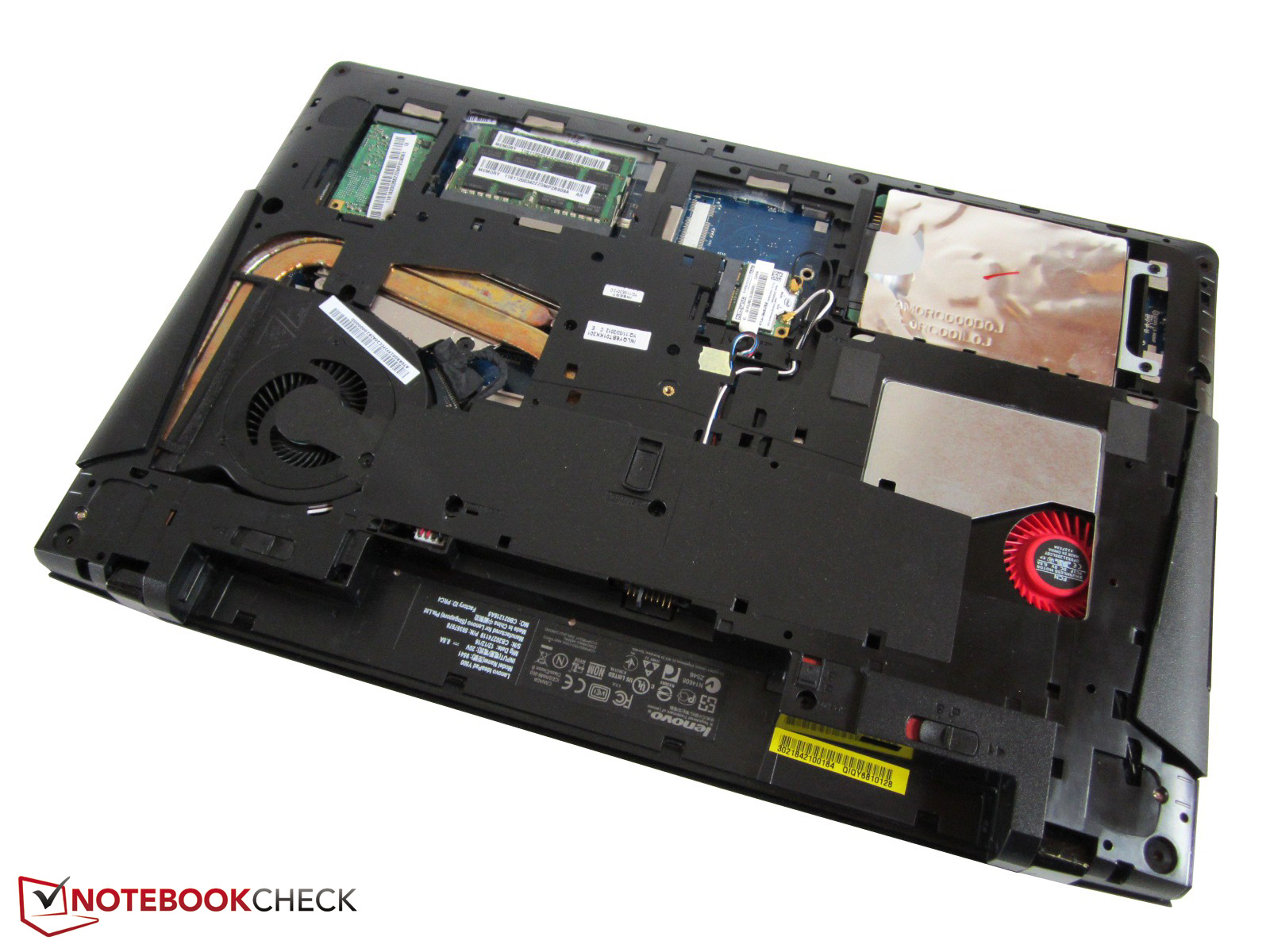

Regardless of the base unit's build, almost all components can be accessed under the hood. Unlike the hard disk, working memory and wireless module, the fan and CPU/GPU cooling components regrettably cannot be removed. The IdeaPad Y580 is similar. Users who would like full control over the innards should preferably take a device form Clevo or MSI (e.g. Schenker's XMG A522 or DevilTech's Devil 6700).
保养
“维护”选项给我们留下了百感交集。我们将开始积极的方面。制造商已经做得不错的Ultrabay释放机制(图底部贴纸上)。用户只需在正确的位置,并牢牢按下按钮取下电池后发泄的中心带来的释放杆。然后,该模块可以很容易地删除(见图片库在右边)。插入驱动器时,驱动器自动点击。
取出底盘是相当尴尬。联想共9个十字螺丝固定底部。大保养盖只能去除相当的努力。用户应注意避免破坏任何东西。
无论基本单元的生成,发动机罩下的几乎所有组件都可以访问。不同于硬盘,工作记忆和无线模块,风扇和CPU / GPU的冷却部件,很可惜不能被删除。的IdeaPad Y580是相似的。用户想完全控制内脏最好的设备形式蓝天或MSI(如Schenker的XMG A522或者DevilTech的的魔鬼6700)。

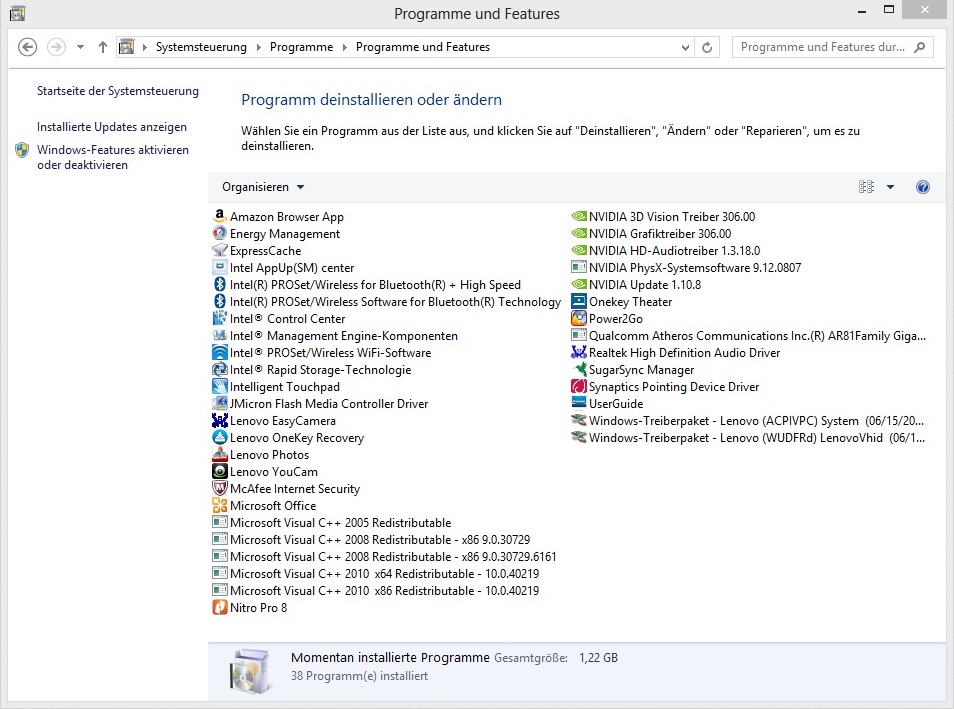

As can be seen on the right screenshot, Lenovo installs a lot of software on the laptop. Besides useless bloatware, the hard disk also sports a few convenient programs, such as OneKey Recovery for backing up or recovering the operating system (this is also possible with Windows 8 restore function). The accessories do not include a full version of the recovery DVD. Lenovo stores the drivers on a small 25 GB partition.
在右边的截图可以看出,联想在笔记本电脑上安装了很多软件。除了没用的英国媒体报道,硬盘也炫耀了几个方便的程序,如“一键恢复备份或恢复操作系统(这也是可能的还原功能与Windows 8)。配件不包括恢复DVD完整版的。联想存储驱动程序,在一个小的25 GB的分区。
Accessories

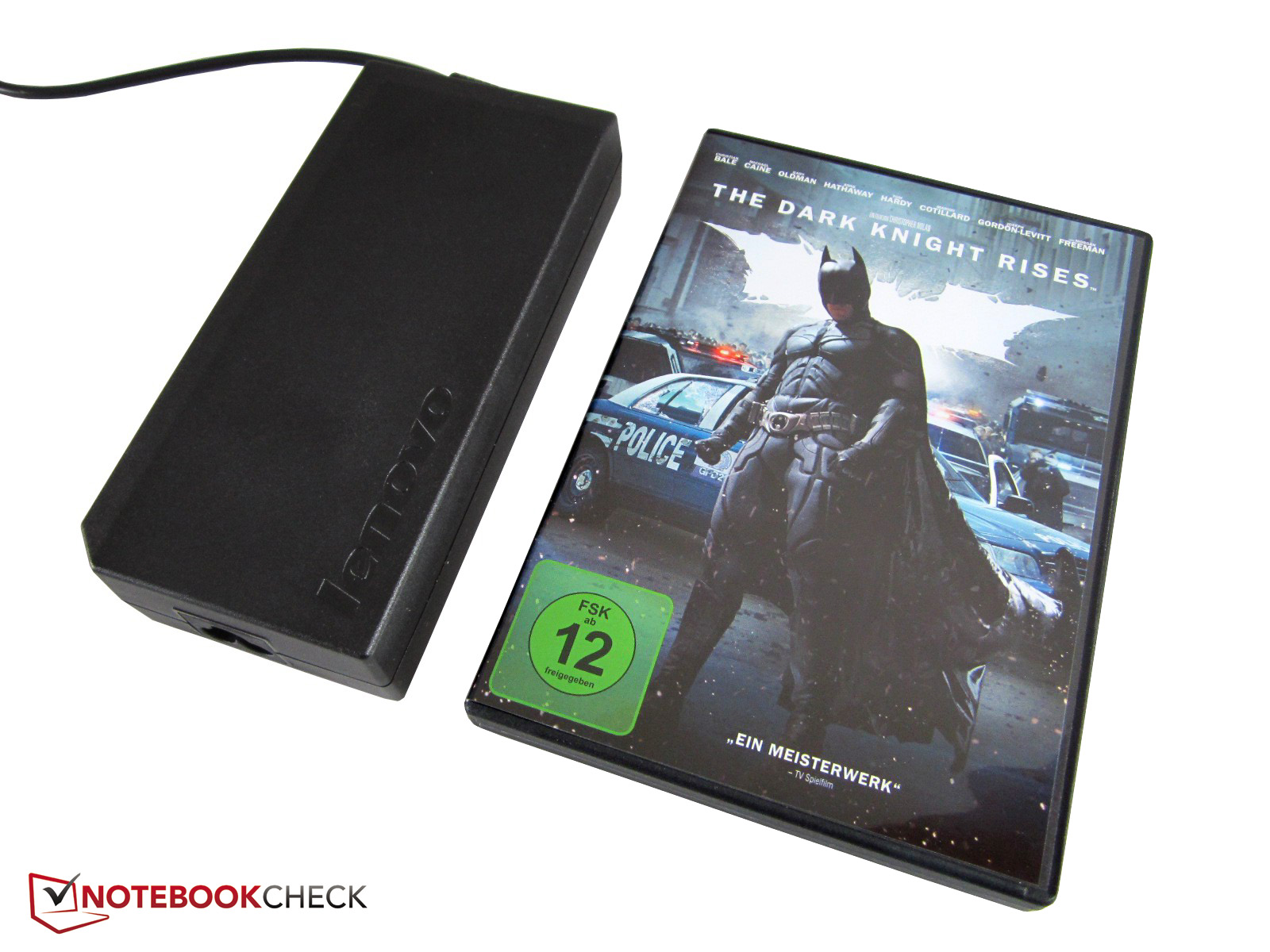

The IdeaPad Y500 does not come with many accessories. The manufacturer limits itself to a 168 x 78 x 35 millimeter 170 watt power supply unit (675 grams), a 27 centimeter long 6 cell battery (323 grams) and several information leaflets.
Warranty
The 24 month warranty is industry standard. Various upgrades are available for a surcharge. An on-site service and accidental damage protection are listed on the homepage among others.
饰品

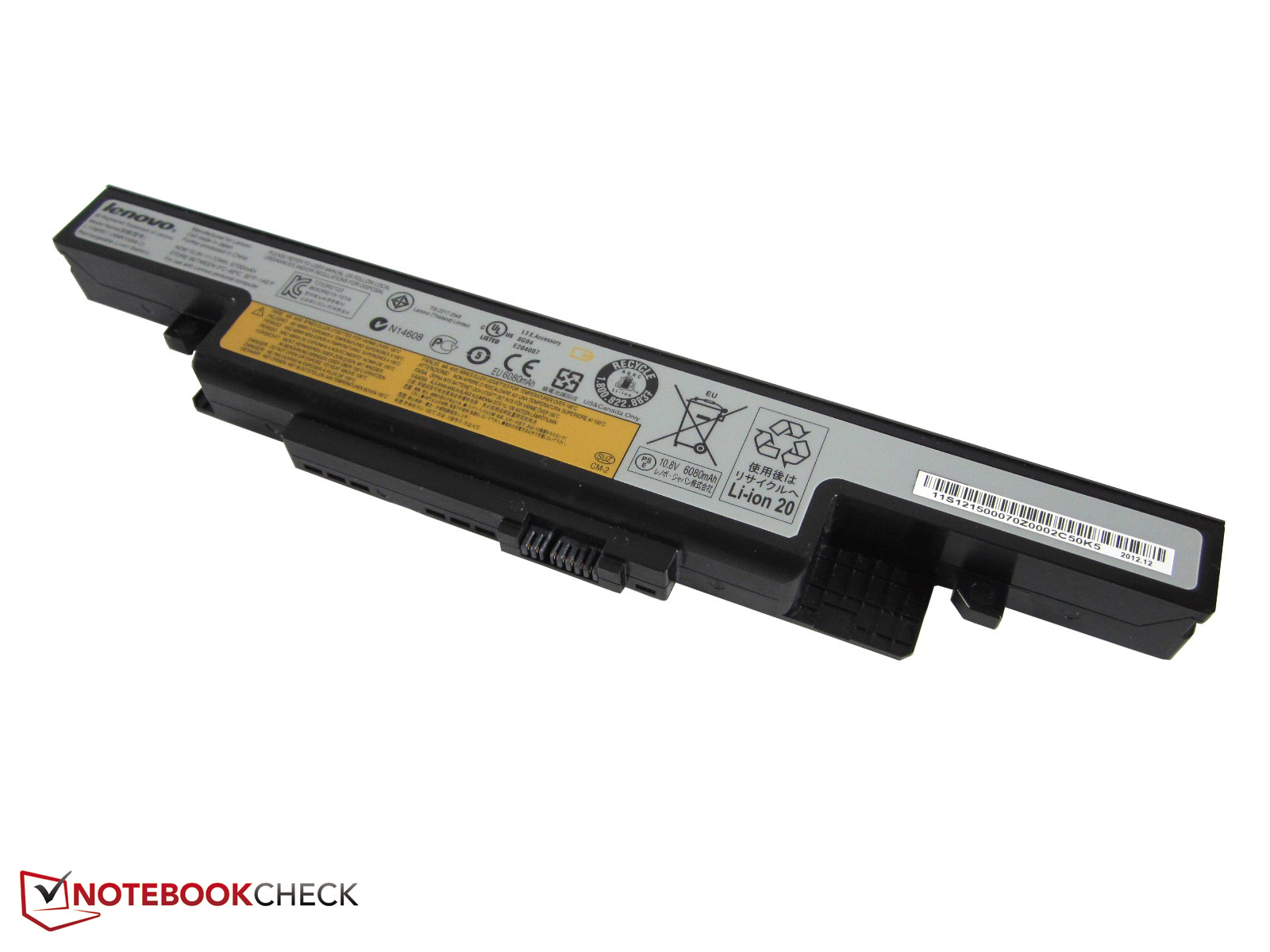

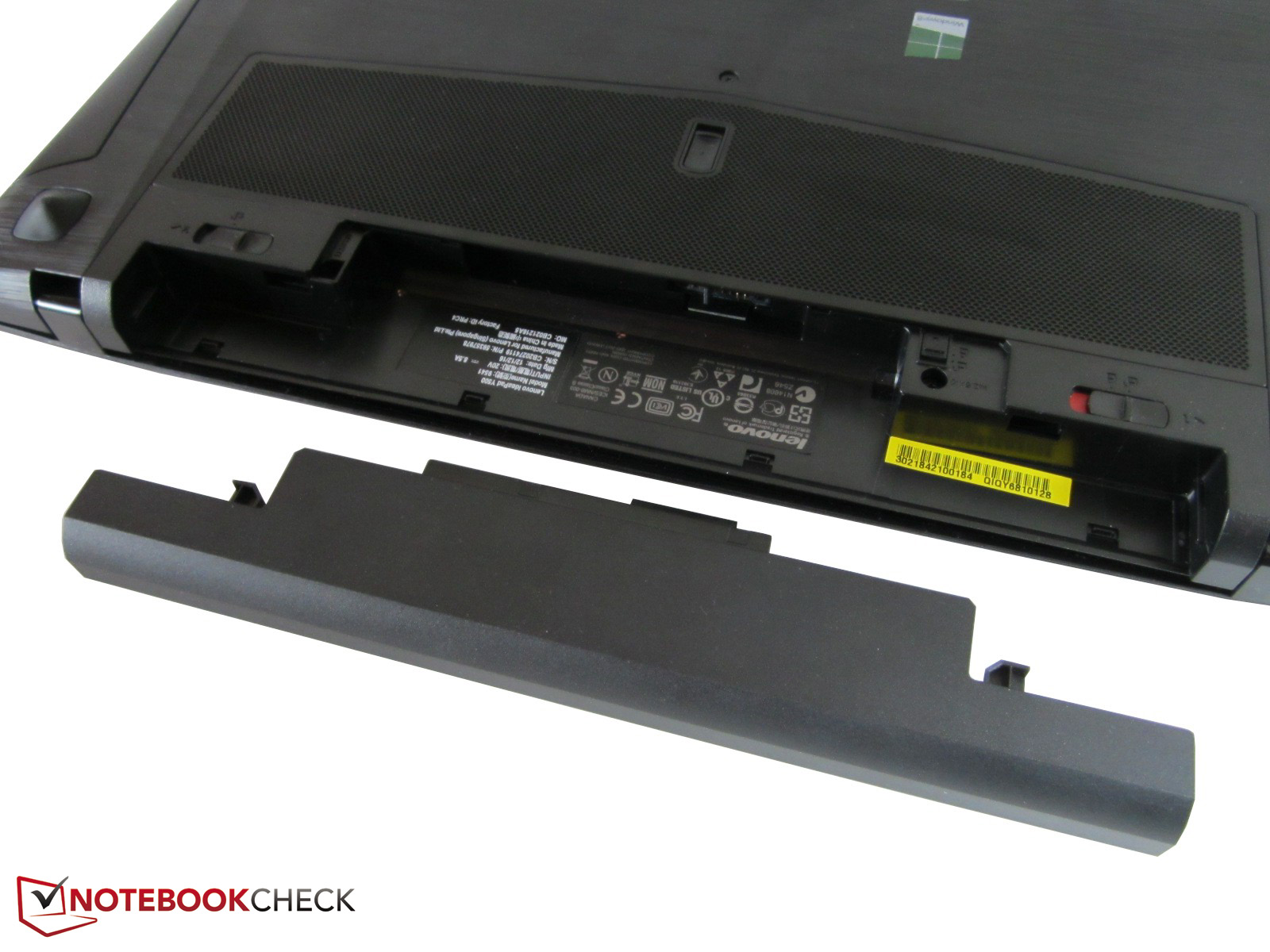

与许多配件的IdeaPad Y500不来。制造商限制168×78×35毫米170瓦的电源供应器(675克),一个27厘米长的6芯电池(323克)和一些资料单张。
保
24个月的保修期是行业标准。各种可升级,费用另计。现场服务和意外损坏保护列在主页上等等。
Input Devices

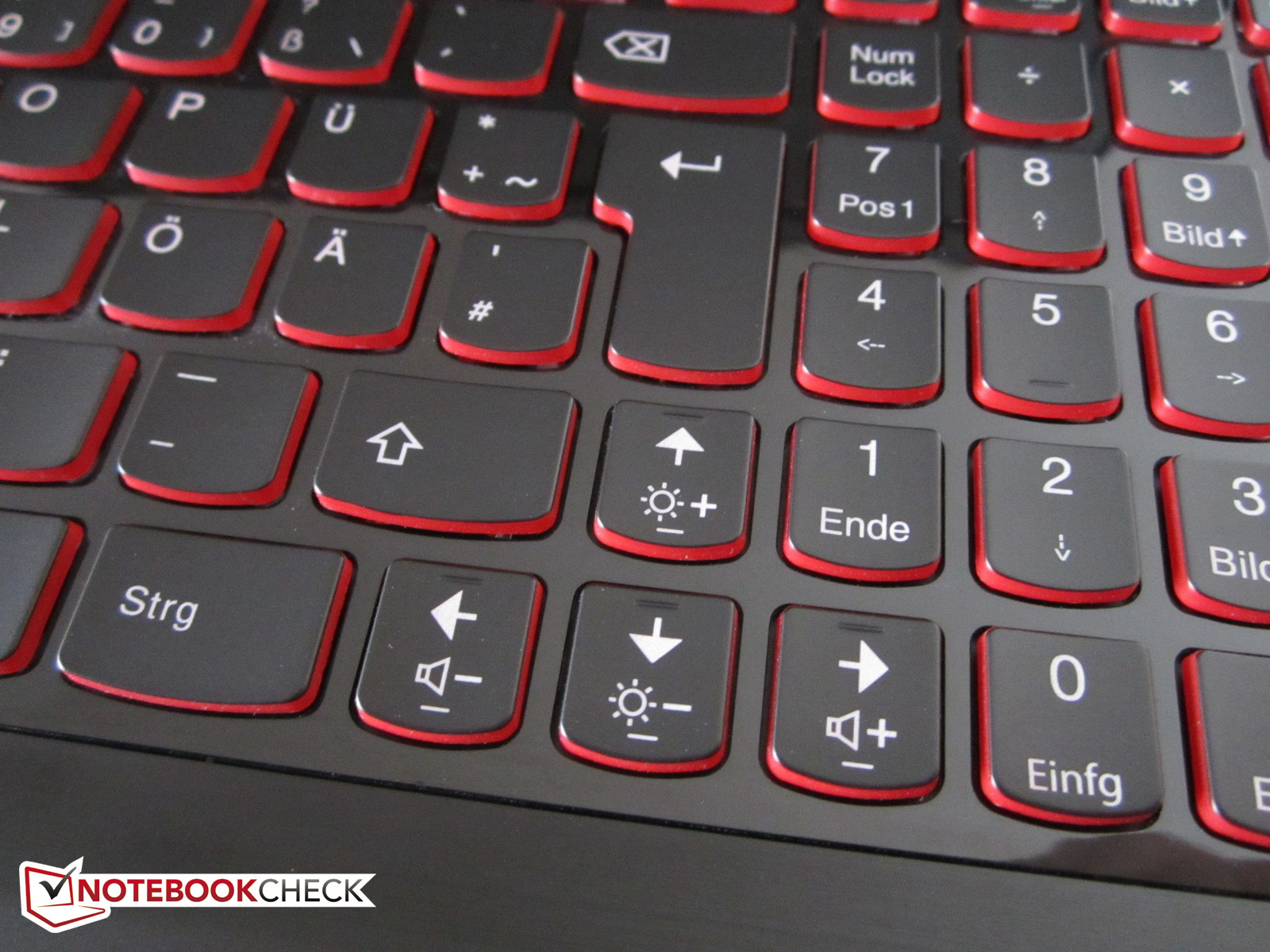

Keyboard

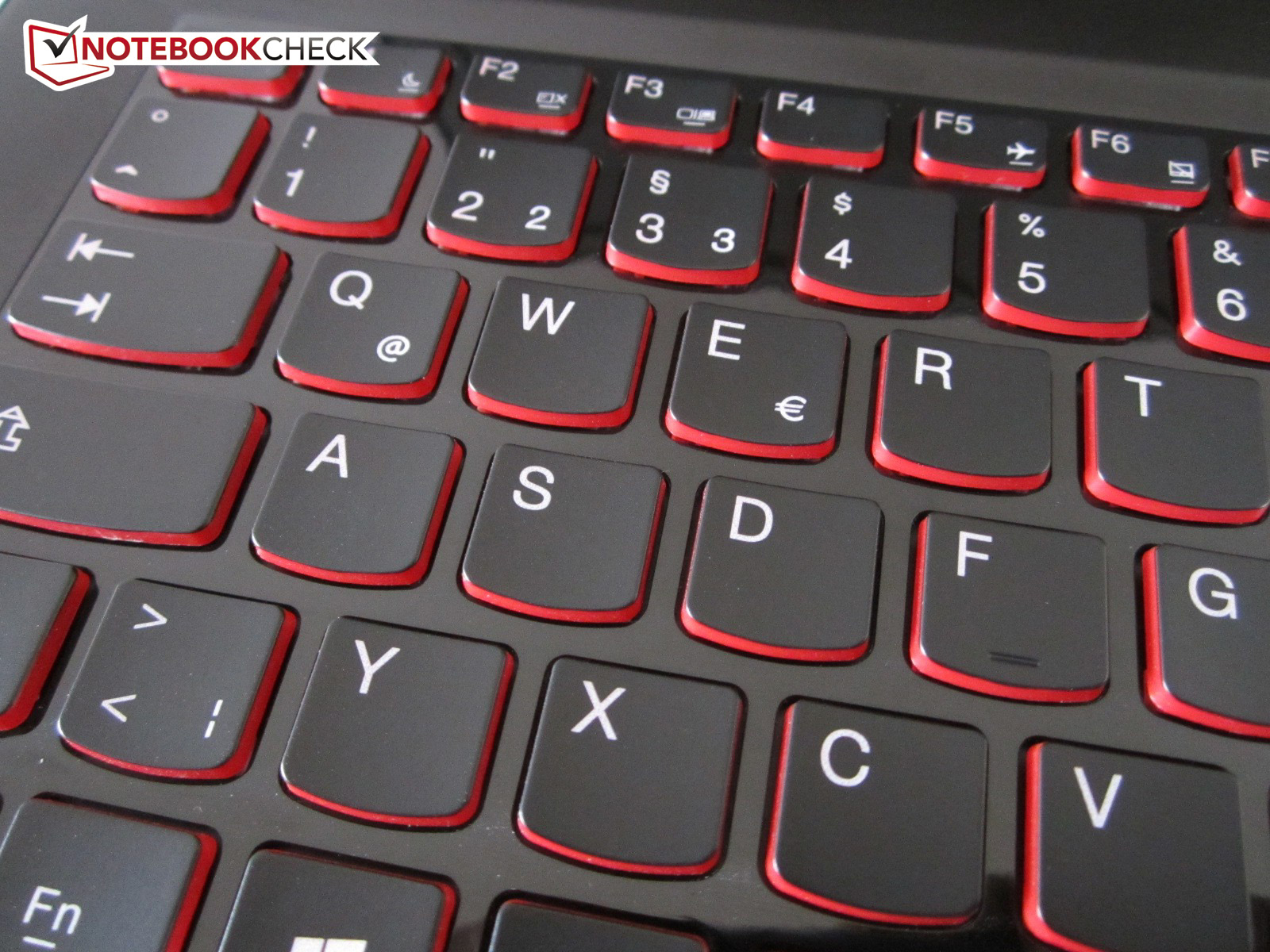

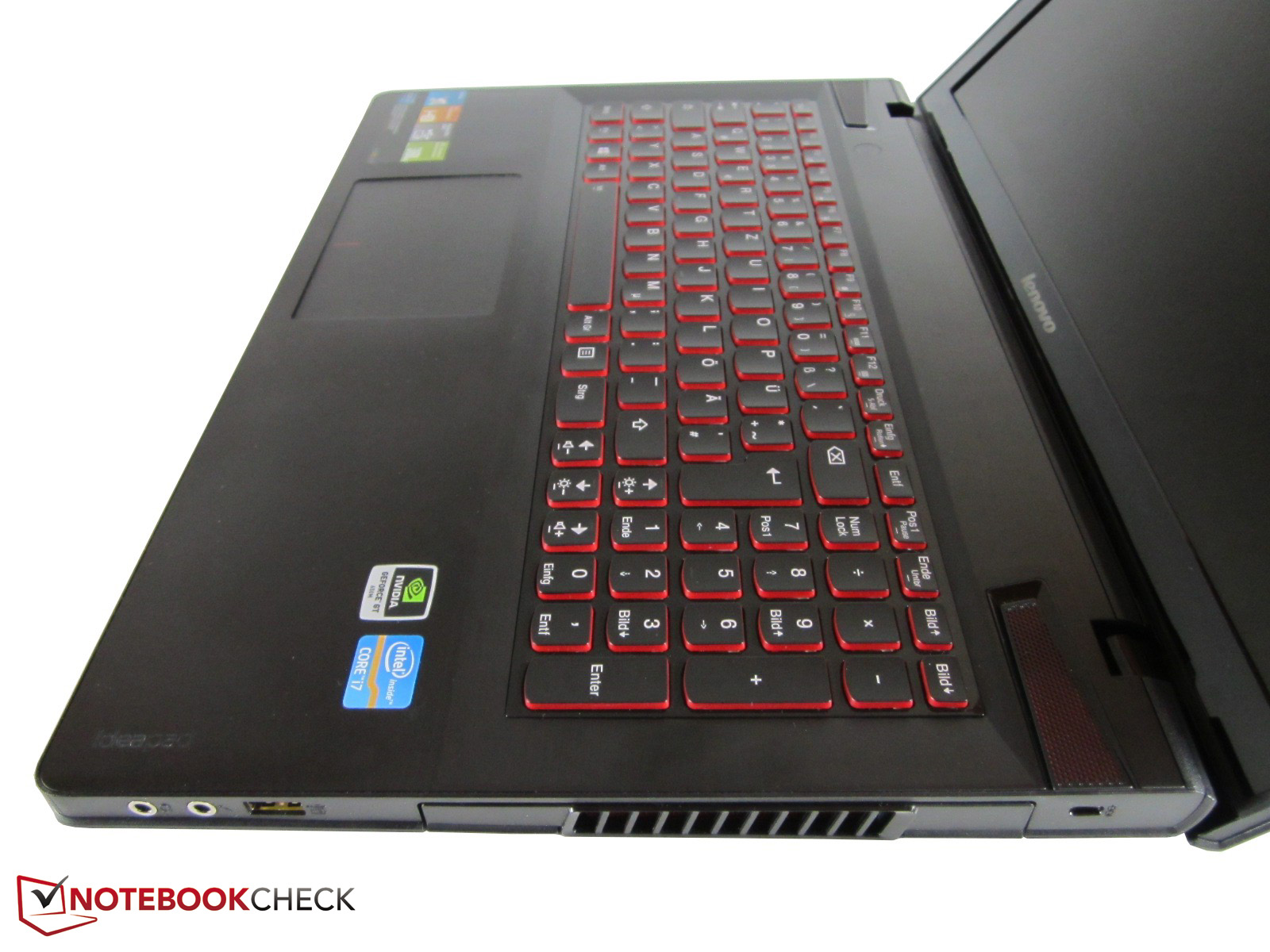

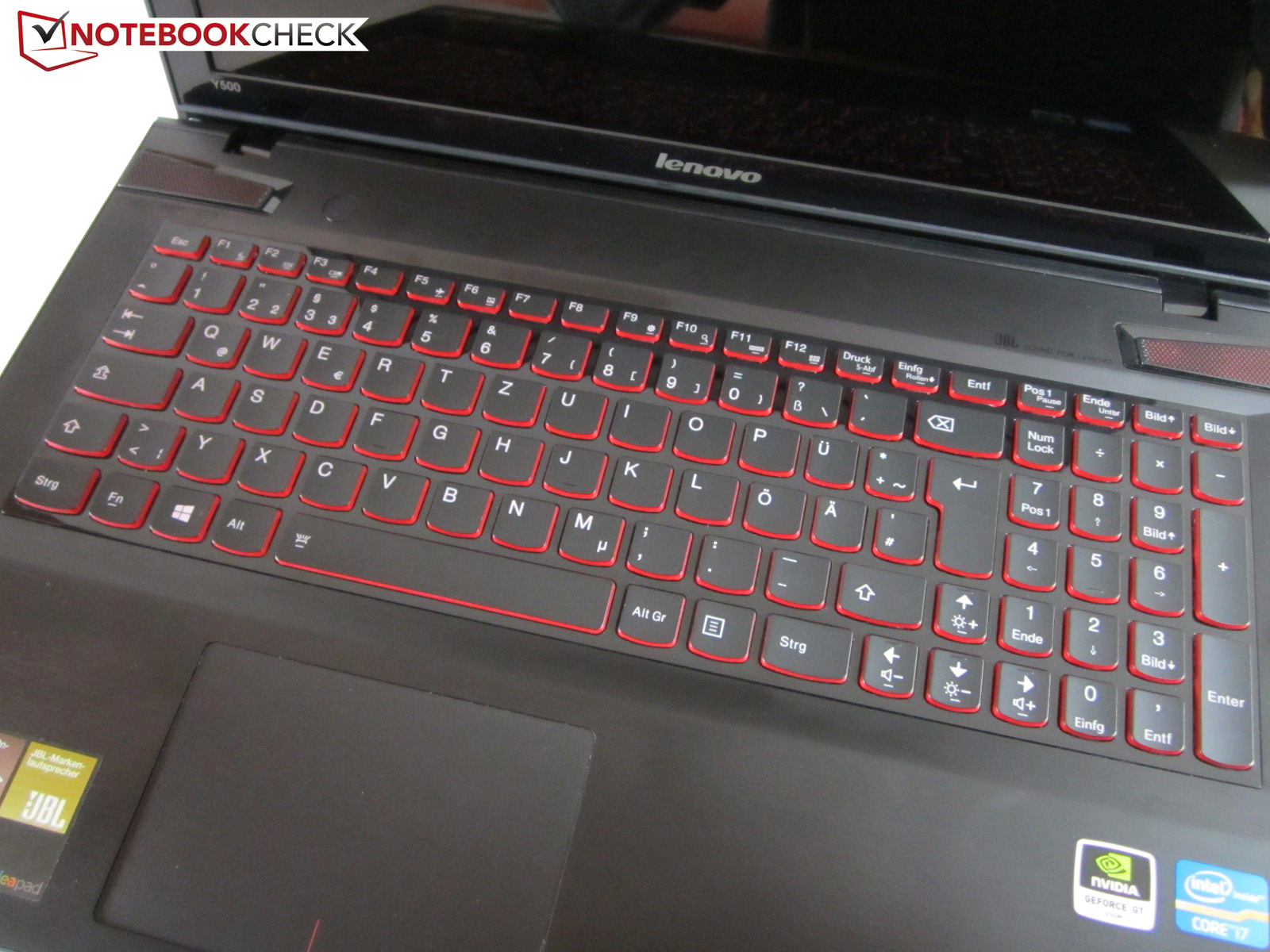

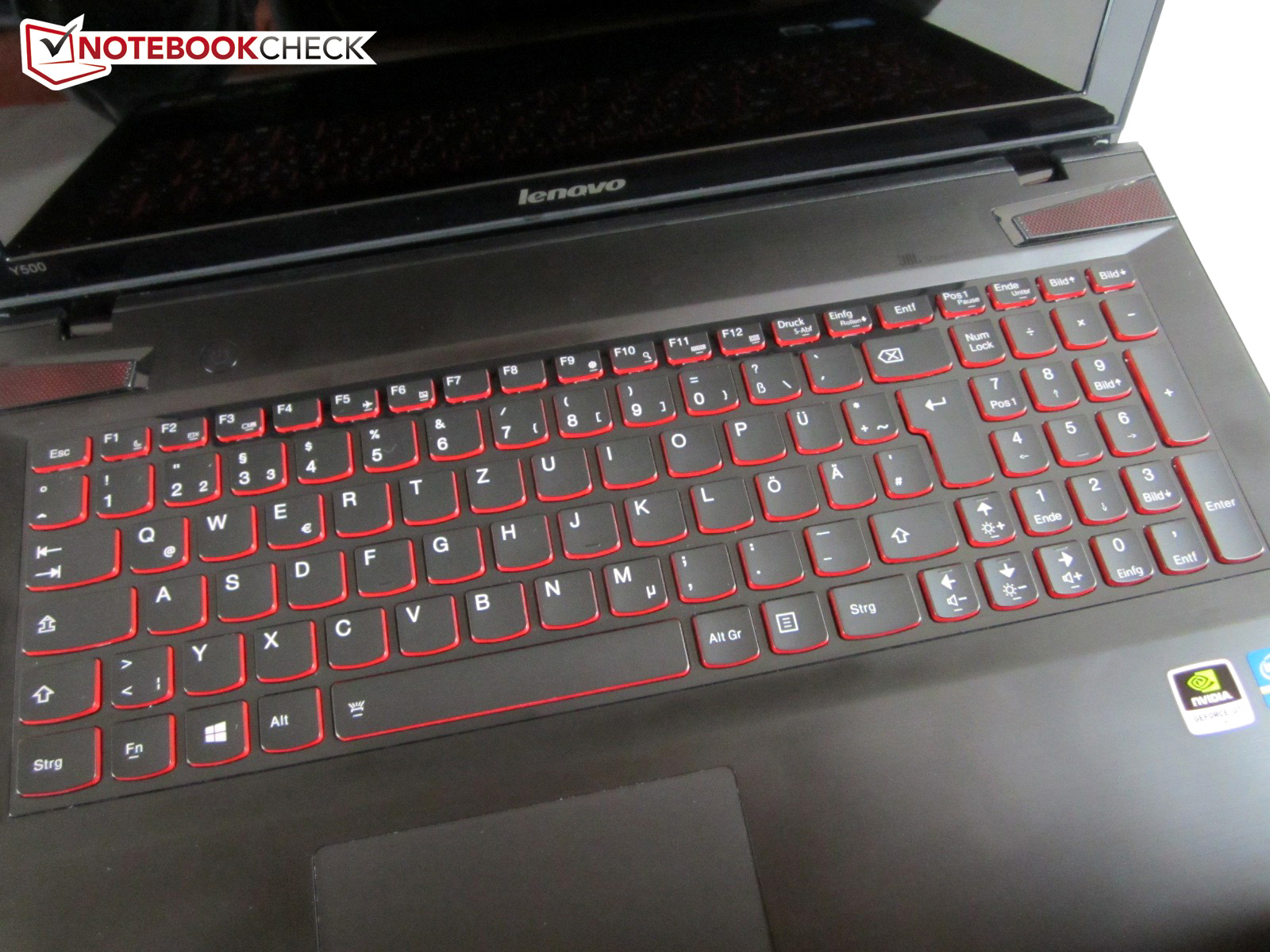

Lenovo dubs the backlit chiclet keyboard AccuType. The characteristic curve at the keys' lower edge needs some familiarization, but typing on the keyboard works flawlessly after a few hours. Not only the separate number pad and good layout struck us in the test, but the clever distribution of the FN functions. Like in MSI's devices, the brightness and volume control are on the full-sized arrow keys. However, Lenovo halved the size of the right shift key and "0" on the number pad.
We found the F row's mapping particularly nifty. The FN + F9 key combo opens Windows 8's Charm Bar, FN + F10 trigger the search function and FN + F12 prompt the installed apps. Lenovo spares the user from needless clicking and/or looking up the corresponding Windows commands.
The key size of 14.5 x 14.5 millimeters is fully sufficient and remains without reproach. The key spacing is less than four millimeters. However, as promising as all that sounds, the typing feel is a bit spongy. The pressure point and stroke do not give an outstanding performance. Compared with other keyboard units, the input device does not seem particularly defined. A partly cheap-sounding typing noise and moderate stability add to that. The free-standing keys at the corners can be lifted evidently.
The two-stage lighting, which unfortunately does not feature color modification, nevertheless helps the Y500 to a good input rating. Users without an especially high requirement on the keyboard will be satisfied.
键盘
联想配音AccuType背光巧克力键盘。键的下部边缘的特性曲线需要一定的熟悉,但完美的作品了几个小时后,在键盘上打字。不仅有独立的数字小键盘,良好的布局发生我们在测试中,但FN功能巧妙地分布。喜欢在微星的设备,亮度和音量控制是全尺寸的箭头键。然而,联想右shift键和数字键盘上的“0”的大小减半。
我们发现的F行的映射,特别是漂亮的。 FN F9组合键打开Windows 8的魅力酒吧,FN F10触发的搜索功能和FN F12提示安装的应用程序。联想免去了用户不必要的点击和/或寻找相应的Windows命令。
密钥大小为14.5 x14.5毫米,是完全足够了,仍然没有责备。键间距小于四毫米。然而,由于前途的,因为所有的声音,打字的感觉是有点海绵。压力点和中风不放弃的出色表现。与其他的键盘单元相比,输入装置似乎并没有特别规定。部分便宜的冠冕堂皇的打字噪音和适度的稳定增加。显然,在拐角处的自由站立的键可以解除。
然而,两个舞台灯光,遗憾的是没有配备修饰肤色,有助于良好的输入评级Y500。用户在键盘上没有特别高的要求将得到满足。
Touchpad

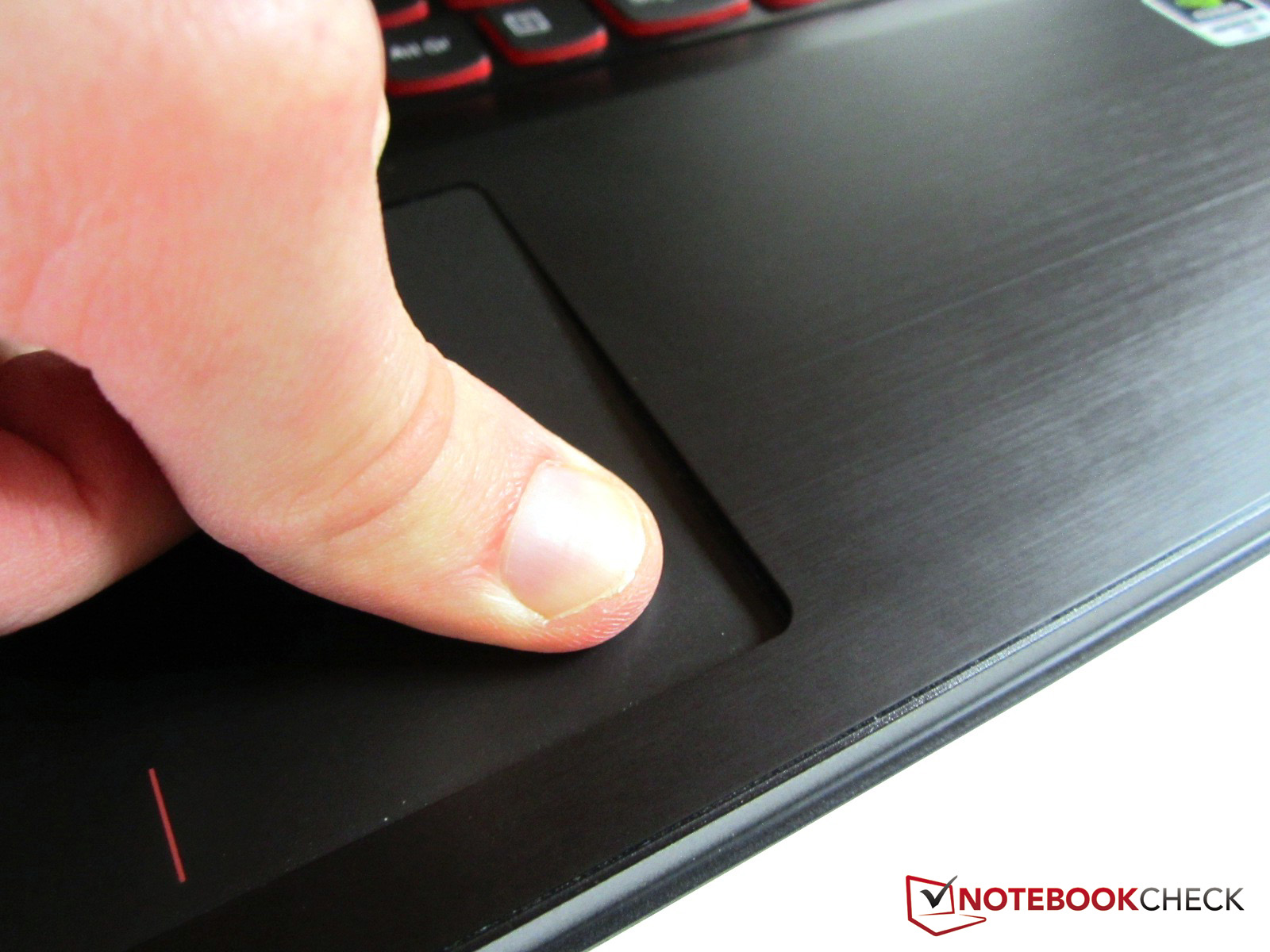

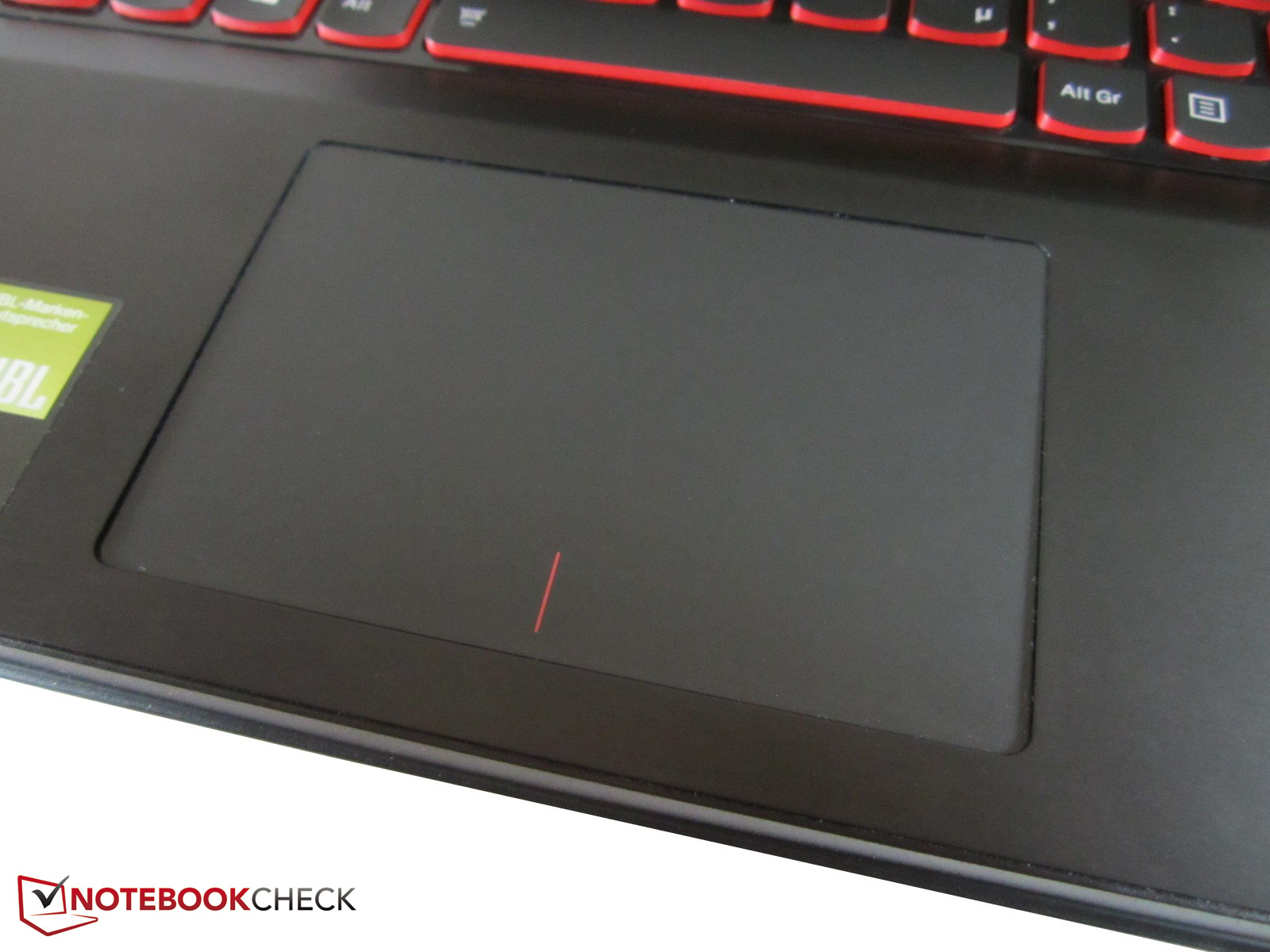

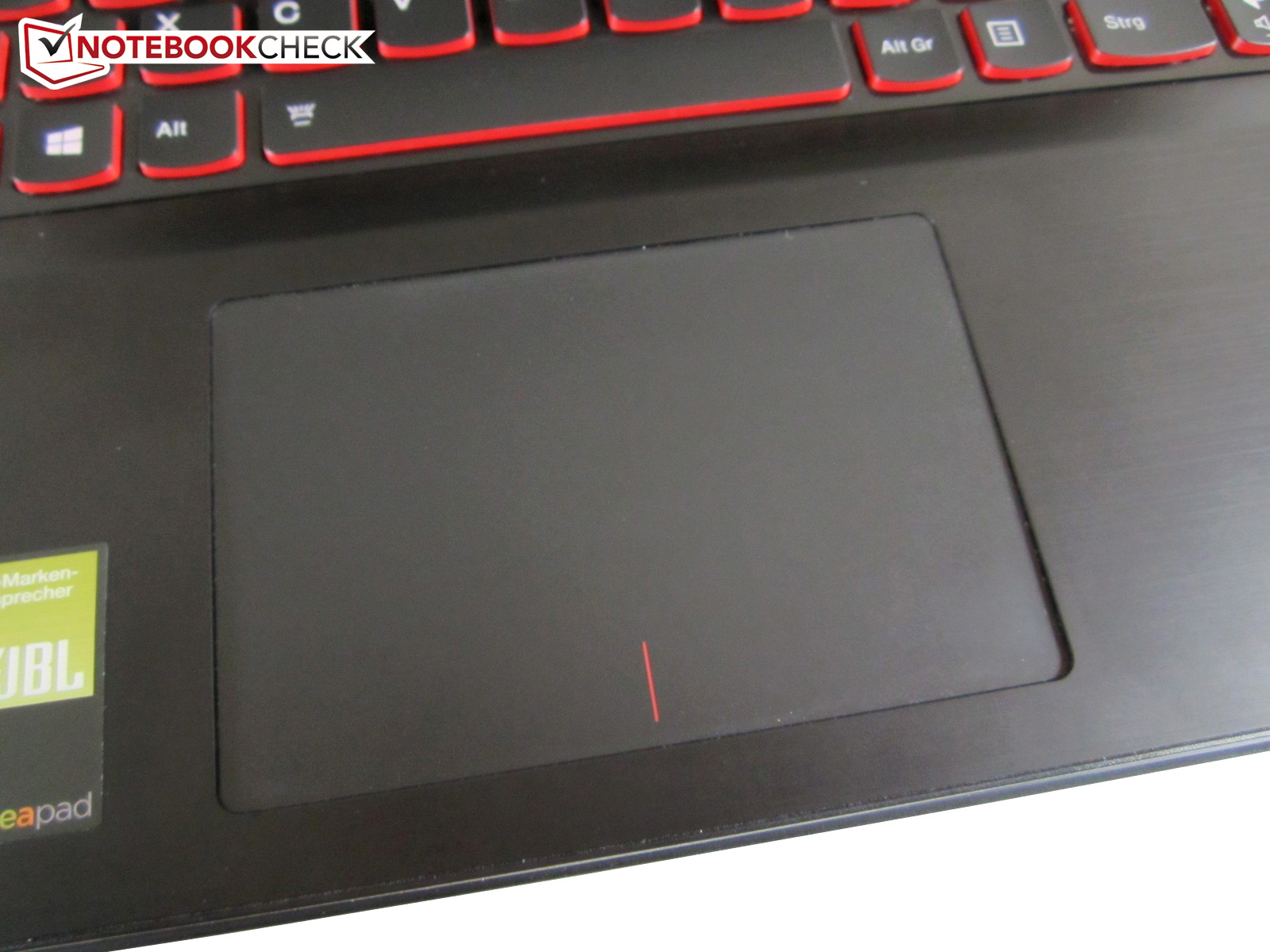

The 106 x 70 millimeter and, from a gamer's point of view, extremely far left Synaptics' ClickPad V1.1 is one of the gaming laptops biggest shortcomings. As previously hinted, the mouse replacement is relatively unstable and clattery. The keys implemented in the main field can be pressed a few millimeters into the casing under higher force. Although it could be said that this is due to the underlying mechanics, other laptops using a similar touchpad do not yield as much.
The wobbly surface unfortunately causes the mouse cursor to slip away while tapping and the input is consequently misinterpreted. The cursor occasionally jumps around or is slowed down without reason even during normal movements. The supported gestures, such as scrolling, zooming, rotating, etc., are also not always detected reliably. Nevertheless, we would not call it a complete catastrophe as said in some YouTube videos.
The sleek and consequently very pleasant texture is one of the few highlights. Unintentional inputs during games can be prevented via the deactivation option, as usual.
触摸板
106×70毫米,从一个玩家的角度来看,非常远离开Synaptics的ClickPad的V1.1的游戏笔记本电脑最大的缺点之一。正如先前暗示,更换鼠标是相对不稳定,clattery。实现在主字段的键可以被压到壳体几毫米下更大的力。虽然也可以说,这是由于底层机制,不产生其他的笔记本电脑,采用了类似触摸板一样多。
不幸的是,颤抖的表面使鼠标光标移动到溜走,而攻,因而曲解和输入。偶尔光标跳到左右或没有放缓的原因,即使在正常运动。支持的手势,如滚动,缩放,旋转等,也并不总是可靠的检测。不过,我们不会把它作为一个完整的灾难说一些YouTube视频。
圆滑,因此很愉快的纹理是为数不多的亮点之一。通过停用选项,像往常一样,在游戏过程中可以防止意外输入。
Display
Opposing the current trend, Lenovo installs a glare-type screen rather than a non-glare model. Users who are used to a lower resolution in the 15 inch sector will likely deem 1920 x 1080 pixels exaggerated at first. However, the generous desktop will not want to be missed after a few days. Compared with a 1600 or 1366 screen, a lot more information finds room on the screen (keyword: multi-window operation).
The SLI version of the Y500 also easily manages games in Full HD, though naturally not always in full details. Admittedly, the single GPU model would look better with a HD+ screen. In case the resolution has to be reduced for performance reasons, 1680 x 1050 pixels (16:10) was the next step after 1920 x 1080 pixels (16:9) in our test device. 1366 x 768 pixels looked very blurred.
反对目前的趋势,联想安装了眩光式屏幕,而不是一个无眩光模型。使用较低的分辨率在15寸部门的用户可能会认为1920 x 1080像素夸张第一。不过,大方的桌面不会想错过几天后。与1600或1366的屏幕相比,更多的信息在屏幕上发现房间(关键字:多窗口操作)。
SLI版本的Y500也可以很容易地管理全高清游戏,但自然并不总是完整的详细信息。诚然,单GPU模式会更好看高清+屏幕。出于性能方面的考虑要减少情况下,决议,1680 x 1050像素(16:10)为1920×1080像素(16:9),在我们的测试设备后的下一步。 1366 x 768像素看起来很模糊。
|
Brightness Distribution: 82 %
Center on Battery: 280 cd/m²

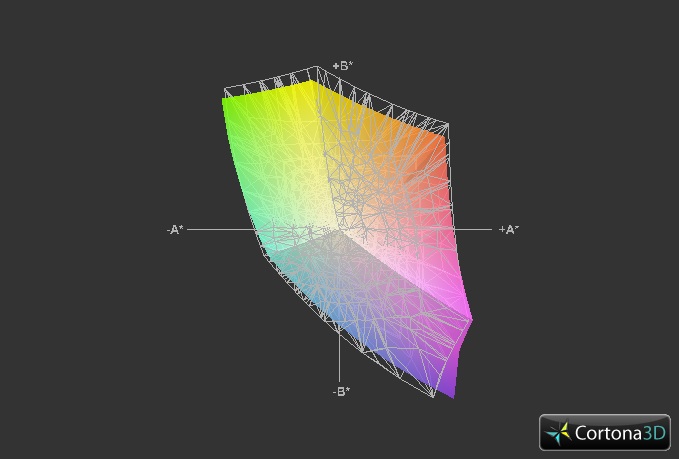

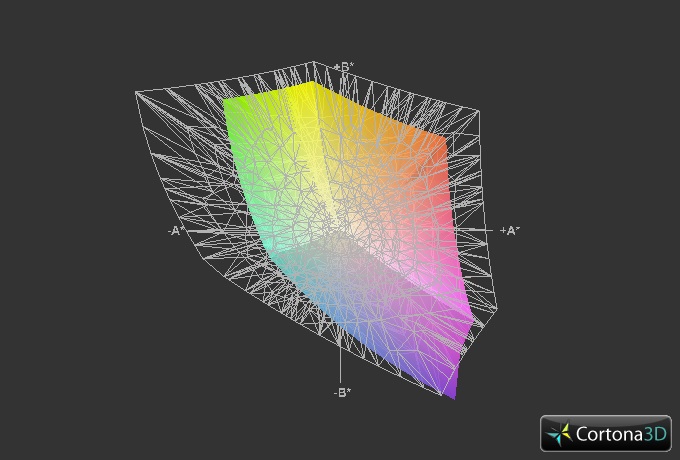

Contrast: 459:1 (Black: 0.61 cd/m²)59.2% AdobeRGB 1998 (Argyll 2.2.0 3D)

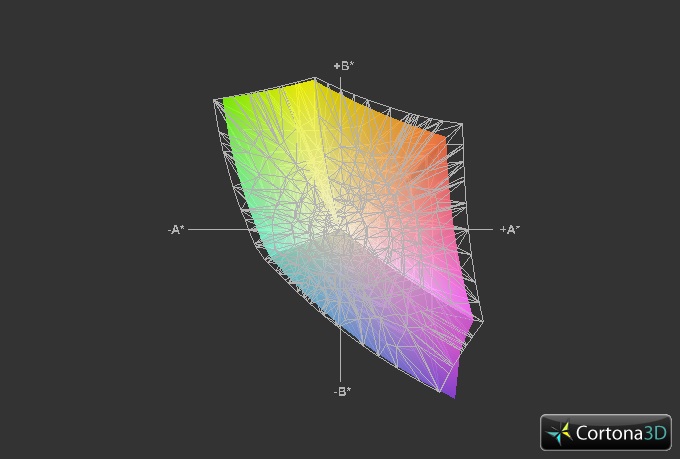

85.4% sRGB (Argyll 2.2.0 3D)
57.5% Display P3 (Argyll 2.2.0 3D)
We can attest LG Philips' LP156WF1-TLC1 screen to have a good quality. A brightness of approx. 260 cd/m² refers many contenders to their place. The moderate brightness distribution of just over 80% is hardly visible.
The black value is only midfield. 0.6 cd/m² is neither bad nor particularly good. The contrast of 450:1 is also satisfactory. The glare-type surface does a good job in concealing the minor deficits. There is not much room for complaint in terms of colors either. The screen comes quite close to the sRGB color spectrum.
我们可以证明LG飞利浦LP156WF1-TLC1屏幕有一个良好的质量。亮度约。 260坎德拉/平方米是指许多竞争者的地方。刚刚超过80%的中等亮度分布是难以看清。
黑色值是唯一的中场。 0.6坎德拉/平方米既不是坏的,也不是特别好。 450:1的对比度也令人满意。眩光型面做了很好的工作中隐瞒轻微赤字。投诉的颜色要么没有太多的余地。屏幕出现相当接近sRGB色彩频谱。

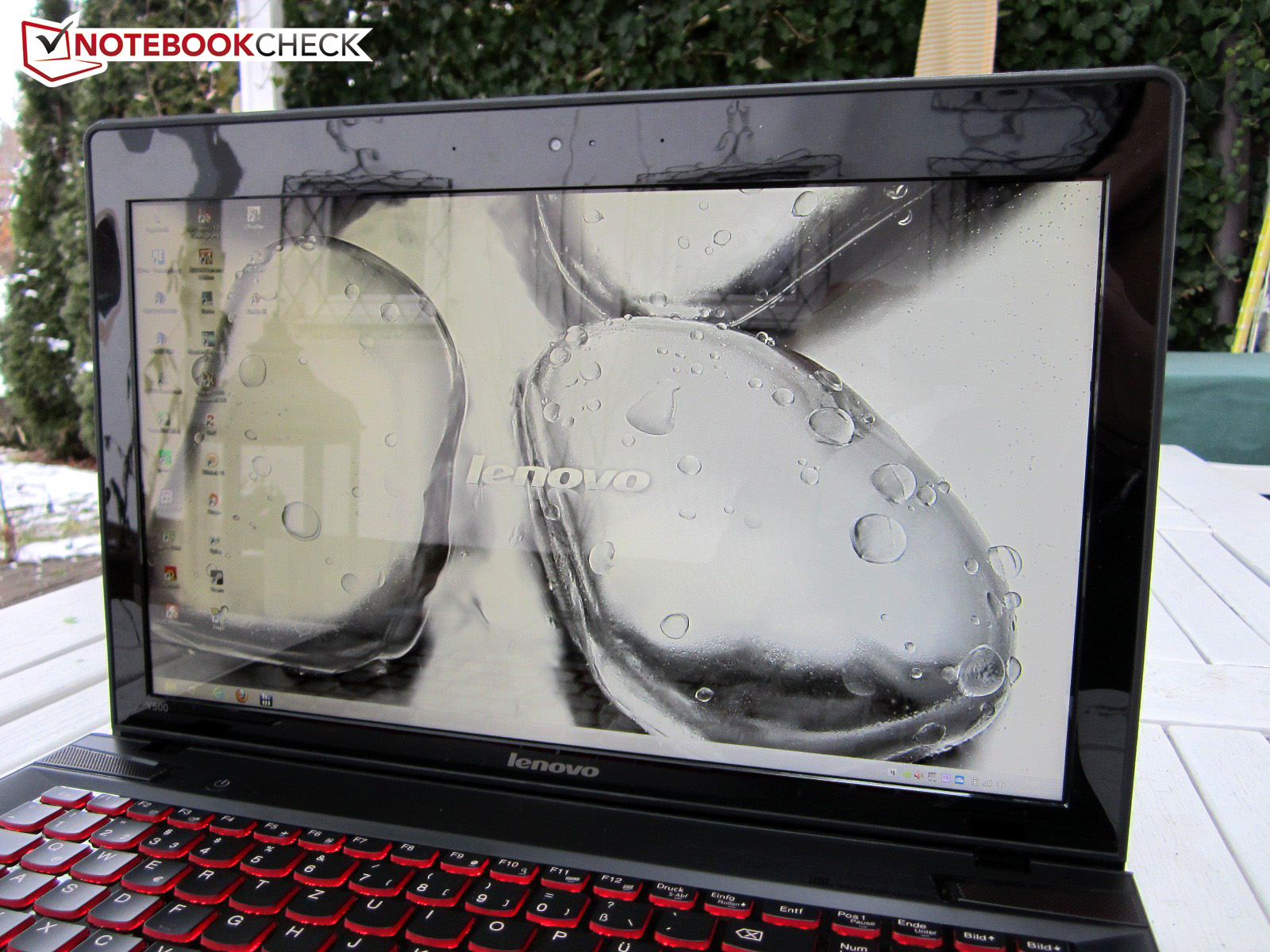

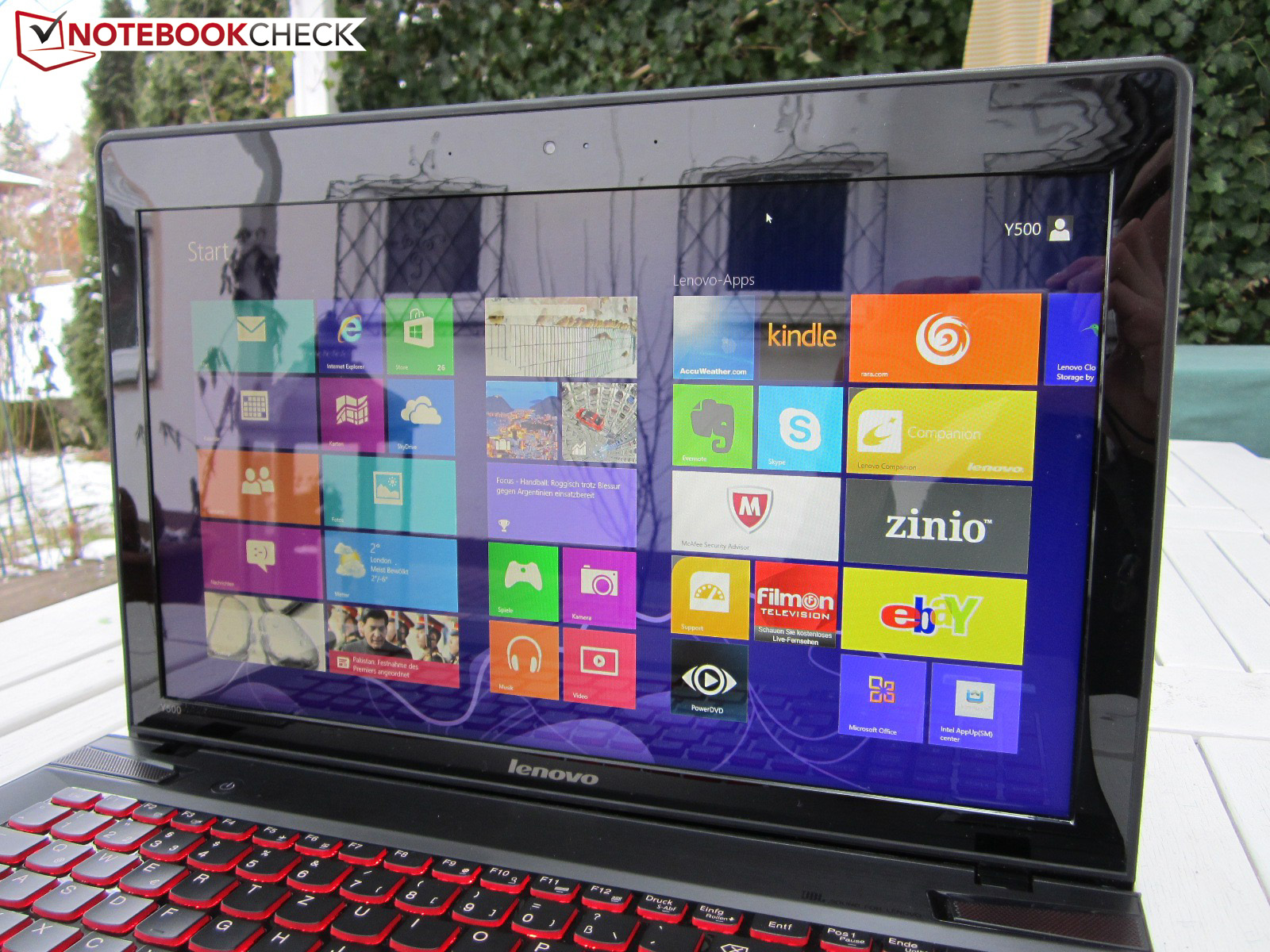

Despite the above-average brightness, the IdeaPad Y500 can only be used outdoors with restrictions. As can be seen on the screenshots below, massive reflections partly turn up outdoors. Users who are often outdoors are better off with a non-glare screen.
IdeaPad Y500尽管上述平均亮度,只能在室外使用有一定限制。下面的屏幕截图中可以看出,大量反射部分户外。谁是用户经常在户外与无眩光屏幕更好。

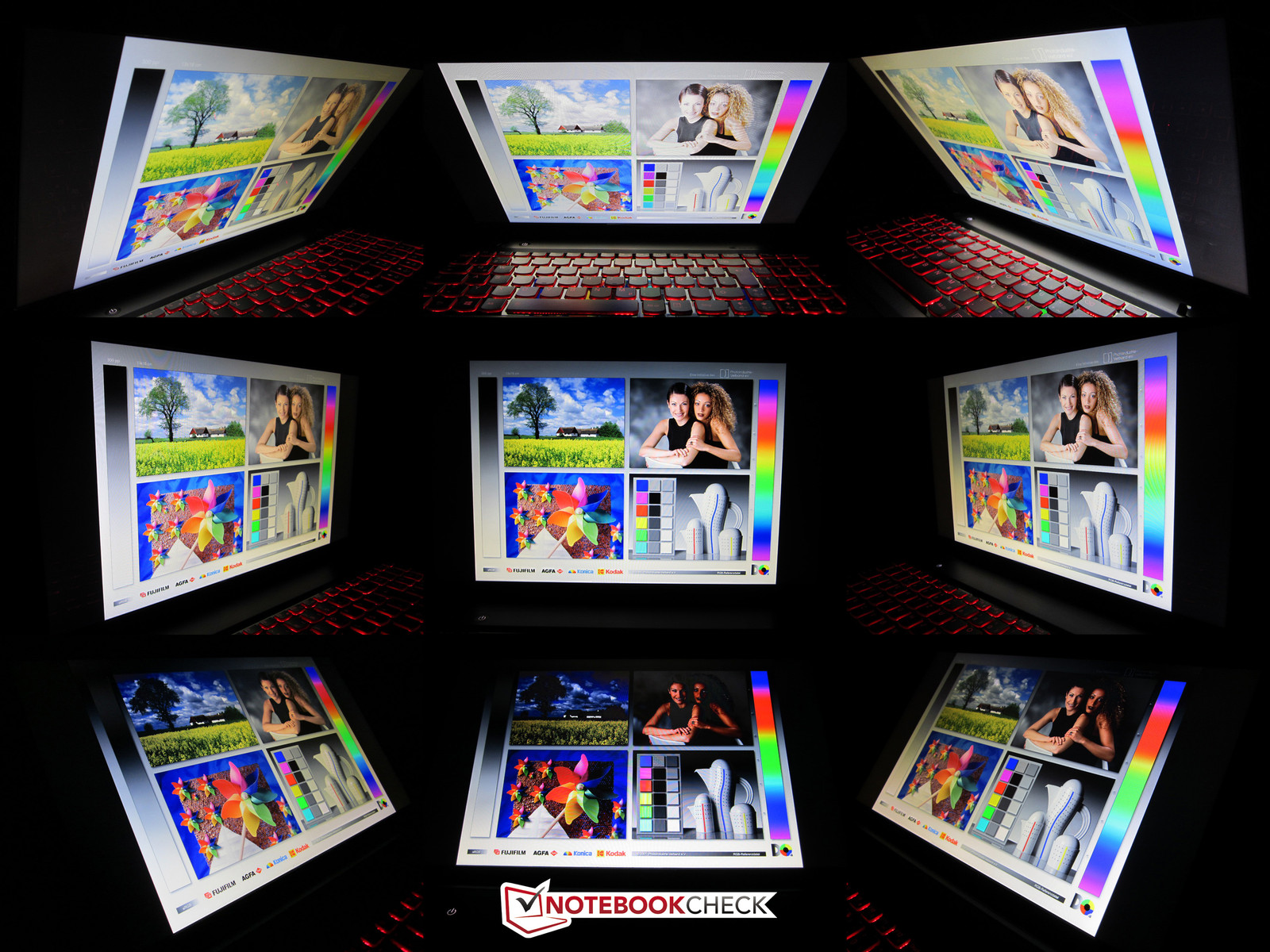

The viewing angle stability is very dependent on the direction. While the 15 incher adequately copes with even larger deviations horizontally, distortions evolve much sooner vertically. However, there is no need for recurrently adjusting the screen as known from budget models.
视角的方向稳定性是非常依赖。 15 incher充分应对更大的偏差水平,扭曲的发展多越早垂直。但是,也没有必要从预算模型的已知循环调节屏幕。
Processor

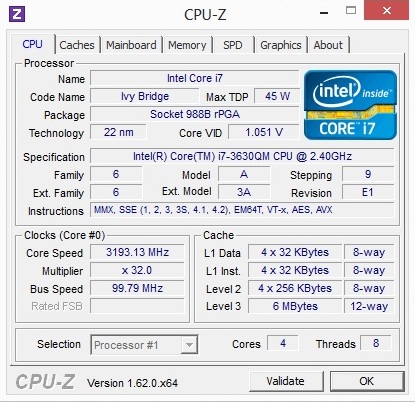

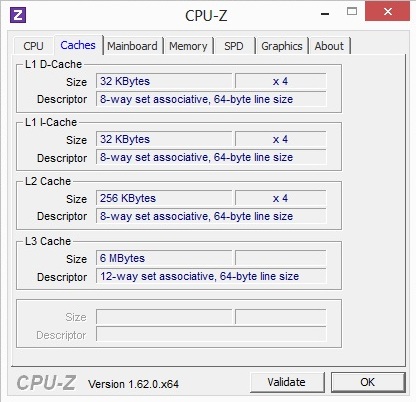

The Core i7 3630QM is a mobile high-end processor from Intel's Ivy Bridge range (22nm). The 45 watt CPU easily deals with even computing-intensive applications with its four cores and six MB L3 cache.

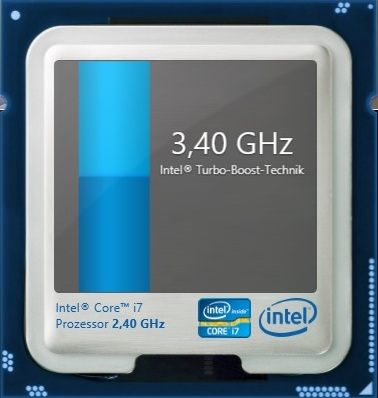

Gamers will particularly be happy about the Turbo Boost technology that lifts the clock considerably above the default rate during load. A theoretical clock frequency of up to 3.4 GHz is possible with the Core i7 3630QM. Hyper Threading, which simulates virtual cores, is sooner relevant for professional users. Only few programs presently benefit from eight parallel threads.
The graphics chip dubbed HD Graphics 4000 remains disabled in the IdeaPad Y500. The manufacturer had to waive on NVidia's Optimus technology due to SLI.
酷睿i73630QM是移动的高端处理器从英特尔的Ivy Bridge的范围(22nm制程)。 45瓦的CPU轻松处理其四个核心和6 MB三级高速缓存的计算密集型应用。
玩家将特别高兴Turbo Boost技术,提升时钟拖欠率大大高于在负载。理论时钟频率高达3.4 GHz的酷睿i73630QM可能。模拟虚拟核心,超线程,是早晚的相关专业用户。目前只有几个节目从8个并行的线程中受益。
被称为高清显卡4000显卡芯片仍然禁用的IdeaPad Y500。制造商不得不放弃NVIDIA的Optimus技术由于SLI。
Turbo Boost

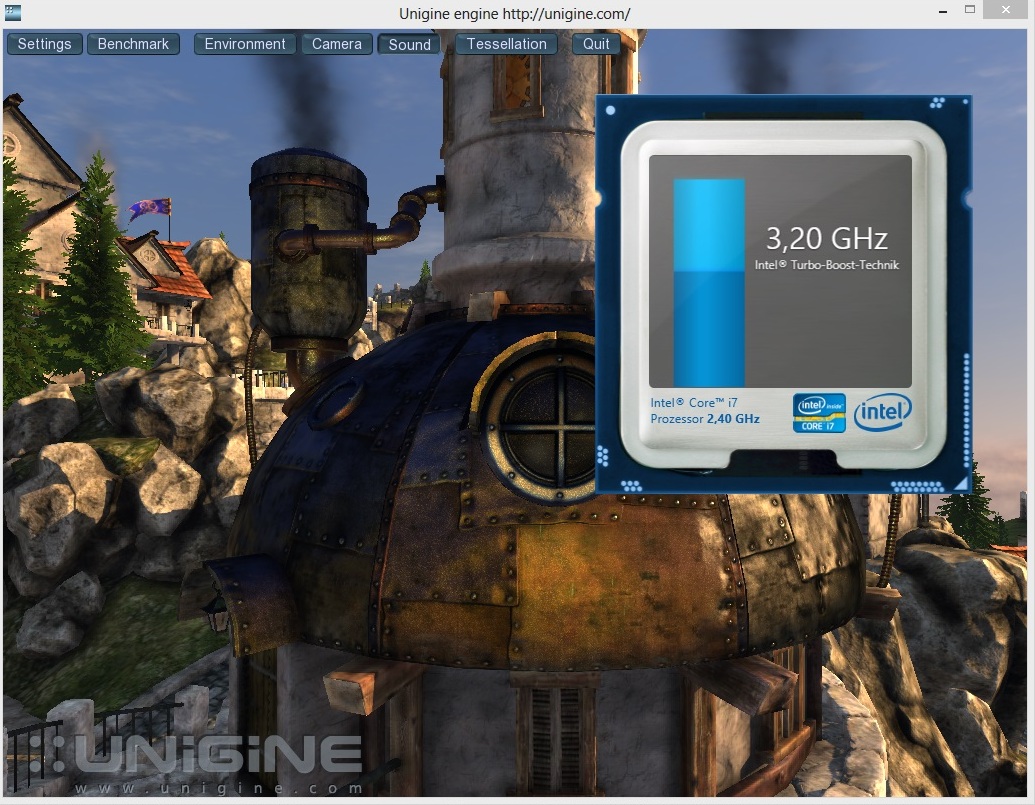

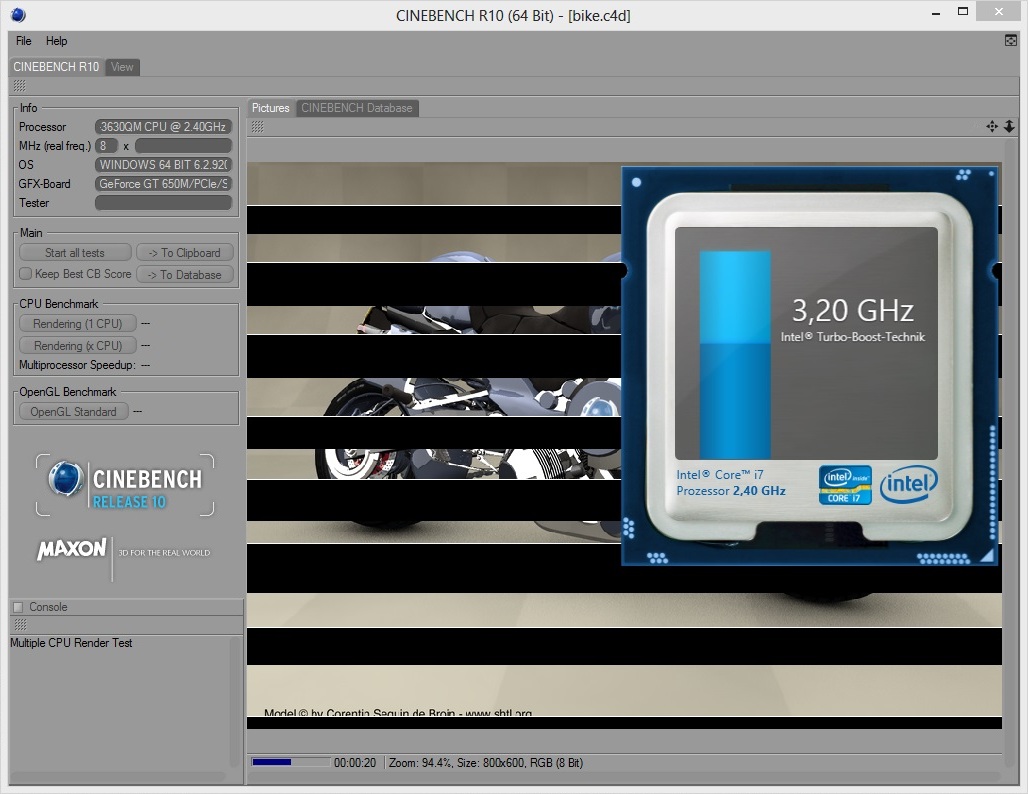

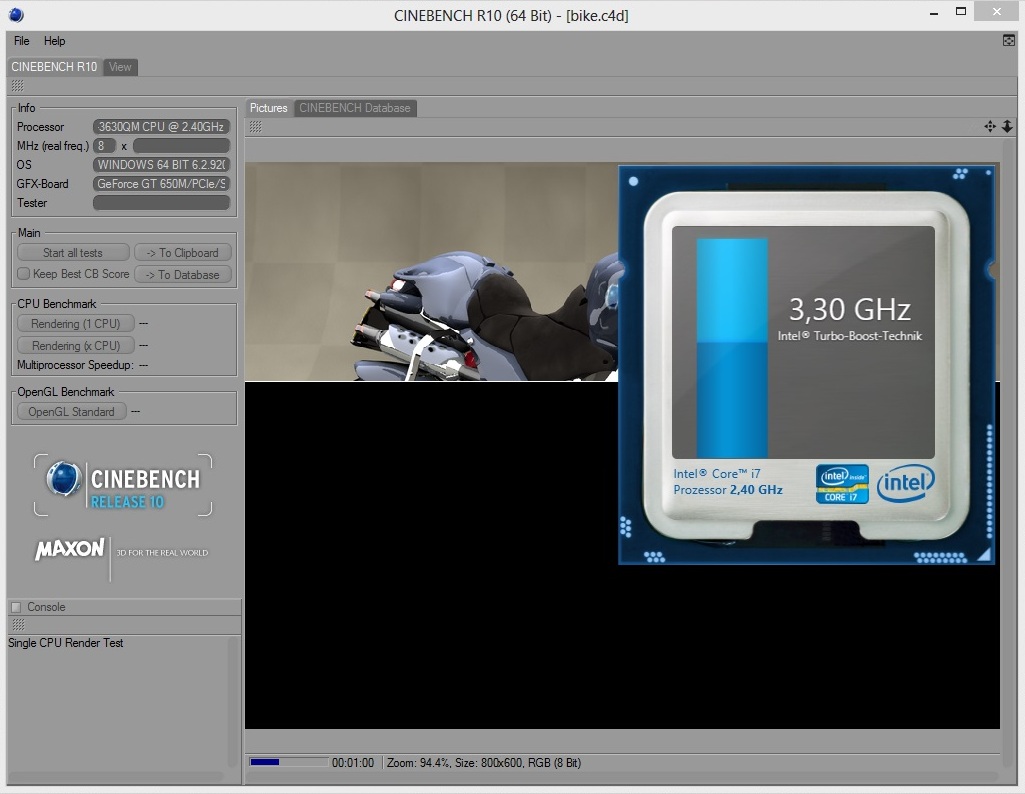

Dynamic overclocking works extremely satisfactory. The Core i7 3630QM always ran with over 3.0 GHz in both the CPU-heavy Cinebench R10 as well as in the GPU-intensive Unigine Heaven benchmark. Although this could be an indication for excellent temperature management, it "only" achieved the default 2.4 GHz during full load.
动态超频的作品非常满意。酷睿i73630QM总是跑超过3.0千兆赫的CPU沉重的CINEBENCH R10以及在GPU密集型的Unigine天堂基准。优良的温度管理,尽管这可能是一个迹象,“只”取得了默认的2.4 GHz在满负荷。
CPU Performance
The quad-core did quite a good job in the CPU benchmarks. In Cinebench R11.5's single-core rendering, the IdeaPad Y500 calculated just as fast as DevilTech's HellMachine and Nexoc's M507II also equipped with a Core i7 3630QM (1.41 points). The laptop places itself just behind HP's Envy dv7-7202eg in multi-core rendering (6.37 vs. 6.39 points).
As the screenshot below shows, Intel's Core i7 3610QM (2.3 - 3.3 GHz) is only marginally slower. The brand-new and 300 MHz faster Core i7 3740QM excels by roughly 10% in optimized applications.
四核做了相当不错的工作,在CPU基准。在Cinebench R11.5中单核渲染的IdeaPad Y500一样快DevilTech HellMachine M507II Nexoc还配备了酷睿i73630QM(1.41分)计算。笔记本电脑放在自己仅次于惠普的羡慕的DV7-7202eg在多核心渲染(6.37分与6.39分)。
下面的截图显示,英特尔的酷睿i73610QM(2.3 - 3.3 GHz)的仅是稍微慢。全新的300 MHz的速度更快的酷睿i73740QM擅长的大约10%,优化的应用程序。
Cinebench R10 | |
Rendering Single CPUs 64Bit (sort by value) | |
Core i7-3630QM | |
Core i7-3610QM | |
Core i7-3740QM | |
Rendering Multiple CPUs 64Bit (sort by value) | |
Core i7-3630QM | |
Core i7-3610QM | |
Core i7-3740QM |
Graphics Card

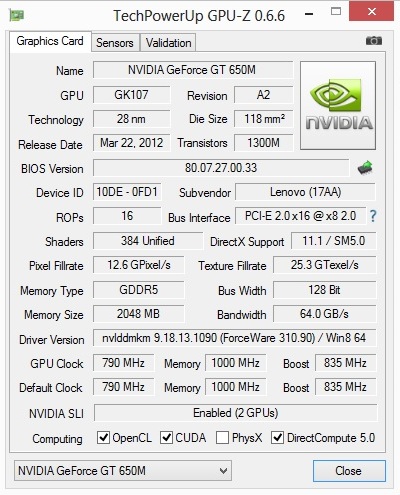

The GeForce GT 650M is based on the GK107 chip from the Kepler generation and is built in a 28 nm process. The DirectX 11 GPU belongs to the upper midrange in view of 1.3 billion transistors and 384 Unified Shaders.
Lenovo opts for the faster 2048 MB GDDR5 version and a 128 bit memory bus. A clock rate of 790 MHz is slightly above average. The previously tested GDDR5 models were usually specified with 745 MHz (e.g. Alienware's M14x R2, Asus' UX51VZ, Dell's Inspiron 17R, DevilTech's Fire DTX or MSI's GE60/GE70).

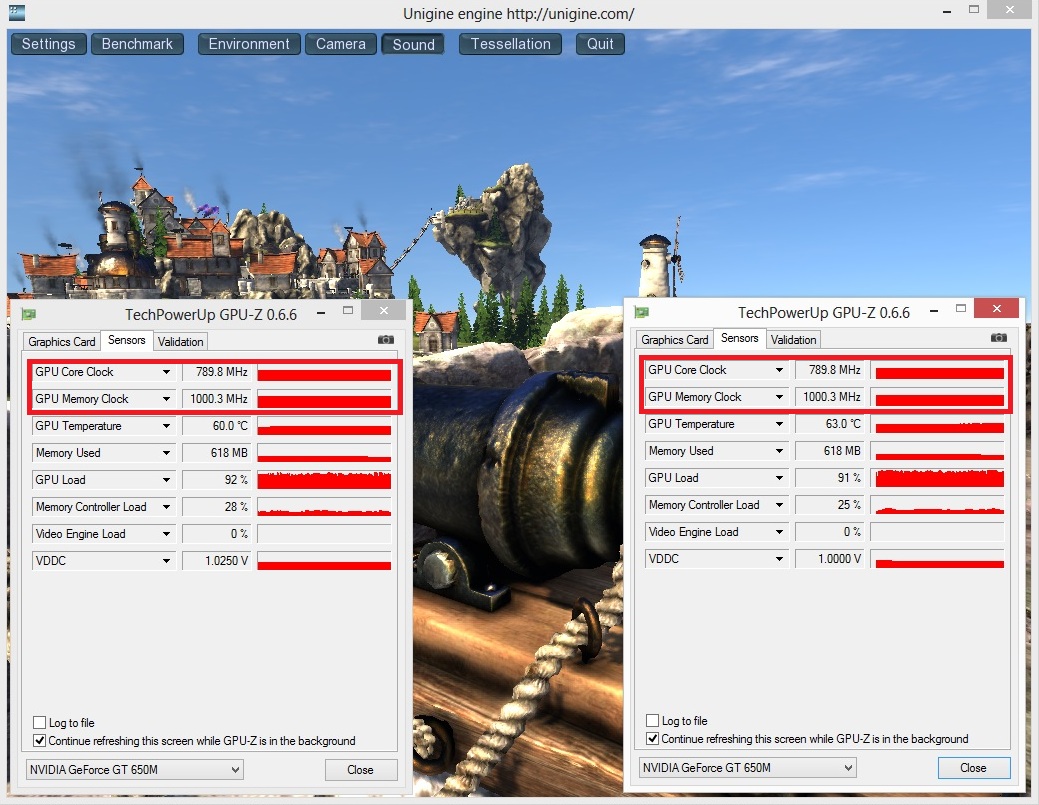

However, it is too bad that the automatic overclocking GPU Boost (NVidia's counterpart to Intel's Turbo Boost) is not enabled. Unlike other GT 650M laptops, the core frequency is not increased to a maximum of 835 MHz during load, but stays at 790 MHz. In return, the memory clocks with 1000 MHz.

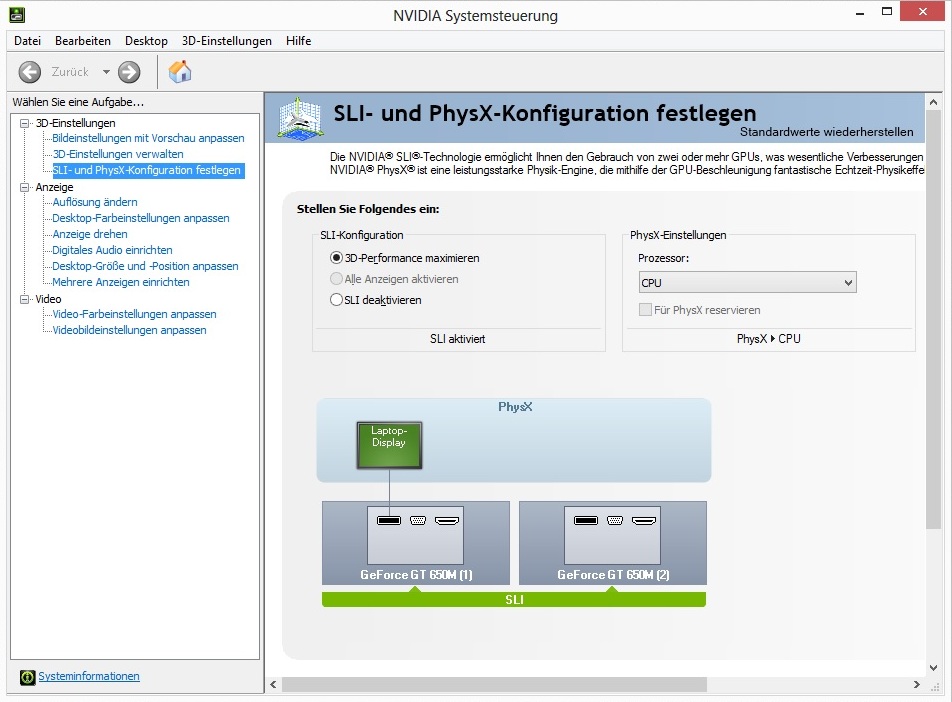

Two graphics cards are merged to a performance increasing array in SLI mode. We manually updated the GPU driver to the latest version to extract the maximum performance from the 15 incher (ForceWare 310.90 rather than 306.00).
GeForce®(精视™)GT650M的基础上产生开普勒GK107芯片是建立在28纳米工艺。 DirectX 11的GPU属于中频上限1.3亿晶体管和384个统一着色引擎。
联想选择了更快的2048 MB GDDR5版本和一个128位内存总线。为790 MHz的时钟速率略高于平均水平。先前测试的GDDR5模型通常被指定745兆赫(如Alienware的M14x的R2,华硕UX51VZ,戴尔的Inspiron17R,DevilTech的消防DTX或微星GE60/GE70)。
然而,这是太糟糕了,GPU Boost可自动超频(NVIDIA的对口英特尔的Turbo Boost的)未启用。不同于其他GT650M笔记本电脑,核心频率到最大的835 MHz的加载过程中不增加,但保持在790 MHz。作为回报,与1000 MHz的内存时钟。

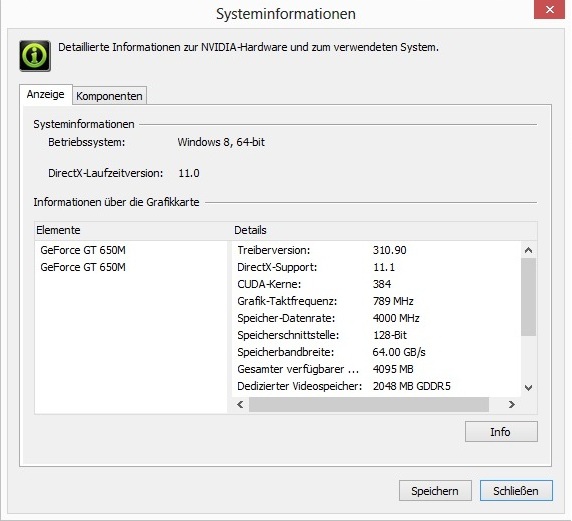

合并两个显卡在SLI模式下的性能提高阵列。我们手动GPU的驱动程序更新到最新版本从15 incher(的ForceWare310.90,而不是306.00)的获取最大的性能。
GPU Performance
Many readers will be wondering whether two GeForce GT 650M GPUs can compete with real high-end models. To make it short, the answer is yes. The speed increases considerably when the SLI mode is available in a 3D program.
For example, both graphics cards achieved a GPU score of 3612 points in 3DMark 11 (1280 x 720, performance preset) and slightly surpass the GeForce GTX 670MX, which is also a member of the Kepler generation (3567 points @ Asus G75VX-T4020H). A single GeForce GT 650M reaps in a 40% lower score (2099 points @ Dell's Inspiron 17R).
It looks the same in Unigine Heaven 3.0 benchmark using 1920 x 1080, high, default tessellation. The single GT 650M can only dream of 35.8 fps (21.5 fps @ DevilTech's Fire DTX). Even the GeForce GTX 670MX's 34.3 fps is again defeated.
3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (ForceWare 306.14) |
Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (ForceWare 306.14) |
3DMark 03 Standard | 57023 points | |
3DMark 05 Standard | 24750 points | |
3DMark 06 Standard Score | 19069 points | |
3DMark Vantage P Result | 14151 points | |
3DMark 11 Performance | 3676 points | |
Help |
Storage Devices

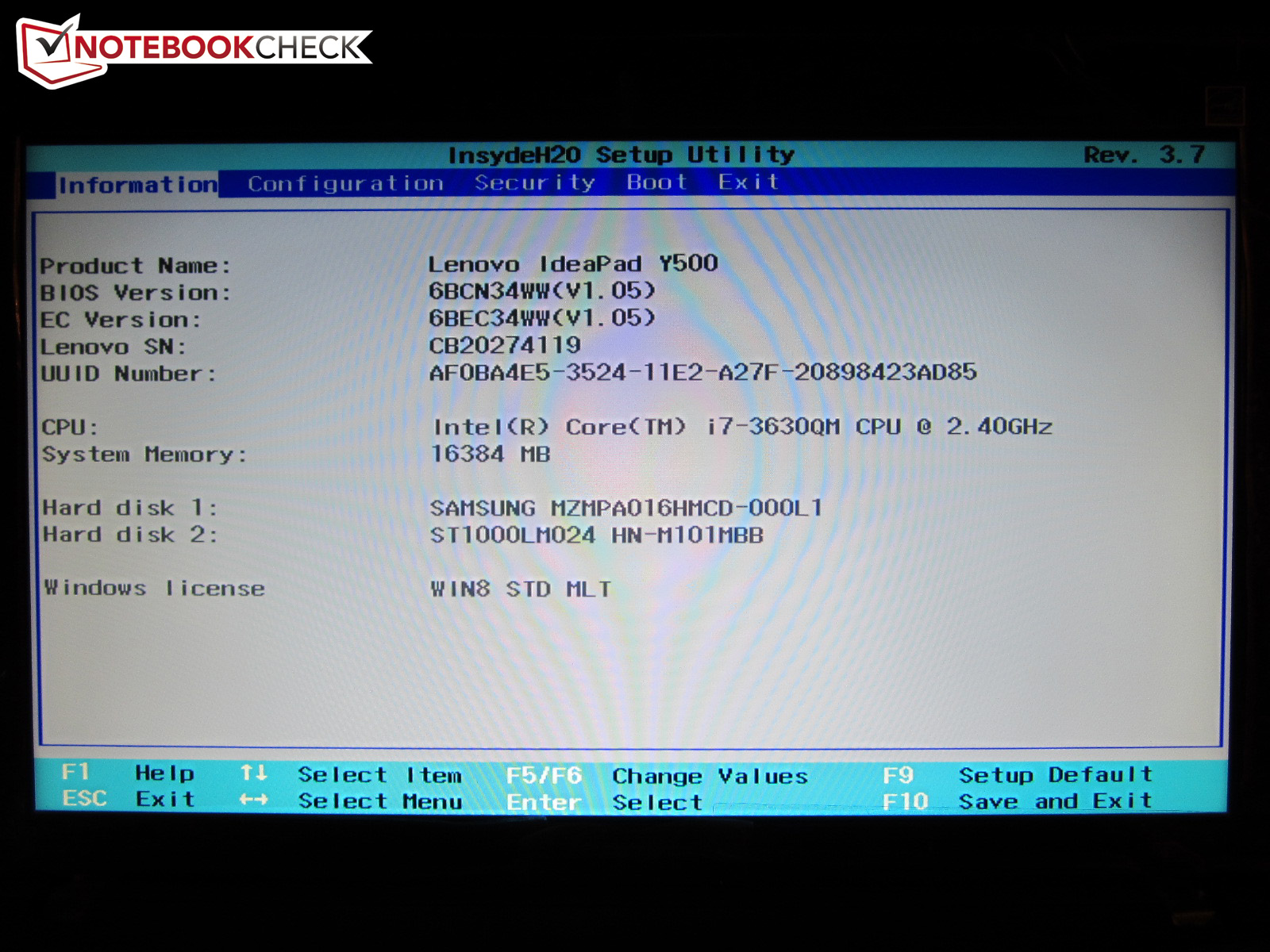

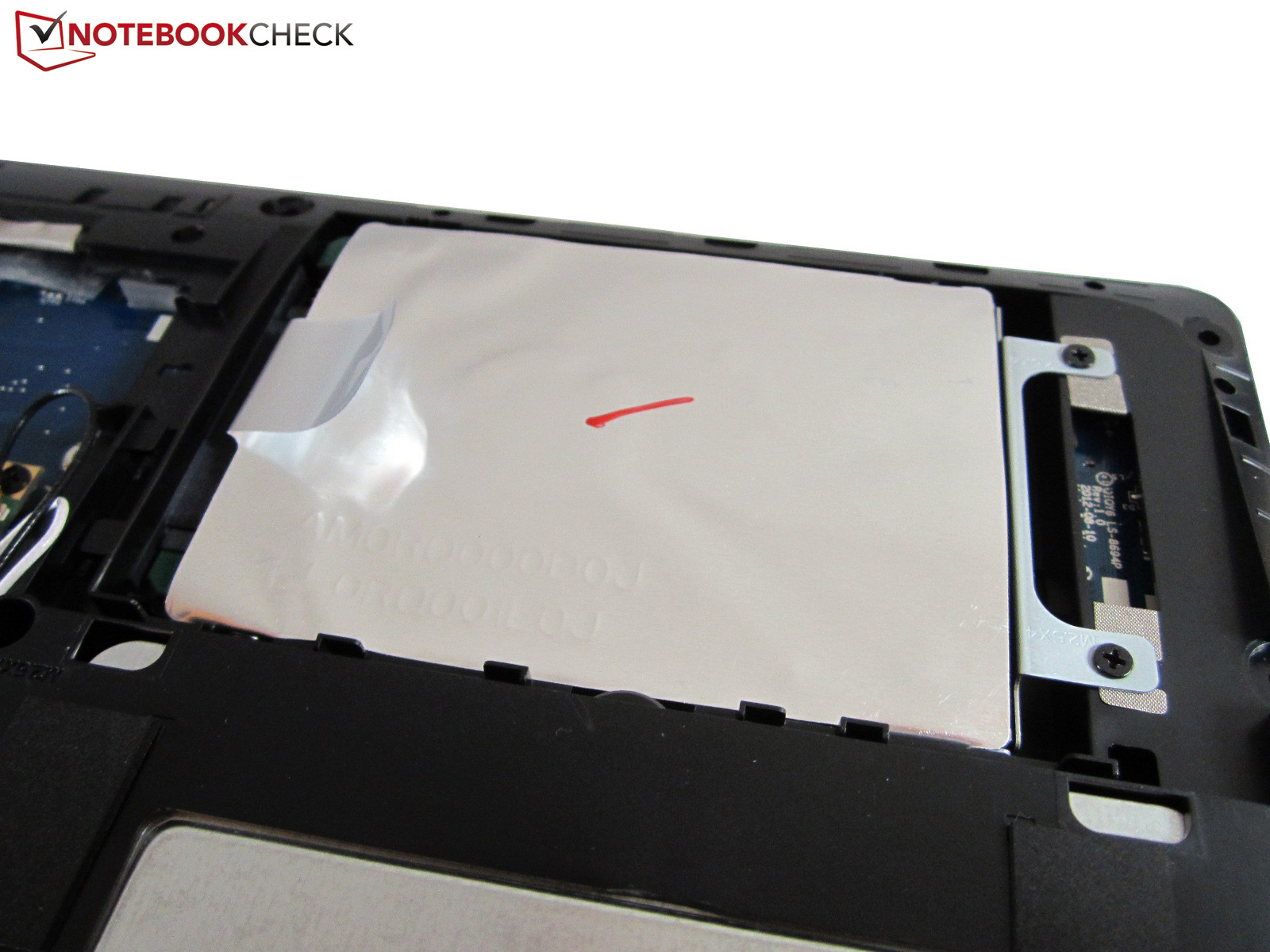

The 16 GB mSATA SSD does not appear in Windows Explorer. Samsung's MZMPA016HMCD solid state drive merely works as a cache that speeds up the system and supports the HDD.

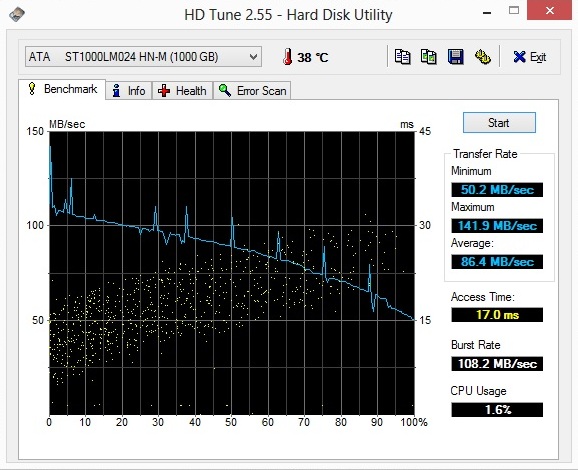

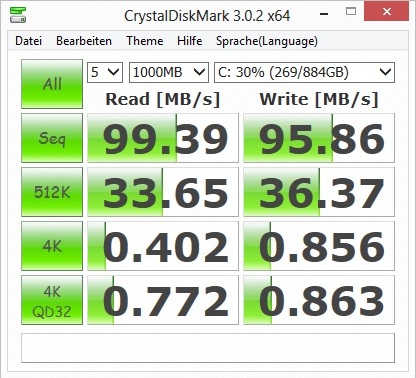

The 1000 GB primary hard disk also comes from Samsung and is dubbed SpinPoint M8 HN-M1010MBB. Although the HDD "only" spins with 5400 rpm, the benchmark results are impressive. An average transfer rate of 86.4 MB/s and an average access time of 17.0 ms in HDTune are pretty decent for a 5400 rpm model. The sequential read and write rate in CrystalDiskMark was just below 100 MB/s.
Subjectively, the operating system is relatively fast although the cache of course cannot replace a "genuine" SSD. Standard laptops without a cache and with a weaker HDD are partly noticeably slower in terms of installations, loading and booting times as well as in multitasking. The HDD/SSD combo is more than acceptable in view of the targeted price.
System Performance
PCMark 7 was developed to test the overall performance of a system. With 3505 points, the 15 incher places itself between Acer's Aspire M3-581TG and HP's Envy 6-1000sg midrange laptops. The scores sooner tend toward 4000 - 4500 points when stronger components and/or a faster hard disk are used (e.g. DevilTech's Devil 6700).
PCMark 7 Score | 3505 points | |
Help |
Gaming Performance
After almost 90 gaming benchmarks, we dare say that a SLI array of two GT 650M cards is not only an appealing option for casual gamers.
The majority of games also ran well with 1920 x 1080 pixels when the ultra-level and 4x anti-aliasing was left disabled where necessary. High graphics settings and 2x anti-aliasing were usually rendered smoothly. Reducing the pixel count was not necessary in most cases.
A single GeForce GT 650M lags behind by about 66% in all benchmarks. The performance gain is between 0 and over 90% depending on the game. The GeForce GTX 670MX also lags behind, although its difference of 10% is sooner marginal. The SLI array is no threat for the GeForce GTX 675MX. NVidia's Kepler-based high-end graphics card manages a lead of approximately 20%.
A few words about micro-stutters as they are a significant issue in the IdeaPad Y500. Annoying interruptions partly occur due to the varying frame spacing, which is caused by the deviating image calculation and theoretically affects all dual GPU systems. The range below 40 fps, where the laptop often hovers in demanding tracks, is particularly affected. Rendering appears a lot smoother with the GeForce GTX 670MX despite its weaker performance.
We included a comprehensive comparison chart at the end of this review. More information about the different graphics cards can also be found in our gaming list.
Graphics Card | Overall Performance |
---|---|
GeForce GTX 675MX | +20 % |
GeForce GT 650M SLI | Base (average of 24 games) |
GeForce GTX 670MX | -10 % |
GeForce GT 650M | -40 % |
low | med. | high | ultra | |
---|---|---|---|---|
Battlefield 3 (2011) | 92.3 | 71 | 55 | 26.8 |
CoD: Modern Warfare 3 (2011) | 176.5 | 152.3 | 124.1 | 73.6 |
The Elder Scrolls V: Skyrim (2011) | 90.4 | 73.4 | 45.4 | |
Anno 2070 (2011) | 147.5 | 78.9 | 54.1 | 30.5 |
Alan Wake (2012) | 100.4 | 63.6 | 30.8 | |
Mass Effect 3 (2012) | 59.9 | 59.9 | 59.8 | |
Risen 2: Dark Waters (2012) | 95.7 | 76.7 | 61.2 | 29.8 |
Diablo III (2012) | 241.4 | 197 | 178.4 | 106.7 |
Dirt Showdown (2012) | 104.7 | 83.6 | 53 | 19.2 |
Max Payne 3 (2012) | 74.8 | 71.6 | 33.1 | 26.1 |
Darksiders II (2012) | 116.9 | 69.8 | ||
Sleeping Dogs (2012) | 135.9 | 97.7 | 52.5 | 13.6 |
Counter-Strike: GO (2012) | 246.9 | 218.7 | 199.7 | 138.7 |
Guild Wars 2 (2012) | 92 | 47.1 | 23.2 | |
F1 2012 (2012) | 140 | 114 | 109 | 53 |
Borderlands 2 (2012) | 89.9 | 79.6 | 78.2 | 59.9 |
Fifa 13 (2012) | 274.2 | 225.1 | 208.4 | 194.4 |
Dishonored (2012) | 128.5 | 128 | 123.3 | 95.8 |
Medal of Honor: Warfighter (2012) | 118.9 | 86.6 | 71.3 | 31.2 |
Need for Speed: Most Wanted (2012) | 59.9 | 49.6 | 29.9 | 17.4 |
Call of Duty: Black Ops 2 (2012) | 147.7 | 121.3 | 81.8 | 55.3 |
Hitman: Absolution (2012) | 68.4 | 59.7 | 35.8 | 19.1 |

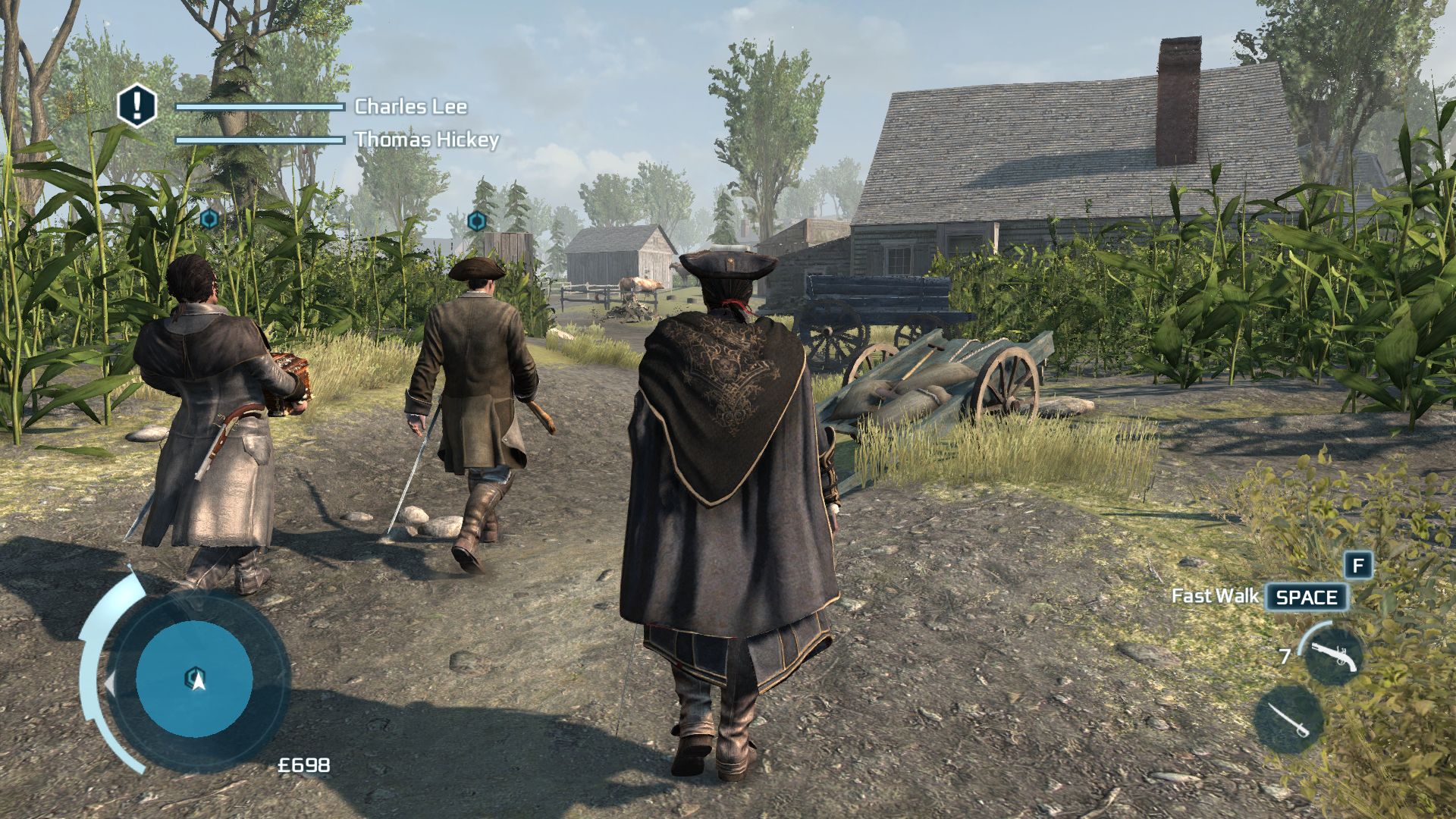

Assassin´s Creed III (2012) | 63 | 59.9 | 22.2 | |
Far Cry 3 (2012) | 105.7 | 88.8 | 42.6 | 15.6 |
Emissions
System Noise
Many multimedia and gaming laptops have to accept serious reproach when it comes to noise development. The casings' fan spins at a high speed particularly in load. Although the IdeaPad Y500 is not exceptionally quiet in gaming operation, the 15 incher is very remote from a distractingly loud level. Just below 40 dB in 3DMark 06 is a decent result.
For comparison: Schenker's XMG A522 (GeForce GTX 660M) and Medion's Erazer X6821 (GeForce GTX 670M) both reached approximately 43 dB in the test. The fan sometimes completely receded into the background depending on the volume and intensity of the game's sound track.
The laptop is generally hardly audible in idle. Except for a unobtrusive fan or HDD noise, the laptop remains agreeably quiet. An average of 31 dB will unlikely aggravate even sensitive users.
Noise Level
Idle |
| 30.7 / 31.2 / 31.5 dB(A) |
Load |
| 40.5 / 41.8 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Voltcraft sl-320 (15 cm distance) |
Temperature
The temperatures only convinced us to a part. When the laptop was idle, so hardly or not at all loaded, the casing's surface temperature settled to acceptable 31°C.
In return, the chassis heated up quite strongly during full load. Our thermometer recorded an average of 43°C on the top and 41°C on the bottom after one hour of stress testing via the tools Furmark and Prime95. We even partly measured 50°C. The IdeaPad Y500 did not heat up quite as badly in "normal" 3D programs. Games can thus be enjoyed without major restrictions.

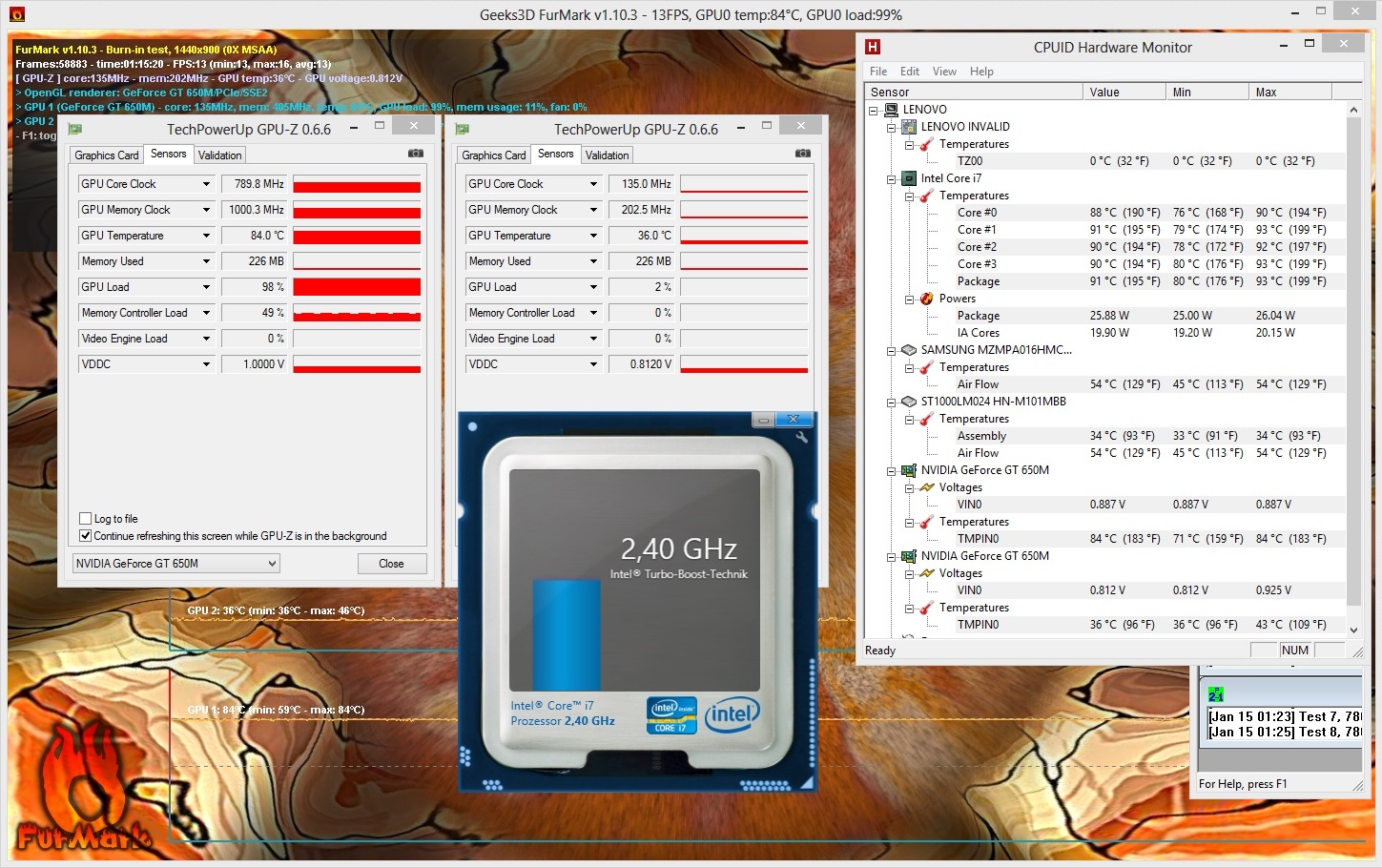

The components also get fairly warm in extreme conditions. The CPU clock dropped to still viable 2.4 GHz while climbing up to 90°C. The graphics cards exhibited a completely different behavior in the stress test. While the one GT 650M ran with the usual 790/1000 MHz (maximum 84°C), the second GT 650M throttled to low 135/203 MHz very soon. However, we are not sure whether Furmark ran properly on the second accelerator since the load tended to 0 in GPU-Z.
(-) The maximum temperature on the upper side is 50.9 °C / 124 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 49.1 °C / 120 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 31.4 °C / 89 F, compared to the device average of 33.9 °C / 93 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 42.3 °C / 108.1 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-13.4 °C / -24.1 F).
Speakers

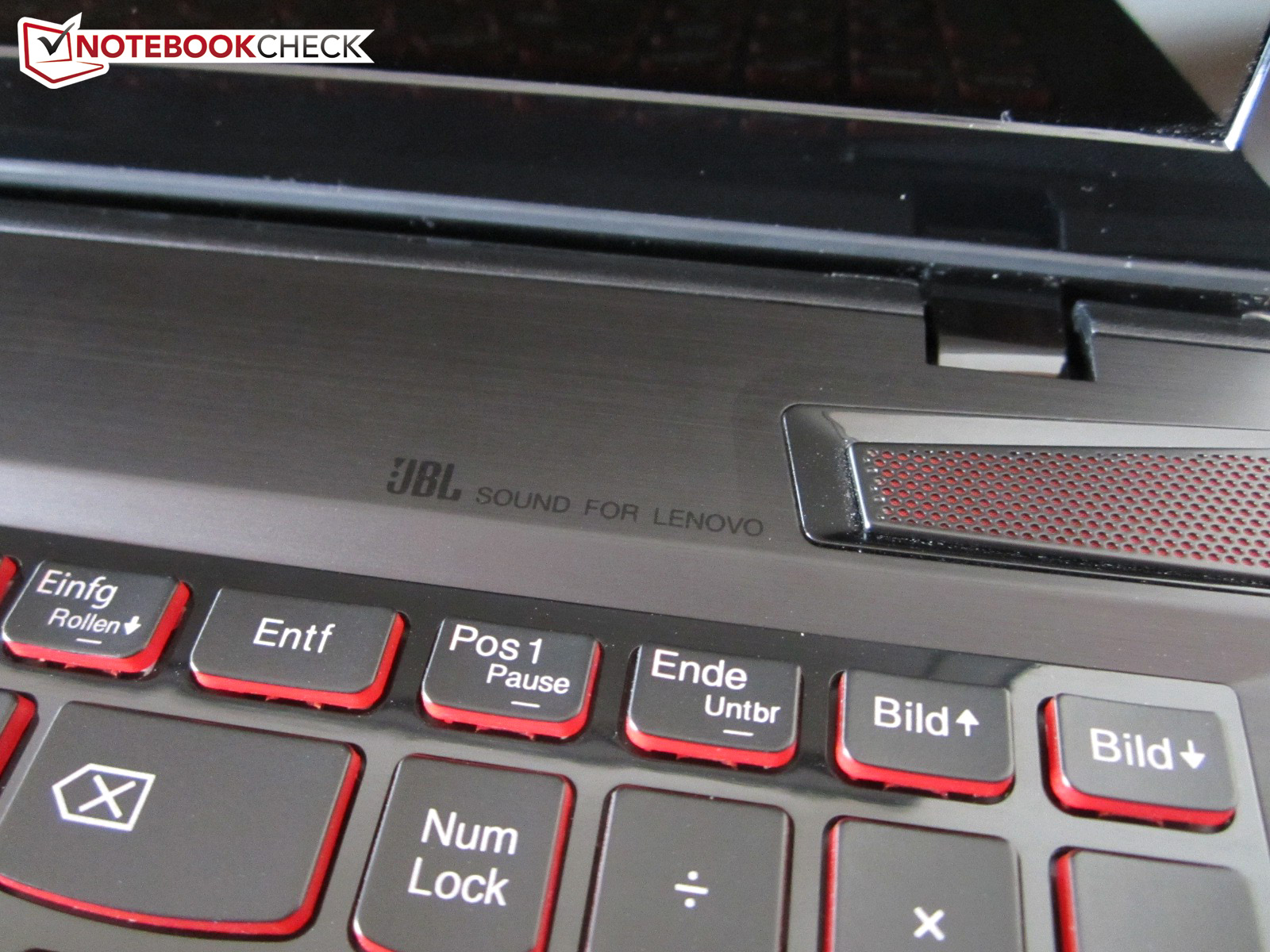

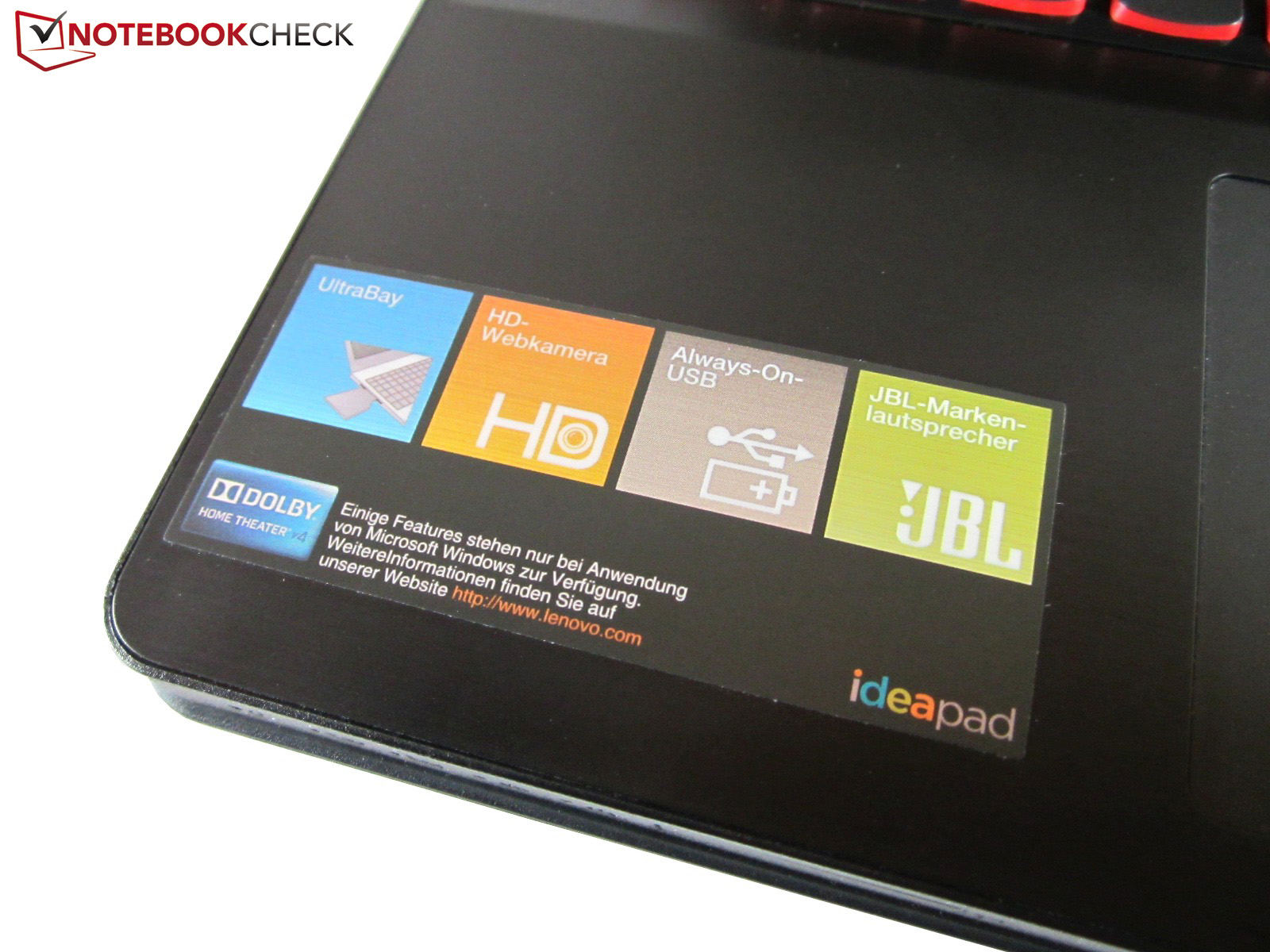

Lenovo self-confidently touts the device with "premium JBL speakers" The California-based company will likely be known to many readers. The sound expert has contributed to good sound in many laptops - above all, Dell's XPS 15 and XPS 17. And unsurprisingly, the IdeaPad Y500 also features an appealing sound.
Alongside Dolby Home Theater v4 technology, the sound is above the average mainstream level. The bass is astonishingly strong for a 2.0 system without a subwoofer. Games and movies can be enjoyed quite well despite the slightly tinny and artificial sound. This is a typical laptop problem that is particularly noticed in music tracks. The decent maximum volume should not be turned up to maximum because the speakers tend to fray in louder volumes.
Nevertheless, we cannot criticize Lenovo much when looking at the competition. Other devices feature a much inferior sound. Nevertheless it is not enough to be worthy of reference. In the writer's opinion, MSI's DynAudio Systems still dominates the speaker category (GX60/GT60/GT70). Incidentally, the sound output is transmitted via a jack (S/PDIF support) or HDMI (surround sound).
Energy Management
Power Consumption
The omitted graphics switching is not least noticed in power consumption. With 18 - 25 watts, the 15 incher consumes more energy when idling than many Optimus contenders. Gigabyte's bright yellow and also 15.6 inch P2542G (Core i7 3610QM & GeForce GTX 660M) only consumed 11 - 18 watts in the test.
We compared the IdeaPad Y500 with an equal, high-end laptop during load. Around 104 watts in the first 3DMark 06 scenario are considerably higher than that of Asus' G75VX (82 watts @ Core i7 3630QM & GeForce GTX 670MX). Note: The keyboard's backlight and SLI were enabled for all tests.
Off / Standby | 0.1 / 0.3 Watt |
Idle | 17.8 / 23.8 / 24.9 Watt |
Load |
103.6 / 105.1 Watt |
Key:
min: ,
med: ,
max: Voltcraft VC 940 |
Battery Runtime

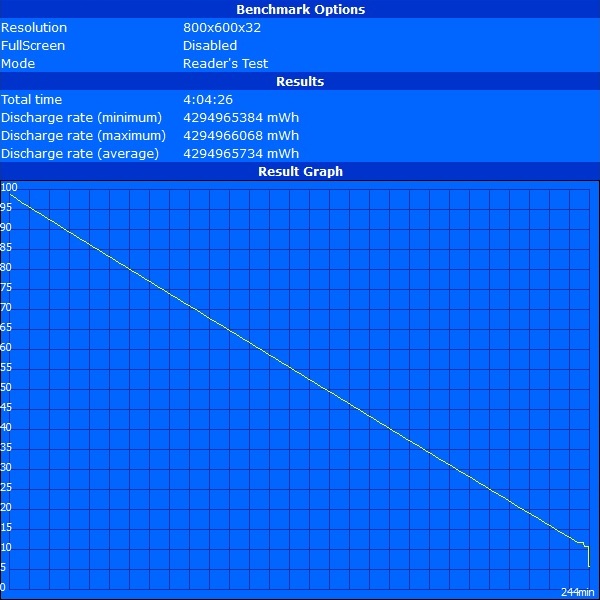

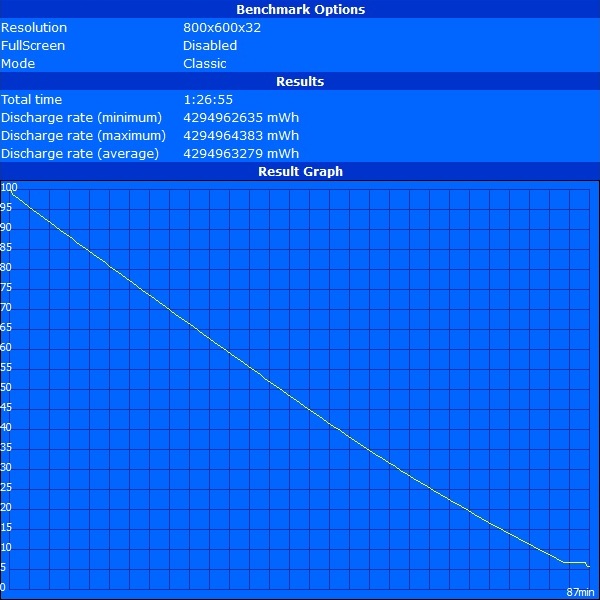

The removable lithium ion battery provides a decent capacity of 72 Wh or 6700 mAh. At least theoretically because its real-life runtimes are not exactly compelling. 1.5 hours during high load and maximum brightness are just as poor as three hours of wireless Internet browsing (medium brightness). The 15 incher only managed over four hours in idle and minimum brightness.
Verdict
Following the successful IdeaPad Y580, Lenovo presents the next gaming-suitable laptop based on NVidia's Kepler architecture. The IdeaPad Y500 particularly impresses with its well-conceived UltraBay. The option of inserting an optical drive, a second graphics card or an additional hard disk is a fresh idea in the gaming sector.
Owing to NVidia's great driver support, the GeForce GT 650M really revs up in SLI mode. Even high-end graphics cards like the GeForce GTX 670MX have to bundle up in most games. There is hardly a faster laptop currently available for EUR 1100. The lush memory configuration and the swift quad-core processor contribute to the high overall performance. The lack of a "full-blown" solid state drive is somewhat regrettable, but the small 16 GB ExpressCache compensates this drawback quite well.
The fairly high-quality TN screen also reaps in praise although its glare-type surface disturbed us. The relatively good JBL speakers are another plus point. Owing to the bright red keyboard light, the 15 incher looks good 24 hours a day (with exception of the sensitive surfaces).
Regrettably, the black and mainly metal casing exhibits a few needless flaws. For example, its clattery touchpad that does not always work reliably and displays poor stability or the adverse placing of interfaces and fan. Who wants the whole waste heat to be blown on their hand when playing with an external mouse? Moreover, the keyboard lacks crisp feedback. Lenovo's IdeaPad Y500 sooner proves to be inconspicuous, so middling up to good, in the other categories (build, noise, temperature, battery runtime, weight, etc.).
Buyers looking for a versatile and a (still) attractively priced gaming laptop and who can live with the listed shortcomings should give the 15 incher a chance. The non-SLI version is not quite as interesting due to superior and/or cheaper alternatives. The surcharge for the dual GPU model is definitely worthwhile in view of performance.
For comparison
Far Cry 3 - 1920x1080 DX11 Ultra Preset (HDAO, Enhanced Alpha To Coverage) AA:4x MS (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (mixed driver) |
Hitman: Absolution - 1920x1080 Ultra Preset AA:4xMS AF:16x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (mixed driver) |
Call of Duty: Black Ops 2 - 1920x1080 (Extra) High / On, FXAA AA:4xMS (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (mixed driver) |
Need for Speed: Most Wanted - 1920x1080 High / On (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (mixed driver) |
Medal of Honor: Warfighter - 1920x1080 Ultra Preset AA:4xMS AF:16x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (mixed driver) |
Dishonored - 1920x1080 High / On, FOV: 75 AA:FX (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Fifa 13 - 1920x1080 High AA:4xMS (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Borderlands 2 - 1920x1080 (Ultra) High / On (PhysX low) AA:FX AF:8x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
F1 2012 - 1920x1080 Ultra Preset AA:4xMS (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Guild Wars 2 - 1920x1080 All Maximum / On AA:FX (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Counter-Strike: GO - 1920x1080 (Very) High, FXAA AA:4x MS AF:8x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Sleeping Dogs - 1920x1080 Extreme Preset AA:Extreme (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Darksiders II - 1920x1080 2/4 Shadows, No Ambient Occlusion, AA:Low (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (mixed driver) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Max Payne 3 - 1920x1080 Very High, DX11 AA:Very High FX AF:8x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Dirt Showdown - 1920x1080 Ultra Preset AA:4xMS (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Diablo III - 1920x1080 High AA:on (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Risen 2: Dark Waters - 1920x1080 Ultra / on AA:on AF:8x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Alan Wake - 1920x1080 High Preset AA:4x AF:8x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Anno 2070 - 1920x1080 Very High Preset AA:on AF:4x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
The Elder Scrolls V: Skyrim - 1920x1080 Ultra Preset AA:8x AF:16x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
CoD: Modern Warfare 3 - 1920x1080 Extra, all on, Image Quality: Native AA:4x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
Battlefield 3 - 1920x1080 ultra AA:4x MS AF:16x (sort by value) | |
GeForce GT 650M SLI (ForceWare 310.90) | |
GeForce GT 650M (ForceWare 295.93) | |
GeForce GTX 670MX (Forceware 310.61) | |
GeForce GTX 675MX (ForceWare 306.14) |
