Intel Atom x5-Z8350

Intel Z8350

英特尔凌动X5-Z8350是面向Windows和安卓设备（平板电脑和变形本）的高能效四核处理器，在2016年2月发布。它的主频为1.44 - 1.92GHz，采用Cherry Trail架构。由于新的14纳米低功耗制程（P1273）与三栅极晶体管技术，它的能效相比Bay Trail-T架构型号（如凌动Z3795）显著提高。除了处理器内核，它的芯片中还包括了支持DirectX 11.2的显卡以及一个LPDDR3内存控制器（2×64位，25.6 GB/s）。

架构

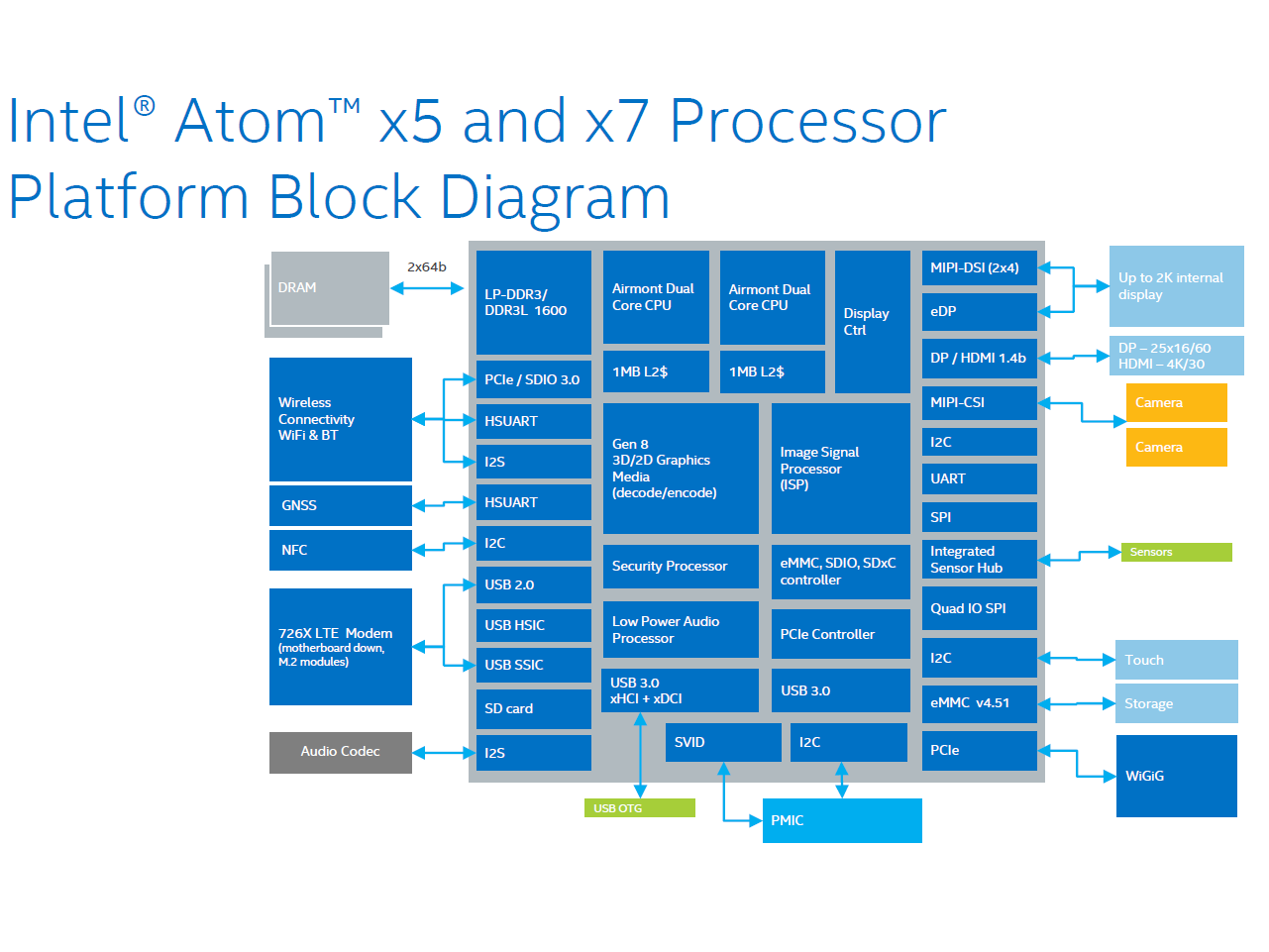

处理器核心基于Airmont架构，基本上只是基于以前的Silvermont芯片稍微修改的缩小版。它的单位时钟频率性能并未改进，不过更加高效的14纳米制程让它可以更好地利用处理器加速，提供更高的整体性能。

性能

相比于凌动X5-Z8500，凌动X5-Z8350的主频略低，因此速度慢大约10％。不过x5仍然可以击败一些ARM架构处理器如高通骁龙801。

 相比于前代的X5-Z8300，​​相比之下Z8350提供了80MHz更高的最高频率。请参考我们的X5-Z8300页面中详细的基准测试成绩。

使用Windows时，这款处理器足以满足日常任务如上网浏览或办公应用的需要，但面对要求较高的软件和最新游戏可能会举步维艰。

图形

英特尔高清显卡（Cherry Trail）基于Broadwell架构（英特尔第八代）支持DirectX 11.2，也用于其他Broadwell系列处理器（如高清显卡5300）。搭配12个EU，最高频率500MHz，这款显卡相比高清显卡（Bay Trail）性能优势明显，可以满足要求较低或较老的Windows游戏低设置运行的需要。该显卡还支持4K / H.265视频加速。

相比ARM处理器，高清显卡的性能略低于高通Adreno 330或PowerVR G6430。

功耗

整个系统芯片的SDP为2瓦，热设计功率应低于4瓦。因此，该芯片可在被动散热设备中使用。

SeriesIntel Atom x5
CodenameCherry Trail

Series: Atom x5 Cherry Trail

Intel Atom x5-Z85501.44 - 2.4 GHz4 / 4 cores
Intel Atom x5-Z85001.44 - 2.24 GHz4 / 4 cores
Intel Atom x5-Z8350 « 1.44 - 1.92 GHz4 / 4 cores
Intel Atom x5-Z83001.44 - 1.84 GHz4 / 4 cores
Intel Atom x5-E80001.04 - 2 GHz4 / 4 cores
Clock Rate1440 - 1920 MHz
Level 2 Cache2 MB
Number of Cores / Threads4 / 4
Manufacturing Technology14 nm
Max. Temperature90 °C
FeaturesIntel HD Graphics (Cherry Trail, 200 - 500 MHz), Wireless Display, AES-NI, max. 2 GB Single-Channel DDR3L-RS-1600 (12,8 GB/s), USB 3.0, 1x PCIe 2.0
GPUIntel HD Graphics (Cherry Trail) (200 - 500 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date02/08/2016
Product Link (external)ark.intel.com

Benchmarks

Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 88     avg: 96.1     median: 97 (1%)     max: 101 Points
+ 10 benchmarks and specifications   - Hide comparison chart
AMD A4-1200
31 -68%
...
AMD E2-9000
84 -13%
Intel Celeron N3350
85.4 -11%
AMD A6-9220e
86 -11%
Intel Celeron J3355
90 -6%
AMD E2-9010
91 -5%
AMD A4-4300M
93 -3%
Intel Atom x5-Z8300
93.5 -3%
Intel Atom x5-E8000
94 -2%
AMD A4 Micro-6400T
95 -1%
Intel Atom x5-Z8350
96.1
Intel Celeron N2910
97 1%
AMD A9-9420e
97 1%
AMD A4-5150M
101 5%
AMD E2-3800
103 7%
Intel Atom x5-Z8500
103.3 7%
Intel Celeron 2957U
105 9%
AMD A6-9225
108.5 13%
Intel Celeron N2940
110.5 15%
AMD A6-9220
111.5 16%
...
AMD Ryzen 9 7945HX3D
5600 5727%
max:
AMD Ryzen Threadripper PRO 7995WX
15842 16385%
0%
100%
0102030405060708090100Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 25     avg: 28.3     median: 28 (8%)     max: 31 Points
+ 9 benchmarks and specifications   - Hide comparison chart
AMD A4-1200
19 -33%
...
AMD A4-1250
20.5 -28%
Intel Celeron N2805
24 -15%
AMD E1-6010
26 -8%
Intel Celeron N2806
26 -8%
AMD E1-2500
27 -5%
Intel Atom x5-E8000
27 -5%
Intel Celeron N2910
27 -5%
Intel Atom x5-Z8300
27.8 -2%
AMD E2-3800
28 -1%
Intel Atom x5-Z8350
28.33
AMD A6-9220e
31 9%
Intel Celeron N2810
31 9%
Intel Celeron N3150
32 13%
AMD A4-5000
32.29 14%
Intel Celeron N2920
32.5 15%
Intel Celeron N2815
32.5 15%
Intel Pentium N3510
33 16%
Intel Celeron N3050
33.07 17%
AMD A4 Micro-6400T
34 20%
...
AMD Ryzen 9 7945HX3D
311 998%
max:
Intel Core Ultra 9 285K
355.5 1155%
0%
100%
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
1.2 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
0.4 Points (9%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 817     avg: 901     median: 902.5 (5%)     max: 999 points
+ 6 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 2575     avg: 2939     median: 2978.5 (2%)     max: 3130 points
+ 6 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 1024m *
1108 s (13%)
+ 1 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 32m *
36.2 s (7%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Physics
min: 987     avg: 1267     median: 1313 (3%)     max: 1418 Points
+ 11 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Physics
12990 Points (11%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Unlimited Physics
min: 8436     avg: 12570     median: 14078 (12%)     max: 15195 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Physics
min: 929     avg: 1036     median: 1071 (3%)     max: 1109 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Physics
1588 Points (3%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot Extreme (ES 3.1) Unlimited Physics
1126 Points (13%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot (ES 3.0) Unlimited Physics
1151 Points (13%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
min: 880     avg: 903     median: 903 (9%)     max: 926 points
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Multi-Core
min: 2296     avg: 2393     median: 2393 (2%)     max: 2490 points
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 4.0 - Geekbench 4.0 64 Bit Single-Core
min: 836     avg: 888     median: 890.5 (12%)     max: 934 points
+ 4 benchmarks and specifications   + Show comparison chart
Geekbench 4.0 - Geekbench 4.0 64 Bit Multi-Core
min: 1980     avg: 2227     median: 2264.5 (6%)     max: 2399 points
+ 4 benchmarks and specifications   + Show comparison chart
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
min: 2130     avg: 2247     median: 2289 (4%)     max: 2332 points
+ 5 benchmarks and specifications   + Show comparison chart
Geekbench 3 - Geekbench 3 32 Bit Single-Core
min: 709     avg: 755     median: 760 (15%)     max: 796 points
+ 5 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 5047     avg: 5908     median: 5630 (7%)     max: 7230 ms
+ 5 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
min: 4722     avg: 6393     median: 6494 (5%)     max: 7265 Points
+ 5 benchmarks and specifications   + Show comparison chart
AnTuTu v6 - AnTuTu v6 Total Score
58565 Points (20%)
+ 1 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Work Score 2.0
3376 Points (22%)
+ 1 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Work Score
4671 Points (23%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
