Intel HD Graphics 2500

Intel HD Graphics 2500

显卡Intel HD Graphics2500（或英特尔图形媒体加速器HD2500或GMA HD2500），是一个集成的图形卡，代号为Ivy Bridge的处理器。它继承了英特尔HD Graphics2000在Sandy Bridge处理器和执行之间的旧的HD 2000和3000 GPU（根据命名）。相比更快的高清显卡4000，2500功能执行单位（6％比16），只有一个纹理采样器。因此，性能应该清楚地差，只适合低苛刻的游戏。英特尔一个高10％至15％的性能相比老的Sandy Bridge HD显卡2000。因此，只有低需求的休闲游戏，播放HD2500。集成视频解码器称为多格式编解码器引擎（MFX）也得到了改善和4K应该允许甚至simultaneus的视频解码。 DXVAChecker列表MPEG2，VC1，WMV9，H264支持的编解码器。 QuickSync快速转码的视频进行了优化，以更高的性能和更好的图像质量。另一项新功能是支持多达3个独立的显示器（也许只有一个DisplayPort）为AMD提供了与他们的Eyefinity技术支持（最多6个显示器）。由于3D三栅极的22nm生产工艺，应该是比较低的功耗（每瓦特性能）的发展重点。

HD Graphics Series

HD Graphics P530 24 @ 0.35 - 1.05 GHz64/128 Bit
HD Graphics 5600 24 @ 0.3 - 1.05 GHz64/128 Bit
HD Graphics 6000 48 @ 0.3 - 1 GHz64/128 Bit
HD Graphics 4600 20 @ 0.2 - 1.35 GHz64/128 Bit
HD Graphics 5500 24 @ 0.3 - 0.95 GHz64/128 Bit
HD Graphics 5000 40 @ 0.2 - 1.1 GHz64/128 Bit
HD Graphics 4400 20 @ 0.2 - 1.1 GHz64/128 Bit
HD Graphics 5300 24 @ 0.1 - 0.9 GHz64/128 Bit
HD Graphics 4000 16 @ 0.35 - 1.35 GHz64/128 Bit
HD Graphics (Broadwell) 12 @ 0.1 - 0.85 GHz64/128 Bit
HD Graphics 4200 20 @ 0.2 - 0.85 GHz64/128 Bit
HD Graphics (Skylake) 12 @ 0.3 - 0.8 GHz64/128 Bit
HD Graphics 405 (Braswell) 16 @ 0.32 - 0.7 GHz64/128 Bit
HD Graphics (Braswell) 16 @ 0.32 - 0.7 GHz64/128 Bit
HD Graphics 400 (Braswell) 12 @ 0.32 - 0.64 GHz64/128 Bit
HD Graphics (Haswell) 10 @ 0.2 - 1 GHz64/128 Bit
HD Graphics (Cherry Trail) 16 @ 0.2 - 0.6 GHz64/128 Bit
HD Graphics 3000 12 @ 0.35 - 1.35 GHz64/128 Bit
HD Graphics 2500 6 @ 0.65 - 1.15 GHz64/128 Bit
HD Graphics (Ivy Bridge) 6 @ 0.35 - 1.1 GHz64/128 Bit
HD Graphics 2000 6 @ 0.85 - 1.35 GHz64/128 Bit
HD Graphics (Sandy Bridge) 6 @ 0.35 - 1.1 GHz64/128 Bit
HD Graphics (Bay Trail) 4 @ 0.31 - 0.9 GHz32/64/128 Bit
CodenameIvy Bridge GT1

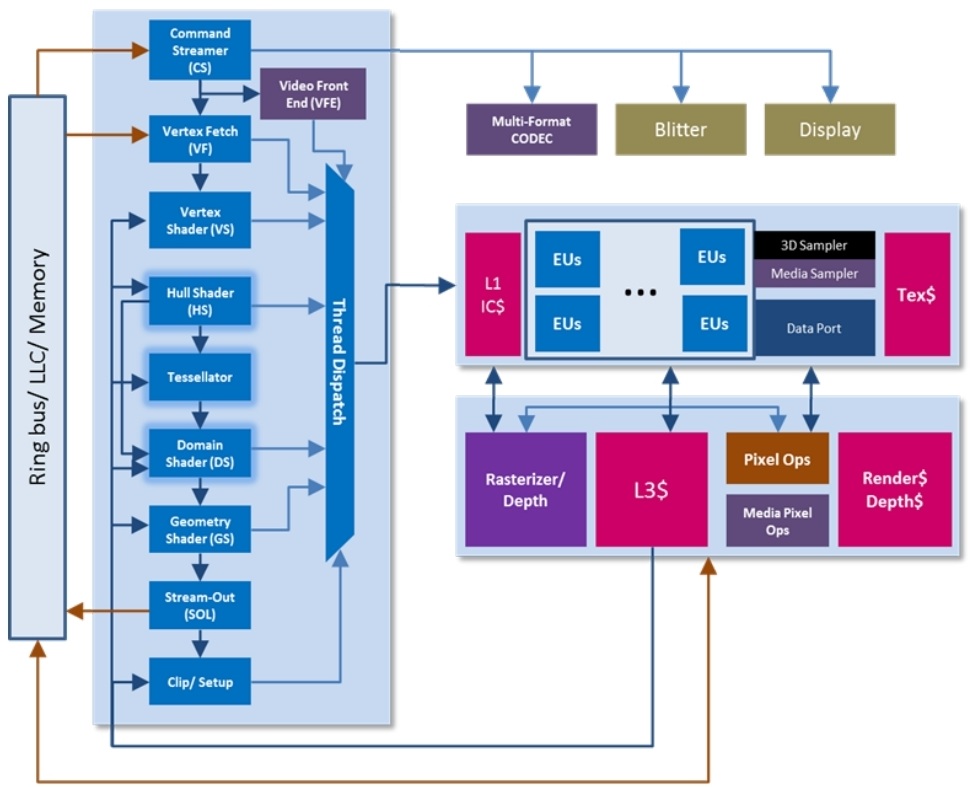

ArchitectureGen. 7 Ivy Bridge
Pipelines6 - unified
Core Speed650 - 1150 (Boost) MHz
Memory Bus Width64/128 Bit
Shared Memoryyes
APIDirectX 11.0, Shader 5.0
technology22 nm
Notebook Sizelarge
Date of Announcement01.04.2012
CPU in HD Graphics 2500GPU Base SpeedGPU Boost / Turbo
Intel Core i5-35504 x 3300 MHz, 77 W650 MHz1150 MHz
Intel Core i5-34704 x 3200 MHz, 77 W650 MHz1100 MHz
Intel Core i3-32202 x 3300 MHz, 55 W650 MHz1050 MHz
min. - max.650 MHz1050 - 1150 MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
0.1 pt (0%)
AMD Radeon HD 8180
0.06605 -54%
...
Intel HD Graphics 400 (Braswell)
0.09931 -31%
AMD Radeon HD 7340
0.102 -30%
Intel HD Graphics (Cherry Trail)
0.1025 -29%
AMD Radeon HD 8210
0.1034 -29%
AMD Radeon HD 8250
0.1155 -20%
Intel HD Graphics 405 (Braswell)
0.1159 -20%
Intel HD Graphics (Braswell)
0.1189 -18%
Intel HD Graphics (Ivy Bridge)
0.1301 -10%
AMD Radeon HD 8240
0.1332 -8%
Intel HD Graphics 2500
0.1449
AMD Radeon HD 7400G
0.149 3%
AMD Radeon HD 8280
0.1494 3%
AMD Radeon HD 7420G
0.1562 8%
AMD Radeon HD 8330
0.1599 10%
Intel HD Graphics (Haswell)
0.1651 14%
Intel HD Graphics 500
0.1651 14%
AMD Radeon R2 (Mullins/Beema/Carrizo-L)
0.1699 17%
AMD Radeon HD 8350G
0.1767 22%
AMD Radeon HD 8400
0.1827 26%
...
NVIDIA GeForce RTX 4090 Laptop GPU
21.1 14462%
max:
NVIDIA GeForce RTX 4090
33.3 22881%
0%
100%
3DMark - 3DMark Cloud Gate Score
min: 1906     avg: 2659     median: 2817 (3%)     max: 3095 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
min: 2301     avg: 2584     median: 2604.5 (1%)     max: 2825 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 257     avg: 293.3     median: 294.5 (1%)     max: 327 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
min: 289     avg: 319.5     median: 318 (0%)     max: 353 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
min: 21978     avg: 23693     median: 24058 (3%)     max: 24676 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
min: 374     avg: 419     median: 430 (1%)     max: 449 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 321     avg: 349     median: 350.5 (0%)     max: 374 Points
+ 4 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -51%
...
AMD Radeon HD 7310
232.3 -33%
AMD Radeon HD 6310
251.8 -28%
AMD Radeon HD 8180
268 -23%
AMD Radeon HD 6320
301 -14%
Intel HD Graphics (Ivy Bridge)
310.6 -11%
Intel HD Graphics (Cherry Trail)
319.9 -8%
AMD Radeon HD 7340
330.4 -5%
Intel HD Graphics 400 (Braswell)
341.1 -2%
AMD Radeon HD 8210
344.5 -1%
Intel HD Graphics 2500
349
NVIDIA GeForce GT 415M
379 9%
Intel HD Graphics (Braswell)
389.9 12%
AMD Radeon HD 7400G
415 19%
NVIDIA GeForce 410M
415.3 19%
AMD Radeon HD 8250
422.5 21%
AMD Radeon HD 8240
427.5 22%
AMD Radeon HD 6450M
443 27%
AMD Radeon HD 7420G
453 30%
AMD Radeon HD 6480G
467 34%
...
AMD Radeon RX 7900M
59943 17076%
max:
NVIDIA GeForce RTX 4090
106023 30279%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 1375     avg: 1849     median: 1930.5 (1%)     max: 2068 Points
+ 6 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 1115     avg: 1369     median: 1400.5 (1%)     max: 1561 Points
+ 4 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -95%
...
AMD Radeon HD 8250
1113 -19%
NVIDIA GeForce GT 220M
1144 -16%
Intel HD Graphics (Ivy Bridge)
1186 -13%
NVIDIA GeForce 9600M GT
1192 -13%
AMD Radeon HD 8240
1247 -9%
AMD Radeon HD 6480G
1282 -6%
AMD Radeon HD 6520G
1295 -5%
Intel HD Graphics (Braswell)
1328 -3%
Intel HD Graphics 3000
1331 -3%
Intel HD Graphics 2500
1369
NVIDIA GeForce GT 130M
1379 1%
AMD Radeon HD 7600G
1380 1%
AMD Radeon HD 7420G
1484 8%
NVIDIA GeForce 9650M GS
1486 9%
AMD Radeon HD 6470M
1504 10%
NVIDIA GeForce 410M
1507 10%
AMD Radeon R3 (Mullins/Beema)
1512 10%
AMD Radeon HD 8330
1513 11%
AMD Radeon HD 7470M
1516 11%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 9574%
max:
AMD Radeon RX 7900 XTX
170928 12386%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
20814 Points (22%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 03 - 3DMark 03 - Standard
10138 Points (5%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 6341     avg: 6627     median: 6627 (7%)     max: 6913 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -98%
...
Intel HD Graphics 3000
6355 -4%
AMD Radeon HD 8400
6397 -3%
AMD Radeon R4 (Beema)
6421 -3%
NVIDIA NVS 2100M
6443 -3%
AMD Radeon HD 6480G
6469 -2%
AMD Radeon HD 8450G + Radeon HD 8570M Dual Graphics
6475 -2%
AMD Radeon HD 7470M
6555 -1%
AMD Radeon HD 6370M
6580 -1%
NVIDIA GeForce Go 7800 GTX
6600 0%
Intel HD Graphics 2500
6627
NVIDIA GeForce 310M
6662 1%
NVIDIA Quadro FX 1500M
6666 1%
NVIDIA GeForce 9500M GS
6669 1%
NVIDIA GeForce G210M
6720 1%
ATI Mobility Radeon HD 2700
6729 2%
ATI Mobility Radeon HD 4570
6755 2%
AMD Radeon R2 (Stoney Ridge)
6853 3%
NVIDIA NVS 3100M
6928 5%
ATI Mobility Radeon HD 4550
6991 5%
...
AMD Radeon RX 7600M XT
68064 927%
max:
NVIDIA GeForce RTX 4080 Super
87172 1215%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 3300     avg: 3933     median: 3816 (5%)     max: 4442 Points
+ 5 benchmarks and specifications   + Show comparison chart
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
1.6 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
2.7 fps (2%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
6.8 fps (5%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
1.9 fps (2%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
12.9 fps (10%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
15.6 fps (17%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
2.4 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
0 fps (0%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 3409     avg: 5543     median: 6037 (4%)     max: 6687 points
+ 4 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 9.09     avg: 10.6     median: 10.8 (4%)     max: 11.98 fps
+ 4 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
min: 30     avg: 31     median: 31 (0%)     max: 32 Samples/s
+ 3 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
min: 47     avg: 50     median: 50 (0%)     max: 53 Samples/s
+ 3 benchmarks and specifications   + Show comparison chart
ComputeMark v2.1 - ComputeMark v2.1 Result
min: 282     avg: 287.3     median: 286 (0%)     max: 294 points
+ 3 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Metro: Last Light

Metro: Last Light

2013
low 1024x768
11.1  fps    + Compare
med. 1366x768
9.8  fps    + Compare
high 1366x768
9.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
BioShock Infinite

BioShock Infinite

2013
low 1280x720
17.7  fps    + Compare
med. 1366x768
8  fps    + Compare
high 1366x768
7  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
StarCraft II: Heart of the Swarm

StarCraft II: Heart of the Swarm

2013
low 1024x768
145  fps    + Compare
med. 1366x768
26  fps    + Compare
high 1366x768
13.7  fps    + Compare
ultra 1920x1080
4.3  fps    + Compare
» With all tested laptops playable in detail settings low.
SimCity

SimCity

2013
low 1024x768
14.8  fps    + Compare
med. 1366x768
8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Tomb Raider

Tomb Raider

2013
low 1024x768
20.1  fps    + Compare
med. 1366x768
10.9  fps    + Compare
high 1366x768
7.1  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Crysis 3

Crysis 3

2013
low 1024x768
13.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dead Space 3

Dead Space 3

2013
low 1024x768
43 46.2 ~ 45 fps    + Compare
med. 1366x768
18.8  fps    + Compare
high 1366x768
13.5  fps    + Compare
ultra 1920x1080
7.3  fps    + Compare
» With all tested laptops playable in detail settings low.
Far Cry 3

Far Cry 3

2012
low 1024x768
18 20.5 ~ 19 fps    + Compare
med. 1366x768
11.9  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Assassin´s Creed III

Assassin´s Creed III

2012
med. 1366x768
13.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Hitman: Absolution

Hitman: Absolution

2012
low 1024x768
18.4 20.1 ~ 19 fps    + Compare
med. 1366x768
10.7 11.6 ~ 11 fps    + Compare
high 1366x768
3.8  fps    + Compare
ultra 1920x1080
1.9  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Call of Duty: Black Ops 2

Call of Duty: Black Ops 2

2012
low 1024x768
18  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Fifa 13

Fifa 13

2012
low 1024x768
29.7 99 101 ~ 77 fps    + Compare
med. 1366x768
23.6 51 52 60 ~ 47 fps    + Compare
high 1366x768
17.2 28 31.2 32 ~ 27 fps    + Compare
ultra 1920x1080
14.5  fps    + Compare
» With most tested laptops playable in detail settings med..
F1 2012

F1 2012

2012
low 1024x768
37 40 ~ 39 fps    + Compare
med. 1366x768
21 26 ~ 24 fps    + Compare
high 1366x768
21 22 ~ 22 fps    + Compare
ultra 1920x1080
12 12 ~ 12 fps    + Compare
» With all tested laptops playable in detail settings low.
Guild Wars 2

Guild Wars 2

2012
low 1024x768
37  fps    + Compare
high 1366x768
8  fps    + Compare
» With all tested laptops playable in detail settings low.
Counter-Strike: GO

Counter-Strike: GO

2012
low 1024x768
77 82 ~ 80 fps    + Compare
med. 1366x768
36 39 ~ 38 fps    + Compare
high 1366x768
18 20.6 ~ 19 fps    + Compare
ultra 1920x1080
11.7  fps    + Compare
» With all tested laptops playable in detail settings med..
Sleeping Dogs

Sleeping Dogs

2012
low 1024x768
21.7  fps    + Compare
med. 1366x768
15.5  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Anno 2070

Anno 2070

2011
low 1024x768
23.2  fps    + Compare
med. 1366x768
9.8  fps    + Compare
high 1366x768
5.2  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Battlefield 3

Battlefield 3

2011
low 1024x768
16.8  fps    + Compare
med. 1366x768
11  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Supreme Commander - FA Bench

Supreme Commander - FA Bench

2007
low 1024x768
46  fps    + Compare
med. 1024x768
22.2  fps    + Compare
high 1024x768
18.7  fps    + Compare
ultra 1920x1080
7.6  fps    + Compare
» With all tested laptops playable in detail settings low.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
low 1024x768
48.8 52.8 ~ 51 fps    + Compare
med. 1024x768
20.2 21.6 ~ 21 fps    + Compare
high 1024x768
12  fps    + Compare
ultra 1920x1080
3  fps    + Compare
» With all tested laptops playable in detail settings low.
World of Warcraft

World of Warcraft

2005
low 800x600
104  fps    + Compare
med. 1024x768
29  fps    + Compare
» With all tested laptops playable in detail settings low.
lowmed.highultraQHD4K
Metro: Last Light11.079.849.64
BioShock Infinite17.6686.96
StarCraft II: Heart of the Swarm1452613.74.3
SimCity14.88
Tomb Raider20.110.97.1
Crysis 313.8
Dead Space 34518.813.57.3
Far Cry 31911.9
Assassin´s Creed III13.8
Hitman: Absolution19113.81.9
Call of Duty: Black Ops 218
Fifa 1377472714.5
F1 201239242212
Guild Wars 2378
Counter-Strike: GO80381911.7
Sleeping Dogs21.715.5
Anno 207023.159.785.23
Battlefield 316.811
Supreme Commander - FA Bench4622.218.77.6
Crysis - GPU Benchmark5121123
World of Warcraft10429
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		11
5
3
1		16
2

13


8








For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 05. 01:01:59

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Thu, 04 Jul 2024 05:31:02 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.043s ... 0.044s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#17 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.046s

#18 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.046s

#19 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.046s

#20 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.046s

#21 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.046s

#22 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.046s

#23 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.047s

#24 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.047s

#25 composed specs +0s ... 0.047s

#26 did output specs +0s ... 0.047s

#27 start showIntegratedCPUs +0s ... 0.047s

#28 getting avg benchmarks for device 2887 +0.029s ... 0.075s

#29 got single benchmarks 2887 +0.017s ... 0.092s

#30 got avg benchmarks for devices +0s ... 0.092s

#31 No cached benchmark found, getting uncached values +0.438s ... 0.53s

#32 min, max, avg, median took s +0.091s ... 0.621s

#33 before gaming benchmark output +0s ... 0.621s

#34 Got 80 rows for game benchmarks. +0.006s ... 0.627s

#35 composed SQL query for gamebenchmarks +0s ... 0.627s

#36 got data and put it in $dataArray +0.013s ... 0.64s

#37 benchmarks composed for output. +0.617s ... 1.257s

#38 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 1.26s

#39 return log +0s ... 1.26s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
SD X Adreno X1-85 4.6 TFLOPS GPU *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
SD X Adreno X1-85 3.8 TFLOPS GPU *
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
Radeon Graphics (Ryzen 9000) *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)
HD Graphics 2500

* Approximate position of the graphics adapter
