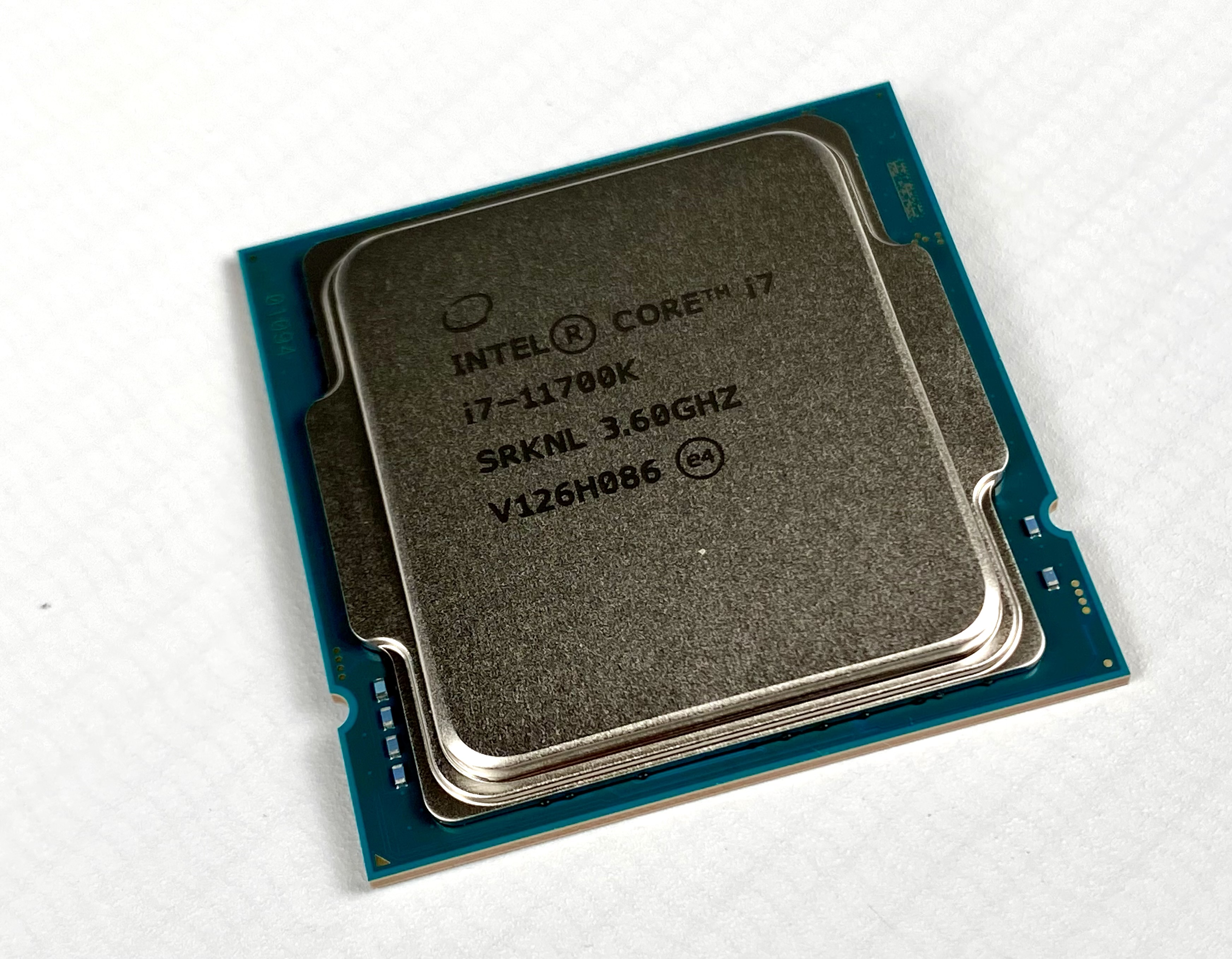

Intel Core i7-11700K

Intel i7-11700K

英特尔酷睿i7-11700K是基于Rocket Lake体系结构的高端台式机CPU。 CPU提供8个核心和16个线程,时钟为3.6~4.9GHz。 TDP的额定功率为125瓦(PL1,持续负载功率限制),但PL2设定为250瓦左右,用于短期升压(最长56秒)。

Sunny Cove 处理器核心(从 Ice Lake 移动 CPU 了解)可提供更大的高速缓存和改进的 IPC(最高 19%)。 此外,芯片还包括 (部分 )集成 WiFi 6E和 Thunderbolt 4。 此平台支持 PCIe 4.0 和 Intel DL Boost 以加速 AI。

更快的 Rocket Lake-S CPU 还集成基于当前英特尔 Xe 体系结构(例如,移动 Tiger Lake)的新英特尔 UHD 图形 750。

CPU与彗星湖的前身一样,以14纳米工艺制造。

CodenameRocket Lake
SeriesIntel Rocket Lake

Series: Rocket Lake Rocket Lake

Intel Core i9-11900K3.5 - 5.3 GHz8 / 16 cores16 MB L3
Intel Core i7-11700K « 3.6 - 5 GHz8 / 16 cores16 MB L3
Intel Core i7-117002.5 - 4.9 GHz8 / 16 cores16 MB L3
Intel Core i5-11600K3.9 - 4.9 GHz6 / 12 cores12 MB L3
Intel Core i5-11400F2.6 - 4.4 GHz6 / 12 cores12 MB L3
Intel Core i5-11400T1.3 - 3.7 GHz6 / 12 cores12 MB L3
Clock Rate3600 - 5000 MHz
Level 1 Cache640 KB
Level 2 Cache4 MB
Level 3 Cache16 MB
Number of Cores / Threads8 / 16
Power Consumption (TDP = Thermal Design Power)125 Watt
Manufacturing Technology14 nm
Max. Temperature100 °C
SocketLGA1200
FeaturesDDR4-3200 RAM, PCIe 4, 8 GT/s bus, DL Boost, GNA, vPro, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AVX, AVX2, AVX-512, BMI2, ABM, FMA, ADX, VMX, SMX, SMEP, SMAP, MPX, EIST, TM1, TM2, HT, Turbo, SST, AES-NI, RDRAND, RDSEED, SHA
GPUIntel UHD Graphics Xe 750 32EUs (Rocket Lake) (350 - 1300 MHz)
64 Bit64 Bit support
Architecturex86
Announcement Date04/30/2021
Product Link (external)ark.intel.com

Benchmarks

Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
36.8 pt (61%)
AMD E1-2100
2.31 -94%
...
36.3 -1%
36.3 -1%
Intel Core i5-12400F
36.3 -1%
36.4 -1%
36.5 -1%
36.5 -1%
36.5 -1%
36.6 -1%
36.7 0%
Intel Core i7-11700K
36.8
36.9 0%
Intel Core i9-11900KB
36.9 0%
Intel Core i5-13500T
37 1%
37.1 1%
37.1 1%
37.1 1%
37.3 1%
37.5 2%
37.5 2%
...
60.1 63%
0%
100%
Cinebench R23 - Cinebench R23 Multi Core
14281 Points (13%)
AMD E1-2100
202 -99%
...
13315 -7%
13325 -7%
13439 -6%
13501 -5%
13559 -5%
13674 -4%
13794 -3%
13839 -3%
13985 -2%
Intel Core i7-11700K
14281
14303 0%
14317 0%
14361 1%
14387 1%
14426 1%
Intel Core i5-13500
14573 2%
14669 3%
14753 3%
14783 4%
...
107681 654%
0%
100%
Cinebench R23 - Cinebench R23 Single Core
1558 Points (66%)
AMD A10-5745M
74.4 -95%
...
1533 -2%
1533 -2%
1534 -2%
AMD Ryzen 7 7735H
1536 -1%
Intel Core i7-11390H
1537 -1%
AMD Ryzen 5 5600X
1541 -1%
1548 -1%
1551 0%
1553 0%
Intel Core i7-11700K
1558
1559 0%
1559 0%
Intel Core i5-1240U
1559 0%
1563 0%
1565 0%
AMD Ryzen 7 5800X
1575 1%
1576 1%
1578 1%
1580 1%
...
Intel Core Ultra 9 285K
2348 51%
0%
100%
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 580     avg: 588     median: 588 (65%)     max: 596 Points
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 5082     avg: 5361     median: 5361 (13%)     max: 5640 Points
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 2265     avg: 2299     median: 2299 (15%)     max: 2333 Points
AMD A4-1200
31 -99%
...
2163 -6%
2166 -6%
2178 -5%
2191 -5%
AMD Ryzen 7 3800XT
2230 -3%
2236 -3%
2239 -3%
2261 -2%
2276 -1%
Intel Core i7-11700K
2299
Intel Core i9-10910
2302 0%
2316 1%
2317 1%
2329 1%
2339 2%
2358 3%
2358 3%
2364 3%
Intel Core i5-13500
2405 5%
...
15842 589%
0%
100%
012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
240 Points (67%)
AMD A4-1200
19 -92%
...
236.7 -1%
236.8 -1%
237.3 -1%
237.8 -1%
238 -1%
238 -1%
238.6 -1%
239 0%
239.8 0%
Intel Core i7-11700K
240
240.3 0%
240.5 0%
241 0%
AMD Ryzen 7 PRO 5750G
241 0%
241.8 1%
242 1%
Intel Core i5-1245U
242 1%
242 1%
242.5 1%
...
Intel Core Ultra 9 285K
355.5 48%
0%
100%
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
25.6 Points (33%)
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
2.9 Points (68%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
9621 points (58%)
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
58342 points (42%)
wPrime 2.10 - wPrime 2.0 32m *
4.8 s (1%)
7-Zip 18.03 - 7-Zip 18.03 Multi Thread 4 runs
57129 MIPS (33%)
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
6157 MIPS (73%)
X264 HD Benchmark 4.0 - x264 Pass 2
128 fps (43%)
X264 HD Benchmark 4.0 - x264 Pass 1
292.5 fps (67%)
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
16.3 fps (29%)
0510152025Tooltip
TrueCrypt - TrueCrypt Serpent
1.2 GB/s (35%)
TrueCrypt - TrueCrypt Twofish
1.9 GB/s (33%)
TrueCrypt - TrueCrypt AES
12.7 GB/s (33%)
Blender - Blender 2.79 BMW27 CPU *
221 Seconds (2%)
R Benchmark 2.5 - R Benchmark 2.5 *
0.5 sec (11%)
3DMark 06 - CPU - 3DMark 06 - CPU
16388 Points (35%)
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
20.2 s (4%)
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
685 s (3%)
3DMark 11 - 3DM11 Performance Physics
17324 Points (44%)
3DMark - 3DMark Ice Storm Physics
70388 Points (57%)
3DMark - 3DMark Cloud Gate Physics
18593 Points (47%)
3DMark - 3DMark Fire Strike Standard Physics
25557 Points (46%)
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
min: 1721     avg: 1766     median: 1765.5 (69%)     max: 1810 points
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
min: 10269     avg: 10787     median: 10786.5 (19%)     max: 11304 points
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
603 ms (1%)
Sunspider - Sunspider 1.0 Total Score *
124.2 ms (1%)
WebXPRT 3 - WebXPRT 3 Score
254 Points (47%)
CrossMark - CrossMark Overall
1775 Points (68%)
Power Consumption - Prime95 Power Consumption - external Monitor *
210 Watt (36%)
0153045607590105120135150165180195210225240Tooltip
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
244 Watt (45%)
0153045607590105120135150165180195210225240Tooltip
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
9.6 Points per Watt (7%)
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
