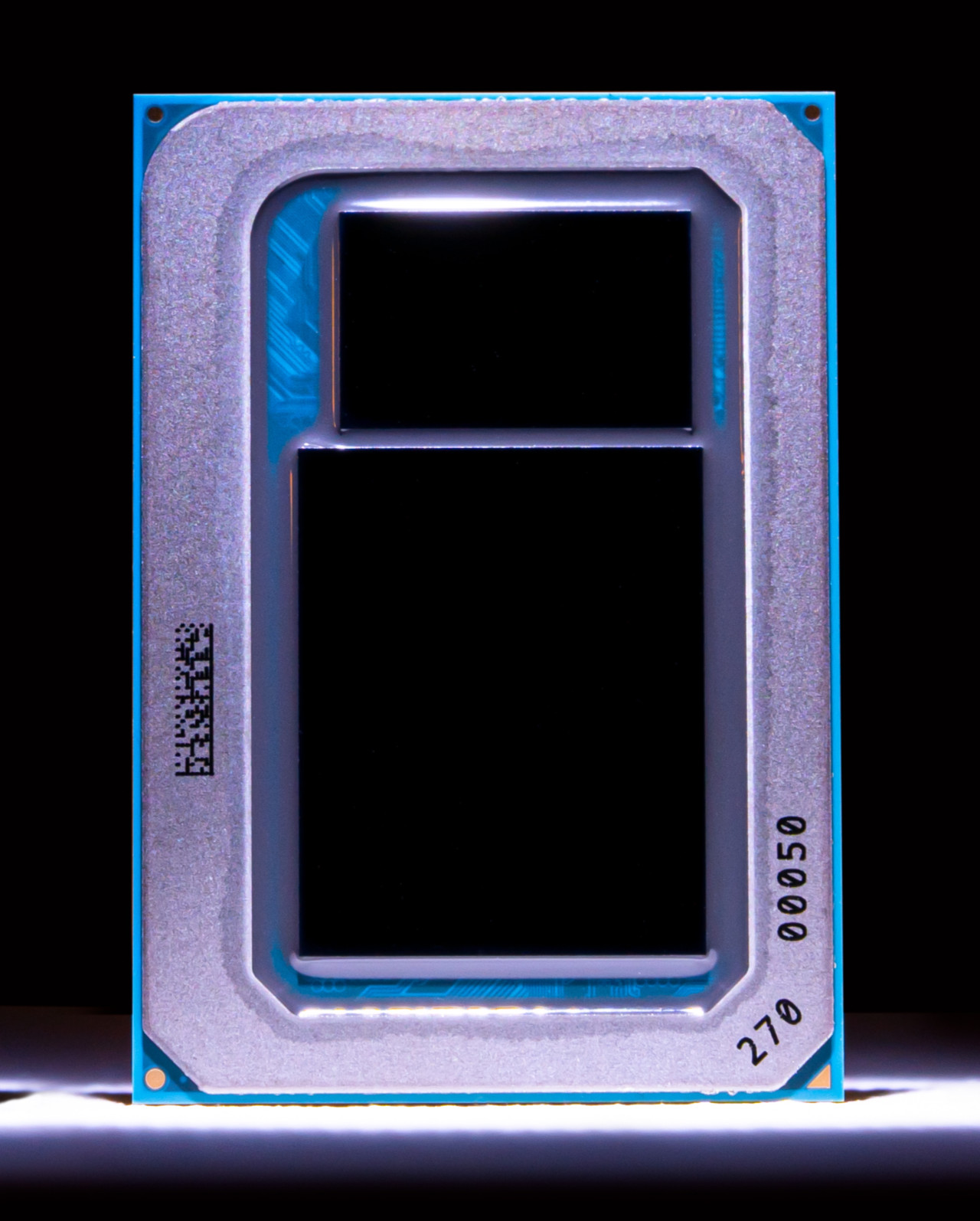

Intel Core i3-1110G4
英特尔酷睿i3-1110G4是基于2020年9月推出的Tiger Lake-U Generation (UP4)的笔记本电脑和Ultra Book的高能效双核SoC。 内置两个 Willow Cove 处理器核心(Hyper 支持四个线程)线程化)。 每个核心从 1.8GHz(基本速度)到 3.9GHz(单核和双核升压)。
此外,基于全新Gen 12体系结构的集成Xe显卡也很新颖。 i3集成了低端UHD显卡G4,96个EU中有48个有效,时钟速度为400~1100MHz。 GPU 和 CPU 可以同时使用 6 MB 的 L3 高速缓存。
此外,Tiger Lake SoCs还添加了PCIe 4支持(4通道)、AI硬件加速、Thunderbolt 4/USB 4和Wi-Fi 6的部分集成到芯片中。
芯片在英特尔改进的 10nm+ 工艺(称为 SuperFin)中生产,与 TSMC 的 7nm 工艺(例如,Ryzen 4000 系列)相同。
UP4系列的动作范围为7~是15瓦特。 因此,处理器非常适合超薄、轻巧的笔记本电脑、敞篷和平板电脑。
Series | Intel Tiger Lake |
Codename | Tiger Lake-UP4 |
Series: Tiger Lake Tiger Lake-UP4 |
Clock Rate | 2500 - 3900 MHz |
Level 1 Cache | 160 KB |
Level 2 Cache | 2.5 MB |
Level 3 Cache | 6 MB |
Number of Cores / Threads | 2 / 4 |
Power Consumption (TDP = Thermal Design Power) | 15 Watt |
Manufacturing Technology | 10 nm |
Max. Temperature | 100 °C |
Socket | BGA1598 |
Features | LPDDR4x-4266 RAM, PCIe 4, 2 GT/s bus, DL Boost, GNA, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AVX, AVX2, AVX-512, BMI2, ABM, FMA, ADX, SMEP, SMAP, EIST, TM1, TM2, Hyper-Threading, Turbo, SST, AES-NI, RDRAND, RDSEED, SHA |
GPU | Intel UHD Graphics Xe G4 48EUs (400 - 1100 MHz) |
64 Bit | 64 Bit support |
Architecture | x86 |
Announcement Date | 09/02/2020 |
Product Link (external) | ark.intel.com |
Benchmarks
Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
25.7 pt (43%)
...
AMD Ryzen 5 3580U
AMD Ryzen 7 2700U
Intel Core i5-8259U
Intel Core i5-8265U
Intel Core i7-7700HQ
Intel Core i5-8260U
...
max:
Cinebench R23 - Cinebench R23 Multi Core
1868 Points (2%)
...
Intel Core i5-4258U
Intel Core i5-5250U
Qualcomm Snapdragon 7c+ Gen 3
Intel Core i3-6157U
AMD Ryzen Embedded R1606G
Intel Core i3-8109U
...
max:
Cinebench R23 - Cinebench R23 Single Core
877 Points (37%)
...
Intel Core i3-10100Y
AMD Ryzen Embedded V1605B
AMD Ryzen 7 2700U
AMD Ryzen Embedded R1606G
Intel Core i3-8109U
Intel Core i5-8259U
...
max:
Intel Core Ultra 9 285K
Cinebench R20 - Cinebench R20 CPU (Single Core)
422 Points (47%)
...
Intel Core i5-1035G7
Intel Core i5-1035G1
Intel Core i5-8279U
Intel Core i5-8365U
Intel Core i5-10310U
Intel Core i7-8850H
Intel Core i5-1038NG7
...
max:
Cinebench R20 - Cinebench R20 CPU (Multi Core)
732 Points (2%)
...
Intel Core i3-6157U
Intel Core i3-8145U
AMD Ryzen Embedded R1606G
Intel Core i3-8109U
Intel Core i3-8130U
Intel Core i7-5557U
Intel Core i7-10510Y
...
max:
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
382 Points (2%)
...
Intel Core i3-8109U
Intel Core i7-5557U
Intel Core i5-7360U
Intel Core i7-6567U
Intel Core i5-7260U
Intel Core i5-7267U
Intel Core i7-7660U
AMD Ryzen 3 2300U
Intel Core i7-7567U
...
max:
Lenovo ThinkPad X12 Detachable 20UW000KGE: Ø293 (284.3-381.55)
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
160.4 Points (45%)
...
Intel Core i7-8709G
Intel Core i5-7440HQ
Intel Core i7-7660U
Intel Core i7-7567U
Intel Xeon E3-1535M v5
Intel Core i7-7820HQ
Intel Core i5-1035G4
Intel Core i5-1035G1
...
max:
Intel Core Ultra 9 285K
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
4.3 Points (6%)
...
Intel Core i7-940XM
Intel Core i7-5557U
Intel Core i5-7360U
Intel Core i7-6567U
Intel Core i3-8145U
Intel Core i5-7267U
AMD Ryzen 3 2300U
Intel Core i7-7660U
Intel Core i7-2635QM
Intel Core i7-2630QM
...
max:
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
2 Points (48%)
...
Intel Core i5-1035G1
Intel Core i7-8706G
Intel Core i7-8809G
Intel Core i5-1038NG7
Intel Core i5-1035G4
Intel Core i7-8850H
Intel Xeon E-2176M
Intel Core i7-9750H
...
max:
Intel Core Ultra 9 285K
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
6972 points (42%)
...
Intel Core i5-1035G4
Intel Core i5-1035G1
Intel Core i7-9750H
Intel Core i7-8559U
Intel Core i7-1065G7
Intel Core i9-8950HK
Intel Core i5-1230U
...
max:
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
13139 points (10%)
...
Intel Core i5-7360U
Intel Core i5-7300U
AMD Ryzen 3 3300U
Intel Core i7-6567U
Intel Core i3-8145U
Intel Core i7-2635QM
AMD Ryzen 7 2700U
Intel Core i7-2630QM
Intel Core i7-7660U
Intel Core i7-4712HQ
...
max:
wPrime 2.10 - wPrime 2.0 1024m *
520 s (6%)
...
Intel Core i7-5600U
Intel Core i7-4558U
Intel Core i7-5650U
Intel Core i7-2620M
Intel Core i5-6360U
AMD A10-9600P
Intel Core i5-4210M
...
VIA C3-M C3-M-1200
wPrime 2.10 - wPrime 2.0 32m *
12.4 s (3%)
...
Intel Core i5-8265U
Intel Core i5-1038NG7
Intel Core i5-6440HQ
Intel Core i3-1115G4
AMD Ryzen 3 3300U
AMD Ryzen 5 PRO 2500U
Intel Core i7-7660U
Intel Core i7-2720QM
AMD A12-9720P
Intel Core i3-8145U
Qualcomm Snapdragon 7c+ Gen 3
AMD PRO A12-9800B
...
Transmeta Crusoe TM-5800
2728 points (4%)
...
Intel Core i7-2640M
Intel Core i7-5600U
Intel Core i5-6440HQ
Intel Core i7-4558U
Intel Core i7-4500U
Intel Core i5-7300U
AMD Ryzen 5 PRO 2500U
Intel Core i3-7100H
Intel Core i5-3337U
Intel Core i5-2450M
Intel Core i7-5557U
Intel Core i7-3520M
Intel Core i5-3339Y
Intel Core i5-3320M
AMD Ryzen 5 3580U
...
max:
7-Zip 18.03 - 7-Zip 18.03 Multi Thread 4 runs
8714 MIPS (5%)
...
AMD A10-5750M
Intel Core i5-8210Y
Intel Core i5-4258U
Intel Core i3-10100Y
Intel Core i7-6560U
AMD Ryzen Embedded R1606G
Intel Core i3-8109U
Intel Core i7-6567U
...
max:
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
3935 MIPS (46%)
...
Intel Core i5-1035G4
Intel Core i7-6567U
Intel Core i5-6287U
Intel Core i3-8109U
Intel Core i7-2860QM
Intel Core i5-8259U
Intel Core i5-8265U
Intel Core i5-8260U
...
max:
AMD Ryzen 7 9800X3D
X264 HD Benchmark 4.0 - x264 Pass 2
21.4 fps (7%)
...
Intel Core i5-6360U
Intel Core i5-4310M
Intel Core i7-6600U
Intel Core i5-4210H
Intel Core i3-7100H
Intel Core i5-7200U
Intel Core i7-5557U
Intel Core i5-7267U
Intel Core i5-7360U
Intel Core i5-6267U
Intel Core i3-8130U
Intel Core i3-8145U
...
max:
Intel Core Ultra 9 285K
X264 HD Benchmark 4.0 - x264 Pass 1
115.6 fps (27%)
...
Intel Core i5-5257U
Intel Core i5-6360U
Intel Core i7-6560U
Intel Core i7-6600U
Intel Core i5-7200U
Intel Core i3-7100H
Intel Core i7-5557U
Intel Core i3-8130U
Intel Core i3-8145U
Intel Core i5-6267U
Intel Core i5-7267U
Intel Core i7-2760QM
...
max:
Intel Core Ultra 9 285K
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
2.5 fps (4%)
...
Intel Core i3-10100Y
Intel Core i7-8500Y
Intel Core i5-8210Y
Intel Core i5-4258U
Intel Core i7-6560U
Intel Core i3-8145U
Intel Core i7-5557U
Intel Core i7-2860QM
AMD Ryzen 3 3300U
Intel Core i3-8109U
...
max:
Lenovo ThinkPad X12 Detachable 20UW000KGE: Ø2.65 (0.44-4.89)
TrueCrypt - TrueCrypt Serpent
0.2 GB/s (6%)
...
Intel Core i3-10100Y
AMD PRO A8-9600B
Intel Core i7-6567U
AMD A10-9600P
Intel Core i5-3337U
Intel Core i5-7300U
Intel Core i3-8130U
...
max:
TrueCrypt - TrueCrypt Twofish
0.4 GB/s (6%)
...
AMD PRO A12-9800B
AMD A10-9600P
Intel Core i7-6567U
Intel Core i7-8500Y
Intel Core i3-8130U
Intel Core i5-7300U
AMD A12-9720P
Intel Core i5-7360U
...
max:
TrueCrypt - TrueCrypt AES
2.4 GB/s (6%)
...
Intel Core i5-7300U
Intel Core i7-8500Y
Intel Core i3-8145U
Intel Core i5-7360U
Intel Core i7-8706G
Intel Core i7-7660U
Intel Core i7-3612QM
...
max:
Blender - Blender 2.79 BMW27 CPU *
1560 Seconds (11%)
...
Intel Core i3-8109U
AMD Ryzen Embedded R1606G
Intel Core i7-6560U
Intel Core i5-8210Y
Intel Core i5-4258U
AMD Ryzen Embedded R1505G
Intel Core i3-6157U
...
AMD E1-2100
R Benchmark 2.5 - R Benchmark 2.5 *
0.8 sec (17%)
...
Intel Core i5-1035G4
Intel Core i5-6287U
AMD Ryzen 3 3300U
AMD Ryzen Embedded V1605B
AMD Ryzen Embedded R1606G
Intel Core i5-8259U
Intel Core i5-1035G7
AMD Ryzen 7 2700U
...
AMD E1-2100
3DMark 06 - CPU - 3DMark 06 - CPU
5008 Points (11%)
...
Intel Core i7-5557U
Intel Core i3-8130U
Intel Core i7-6567U
Intel Core i7-2635QM
Intel Core i7-2630QM
Intel Core i7-3612QM
Intel Core i3-8145U
AMD Ryzen 5 PRO 2500U
Intel Core i7-7660U
Intel Core i7-2670QM
Intel Core i7-2820QM
...
max:
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
9.4 s (2%)
...
Intel Core i5-8279U
Intel Core i7-8705G
Intel Core i7-4980HQ
Intel Xeon E3-1535M v5
Intel Core i7-8500Y
Intel Core i7-3840QM
Intel Core i7-3920XM
Intel Core i5-1038NG7
Intel Core i7-8706G
Intel Xeon E3-1505M v6
Intel Core i7-7820HQ
...
VIA C3-M C3-M-1200
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
20.6 s (1%)
...
Intel Core i5-1035G7
Intel Core i5-1035G4
Intel Core i7-8706G
Intel Core i7-8705G
Intel Core i7-4980HQ
Intel Core i7-3940XM
...
Intel Celeron Dual-Core T1400
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
474.6 s (2%)
...
Intel Core i7-8559U
Intel Core i9-8950HK
Intel Core i7-9750H
Intel Xeon E-2176M
Intel Core i7-1065G7
Intel Core i7-4980HQ
Intel Core i7-8850H
Intel Core i7-8809G
...
VIA C3-M C3-M-1200
3DMark 11 - 3DM11 Performance Physics
3959 Points (10%)
...
Intel Core i7-5650U
Intel Core i7-5600U
Intel Core i3-7130U
Intel Core i5-4210M
Intel Core i7-720QM
Intel Core i7-2620M
Intel Core i5-5257U
Intel Core i5-4310M
Intel Core i5-4210H
Intel Core i5-4300M
Intel Core i7-820QM
Intel Core i7-4558U
...
max:
AMD Ryzen 7 9800X3D
3DMark - 3DMark Cloud Gate Physics
2886 Points (7%)
...
Intel Core i7-3517U
Intel Core i7-8500Y
Intel Core i5-3210M
AMD Ryzen Embedded R1505G
Intel Core i7-2640M
Intel Core i5-5250U
Intel Core i5-4258U
Intel Core i5-7Y57
Intel Core i5-6198DU
Intel Core i7-4558U
...
max:
Intel Core Ultra 9 285K
3DMark - 3DMark Fire Strike Standard Physics
4431 Points (8%)
...
Intel Core i3-7130U
Intel Core i5-5300U
Intel Core i7-4600M
Intel Core i5-4210M
Intel Core i5-4300M
Intel Core i3-6100H
Intel Core i5-6260U
Intel Core i7-4558U
Intel Core i5-6360U
Intel Core i5-4310M
...
max:
Intel Core Ultra 9 285K
3DMark - 3DMark Time Spy CPU
2124 Points (9%)
...
Intel Core i5-6267U
Intel Core i5-6287U
Intel Core i7-7660U
AMD Ryzen 3 3300U
Intel Core i3-7100H
Intel Core i5-7267U
Intel Core i7-6567U
Intel Core i3-8109U
Intel Core i7-10510Y
AMD Ryzen 5 PRO 2500U
...
max:
Intel Core i9-14900
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
772 points (30%)
...
AMD Ryzen 3 PRO 2300U
Intel Core i7-2860QM
Intel Core i5-10210Y
Microsoft SQ1
Intel Core i7-4722HQ
Intel Core m3-7Y32
AMD Ryzen 3 2300U
AMD Ryzen 5 2600H
...
max:
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
1894 points (3%)
...
Qualcomm Snapdragon 835 (8998)
Intel Core i5-8260U
Intel Core i3-8109U
Intel Core i3-10100Y
AMD Ryzen Embedded R1606G
Qualcomm Snapdragon 850
Intel Core i7-2675QM
Intel Core i5-8200Y
Intel Core i5-6287U
...
max:
Geekbench 5.0 - Geekbench 5.0 64 Bit Single-Core
1212 points (5%)
...
Intel Core i5-1035G4
Intel Core i9-9980HK
Intel Core i7-1065G7
...
max:
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
2478 points (8%)
...
Intel Core i3-8145U
Intel Core i3-1115G4
AMD Ryzen 3 3300U
AMD Ryzen 5 2600H
Microsoft SQ1
...
max:
AMD Ryzen Threadripper PRO 3995WX
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Single-Core
5397 points (54%)
...
Intel Core i7-9750H
Intel Core i7-8850H
Intel Core i7-8809G
Intel Core i5-1035G7
Intel Core i5-1035G4
Intel Core i7-8559U
Intel Core i7-1065G7
Intel Core i3-1115G4
...
max:
Geekbench 4.4 - Geekbench 4.1 - 4.4 64 Bit Multi-Core
10233 points (10%)
...
AMD Ryzen 5 PRO 2500U
Intel Core i7-2675QM
Intel Core i3-1115G4
AMD Ryzen 3 3300U
Qualcomm Snapdragon 8cx
Intel Core i7-2860QM
...
max:
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
862 ms (1%)
...
Intel Xeon E3-1535M v6
Intel Core i9-9980HK
Intel Xeon E3-1505M v6
...
AMD A4-1250
max:
Apple S7
WebXPRT 3 - WebXPRT 3 Score
188.4 Points (35%)
...
Intel Core i5-1035G1
Intel Core i5-8350U
Intel Core i5-1035G7
Intel Core i5-8265U
Intel Core i5-10310U
Intel Core i7-8850H
...
CrossMark - CrossMark Overall
917 Points (35%)
...
Intel Core i5-8260U
Intel Core i7-8850H
Intel Core i5-8259U
Intel Core i5-8265U
Intel Core i7-1065G7
Intel Core i3-1115G4
...
max:
Intel Core Ultra 9 285K
Power Consumption - Prime95 Power Consumption - external Monitor *
27 Watt (5%)
...
Intel Core i5-1230U
AMD A4-5000
Intel Core i5-1035G4
Intel Core i5-7200U
Intel Core i7-6600U
Intel Core i7-2637M
Intel Core i5-1035G1
...
max:
AMD Ryzen Threadripper PRO 3975WX
Lenovo ThinkPad X12 Detachable 20UW000KGE: Ø27 (17-46.8)
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
24.5 Watt (4%)
...
Intel Core i5-5250U
AMD A4-5000
Intel Core i5-7200U
Intel Core i7-6600U
Apple M1
AMD A6-5200
...
max:
Lenovo ThinkPad X12 Detachable 20UW000KGE: Ø24.5 (18.5-35.2)
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
15.6 Points per Watt (12%)
...
Intel Core i5-8365U
Intel Core i7-9750H
Intel Core i5-10310U
Intel Core i5-1035G4
...
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
v1.28
log 19. 06:34:59
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Tue, 19 Nov 2024 05:31:10 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_2 needed +0.006s ... 0.007s
#5 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.007s
#6 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.007s
#7 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s
#8 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.008s
#9 composed specs +0s ... 0.008s
#10 did output specs +0s ... 0.008s
#11 getting avg benchmarks for device 12738 +0.016s ... 0.024s
#12 got single benchmarks 12738 +0.01s ... 0.034s
#13 got avg benchmarks for devices +0s ... 0.034s
#14 min, max, avg, median took s +0.785s ... 0.819s
#15 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.82s
#16 return log +0s ... 0.82s
Other CPUs of the series Tiger Lake
» Intel Core i9-11900KB
8x 3.3 GHz - 5.3 GHz
» Intel Core i7-11600H
6x 2.9 GHz - 4.6 GHz
» Intel Core i5-11500B
6x 3.3 GHz - 4.6 GHz
» Intel Core i7-11390H
4x 3.4 GHz - 5 GHz
» Intel Core i3-1125G4
4x 2 GHz - 3.7 GHz
» Intel Core i3-1115G4
2x 3 GHz - 4.1 GHz
» Intel Celeron 6205
2x
Surrounding CPUs
+ Intel Core i3-8100H
4x 3 GHz
+ Intel Core i7-2760QM
4x 2.4 GHz - 3.5 GHz
+ Intel Core i5-7287U
2x 3.3 GHz - 3.7 GHz
+ Microsoft SQ1
8x 3 GHz
+ Intel Core i7-7560U
2x 2.4 GHz - 3.8 GHz
- Qualcomm Snapdragon 8cx
8x 2.84 GHz
- Intel Core i7-2820QM
4x 2.3 GHz - 3.4 GHz
- Intel Core i7-3612QM
4x 2.1 GHz - 3.1 GHz
- Intel Core i7-2720QM
4x 2.2 GHz - 3.3 GHz
Klaus Hinum (Update: 2021-08-13)
