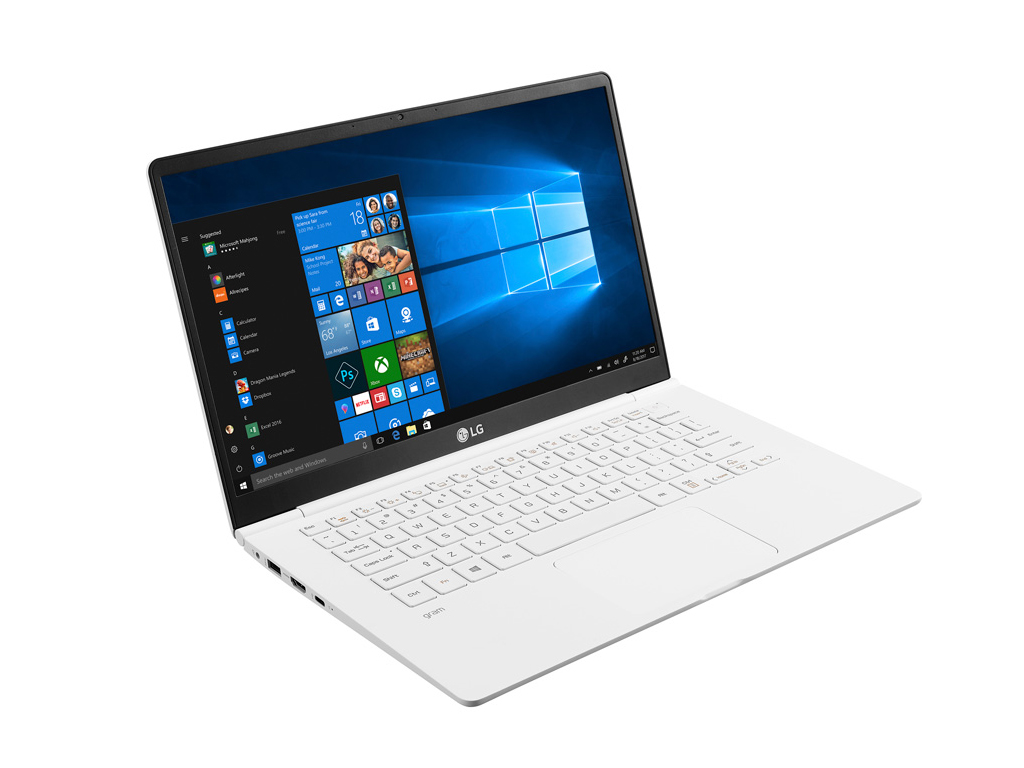

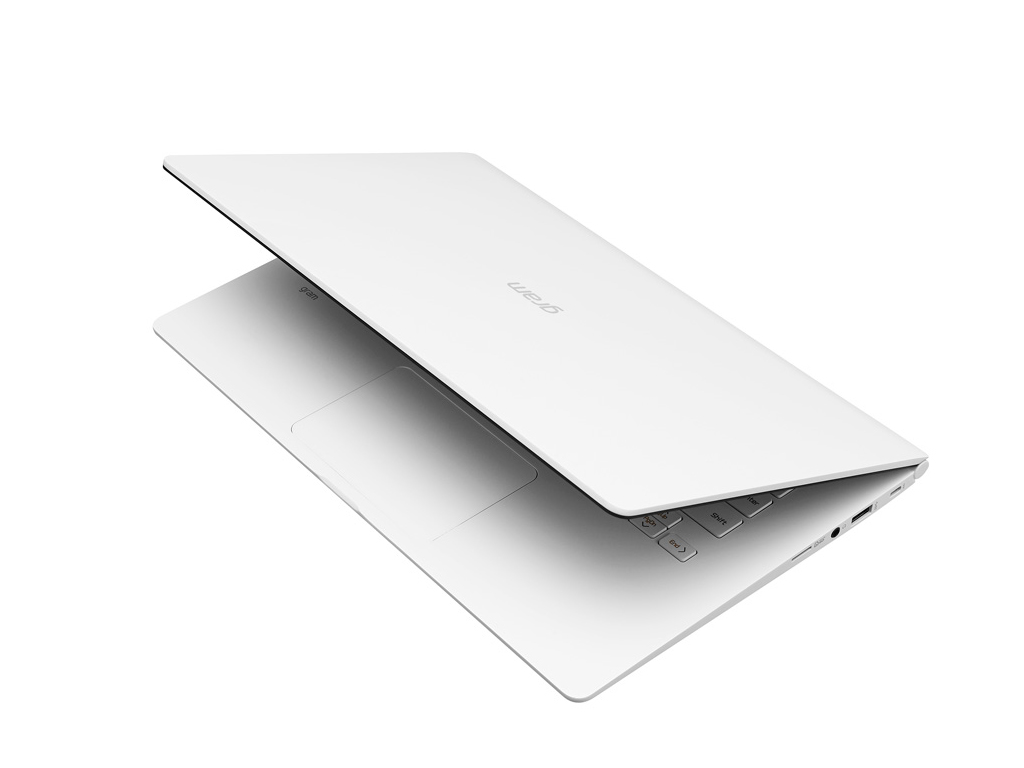

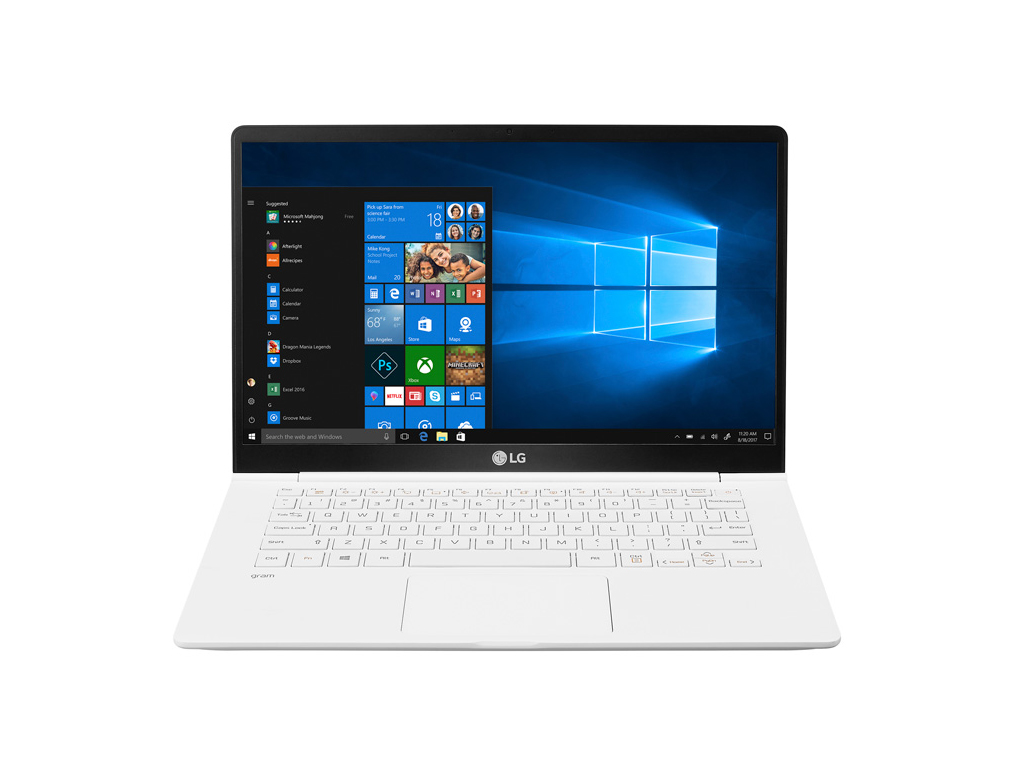

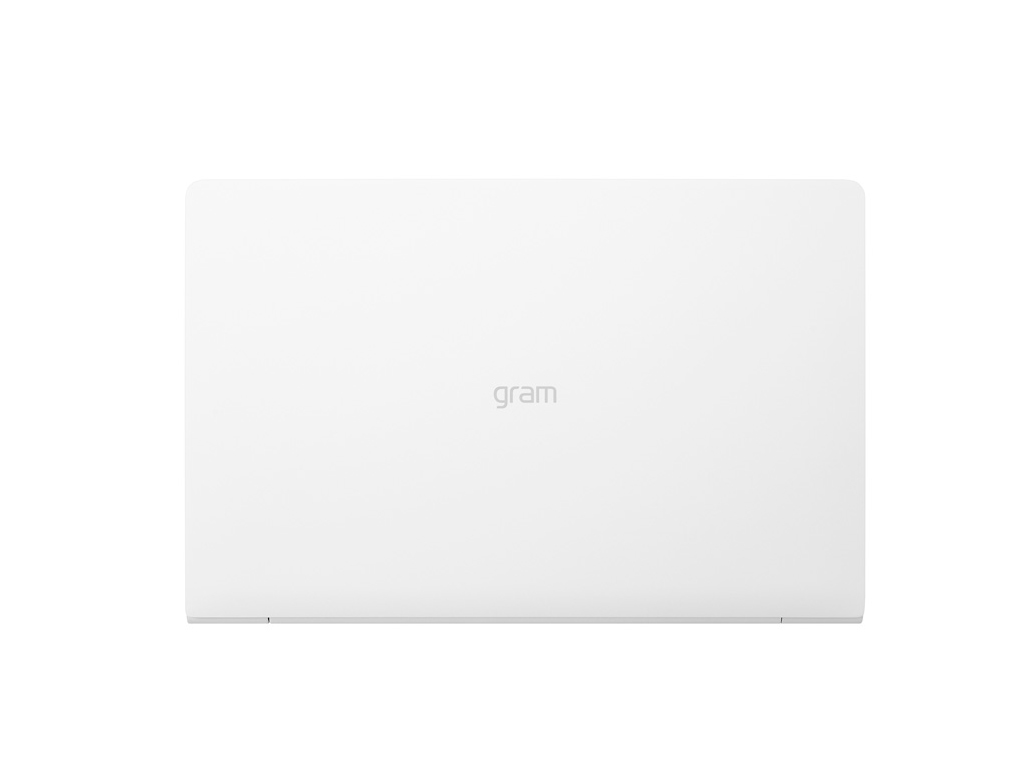

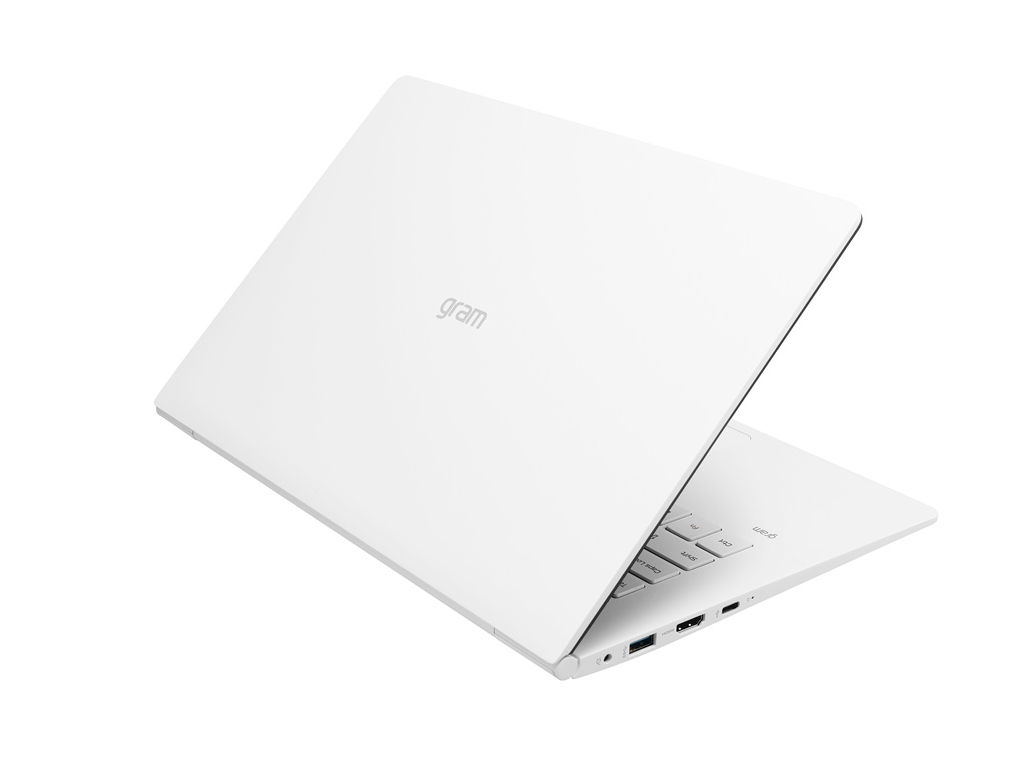

LG Gram 14Z980-U.AAW5U1

Specifications

LG Gram 14Z980-U.AAW5U1
LG Gram 14Z980-U.AAW5U1 (Gram Series)
Processor
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620, Core: 300 MHz, RAM: 1200 MHz, DDR4, 23.20.16.4849
Memory
8 GB
, DDR4-2400, 10-10-10-28, Dual-Channel, 4 GB soldered
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, LG Philips LP140WF7-SPG1, IPS, LGD05B1, glossy: yes
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
SK Hynix SC313 HFS256G39TNF, 256 GB
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio

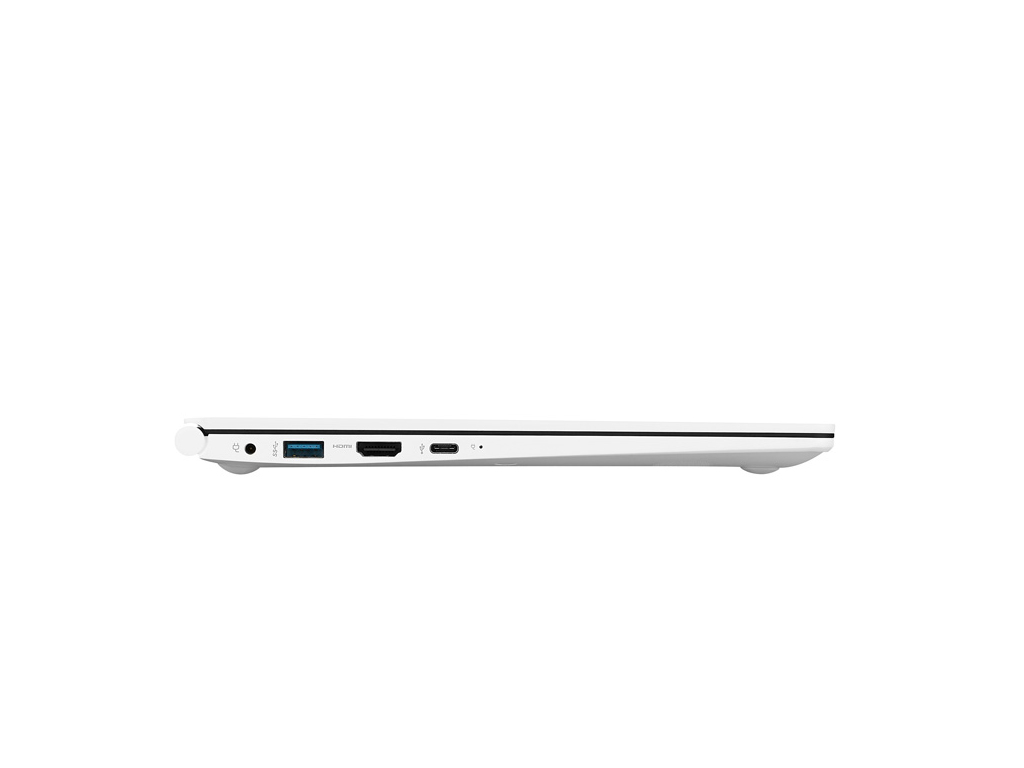

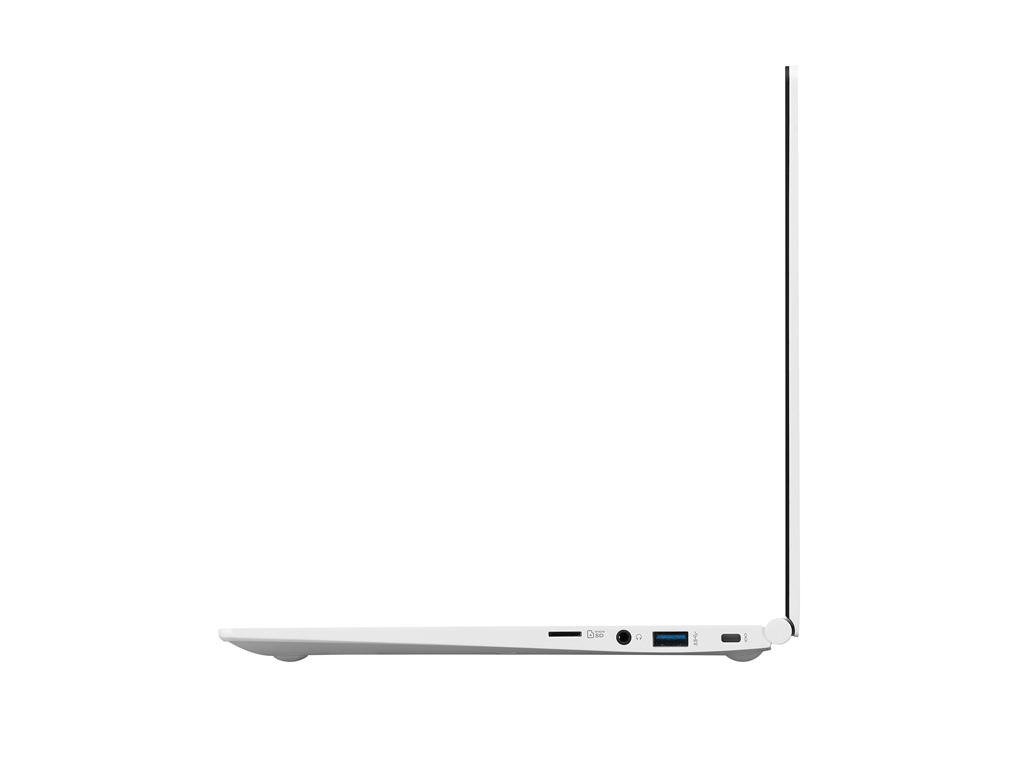

Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5 mm earphones, Card Reader: microSD
Networking
Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 15.2 x 322.6 x 210.8
Battery
72 Wh Lithium-Polymer, 7.7V, 4-cell, Battery runtime (according to manufacturer): 21 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Additional features

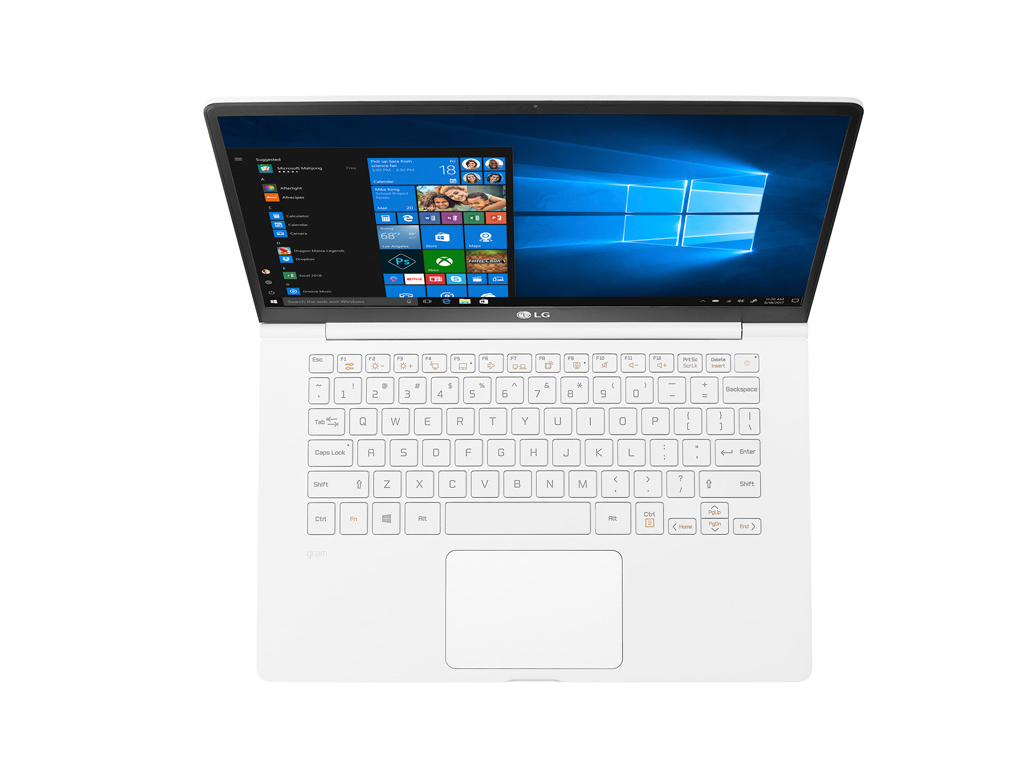

Speakers: Stereo 1.5W x 2, Keyboard: Chiclet, Keyboard Light: yes, USB Type-A to 10/100 RJ-45 adapter, DTS Audio, LG Reader Mode, 12 Months Warranty
Weight
994 g, Power Supply: 356 g
Price
1000 USD



Price comparison

Average Score: 79% - good
Average of 5 scores (from 5 reviews)
price: - %, performance: 72%, features: 48%, display: 84% mobility: 85%, workmanship: 74%, ergonomy: 74%, emissions: 94%

Reviews for the LG Gram 14Z980-U.AAW5U1

85% LG Gram 14Z980 (i5-8250U) Laptop Review | Notebookcheck
The Gram 14 is a few hundred grams lighter than the XPS 13 while having a larger 14-inch display. In fact, it's one of the lightest Ultrabooks in its size class with an Intel Core U-series CPU. So, what's the catch?
80% LG Gram 14 review: Lightweight build, heavyweight battery performance
Source: Pocket Lint English EN→zh-CN Archive.org version
The LG Gram 14 is one of the best laptops out there if your two priorities are battery life and a having something you can carry around all day. It's a bit vanilla by design, but that battery life is the key sell here.
Single Review, online available, Long, Date: 11/22/2018
Rating: Total score: 80%
60% LG Gram review
Source: Stuff TV English EN→zh-CN Archive.org version
The LG Gram 14Z980 is exactly as the name implies: super lightweight, making it ideal for those working on the go. But priced at £1,200, that portability suddenly hangs heavy.
Single Review, online available, Medium, Date: 11/20/2018
Rating: Total score: 60%
90% LG Gram 14Z980 Review
Source: Trusted Reviews English EN→zh-CN Archive.org version
Looking for an on-the-go device with enough power to dabble in the likes of Photoshop? Then, right now, you'll struggle to find a better option than the LG Gram.
Single Review, online available, Very Long, Date: 11/07/2018
Rating: Total score: 90%
80% Light as air: The LG gram 13, 14, and 15 review
Source: Hardware Zone English EN→zh-CN Archive.org version
In closing, much like its predecessors, the new gram notebooks, with its light weight and long battery lives, are ideal for anyone who spends a lot of time running around, or anyone who just wants an ultra-light notebook.
Comparison, online available, Very Long, Date: 07/07/2018
Rating: Total score: 80%
LG Gram 14Z980-G. Ultrabook 14,0" premium menos de 1 kg (934 €)
Source: Ofertaman Spanish ES→zh-CN Archive.org version
Single Review, online available, Very Short, Date: 07/01/2018

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8250U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的频率介于1.6和3.4 GHz之间(Turbo Boost),并支持超线程。集成GPU的时钟频率介于300和1,100 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


0.994 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
