戴尔 Latitude 14 Rugged 5404 笔记本电脑简短评测

Name: Dell Latitude 14 Rugged - 5404
Brand: Dell

出问题？不能够！ 这是一台在坚固、安全的同时可以适应各种工业环境的笔记本电脑。戴尔现在为它们的Latitude-Rugged-Extreme系列增添了这款Latitude 14 Rugged 5454新机型。它在命名中并没有“Extreme”（极致版）这个标签，而价格也随之有了大幅的下降。

Nino Ricchizzi, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 12/22/2014 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Windows

Dell Latitude 14 7414 Rugged Extreme Bullman C-Klasse 3 SRD 14 Touch 3632QM Dell Latitude 14 Rugged - 5404 DIN A4 ❌


634 cd/m²	684 cd/m²	652 cd/m²
710 cd/m²	751 cd/m²	727 cd/m²
702 cd/m²	683 cd/m²	753 cd/m²

Distribution of brightness

AU Optronics AUO333C B140XTN tested with X-Rite i1Pro 2

Maximum: 753 cd/m² (Nits) Average: 699.6 cd/m²
Brightness Distribution: 84 %
Center on Battery: 751 cd/m²
Contrast: 341:1 (Black: 2.2 cd/m²)
ΔE Color 13.47 | 0.5-29.43 Ø4.91
ΔE Greyscale 14.48 | 0.5-98 Ø5.2
34% AdobeRGB 1998 (Argyll 1.6.3 3D)
36.88% AdobeRGB 1998 (Argyll 2.2.0 3D)
53.7% sRGB (Argyll 2.2.0 3D)
35.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.86

Download ICC File (X-Rite i1Pro 2)

	Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M	Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11
Display		3%	2%
Display P3 Coverage	35.7	36.63 3%	36.35 2%
sRGB Coverage	53.7	54.7 2%	54.5 1%
AdobeRGB 1998 Coverage	36.88	37.88 3%	37.59 2%
Screen		-14%	26%
Brightness middle	751	539 -28%	529 -30%
Brightness	700	531 -24%	482 -31%
Brightness Distribution	84	71 -15%	83 -1%
Black Level *	2.2	3.59 -63%	0.61 72%
Contrast	341	150 -56%	867 154%
Colorchecker dE 2000 *	13.47	8.93 34%	10.64 21%
Greyscale dE 2000 *	14.48	8.83 39%	11.79 19%
Gamma	2.86 ^77%	2.44 ^90%	2.73 ^81%
CCT	15544 ^42%	6889 ^94%	6893 ^94%
Color Space (Percent of AdobeRGB 1998)	34	35 3%	34.85 3%
Total Average (Program / Settings)		-6% / -9%	14% / 19%

* ... smaller is better

Cinebench R11.5
Dell Latitude 14 Rugged - 5404
CPU Single 64Bit	1.3 (min: 0) Points ∼31%
CPU Multi 64Bit	2.94 (min: 0) Points ∼4%
Bullman C-Klasse 3 SRD 14 Touch 3632QM
CPU Single 64Bit	1.34 (min: 0) Points ∼32%
CPU Multi 64Bit	5.13 (min: 0) Points ∼7%
Dell Latitude 14 7414 Rugged Extreme
CPU Single 64Bit	1.23 (min: 0) Points ∼29%
CPU Multi 64Bit	2.78 (min: 0) Points ∼4%
Legend Dell Latitude 14 Rugged - 5404 Intel Core i5-4310U, Intel HD Graphics 4400, Seagate Momentus Thin ST500LT012-1DG142 Bullman C-Klasse 3 SRD 14 Touch 3632QM Intel Core i7-3632QM, Intel HD Graphics 4000, Plextor PX-256M5M Dell Latitude 14 7414 Rugged Extreme Intel Core i5-4300U, Intel HD Graphics 4400, Liteon IT LCS-256L9S-11

Cinebench R11.5 CPU Single 64Bit

1.3 Points

Cinebench R11.5 CPU Multi 64Bit

2.94 Points

Cinebench R11.5 OpenGL 64Bit

15.02 fps

Cinebench R15 CPU Single 64Bit

114 Points

Cinebench R15 CPU Multi 64Bit

261 Points

Cinebench R15 OpenGL 64Bit

21.07 fps

Cinebench R15 Ref. Match 64Bit

98 %

Help

... in comparison

	Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11
PCMark 8		15%
Home Score Accelerated v2	2221	2688 21%
Creative Score Accelerated v2	2267	2482 9%
Work Score Accelerated v2	3354	3864 15%

PCMark 7 - Score (sort by value)
Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	2629 Points
Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M	5584 Points +112%

PCMark 7 Score		2629 points
PCMark 8 Home Score Accelerated v2		2221 points
PCMark 8 Creative Score Accelerated v2		2267 points
PCMark 8 Work Score Accelerated v2		3354 points
Help

... in comparison

CrystalDiskMark 3.0

Seagate Momentus Thin ST500LT012-1DG142

Sequential Read: 91.4 MB/s

Sequential Write: 86.7 MB/s

512K Read: 19.58 MB/s

512K Write: 32.59 MB/s

4K Read: 0.315 MB/s

4K Write: 0.56 MB/s

4K QD32 Read: 0.668 MB/s

4K QD32 Write: 0.588 MB/s

3DMark
1280x720 Ice Storm Standard Score (sort by value)
Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	36888 Points
Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11	42883 Points +16%
Lenovo IdeaPad S510p 59-405717 GeForce GT 720M, 4200U, Seagate ST1000LM014 Solid State Hybrid Drive	46968 Points +27%
1280x720 Cloud Gate Standard Score (sort by value)
Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	4058 Points
Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11	4613 Points +14%
Lenovo IdeaPad S510p 59-405717 GeForce GT 720M, 4200U, Seagate ST1000LM014 Solid State Hybrid Drive	4271 Points +5%

3DMark 11 Performance		787 points
3DMark Ice Storm Standard Score		36888 points
3DMark Cloud Gate Standard Score		4058 points
3DMark Fire Strike Score		523 points
Help

... in comparison

	low	med.
Sims 4 (2014)	140.3	26
F1 2014 (2014)	40	26
Dragon Age: Inquisition (2014)	13.1	6

	Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M	Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11
Noise		2%	11%
Idle Minimum *	31.7	29.6 7%	27.8 12%
Idle Average *	31.7	29.6 7%	27.8 12%
Idle Maximum *	31.7	29.6 7%	27.8 12%
Load Average *	33.6	35.2 -5%	31.7 6%
Load Maximum *	35.5	37.8 -6%	31.7 11%

* ... smaller is better

Noise Level

Idle		31.7 / 31.7 / 31.7 dB(A)
HDD		31.7 dB(A)
DVD		37.7 / dB(A)
Load		33.6 / 35.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


27.2 °C	26.7 °C	27.3 °C
25.3 °C	26.8 °C	25.8 °C
24.8 °C	25 °C	25.8 °C

Maximum: 27.3 °C
Average: 26.1 °C


26.6 °C	28 °C	28 °C
26.8 °C	27 °C	27.3 °C
26.8 °C	26.1 °C	26.1 °C

Maximum: 28 °C
Average: 27 °C

Power Supply (max.) 29.1 °C | Room Temperature 22.3 °C | Voltcraft IR-360

(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 35.4 °C / 96 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 35 °C / 95 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.6 °C / -1.1 F).

Power Consumption

Off / Standby	0 / 0.3 Watt
Idle	4.3 / 12.2 / 11.5 Watt
Load	36.8 / 36 Watt


Key: min: , med: , max: Voltcraft VC 940

	Dell Latitude 14 Rugged - 5404 HD Graphics 4400, 4310U, Seagate Momentus Thin ST500LT012-1DG142	Bullman C-Klasse 3 SRD 14 Touch 3632QM HD Graphics 4000, 3632QM, Plextor PX-256M5M	Dell Latitude 14 7414 Rugged Extreme HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11
Battery Runtime		41%	-20%
Reader / Idle	820	914 11%	505 -38%
WiFi	470	683 45%	417 -11%
Load	132	220 67%	117 -11%
H.264			328

Battery Runtime

Idle (without WLAN, min brightness)		13h 40min
WiFi Surfing		7h 50min
Load (maximum brightness)		2h 12min

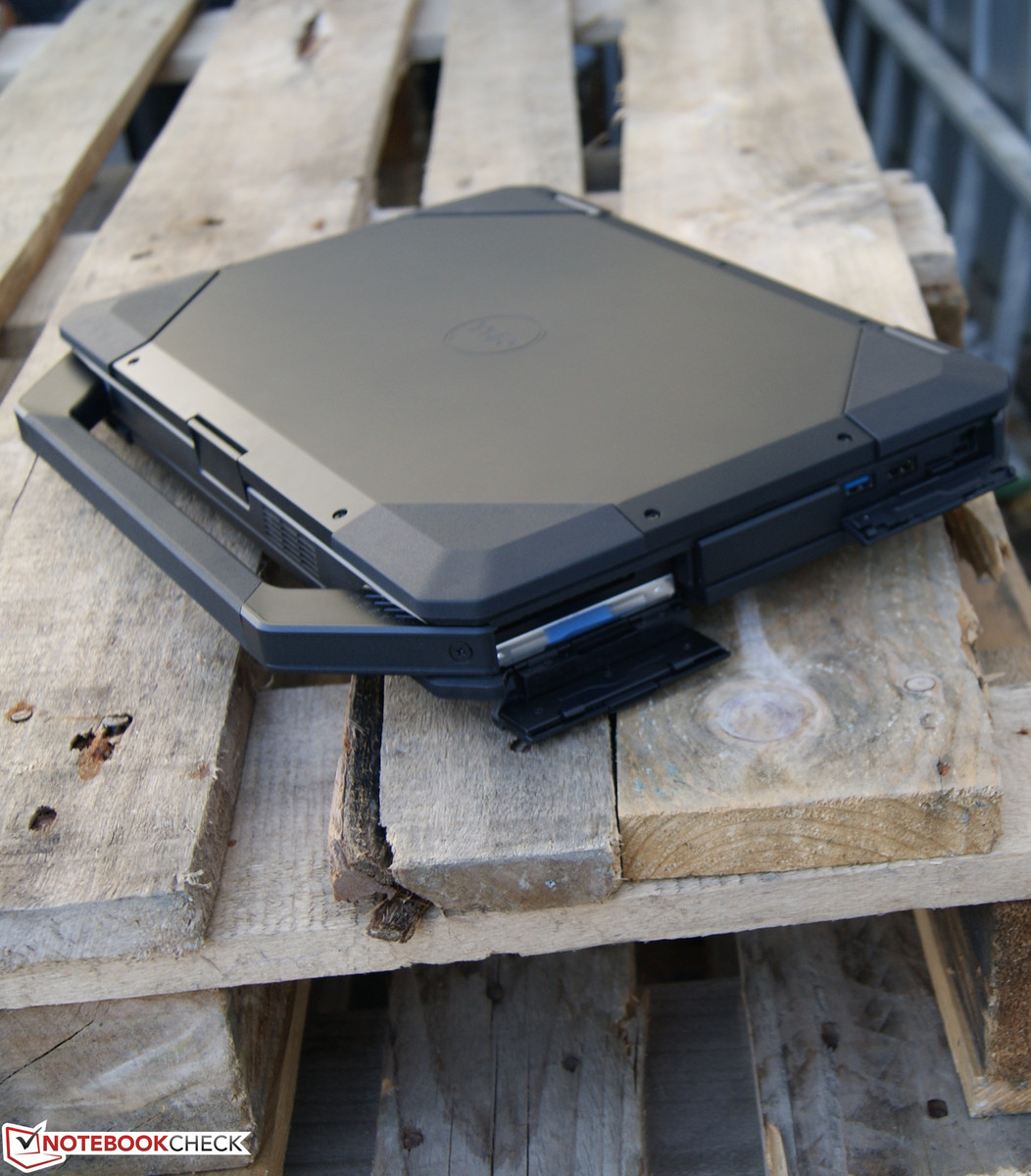

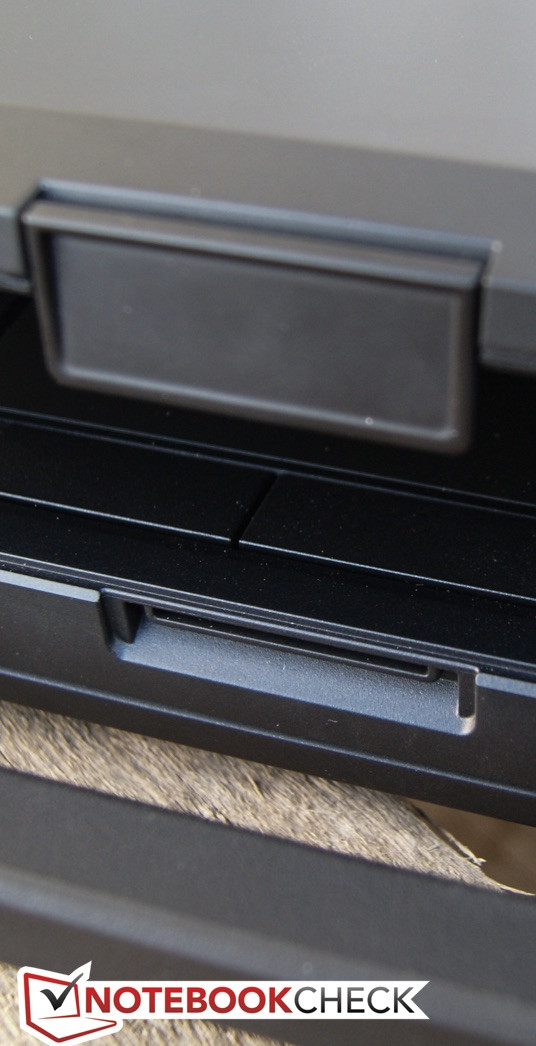

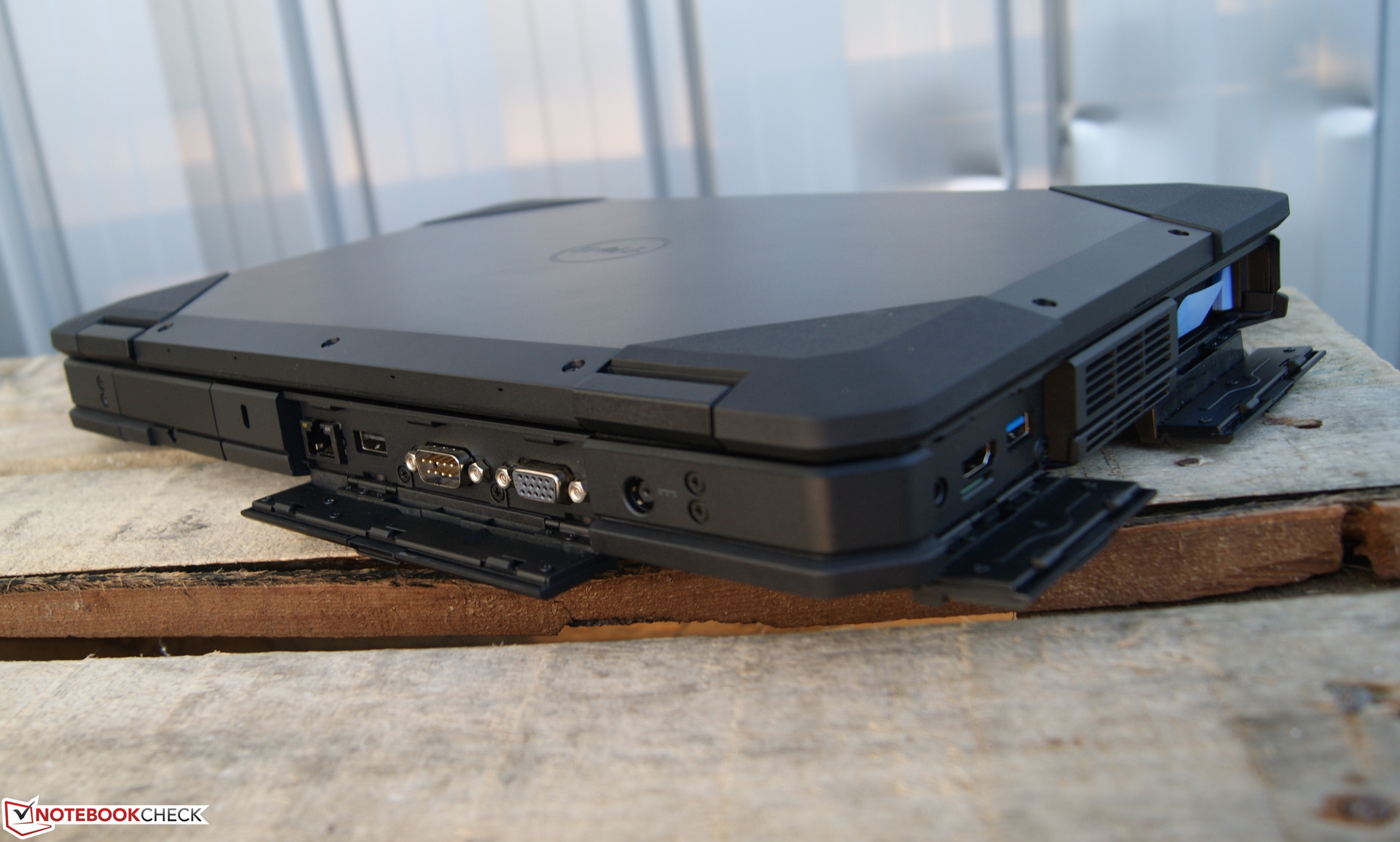

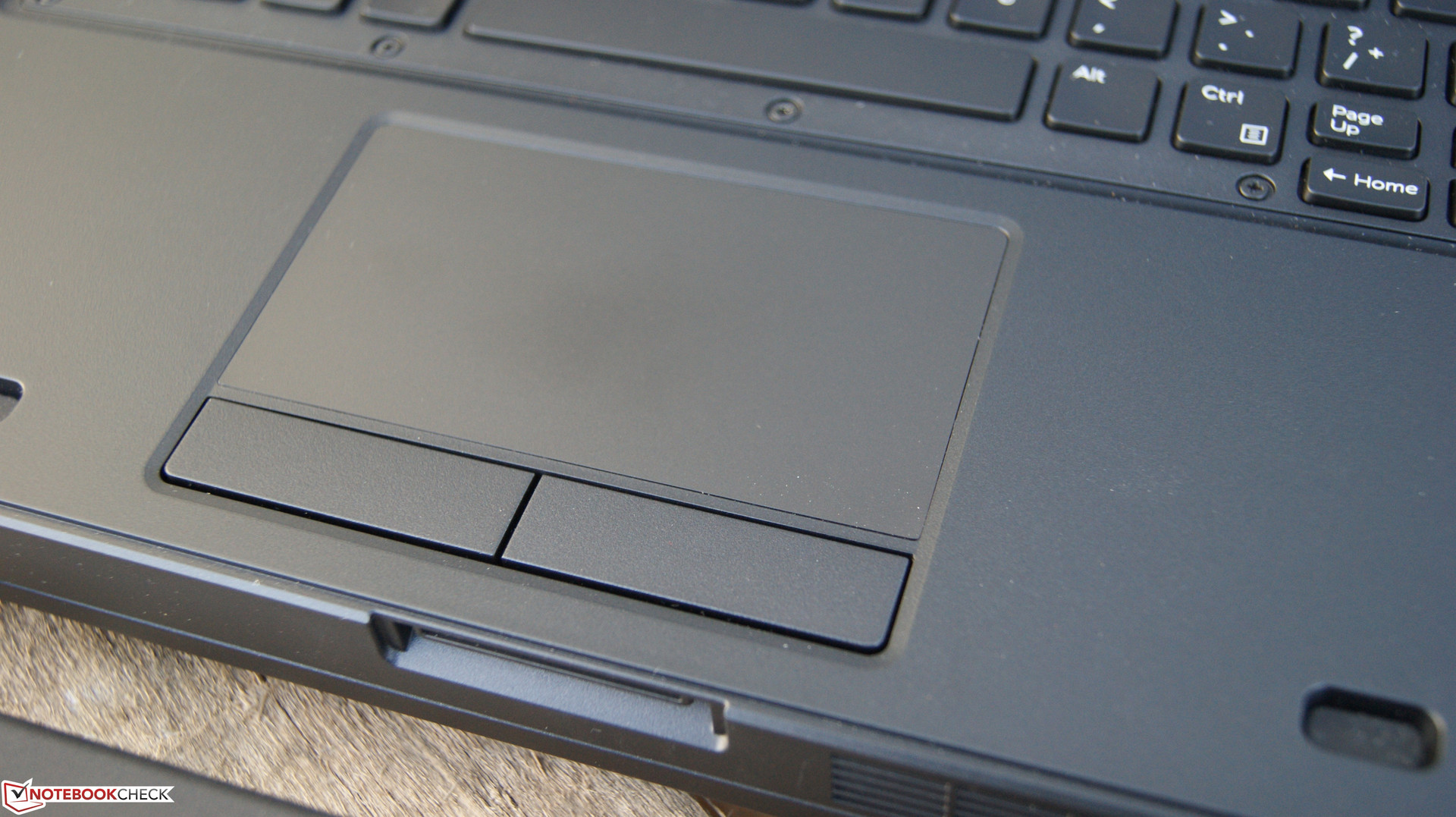

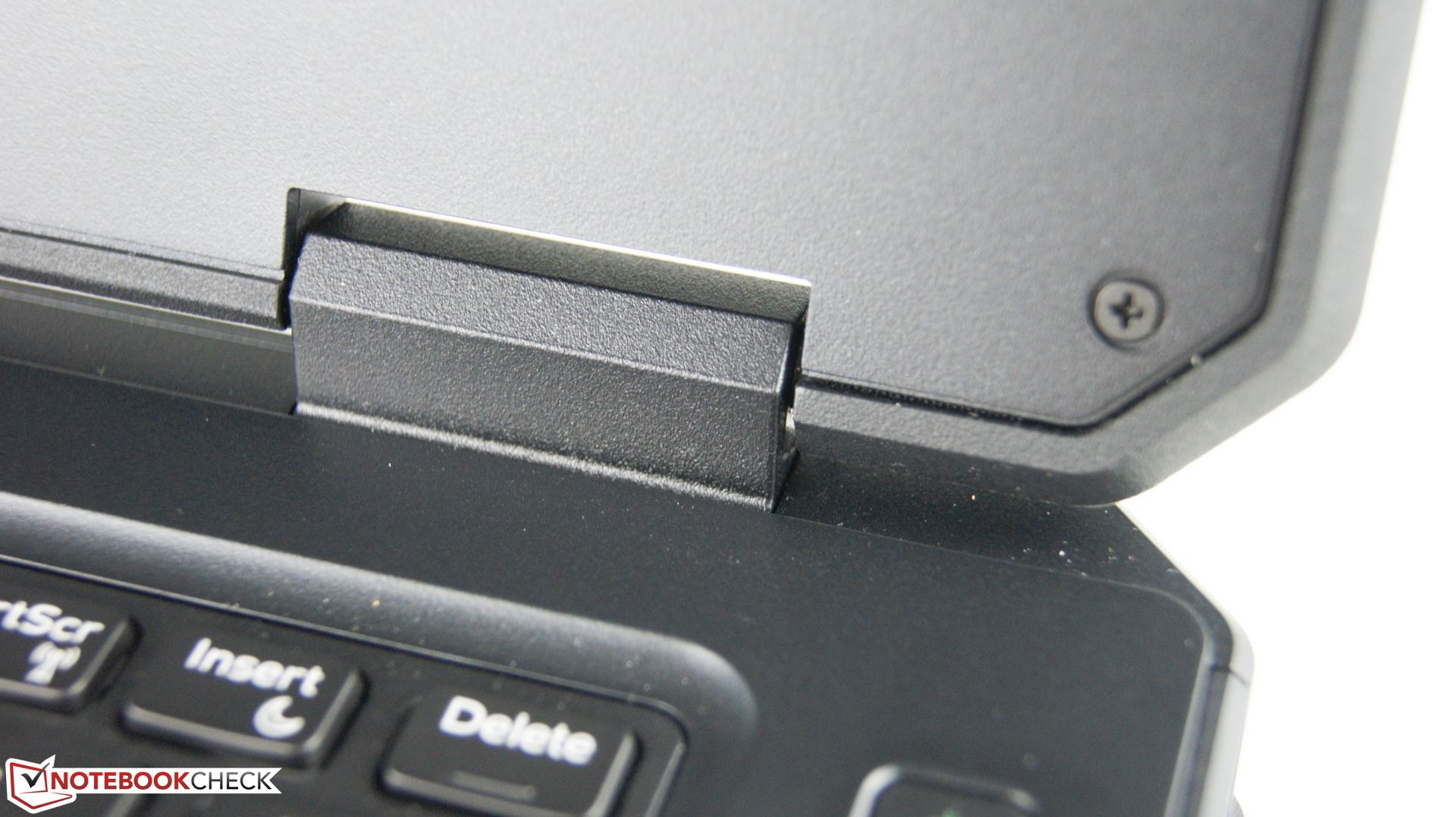

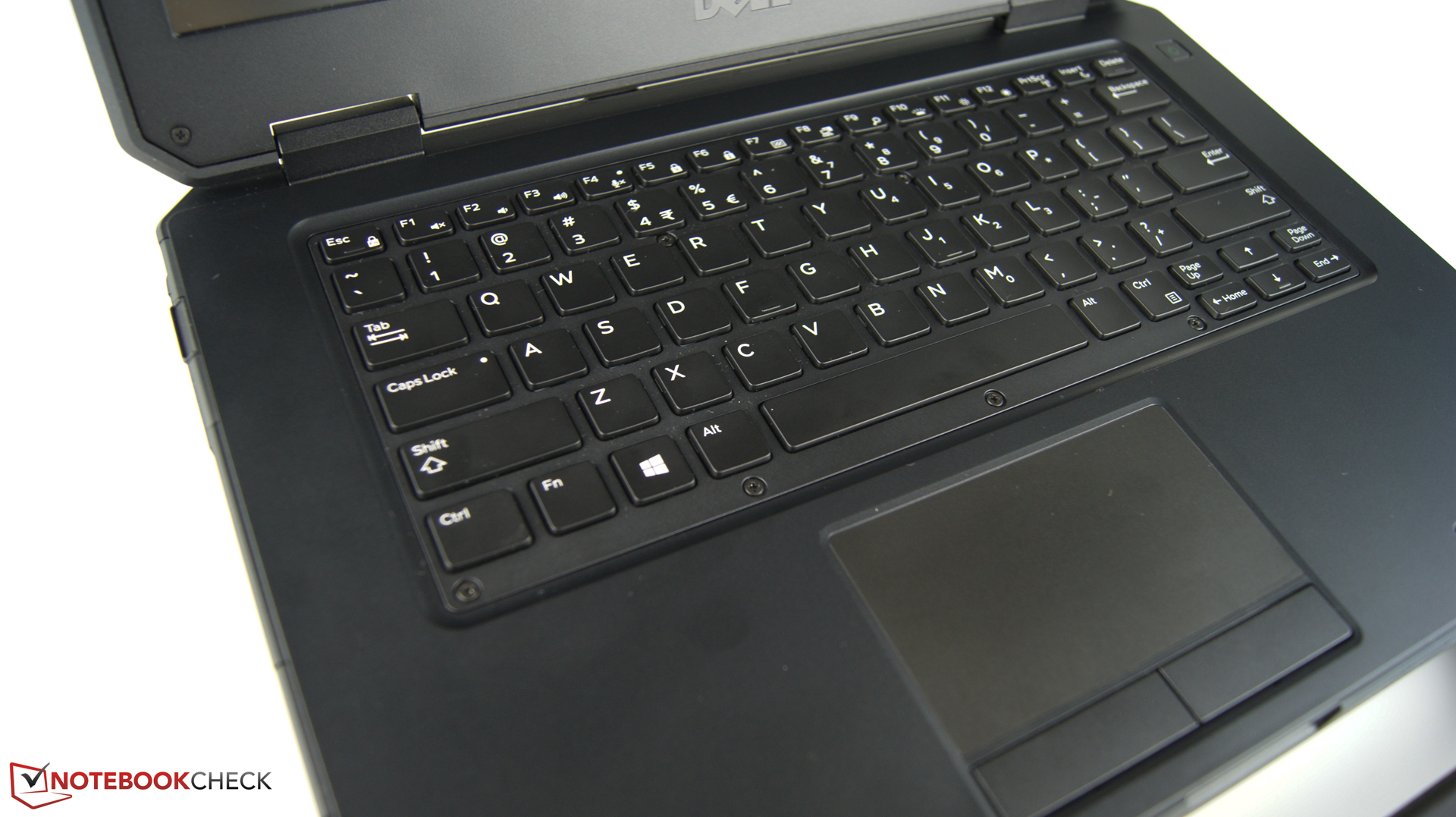

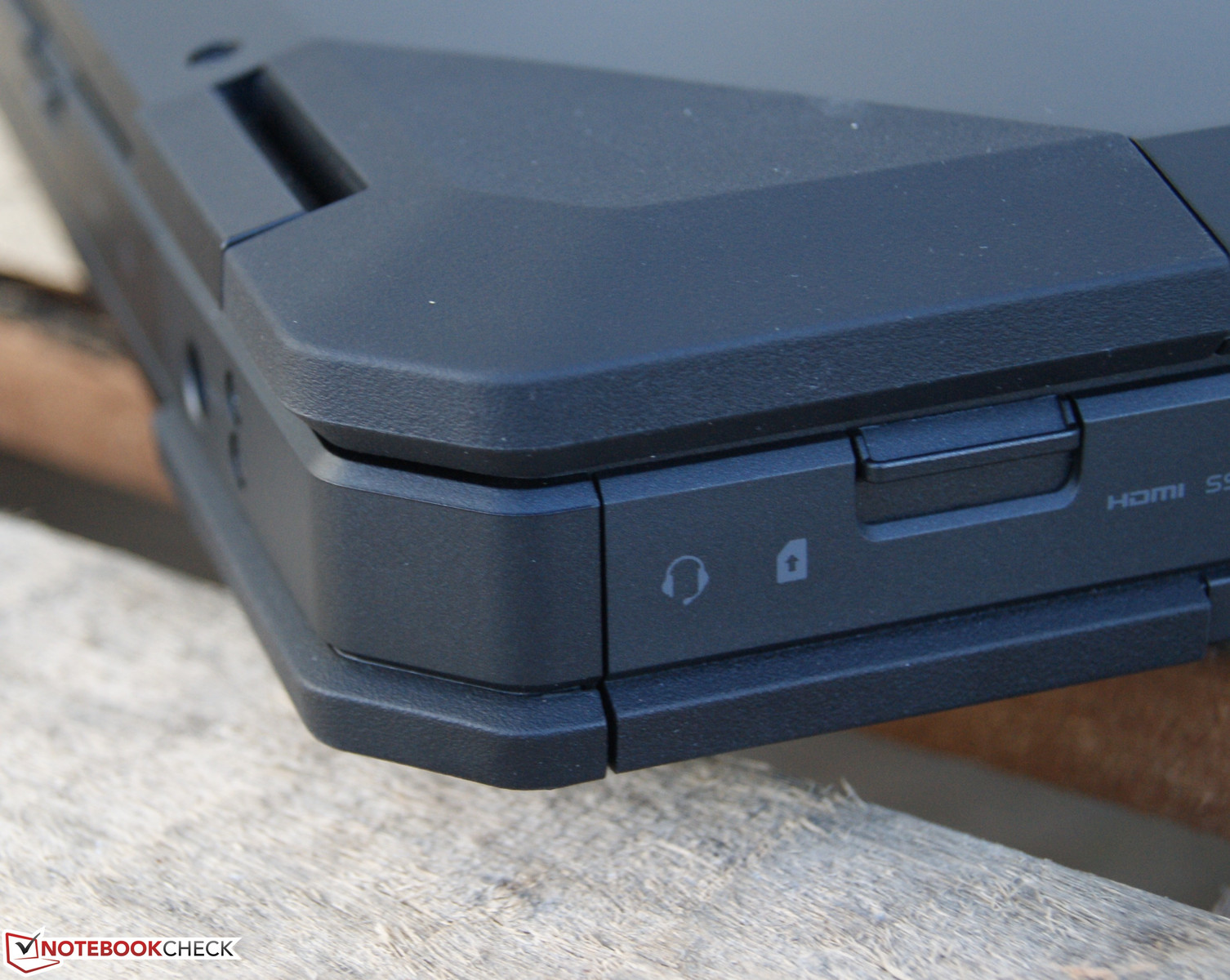

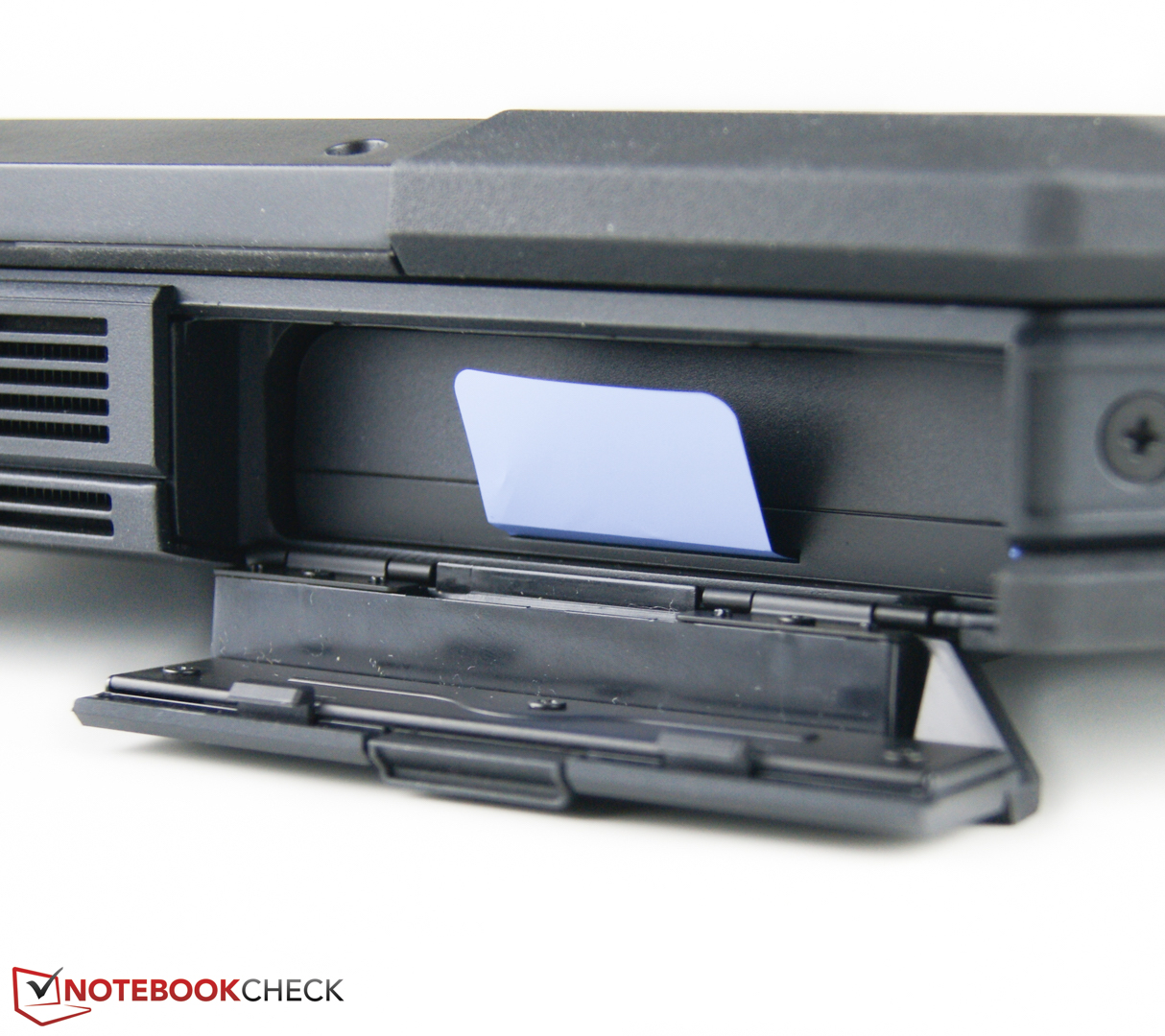

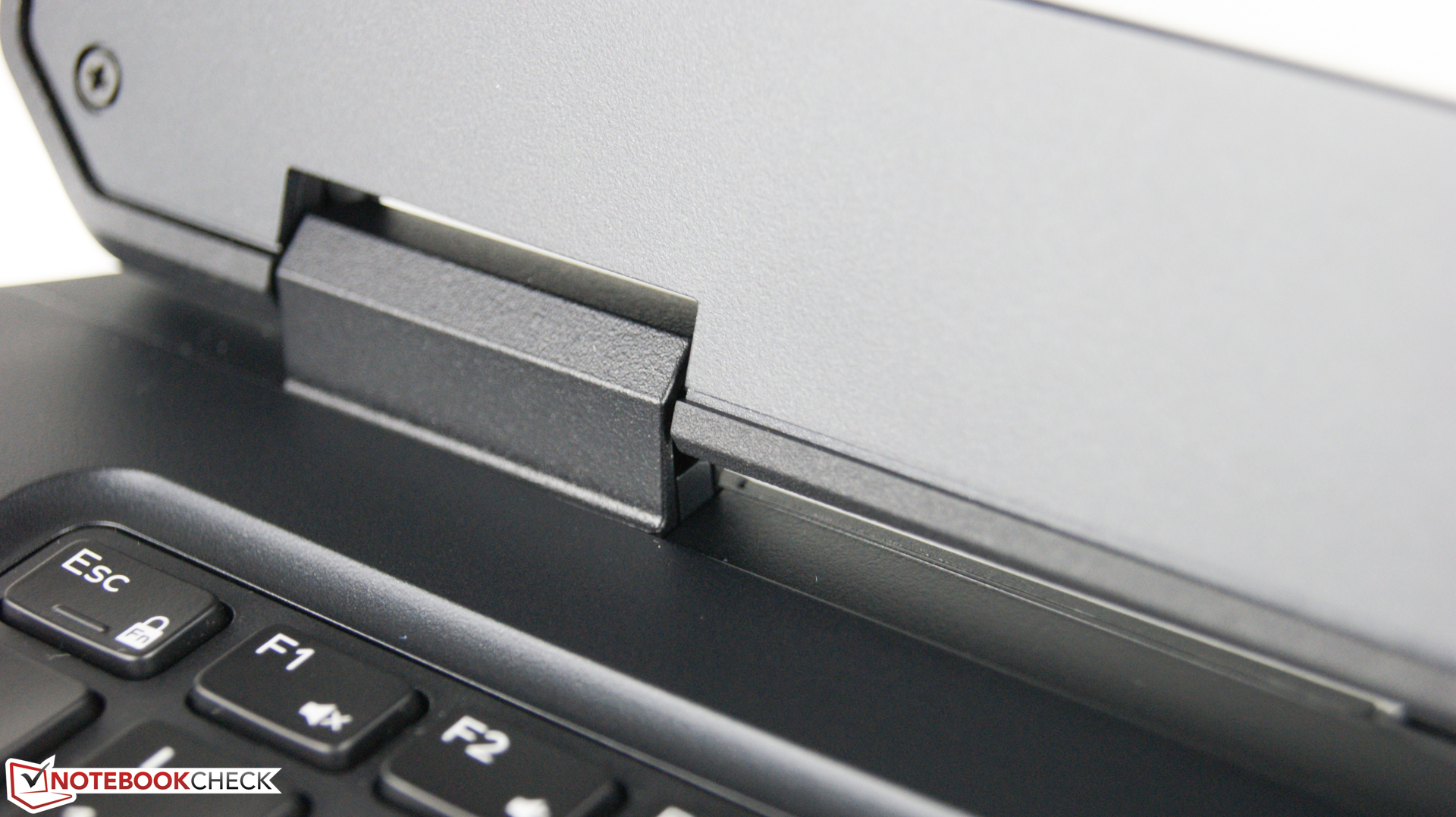

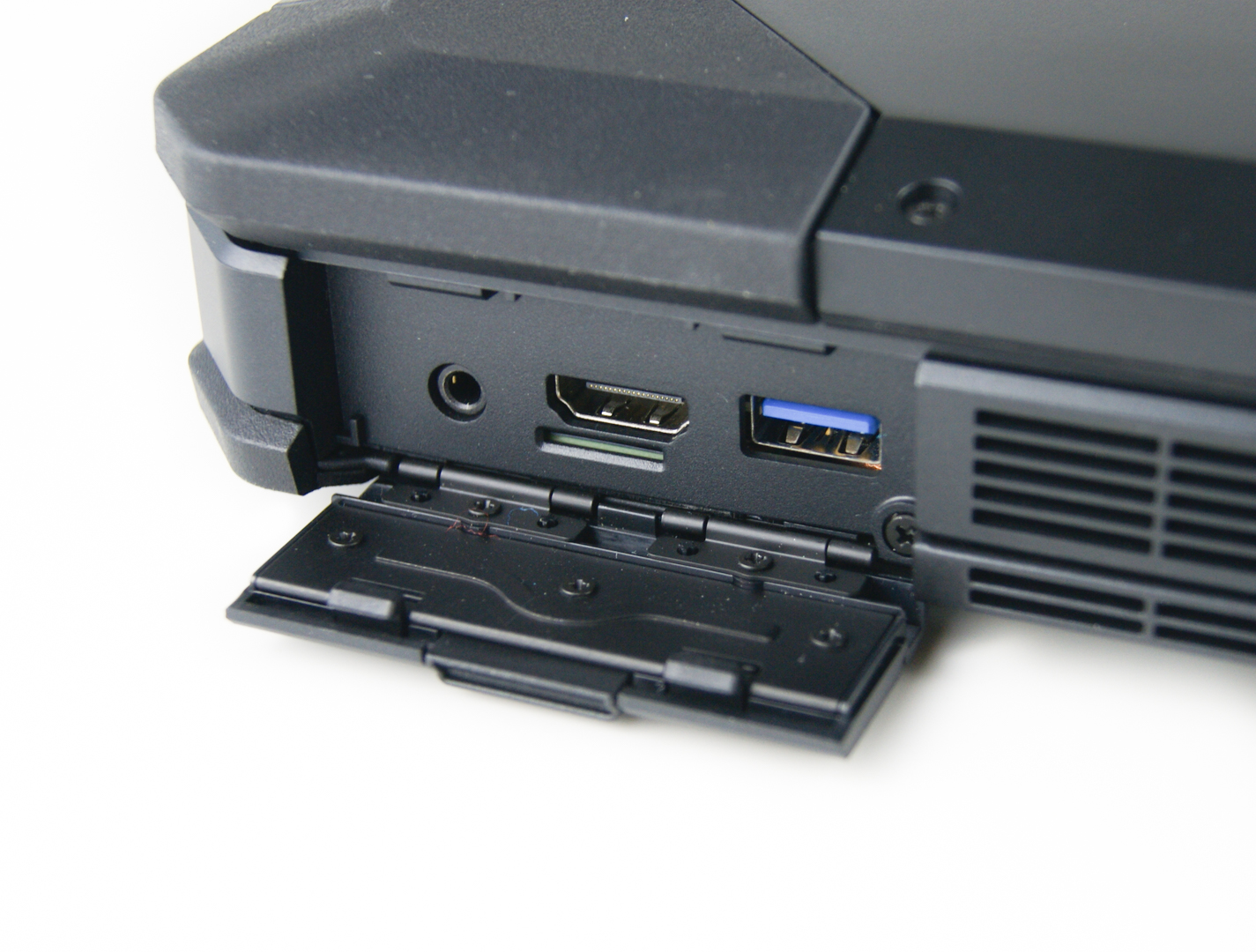

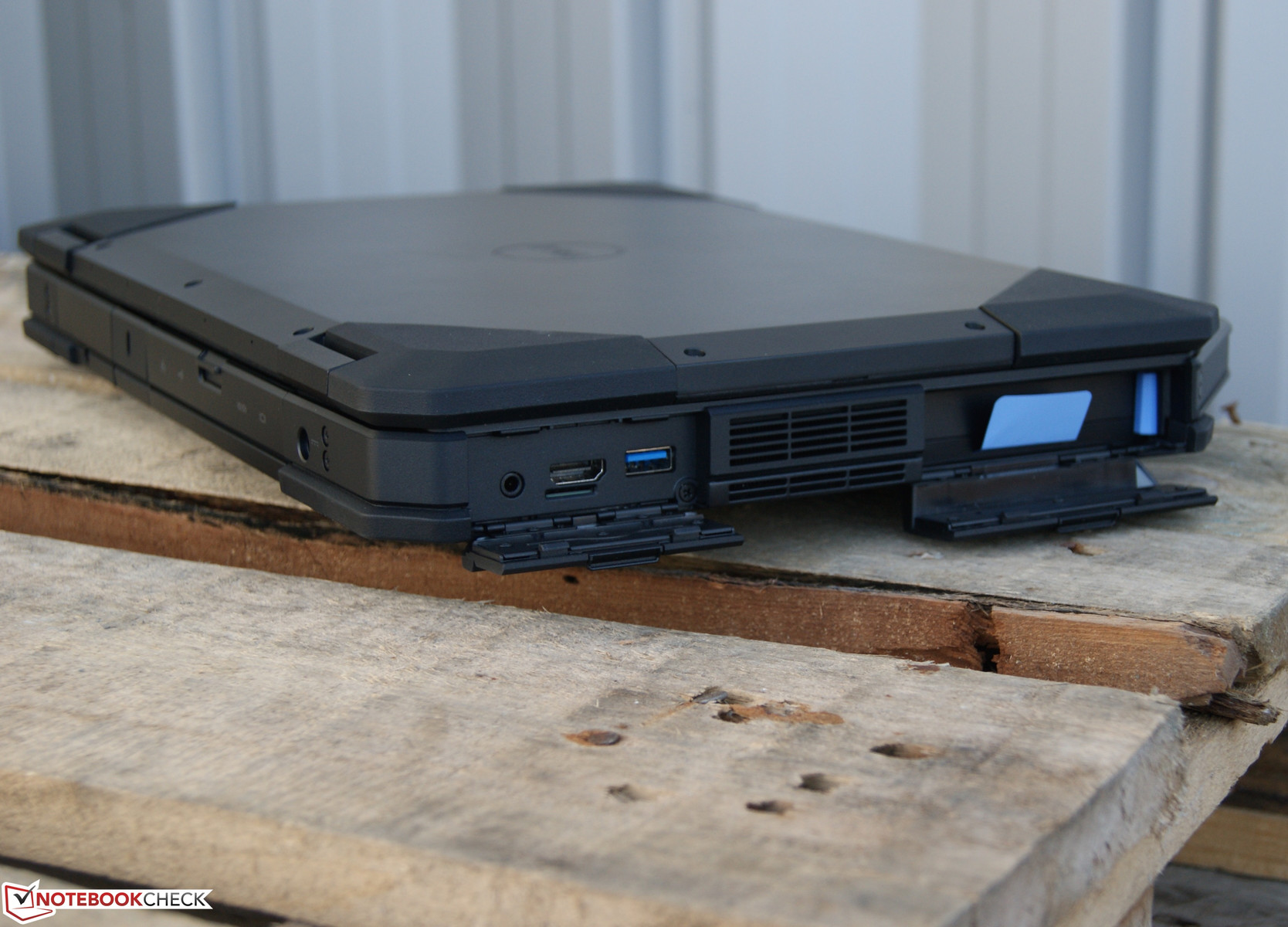

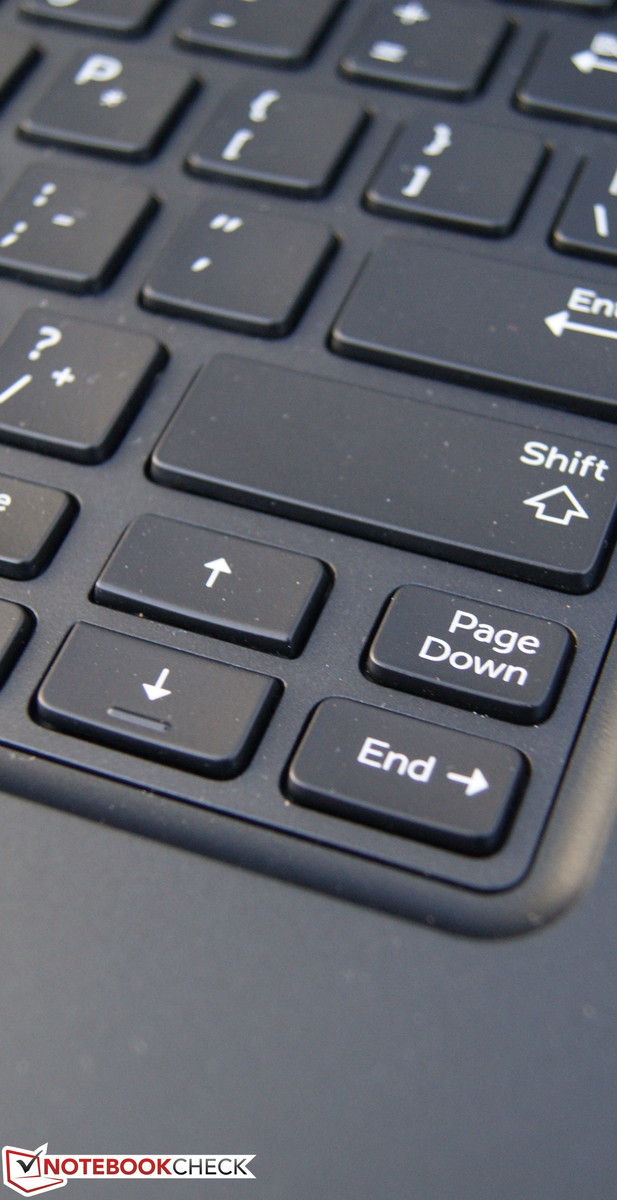

粗犷而坚固。这是戴尔Latitude Rugged 5404在测试中给我们留下的印象。戴尔在输入设备的设计上做得十分出色。首先，它的键盘有舒适的键程，打字手感很好。指点杆也采用了与Extreme系列不同的全新设计，克服了一些明显的缺陷。它的机身仍然很坚固，可以满足很多工业界的标准。但是，它也有一些缺点。屏幕闭合机制和保护盖的厚度给人感觉都不像Extreme系列那样坚不可摧了。一些接口在保护盖后位置的设计可能会让接口较大的设备无法正常使用。

在屏幕的选择上，戴尔把重点放在了户外使用性上，将对于工业用途不重要的一些方面放在了次要位置。它超高的亮度加上磨砂的屏幕表面可以保证几乎所有环境下的使用。不过，用户需要接受它在对比度和色彩还原上的不足。它的硬件配置相比其他竞争对手略显疲弱。它需要一块固态硬盘和更大的工作内存来追赶竞争对手的脚步。不过，德国版的戴尔Latitude Rugged系列可能会是更好的选择，因为它们有更高的配置。高质量的配件让它在运行中发热量十分低。

对于工业用途来说电池续航时间是一个非常关键的参数。这台测试机几乎可以在保证一整个工作日的实际使用时间。Bullmann在测试中得到了更好的成绩。不过，更大容量的电池，或者可选的外接充电站可以为Rugged机型提供更长的续航时间。

整体上，这款Rugged系列笔记本十分全面。它在许多细节上有了改进，让它更趋完美。不过，为降低售价而相比Extreme机型做出的改变也让它不得不放弃很多功能。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Dell Latitude 14 Rugged - 5404 (Latitude 14 Rugged Series)

Processor

Intel Core i5-4310U 2 x 2 - 3 GHz, Haswell

Graphics adapter

Intel HD Graphics 4400, Core: 1100 MHz, RAM: 800 MHz, igdumdim 64 10.18.10.3412

Memory

4 GB

, 1600 MHz DDR3L, 2个内存槽，1个已占用

Display

14.00 inch 16:9, 1366 x 768 pixel, AU Optronics AUO333C B140XTN, TN, glossy: no

Mainboard

Intel Lynx Point-LP

Storage

Seagate Momentus Thin ST500LT012-1DG142, 500 GB

, 5400 rpm, 5400 rpm

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

1 Express Card 54mm, 2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 DVI, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 整合耳机插口, Card Reader: SD, Sensors: 光线传感器

Networking

Intel I218-LM (Clarkville ULT) Network Adapter (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth Bluetooth 4.0, LTE

Optical drive

HL-DT-ST DVD+-RW GU90N

Size

height x width x depth (in mm): 44.4 x 347 x 243

Battery

67 Wh Lithium-Ion, 6 芯

Operating System

Microsoft Windows 8.1 64 Bit

Camera

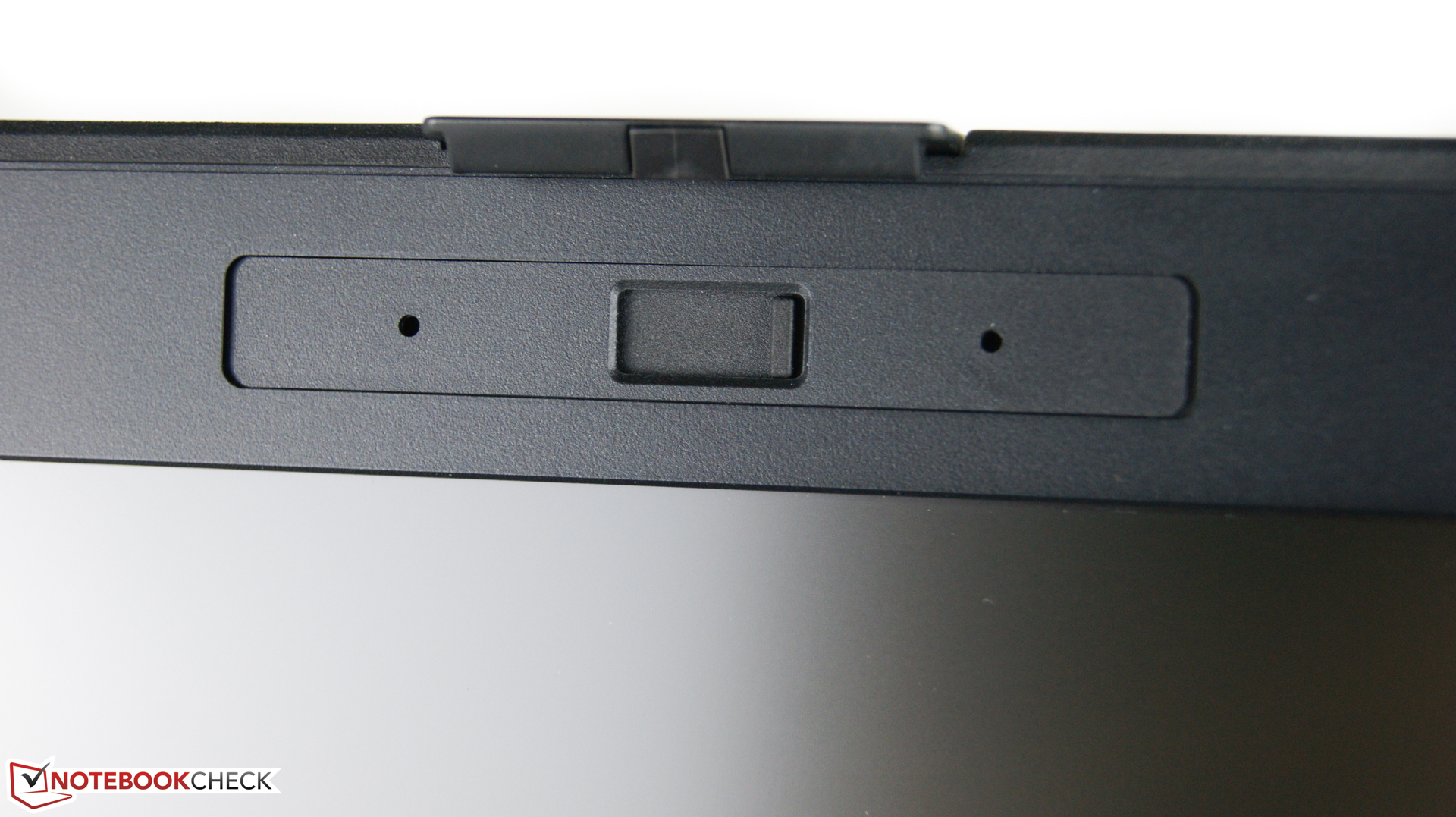

Webcam: 720p

Additional features

Speakers: 立体声扬声器, Keyboard: 孤岛式, Keyboard Light: yes, 24 Months Warranty

Weight

3.07 kg, Power Supply: 325 g

Price

1850 Euro

Links

Dell homepage
Dell notebook section

Devices with the same GPU and/or Screen Size

Acer TravelMate P246-M-598B 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 2.063 kg

戴尔 Latitude 14 E5450 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 1.968 kg

东芝 Tecra Z40T-A1410 笔记本简短评测
HD Graphics 4400, Core i5 4310U, 1.624 kg

戴尔 Latitude 14 Rugged Extreme 笔记本电脑简短评测
HD Graphics 4400, Core i5 4300U, 3.69 kg

Devices with the same GPU

戴尔 Latitude E5550 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 15.60", 2.14 kg

东芝 Satellite Pro R50-B-112 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.3 kg

联想 IdeaPad Flex 2 15 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.608 kg

Pros

+ 机身

+ 屏幕亮度

+ 三防认证

+ 升级选项

+ 可维护性

+ 发热、噪音

+ 输入设备

+ 便于携带

Cons

- 很多功能仅为可选而未标配

- 工作内存

- 传统硬盘

- 对比度
