MagyarLenovo Legion 5 17IMH05
Specifications

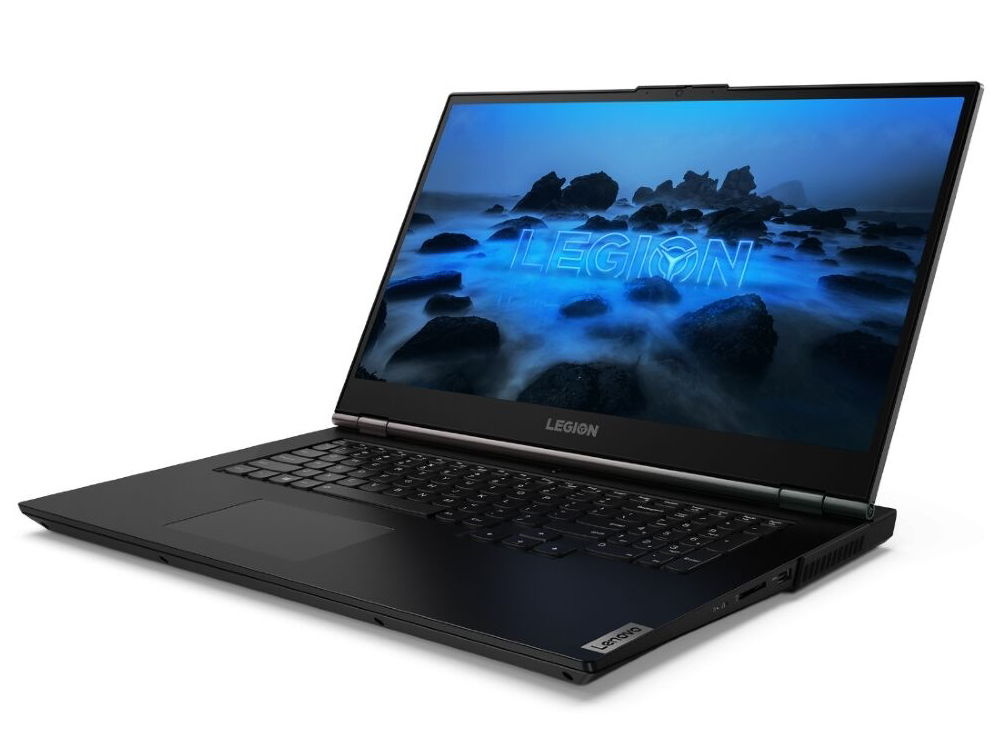

Lenovo Legion 5 17IMH05 (Legion 5 17 Series)
Processor
Intel Core i5-10300H 4 x 2.5 - 4.5 GHz, Comet Lake-H
Graphics adapter
NVIDIA GeForce GTX 1650 Mobile - 4 GB VRAM, Core: 1515 MHz, RAM: 1500 MHz, GDDR6, 27.21.14.5638 (Nvidia 456.38), Optimus
Memory
8 GB
, DDR4-3200, Single-Channel-Mode, two memory banks (one bank in use)
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.3, IPS, glossy: no, 60 Hz
Mainboard
Intel HM470
Storage
SK hynix BC511 HFM512GDHTNI-87A0B, 512 GB
, 1x M.2-2242, 1x M.2 or 1x 2.5" (empty), 421 GB free
Soundcard
Realtek ALC3287
Connections
5 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Headset combined port, Card Reader: SD, SDHC, SDXC, MMC, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Size
height x width x depth (in mm): 26.2 x 398.6 x 290
Battery
80 Wh, 5350 mAh Lithium-Ion
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, McAfee LiveSafe (Trial), MS Office 365 (Trial), 24 Months Warranty
Weight
2.912 kg, Power Supply: 418 g
Price
999 Euro
Links
Price comparison
Average Score:
Average of 1 scores (from 2 reviews)
Average of 1 scores (from 2 reviews)
price: - %, performance: 83%, features: 62%, display: 84% mobility: 73%, workmanship: 76%, ergonomy: 83%, emissions: 85%
Reviews for the Lenovo Legion 5 17IMH05
Lenovo Legion 5 17IMH Laptop Review: The battery just won't die | Notebookcheck
Despite the hardware from the gaming entry-level segment, you don't have to worry about the performance. The Legion 5i brings all the current computer games smoothly to the matte screen (Full-HD, IPS). The highlight of the laptop is the outstanding battery life.
Despite the hardware from the gaming entry-level segment, you don't have to worry about the performance. The Legion 5i brings all the current computer games smoothly to the matte screen (Full-HD, IPS). The highlight of the laptop is the outstanding battery life.
Lenovo Legion 5i 17 - disassembly and upgrade options
Source: Laptop Media
Archive.org version
Support, online available, Very Short, Date: 11/20/2020
Source: Laptop Media
Archive.org versionSupport, online available, Very Short, Date: 11/20/2020
Lenovo Legion 5i 17 review – they have done it again
Source: Laptop Media EN→zh-CN Archive.org version
There are definitely some compromises made in order to keep the price down. However, they are massively outweighed by all of the features and perks this unit has. Ultimately, we run all of our tests with the Extreme Performance preset, which is activated by the “Fn+Q” key combination. Nevertheless, it extracted everything out of the GTX 1650 Ti, which is a budget-conscious, but very capable GPU.
Single Review, online available, Very Long, Date: 11/20/2020
Source: Laptop Media
EN→zh-CN Archive.org versionThere are definitely some compromises made in order to keep the price down. However, they are massively outweighed by all of the features and perks this unit has. Ultimately, we run all of our tests with the Extreme Performance preset, which is activated by the “Fn+Q” key combination. Nevertheless, it extracted everything out of the GTX 1650 Ti, which is a budget-conscious, but very capable GPU.
Single Review, online available, Very Long, Date: 11/20/2020
Comment
NVIDIA GeForce GTX 1650 Mobile:
基于台式机GTX 1650的笔记本电脑的中端独显，基于图灵架构（12纳米FFN中的TU117芯片），没有光线追踪和Tensor内核。
» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.
i5-10300H:
基于Comet Lake体系结构（Skylake的第四代），适用于大型和重型笔记本电脑。集成了时钟频率为2.5-4.5 GHz的四个处理器内核（带有4个内核的4.2 GHz），它们支持HyperThreading。
» Further information can be found in our Comparison of Mobile Processsors.
17.30":
这个大尺寸屏幕常见于以桌面使用为主的笔记本电脑。
大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。
» To find out how fine a display is, see our DPI List.
2.912 kg: 这是15寸笔记本电脑的常见重量。
» Further information can be found in our Notebook Purchase Guide.
