Lenovo Miix 520-12IKB 20M3000LGE

Specifications

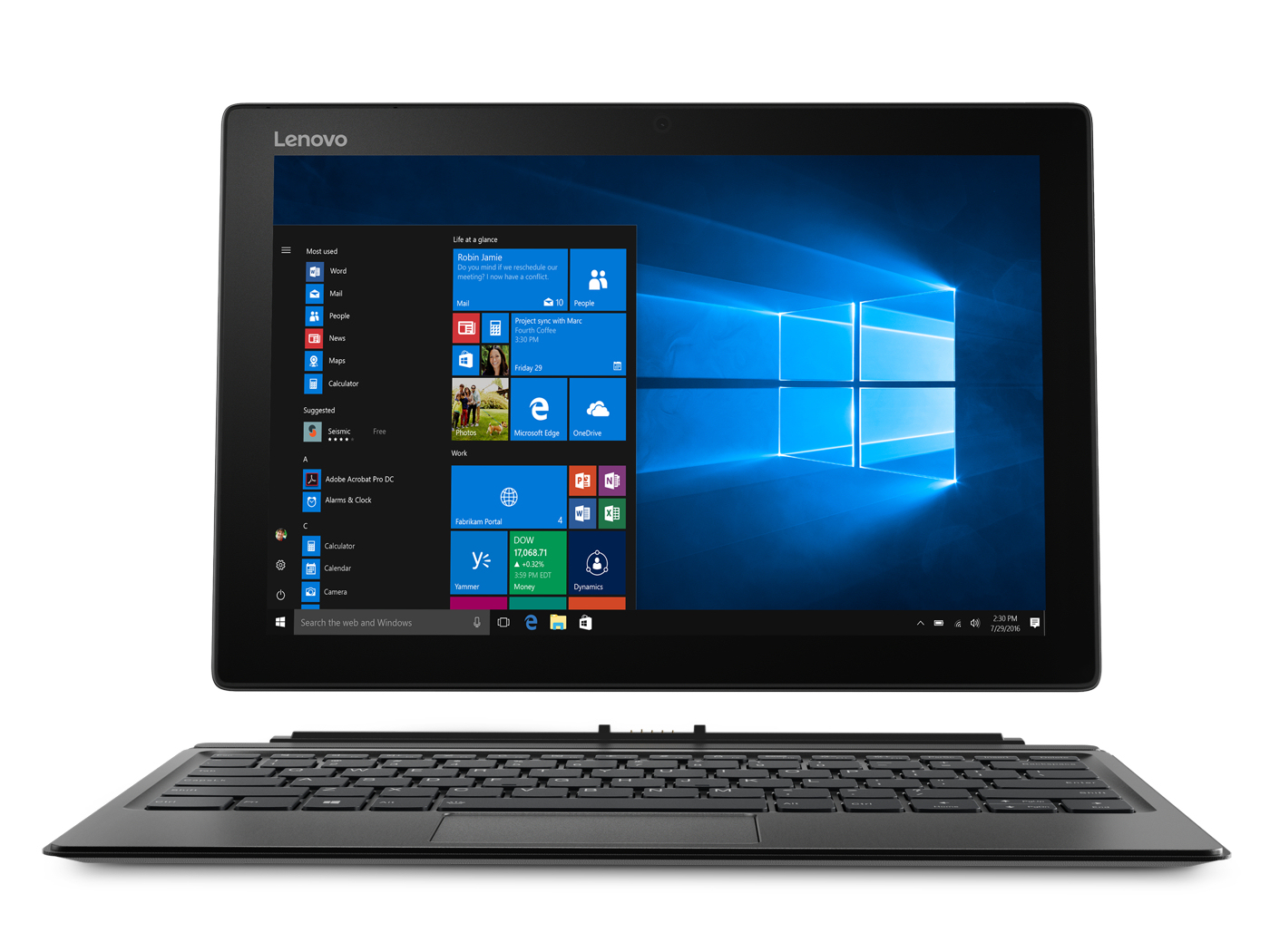

Lenovo Miix 520-12IKB 20M3000LGE
Lenovo Miix 520-12IKB 20M3000LGE (Miix Series)
Processor
Intel Core i7-8550U 4 x 1.8 - 4 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620, Core: 1150 MHz, Dual-Channel, 22.20.16.4836
Memory
16 GB
, LPDDR4-2133, Dual-Channel, Speicher fest verlötet, keine Speicherbänke
Display
12.20 inch 16:10, 1920 x 1200 pixel 186 PPI, kapazitiv, 10 Berührungspunkte, native pen support, Unbekannt, IPS, glossy: yes, detachable screen
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), 1024 GB
, 200 GB free
Soundcard
Realtek ALC298 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, Audio Connections: Audiokombo, 1 Fingerprint Reader, Brightness Sensor, Sensors: Beschleunigungssensor, TPM 2.0
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1, Fibocom L831-EAU, LTE
Size
height x width x depth (in mm): 9.9 x 303.9 x 219.1
Battery
38 Wh, 4955 mAh Lithium-Ion, 7.68 V
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 5 MP
Primary Camera: 8 MPix Worldview-Kamera mit Autofokus
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, Tasche, Eingabestift, Stifthalter, McAfee LiveSafe (Testversion), MS Office 365 (Testversion), 24 Months Warranty
Weight
1.26 kg, Power Supply: 205 g
Price
1699 Euro



Price comparison

Average Score: 84.43% - good
Average of 3 scores (from 3 reviews)
price: 50%, performance: 82%, features: 38%, display: 82% mobility: 79%, workmanship: 86%, ergonomy: 83%, emissions: 90%

Reviews for the Lenovo Miix 520-12IKB 20M3000LGE

83.3% Lenovo Miix 520-12IKB (i7-8550U, SSD, WUXGA) Convertible Review | Notebookcheck
Great components. Lenovo's Surface Pro competitor can score with a strong quad-core processor, 16 GB of RAM, an NVMe SSD, a backlit keyboard, input pen and LTE modem. But despite its high price, the device is not free from issues.
Lenovo Miix 520 So gut ist der Surface-Pro-Konkurrent
Source: WinFuture German DE→zh-CN Archive.org version
Single Review, online available, Short, Date: 03/15/2018
80% Test du Lenovo Miix 520 : le meilleur clone de la Microsoft Surface Pro
Source: CNet France French FR→zh-CN Archive.org version
Single Review, online available, Short, Date: 02/16/2018
Rating: Total score: 80%
90% Lenovo Miix 520-121KB [TEST]: Den perfekte hybrid
Source: Alt om Data DA→zh-CN Archive.org version
Single Review, online available, Short, Date: 07/12/2018
Rating: Total score: 90% price: 50% performance: 90%

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8550U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的时钟频率介于1.8和4 GHz之间(Turbo Boost),并支持超线程。集成GPU的时钟频率介于300和1,150 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


12.20":

这个屏幕尺寸对于平板来说略大,而对亚笔记本来说稍小。一些变形本采用了这个尺寸的屏幕。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.26 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
